Fig. 7

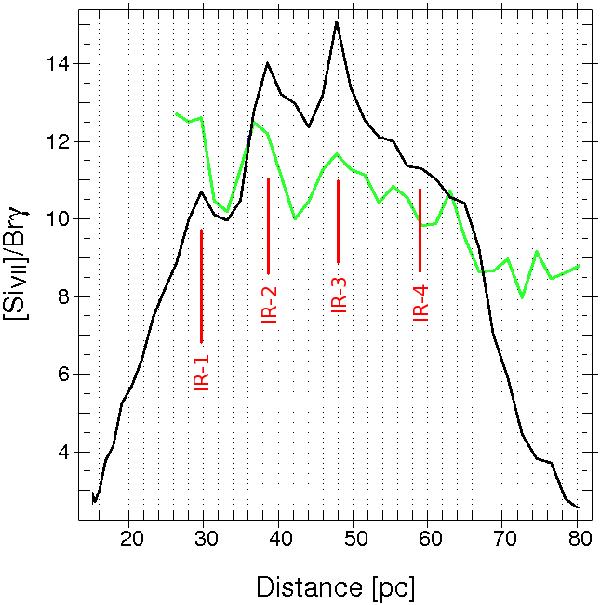

[Si vii]/Brγ flux ratio as a function of the distance from the central source in blue, superimposed on the maximum intensity along the spatial dimension of the slit as a function of the distance from the central source in black (arbitrary units). The ratio is almost constant whatever the distance. In green, the position of the nodules identified.
