Fig. 3

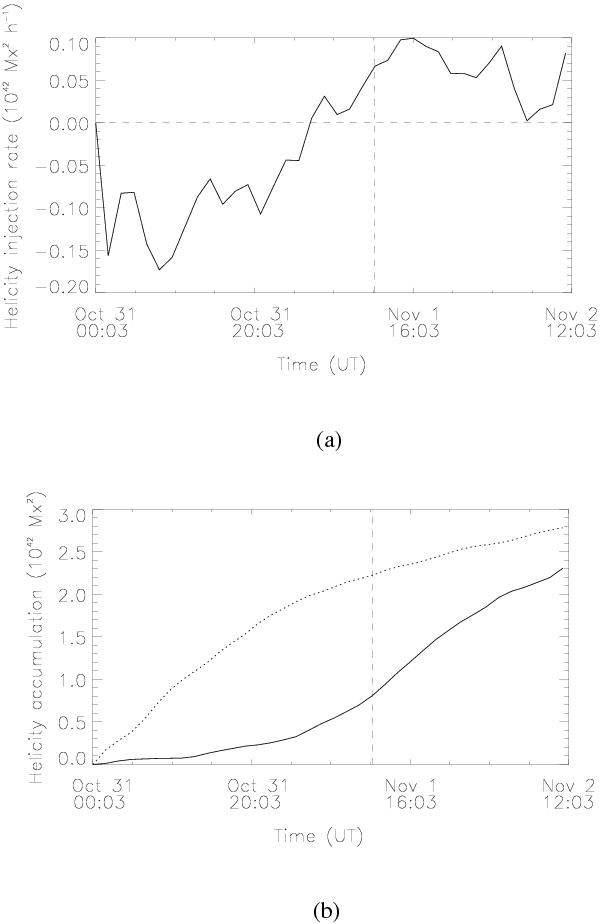

Helicity accumulation around the western footpoint of the filament. The dashed vertical line indicates the time of the eruption. a) shows the helicity injection rate; b) shows the positive helicity accumulation (solid line) and the negative helicity accumulation (dotted line).
This figure is made of several images, please see below:
