Fig. 3

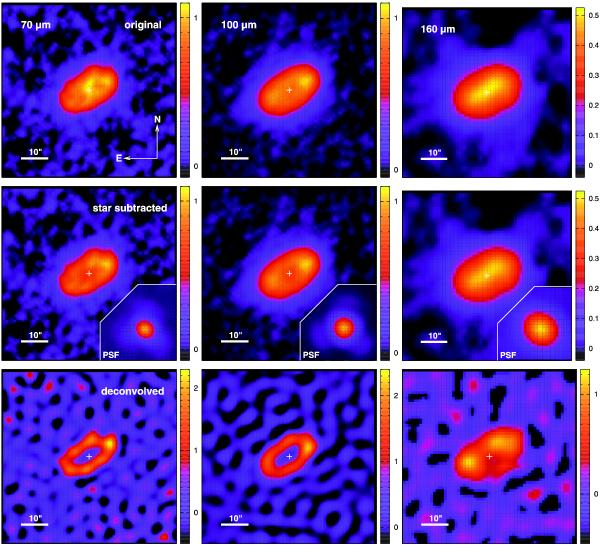

Original image (top), post stellar subtraction (middle) and Wiener deconvolved image (bottom) in the three PACS wavelengths. The ring structure is clearly visible in both the 70 and 100 μm images. Image orientation is North up, East left. A distance scale bar has been provided, 10′′ is equivalent to 160 AU. The colour scale bar is in units of mJy/arcsec2. The stellar position, derived from isophotes in the 70 and 100 μm observations, is marked as a white cross in each image.
