Fig. 9

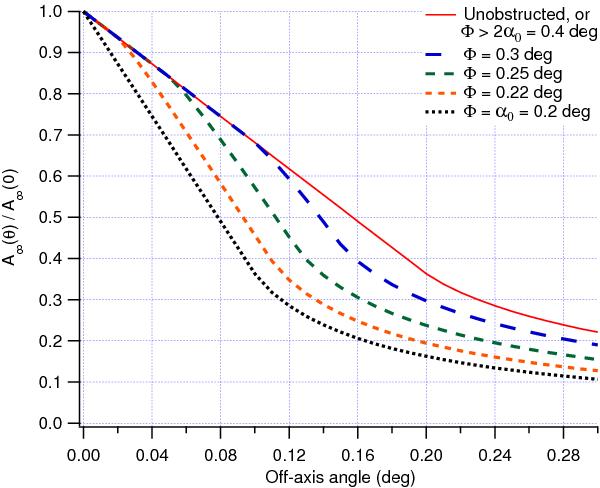

Normalized geometric area, A∞(θ)/A∞(0) of an obstructed mirror shell with α0 = 0.2 deg, δ = 0, and L1 = L2, as a function of the off-axis angle, for different values of the obstruction parameter Φ, with Φ ≈ Ψ ≈ Σ and L = L ∗ . The curves are traced using the analytical formulae reported in Sect. 4.1. The curve for the unobstructed mirror (the solid line) is also valid for any obstructed mirror with Φ > 2α0.
