Fig. 5

thumbnail

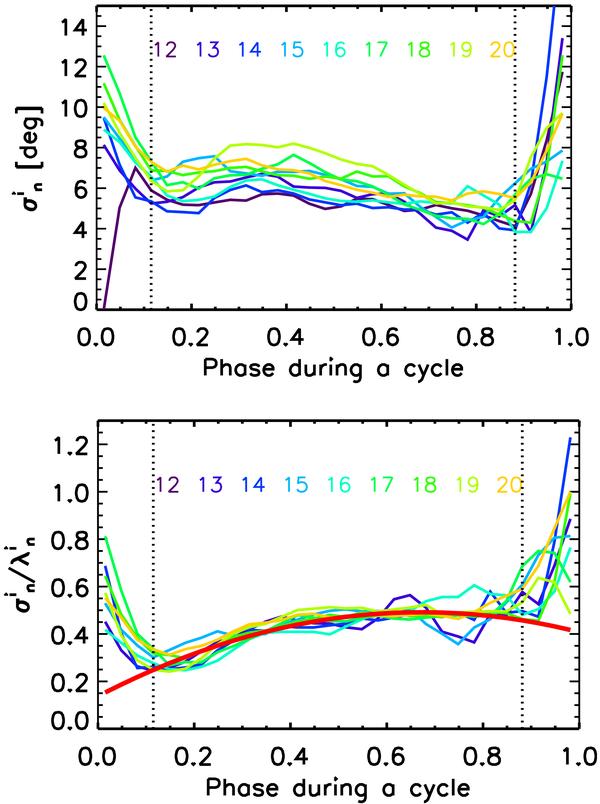

Upper panel: standard deviation of the latitudinal distribution of phase-binned latitudes for cycles 12–20. The line style is the same as in Fig. 2. Lower panel: similar except is shown. The thick red curve shows the polynomial fit given by Eq. (5).

This figure is made of several images, please see below:
