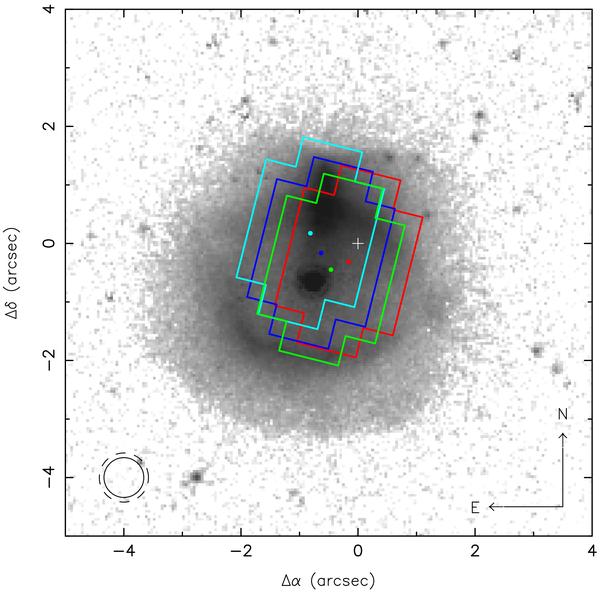

Fig. 6
The HST F656N (Hα+[N II]) image of M 2-29 (HZG08) overlaid with approximate positions (dots) and footprints (lines) of the FLAMES mini-IFU for exposures in the grating settings LR01 (blue), LR02 (cyan), LR03 (green), and LR05, LR06 and LR07 (red). Differential atmospheric refraction shifts the 2 × 3″ mini-IFU between each exposure and from the reported centre (white cross). The approximate mean seeing (FWHM) is shown by circles of diameters 0.68″ (solid) and 0.84″ (dashed) for non-LR03 and LR03 exposures, respectively.
