Fig. 4

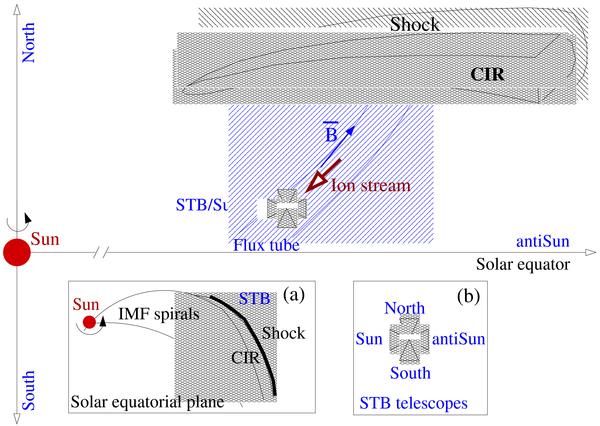

Schematic diagram of the STEREO-B position with respect to the supposed CIR/CIR shock. The magnetic flux tube is convected over STB and is filled with nearly scatter-free ions streaming along the magnetic field from the CIR towards STB. The ions are only detected in two telescopes looking towards anti-Sun and north. Inserts: a) Parker spirals and the CIR region in projection on the solar equatorial plane, b) fields of view of all four SEPT telescopes.
