Fig. 4

thumbnail

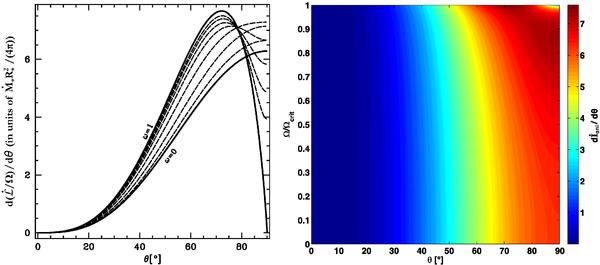

Left panel: rate of angular momentum loss (normalised by the surface angular velocity) from infinitesimal rings centred on the rotational axis for each co-latitude θ. The width of each ring is given by rdθ. The rotation parameter ω is indicated for the curves with ω = 0 and ω = 1. The intermediate dashed curves are for ω = 0.5,   0.75,   0.9,   0.96,   0.98,   0.99,   0.995 respectively. The rate of angular momentum loss is expressed in terms of the normalised units where    is the mass-loss rate of the star, and R   the polar radius of the star. Right panel: same as left panel in a 2D colour plot. The x-axis is the co-latitude, and the y-axis the ratio ω = Ω/Ωcrit. The colour scale on the right indicates the local angular momentum loss from infinitesimal rings centred on the rotational axis for each co-latitude θ. The units are the same as in left panel. The smaller values are in blue and the larger ones in red.

This figure is made of several images, please see below:
