Fig. 3

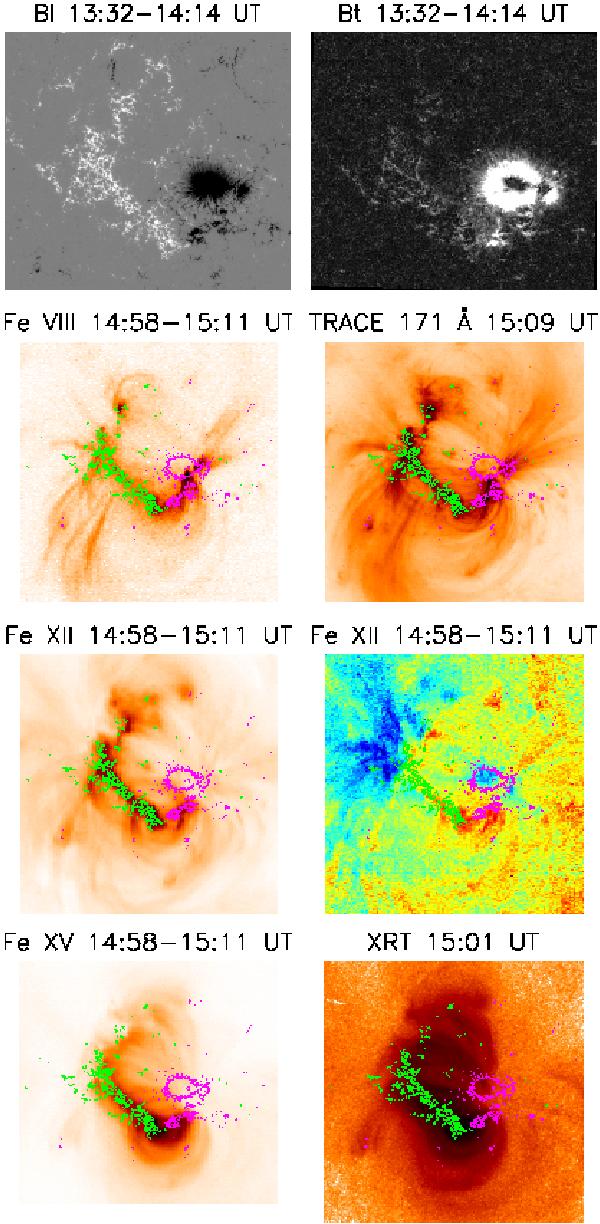

AR 10961 on 1 July 2007. Top to bottom: longitudinal (±800 Gauss) and transverse (±500 Gauss) apparent magnetic field from SOT/SP; “cool” emission as seen in EIS Fe viii and TRACE 171 Å; 1 MK emission as seen in EIS Fe XII, and associated Doppler-map (±30 km s-1); “hot” emission as seen in EIS Fe xv and in XRT (Open + Ti-Poly). Contours superimposed on the images are from co-aligned SOT/FG data.
