Fig. 9

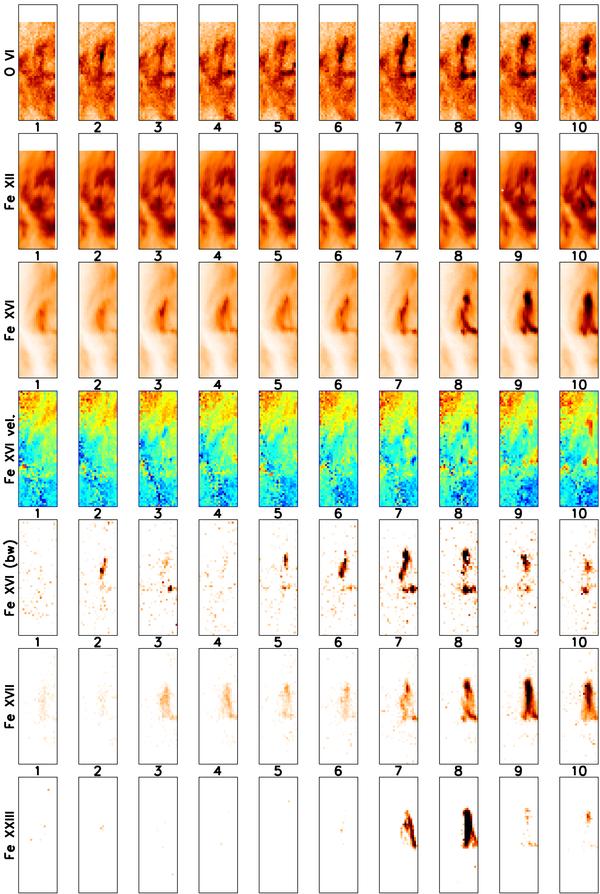

Monochromatic (negative) images from the 10 Hinode EIS rasters in a selection of lines. From top to bottom: O vi 184.1 Å, Fe xii 195.11 Å, Fe xvi 263 Å intensities; Doppler image of the centroid position of the Fe xvi line; intensity of the blue-wing (bw) of the Fe xvi line; intensity in Fe xvii 269.41 Å and Fe xxiii 263.7 Å. The field of view is 40″  ×  120″.
