Fig. 3

thumbnail

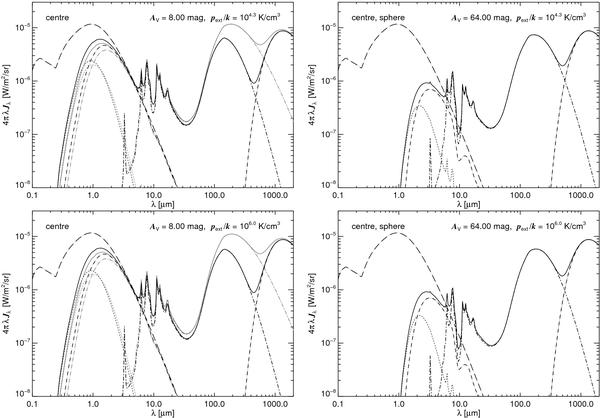

Mean intensity at the center of spherical (black solid lines) and cylindrical (grey solid lines) filaments heated by the ISRF (long dashed lines). The filaments are embedded in a medium with pext/k = 2  ×  104   K/cm3 (top) and 106   K/cm3 (bottom). The extinction through the filaments’ center is either AV = 8   mag (left-hand figure) or AV = 64   mag (right-hand figure). Shown are the different components of the mean intensity: scattered emission (dotted lines), attenuated light (short dashed lines), and dust re-emission (dashed-dotted lines). The emission peak in the millimeter regime is the CMB radiation.
