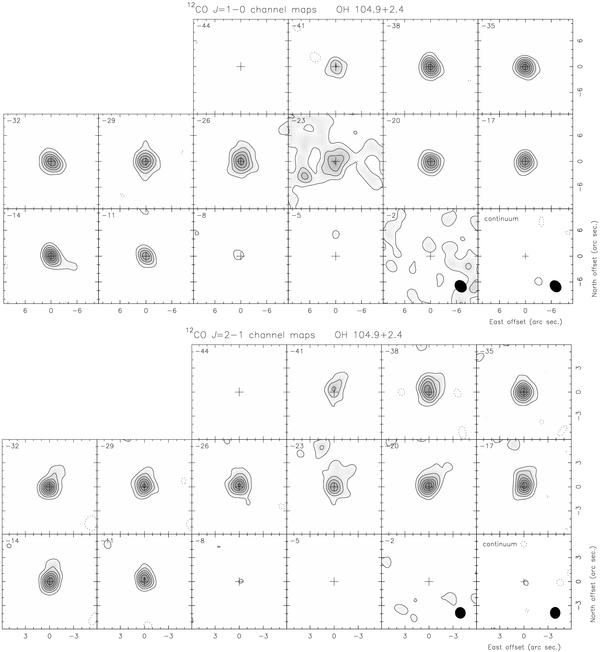

Fig. 16

Channel maps of
the 12CO J = 1−0 and J = 2−1 line
emission toward OH 104.9+2.4 at the LSR velocities (units of km s-1)
specified in the top-left corner of each panel. No primary beam attenuation
correction is applied. (Top) CO J = 1−0:
contours are plotted from, and with a spacing of, 0.032 Jy beam-1.
Equivalent negative contours are plotted in dashed lines. The last panel presents
the continuum emission with a first contour and contour spacing of
3σ, where σ = 0.65 mJy beam-1. The
synthesized beam, plotted in the bottom-right corner of last panels, is
in size, with PA = 42°.
(Bottom) CO J = 2−1: contours are plotted
from, and with a spacing of, 0.068 Jy beam-1. Equivalent negative
contours are plotted in dashed lines. The last panel presents the continuum
emission with a first contour and contour spacing of 3σ, where
σ = 1.4 mJy beam-1. The synthesized beam, plotted in
the bottom-right corner of last panels, is
in size, with PA = 7°. The central
coordinates are RA 22:19:27.480, Dec 59:51:21.70
(J2000).
