Fig. 4

thumbnail

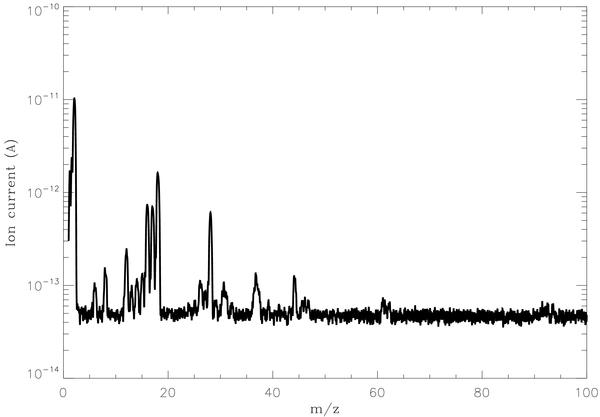

Residual gas analysis in the main chamber of ISAC. The total gas pressure measured by a Bayer-Alpert gauge was 3.6 × 10-11 mbar. The intensity scale on this plot corresponds approximately to pressure in mbar units. The most abundant species are H2 (m/z = 2), H2O (m/z = 18), CO/N2 (m/z = 28), CH3OH (m/z = 31), and CO2 (m/z = 44). The level of organic contaminants, toluene, or xylene at m/z = 91 and 92, is below 10-13 mbar.
