Fig. 3

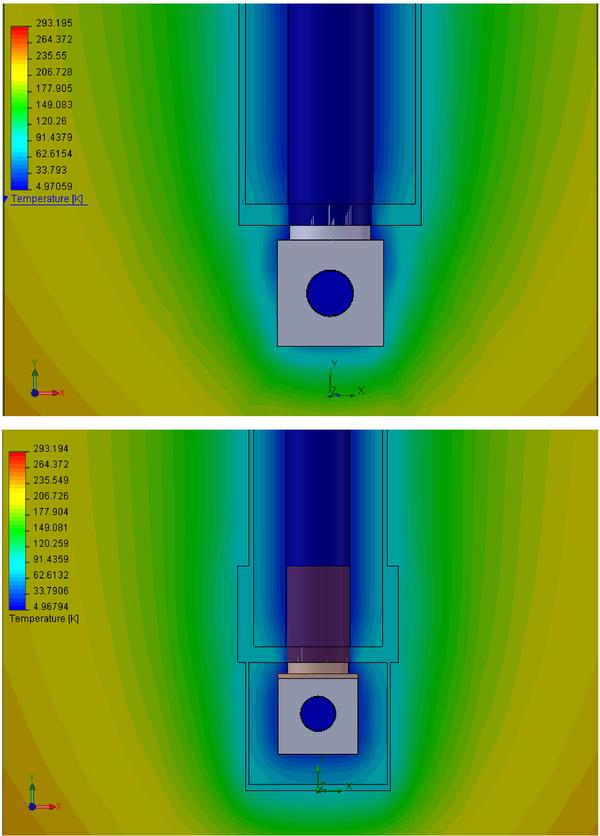

Simulated temperature gradient distribution inside the UHV chamber without radiation shield (top panel) and with a copper radiation shield covering the tip of the cold finger (bottom panel).
This figure is made of several images, please see below:
