A&A 453, 699-715 (2006)
DOI: 10.1051/0004-6361:20054353
G. Mathys - S. Hubrig
European Southern Observatory, Casilla 19001, Santiago 19, Chile
Received 13 October 2005 / Accepted 12 January 2006
Abstract
Aims. We assess the validity of the method of determination of the mean quadratic field modulus and we explore its limits.
Methods. We analyse high spectral resolution, high signal-to-noise spectra of a few Ap stars, and of a superficially normal main-sequence A star, recorded over a broad wavelength range with EMMI at the NTT.
Results. We introduce a revised form of the regression equation describing the dependence of the second-order moment of the line profiles about their centre, in natural light, on various parameters of the corresponding transitions. We show that interpretation of the observed dependences allows one to determine the mean quadratic magnetic field modulus of the studied stars, and their
.
We explain why the contributions to the quadratic field of the mean square magnetic field modulus and of the mean square longitudinal field cannot in general be disentangled. For those stars of the sample that have resolved magnetically split lines, we show that the derived values of the quadratic field are mostly consistent with the values of the mean longitudinal magnetic field and of the mean magnetic field modulus at the observed phase. However there are some hints that they may occasionally slightly underestimate the actual field. This suggests that the method is unlikely to yield spurious field detections. In addition, we illustrate the importance for this type of analyses of using, as far as possible, samples of lines of a single ion, and to specify in the presentation of the results which ion was used.
Conclusions. The results presented in this paper lend strong support to the validity of the quadratic field diagnostic method to obtain a realistic quantitative characterisation of the magnetic fields Ap and related stars.
Key words: stars: chemically peculiar - stars: magnetic fields - methods: data analysis - line: profiles
Under this form, the moment technique has a number of advantages. Its application is much more straightforward than that of numerical synthesis or inversion of line profiles, which require large amounts of complex, time-consuming numerical computation. While the amount of work involved in the latter numerical methods scales roughly like the number of spectral lines under consideration, the diagnostic potential of the moment technique increases with the number of lines studied, at essentially no cost. The simultaneous consideration of several diagnostic lines allows one to identify otherwise unrecognised blends, since the affected line(s) usually yield discrepancies compared to those lines that actually are unblended. Furthermore, it is in principle possible to take advantage from the fact that different lines have different Zeeman patterns to enhance the diagnostic return (within certain limits - in the specific case considered in this paper, see the more detailed discussion of Sect. 3.2).
Through the moment technique, one derives a number of moments of the stellar magnetic field, which characterise the latter in a global manner, over the stellar hemisphere visible at the time of the observation. The quantities obtained in that way are to a large extent independent from specific assumptions regarding the structure of the field. The latter can be modelled from the consideration of the variations of the above-mentioned field moments with rotation phase. The difference between this approach and the one generally followed in numerical line profile synthesis or inversion is that, in the moment technique, the steps of extraction of the information from the observational data (which deals mostly with the physics of the line formation) and of modelling of the magnetic field structure (which is essentially a geometrical problem) are separated. In particular, one may for instance rather easily try to apply various modelling strategies to one single set of field moments, in order to assess the impact of the assumptions underlying the model on the derived field structure.
It can also be noted that the moment technique can be applied to study line profiles recorded in any of the four Stokes parameters. Simultaneous consideration of several Stokes parameters at the modelling stage of course enhances the diagnostic possibilities (all four Stokes parameters being necessary for full constraint of the magnetic field geometry).
But the advantage of the moment technique that has probably proved most important in the studies realised so far through its application is that, thanks to the fact that it uses global parameters integrated over whole spectral lines to characterise the profile shapes, it is especially well suited to the analysis of spectra that do not have a very high resolution or a very high signal-to-noise. This asset of methods of diagnosis of stellar physical properties from the consideration of moments of spectral lines has also been noted in applications to other contexts (e.g., Castor et al. 1981).
The applications of the moment technique to the determination of
stellar magnetic fields that we have published so far were mostly based
on such data obtained at moderate resolution
(
-
and signal-to-noise
ratio (S/N 70-200), over a fairly limited wavelength range (with
spectral coverages ranging from approximately 700 to 1200 Å, and a
central wavelength close to 6100 Å).
The drawback is that observational material suffering from this
kind of limitations is not well suited to verify really well the degree
of reliability and of accuracy achieved in the field diagnosis. Of
course, the approach that we have followed so far has received some
theoretical justification and is supported by the consistency of the
results derived with independent measurements of other moments of the
magnetic fields of the studied stars. But it appears important to
investigate more completely the adequacy of the method by applying it
to better data, and to explore in that way the limits of accuracy
achievable in the diagnosis of the magnetic field moments. This is the
purpose of the present work, for the specific case of the determination
of the mean quadratic magnetic field from the study of the second-order
moments of the line profiles recorded in unpolarised light (that is, in
the Stokes parameter I). Compared to the data used in previous
applications of the moment technique, the spectra analysed in this
study typically have a spectral resolution twice as large (or more),
their signal-to-noise ratio is also twice as high in most cases, and
they cover a spectral range from 2.5 to 4 times broader. Accordingly
the number of diagnostic lines that can be used in the analysis is
frequently 10 times greater than in previous studies. While more
recent observational data available e.g. in observatory archives may
in some specific aspects be even better than the spectra considered in
this paper, the additional gain that could come from their
consideration is small compared to this major step, and it should not
be expected to lead to qualitatively different conclusions. In other
words, the results of the present analysis are representative of the
state of the art in the application of the moment technique for
diagnosis of the mean quadratic magnetic field of Ap stars.
In the next section, we describe the observational material used for this study. The analysis procedure is presented in detail in Sect. 3, and the results obtained are discussed in Sect. 4.
Flat field spectra were recorded with the same instrumental configuration from the observation of the illumination of a white screen inside the NTT dome by white lamps mounted on the top ring of the telescope and installed on the dome floor. For each observing night, several such exposures were recorded and averaged so that the achieved signal-to-noise ratio was high enough with respect to the expected quality of the scientific exposures.
For the purpose of wavelength calibration, we obtained spectra of a thorium-argon arc lamp, whose light was fed into EMMI through an integrating sphere mounted on the adaptor between the telescope and the instrument. Even though it is known that EMMI suffers from some flexures as a result of its movement to compensate for sky rotation at the Nasmyth focus, we preferred not to repeat the wavelength calibration exposure for each position of the instrument, for the sake of saving observing time. Accordingly, a single arc spectrum was taken for each night. This is believed not to be a major drawback: the EMMI flexures mostly introduce global shifts of the spectrum, that is, change the zero point of the dispersion relation, but they only negligibly affect the higher-order coefficients of this relation. Since we are primarily interested in achieving a good internal wavelength accuracy (to study line broadening) but we have no need for precise absolute wavelengths (e.g., we do not aim at determining radial velocities), the flexure error in the wavelength calibration is acceptable.
Data reduction was performed using the ESO image processing package MIDAS. Echelle orders were automatically detected by the method of the Hough transform, and a two-dimensional polynomial fit was computed to define their location on the CCD. For both the scientific and the flat field frames, the background scattered light was modelled by fitting its level in the interorders by a 2-dimensional cubic spline. The result was subtracted from the corresponding exposure, prior to the division of the scientific frame by the flat field. The echelle orders were then extracted from the resulting frames. They were normalised to the continuum one by one, dividing them by polynomials fitted to high points of the spectra that were identified by cursor entry on a display.
The wavelength calibration was performed in two steps. First, an automatic
search for suitable arc lines was executed on the wavelength calibration
exposures, and their positions were determined by fitting Gaussian to
them. Two such lines in the overlapping part of two echelle orders were
identified interactively. Using these identifications as a starting
point, an automatic iterative procedure was run to identify as many lines
as possible. These identifications were used to define a dispersion
relation for each echelle order,
,
where
is
the line nominal wavelength, x is the position of the centre of the
Gaussian fitted to it in the dispersion direction, and m is the echelle
order where the line occurs. The functions Pm (one per echelle
order) are taken to be polynomial.
Although the above-described procedure gives
reasonable results in most cases, on some occasions (typically, for a
few of the about 60 orders of an EMMI echelle spectrum such as those
discussed here), it may yield significantly erroneous results. This
appears to result essentially from the fact that dispersion relations
are derived independently for each echelle order, and errors mostly
occur for orders where the number of suitable calibration lines is
small or where their distribution across the order is very uneven. But
even for orders with apparently enough, well distributed calibration
lines, misidentification may sometimes occur and lead to the derivation
of a spurious calibration relation. Therefore, it appeared desirable to
use the above-mentioned procedure only as a first guess and to
complement it by a second step. This second step is inspired by the
procedure originally introduced by Hensberge & Verschueren
(1989),
already applied in a somewhat different manner by Mathys (1991)
for the
reduction of echelle spectra recorded with another instrument.
A global
fit of the wavelength as a function of the position of the line on the
CCD in the dispersion direction and of the order number is performed.
Differences between the fitted and actual wavelengths are calculated
for each line. Lines for which this difference exceeds three times the
rms deviation for the whole sample are removed from it, and
a new fit is computed. The procedure is iterated until all the
ThAr lines left have fitted wavelengths differing from their actual
wavelengths by at most three times the rms deviation for the whole
sample. This is very quickly achieved in general, typically in about 5
iterations. Only a very small number of lines
(usually less than 10 in a sample of several hundred) have
to be discarded to improve very significantly the overall accuracy
of the wavelength calibration. The 2-dimensional dispersion law proves
to be adequately represented by a function of the form:
The rms deviation of the wavelengths of the Th and Ar lines about the best fit eventually derived is of the order of 2 mÅ. This value gives a good estimate of the internal accuracy achieved in the wavelength calibration. This calibration is applied to the normalised scientific spectrum by assigning to each pixel of the latter the corresponding fitted wavelength. Contrary to the MIDAS usage, the spectra are not rebinned to a constant wavelength step, since this was found to introduce some degradation of the line profiles. The latter is small but nevertheless would have a non-negligible impact on the quadratic magnetic field diagnosis, in which it would appear like an additional source of noise.
With this wavelength calibration procedure, recombining (averaging) the contributions of adjacent echelle orders in the regions where they overlap would require resampling them: we preferred not to do so, so as to keep the line profile information exactly as originally recorded. Therefore, when merging the echelle orders into one single piece encompassing the whole wavelength range covered, in the regions where two orders would have overlapped, we kept only the contribution of one of them and simply discarded the other. The dividing point for keeping the contribution of one or the other order involved was taken as the middle of the overlap interval. Such a rough procedure obviously entails some loss of information, but not much, because in the adopted instrumental configuration, order overlaps are quite small. Furthermore, this loss in signal-to-noise ratio of the affected spectral intervals was judged to be less detrimental to the projected type of analysis than the effect of the wavelength resampling that would have been required to avoid it.
Table 1: Journal of observations and parameters of the studied stars.
The journal of the observations is given in Table 1,
together with some relevant physical parameters of the observed
stars. The first three columns give the HD number, an alternative
identification, and the spectral type. Spectral types are from Renson
et al. (1991), except for HD 91375 (Gray & Garrison
1987). The heliocentric Julian Date of mid-observation
appears in Col. 4, and the signal-to-noise (S/N) ratio per pixel of
the reduced spectrum in Col. 5. In Cols. 6 and 9, one finds values of
the effective temperature
and of
as derived in the
references mentioned in Cols. 7 and 10, respectively. For HD 133792,
was estimated from Strömgren photometry by application of the
method of Moon & Dworetsky (1985). Only
determinations
based on spectra obtained at a resolution comparable to the ones used
in the present observations have been considered. The values of
estimated from the spectra analysed in this work are also given in
Col. 8. The last two columns give
the rotation period and the corresponding reference.
As is well known, evaluation of the S/N ratio achieved in spectra of
Ap stars is hampered by the difficulty to identify a spectral region
sufficiently free of lines, so that it can be considered
representative of the true continuum. In all stars of the present
sample but HD 137949, the S/N ratio was estimated from measurement of
the rms deviation of the reduced spectrum about the fitted continuum
in a "clean'' spectral interval redwards of H;
for
HD 137949, which is particularly line-rich, a "line-free'' stretch
bluewards of H
was preferred. In all cases, the derived value,
as given in Table 1, must be regarded as a lower limit of
the actually achieved S/N ratio at the wavelength at which it was
determined. However, the S/N ratio across the whole recorded spectral
range varies due to the wavelength dependence of the transmission of
the cross-disperser grism and to the blaze effect of the echelle
grating. Taking these efficiency variations into account, we estimate
that the S/N ratio per pixel at any point of a given spectrum is
comprised within a factor 1.5 of the value quoted for this spectrum in
Table 1.
The values of
appearing in Col. 8 of Table 1 were
estimated by spectral synthesis of the magnetically insensitive line
Fe I
.
This line is visible in all the
studied stars but HD 96446 (which is too hot); however it is quite
weak in HD 94660 and in HD 116458. In most stars, it has broad wings,
for which a good fit cannot be achieved with a simple model, and which
are probably indicative of the existence of abundance stratification
in the atmosphere of these stars. Study of such effects is beyond the
scope of the present work, so that the current
estimates were
derived by optimising the fit of the central part of the line. The
related uncertainties should be kept in mind.
Most of the stars that have been observed within the framework of this project are Ap stars with resolved magnetically split lines. These stars appear well suited to the purpose of this study because the mean magnetic field modulus that is derived from the measurement of the wavelength separation of the split components of their spectral lines (Mathys et al. 1997) bears some relation to the mean quadratic magnetic field. One can take advantage of this to check the consistency of the diagnosis of the latter as well as to gain additional insight into the structure of the magnetic field. This will be discussed in more detail in Sect. 4.2.
We have also recorded a spectrum of HD 96446, a peculiar B2 star, which is one of the hottest non-degenerate magnetic stars known. The main motivation for including this star in the sample was that it has a very "clean'' spectrum, with a considerable number of well defined weak spectral lines that can be used for magnetic field diagnosis. As mentioned in Sect. 1, all the applications of the moment technique so far have resorted to the weak-line approximation: HD 96446 is definitely one of the cases where this approximation is best justified. In particular, it is noteworthy that the field diagnostic lines are in average at least ten times weaker for HD 96446 than for the other Ap stars studied in this paper. The latter can be regarded as representative of most Ap stars.
For comparison purposes, as well as to probe the limits of the present approach for magnetic field detection, we have also included in the studied sample two stars that are unlikely to have a strong magnetic field, HD 91375 and HD 133792. The former is a superficially normal A2IV star (Gray & Garrison 1987), while the latter is an A0p SrCr star (Renson et al. 1991) with a quite pronounced peculiar character. Both stars, have very sharp spectral lines. They were studied by Mathys (1990a), who found no indication of the presence of a magnetic field.
For each spectrum, we have measured
for samples of
apparently unblended lines that will be specified below.
The equivalent width
,
the centre of gravity
,
and the second-order moment
have been
computed by simple integration of the observed
line profiles. This has been described in more detail in Sect. 2
of Mathys (1994). The measurement uncertainties have also been
evaluated as explained in that reference.
These measurements were analysed through a semi-empirical approach inspired from the one originally introduced by Stenflo & Lindegren (1977) to study the magnetic field of the sun. Namely, for a statistical sample of spectral lines, dependences of the second-order moments of the profiles on other parameters characterising the line were sought and quantified through a multiple linear regression analysis. As a guideline for this search and as a tool for the interpretation of its outcome, we used the results established by Mathys (1988) in his original study of the line profile moments in the presence of a magnetic field.
According to that reference, the second-order moment
can be
expressed as:
is the line-intensity weighted average over the stellar disk
of the square of the distance x to the plane defined by the stellar
rotation axis and the line of sight (this distance is expressed as a
fraction of the stellar radius). A typical value of this average is
1/5. Its derivation and the assumptions underlying it have been
described by Mathys (1995b). Depending on how closely the
assumptions made represent the actual physical conditions in the stars
of interest, the actual value of
may not be exactly 1/5, but
the latter should be an acceptable approximation for all practical
purposes of the present study.
![]() |

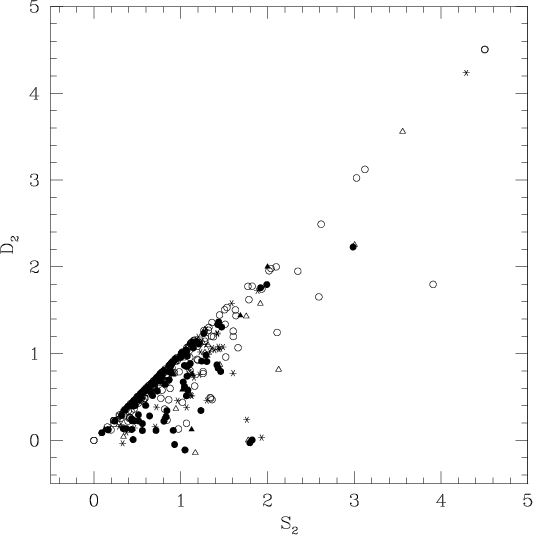

Figure 1: Comparison of the atomic parameters S2 and D2 for all the transitions considered in the present analysis. Different symbols are used to distinguish lines of different ions: open circles for Fe I, filled circles for Fe II, asterisks for Cr II, open triangles for O II, and filled triangles for N II. |
Open with DEXTER |
The numerical values of
and
(hence of S2 and D2)
are computed through application of Eqs. (37) and (38) of Mathys & Stenflo
(1987) from the total angular momentum quantum numbers J1and J2
and the Landé factors g1 and g2 of the levels between which the
transition takes place. In the present work, the Landé factors are
retrieved from Kurucz's CD-ROM No. 23 (see http://kurucz.harvard.edu/cdroms.html). Those values are the
experimental ones, when they are available, or they have been derived
from fairly sophisticated computations of the atomic eigenvectors.
Those computed values have been shown to be, in general, considerably
better than those computed by simple formulae for pure atomic
coupling schemes such as LS- or J1l-coupling (Mathys 1990b).
The factor
in the magnetic term in the expression of the
second-order moment of the line profile accounts for the wavelength
dependence of this line broadening effect:
The moments of the magnetic field that contribute to the second-order
moment of the line intensity profile are the mean square magnetic field
modulus
and the mean square longitudinal magnetic field
.
They are the line-intensity weighted averages over the visible stellar
hemisphere resp. of the square of the modulus of the magnetic vector,
and of the square of its component along the line of sight. Their formal
expression has been given elsewhere (e.g., Mathys 1989,
1995b).
In practice, one often encounters difficulties to separate the
contributions of
and
.
Their origin is apparent in
Fig. 1, where D2 is plotted against S2 for all the
lines analysed
in all the stars studied in this work. One can see that the vast
majority of the points are strongly concentrated towards the diagonal
S2=D2, or in other words, that there are only few lines for which
D2 is much smaller than S2. Physically, this reflects the fact
that most of the considered lines have Zeeman patterns that do not
depart very strongly from triplets.
This problem had already been demonstrated by Mathys (1995b). It
cannot
be overcome in the present analysis, even though it relies on
the study of many more lines measured with significantly better
precision. Accordingly, we use the same workaround as Mathys
(1995b). Namely, we introduce a parameter
and we rewrite the combination of the mean square field modulus and of
the mean square longitudinal field appearing in Eq. (4)
under the form:
One definite contribution to this second-order moment is the instrumental
profile. Assuming that this profile is symmetrical (an excellent
approximation for the observational material upon which the present work
is based), its effect can be
accounted for by writing
under the form (Mathys 1988):
represents the part of
that is contributed by the
star. It can be regarded as the second-order moment about its centre
of the hypothetical line profile that would be observed with a
spectrograph of infinite resolving power in the absence of magnetic
broadening and of rotational Doppler broadening. It
always includes a Doppler contribution, due
to the thermal motion of the ions from which the line is formed. This
contribution can be isolated by writing the moment
under the
form (Mathys 1988):
accounts for all the remaining contributions to the total
line width. In what follows we
shall refer to it as the intrinsic
line profile. For weak lines,
should be equal to the
second-order moment of the line absorption profile about its centre.
Transfer effects will complicate the picture. Rather than attempting to
derive a theoretical expression for
,
we shall, along with
Mathys (1988), assume that it is possible to derive an empirical
relation between it and a number M of parameters Qm
(
)
characterizing the observed line and the
transition from which it originates (such as the equivalent width, the
excitation potential of the lower level, etc.), and that this
relation can be put under the form:
![]() |

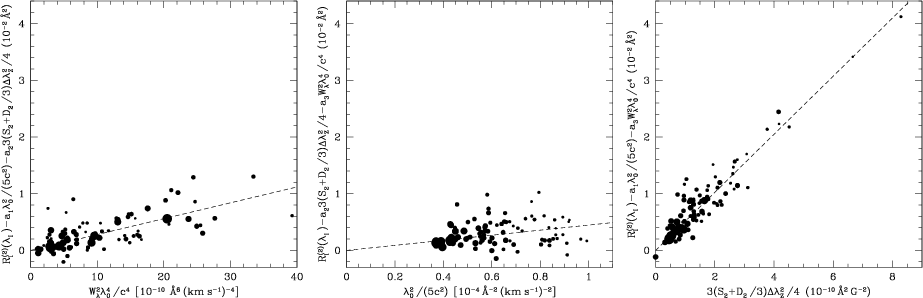

Figure 2: Contribution of the intrinsic ( left), Doppler ( centre), and magnetic ( right) parts of the profiles of the lines of Fe I observed in HD 116114 to their second-order moment about their centre ( see text). The dashed line is the term of the least-squares fit of the observations corresponding to that contribution. The relative weights of the different lines in the regression analysis yielding this best fit line are illustrated by the sizes of the dots representing them. |
Open with DEXTER |
From the above considerations, one can infer that the way in which
depends on other parameters should generally be different for
different ions. For instance, the contribution of the thermal motion to
depends on the mass of the ion. Also, a possible dependence
of
on the excitation potential of the lower level of the
transition
would obviously not be the
same for all ions. Accordingly, to achieve the best accuracy, the
analysis will be based on samples of spectral lines of a single ion.
One can, of course, for a given star, study separately line
samples for different ions. The comparison of the results obtained from
the consideration of those samples may also prove useful. This will be
discussed in more detail in Sect. 4.2.5.
Therefore, we conclude that the dependences of the second-order moment
of the Stokes I line profiles about their centre on the other
parameters characterizing those lines are satisfactorily represented by
a relation of the following form:
![]() |

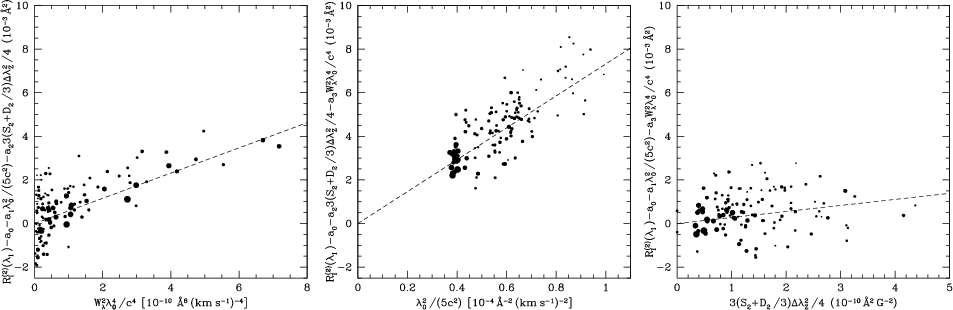

Figure 3: Same as Fig. 2 for the lines of Fe I observed in HD 133792. Note that the ordinate range is nearly one order of magnitude smaller than in Fig. 2. |
Open with DEXTER |
The dependences appearing in Eq. (16) are illustrated in
Fig. 2
in the case of the Fe I lines of the cool Ap star HD 116114.
We have identified in this star 89 lines of Fe I that appear
reasonably blend-free: this sample is about 10 times more populous
than the line
samples that could be used by Mathys (1995b) for most stars (see
Mathys 1991). We have measured the second-order moments of the
profiles
of those lines about their centre, and we have computed a weighted fit
of those measurements by a relation of the form given by
Eq. (16). We
have then isolated the contribution of one of the terms appearing in
the right-hand side of Eq. (16) by subtracting from the
measured values
of
the fitted contribution of the other two terms, and we have
plotted the residual against the relevant parameter. More explicitly,
we have plotted:
![]() |

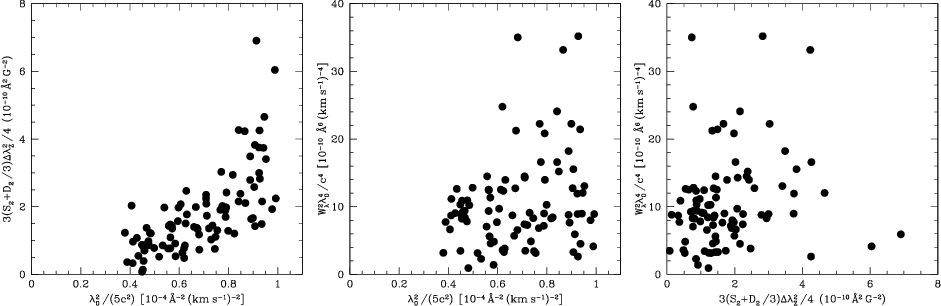

Figure 4: The values for the Cr II lines analysed in HD 94660 of the three independent variables appearing in the right-hand sides of Eqs. (15) and (16) are plotted against each other, pair by pair, as a check of possible mutual correlations between these variables. |
Open with DEXTER |
The opposite situation is found in HD 133792, a star that is, at most,
weakly magnetic. The second-order moments of
144 Fe I lines have been measured in this star. The same dependences
of those moments as for HD 116114 are illustrated in
Fig. 3.
Again, the ordinate scale is the same in the three panels of this
figure, for easy
intercomparison, but note the difference of scale with respect to
Fig. 2: the lines of HD 133792
are much narrower than those of
HD 116114. The main contribution to
in HD 133792 comes from the
Doppler/instrumental term. The latter appears to be of the same order
as in HD 116114: the
difference between the two stars comes from the fact that the contributions
of the other two terms of the right-hand side of Eq. (16)
are smaller
in HD 133792. The slope of the dependence of
on
is similar in both stars, but the Fe I lines
are stronger (by a factor of the order of 2) in HD 116114: this
accounts for the larger contribution of the intrinsic line profile to
the second-order moments of the observed profiles. Finally, the term
with the smallest contribution to
is the magnetic one: this
reflects the fact that HD 133792 has quite sharp spectral lines showing
no evidence for magnetic splitting or broadening. From this
observation, Mathys et al. (1997) have estimated that the
mean magnetic
field modulus of HD 133792 is probably not exceeding 1 kG: this is
fully consistent with the value of
G that we derive
for the quadratic field of this star (see Sect. 4.2).
In multi-parameter fits such as considered here, ambiguities may arise
if correlations exist between the independent variables. In order to
test this eventuality, we plotted the independent variables against
each other, two by two. This illustrated in Fig. 4 for
the Cr II lines of HD 94660. There is absolutely no correlation
between
and the other two independent
variables. But there is a loose correlation between the latter, which
results primarily from the power of the nominal line wavelength
entering their expression:
for one,
for
the other. Therefore when they are plotted against each other, the
points cluster around a parabolic curve, with a scatter corresponding
to the range of values of the magnetic parameters S2 and
D2. This scatter, and the fact that different powers of the
wavelength appear in the expressions of
and of
,
minimise the correlation between these
two parameters in the linear regression. However, due to noise in the
data, the presence of some residual crosstalk between the fit
parameters a1 and a2 cannot be totally ruled out. By contrast,
there should be no ambiguity at all between a3, on the one hand,
and either of a1 or a2, on the other hand.
![]() |

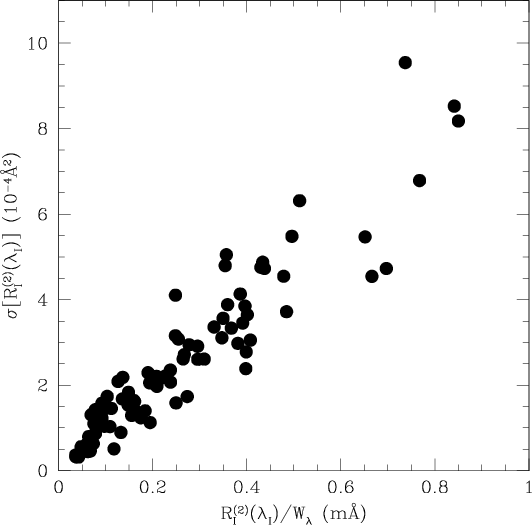

Figure 5: Plot of the estimated error of the second-order moment of the profiles of the lines of Fe II observed in HD 94660 against the ratio of the second-order moment of these lines to their equivalent width. |
Open with DEXTER |
Figure 5 illustrates the meaning of the weighting
applied in the regression analysis. In this case, the example shown
corresponds to the Fe II lines of HD 94660. The weighting
factor that is applied is the inverse of the square of the parameter
appearing in ordinate in this figure,
.
In other words,
the higher the representative point of a spectral line appears in the
figure, the lower the weight given to this line in the regression
analysis. Figure 5 clearly shows a linear relation
between
and
.
In practice, this means
that, at given equivalent width, the broader a line, the lower its
weight in the regression analysis. Intuitively, this weighting makes
sense, because the measurement of broader, shallower lines is more
difficult, their limits are less well defined and integration over
them is more sensitive to noise in the spectra. Nevertheless, the
broadest lines are also those that are most sensitive to the magnetic
field, so that the adopted weighting might be suspected to some extent
to have an adverse effect in the determination of the
latter. Conversely, for a given line width, stronger lines are given a
higher weight than weaker lines. Again, this is consistent with the
intuitive perception that the parameters of the profile of a strong
line can be determined more accurately. However, the adequacy of such
a weighting in a technique in which the interpretation of the results
is based on the weak line approximation may admittedly appear
questionable.
Table 2:
Dependences of
:
least-square fit parameters (without
constant term).
Table 3:
Dependences of
:
least-square fit parameters (with a
constant term).
In spite of its abovedescribed apparent shortcomings, weighting the
regression analysis by
appears justified for the
following reasons:
The coefficients derived through least-square fits of measurements of
for samples of lines of various ions in the studied stars
by the function introduced in Eq. (16) are given in
Table 2. The
columns are, in order, the HD number of the star, the ion under
consideration, the number n of lines of this ion included in the fit,
the fit coefficients and their standard errors, and the rms deviation
of the measurements with respect to the best fit, multiplied by 103.
The numerical values of the fit parameters correspond to the use of the
following units for the quantities appearing in Eq. (15):
Å2 for
,
Å for
and
,
mÅ for
,
and
km s-1 for c.
As mentioned in Sect. 3.4, for the Fe I and Fe II lines in HD 91375, and for the Cr II lines of HD 133792, the fit forced through the origin of Eq. (16) is not quite satisfactory, since a significant, non-zero value is found for the free constant term a0 if a fit function of the form given by Eq. (15) is used. The fit parameters for this latter case are given in Table 3. The format is the same as for Table 2, except for the addition of columns for the constant term a0 and its standard deviation. That the overall quality of the fit is slightly improved by inclusion of the free constant term is reflected by the fact that the rms deviations of interest are somewhat smaller in Table 3 than in Table 2. Allowing a non-zero value for a0 also has some impact on the other fit parameters. For a1, very different values are obtained through the use of fit functions 15 or 16, while a3 is almost independent of which of these two forms is adopted. The behaviour of the coefficient of the magnetic term, a2, is intermediate: it does change if Eq. (15) is used instead of Eq. (16), but this change remains within the respective uncertainty ranges. This result is, obviously, of great importance since our primary purpose is magnetic field diagnosis: the latter appears not to depend critically on the choice of the form of the fit function between the two possibilities considered in this paper.
On the other hand, for HD 96446, a significant value cannot be derived
for the coefficient a3. This can be attributed to the fact that the
range spanned by the values of
for the
measured lines of N II and O II in this star is at least
three times narrower than the range of values of this independent
variable for the measured lines of Fe I, Fe II, or
Cr II in the other studied stars. Accordingly, the possible
dependence of
on
is undefined. This
does not imply that the relation between the second-order moment of
the Stokes I line profiles and the line equivalent width is
different for the lines analysed in HD 96446 from what it is of for
sets of lines of other ions in the other stars of the considered
sample, but only reflects the fact that this relation is not
constrained by the available observational data in the present
case.
Accordingly, for HD 96446, the following simplified form of
Eq. (16) has been fitted to the observed values of
:
In the following subsections, we shall discuss the interpretation of the regression coefficients a1 and a2 in terms of physical parameters characterizing the atmosphere of the studied stars. The physical meaning of a3 will not be considered, since this coefficient pertains to a term that has been introduced to account empirically for radiative transfer effects whose detailed treatment would require the use of sophisticated numerical tools. The development and application of such tools is outside the scope of the present work: actually, one of the main purposes of the use of the moment technique for magnetic field diagnosis is to allow one to derive meaningful constraints without needing to resort to heavy, time-consuming numerical calculations.
For the observational material of interest, the instrumental profile is
well approximated by a Gaussian with a full width at half maximum of
.
This corresponds to
.
Accordingly, one has:
Table 4:
Mean quadratic magnetic field and upper limit of
.
The results obtained through application of this formula are presented
in Table 4. Missing entries in the last column of this
table (where the derived
upper limits are given) correspond to
cases where the term between square brackets in the right-hand side of
Eq. (19) is negative, so that its square root cannot be
calculated. Such mathematically meaningless situation arises, of
course, from the measurement uncertainties. This kind of numerical
problem is particularly prone to occur for the stars of the present
sample, which have been selected primarily because of their slow
rotation. The uncertainties of the
upper limits that are given
in Table 4 are derived from the standard deviations
appearing in Tables 2 and 3,
hence correspond to line-to-line scatter about the best fit regression
(15) or (16). As can be seen from
Eq. (19), the uncertainty affecting the effective
temperature should also, in principle, be taken into account. But in
practice, it is always much smaller than
,
hence it can
be safely neglected.
The slow rotation of the studied stars also restricts the significance
of the
constraints that can be derived. The relative
uncertainties affecting
the upper limits obtained by application of Eq. (19) are
generally not small. Furthermore, any additional unrecognised line
broadening agent with a rotation-like wavelength dependence
(such as micro- or macroturbulence) may contribute to increase the
derived
upper limit by a considerable fraction of the actual
value. Accordingly, the
constraint that can be derived
through the method described here would, relatively, be more
meaningful for stars rotating faster than those of the present
sample. Thus only limited conclusions can be drawn for the latter.
In particular, the current sample is poorly suited to assessing the
exactitude and accuracy that can be achieved in
determinations
with the present method. Consideration of faster rotating stars should
be much more telltale in that respect. Such stars will be studied
in future works.
In general, the upper limits that are derived for the stars of the
present sample seem rather conservative. This is best illustrated by
an example. The star HD 116458 has a rotation period of
(Mathys et al. 2003). Its radius has been estimated by Hubrig et
al. (2000) to be
.
From this, one can
derive the value of its equatorial velocity:
km s-1. This is considerably lower than
the upper limits of
derived from analysis of the lines of
Fe II (5.8 km s-1) or of Cr II
(5.1 km s-1).
These two upper limits are mutually consistent
within their uncertainties. But both are considerably larger than any
plausible value of v. Thus not only they do not bring any new
constraint (in particular, they do not set an upper limit on the angle
i), but also they suggest that the "Doppler'' term in the
expression of the second order moments includes, besides the
rotational Doppler effect, quite significant contributions of line
broadening agents that have a similar wavelength dependence, which are
represented by the
term in Eq. (18). These
extra line broadening agents may or not be other Doppler
contributions, due to various types of local motion in the stellar
atmosphere (e.g., microturbulence).
Some additional insight can be gained from comparison of the
upper limits of Table 4 with the
estimates of
Cols. 8 and 9 of Table 1. Let us recall that the values in
Col. 8 correspond to the fit of a magnetically insensitive line of
Fe I. For 4 of the 9 stars of the sample (HD 81009, HD 91375,
HD 116114, and HD 137949), the most populated of the line samples used
in the present analysis also corresponds to Fe I. For these 4
stars, the agreement between the spectrum synthesis value of
from Table 1 and the upper limit of Table 4
is remarkably good. The Fe I sample also contains the largest number
of lines for HD 133792; for this star, the
upper limit of
Table 4 is only marginally greater than the value of
Col. 8 of Table 1: they are in any event mutually
consistent. For Fe I in HD 116458, there is formal agreement
between the
estimate of Col. 8 of Table 1 and the
upper limit of Table 4, but the significance of this
result is questionable due to the small size of the Fe I line
sample. The more populated samples of Fe II and Cr II
lines yield significantly larger upper limits of
,
which are
marginally consistent with the value derived by Nielsen & Wahlgren
(2000) from fitting of a line of Fe II, but which, as
mentioned above, are definite overestimates of the actual value of
this quantity. The same can be said for the upper limit derived from
the Fe II line sample for HD 94660, which however is fully
consistent with the
value that we estimated from synthesis of
the line Fe I
;
both are definite gross
overestimates of the actual value of
.
No conclusive comparison
can be achieved for the remaining two stars, HD 47103 and HD 96446,
although one may note that the upper limit given in
Table 4 for the latter is not inconsistent with the
value published by Matthews & Bohlender (1991). To summarise
this comparison, there is no indication that the values (or upper
limits) of
derived in this analysis suffer from any systematic
effects compared with the results obtained by spectrum synthesis,
although there is some suspicion that, for some stars, both approaches
may tend to overestimate
,
for reasons at present unclear, whose
detailed discussion is outside the scope of the present work.
![]() |
(20) |
For a given star, the uncertainty affecting the quadratic
field value is strongly dependent on the number of lines from which
this field moment was derived: the larger the sample of lines that
could be analysed, the smaller the uncertainty of the obtained value
of
.
This is a strong indication that the derived uncertainties
primarily reflect random errors in the measurements of the line
profiles, rather than some physical effects not properly accounted
for in the analysis. Accordingly, under the assumption that the lines
of different ions sample the stellar photosphere in the same manner,
hence that the same value of the mean quadratic magnetic field should
be obtained regardless of the ion whose lines are analysed, the
determination of this field moment achieved from consideration of the
largest line set should be the most reliable and accurate one.
Accordingly,
for the following discussion, we shall take as reference for each star
the value of
determined from analysis of the ion for which the
greatest number of lines could be measured. (The possible existence of
ion-to-ion differences in the quadratic field determinations will in
turn be discussed in Sect. 4.2.5.)
Of course, comparison of the two sides of Eq. (23)
requires consideration of the various field moments that are involved
at the same rotation phase. For those stars of the sample
whose period is known, the values of
and
at the phase
corresponding to the observation time given in Table 1
were computed from the best fits to the variation curves of these
field moments computed by Mathys et al. (in preparation) for HD 81009,
HD 94660, HD 116114 and HD 116458, and by Mathys (1994) for
HD 96446 (the lines of HD 96446 are not resolved, hence there are no
determinations of the mean field modulus). The rotation period of
HD 137949 may be of the order of 75 y or longer (Mathys et
al. 1997), and a full rotation cycle has not been observed
yet. The mean field modulus has not significantly varied between the
discovery of resolved magnetically split lines in this star in March
1991 (Mathys & Lanz 1992) and the last observation of Mathys
et al. (in preparation), obtained in September 1998. Accordingly, we
adopted the average of all the
measurements performed during that
time interval (Mathys et al. 1997; and in preparation) as
the value of the field modulus at the time of the analysed EMMI
observation. The same applies for measurements of the mean
longitudinal field of HD 137949 performed between April 1995 and June
1997 (Mathys et al., in preparation). The rotation period of HD 47103 is
unknown, but no definite variation has been detected by Mathys et
al. (in preparation) for either
(between January 1996 and January
1998) or
(between December 1995 and September 1998), so that
averages of all the measurements of these authors are considered as
adequate for the present purpose. The adopted values of
and
appear in Cols. 2 and 3 of Table 5. The corresponding
values of
are given in Col. 4, for comparison with
the quadratic field determinations shown in Col. 5. As indicated
above, the latter correspond to the ion for which the largest number
of spectral lines could be included in the analysis. For the sake of
simplicity, the uncertainty of
quoted in Table 5 is
the average of the two (positive and negative) errors appearing in
Table 4. This simplification has no impact on the
present discussion. For the longitudinal field and the field modulus,
the uncertainties given in Table 5 are, according to the
way in which the adopted field moments were obtained, the standard
deviation of all the averaged measurements, or the uncertainty derived
by application of error propagation to the uncertainties of the
parameters of the curves fitted to the variations of the considered
field moments.
Table 5: Mean magnetic field modulus, mean longitudinal magnetic field and mean quadratic magnetic field.
Comparison of Cols. 4 and 5 of Table 5 shows that the consistency condition expressed by Eq. (23) is fulfilled, within the uncertainties. This lends support to the validity of the approach followed to derive the mean quadratic magnetic field. That this fulfilment is somewhat marginal for HD 94660 and, to a lesser extent, HD 137949, may
For two of the stars of the present sample in which no magnetic field
had been detected before, a determination of the quadratic field at a
level slightly exceeding
is reported in
Table 4: HD 91375 and HD 133792. In both cases, this
result just above the threshold of significance is obtained from
analysis of the lines of Fe I, which is the ion for which the
largest number of spectral lines could be measured. No magnetic field
was detected from consideration of the considerably less numerous
lines of a second ion (Fe II in HD 91375, Cr II in
HD 133792), for which the derived value of regression coefficient
a2 does not significantly differ from 0, whether the regression is
forced through the origin or not (see Tables 2 and 3)
.
Even if one leaves aside, for a while, the fact that the value of the
quadratic field that is derived here for HD 133792 is only just above
the significance threshold, this single detection is not, by itself,
sufficient to establish definitely the existence of a population of
magnetic Ap stars with a mean magnetic field modulus, averaged over
the stellar rotation cycle, on the weak field side of the 1.7-2.8 kG
gap of the
distribution. Instead, the result obtained
here shows only that:
![]() |

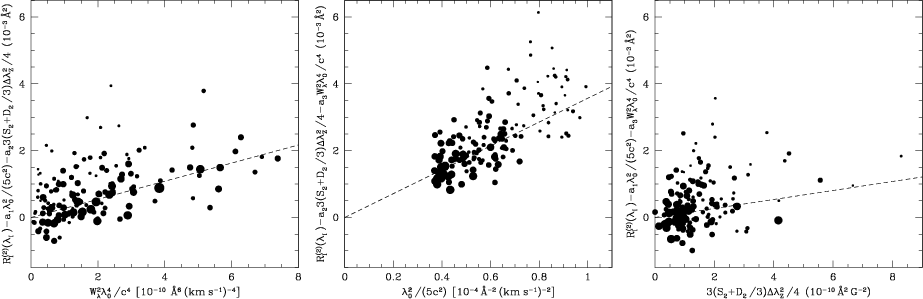

Figure 6: Same as Fig. 2 for the lines of Fe I observed in HD 91375. |
Open with DEXTER |
Furthermore, the value of 1160 G that we derive for the mean quadratic magnetic field of HD 133792 is quite consistent with the value of the mean modulus of the field, 1150 G, inferred by Ryabchikova et al. (2004) from modelling of a VLT/UVES spectrum recorded in March 2003 by spectrum synthesis.
On the other hand, other field modulus values below 1.7 kG have been reported in HD 176232 by Kochukhov et al. (2002) (1500 G) and by Leone et al. (2003) (1.4 kG), and in HD 204411 by Ryabchikova et al. (2005) (750 G).
While each of the above results taken in isolation does not represent
conclusive evidence of the existence of magnetic fields with
mean moduli (averaged over a stellar rotation period) lower than
1.7 kG, their conjunction strongly supports the existence of such
fields, and it lends further credibility to the existence of a gap in
the distribution of
between approximately 1.7 and 2.3 kG.
The present example of the analysis of HD 133792 also
suggests that the mean quadratic field determination method discussed
in this paper is well suited for further investigation of this
question.
As a matter of fact, those arguments also rather
suggest that the analysis method applied here is more likely to
underestimate the quadratic field than to generate a spurious non-null
value, so that one cannot a priori discount the quadratic field
measured in HD 91375 as spurious. The visual impression of the
dependences of
illustrated in Fig. 6 actually
tends to lend support to the reality of the detection.
More generally, the fact that quite
stringent upper limits are now obtained for longitudinal fields of
normal A stars does not rule out that such stars may have sizeable
magnetic fields with more complex structures, even though as pointed
out by Shorlin et al. (2002), it sets increasingly strict
constraints on the complexity of the structure that these fields must
have so that they have no net detectable effect in disk-integrated
circularly polarised line profiles. On the other hand, one may note
that main-sequence early A stars with very low
tend to show some
degree of chemical peculiarity (Ramella et al. 1989).
Abt (2000) even recently argued that slow rotation is a
sufficient condition for A stars to become chemically peculiar (but
this claim raises some reservations: see Mathys 2004 and Royer
et al. 2004).
![]() |

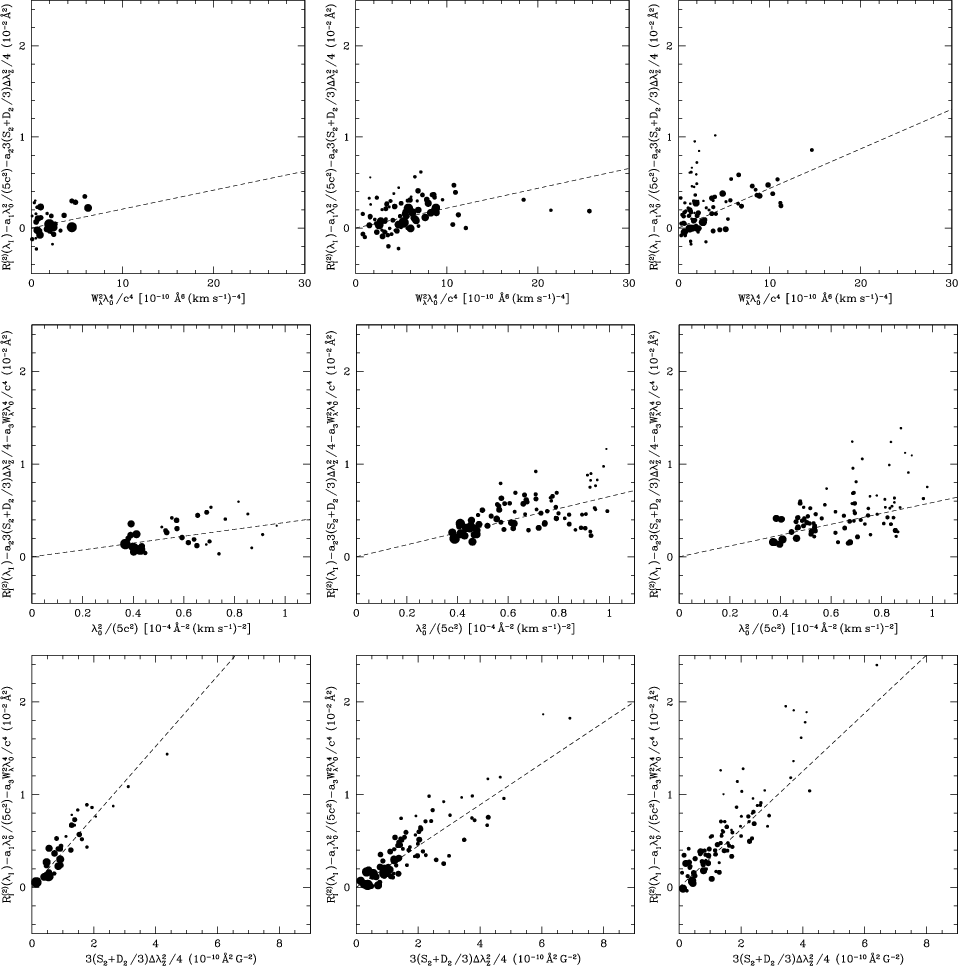

Figure 7: Contribution of the intrinsic ( top row), Doppler ( centre row), and magnetic ( bottom row) parts of the profiles of the lines of Fe I ( left column), Fe II ( centre column) and Cr II ( right column), observed in HD 116458 to their second-order moment about their centre ( see text). The dashed line is the term of the least-squares fit of the observations of each ion corresponding to that contribution. The relative weights of the different lines in the regression analysis yielding this best fit line are illustrated by the sizes of the symbols representing them. |
Open with DEXTER |
In practice, one can see from Table 4 that significant
differences between the values of
derived from the analysis of
lines of different ions are found for only two stars: HD 81009
(Fe I and Cr II) and HD 116458 (Fe I,
Fe II, and Cr II). For the rest of the sample, all
studied line sets yield values of the quadratic field that are
consistent within their estimated uncertainties.
The small number of Cr II lines that could be measured in
HD 81009 sets severe limitations on the amount of information that can
be extracted from their consideration towards understanding the
discrepancy between the value of
obtained from their analysis and
from that of the more populated Fe I line sample. In
particular, it does not lend itself well to the separation of the
contributions of the various terms of the right-hand side of
Eq. (15), and actually increases the probability that
unrecognised cross-talk may occur between these terms due to an
unfortunate combination of random errors in measured values of the
second-order moments of the Stokes I line profiles. In other words,
the analysed Cr II line sample may not be sufficiently
populated to guarantee that the standard deviations provided by the
regression are meaningful enough from a statistical standpoint so that
they can be safely used as estimates of the uncertainties affecting the
derived quantities. It may well be that these uncertainties are
somewhat underestimated, so that the discrepancy between the values of
the quadratic field determined from the two studied ions is only
apparent.
The case of HD 116458 is more telltale, in particular as far as the
discrepancy between the values of
derived from consideration of
the Fe II and Cr II line sets are concerned. Indeed
these two sets are among the most populated of all line samples
considered in this work. The dependences between line parameters that
are found from their analysis are well defined, and the inconsistency
between the quadratic field values that they reveal is quite
significant. The size of the analysed line sets allows one to gain
more insight into the origin of this inconsistency. Furthermore,
HD 116458 is one of only two stars of the present sample for which the
quadratic field could be determined from analysis of lines of three
different ions. (The other is HD 47103, in which only few lines can be
analysed for each ion - the largest line set for HD 47103 is smaller
than the smallest one for HD 116458.)
In particular, the large line sets suitable for analysis of HD 116458 allow one to visualise the dependence differences in scatter plots such as those that have been produced for individual ions in Figs. 2, 3, and 6. Figure 7 illustrates the contributions to the second-order moments of the observed line profiles of, resp., their intrinsic, Doppler and magnetic parts.
![]() |

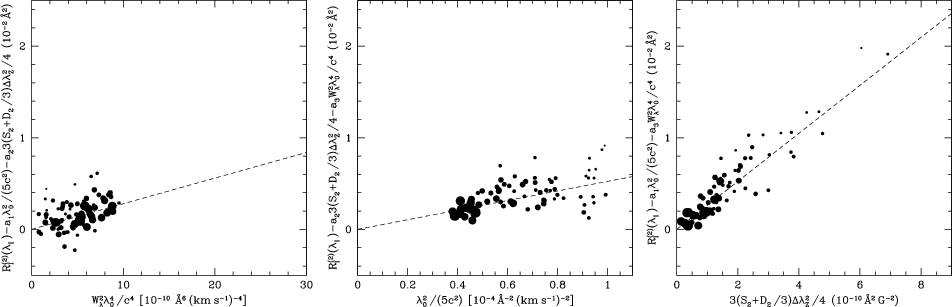

Figure 8:
Same as Fig. 2, for the lines of Fe II
observed in HD 116458, after exclusion from the sample of
those for which
![]() |
Open with DEXTER |
We see that the correlations between these contributions
and the atomic parameters appearing in abscissa are very well
defined, for all three ions. The only possible exception is the
intrinsic part of the Fe I line profiles, mostly because the
analysed line
sample is small, and it spans a much smaller range of
values than for Fe II and
Cr II. A priori, we would not expect this to increase the
errors in the analysis, since the fact that lines have in average
smaller equivalent widths should guarantee that the weak line
approximation is better fulfilled. However, could it be that
because of this, in the numerical analysis, the contribution of the
intrinsic part of the line profiles to their second-order moments are
underestimated? Since the range of values of
is small, would it not be better to use a constant to account for the
intrinsic part of the observed profile? In order to test this, we
repeated the analysis of the Fe I lines of HD 116458, fitting
their observed second-order moments with the following simplified
form of Eq. (15):
Conversely, the Fe II line sample contains a small number of
lines that are stronger than any line of the other two samples.
Thus, it is a priori the one for which
improperly dealt with radiative transfer effects may potentially have
the largest impact. Also, as far as the numerical analysis is
concerned, the spread of the
values is the
main difference between the Fe I and Fe II samples,
which are also those for which, from the point of view of the physics
of the star, the differences between the derived fit
parameters are most surprising. Because the number of strong lines in
the Fe II sample is fairly small, constraints on a possible
higher-order dependence of the line profile moments on line intensity
(e.g., a term in
are not strong, and such
a dependence could plausibly be overlooked. In order to check this, we
have repeated the analysis of the Fe II line profiles,
restricting it to those lines for which
Å6 km-4 s4; this
sample contains 75 lines. The results are shown in
Fig. 8. Although the regression slopes are visibly
somewhat different, the differences between the fit coefficients
derived for this restricted line samples and the whole Fe II
line sample of Table 2 remain within the limits of their
uncertainties. The somewhat larger value of the mean quadratic field
that is obtained from consideration of the restricted sample,
G becomes marginally consistent with the value
derived from the Cr II lines, but it remains irreconcilable
with the value of this field moment resulting from the analysis of the
Fe I lines.
In Sect. 4.2.1, we have found hints of the existence of some
amount of crosstalk between the Doppler and magnetic contributions to
the second-order moments of the line profiles. While this effect may
affect to some extent the outcome of the analysis of HD 116458, it
cannot account for the differences between the quadratic field values
derived from consideration of the lines of the different ions. For the
reddest lines, the difference between the values of the a2coefficient for Fe I and Fe II correspond to a
difference of Doppler contribution to the second-order moments of the
line profiles of the order of
Å2, while the
difference of the Zeeman contributions for the most magnetically
sensitive lines can reach up to
Å2. On the other
hand, between Fe II and Cr II, the values of the a1coefficient are not significantly different, but those of the a2coefficient are. Crosstalk with the intrinsic term, besides being
unexpected (see Sect. 3.4), also does not appear
to account for most of the differences between the magnetic field
values found from the analysis of different ions, since the values of
both a2 and a3 are greater for Cr II than for
Fe II.
In summary, we cannot identify any major flaw of the regression analysis that could account for spurious differences between the quadratic field values derived from the analysis of different ions. Therefore, we are led to conclude that the observed quadratic field differences represent an actual stellar property. In principle, one should be able to confirm this conclusion by comparing the mean field modulus values determined from resolved lines of the three considered ions. In practice, though, the field is not strong enough for this to be feasible at the resolution of the data analysed in this paper.
If indeed the ion-to-ion quadratic field differences are real, they indicate that the spectral lines of the considered ions sample the stellar atmosphere in different manners. In this respect, differences between values derived from the analysis of Fe and of Cr may not be particularly surprising, since they may just reflect different inhomogeneous (horizontal) distribution of the two elements on the stellar surface. Even though our data do not lend themselves to checking that this interpretation is correct in the specific case of HD 116458, such inhomogeneity differences are common in Ap stars. But they are not known to occur between different ions of the same element, so that they are unlikely to explain a difference of the quadratic field values diagnosed from lines of the first and second ion of Fe. With the increasing emergence of evidence that Ap star atmospheres are strongly stratified (e.g. Ryabchikova 2004, and references therein), it might be tempting to assign the latter tentatively to different depths of formation of the Fe I and Fe II lines. But even if the existence of such stratification could be confirmed in the present case, this interpretation would require a vertical gradient of the magnetic field of more than 1 kG over the height of the photosphere, which would be quite extreme and is not supported by any other observational result. In conclusion, more detailed studies are required to establish beyond any doubt the reality of the different field values derived from analysis of lines of different ions, as well as to understand their origin.
The fact that differences may (do) exist between the results of the analysis of sets of lines of different ions does not question the validity of the method of determination of the mean quadratic magnetic field discussed in this paper. But it calls for caution: as far as possible, determinations of the quadratic field (and of other field moments) should be based on samples of lines of a single ion, and in the publication of the derived field value, the ion from which it was obtained should always be specified.
Acknowledgements
The authors are grateful to Dr. Pierre Martin for performing part of the observations used in this work, and to Dr. Igor Savanov for his help in evaluating theof the studied stars through spectrum synthesis. A large fraction of this study has been carried out during stays of GM in the Department Physics and Astronomy of the University of Western Ontario (London, Ontario, Canada). GM thanks Prof. John D. Landstreet for giving him the opportunity of these visits. Financial support received from the ESO Director General's Discretionary Fund also contributed to make these stays possible.
