A&A 416, 221-233 (2004)
DOI: 10.1051/0004-6361:20031710
M. De Becker1 - G. Rauw1, - J. M. Pittard2 - I. I. Antokhin3,4 - I. R. Stevens5 - E. Gosset1,
- S. P. Owocki6
1 - Institut d'Astrophysique, Université de Liège, Allée du 6 Août, Bât B5c, 4000 Liège (Sart Tilman), Belgium
2 -
Department of Physics & Astronomy, University of Leeds, Leeds LS2 9JT, UK
3 -
Department of Physics & Astronomy, University of Glasgow, Kelvin Building, Glasgow G12 8QQ, Scotland, UK
4 -
On leave from: Sternberg Astronomical Institute, Moscow University, Universitetskij Prospect, 13, Moscow 119899, Russia
5 -
School of Physics & Astronomy, University of Birmingham, Edgbaston
Birmingham B15 2TT, UK
6 -
Bartol Research Institute, University of Delaware, Newark, DE 19716, USA
Received 14 February 2003 / Accepted 28 November 2003
Abstract
We report the analysis of an XMM-Newton observation of the close binary HD 159176 (O7 V + O7 V). The observed /
ratio reveals an X-ray luminosity exceeding by a factor
7 the expected value for X-ray emission from single O-stars, therefore suggesting a wind-wind interaction scenario. EPIC and RGS spectra are fitted consistently with a two temperature mekal optically thin thermal plasma model, with temperatures ranging from
2 to
6 K. At first sight, these rather low temperatures are consistent with the expectations for a close binary system where the winds collide well before reaching their terminal velocities. We also investigate the variability of the X-ray light curve of HD 159176 on various short time scales. No significant variability is found and we conclude that if hydrodynamical instabilities exist in the wind interaction region of HD 159176, they are not sufficient to produce an observable signature in the X-ray emission. Hydrodynamic simulations using wind parameters from the literature reveal some puzzling discrepancies. The most striking one concerns the predicted X-ray luminosity which is one or more orders of magnitude larger than the observed one. A significant reduction of the mass loss rate of the components compared to the values quoted in the literature alleviates the discrepancy but is not sufficient to fully account for the observed luminosity. Because hydrodynamical models are best for the adiabatic case whereas the colliding winds in HD 159176 are most likely highly radiative, a totally new approach has been envisaged, using a geometrical steady-state colliding wind model suitable for the case of radiative winds. This model successfully reproduces the spectral shape of the EPIC spectrum, but further developments are still needed to alleviate the disagreement between theoretical and observed X-ray luminosities.
Key words: stars: early-type - stars: individual: HD 159176 - stars: winds, outflow - stars: binaries: general - X-rays: stars
HD 159176 is a relatively bright (mv = 5.7) double-lined spectroscopic binary (Trumpler 1930) in the young open cluster NGC 6383. The system has been well studied in the visible and UV wavelengths. Conti et al. (1975) derived an orbital solution that was subsequently improved by Seggewiss & de Groot (1976), Lloyd Evans (1979) and most recently by Stickland et al. (1993). The binary has an orbital period of 3.367 days and consists of two nearly identical O-stars in a circular orbit.
Conti et al. suggested that both stars are O7 stars that have evolved off the main-sequence and nearly fill up their Roche lobes. However, Stickland et al. argued that the stars were probably not evolved. Although the system does not display photometric eclipses, Thomas & Pachoulakis (1994) reported ellipsoidal variability with an amplitude of about 0.05 mag in the optical and UV wavebands. These light curves were analysed by Pachoulakis (1996) who inferred radii of both stars of order 0.25 a, where a is the orbital separation. According to these results, the stars do not fill up their critical volume and are thus not very deformed.
Several observations point towards the existence of a wind interaction process in HD 159176. For instance, the optical spectrum of the system displays the so-called Struve-Sahade effect, i.e. the absorption lines of the approaching star appear stronger (Conti et al. 1975; Seggewiss & de Groot 1976; Lloyd Evans 1979), although the reverse effect is seen in the UV (Stickland et al. 1993). Though the origin of this effect is as yet not established, a commonly proposed scenario involves the existence of an interaction process within the binary system (Gies et al. 1997).
Analysing UV resonance line profiles of HD 159176 as observed with IUE, Pachoulakis (1996) derived a mass-loss rate of about
yr-1 for each star (note that this value is a factor five larger than the one derived by Howarth & Prinja 1989). The stellar winds of the components of HD 159176 are therefore probably sufficiently energetic to interact. The interaction region is expected to be located roughly mid-way between the stars and it prevents the wind of each star from deploying into the direction towards the other star. This situation has an impact on the UV resonance line profiles and the UV light curve (Pachoulakis 1996; Pfeiffer et al. 1997). Pfeiffer et al. analysed the variations of the UV resonance lines and concluded that there exists a source of extra emission between the stars. These authors associated this extra emission with resonant scattering of photospheric light by the material inside a colliding wind region. According to their analysis, this shock region is slightly wrapped around the secondary star.
HD 159176 was detected as a rather bright X-ray source with EINSTEIN (
cts s-1 with the IPC, Chlebowski et al. 1989) and ROSAT (
cts s-1 during the All Sky Survey, Berghöfer et al. 1996). Chlebowski & Garmany (1991) suggested that the excess X-ray emission observed in many O-type binaries compared to the expected intrinsic contribution of the individual components is produced by the collision of the stellar winds (see also e.g. Stevens et al. 1992). Therefore, it seems likely that at least part of the X-ray flux of HD 159176 may originate in the wind interaction region. In contrast with this picture, Pfeiffer et al. (1997) suggest that the bulk of the X-ray emission arises primarily from the intrinsic emission of the individual components, rather than from a colliding wind interaction.
To clarify this situation, we obtained an AO1 XMM-Newton observation of HD 159176. Since the system is X-ray bright, it is well suited to investigate the X-ray properties of a short-period early-type binary.
Table 1: Relevant parameters of the HD 159176 binary system adopted throughout this paper unless otherwise stated. The numbers are taken from Pachoulakis (1996, P96) and Diplas & Savage (1994, DS).
The observation of HD 159176 with XMM-Newton (Jansen et al. 2001) took place during revolution 229, in March 2001 (JD 2 451 977.903-2 451 978.338). According to the ephemeris given by Stickland et al. (1993), the whole observation covered phases between 0.53 and 0.66 (phase 0.0 corresponding to the maximum radial velocity of the primary component).
The total observation was split into three exposures. During the first exposure (Obs. ID 0001730401), the satellite was still inside the radiation belts and only the RGS instruments were used for on-target observations. The total on-target EPIC exposure time of the other two exposures (Obs. IDs 0001730201 and 0001730301) is about 26 ks.
The three EPIC instruments were operated in the full frame mode (Turner et al. 2001; Strüder et al. 2001). All three EPIC instruments used the thick filter to reject optical light. The two RGS instruments were operated in the default spectroscopy mode (den Herder et al. 2001).
We used version 5.2 of the XMM-Newton Science Analysis System ( SAS) to reduce the raw EPIC data. For each EPIC camera, the observation data files (ODFs) of the two exposures were merged by the XMM-Newton Science Operation Center (SOC) into a single set of observation data files. In order to process the EPIC-MOS files with the "emproc'' pipeline chain, we had to manually correct some keywords in the ODF summary file generated by the "odfingest'' task. For the pn camera, the merged ODF had to be reprocessed by the XMM-Newton SOC to generate an event list.
The only events considered in our analysis were those with pattern 0-12 for EPIC-MOS and 0 for EPIC-pn respectively (Turner et al. 2001). We found no event with pattern 26-31, so that we conclude that no significant pile-up affects our data.
In this paper, we discuss only the X-ray data for HD 159176. The other X-ray sources found in the EPIC field of view and associated with the open cluster NGC 6383 are discussed in a separate paper (Rauw et al. 2003). The response matrices used for the EPIC spectra of HD 159176 were those provided by the SOC. No difference was found between spectra obtained with these response matrices and those obtained with the SAS-generated ones.
For the RGS data, separate ODFs were provided for each of the three observations. The three data sets yield exposure times of respectively about 10, 16 and 9 ks. The RGS data were processed with version 5.3 of the SAS. The raw data were run through the "rgsproc'' pipeline meta-task. Appropriate response matrices were generated using the "rgsrmfgen'' SAS task.
We extracted a light curve at very high energies (Pulse Invariant (PI) channel numbers > 10 000) that revealed a high level of soft proton background. The soft protons responsible for these flares are thought to be accelerated by magnetospheric reconnection events unrelated to solar flares (Lumb 2002). Unfortunately this high-level background affects a significant fraction of the exposures. Indeed, nearly one half of the total EPIC observation is affected. For this reason, one has to check whether a bad time interval rejection is necessary, or whether the background correction of spectra could take these undesired events properly into account. As a convincing test, we generated EPIC spectra on the basis of the whole event lists (including events occurring during the flare). On the other hand, we filtered the event lists for time intervals with high-energy ( PI > 10 000) count rates exceeding thresholds of 0.20 and 1.10 cts s-1, for the MOS and pn cameras respectively, in order to reject the flares and obtain filtered spectra. Of course, the spectra obtained with the complete event list have a better signal-to-noise ratio than the spectra obtained from the filtered one because of the longer exposure time (about 25 ks for the whole exposure, instead of about 13 ks for the filtered data).
Following detailed comparison of the results from the two approaches, we did not find any significant difference between the fitting results (see Sect. 4) relevant to both cases. For this reason, we decided not to reject the flare intervals from our EPIC data set, and the effective exposure times (see Table 2) are thus close to the performed observation duration.
Table 2:
Performed and useful exposure times for all XMM-Newton instruments. The useful RGS exposure time is considerably reduced due to a strong flare of soft protons. The fourth column yields the background-corrected count rate for the source, between 0.4 and 10 keV for EPIC, and between 0.3 and 2.5 keV for RGS. In the case of the RGS instruments, only exposure 0001730201 is considered. The error bars on the count rate represent the 1
standard deviation.
Timing analysis of the flare events was also performed to evaluate their impact on the lower energy (PI<10 000) light curves. We extracted EPIC-pn events with boxes covering the 12 CCDs, but excluding the sources appearing in the field. Light curves were extracted, between PI 400 and 10 000, with a PI width of 400 units and time bins ranging from 50 to 1000 s. These light curves show that the mean level of flare contribution to the background is only about twice the mean level of the proton unaffected background. Figure 2 shows the count rate versus PI, where each point stands for a 400 PI channel interval, for the time interval affected by the main flare. The count rate of this background decreases by about a factor 10 from PI 400 to 10 000. The bump near PI 8000 is due to fluorescent emission lines produced by interaction of charged particles with the camera body material (Lumb 2002). Comparing the overall background level (including the flare) to the count rate in the source region over
,
i.e. over the energy range with the highest background level, we find that, at its peak level, the total background contributes only for about 0.9% of the corrected source count rate. The same calculations performed in other energy bands reveal that the background contribution below 5 keV is always at least 4 times lower than the source count rate. This result confirms that the rejection of the soft proton time intervals is irrelevant for the analysis of HD 159176, and that the flare is properly taken into account by the background subtraction step.
![]() |

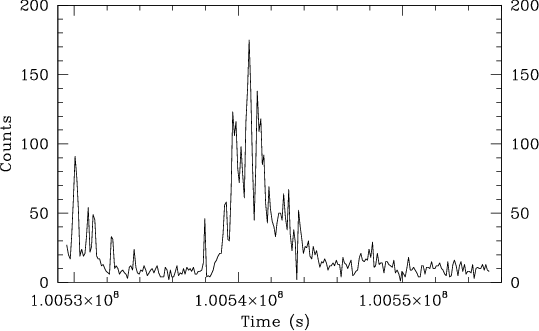

Figure 1: Light curve for events with PI > 10 000 obtained for the EPIC-MOS2 field and covering the two exposures where the EPIC instruments were operating. A time bin of 100 s was adopted. |
Open with DEXTER |
![]() |

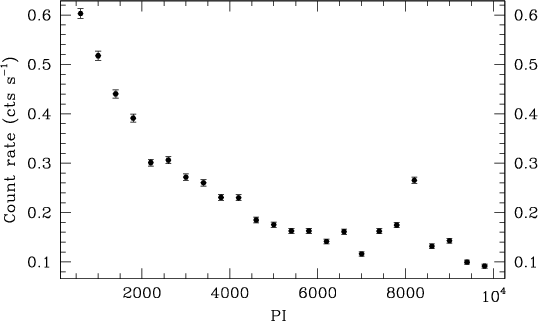

Figure 2:
EPIC-pn count rates versus PI for the global background (including the soft proton flares) for a ![]() ![]() ![]() |
Open with DEXTER |
However, this conclusion does not hold for RGS data. Indeed, the comparison of spectra obtained with and without the flare epochs revealed significant differences. As a consequence, low-background good time intervals were selected by application of count thresholds to the high energy light curves. These thresholds were evaluated, on the basis of a visual inspection of the light curves. The third (9 ks) exposure was almost completely contaminated by high background, whereas the first (10 ks) observation gave only about 3 ks of useful time. Only the 16 ks exposure could be used, although more than half of it had also to be rejected. For this reason, the effective RGS exposure time is severely reduced, as shown in Table 2.
The source spectrum was extracted within a circular region of 60 arcsec radius. The intersection with a circular region of radius 15 arcsec centered on a faint point source located at :34:40 and
:34:33 (Equinox J2000) was rejected. The background was selected within an annular region centered on HD 159176, with an outer radius 1.414 times larger than for the source region. Again, the intersections with 15 arcsec circles centered on two point sources (at
:34:48,
:34:24 and
:34:48,
32:35:21) were rejected. Consequently, source and background regions extend nearly over the same area. We also tried to select alternative background regions with boxes distributed near the source region, and avoiding the numerous point sources of the field. This selection did not give a significant difference in the background corrected spectrum. In the case of the pn camera, an additional difficulty arises from the gaps between the CCDs of the pn detector. We excluded the gaps manually from the source and background regions.
Figure 3 shows the EPIC-MOS1 field with the selected regions for the source and the background in the annular case. The small circular regions are used for the exclusion of the point sources located inside these source and background regions.
![]() |

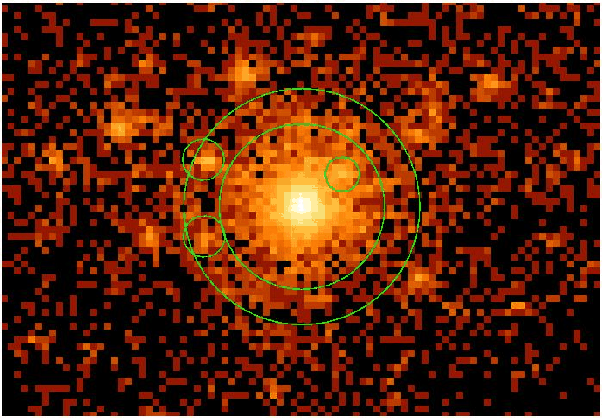

Figure 3: EPIC-MOS1 source and background regions selected for spectrum extraction. Note the crowded aspect of the field around HD 159176. The source intensities are displayed using a logarithmic scale. |
Open with DEXTER |
The emission lines of the RGS spectrum (see the next section) indicate that at least the low energy X-ray emission of HD 159176 is dominated by a thermal plasma emission. On the other hand, the shock region in a colliding wind binary might accelerate free electrons up to relativistic velocities and in combination with the intense UV radiation fields of the two stars, these particles could produce a hard non-thermal X-ray emission through inverse Compton scattering (see Chen & White 1991; Eichler & Usov 1993). Therefore, we tested various models combining optically thin thermal plasma models with a non-thermal power law component. In the framework of a model where the X-ray emission arises from shocks (either in the wind interaction or in instabilities of the individual winds), one should observe a range of plasma temperatures corresponding to the distribution of the pre-shock wind velocities. Therefore, one expects a priori that more than one thermal component is required to fit the observed spectrum. So, the spectra have been fitted either with two temperature mekal thermal plasma models (Mewe et al. 1985; Kaastra 1992) or with models containing a single temperature mekal component along with a non-thermal power law component. For each thermal component, solar metallicity was assumed.
The spectra were rebinned to achieve a minimum of 9 and 25 counts per energy bin for the MOS and pn data respectively and then fitted with the XSPEC software (version 11.1.0). For each model, we used an interstellar neutral hydrogen column density of
22 cm-2 (Diplas & Savage 1994), and a second absorption component to account for circumstellar absorption. The results are listed in Table 3. We note that the best-fitting power law components turn out to be rather steep with photon indices (
)
above 3.8. This situation is very much reminiscent of the results obtained for the O4 V star 9 Sgr (see Rauw et al. 2002b). Figure 4 illustrates the spectrum of HD 159176 as observed with the MOS1 instrument. Note that including different absorption columns for the individual model components does not improve the quality of the fits. In fact, XSPEC fails to fit at least one of the column densities.
Table 3:
Fitted model parameters for EPIC spectra of HD 159176. The upper part of the table concerns the wabs
*wabs
*(mekal + mekal) model, whilst the bottom part summarizes the results for the wabs
*wabs
*(mekal + power) model. The
given in the table refers to the circumstellar (i.e. wind) column assumed to be neutral. The interstellar column density is frozen at
cm-2 for all models. The Norm parameter of the mekal component is defined as
,
where D,
and
are respectively the distance to the source (in cm), and the electron and hydrogen densities (in cm-3), whereas for the power law this parameter corresponds to the photon flux at 1 keV. The error bars represent the 1
confidence interval.
![]() |
Figure 4: EPIC-MOS1 spectrum of HD 159176 fitted with the two-temperature mekal model between 0.4 and 5.0 keV. |
Open with DEXTER |
Another model was fitted with some success to the EPIC-pn data. This model consists of three components: 2 thermal mekal components and a non-thermal power law component (see Sect. 8 for a possible interpretation of this component). This fit yields a better
,
albeit the value obtained for the photon index is once more rather large. The results are summarized in Table 4 for the two background regions selected. One can see that both background techniques yield very similar results. This comforts us with the idea that background selection is not a critical issue for this source, and that the annular region with parasite sources excluded provides a satisfactory description of the actual background. Figure 5 displays the pn spectrum along with the best-fit corresponding to this latter model. We note that this three component model yields a significantly better fit to the EPIC-pn spectrum above 2 keV than the two component models.
Table 4:
Fitted model parameters for the EPIC-pn spectrum of HD 159176 for two different background estimation techniques. The adopted model is wabs
*wabs
*(mekal + mekal + power). The column densities given in the table refer to the circumstellar material. The interstellar column density is frozen at
cm-2. The error bars represent the 1
confidence interval.
![]() |

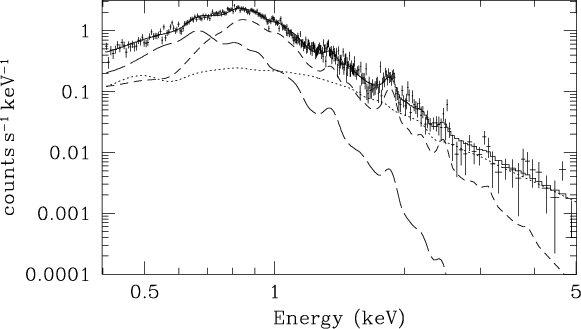

Figure 5: EPIC-pn spectrum of HD 159176 fitted with the two mekal components + power law model between 0.4 and 5.0 keV. The three components are also individually displayed. The power law begins to dominate the spectrum at energies above 2 keV. |
Open with DEXTER |
The main motivation behind these fits is to provide an overall description of the observed spectral distribution that can then be used to derive fluxes and to check for consistency with previous observations. With the parameter values obtained for these fits, we can determine the flux emitted by HD 159176 between 0.4 and 10.0 keV. For this purpose we adopt the best fitting model obtained for EPIC-pn, i.e. the three component model whose parameters are shown in Table 4. The flux corrected for interstellar absorption only is
erg cm-2 s-1. If we adopt a distance to NGC 6383 of 1.5 kpc, we obtain a luminosity of
erg s-1. This value can be compared to X-ray luminosities obtained with EINSTEIN (Chlebowski et al. 1989) and ROSAT (Berghöfer et al. 1996). In the case of EINSTEIN, Chlebowski et al. converted the IPC count rates between 0.2 and 3.5 keV into fluxes, assuming a 0.5 keV thermal bremsstrahlung model and an absorption column (
cm-2) calculated on the basis of the color excess E(B-V) determined through a relation given by Mihalas & Binney (1981) for an intrinsic color index (B-V)0 of -0.309 and an observed (B-V) color index of +0.04. For ROSAT, Berghöfer et al. converted the PSPC count rate (between 0.1 and 2.4 keV) into a flux assuming a 0.73 keV Raymond & Smith (1977) optically thin plasma model. The same absorption column as for EINSTEIN was used. The X-ray luminosities scaled to the 1.5 kpc distance are shown in the second column of Table 5 for EINSTEIN, ROSAT, and XMM.
The luminosities derived from the different satellites are quite different. These discrepancies cannot be explained by the differences in the sensitivity ranges of the various instruments. Instead, it seems more likely that the model assumptions used to convert the EINSTEIN-IPC and ROSAT-PSPC count rates into luminosities are responsible for the discrepant luminosities. To check this, we have used XSPEC to simulate EINSTEIN-IPC and ROSAT-PSPC spectra of HD 159176. The three component model derived from the fit of the EPIC-pn data (see Table 4) was folded through the response matrices of the IPC and PSPC instruments. The corresponding theoretical count rates, 0.138 cts s-1 for the IPC and 0.287 cts s-1 for the PSPC, are in very good agreement with the observed values (see Table 5). Therefore, we conclude that the archive data do not reveal evidence for long-term variability of the X-ray flux of HD 159176.
Since the orbit of HD 159176 does not have a significant eccentricity, it is expected that a possible orbital modulation of the X-ray emission from a colliding wind interaction zone would be due entirely to the changing circumstellar column density along the line of sight. However, given the rather low inclination (
,
Table 1), we expect only a marginal orbital modulation of the X-ray flux at energies above 0.4 keV. At this stage, it is worth recalling that our XMM observation of HD 159176 was obtained during orbital phases 0.53-0.66, i.e. shortly after quadrature. Therefore, we expect no strong occultation effect of the X-ray emission from either component or from the wind interaction region: our value of the luminosity should thus reflect the typical X-ray emission of HD 159176.
We use the total bolometric luminosity of HD 159176 as derived from the parameters in Table 1, i.e.
erg s-1, to compute the
/
ratios given in Table 5. On the other hand, we estimate the X-ray luminosity of the individual components by means of the empirical relation of Berghöfer et al. (1997). The ratio of the sum of the expected X-ray luminosities and the total bolometric luminosity amounts to
,
which is about a factor 7 inferior to the XMM value listed in Table 5, suggesting that there exists indeed a moderate excess X-ray emission in HD 159176.
Table 5: X-ray luminosities and luminosity ratios from EINSTEIN, ROSAT and XMM observations of HD 159176. Luminosities are calculated for a 1.5 kpc distance. The Obs. CR column gives the count rates from Chlebowski et al. (1989) and Berghöfer et al. (1996) respectively for EINSTEIN and ROSAT, as well as our value for EPIC-pn. The Th. CR column provides the theoretical count rates calculated on the basis of the individual instrument response matrices for the 3 component model of Table 4 (see text).
Table 6:
Model parameters for a two-temperature mekal model fitted to the RGS1 and RGS2 spectra of HD 159176, to the three EPIC spectra considered simultaneously and finally to all the XMM data taken together. The adopted model is wabs
*wabs
*(mekal + mekal). The column density given in the Table refers to the local (i.e. circumstellar) absorption. The interstellar column density is frozen at
cm-2. The error bars represent the 1
confidence interval.
![]() |

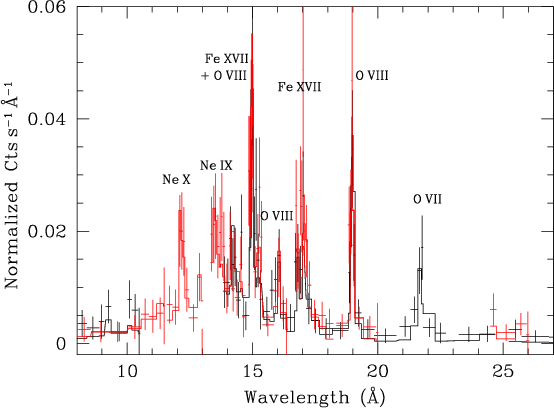

Figure 6: Combined fit of RGS1 and RGS2 spectra between 8 and 27 Å for a two-temperature mekal model. The strongest lines are labelled. |
Open with DEXTER |
Models were fitted to the RGS spectra. The model including the two-temperature mekal component yields the best fits. The combined fit of RGS1 and RGS2 spectra by a two-temperature mekal thermal model is also illustrated in Fig. 6. The best fitting parameter values are given in Table 6. With reasonable
values, we obtain temperatures (about 0.16 and 0.60 keV) consistent with the fit parameters of the EPIC pn spectrum. It is interesting to note that these temperatures correspond to the extreme values of the range inferred hereabove from the maximum emissivities of the lines identified in the spectrum. The interstellar column density appears also comparable within the error bars to the EPIC results for the same two-temperature model.
The agreement between the RGS and EPIC pn parameters suggests that we can attempt a simultaneous fit of the spectra from different instruments. For this purpose, we used the two-temperature mekal model. The results are summarized in Table 6. First, we fitted the three EPIC spectra together. Next, we also included the RGS spectra.
We see that, in the first case, best fitting parameter values are very close to the results obtained hereabove for the MOS spectra (which are somewhat different from the best fitting parameters of the pn spectrum). On the other hand, including also the RGS spectra in the fit, we obtain a value of the second temperature which is also in good agreement with that obtained for the MOS spectra fitted individually. Finally, we note that fitting the EPIC + RGS data with a differential emission measure model (i.e. the c6pmekl model in XSPEC, see Singh et al. 1996) yields a differential emission measure with a very broad maximum spanning from about 0.15 to 1.2 keV, again in reasonable agreement with the temperature ranges inferred from the RGS line spectrum.
The best fitting temperatures of the X-ray spectra of HD 159176 are rather low. In fact, these temperatures are roughly typical for presumably single O-stars. On the other hand, for an O + O colliding wind binary, one expects a priori to find harder X-ray emission from the wind interaction region. For instance, in the spectrum of HD 93403, Rauw et al. (2002a) found a hot thermal component with
keV, which is significantly hotter than the temperature of the harder component in the EPIC and RGS spectra of HD 159176. However, the smaller orbital separation of HD 159176 (as compared to HD 93403) prevents the stellar winds of its components from reaching their terminal velocities before they collide, leading to lower temperatures in the wind interaction region.
Given the rather poor signal-to-noise ratio of our RGS data, nothing reliable can be said about the morphology of the emission lines. For instance, the strongest line of the spectrum, the O VIII Ly
line at 18.97 Å, is illustrated in Fig. 7. This line appears to be significantly broadened. In fact, the line's
estimated from Fig. 7 is about 2500 km s-1, while the
s of the instrumental profiles at this wavelength are about 0.06 and 0.07 Å (i.e. 950 and 1100 km s-1) for RGS1 and RGS2 respectively (den Herder et al. 2001). The line appears therefore significantly larger than what would be expected for a coronal emission model (see Owocki & Cohen 2001). We also note that the line profile is neither Gaussian nor Lorentzian. Theoretical models of line emission from either single O-type stars or colliding wind binaries (e.g. Owocki & Cohen 2001; Feldmeier et al. 2003; Henley et al. 2003) predict rather flat-topped profiles with asymmetries depending on the amount of wind absorption and, in the case of binary systems, on the orbital phase. The detection of an orbital modulation of the X-ray line profiles such as predicted by Henley et al. would provide a clear evidence that the lines are formed in the wind collision zone. However, since we have only a single XMM-Newton observation of HD 159176 at our disposal, we cannot make any statement about the existence or not of such a modulation.
Unfortunately, our current data set does not have the quality needed to perform a detailed comparison between the observed lines and the predictions from the various models. All we can state is that the O VIII Ly
line is slightly blue-shifted by about 300-600 km s-1, though the highest peak in the profile is found near the rest wavelength. Within the error bars, these features are in reasonable agreement with some of the line profiles predicted by Owocki & Cohen (2001) for a single O star wind. On the other hand, the agreement with line profiles formed in a wind interaction zone for a wind momentum ratio of
(see below) and an orbital phase of 0.53-0.66 (corresponding to
in the formalism of Henley et al. 2003) is slightly less good. At these phases, the colliding wind models predict the highest peak to occur with a significant blue-shift (Henley et al.). We caution however that the line profiles presented by Henley et al. were computed assuming an adiabatic wind interaction, while the wind interaction zone in HD 159176 is most likely radiative (see below).
![]() |

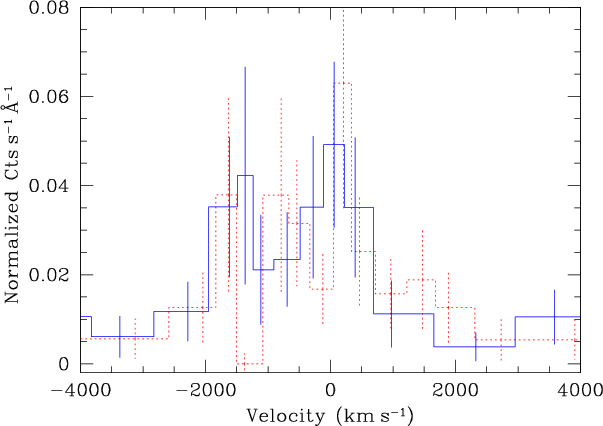

Figure 7:
The O VIII Ly ![]() |
Open with DEXTER |
Another noteworthy feature of the RGS spectra of HD 159176 is the fact that the forbidden (f) component of the O VII He-like triplet is very weak. Inspection of the spectrum reveals no significant excess of counts above the level of the pseudo-continuum at the wavelength of the f line, whereas the intercombination (i) and resonance (r) lines are clearly detected at a level of about
and
photons cm-2 s-1 respectively. Unfortunately, the limited quality of our data does not allow us to perform sophisticated fits of the triplet. Nevertheless, we have fitted the triplet by three Gaussians plus a constant (to mimic the pseudo-continuum) where we requested that the three Gaussians should have the same Doppler shift and the same width. This fit yields an f/i ratio of 0.08 which can probably be considered as a safe upper limit.
A low f/i ratio is not unexpected. In fact, in the winds of hot early-type stars, the intense UV radiation induces a strong coupling between the upper level of the forbidden line and the upper level of the intercombination line, leading to an enhancement of the i and a decrease of the f component (Porquet et al. 2001). For the O VII He-like triplet, Porquet et al. calculate an f/i ratio of less than
for a star with a radiation temperature
K and for a dilution factor
.
In HD 159176, this mechanism can act on the intrinsic X-ray emission of the individual binary components as well as on the X-ray emission from the colliding wind region. Indeed, assuming that the wind-interaction zone lies about half-way between the two stars, the UV radiation field of each star is diluted by w = 0.15 at the location of the colliding wind region. The enhanced plasma density in the colliding wind region could further reduce the f/i ratio (Porquet et al. 2001), though this is likely to be only a second order effect in the case of a hot, close binary such as HD 159176.
Finally, a further comparison of the RGS spectrum (Fig. 6) with RGS spectra obtained for stars such as 9 Sgr (Rauw et al. 2002b) or Pup (Kahn et al. 2001) shows that the HD 159176 spectrum does not display the N VII
24.8 Å line. To find out whether this is due to a reduced N abundance or not, we fitted simultaneously RGS1 and RGS2 spectra with variable abundance mekal models, allowing the nitrogen abundance to vary (with other abundances frozen at the solar value). The resulting fit suggests a slightly (2.85
1.26) enhanced N abundance (with respect to solar abundance) while we recover the temperatures for the RGS fits within the error bars. Moreover, the N VII
24.8 Å line appears clearly in the theoretical RGS spectrum of HD 159176 when the absorption columns are set to zero, albeit this line nearly completely disappears when the absorption components are set to the values derived in our fit. Therefore, the absence of the N VII line in our observed spectrum is due to the strong absorption that photons at this rather low energy suffer when they encounter the circumstellar or interstellar medium. Also, the relative intensities of oxygen lines compared to other elements seem quite higher in the spectrum of HD 159176. At this stage, it is worth recalling that
Pup is an evolved object and the line intensities in its RGS spectrum reflect the signature of the CNO process (Kahn et al. 2001). On the other hand, we do not expect to see such an effect in the spectrum of a relatively unevolved system such as HD 159176.
To investigate the putative short-term variability of HD 159176, we divided the effective exposure into short time intervals. In the case of the MOS instruments, we used 2.1 ks time intervals. We obtained 9 and 10 equal time intervals respectively for MOS1 and MOS2. Because the good time intervals (GTIs) of the different instruments are not strictly identical, the time bins of the time series of the two instruments do not match exactly. A spectrum was extracted for each time bin through the same procedure as described in Sect. 4. Each spectrum was rebinned, to get at least 4 counts per energy channel, and fitted with a two temperature mekal model.
Some parameters seem indeed to change with time but no correlation is found between MOS1 and MOS2. In each case, the lower temperature does not vary significantly while the higher temperature component displays larger variations. No systematic trend is found for these variations. The same study was carried out for EPIC-pn data using the two models described in Sect. 3 for time intervals of 2 ks. In this case, we do not observe any significant variation in the model parameters either.
A more model-independent way to check for variability consists in studying the run of count rates for particular time bins, over different energy ranges: see for instance Fig. 8 for count rates between 0.4 and 10.0 keV within 1 ks time bins. This figure does not reveal any significant correlation between the different EPIC instruments. The same conclusion applies also for narrower energy ranges selected within this same interval. Moreover, we see that count rates in all energy bands are nearly constant within 2
for all instruments.
![]() |

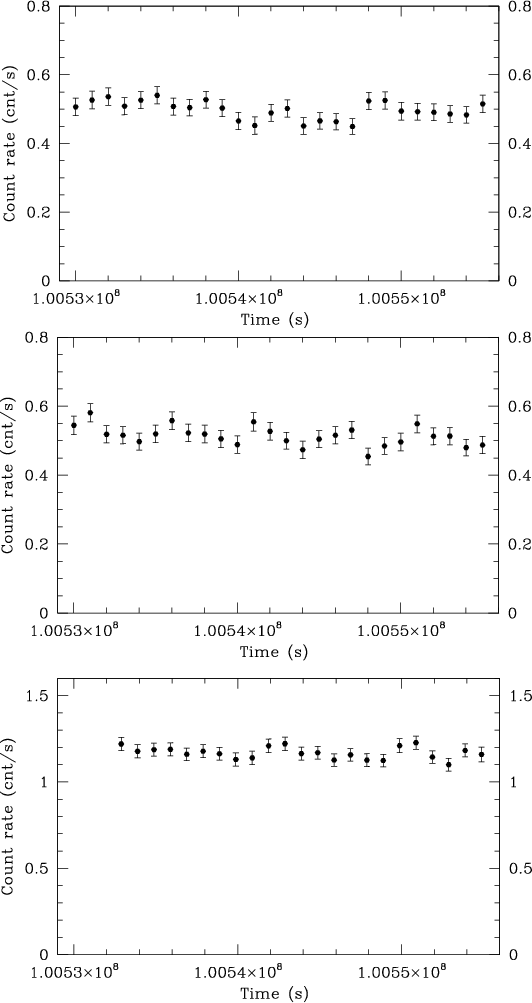

Figure 8:
Count rates evaluated in the 0.4-10.0 keV energy band versus time for MOS1 (upper panel), MOS2 (middle panel) and pn (bottom panel). The time bin used is 1000 s for all instruments. The error bars represent the ![]() ![]() |
Open with DEXTER |
A relevant quantity which should be introduced here is the cooling parameter:
![]() |
Turning back to HD 159176, we can estimate the value of the relevant cooling parameter using the binary parameters given in Table 1. In a close binary such as HD 159176, the stellar winds do not reach
before they collide. The pre-shock velocity should be in the range 850-2000 km s-1. The upper boundary of this range is obtained assuming a "standard'' wind velocity law with
and
km s-1; the lower boundary corresponds to the value expected if we account for radiative inhibition effects for equal stars with a separation of about 40
(see Fig. 4 of Stevens & Pollock 1994). These pre-shock velocity values are derived along the line connecting the centers of the stars, where the bulk of the X-ray emission is generated.
Therefore, adopting the parameters of Table 1 and a pre-shock velocity lower than 2000 km s-1, the resulting value of
is typical of radiative winds. The corresponding intrinsic X-ray luminosity can be estimated for each component of the binary through the following relation taken from Pittard & Stevens (2002):
![]() |
In order for our predicted luminosity to match the observed value of ,
we need to reduce the mass-loss rates. As a second step, we therefore adopt
yr-1 for both stars as suggested by Howarth & Prinja (1989). With a pre-shock velocity of 2000 km s-1,
amounts to
3.5, allowing us to derive the X-ray flux from a hydrodynamical simulation. For this purpose, we used the code of Pittard & Stevens (1997) which is based on the VH-1 numerical code (see Blondin et al. 1990). This code uses a lagrangian piecewise parabolic method to solve the partial differential equations of hydrodynamics followed by a remap onto a fixed grid after each time step (for details see the references in Pittard & Stevens 1997). The simulations do not include radiative driving and assume instead constant wind speeds. A theoretical attenuated X-ray spectrum was generated from a 3D radiative transfer calculation on the hydrodynamical results, and we found
34 erg s-1. Hence it seems that
must be reduced below the Howarth & Prinja (1989) value in order to account for the observed
.
In order to explore a wider range of the wind parameter space, we decided to test an alternative approach that allows us to overcome some of the practical limitations encountered hereabove. This is described in the following section.
The main problem when modelling the X-ray emission from a close binary system like HD 159176 is that the wind-wind collision can be highly radiative. Since it is difficult, if not impossible, to resolve the width of such shocks in hydrodynamical calculations, the necessary information to compute the X-ray emission is lost. For this reason, Antokhin et al. (2004, in preparation) have developed a steady-state model able to account for the physics of radiative shocks in a way suitable to lead to a relevant discussion of colliding wind X-ray emission from close binary systems.
In this approach, Antokhin et al. (2004) completely neglect instabilities and orbital rotation. Assuming a strong radiative cooling, both shocks generated in the primary and the secondary winds are thin. The pre-shock wind velocities are specified by a law, and the shape of the contact surface is computed. The wind density and normal velocity are calculated at the exact position of the shock. The 1D hydrodynamic equations are then solved for the case of a radiative post-shock flow. The X-ray spectrum is computed, and the process is repeated along the contact surface to obtain an integrated spectrum. The absorption of the X-ray radiation by the winds and by the shocks is determined using warm material opacity tables obtained with the CLOUDY v.94.00 code (http://thunder.pa.uky.edu/cloudy/). This model neglects any dissipative process and assumes that all the kinetic energy of the winds is radiated, thus giving an upper limit to the actual X-ray luminosity. For further details about this model, we refer the reader to Antokhin et al. (2004).
Following this approach, a grid of models was generated and converted into a table model suitable to be used within XSPEC. As a first step, the assumption of equal winds was adopted. The parameters of the model are the mass loss rate and the terminal velocity. The parameter space covers
values from
-8 to
-6
yr-1, and
values between 1700 and 2450 km s-1. The luminosities computed by the model were converted into fluxes assuming a distance of 1.5 kpc. The model normalization which scales as the inverse of the distance squared should be unity if all the model assumptions are correct and the distance is indeed equal to 1.5 kpc. Figure 9 shows the emerging (i.e. after absorption by circumstellar material) luminosity between 0.5 and 10.0 keV versus the mass loss rate and the terminal velocity. This figure shows clearly that the general trend followed by the luminosity is to decrease as the velocity decreases. For
values lower than about
yr-1,
increases as the mass loss rate increases, but it decreases with increasing mass loss rate for higher
values. This turnover in the behaviour of the luminosity versus
is due to the increase of the optical depth of the warm wind material as the wind density increases.
![]() |

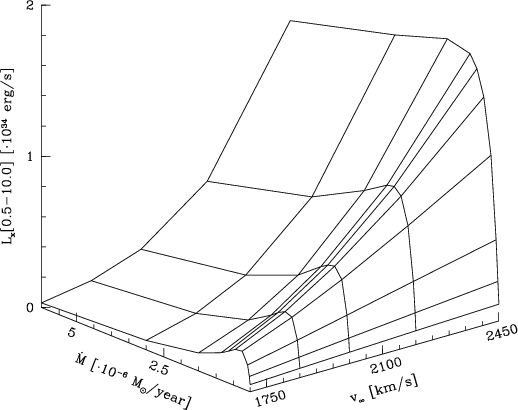

Figure 9:
Emerging X-ray luminosity between 0.5 and 10.0 keV as a function of the mass loss rate and the terminal velocity as computed for a distance of 1.5 kpc. The parameter space covers values between
![]() ![]() ![]() |
Open with DEXTER |
To take into account the fact that intrinsic emission of the individual winds is supposed to contribute to the observed spectrum, we used a mekal thermal plasma component in addition to the colliding wind component. Interstellar absorption is accounted for by using an absorption column frozen to the value used in Sect. 4. The best fit of our EPIC-pn spectrum requires an additional power law component to fit the high energy tail already mentioned in the framework of the EPIC-pn spectral analysis in Sect. 4. The physical motivation of this power law is discussed in Sect. 8. Figure 10 shows the fit obtained between 0.4 and 10.0 keV where the three individual components are displayed. The fluxes of the three components in the 0.4-10.0 keV band are
erg s-1,
erg s-1 and
erg s-1 respectively for the mekal, the colliding wind and the power law components. This fit corresponds to
,
km s-1, and a normalization parameter of
.
In the best fit model, the mekal component has a temperature of
keV, and the power law has a photon index of
.
While this model provides an acceptable fit to the data - the reduced
is 1.14 for 319 d.o.f. - we note that the best fit value of the normalization parameter is a factor 4 lower than expected. Because of the membership of HD 159176 to the open cluster NGC 6383, it seems quite unlikely that the distance could be off by as much as a factor 2. Moreover, in order to explain the low normalization parameter, the actual distance of HD 159176 would have to be larger by a factor 2 whereas an estimate of the distance on the basis of the expected absolute magnitude of an O7V + O7V binary rather suggests that the distance of HD 159176 might be less than 1.5 kpc
. If the normalization value is frozen to one, the model clearly overestimates the data mostly between 1 and 5 keV, leading to an unacceptable
.
Therefore, the low normalization value probably means that the model predicts, for the derived
and
,
a luminosity which is too large by about a factor of 4. A similar result is obtained for a simultaneous fit of MOS1 and MOS2 data with the same model. The only difference is a somewhat higher terminal velocity (
km s-1), compatible with the higher temperature obtained for mekal models described in Sect. 4, and a stronger disagreement of the normalization parameter which is a factor about 8 too low.
The results of this subsection can be summarized as follows. Exploring a domain of the parameter space that includes the full range of reasonable values of
and
for stars of spectral type O7
one subclass, we have found a model where the interplay between emission and circumstellar absorption allows to reproduce the observed spectral shape. However, this model as well as all other combinations of
and
in this domain of the parameter space fail to reproduce the observed luminosity. The most likely explanation for this failure is that one or several of the model assumptions break down in the case of HD 159176. One possibility that we briefly explore in the following section could be that the stars have winds of unequal strengths.
![]() |
Figure 10: EPIC-pn spectrum of HD 159176 fitted with a mekal + colliding wind + power law model between 0.4 and 10.0 keV in the case of equal winds. The contributions of the three components are also individually displayed: the long-dashed, short-dashed, and dotted lines are respectively the mekal, wind-collision, and power law components. |
Open with DEXTER |
Although Pachoulakis (1996) inferred only slightly different wind momenta (see Table 1), we note that the stellar parameters (
,
)
derived by Pachoulakis yield very different values of
(
and
yr-1) when passed through the relation of Vink et al. (2001). Such large differences in
,
and hence wind strength, are however at odds with the essentially equal spectral types inferred from optical spectroscopy. Nevertheless, we attempted to establish whether an unequal wind CWB model could reconcile the predicted and observed luminosities. We thus developed a grid of models depending on four parameters: the terminal velocity of the primary (
), the mass loss rate of the primary (
), the terminal velocity of the secondary (
), and finally the wind momentum ratio defined as
![]() |
The velocity parameters are allowed to vary in a range between 1700 and 2500 km s-1, and the allowed values for
are taken between
yr-1 and
-6
yr-1. The parameter
can vary between 1.0 and 1.44. Beyond this upper boundary the stronger wind of the primary crashes onto the secondary surface.
The result of the fit seems only weakly sensitive to the value of
(note that the range covered is quite narrow). If
is frozen to unity and velocities constrained to be equal, the same fitting result as described for the equal wind case is obtained. However, we were not able, with the current model, to obtain a satisfactory fit with a norm parameter close to unity. This result illustrates again the impossibility to reconcile the observed spectrum with the model at its current stage of development, at least within the parameter space we explored.
HD 159176 is the first short period colliding O + O binary studied with the high sensitivity of the instruments on board the XMM-Newton satellite. The major point of this system is that the shocks associated with the wind collision are radiative, making them very difficult to simulate with current hydrodynamic models. For the first time, an alternative model has been used to address this case, following a steady-state geometrical approach leading to promising results. To achieve a better understanding of the special case of radiative colliding wind shocks, other close binary systems should be observed in conjunction with further developments of the new theoretical approach followed in this study.
Acknowledgements
Our thanks go to Mathias Ehle (XMM-SOC) for his help in processing the EPIC data and to Alain Detal (Liège) for his help in installing the SAS. We wish to thank Andy Pollock (ESA) for discussion. The Liège team acknowledges support from the Fonds National de la Recherche Scientifique (Belgium) and through the PRODEX XMM-OM and Integral Projects. This research is also supported in part by contracts P4/05 and P5/36 "Pôle d'Attraction Interuniversitaire'' (SSTC-Belgium). J.M.P. gratefully acknowledges funding from PPARC for a PDRA position. I.I.A. acknowledges support from the Russian Foundation for Basic Research (grant 02-02-17524). This research has made use of the SIMBAD database, operated at CDS, Strasbourg, France and of the NASA's Astrophysics Data System Abstract Service.
