Appendix B: The HI atlas

$\begin{figure} \par\includegraphics[width=10cm,clip]{UMaHImap.ps}\end{figure}$

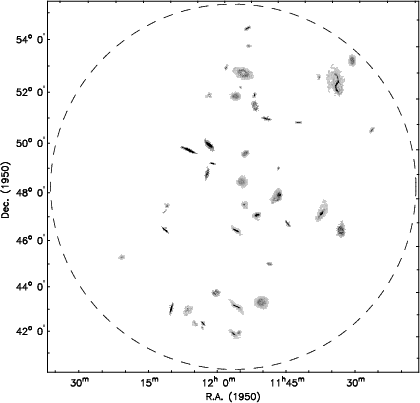

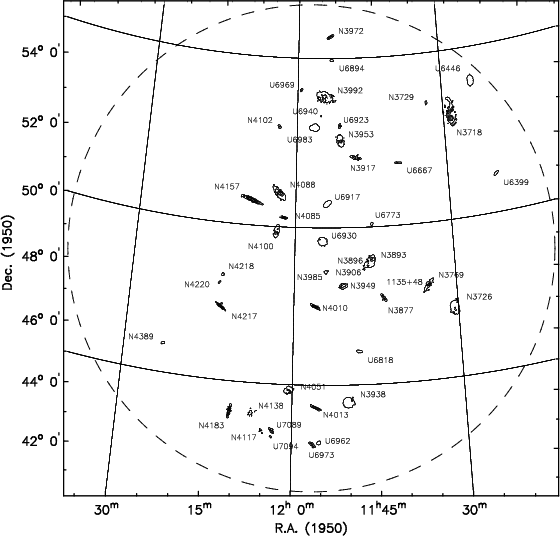

Figure B.1: Integrated HI maps of all galaxies in the cluster more inclined than 45 degrees and brighter than M(B)=-16.5. The angular resolution is $30\times 30$ arcsec. Contour levels are at column densities of 0.5, 2.0, 3.5 and $5.0\ 10^{21}$ atoms cm^-2. Individual galaxies are four times enlarged. To avoid overlap, some galaxies are slightly displaced from their actual position. N3906, N3938, U6962 and U6930 are more face-on than 45 degrees. U6940 is fainter than the complete sample limit. The dashed circle indicates the adopted boundary of the cluster

$\begin{figure} \par\includegraphics[width=10cm,clip]{UMaHIbwmap.ps}\end{figure}$

Figure B.2: Same as Fig. B.1, displayed here in grayscale. Note the interacting pairs N3769/1135+48, N3893/N3896 and U6962/U6973. The galaxies N3718, N3726, N4010, N4013, N4088 and N4138 are strongly warped. It is clear that the integrated column density strongly depends on inclination. Many of the more face-on galaxies show a depletion of the HI gas in their inner regions

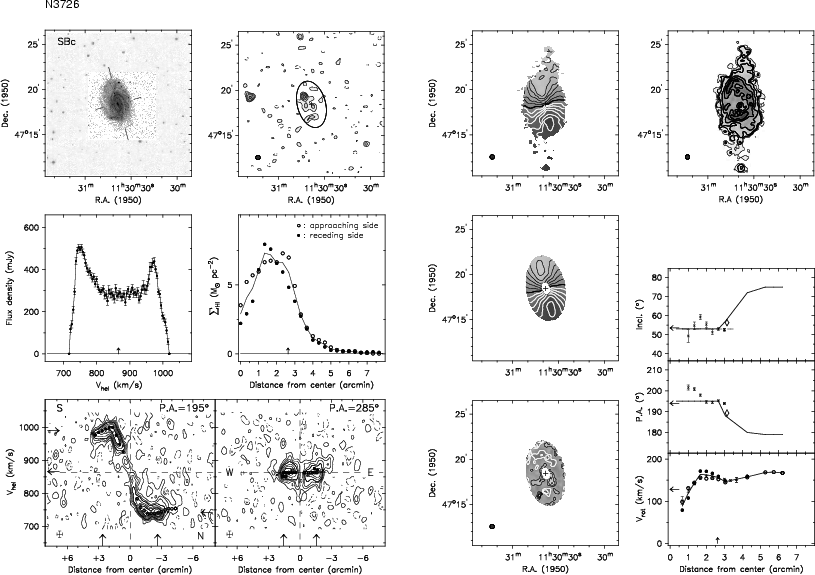

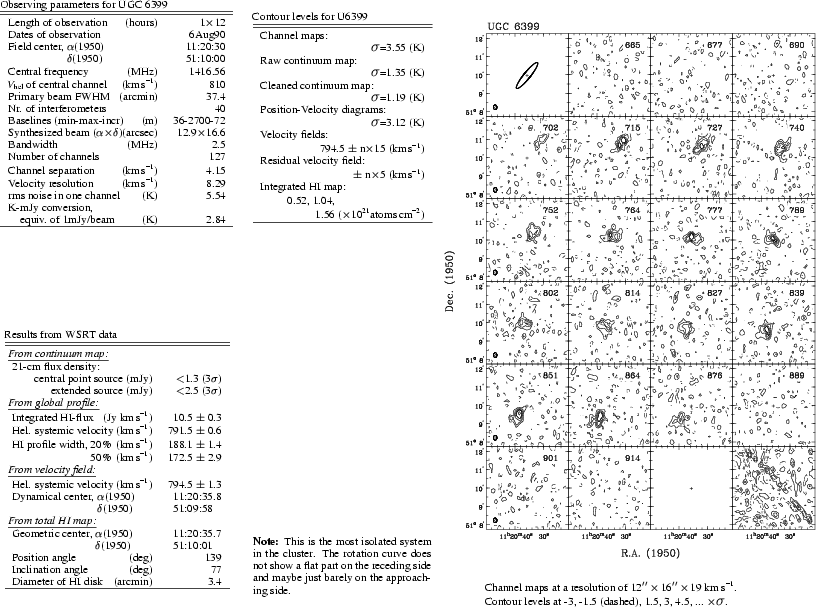

$\begin{figure}\par\includegraphics[angle=-90,width=12cm,clip]{figA01a.ps}\end{figure}$ $\begin{figure}\par\includegraphics[angle=-90,width=12cm,clip]{figA01b.ps}\par\end{figure}$

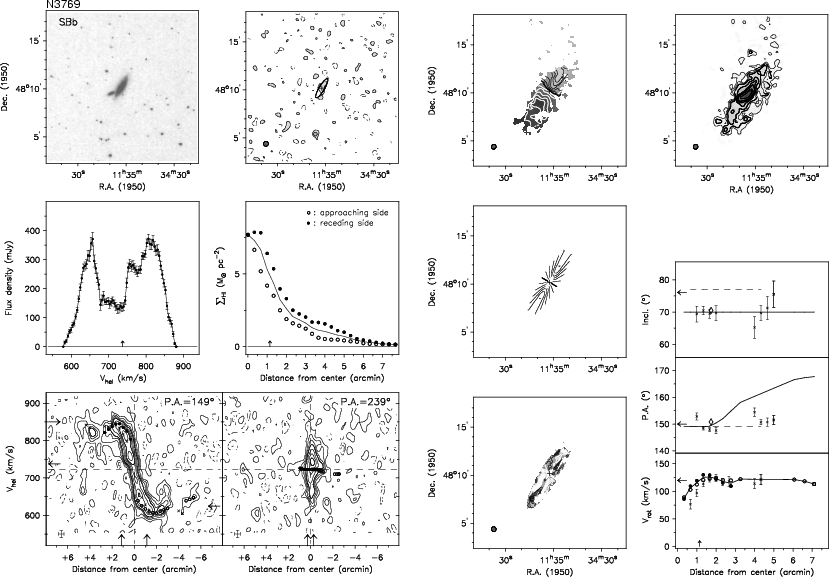

$\begin{figure}\par\includegraphics[angle=-90,width=12cm,clip]{figA02a.ps}\par\end{figure}$ $\begin{figure}\par\includegraphics[angle=-90,width=12cm,clip]{figA02b.ps}\par\end{figure}$

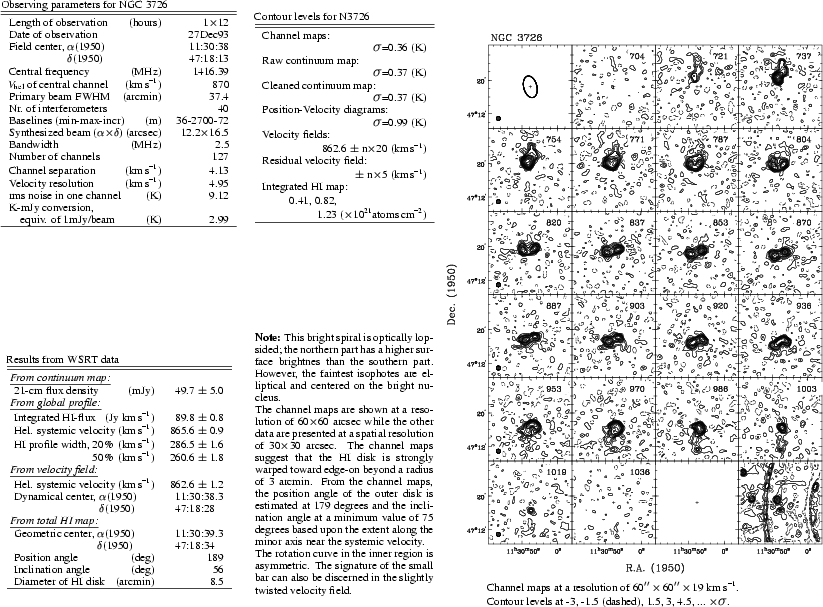

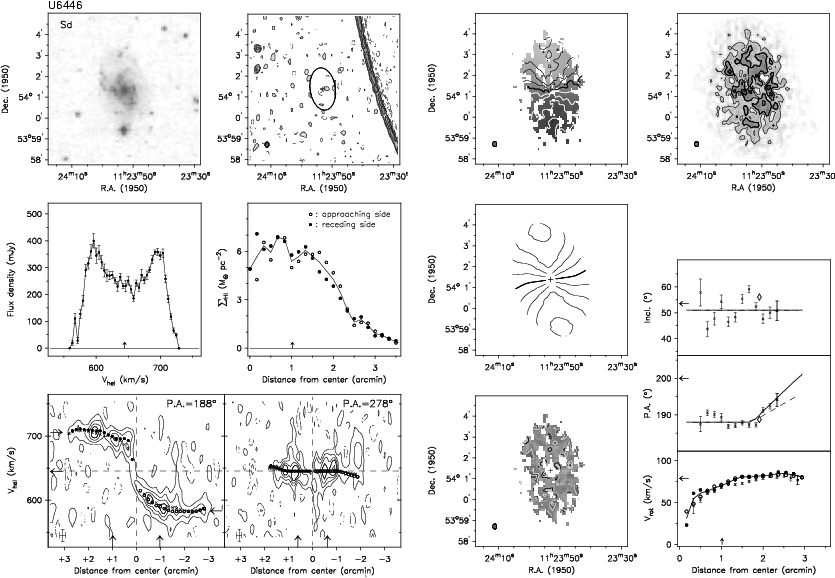

$\begin{figure}\par\includegraphics[angle=-90,width=12cm,clip]{figA03a.ps}\par\end{figure}$ $\begin{figure}\par\includegraphics[angle=-90,width=12cm,clip]{figA03b.ps}\par\end{figure}$

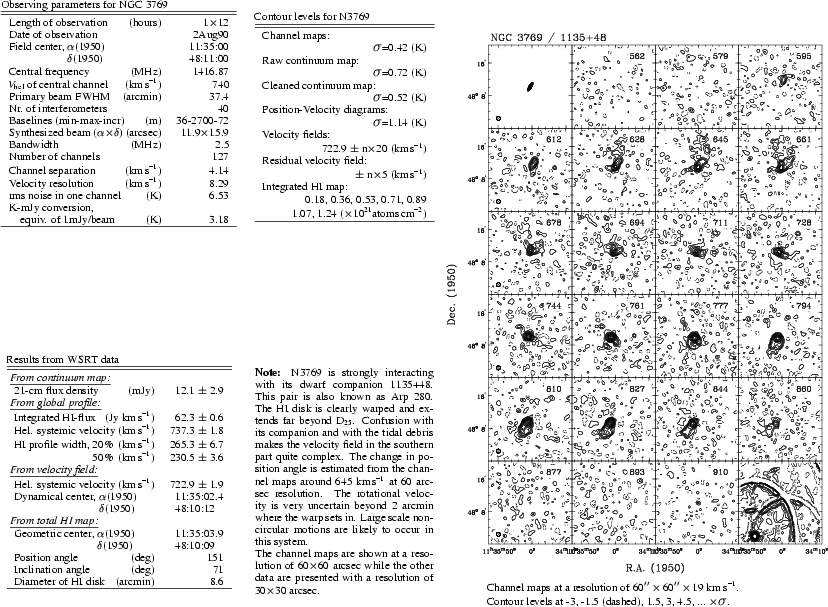

$\begin{figure}\par\includegraphics[angle=-90,width=12cm,clip]{figA04a.ps}\par\end{figure}$ $\begin{figure}\par\includegraphics[angle=-90,width=12cm,clip]{figA04b.ps}\par\end{figure}$

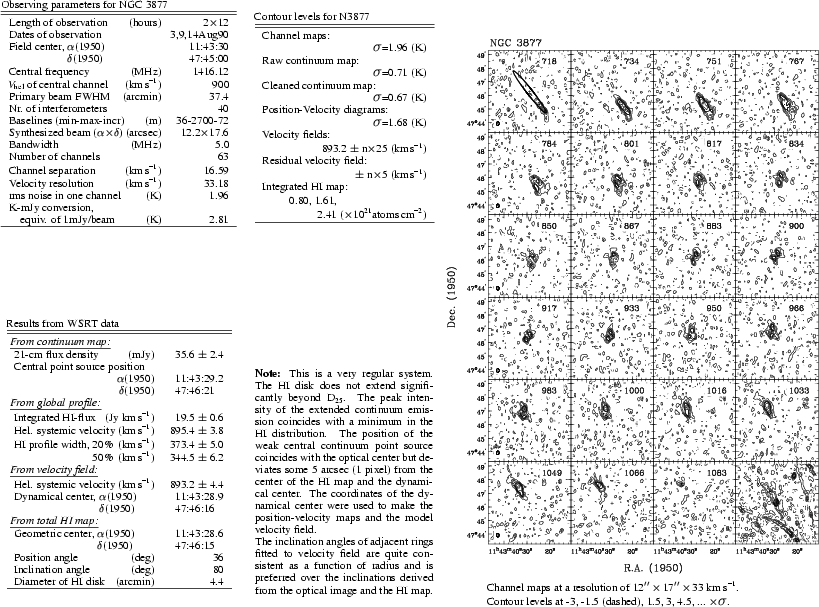

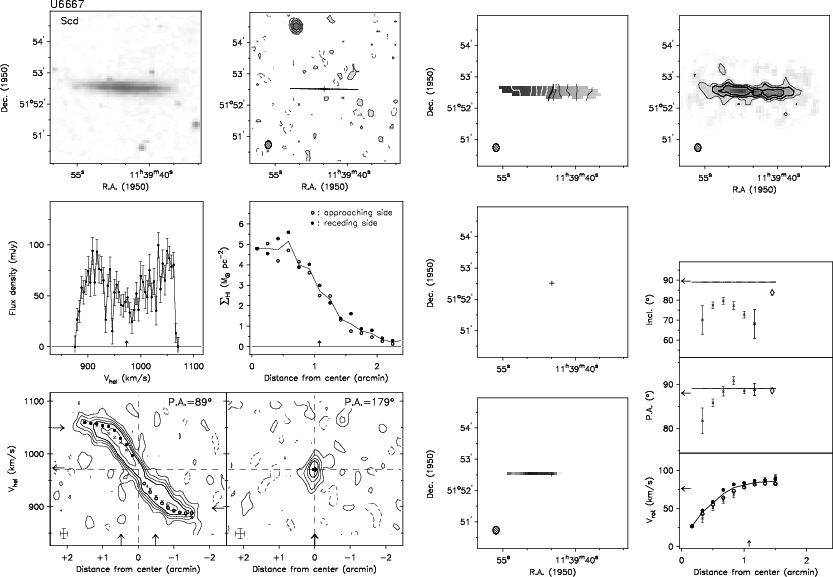

$\begin{figure}\par\includegraphics[angle=-90,width=12cm,clip]{figA05a.ps}\par\end{figure}$ $\begin{figure}\par\includegraphics[angle=-90,width=12cm,clip]{figA05b.ps}\par\end{figure}$

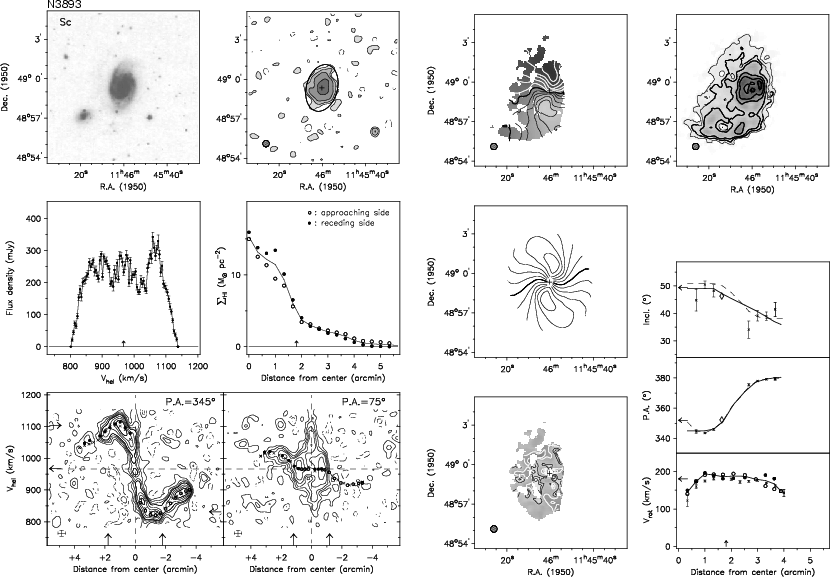

$\begin{figure}\par\includegraphics[angle=-90,width=12cm,clip]{figA06a.ps}\par\end{figure}$ $\begin{figure}\par\includegraphics[angle=-90,width=12cm,clip]{figA06b.ps}\par\end{figure}$

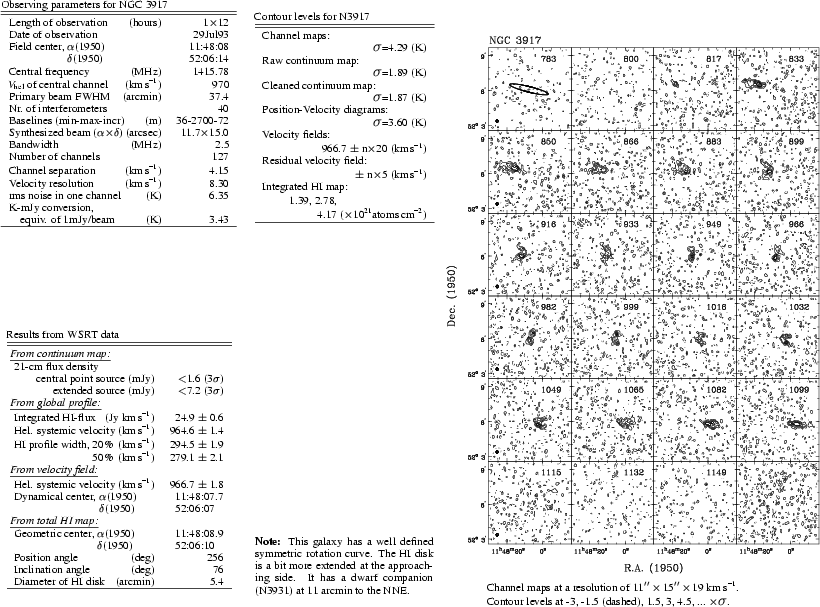

$\begin{figure}\par\includegraphics[angle=-90,width=12cm,clip]{figA07a.ps}\par\end{figure}$ $\begin{figure}\par\includegraphics[angle=-90,width=12cm,clip]{figA07b.ps}\par\end{figure}$

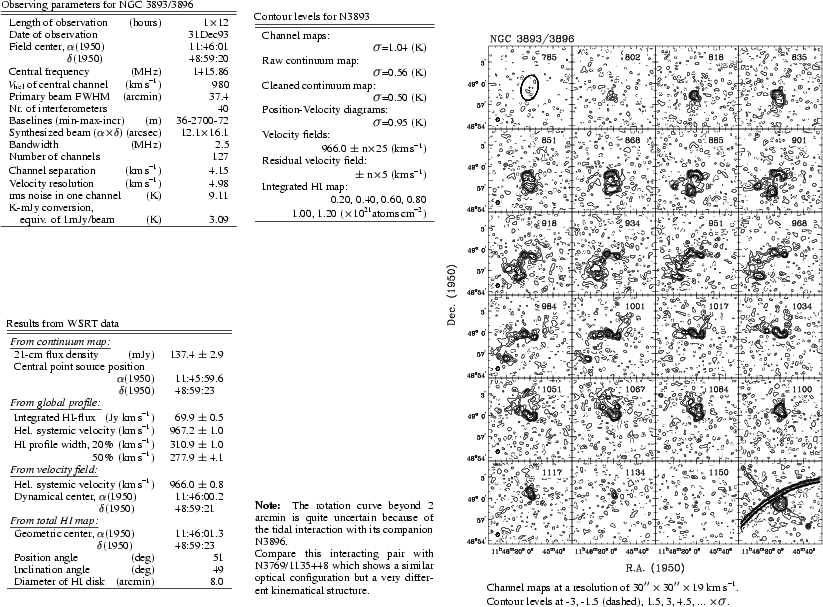

$\begin{figure}\par\includegraphics[angle=-90,width=12cm,clip]{figA08a.ps}\par\end{figure}$ $\begin{figure}\par\includegraphics[angle=-90,width=12cm,clip]{figA08b.ps}\par\end{figure}$

$\begin{figure}\par\includegraphics[angle=-90,width=12cm,clip]{figA09a.ps}\par\end{figure}$ $\begin{figure}\par\includegraphics[angle=-90,width=12cm,clip]{figA09b.ps}\par\end{figure}$

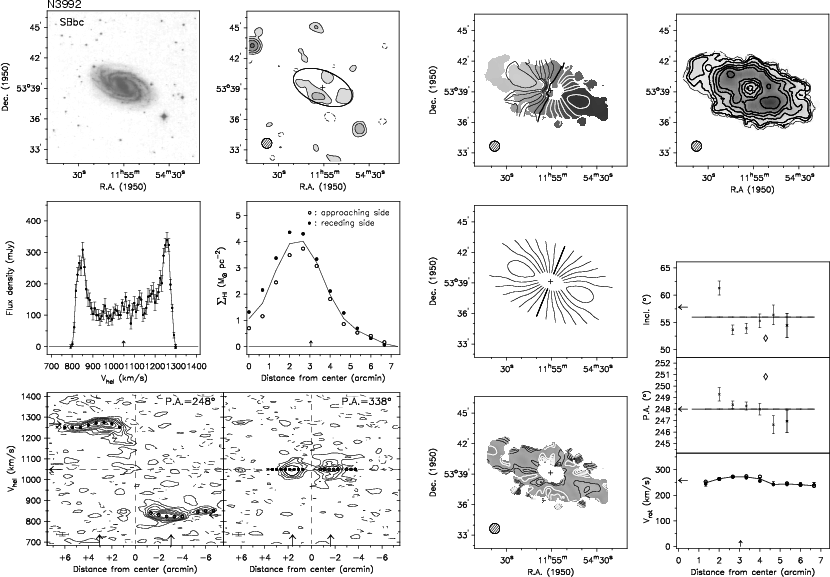

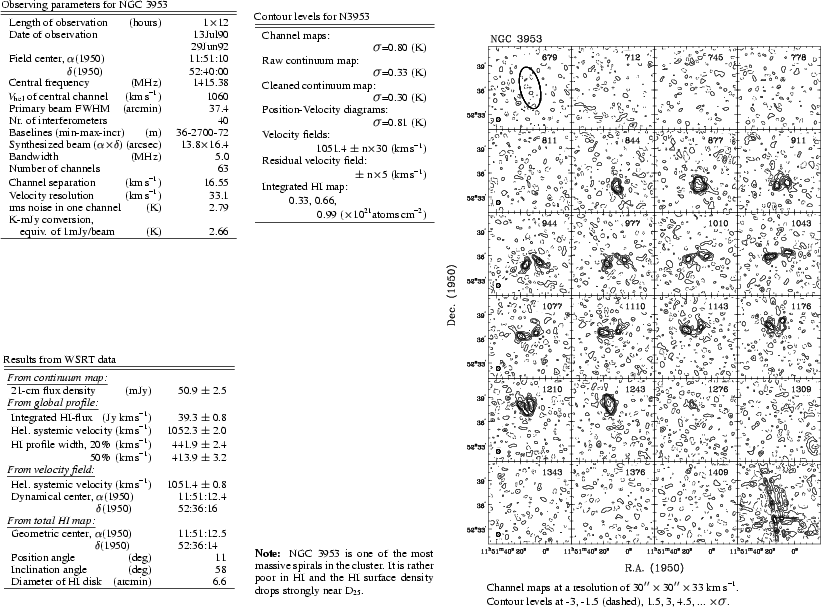

$\begin{figure}\par\includegraphics[angle=-90,width=12cm,clip]{figA10a.ps}\par\end{figure}$ $\begin{figure}\par\includegraphics[angle=-90,width=12cm,clip]{figA10b.ps}\par\end{figure}$

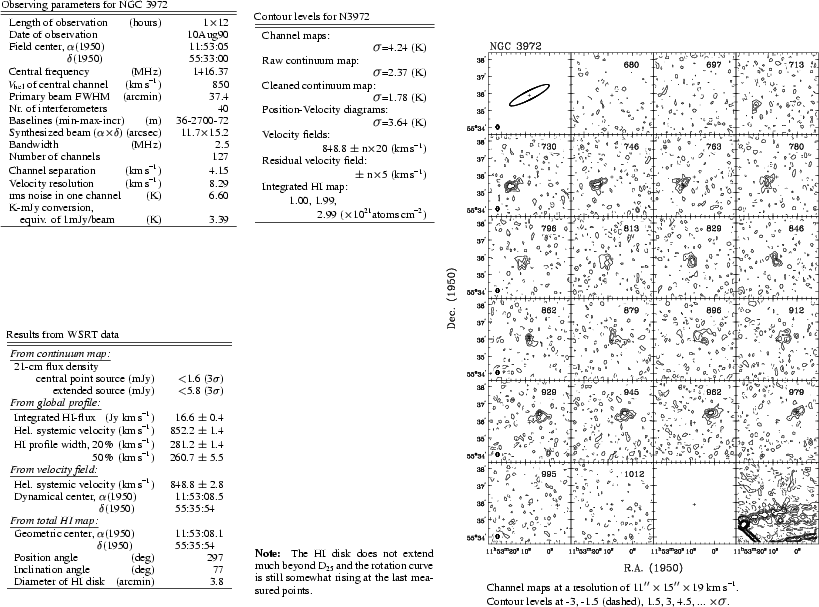

$\begin{figure}\par\includegraphics[angle=-90,width=12cm,clip]{figA11a.ps}\par\end{figure}$ $\begin{figure}\par\includegraphics[angle=-90,width=12cm,clip]{figA11b.ps}\par\end{figure}$

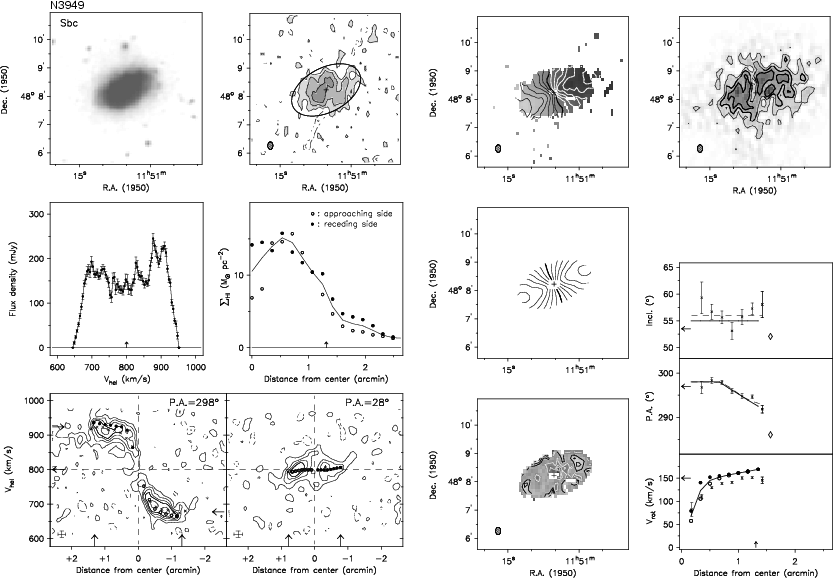

$\begin{figure}\par\includegraphics[angle=-90,width=12cm,clip]{figA12a.ps}\par\end{figure}$ $\begin{figure}\par\includegraphics[angle=-90,width=12cm,clip]{figA12b.ps}\par\end{figure}$

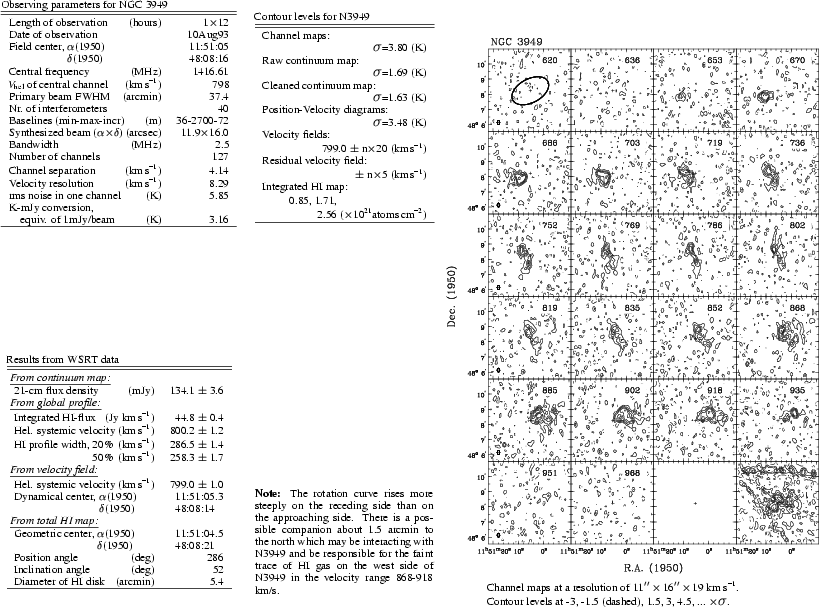

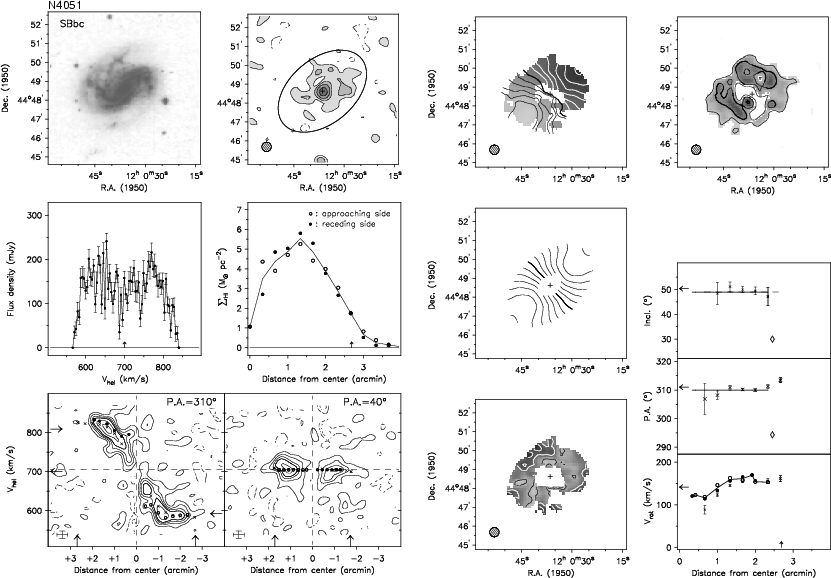

$\begin{figure}\par\includegraphics[angle=-90,width=12cm,clip]{figA13a.ps}\par\end{figure}$ $\begin{figure}\par\includegraphics[angle=-90,width=12cm,clip]{figA13b.ps}\par\end{figure}$

$\begin{figure}\par\includegraphics[angle=-90,width=12cm,clip]{figA14a.ps}\par\end{figure}$ $\begin{figure}\par\includegraphics[angle=-90,width=12cm,clip]{figA14b.ps}\par\end{figure}$

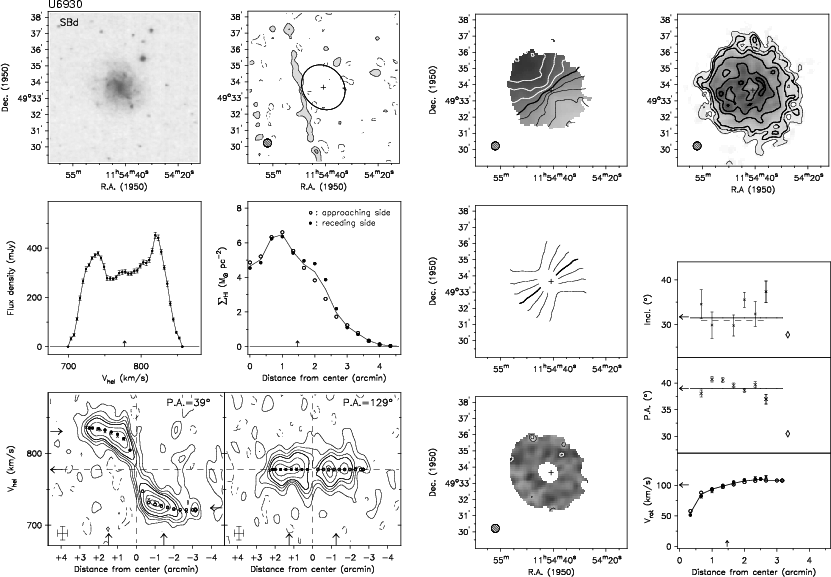

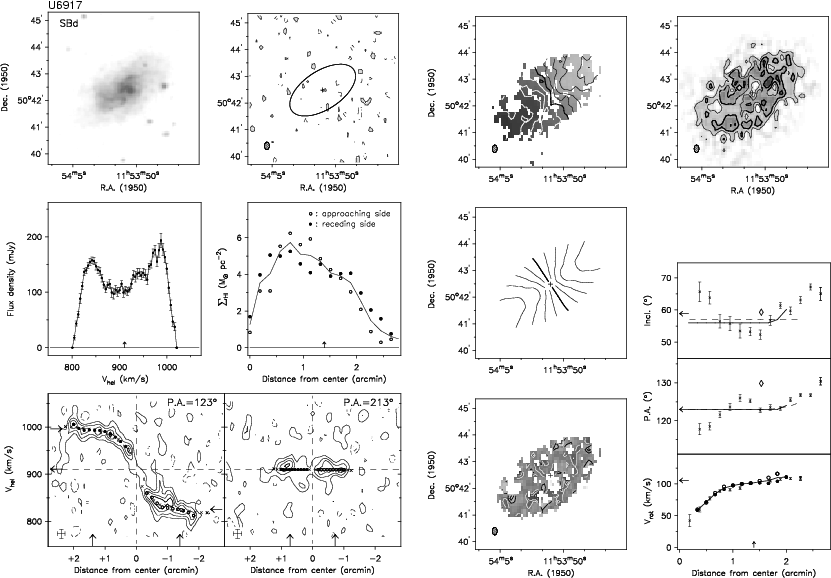

$\begin{figure}\par\includegraphics[angle=-90,width=12cm,clip]{figA15a.ps}\par\end{figure}$ $\begin{figure}\par\includegraphics[angle=-90,width=12cm,clip]{figA15b.ps}\par\end{figure}$

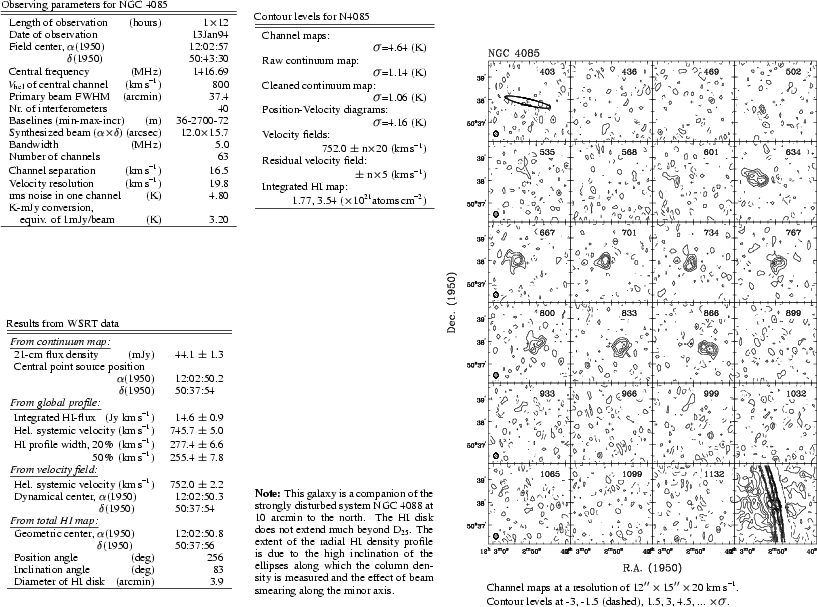

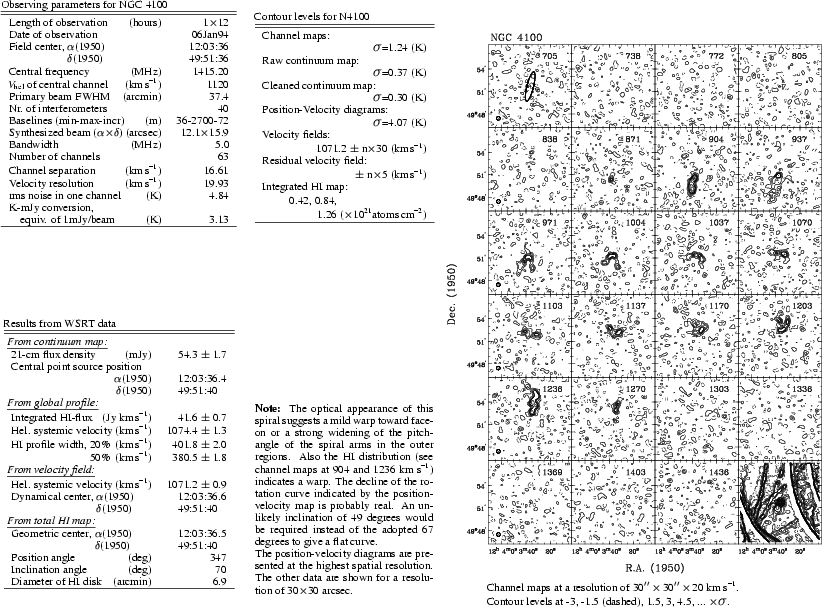

$\begin{figure}\par\includegraphics[angle=-90,width=12cm,clip]{figA16a.ps}\par\end{figure}$ $\begin{figure}\par\includegraphics[angle=-90,width=12cm,clip]{figA16b.ps}\par\end{figure}$

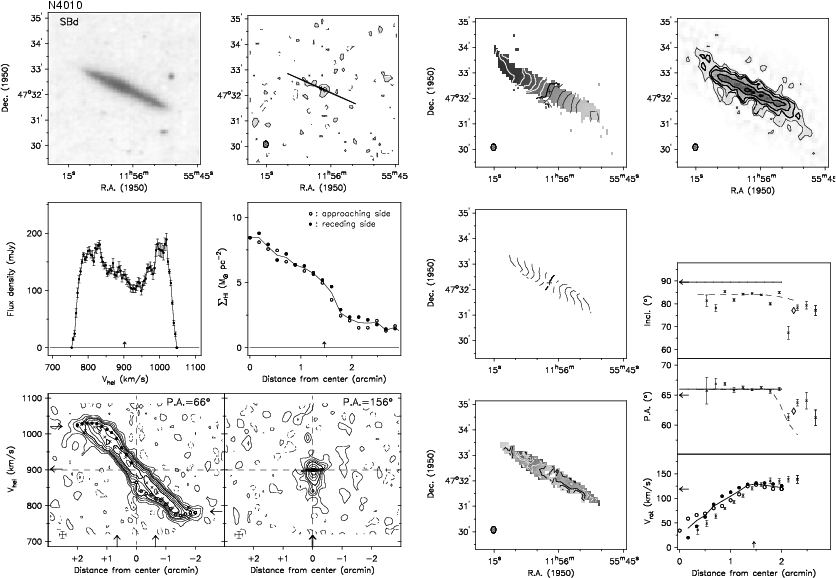

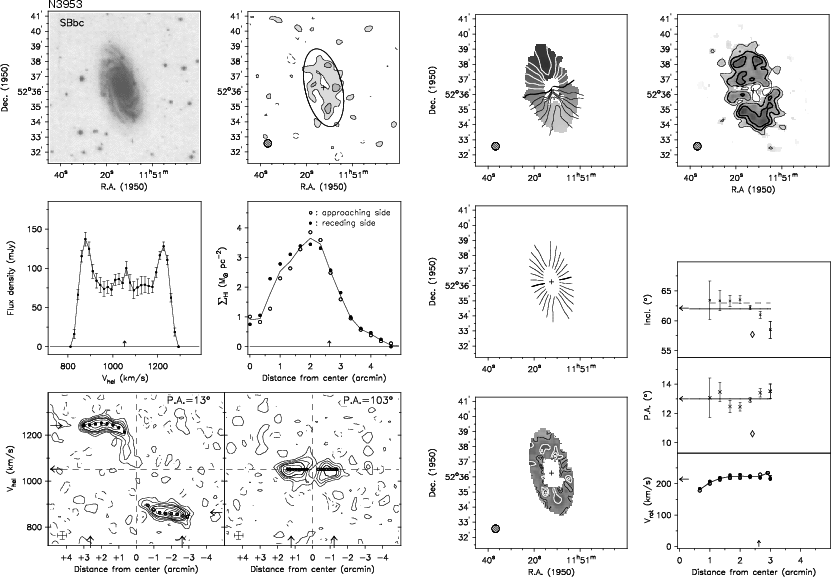

$\begin{figure}\par\includegraphics[angle=-90,width=12cm,clip]{figA17a.ps}\par\end{figure}$ $\begin{figure}\par\includegraphics[angle=-90,width=12cm,clip]{figA17b.ps}\par\end{figure}$

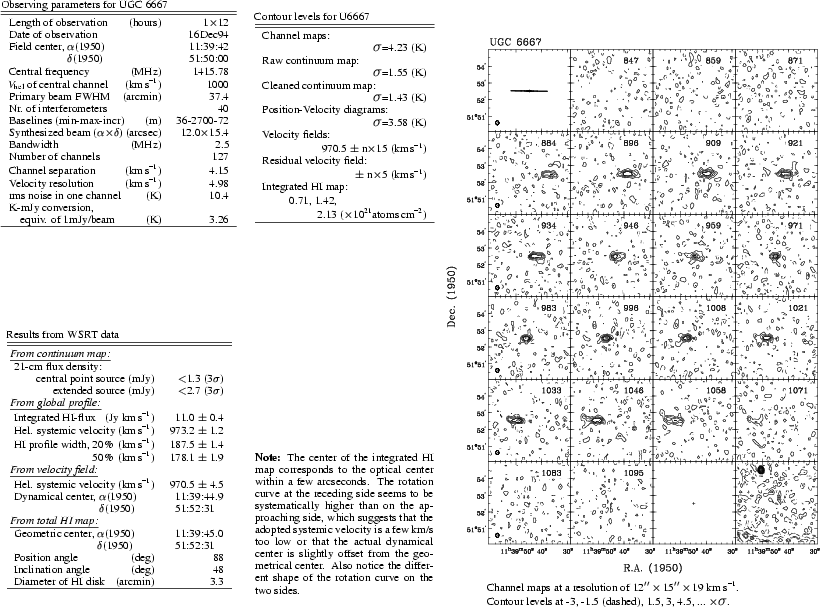

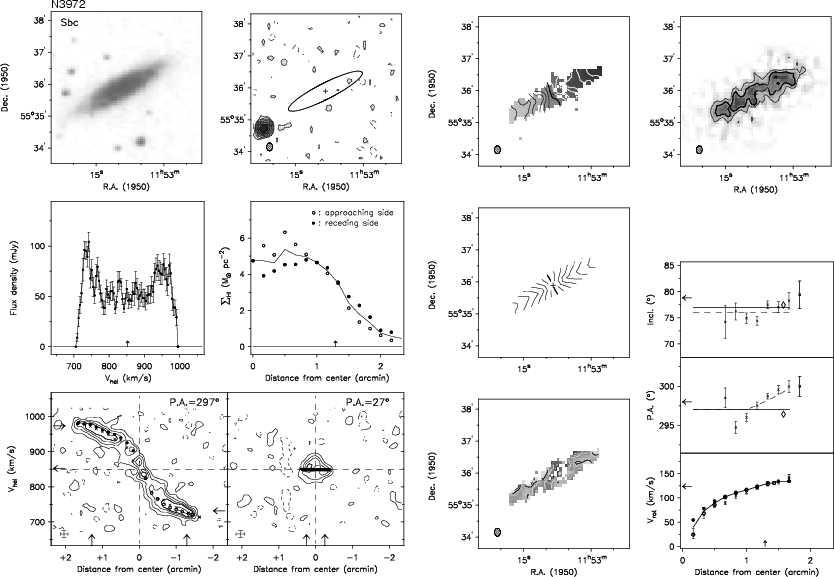

$\begin{figure}\par\includegraphics[angle=-90,width=12cm,clip]{figA18a.ps}\par\end{figure}$ $\begin{figure}\par\includegraphics[angle=-90,width=12cm,clip]{figA18b.ps}\par\end{figure}$

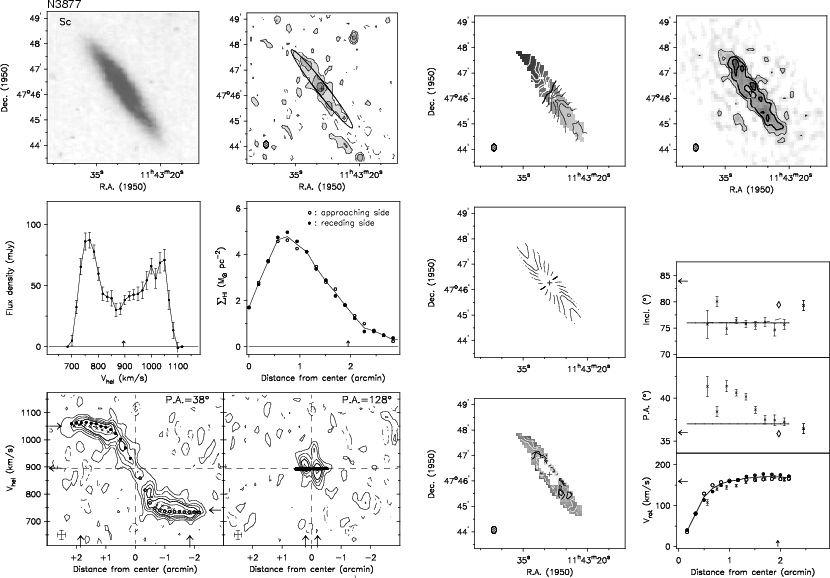

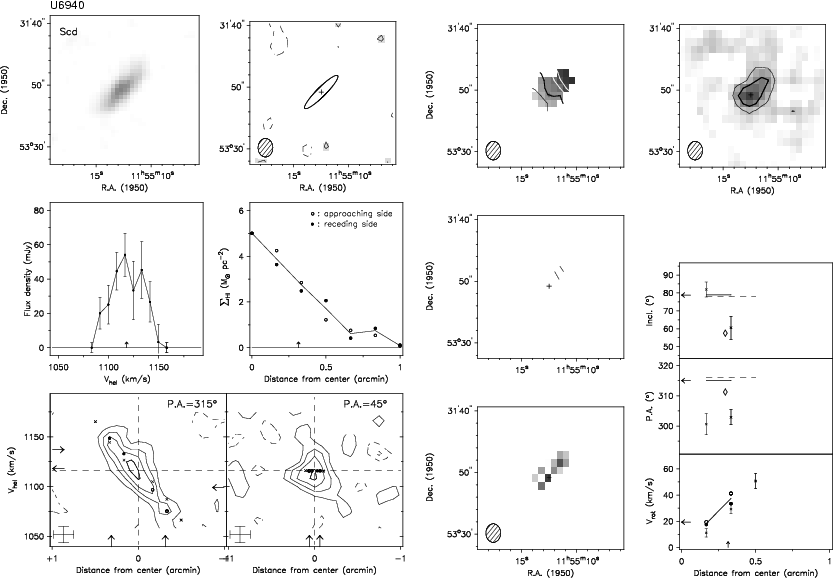

$\begin{figure}\par\includegraphics[angle=-90,width=12cm,clip]{figA19a.ps}\par\end{figure}$ $\begin{figure}\par\includegraphics[angle=-90,width=12cm,clip]{figA19b.ps}\par\end{figure}$

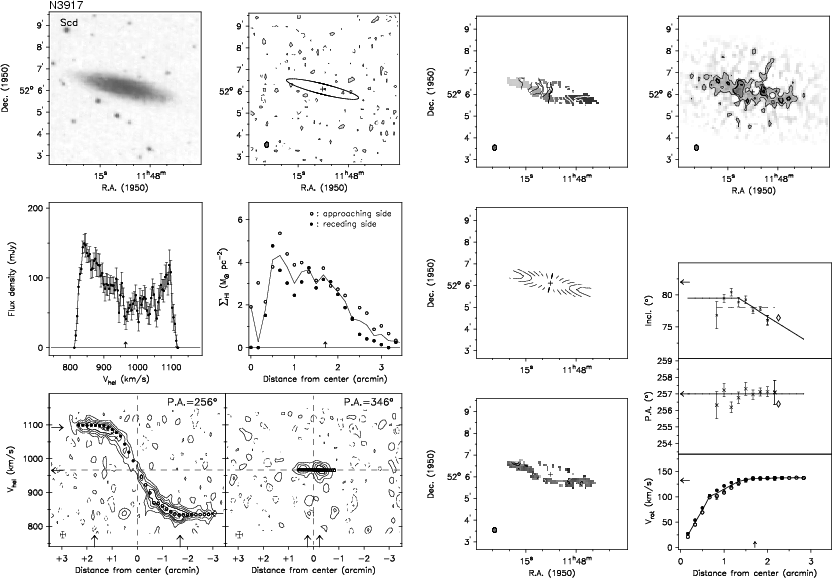

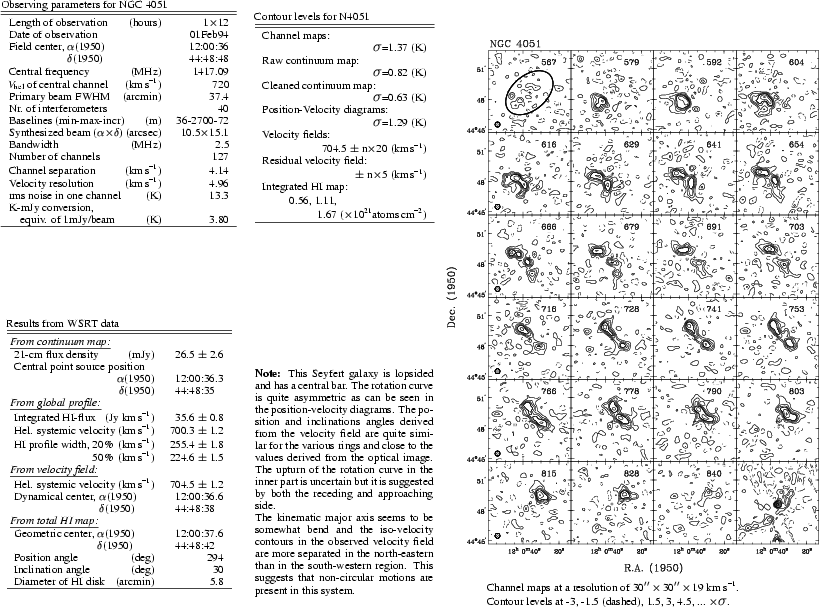

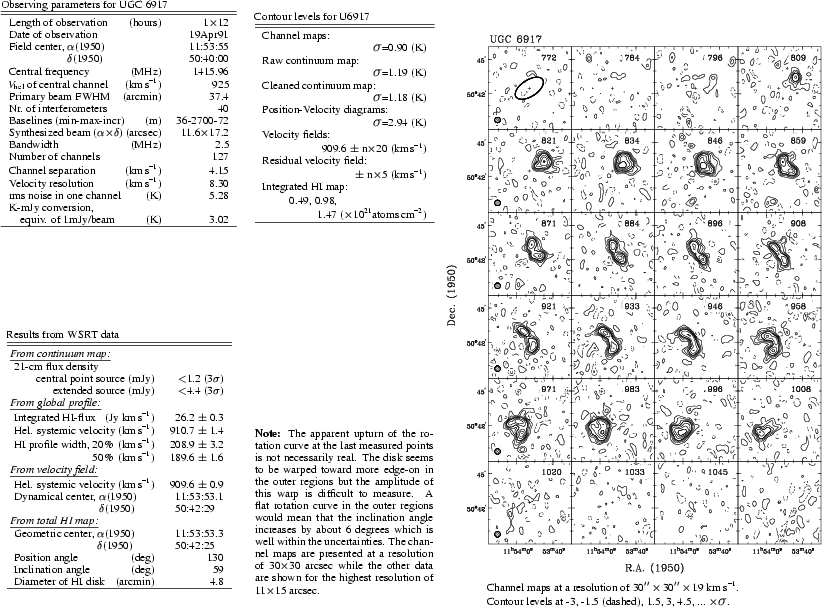

$\begin{figure}\par\includegraphics[angle=-90,width=12cm,clip]{figA20a.ps}\par\end{figure}$ $\begin{figure}\par\includegraphics[angle=-90,width=12cm,clip]{figA20b.ps}\par\end{figure}$

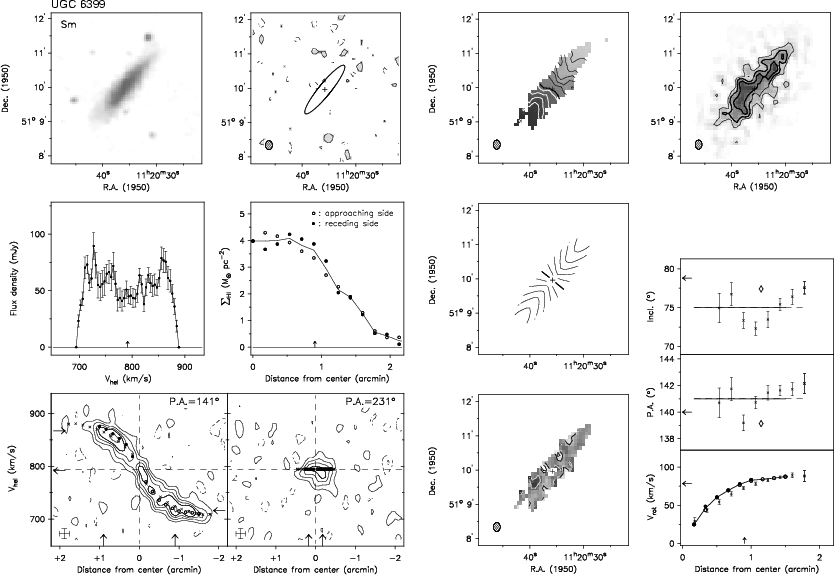

$\begin{figure}\par\includegraphics[angle=-90,width=12cm,clip]{figA21a.ps}\par\end{figure}$ $\begin{figure}\par\includegraphics[angle=-90,width=12cm,clip]{figA21b.ps}\par\end{figure}$

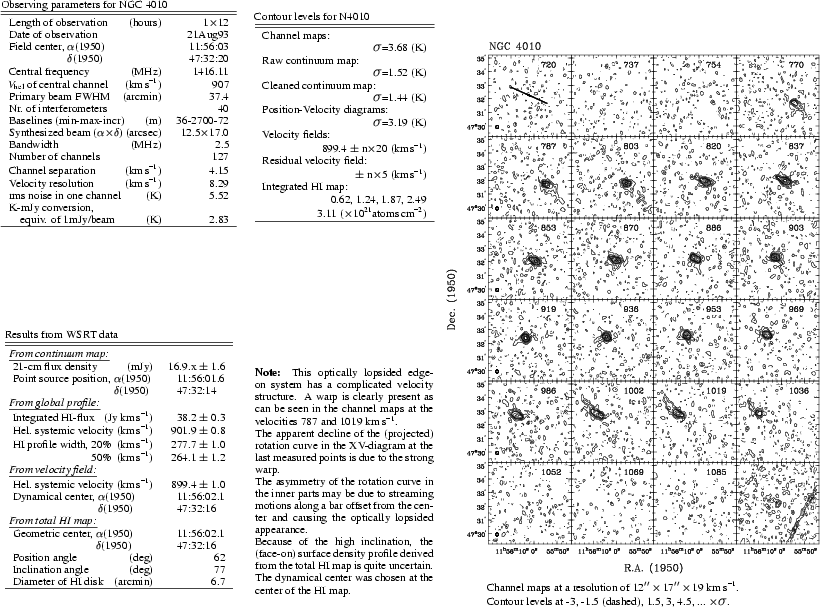

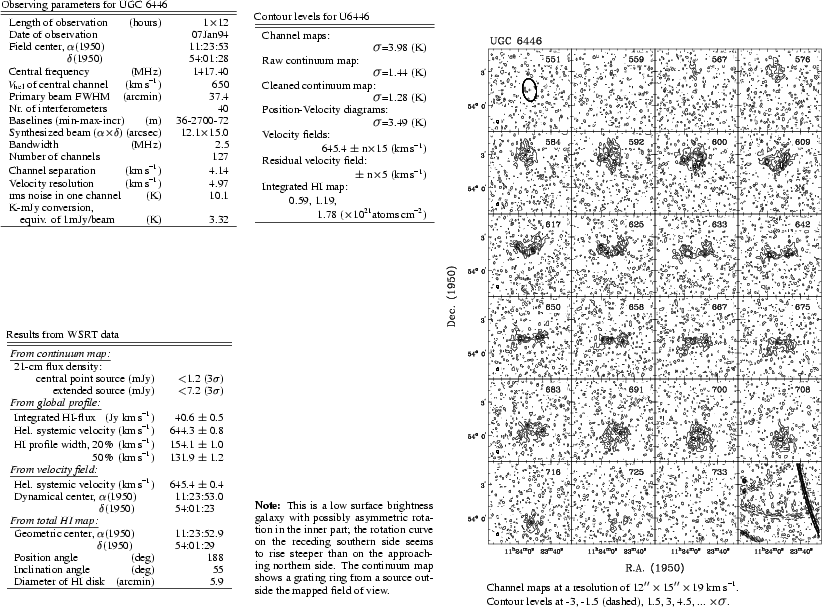

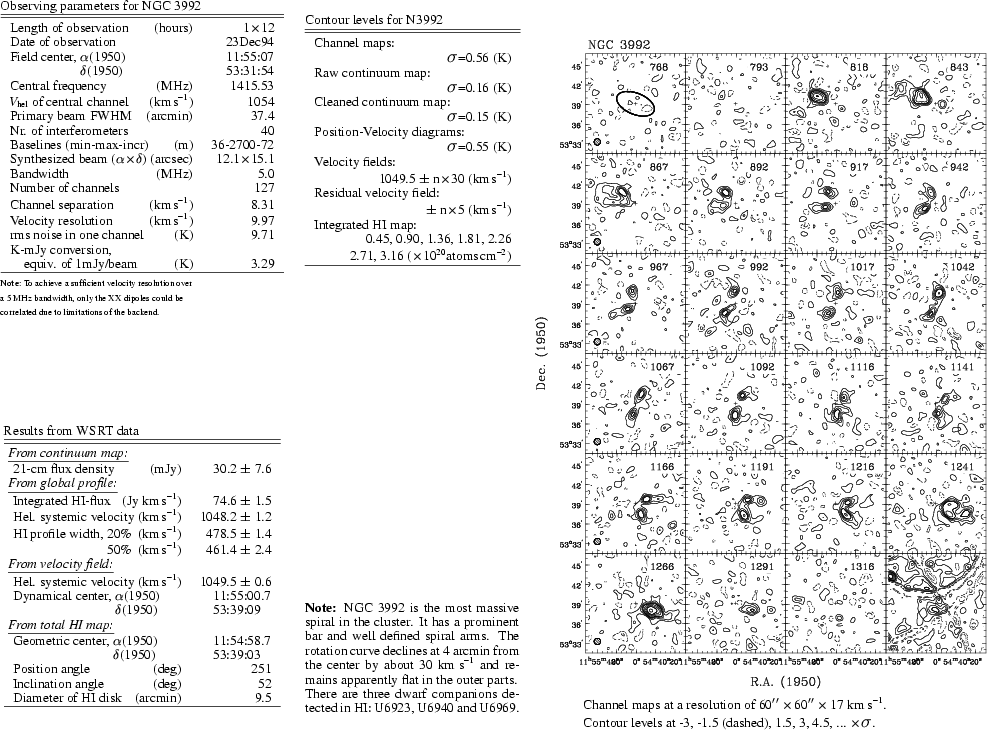

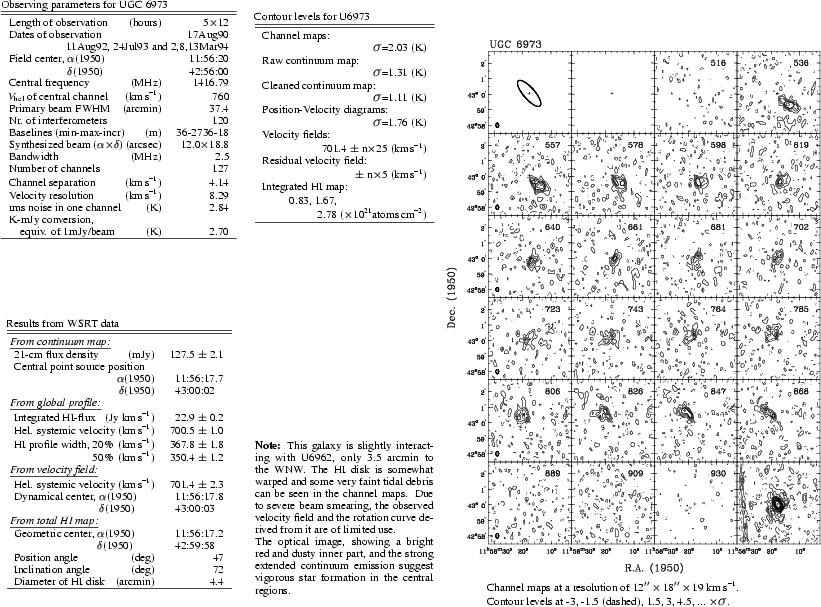

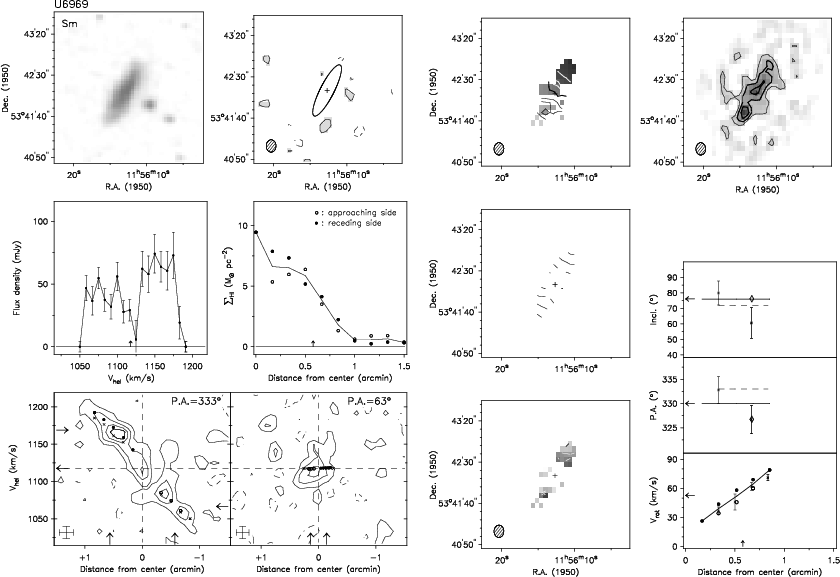

$\begin{figure}\par\includegraphics[angle=-90,width=12cm,clip]{figA22a.ps}\par\end{figure}$ $\begin{figure}\par\includegraphics[angle=-90,width=12cm,clip]{figA22b.ps}\par\end{figure}$

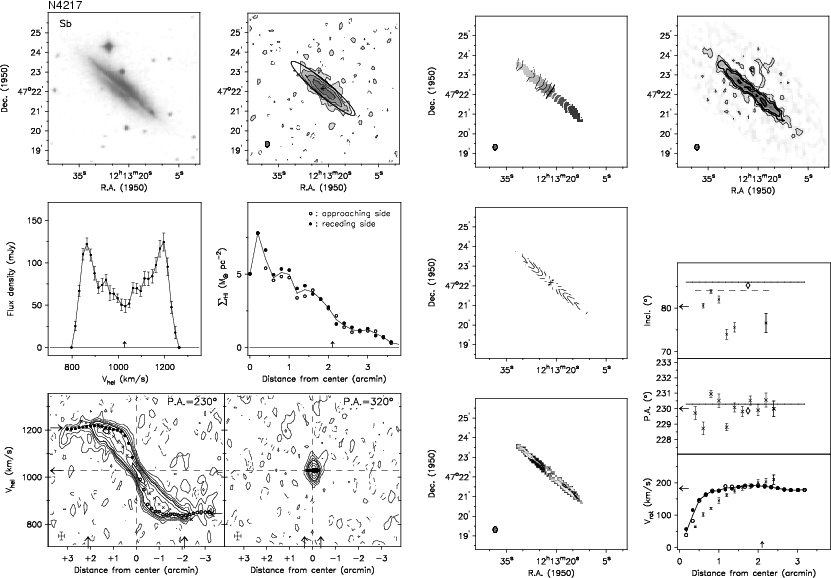

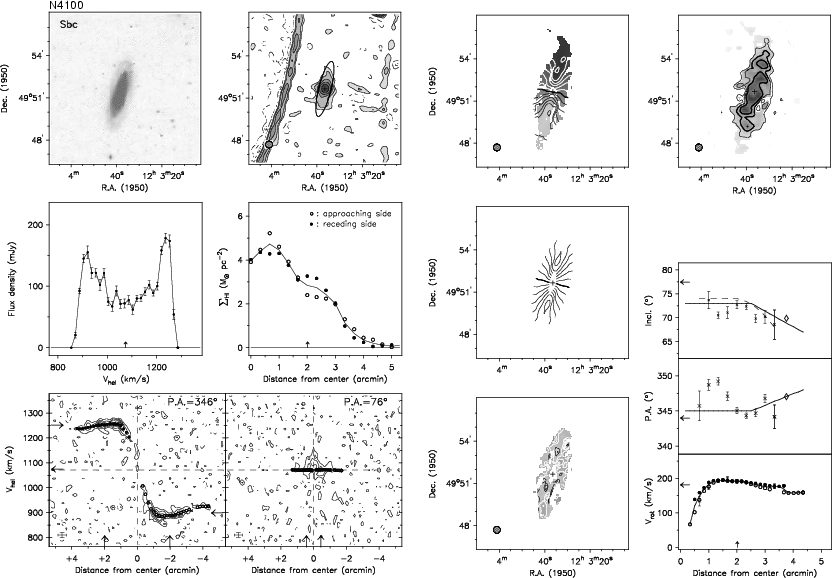

$\begin{figure}\par\includegraphics[angle=-90,width=12cm,clip]{figA23a.ps}\par\end{figure}$ $\begin{figure}\par\includegraphics[angle=-90,width=12cm,clip]{figA23b.ps}\par\end{figure}$

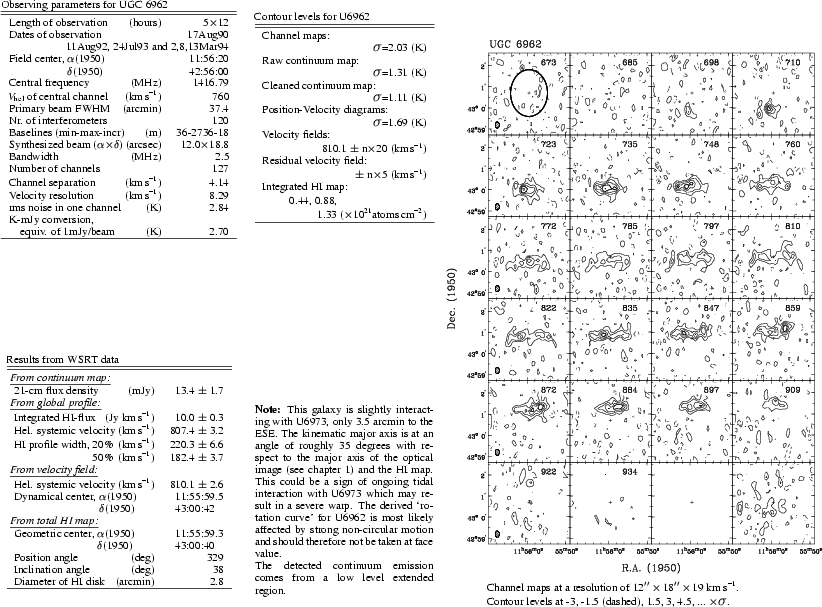

$\begin{figure}\par\includegraphics[angle=-90,width=12cm,clip]{figA24a.ps}\par\end{figure}$ $\begin{figure}\par\includegraphics[angle=-90,width=12cm,clip]{figA24b.ps}\par\end{figure}$

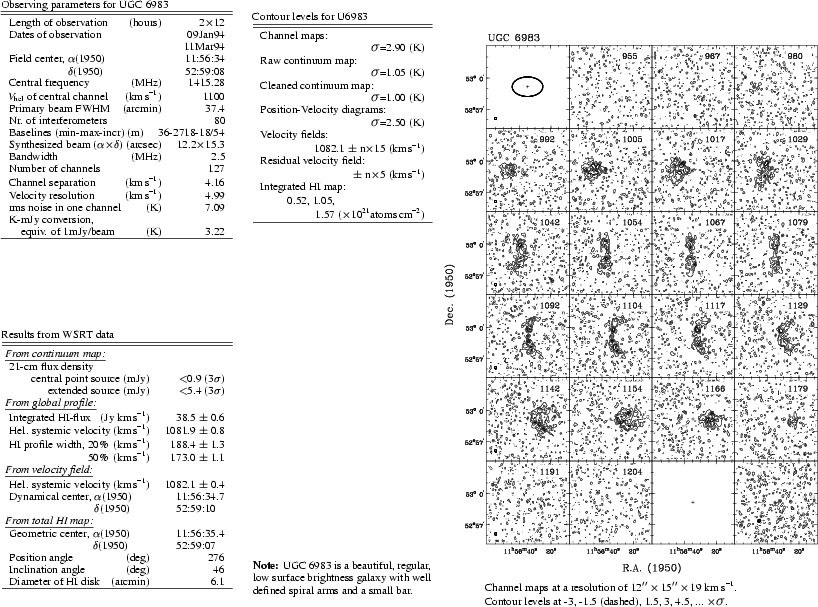

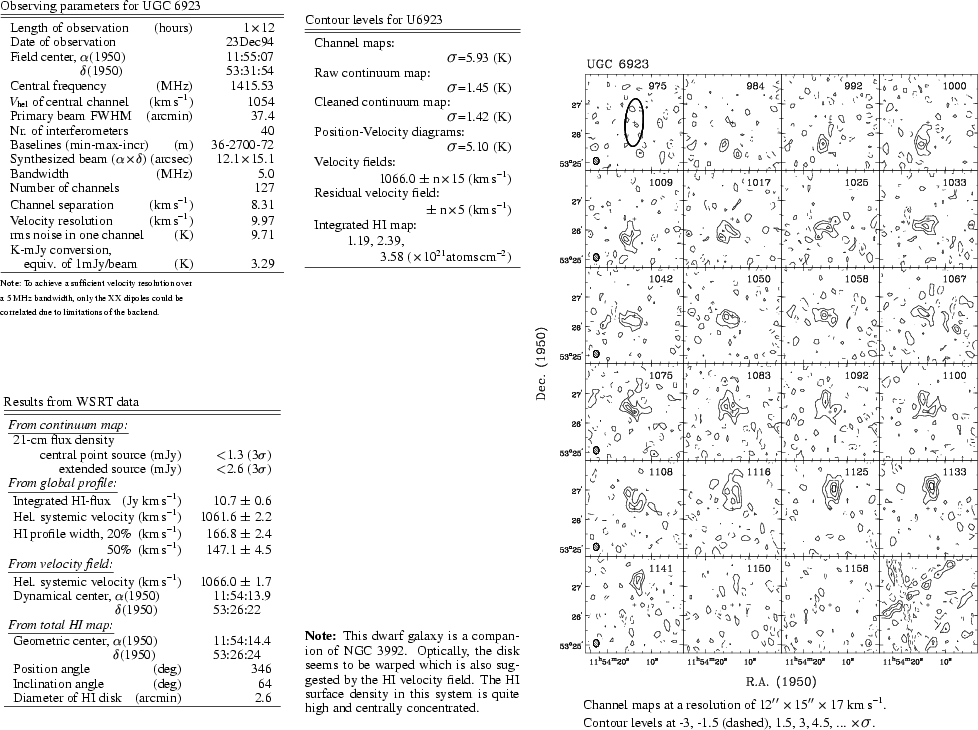

$\begin{figure}\par\includegraphics[angle=-90,width=12cm,clip]{figA25a.ps}\par\end{figure}$ $\begin{figure}\par\includegraphics[angle=-90,width=12cm,clip]{figA25b.ps}\par\end{figure}$

$\begin{figure}\par\includegraphics[angle=-90,width=12cm,clip]{figA26a.ps}\par\end{figure}$ $\begin{figure}\par\includegraphics[angle=-90,width=12cm,clip]{figA26b.ps}\par\end{figure}$

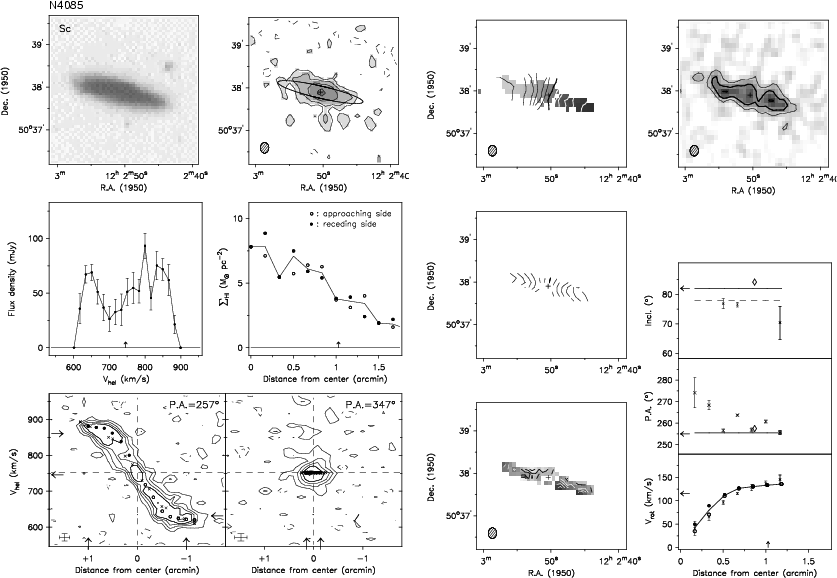

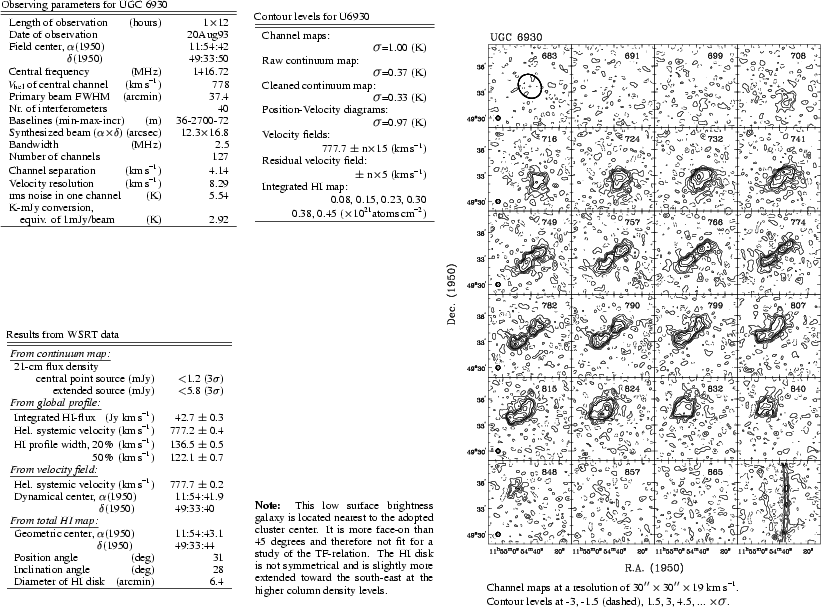

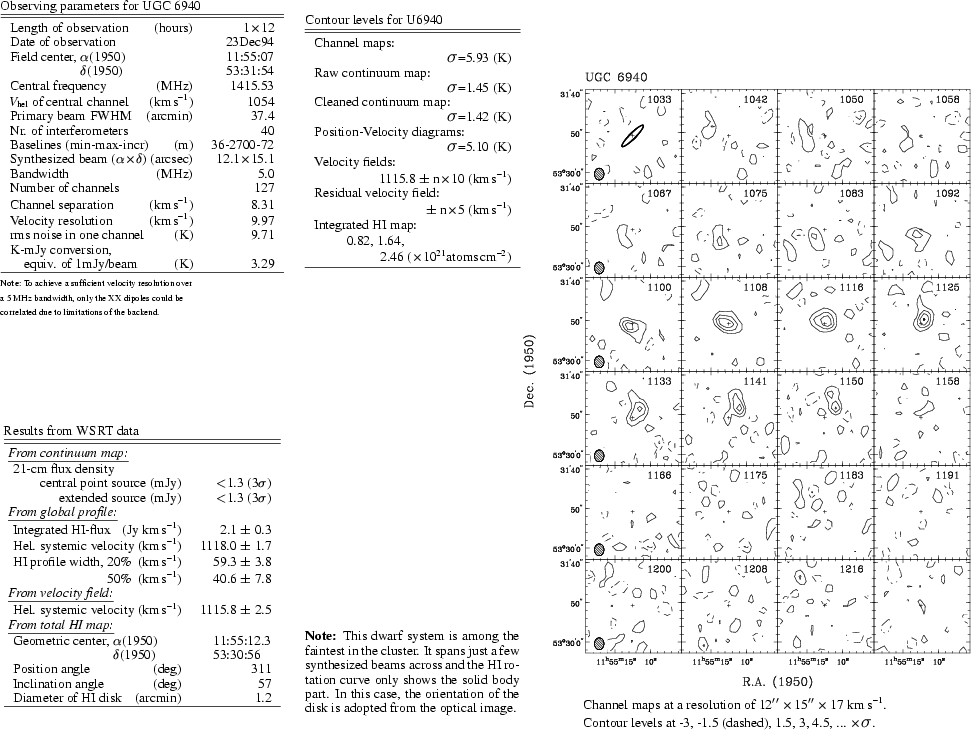

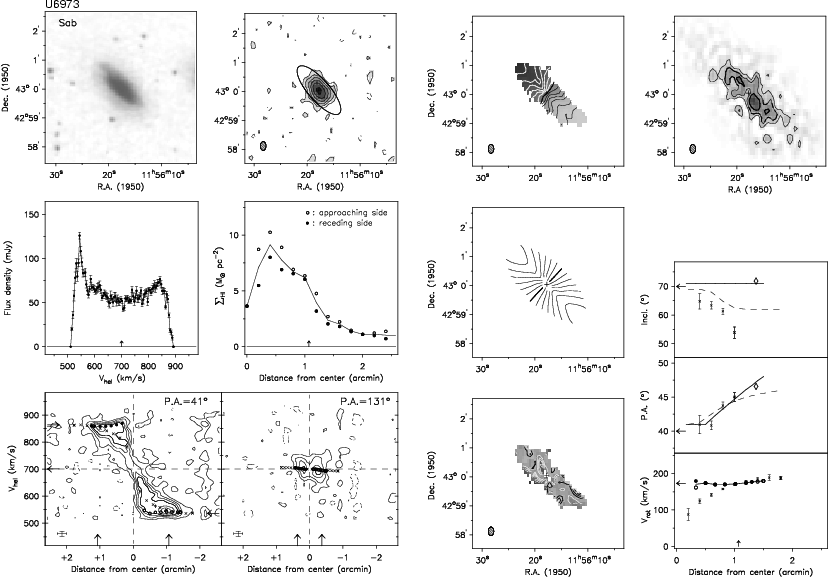

$\begin{figure}\par\includegraphics[angle=-90,width=12cm,clip]{figA27a.ps}\par\end{figure}$ $\begin{figure}\par\includegraphics[angle=-90,width=12cm,clip]{figA27b.ps}\par\end{figure}$

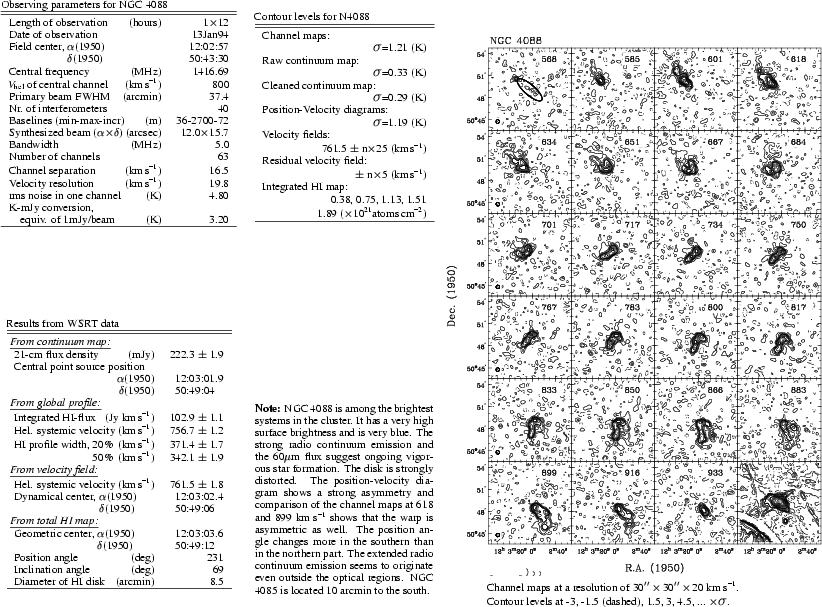

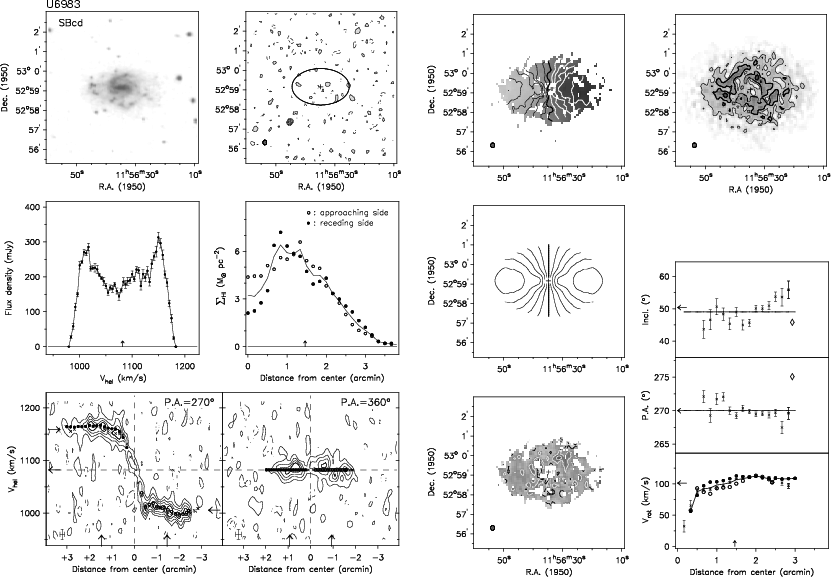

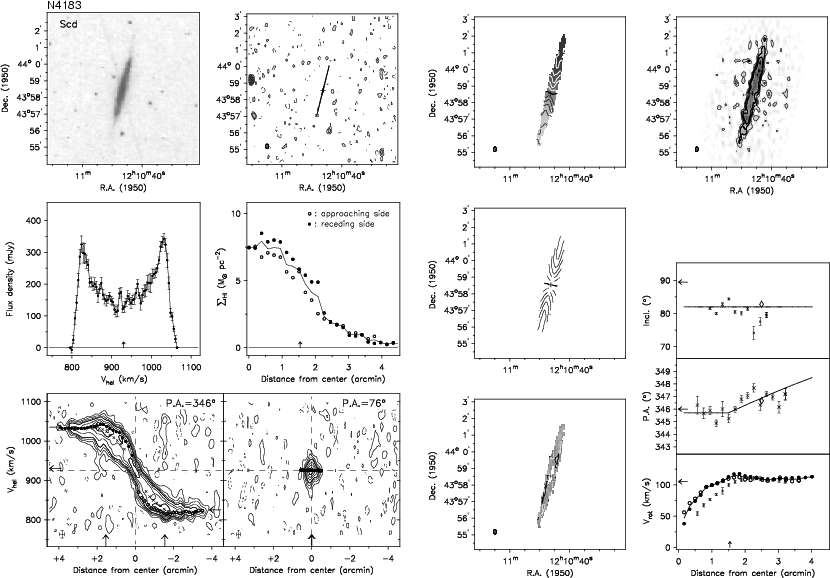

$\begin{figure}\par\includegraphics[angle=-90,width=12cm,clip]{figA28a.ps}\par\end{figure}$ $\begin{figure}\par\includegraphics[angle=-90,width=12cm,clip]{figA28b.ps}\par\end{figure}$

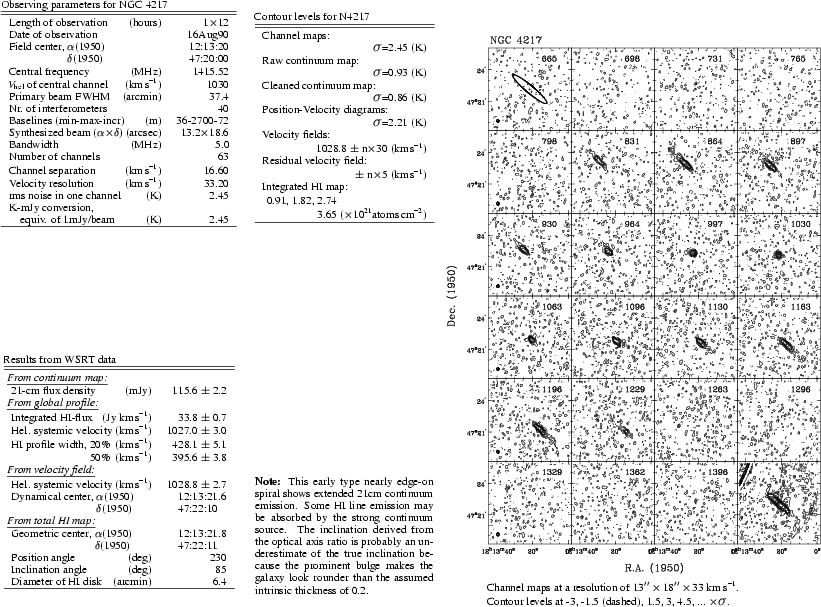

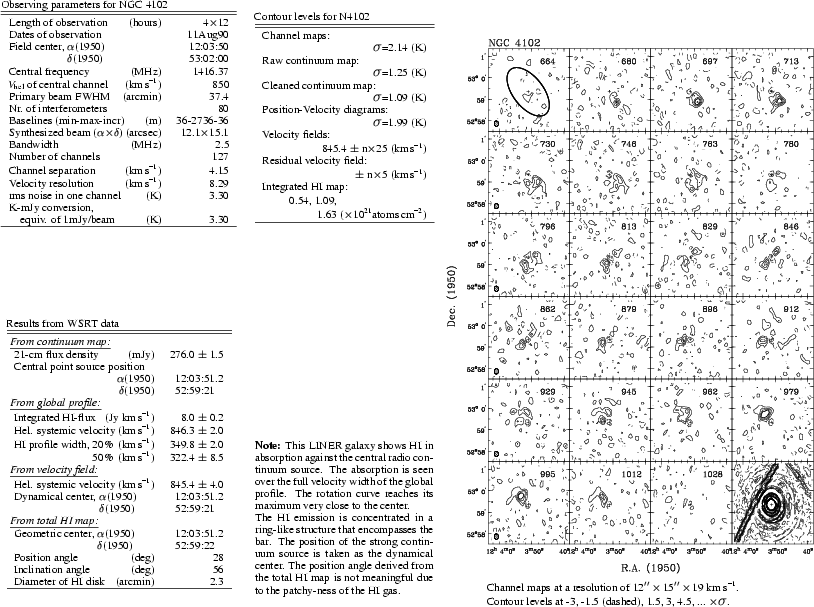

$\begin{figure}\par\includegraphics[angle=-90,width=12cm,clip]{figA29a.ps}\par\end{figure}$ $\begin{figure}\par\includegraphics[angle=-90,width=12cm,clip]{figA29b.ps}\par\end{figure}$

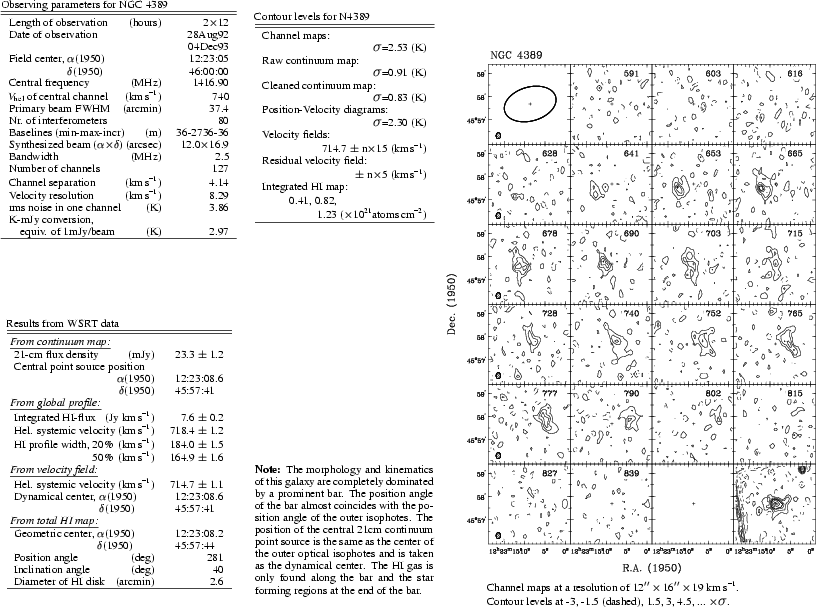

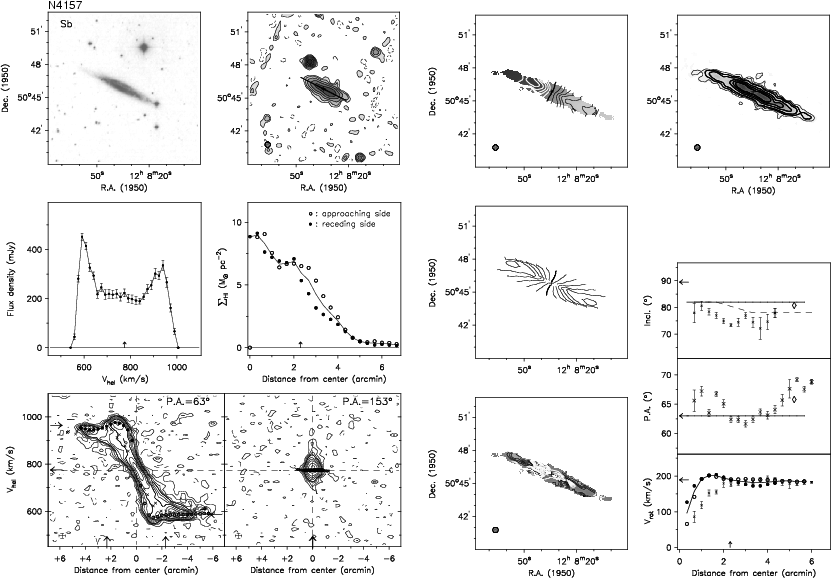

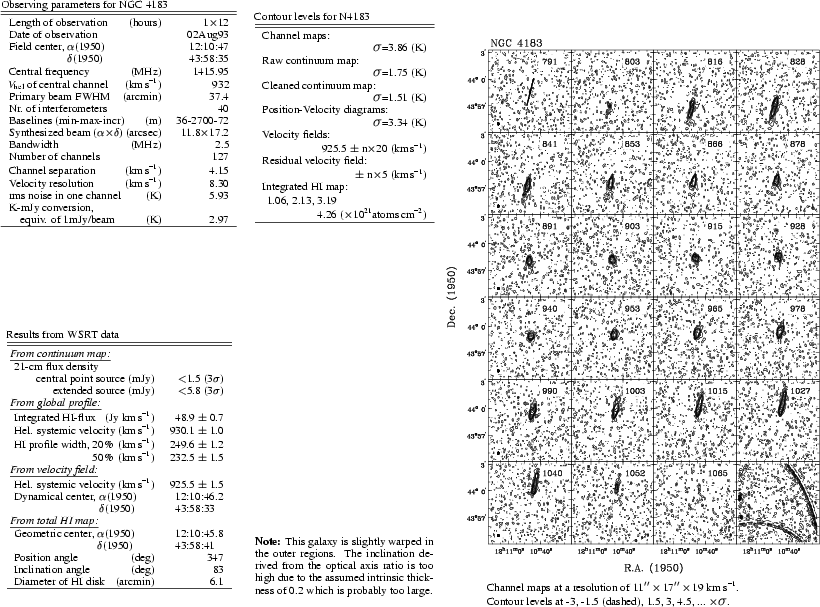

$\begin{figure}\par\includegraphics[angle=-90,width=12cm,clip]{figA30a.ps}\par\end{figure}$ $\begin{figure}\par\includegraphics[angle=-90,width=12cm,clip]{figA30b.ps}\par\end{figure}$

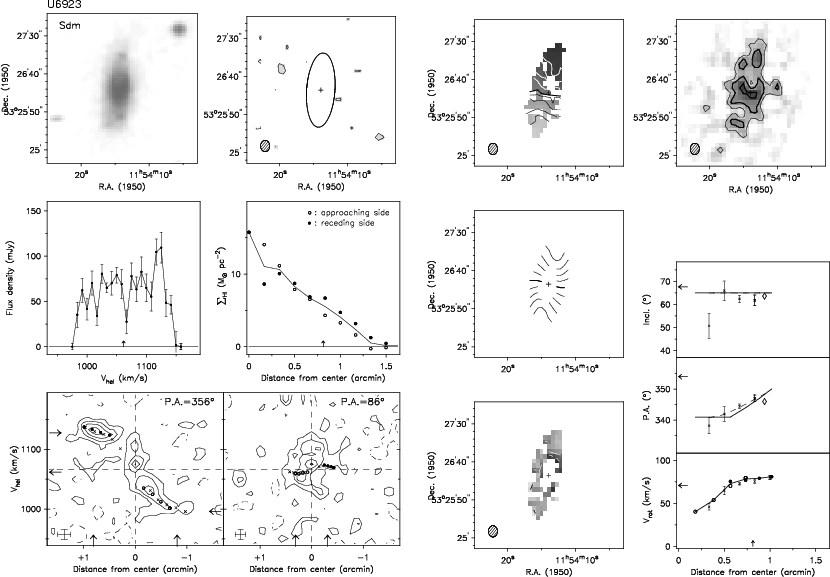

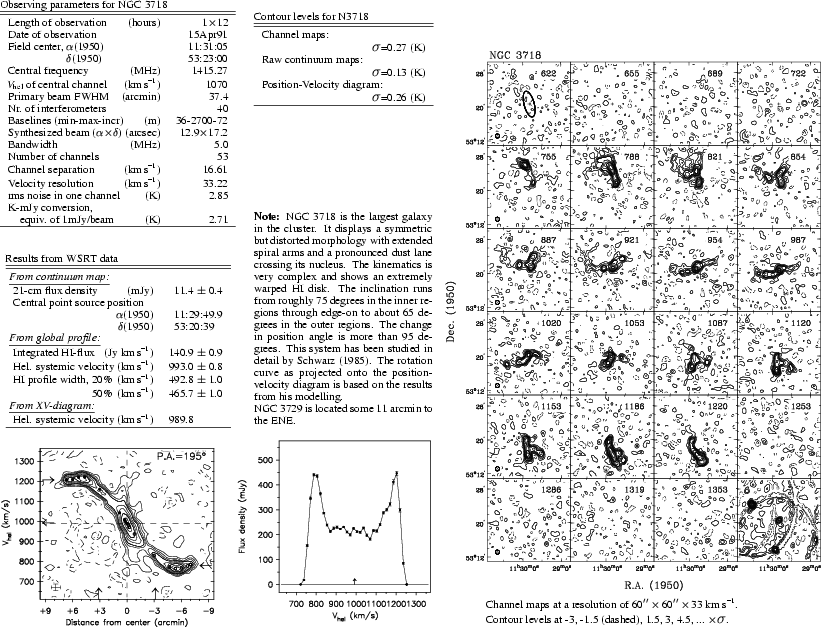

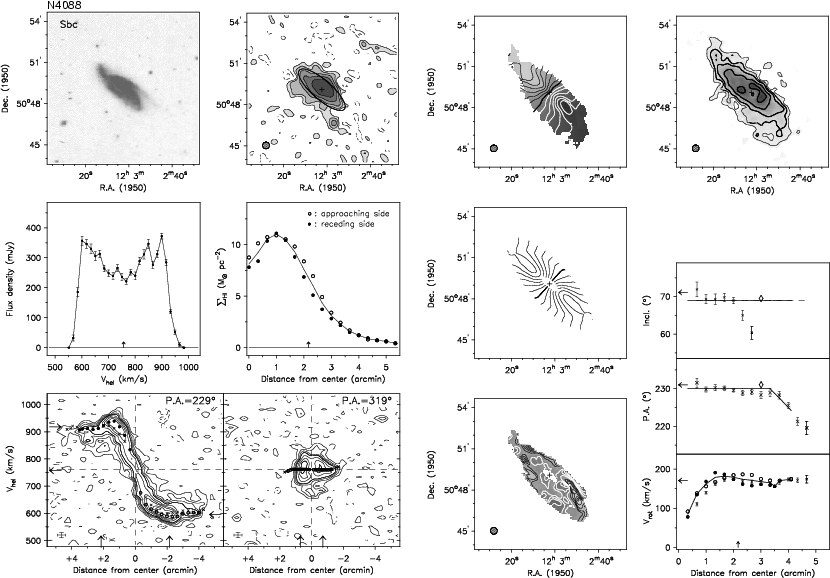

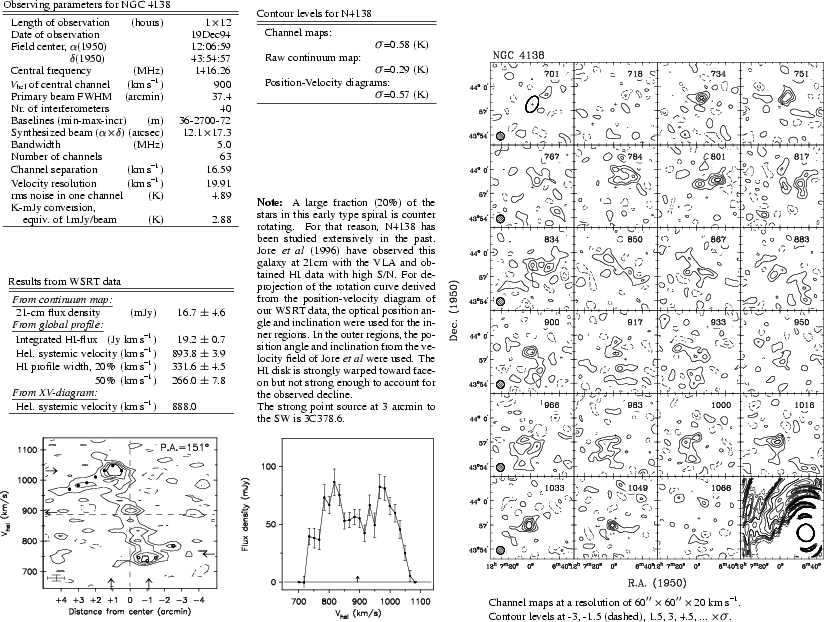

$\begin{figure}\par\includegraphics[angle=-90,width=12cm,clip]{figA31.ps}\par\end{figure}$ $\begin{figure}\par\includegraphics[angle=-90,width=12cm,clip]{figA32.ps}\par\end{figure}$

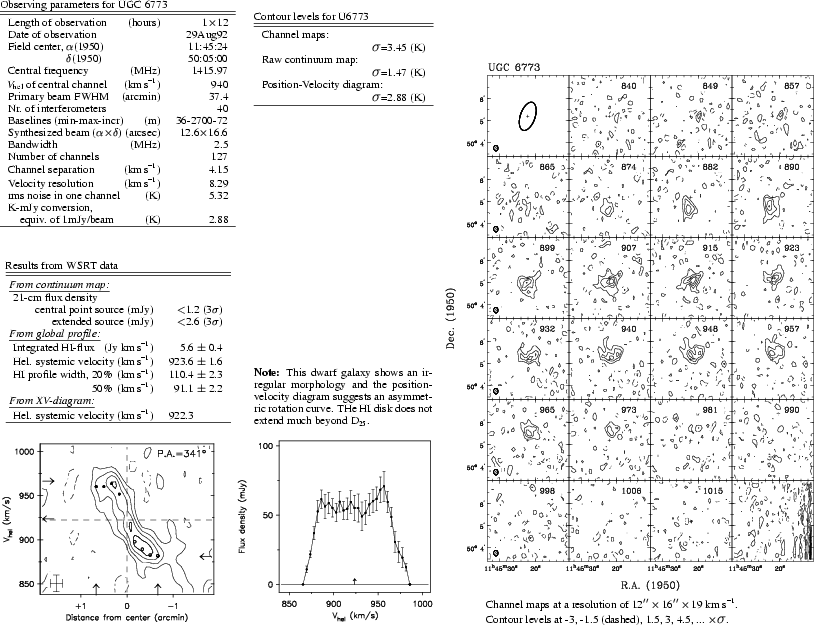

$\begin{figure}\par\includegraphics[angle=-90,width=12cm,clip]{figA33.ps}\par\end{figure}$ $\begin{figure}\par\includegraphics[angle=-90,width=12cm,clip]{figA34.ps}\par\end{figure}$

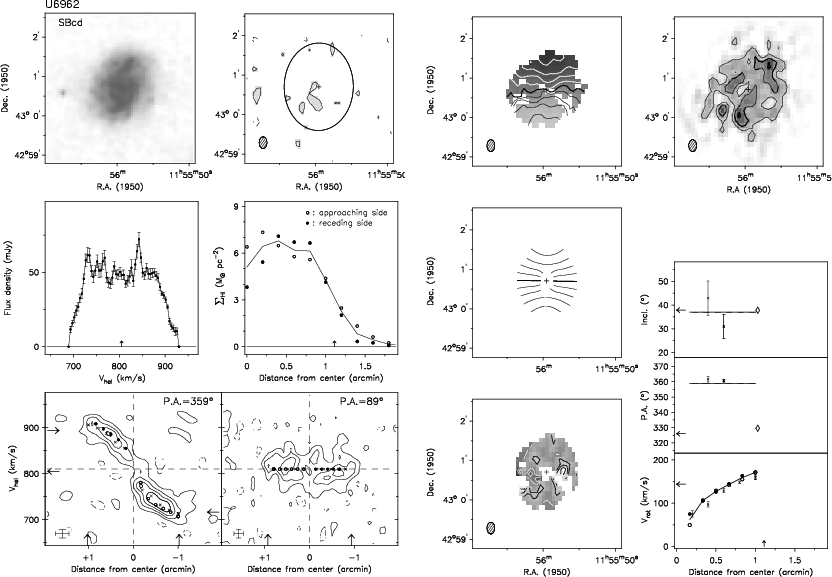

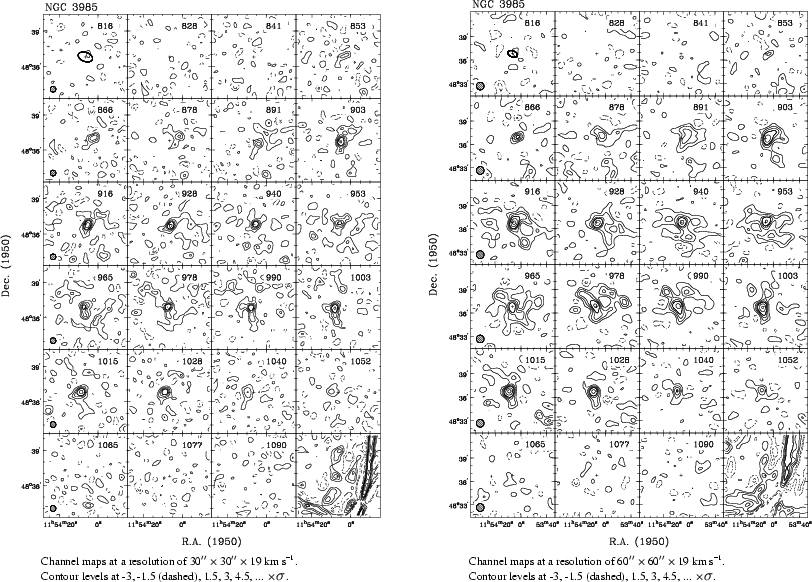

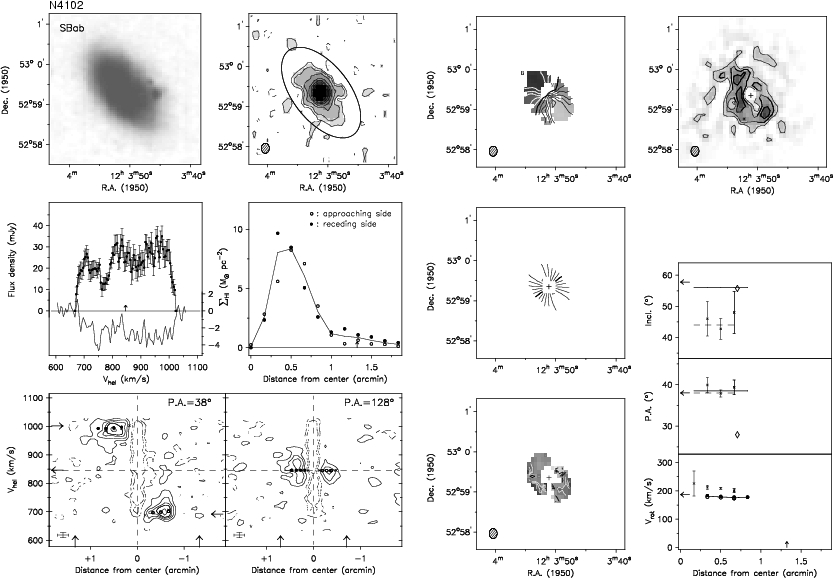

$\begin{figure}\par\includegraphics[angle=-90,width=12cm,clip]{figA35a.ps}\par\end{figure}$ $\begin{figure}\par\includegraphics[angle=-90,width=12cm,clip]{figA35b.ps}\par\end{figure}$

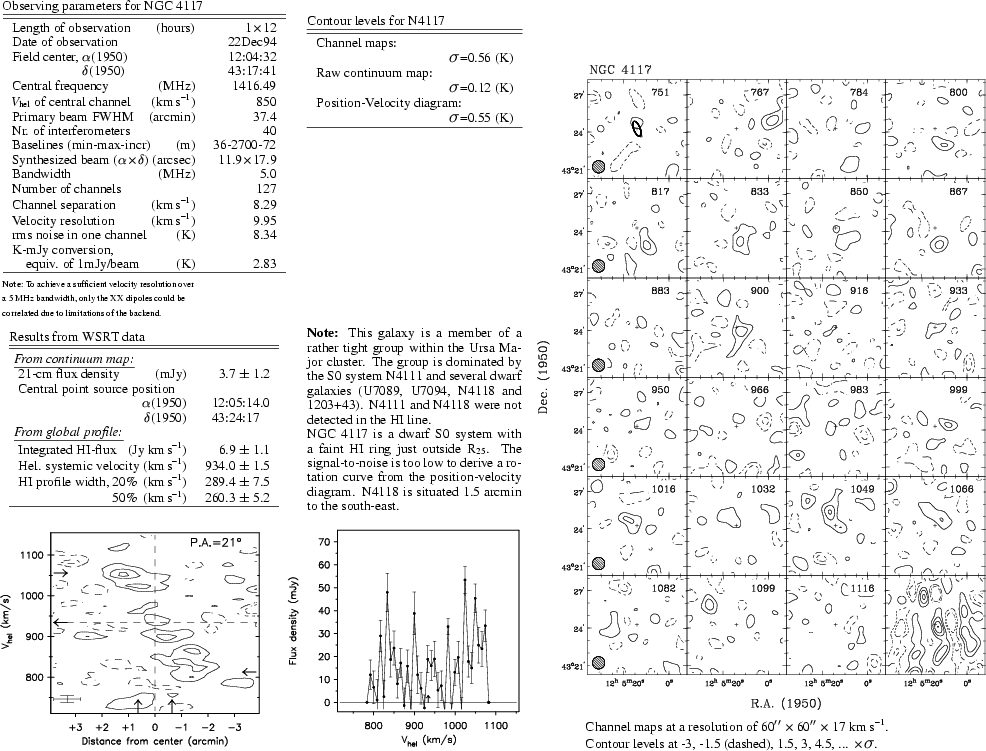

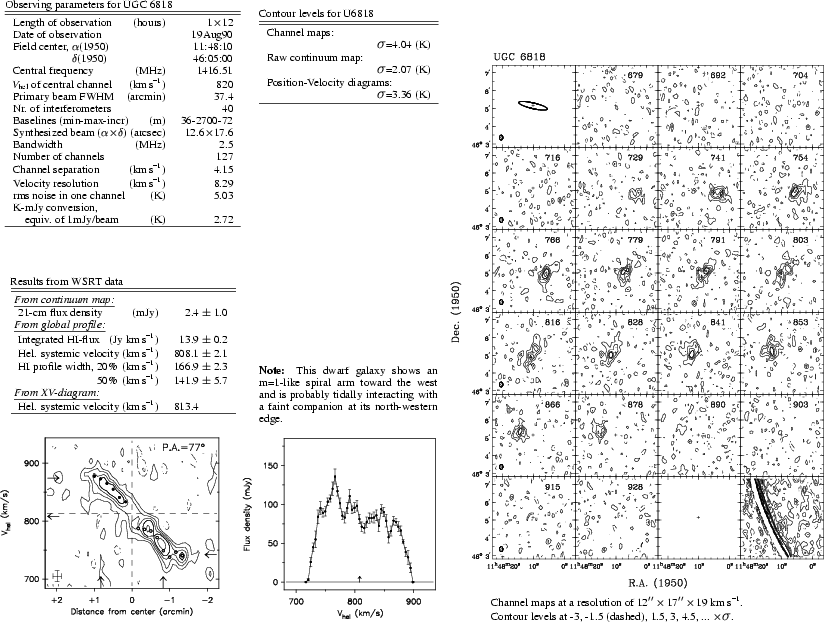

$\begin{figure}\par\includegraphics[angle=-90,width=12cm,clip]{figA36.ps}\par\end{figure}$ $\begin{figure}\par\includegraphics[angle=-90,width=12cm,clip]{figA37.ps}\par\end{figure}$

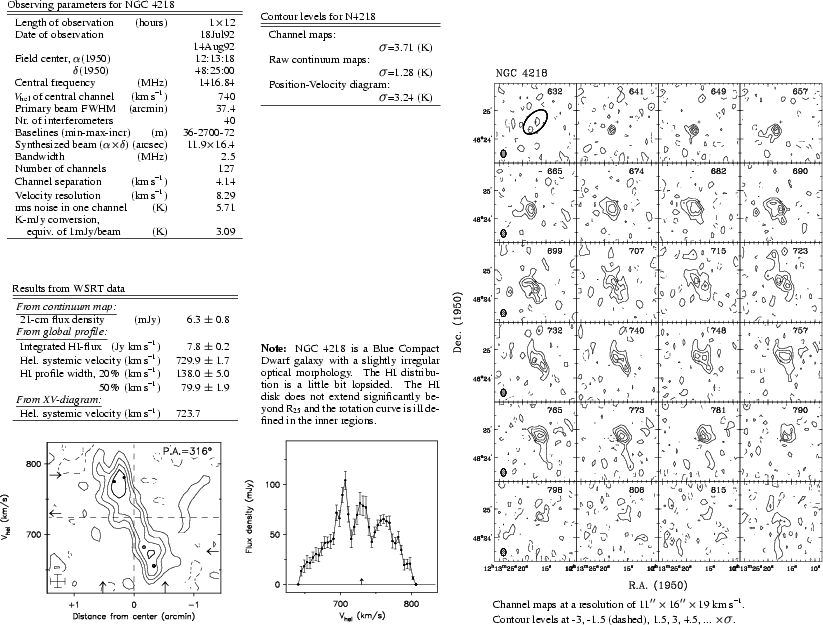

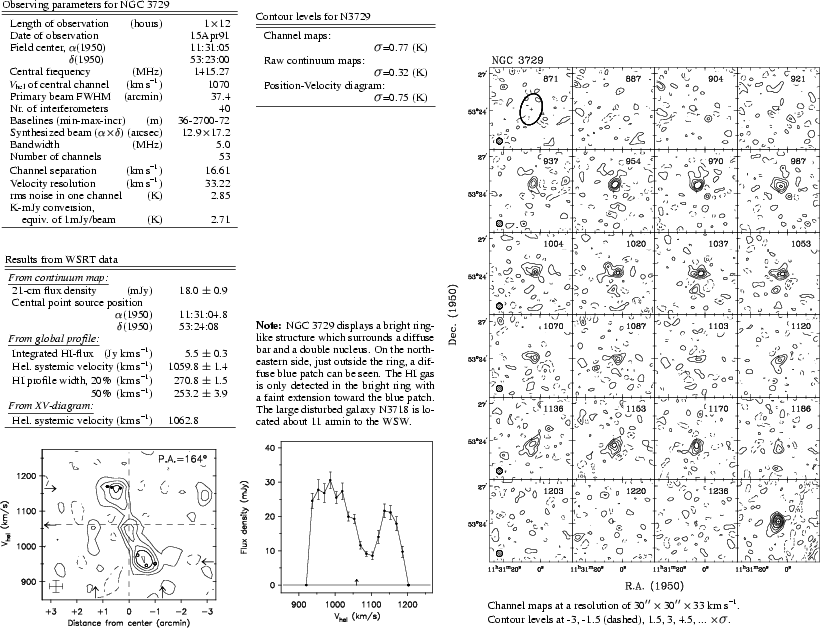

$\begin{figure}\par\includegraphics[angle=-90,width=12cm,clip]{figA38.ps}\par\end{figure}$ $\begin{figure}\par\includegraphics[angle=-90,width=12cm,clip]{figA39.ps}\par\end{figure}$

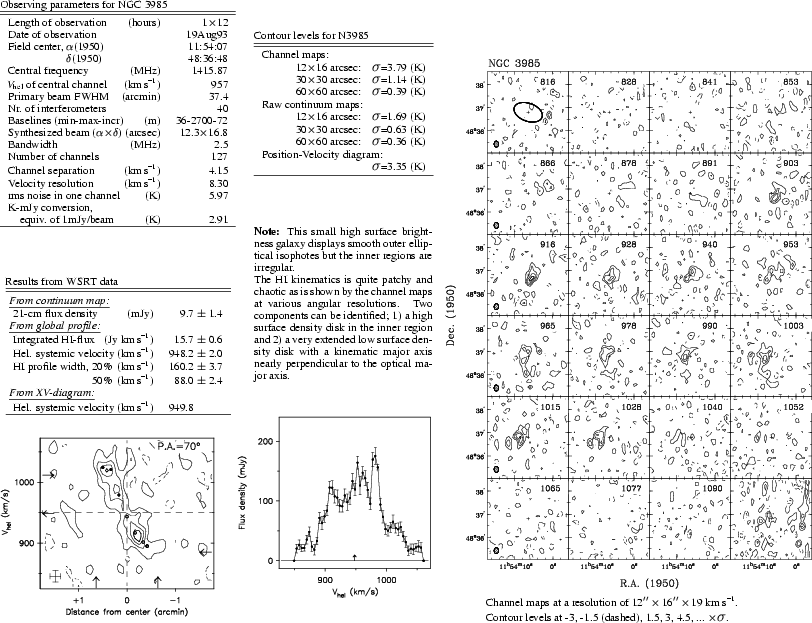

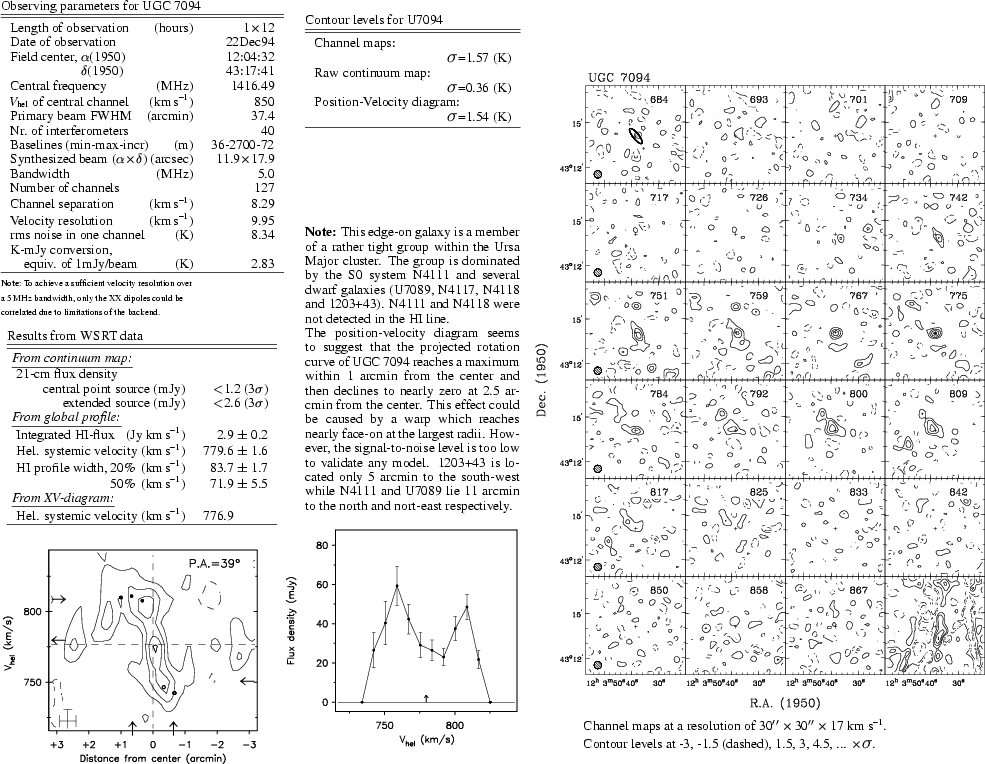

$\begin{figure}\par\includegraphics[angle=-90,width=12cm,clip]{figA40.ps}\par\end{figure}$ $\begin{figure}\par\includegraphics[angle=-90,width=12cm,clip]{figA41.ps}\par\end{figure}$

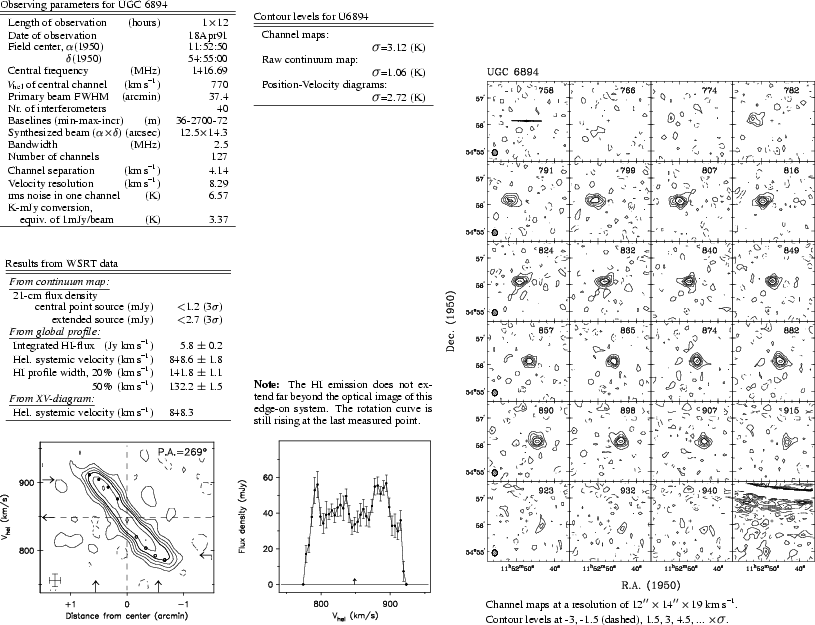

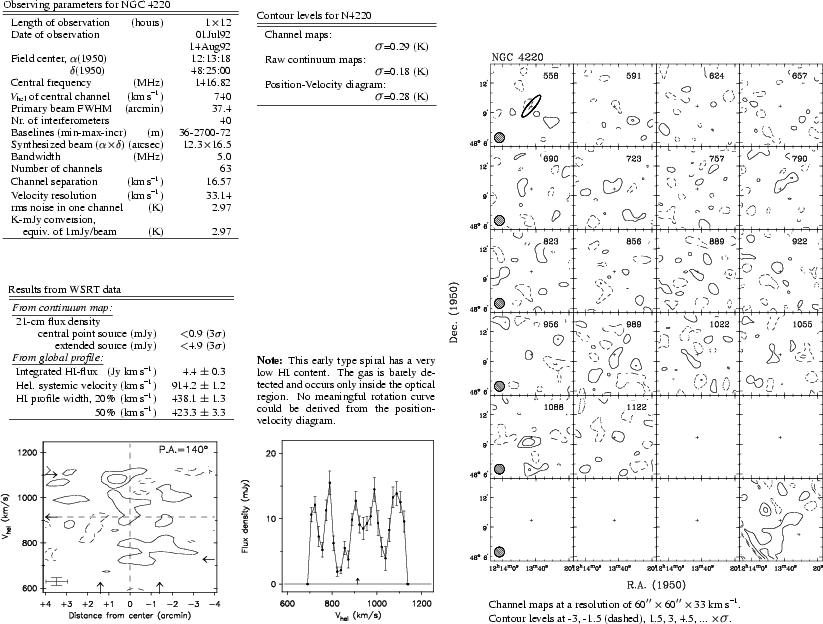

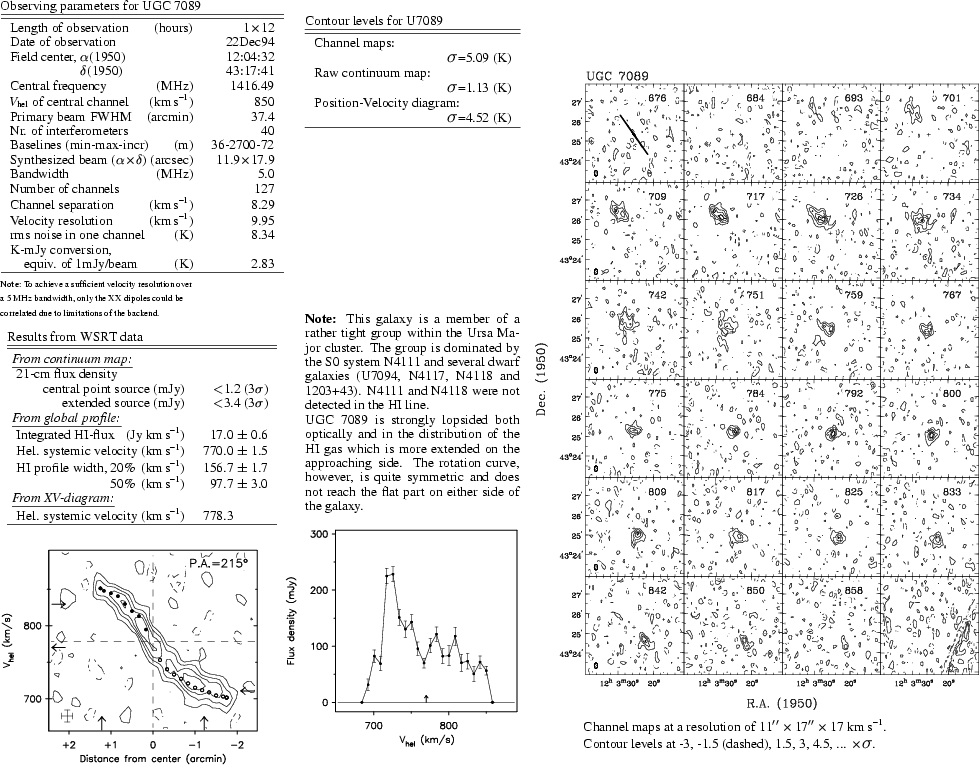

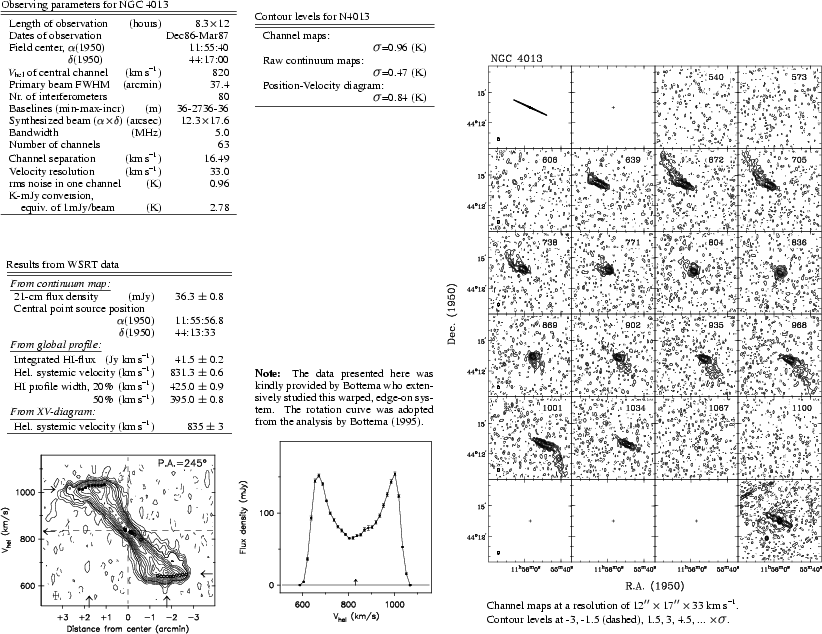

$\begin{figure}\par\includegraphics[angle=-90,width=12cm,clip]{figA42.ps}\par\end{figure}$ $\begin{figure}\par\includegraphics[angle=-90,width=12cm,clip]{figA43.ps}\par\end{figure}$
