2 Instrument overview

The XMM-OM consists of a Telescope Module and a separate Digital Electronics Module, of which there are two identical units for redundancy (see Fig. 1). The Telescope Module contains the telescope optics and detectors, the detector processing electronics and power supply. There are two distinct detector chains, again for redundancy. The Digital Electronics Module houses the Instrument Control Unit, which handles communications with the spacecraft and commanding of the instrument, and the Data Processing Unit, which pre-processes the data from the instrument before it is telemetered to the ground.

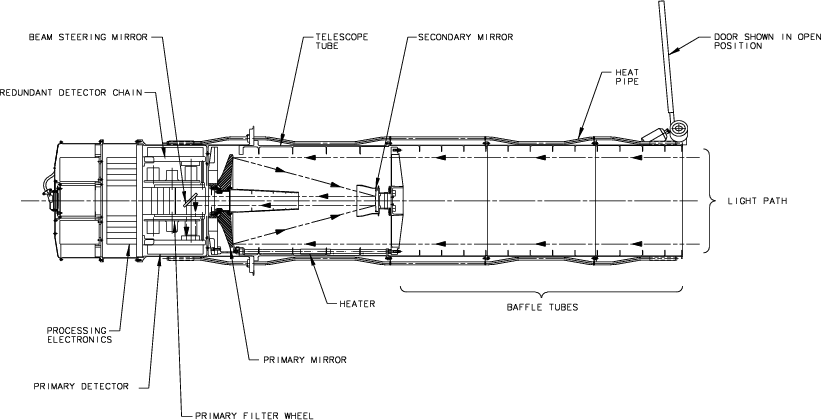

Figure 1: A mechanical drawing of the XMM-OM telescope module showing the light path through to the detectors

2.1 Optics

The XMM-OM uses a Ritchey Chrétien telescope design modified by field flattening optics built into the detector window. The f/2 primary mirror has a 0.3 m diameter and feeds a hyperboloid secondary which modifies the f-ratio to 12.7. A 45$^{\circ}$ flat mirror located behind the primary can be rotated to address one of the two redundant detector chains. In each chain there is a filter wheel and detector system. The filter wheel has 11 apertures, one of which is blanked off to serve as a shutter, preventing light from reaching the detector. Another seven filter locations house lenticular filters, six of which constitute a set of broad band filters for colour discrimination in the UV and optical between 180 nm and 580 nm (see Table 2 for a list of filters and their wavelength bands). The seventh is a ``white light'' filter which transmits light over the full range of the detector to give maximum sensitivity to point sources. The remaining filter positions contain two grisms, one optimised for the UV and the other for the optical range, and a $\times$ 4 field expander (or Magnifier) to provide high spatial resolution in a 380-650 nm band of the central portion of the (FOV).

2.2 Detector

The detector is a microchannelplate-intensified CCD (Fordham et al. 1992). Incoming photons are converted into photoelectrons in an S20 photocathode deposited on the inside of the detector window. The photoelectrons are proximity focussed onto a microchannelplate stack, which amplifies the signal by a factor of a million, before the resulting electrons are converted back into photons by a P46 phosphor screen. Light from the phosphor screen is passed through a fibre taper which compensates for the difference in physical size between the microchannelplate stack and the fast-scan CCD used to detect the photons. The resulting photon splash on the CCD covers several neighbouring CCD pixels (with a FWHM of approximately 1.1 CCD pixels, if fitted with a Gaussian). The splash is centroided, using a 3 $\times$ 3 CCD pixel subarray to yield the position of the incoming photon to a fraction of a CCD pixel (Kawakami et al. 1994). An active area of 256 $\times$ 256 CCD pixels is used, and incoming photon events are centroided to 1/8th of a CCD pixel to yield 2048 $\times$ 2048 pixels on the sky, each 0.4765 arcsec square. In this paper, to avoid confusion, while CCD pixels (256 $\times$ 256 in FOV) will be referred to explicitly, a pixel refers to a centroided pixel (2048 $\times$ 2048 in FOV). As described later, images are normally taken with pixels binned 2 $\times$ 2 or at full sampling.

The CCD is read out rapidly (every 11 ms if the full CCD format is being used) to maximise the coincidence threshold (see Sect. 5.2).

2.3 Telescope mechanical configuration

The XMM-OM telescope module consists of a stray light baffle and a primary and secondary mirror assembly, followed by the detector module, detector processing electronics and telescope module power supply unit. The separation of the primary and secondary mirrors is critical to achieving the image quality of the telescope. The separation is maintained to a level of 2  ${\rm\mu m}$ by invar support rods that connect the secondary spider to the primary mirror mount. Heat generated by the detector electronics is transferred to the baffle by heat pipes spaced azimuthally around the telescope, and radiated into space. In this way the telescope module is maintained in an isothermal condition, at a similar temperature to the mirror support platform. This minimizes changes in the primary/secondary mirror separation due to thermal stresses in the invar rods. Fine focussing of the telescope is achieved through two sets of commandable heaters. One set of heaters is mounted on the invar support rods. When these heaters are activated, they cause the rods to expand, separating the primary and secondary mirrors. A second set of heaters on the secondary mirror support brings the secondary mirror closer to the primary when activated. The total range of fine focus adjustment available is $\pm10~\mu$m.

The filter wheel is powered by stepper motor, which drives the wheel in one direction only. The filters are arranged taking into account the need to distribute the more massive elements (grisms, Magnifier) uniformly across the wheel.

2.4 Digital Electronics Module

There are two identical Digital Electronics Modules (DEM) serving respectively the two redundant detector chains. These units are mounted on the mirror support platform, separate from the telescope module. Each DEM contains an Instrument Control Unit (ICU) and a Digital Processing Unit (DPU). The ICU commands the XMM-OM and handles communications between the XMM-OM and the spacecraft.

The DPU is an image processing computer that digests the raw data from the instrument and applies a non-destructive compression algorithm before the data are telemetered to the ground via the ICU. The DPU supports two main science data collection modes, which can be used simultaneously. In Fast Mode, data from a small region of the detector are assembled into time bins. In Image Mode, data from a large region are extracted to create an image. These modes are described in more detail in the next sect. The DPU autonomously selects up to 10 guide stars from the full XMM-OM image and monitors their position in detector coordinates at intervals that are typically set in the range 10-20 s, referred to as a tracking frame. These data provide a record of the drift of the spacecraft during the observation accurate to $\sim$0.1 arcsec. The drift data are used within the DPU to correct Image Mode data for spacecraft drift (see Sect. 5.5).
