A&A 494, 49-61 (2009)
DOI: 10.1051/0004-6361:200810813

High energy variability of 3C 273 during the AGILE multiwavelength campaign of December 2007-January 2008

L. Pacciani1 - I. Donnarumma1 - V. Vittorini1-4 - F. D'Ammando1-5 - M. T. Fiocchi1 - D. Impiombato9 - G. Stratta3 - F. Verrecchia3 - A. Bulgarelli6 - A. W. Chen2-4 - A. Giuliani2 - F. Longo7 - G. Pucella1 - S. Vercellone2 - M. Tavani1 - A. Argan1 - G. Barbiellini7 - F. Boffelli8 - P. A. Caraveo2 - P. W. Cattaneo8 - V. Cocco4 - E. Costa1 - E. Del Monte1 - G. Di Cocco6 - Y. Evangelista1 - M. Feroci1 - T. Froysland4 - F. Fuschino6 - M. Galli10 - F. Gianotti6 - C. Labanti6 - I. Lapshov1 - F. Lazzarotto1 - P. Lipari11 - M. Marisaldi6 - S. Mereghetti2 - A. Morselli12 - A. Pellizzoni2 - F. Perotti2 - P. Picozza12 - M. Prest13 - M. Rapisarda14 - P. Soffitta1 - M. Trifoglio6 - G. Tosti9 - A. Trois1 - E. Vallazza7 - D. Zanello11 - L. A. Antonelli3 - S. Colafrancesco3 - S. Cutini3 - D. Gasparrini3 - P. Giommi3 - C. Pittori3 - L. Salotti15


1 - INAF/Istituto di Astrofisica Spaziale e Fisica Cosmica di Roma, via Fosso del Cavaliere 100, 00133 Roma, Italy
2 - INAF/Istituto di Astrofisica Spaziale e Fisica Cosmica di Milano, via E. Bassini 15, 20133 Milano, Italy
3 - ASI Science Data Center, via G. Galilei, 00044 Frascati (Roma), Italy
4 - Consorzio Inter-universitario Fisica Spaziale, Viale Settimio Severo 3, 10133 Torino, Italy
5 - Dip. di Fisica, Univ. Tor Vergata, via della Ricerca Scientifica 1, 00133 Roma, Italy
6 - INAF/Istituto di Astrofisica Spaziale e Fisica Cosmica di Bologna, via Gobetti 101, 40129 Bologna, Italy
7 - Dip. di Fisica and INFN-Trieste, via Valerio 2, 34127 Trieste, Italy
8 - INFN-Pavia, via Bassi 6, 27100 Pavia, Italy
9 - Osservatorio Astronomico, Univ. di Perugia, via B. Bonfigli, 06126 Perugia, Italy
10 - ENEA-Bologna, via Martiri di Monte Sole 4, 40129 Bologna, Italy
11 - INFN-Roma La Sapienza, Piazzale A. Moro 2, 00185 Roma, Italy
12 - INFN-Roma Tor Vergata, via della Ricerca Scientifica 1, 00133 Roma, Italy
13 - Dip. di Fisica, Univ. della Insubria, via Valleggio 11, 22100 Como, Italy
14 - ENEA-Frascati, via E. Fermi 45, 00044 Frascati (Roma), Italy
15 - ASI, Viale Liegi 26, 00198 Roma, Italy

Received 16 August 2008 / Accepted 26 October 2008

Abstract
Context. We report the results of a 3-week multi-wavelength campaign targeting the flat spectrum radio quasar 3C 273 carried out with the AGILE gamma-ray mission, covering the 30 MeV-50 GeV and 18-60 keV, the REM observatory (covering the near-IR and optical), Swift (near-UV/Optical, 0.2-10 keV and 15-50 keV), INTEGRAL (3-200 keV) and Rossi XTE (2-12 keV). This is the first observational campaign including gamma-ray data, after the last EGRET observations, more than 8 years ago.
Aims. This campaign has been organized by the AGILE team with the aim of observing, studying and modelling the broad band energy spectrum of the source, and its variability on a week timescale, testing the emission models describing the spectral energy distribution of this source.
Methods. Our study was carried out using simultaneous light curves of the source flux from all the involved instruments, in the different energy ranges, to search for correlated variability. Then a time-resolved spectral energy distribution was used for a detailed physical modelling of the emission mechanisms.
Results. The source was detected in gamma-rays only in the second week of our campaign, with a flux comparable to the level detected by EGRET in June 1991. We found an indication of a possible anti-correlation between the emission at gamma-rays and at soft and hard X-rays, supported by the complete set of instruments. Instead, optical data do not show short term variability, as expected for this source. Only in two preceding EGRET observations (in 1993 and 1997) 3C 273 showed intra-observation variability in gamma-rays. In the 1997 observation, flux variation in gamma-rays was associated with a synchrotron flare. The energy-density spectrum with almost simultaneous data partially covers the regions of synchrotron emission, the big blue bump, and the inverse-Compton. We adopted a leptonic model to explain the hard X/gamma-ray emissions, although from our analysis hadronic models cannot be ruled out.

In the adopted model, the soft X-ray emission is consistent with combined synchrotron-self Compton and external Compton mechanisms, while hard X and gamma-ray emissions are compatible with external Compton from thermal photons of the disk. Under this model, the time evolution of the spectral energy distribution is well interpreted and modelled in terms of an acceleration episode of the electron population, leading to a shift in the inverse Compton peak towards higher energies.

Key words: gamma rays: observations - galaxies: active - galaxies: quasar: general - galaxies: individual: 3C 273 - radiation mechanisms: non-thermal

1 Introduction

3C 273 is a very bright flat spectrum radio quasar (FSRQ). It is the nearest one (at a redshift of z=0.158), and is a very peculiar AGN: its spectral energy distribution shows the typical humps of blazars (Urry & Padovani 1995), but other features appear as well, as the broad emission lines and the big blue bump typical of Seyfert-galaxies.

After 8 years from the last observations in gamma-rays, the AGILE mission (Tavani et al. 2008), with its GRID instrument (a pair conversion telescope, see Barbiellini et al. 2001, for details) has opened new access to the observational window $30 ~ {\rm MeV} \div \ 50~\rm GeV$.

This source was discovered to emit in gamma-rays by COS-B in July 1976 (Swanenburg et al. 1978), and was observed again in June 1978 (Bignami et al. 1981); the mean flux detected with COS-B was $\sim$ $ 60 \times 10^{-8} $ photons cm $^{-2}\rm ~s^{-1}$ for E> 100 MeV. EGRET observed this FSRQ several times, not always detecting it. It was shown to be in gamma-ray activity in June 1991 (Lichti et al. 1995, reported a flux of $(56 \pm 8) \times 10^{-8}$ photons cm $^{-2}~\rm s^{-1}$ for E > 70 MeV). Montigny et al. (1997) reported a flux variation from $(22\pm 5)\times 10^{-8}$ to $(56\pm 12)\times 10^{-8}$ photons  $\rm cm^{-2}~\rm s^{-1}$ for E > 100 MeV during the campaign of October-November 1993. The source showed large gamma-ray variability during a 7-week EGRET campaign (December 1996-January 1997) (Collmar et al. 2000, reported a variation from $(25 \pm 9)\times 10^{-8}$ to $(76\pm 13)\times 10^{-8}$ photons cm $^{-2}~\rm s^{-1}$ for E > 100 MeV), but no variation was detected with COMPTEL (0.75-30 MeV). During that campaign, a double synchrotron flare episode was detected by the UKIRT telescope of Hawaii observing in the near-IR (K band), and by RXTE/PCA (Lawson et al. 1998) in the 3-10 keV band, showing correlated variability and <1 day lag of X-ray with respect to the near-IR. The flux variations (30-40%) and the durations were similar at the two wavelengths. In a joint X-ray and near-IR campaign in 1999, another flare was observed with a lag of 1 day of X-rays with respect to near-IR. The flare lasted 2 days in the K-band and 4 days in X-rays (Sokolov et al. 2004).

A multiwavelength campaign was performed in June 2004 (Turler et al. 2006), triggered by the sub-millimeter monitoring, observing a flux almost half of the lowest jet activity yet observed (in a similar campaign of March 1986). This campaign showed spectral features of the source usually overwhelmed by the dominant jet activity. In particular the authors reported three further weak humps located in the infrared, probably due to dust emission components.

Even if the spectral energy distribution of this source roughly shows the typical humps of blazars, there is no general agreement on their origin. Not only the nature of the hard X to gamma-ray emission is controversial, but also the big blue bump and the millimeter to near-IR origin is in doubt. In the June 1991 campaign, the low energy part of the spectrum showed a peak at $6.7 \times 10^{11}$ Hz, and another undetected peak must be present at 1013-1014 Hz. With all these features, the theoretical modelling of the SED is challenging.

Sometimes models for the energy density distribution of blazars are loosely constrained, or different models can be used to fit the same data. Studying the emission evolution of the source (see Boutelier et al. 2008, and references therein), especially before, during and after flaring episodes in gamma-rays, can help in constraining the models.

In the case of 3C 273, the spectral energy distribution was studied in very different theoretical scenarios (see for example Montigny et al. 1997). The MeV peak has been fitted in the context of pure synchrotron self-Compton, or in the context of the external Compton emission, considering the photons of the big-blue bump (assumed to be emitted by the accretion disk) as the seed photons for the inverse Compton effect. Proton-induced cascade models also have been used, fitting the broad band energy spectrum collected in Nov.-Dec. 1993 over more than 17 decades of energy.

We organized a 3-week multifrequency campaign on this bright source, with the aim of building a simultaneous energy density distribution for each of the 3 weeks from near-IR to gamma-rays. In the following sections we report the details of the observations, the data analysis and discuss the implications of our results for the emission mechanisms of this source. In the discussion of the spectral energy distribution, we adopted a leptonic model to explain the hard X/gamma-ray emission, although our analysis cannot exclude hadronic models.

2 The multi-frequency observations

We coordinated a multi-wavelength observational campaign on 3C 273 over 3 weeks, between 16 December 2007 and 8 January 2008. The AGILE satellite pointed at the Virgo region for the entire period with its gamma and hard X-ray instruments. INTEGRAL pointed at the source with the complete set of its X- and soft gamma-ray instrumentation for one complete revolution ($\sim$2.5 days) each of the 3-weeks. Optical and near-infrared data were provided by the REM observatory that monitored the source every 2-3 days.

The source was found in a high state at hard X-rays, and switched from very low to intermediate/high-state in gamma-rays. Based on our observations, we requested a Target of Opportunity (ToO) observation for two pointings with the Swift observatory in the last week of the campaign. The first Swift observation started 1.5 days after the end of the last INTEGRAL pointing. Table 1 summarizes the observations of the campaign. A detailed description of the observations is given in the next subsections.

Table 1: Log of the observations.

2.1 AGILE observations

The instrumentation carried by the Italian AGILE mission (Tavani et al. 2008) and used during the reported observations is composed of the Gamma Ray Imaging Detector (GRID, 30 MeV-50 GeV, Prest et al. 2003) and the SuperAGILE instrument (SA, 18-60 keV, Feroci et al. 2007). Both instruments perform simultaneous and co-aligned images over a field of view in excess of one steradians, with a point spread function (PSF) of $\sim$5 $^{\circ}/E$(100 MeV) and 6 arcmin, respectively. Further details of the AGILE mission and the individual instruments may be found in the cited papers.

AGILE monitored the source continuously from 2007-12-16 17:14 to 2008-01-08 11:06 UT, with two gaps of 1 and 4.5 days, respectively, due to technical maintenance of the satellite. Both GRID and SA were fully operational for the complete duration of the observation. The resulting net exposure to 3C 273 for the GRID and SA instruments was 742 ks for both.

Due to its solar panel constraints, the satellite bore-sight drifts by $\sim$$1^{\circ}$/day, and consequently the target source drifts in the field of view of the instruments. During our observation the source remained in the central $\pm $ $10^{\circ}$ of both AGILE instruments for the whole campaign.

2.2 INTEGRAL observations

The INTEGRAL (Winkler et al. 2003) mission observed the source in the revolutions 633 (from 2007-12-19 18:08 to 2007-12-22 06:44 UT), 635 (from 2007-12-25 17:39 to 2007-12-28 06:27 UT), 637 (from 2007-12-31 17:13 to 2008-01-03 04:00 UT) with the rectangular dithering pointing strategy, for a total observing time of 7.5 days, corresponding to a net exposure to the source of 122 ks for JEM-X, 580 ks for ISGRI, and 494 ks for SPI. The INTEGRAL observations are divided into uninterrupted 2000-s intervals, the so-called science windows (SCWs).

The X-ray and soft gamma-ray observations were carried out with JEM-X unit 1 in the range 3-35 keV (Lund et al. 2003), ISGRI (Ubertini et al. 2003) in the range 18-400 keV, and SPI (Vedrenne et al. 2003) in the 20-8000 keV band.

2.3 Swift observations

The two pointings of the ToO Swift observation were carried out between 2008-01-04 16:11 and 2008-01-04 17:47, and between 2008-01-06 11:57 and 2008-01-06 15:24. The first observation of the Swift/X-Ray Telescope (XRT, see Burrows et al. 2005 for details), covering the 0.2-10 keV range, have an exposure of 454 s in Windowed Timing (WT) mode and 2.5 ks in Photon Counting (PC) mode; the second lasted for a total net exposure of 448 s in WT mode and 2.8 ks in PC mode. UVOT observed the source with all lenticular filters except for the White one (V, B, U, UVW1, UVM2 and UVW2), with exposures of 213 s for each optical filter and 810, 610, 850 s for the UV ones in the first observation; 268 s for the optical filters and 537, 729, 358 s in the UV for the second observation.

2.4 All Sky Monitor and Burst Alert Telescope data

For a continuous monitoring in the 2- 10 keV energy band, we retrieved the publicly available light curve data from the All Sky Monitor[*] (ASM, Levine et al. 1996) onboard RossiXTE.

For the long term monitoring in the 15 - 50 keV range we downloaded the public light curve data for this source from the Burst Alert Telescope[*] (BAT, Barthelmy et al. 2006) onboard Swift.

Due to their observing strategy, both instruments provide sparse observations of different durations. The typical exposure times are 90 s for ASM and 840 s for BAT, and the typical observation rate is 20 and 9 times per day, respectively.

2.5 REM observations

The near-infrared and optical monitoring was performed with the Rapid Eye Mount (REM) telescope (Zerbi et al. 2001), for a period of 34 days, from 2007-12-11 08:20 UT to 2008-01-14 07:26 UT.

REM is a fully robotic, 60 cm telescope. It simultaneously carries out optical and near-infrared photometry and low-resolution spectroscopy. It hosts two parallel cameras: ROSS (REM optical Slit-less Spectrograph) for optical observations covering the range 0.45-0.95 $\mu$m (V, R, I filters), REM-IR for near-IR observations covering 0.95-2.3 $\mu$m range with 4 filters (z, J, H and K). For this campaign we used the two instruments with all their filters, except for the z on REM-IR, to obtain nearly simultaneous data in order to study the almost instantaneous spectrum of 3C 273. The K, H, J images were exposed for 30 s, and the others for 300 s. The sets of 6 band observations were obtained every 2-3 days during this 3 week campaign.

3 Data analysis and results

The complete set of light curves from the multi-wavelength campaign is shown in Fig. 1, ordered by wavelength (except for REM-IR data). The details of the data analysis from each instrument are given below.

3.1 AGILE GRID data

Gamma-ray data from the GRID instrument were analyzed using the standard AGILE/GRID pipeline (BUILD-15). The events taken during the satellite passage in the south Atlantic anomaly were rejected. The GRID pipeline uses a Kalman filtering technique of the events to identify the tracks, and to reconstruct the direction and the energy of the incident gamma-rays. To further reduce the charged particle track background, and to select for the good quality gamma-ray events, the Level-1 data were filtered using FT3_2. This filter, based on multivariate analysis, is the most selective one concerning track selection and quality factor for the accepted gamma-ray events. Then Earth-albedo background was rejected, excluding the gamma-rays produced inside a region of 10 degrees from the Earth limb. GRID counts, exposure and Galactic background maps were generated with a bin size of $0.3^{\circ} \ \times \
0.3^{\circ}$ for E > 100 MeV. The last step is the AGILE likelihood based analysis (Chen et al. 2008, in preparation), running on these maps. It is based on the point-source test statistic, defined through the $T_{\rm S}$ parameter (this test statistic is described in detail in Mattox et al. 1996 for the similar case of EGRET). The $T_{\rm S}$ parameter has the property that the $\sqrt {T_{\rm S}}$ represents the normalized significance of a detection.

Due to the continuous slewing of the satellite bore-sight, the source moved in the field of view, but remained in the central region (within  $10^{\circ}$ of the on-axis) during the campaign. This region had been well calibrated with the Vela pulsar pointings during the science verification phase, therefore the GRID flux estimate is corrected using the on-axis calibration factor. We divided the total GRID observing time in 3 blocks approximately one week long each.

The field of view in the proximity of the source was almost empty for the first half of the observation. In the second half of the observation, an unidentified source appeared at $\sim$$5^{\circ}$from 3C 273, rather bright in the last days of the observation. Due to the presence of this unidentified source within a distance comparable to the GRID PSF, the statistical uncertainties in the estimation of the fluxes with the likelihood procedure are higher than that of the previous period, causing the reduction of the signal to noise ratio for 3C 273, mainly for the third observing block.


  \begin{figure}
{\psfig{figure=0813fig1.ps,width=160.mm,height=210.mm} }
\par

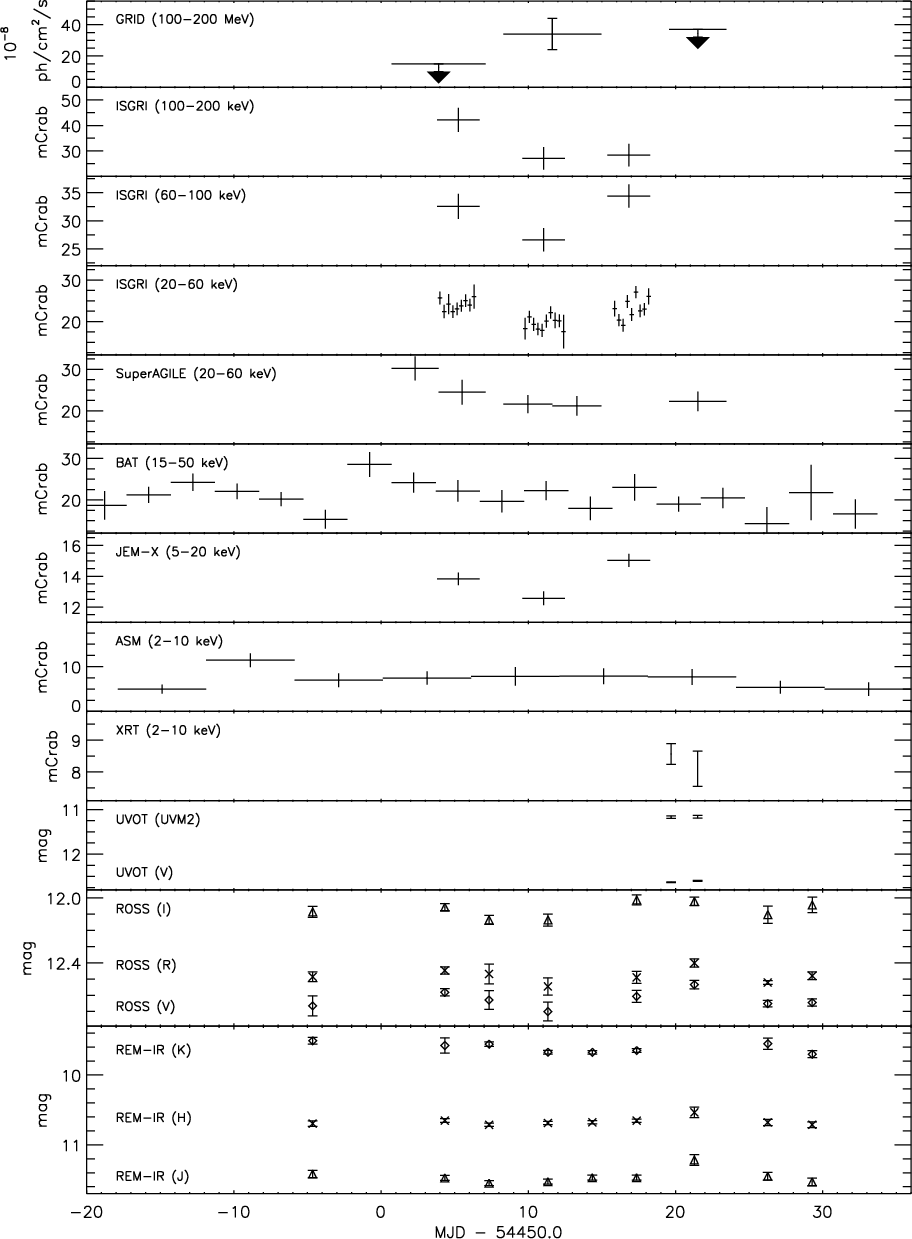

\end{figure} Figure 1: Complete set of multifrequency data collected during the AGILE observations of 3C 273. From top to bottom: GRID data in the energy range 100-200 MeV, the ISGRI data in 100-200 keV, 60-100 keV, 20-60 keV, SuperAGILE in 20-60 keV range, BAT in 15-50 keV, JEM-X in 5-20 keV, ASM in 2-10 keV, XRT in 2-10 keV, UVOT fluxes with UVM2 and V filters, and REM fluxes with V (diamonds), R (crosses), I (triangles) filters from ROSS, and J (triangles), H (crosses), K (diamonds) filters from REM-IR. The time is referred to MJD 54 450.0, corresponding to 2007-12-16 00:00:00 UT, the starting day of our campaign.
Open with DEXTER

The sky image in the energy range 100 MeV-50 GeV, exposed for the 7 central days of the observation, is shown in Fig. 2. The unidentified source is clearly visible in the image. 3C 279, the other well known blazar in the Virgo Region, appears very faint, with a significance of 2.9 as measured by the $T_{\rm S}$ parameter (Mattox et al. 1996).

We found that by selecting the energy range 100-200 MeV we could obtain a good rejection of the photons from the unidentified source, still keeping the signal-to-noise ratio for 3C 273 unaffected. This suggests that the unidentified source has a very hard energy spectrum.

In the first and third week of our campaign 3C 273 was not detected by the GRID, while in the second week it was detected at a rather high gamma-ray activity, with a flux comparable to the EGRET detection of June 1991. The results of the analysis of the GRID data is reported in Table 2 for the three individual blocks and for the whole period, both for the 100-200 MeV and >100 MeV energy bands. Upper limits with 95% confidence levels are provided for the first and third week, when our analysis provided flux estimations with $\sqrt{T_{\rm S}} < 3$ (Mattox et al. 1996). The same data are also shown in the top panel of Fig. 1. As mentioned above, in the third observing block the exposure lasted 4 days only, and the unidentified source was very bright, thus the corresponding upper limits are higher than in the first observing block.

3.2 SuperAGILE data

The AGILE/SuperAGILE instrument (SA) (Feroci et al. 2007) provided images of 3C 273 in the energy range 18-60 keV, during the same period as the GRID. Based on the available statistics, we divided the complete 3-week observation in 5 bins of 3-4 days each. The first two SA bins are simultaneous to the first GRID block, the next two bins are simultaneous to the second GRID block, while the last SA bin is simultaneous to the third GRID block, due to the shorter exposure in the third week.

The SA instrument is a one-dimensional coded-mask imager, producing two orthogonal one-dimensional sky images of the observed sky, starting from photon-by-photon data in user-defined time intervals. As an example, the sky image provided for one of the two instrumental coordinates (the X coding direction) accumulated over the third and fourth time-bins is shown in Fig. 3.

The SA data analysis was performed with the TDS source package of the SASOA pipeline (build 3.8.0). The photon lists are filtered, excluding those events taken during the satellite passage through the south Atlantic anomaly, and for events taken when the source was occulted by the Earth.

The continuous slew of the pointing direction of 1 degree/day due to the AGILE solar panel constraint, requires that the detector images accumulated from the event list are corrected using pointing information from the star-tracker data.

Dealing with a coded-mask imager, the attitude-correction depends on the source position in the field of view of each detector. The required correction changes slowly with the source position in the FOV. Thus the correction calculated for a specific position $\big[\theta^*_{\rm cod},\theta^*_{\rm uncod}\big]$ in the FOV (where $\theta^*_{\rm cod}$ and $\theta^*_{\rm uncod}$ represent the positions in the coded and uncoded direction respectively) can be applied without affecting the point spread function of sources located at some degree from $\big[\theta^*_{\rm cod},\theta^*_{\rm uncod}\big]$. On account of this, we calculate the correction in a grid of $19\times 17$ positions in the FOV, with a grid step of 6$^{\circ }$ along the detector coded direction, and 4$^{\circ }$ along the non-coded direction. Thence $19\times 17$ virtual detector images are generated from the photon list of each detector. A detailed description of the attitude correction procedure for SuperAGILE will be presented in a forthcoming paper (Pacciani et al. 2009, in preparation). A cross-correlation procedure of these detector images with the mask code provides the images of the point-like sources, as shown in Fig. 3.

The count rate of photons collected from each silicon $\mu$strip of the detectors is affected by the non-uniformities between the energy thresholds of the analog chains (see Pacciani et al. 2008), and to the temperature dependance of the discriminator units. We account for this non-uniformity by applying a detector efficiency vector in the imaging procedures. The efficiency is generated from a blank field and corrected for temperature effects. The non-uniformities in the low-energy thresholds makes it unsafe to use the 18-20 keV energy bin for long integrations, when threshold variations can critically affect the results. For our analysis we then used SA data in the 20-60 keV energy range.

The SA response was calibrated in-flight with a raster scan with the Crab Nebula, at several positions in the FOV. During our observation 3C 273 passed through the central part of the FOV, ranging from 7.7 to -2.4 deg in the X instrumental coordinate and from 11.0 to -12.4 deg in the Z instrumental coordinate. Observed count rates were then converted into physical units of mCrab, by using the Crab response at the relevant position in the FOV (implicitly assuming a Crab-like energy spectrum). The average 20-60 keV flux measured by SA over the complete 3-week observation is ( $23.9 \pm 1.2$) mCrab, with a source detection significance of 14$\sigma$ and 16$\sigma$ in the X and Z coordinate, respectively and a net exposure to the source of 742 ks. The results of a time-resolved analysis are reported in the relevant panel of Fig. 1 in the 20-60 keV energy range, adding the normalized count rates from each one-dimensional sky image. The corresponding data are reported in the Appendix, Table A.1.


  \begin{figure}
\par\resizebox{8.5cm}{!}{\psfig{figure=0813fig2.eps}}

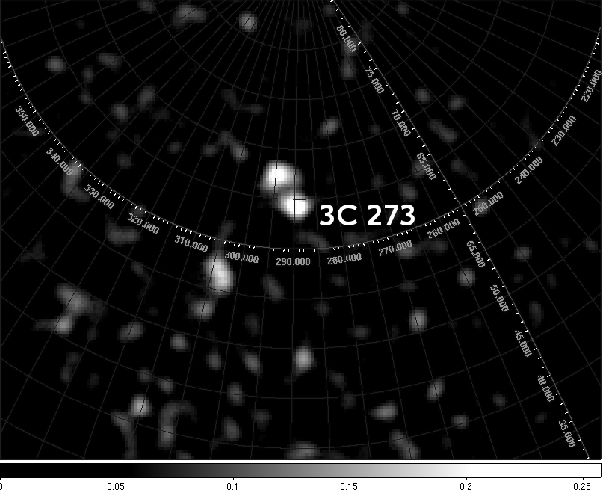

\end{figure} Figure 2: Sky image of Virgo region in gamma-rays obtained from GRID instrument onboard AGILE, from 2007-12-24 07:11:47 to 2007-12-30 23:03:06 UT, for E > 100 MeV. The angular dimensions of the image is 60$^{\circ }$ width by 45$^{\circ }$ height. The spot in the upper left near 3C 273 is the unidentified source, while the dimmer spot below left is 3C 279.
Open with DEXTER

Table 2: 3C 273 Flux measurements from the GRID instrument. For the first and third block/week the $\sqrt {T_{\rm S}}$ column provides the value obtained by the standard processing.

3.3 INTEGRAL JEM-X, ISGRI and SPI data

Wide-band data for the source were obtained using the high-energy instruments onboard INTEGRAL: JEM-X in the effective energy range 5-20 keV, ISGRI in 18-200 keV and SPI in 100-500 keV. The effective energy ranges we used exclude the energy regions with too low effective area and the lowest energies, affected by electronic noise. For SPI we reported the energy range where the effective area is comparable to or higher than the ISGRI. Data were processed using the off-line Scientific Analysis OSA 7.0 software released by the Integral Scientific Data Centre. ISGRI light curves and spectra were extracted for each individual SCW. The spectrum from JEM-X was extracted from a mosaic image at the position of the source. Due to the dithering pointing strategy, the source is not always in the JEM-X field of view. The SPI data were integrated for the three INTEGRAL revolutions together to achieve the needed sensitivity up to 500 keV. The net exposure to the source was 122 ks for JEM-X, 580 ks for ISGRI and 494 ks for SPI. The average measured flux for each instrument was: (13.81 $\pm $ 0.25) mCrab in 5-20 keV (JEM-X, 56$\sigma$ detection significance), (22.30 $\pm $ 0.32) mCrab in 20-60 keV (ISGRI, 70$\sigma$ detection significance), and (41 $\pm $ 9) mCrab in 100-500 keV (SPI, 4.4$\sigma$detection significance) which provides a marginal detection.

The light curves in the energy ranges 5-20, 20-60, 60-100, 100-200 keV from the above instruments are shown in Fig. 1 with a bin size of 200 ks (an INTEGRAL revolution), except for the 20-60 keV energy range, where the counting statistics allowed for a 25 ks bin size. The data are reported in Table A.1 of the Appendix. The simultaneous 20-60 keV flux measurements by SuperAGILE and ISGRI appear in good agreement.

The spectra taken during the three individual INTEGRAL revolutions can be fitted with a simple power law model in the 18-120 keV energy range. The best-fit parameters are reported in Table 3. No significant spectral evolution is detected, except for a marginal evidence of softening in the spectrum from revolution 635.

3.4 Hard X-ray data from BAT

Flux measurements of the sources serendipitously observed by the BAT instrument onboard Swift are available on-line for every satellite orbit. The flux measurements are sparse and with different exposure, depending on the specific satellite pointing strategy. We grouped the available data with a bin size of 3 days. To account for the huge spread in the signal to noise ratio between data, a weighting factor inversely proportional to the flux error was applied during the rebinning operation.

The BAT light curve in the range 15 - 50 keV is shown in Fig. 1 and reported in Table A.1 of the Appendix. The light curve from BAT has the same trend as the SuperAGILE and ISGRI instruments but a slightly lower flux, likely due to the slightly different bandpass.

3.5 XRT data

For the analysis of soft X-ray data from the Swift X-Ray Telescope (XRT), we used version 11.6 of the XRT pipeline[*]. Grade filtering was applied by selecting the 0-2 and 0-12 ranges for the data collected in WT and PC mode, respectively. The data collected in PC mode are affected by pile-up in both observational epochs (average count rate $\sim$8 counts/s). The pile-up estimation and correction was made more difficult by the presence of a bad column crossing the center of the source extraction region in both observational epochs. Thus, we could obtain only a rough estimation of the pile-up effects and decided to use only the data collected in Windowed Timing mode, not affected by pile-up.

To account for the bad column in the light curve and spectra extraction, we used the exposure maps computed for each epoch and from them we generated the ancillary response files. The latter are very sensitive to the source centroid position on the CCD. But due to the bad column, we could not evaluate the centroid accurately and therefore run the pipeline fixing the source position at the coordinates given from optical and radio observations in the SIMBAD archive. The Swift star sensor precision introduces a systematic uncertainty in the evaluation of the satellite pointing, providing a mismatch between the source centroid on the CCD evaluated with the star sensor data and the effective one. In order to evaluate the effects of these systematic errors on the flux and spectral index estimation, we computed the effective area over two other positions shifted by 3.1 $^{\prime\prime}$ (a region that encloses 90% of the Point Spread Function from SIMBAD).

The signal was extracted from a rectangular region (40 pixels wide and 20 pixels in height), assuming as nominal the position centered on the SIMBAD coordinates. The difference between the results obtained at the SIMBAD position and the shifted ones is then taken as a systematic uncertainty, denoted below as ``(syst)''. Assuming an absorbed simple power law spectral model, with absorption fixed at $N_{\rm H}=1.79 \times10^{20}$ cm-2 (Kalberla et al. 2005), we found a photon index of $1.61\pm0.05$, with an observed 2-10 keV flux of $1.85\times10^{-10} \ \pm \ 0.04 \
({\rm stat}) \ \pm 0.03 \ \rm (\rm syst) $ erg cm-2 s-1 during the first epoch (reduced $\chi^2$ is 0.9, 92 d.o.f.). No significant variations were observed during the second epoch, where the photon index is $1.57\pm 0.06$ and the observed 2-10 keV flux is $1.75\times10^{-10} \ \pm \ 0.04 \ ({\rm stat}) \ \pm 0.08 \
(\rm syst)$ erg cm-2 s-1 (reduced $\chi^2$ is 1.0, 71 d.o.f.). The poor quality of the image in the second observation caused the systematics to be higher. The star sensor systematics does not affect the photon index estimation in WT mode.

XRT data are shown in Fig. 1.


  \begin{figure}
\par\resizebox{8.6cm}{!}{\psfig{figure=0813fig3.ps}}
\end{figure} Figure 3: One-dimensional sky image of Virgo field in hard X obtained from SuperAGILE instrument onboard AGILE, where only 3C 273 shows up as a peak. Data were integrated from 2007-12-24 07:11:47 to 2007-12-30 23:03:06 UT in the 20-60 keV energy range. The abscissa reports the angular distance (degrees) from the on-axis direction.
Open with DEXTER

3.6 UVOT data

UV data reduction and photometry of the source was performed using the standard UVOT software developed and distributed within the HEAsoft 6.3.2 by the NASA/HEASARC and the most recent calibrations included in the last release (2007-07-11) of the ``Calibration Database'' (CALDB, see also Poole 2008). Source counts were extracted for all filters from circular aperture of 5 $^{\prime\prime}$  radius, the background from a source-free circular aperture of 12 $^{\prime\prime}$ radius and count-rates converted to fluxes using the standard zero points. The count-rate of the source is near the limit of acceptability for the ``coincidence loss'' correction factor included in the CALDB ($\sim$90 cts s-1), in filters U, B, UVW1 and UVW2 for either observations. We considered in our analysis only the V and UVM2 filters for both the observations and also the B for the second. The fluxes were then de-reddened using a value for E(B-V) of 0.021 mag (Schlegel et al. 1998) with $A_{\lambda}/E(B-V)$ ratios calculated for UVOT filters (for the latest effective wavelengths) using the mean Galactic interstellar extinction curve from Fitspatrick (1999). No significant variability was detected within each single exposure for both the observations.

UVOT data are shown in Fig. 1 and reported in Table A.2 of the Appendix.

Table 3: Spectral fitting parameters in the 18-120 keV energy range (uncertainties at 90% level).

3.7 REM data

Data reduction and photometry of the near-IR and optical frames from the REM observations has been carried out through the GAIA[*] software using images corrected by bias, dark and flat-field (see Stetson 1987). The instrumental magnitudes have been calibrated using the comparison star sequences reported in Gonzales el al. (2001) for the optical and the near-IR bands. Three bright isolated stars in the field of view were used as a reference to calculate the instrumental magnitude shift.

The near infrared and optical light curves over a 34 day monitoring for the K, H, J, I, R, V bands of the REM observatory are shown in Fig. 1 and reported in Table A.2 of the Appendix. The large errors for some data point are due to the presence of the moon, causing errors in the photometry of 3C 273 and/or of the reference stars. Small differences in the simultaneous measurements in the UVOT/V and REM/V bands are most likely due to the slightly different bandpass, as reported in Table A.2.

4 Discussion

From the multi-frequency light curves shown in Fig. 1, the source exhibited gamma-ray activity in the second week of the AGILE observation. In the same time period, a $\sim$$20\%$ reduction in the X- and hard X-ray flux was detected by all the instruments involved. However, the near-IR, optical and UV fluxes remained constant to within $\sim$$10\%$ variability. No strong evidence for correlations can be derived between the gamma-ray activity and the source emission in other bands, using the analysis of the light curves.

In order to study the spectral variability, in the following we divided the campaign in 3 bins approximately one week long each, according to the GRID observing blocks. We first evaluated the possible contribution of a Seyfert-like reflection component in the X-ray/soft gamma-ray energy spectrum, and then built the complete spectral energy distribution for two epochs, to understand the origin of the gamma-ray activity.

4.1 Limits on Seyfert-like spectral features

The wide band energy spectra of the source taken by BeppoSAX between 1997 and 2000 allowed us to disentangle the contribution of the jet and Seyfert-like features (see Grandi & Palumbo 2004). The XRT calibration status below 0.6 keV (see Cusumano 2007) does not allow us to study the soft excess, while the iron line studies (Yaqoob & Serlemitsos 2000, and references therein) are not reliable because of poor statistics. Instead, our data allow us to study the reflection hump contribution to the spectra, emerging at 20-60 keV.

Unfortunately, results in this spectral region are very sensitive to possible uncertainties in the cross-calibrations between JEM-X and ISGRI instruments. In the $3{\rm rd}$ IACHEC meeting[*] (held in Schloss Ringberg, Germany May 18-21 2008), cross-calibration factors near to unity were reported for the instruments onboard INTEGRAL (see the Roques presentation[*]) for the Crab observations. In the following we use those cross calibration factors for the instruments onboard INTEGRAL, and keep free the XRT normalization factor (also to account for the systematics in XRT data relative to our specific observation).The declared INTEGRAL cross-calibration factors are reported for Crab-like spectra, while the energy spectrum of 3C 273 is harder (Table 3). In order to account for a possible spectral dependence of the cross-calibration constants, we always kept the JEM-X factor fixed (to 1.02) and fixed the ISGRI constant to 3 possible values, reporting the best-fit results in all the three cases. SPI data were not used in this analysis.

We built three energy spectra (one per INTEGRAL revolution). Each spectrum contains the ISGRI data for that revolution. The first XRT observation was performed 1.5 days after the end of the last INTEGRAL pointing, then we used XRT data for the third spectrum only. In order to reach enough significance, all the JEM-X data of the campaign were merged in the spectrum of the third week. We corrected the JEM-X multiplicative factor to account for the true normalization factor for the third week (during the third week the JEM-X flux was 1.08 times the mean flux of the campaign).

The energy spectra of the three epochs were fitted simultaneously. We first attempted a fit with an absorbed simple power law plus a Compton reflection hump described by the PEXRAV model in the XSPEC package (Magdziarz & Zdziarski 1995). We used the PEXRAV parameter set proposed in Grandi & Palumbo (2004), with only the PEXRAV normalization allowed to vary in the fitting, but linked for the three epochs. The photoelectric absorption column was fixed to the Galactic value of $N_{\rm H}=1.79 \times10^{20}$ cm-2 (Dickey & Lockman 1995). The power law parameters were linked for the three epochs, except for their normalization, left completely free to vary. With this approach, we tested the hypothesis that the hard X-ray variability among the three epochs was entirely due to the jet component. The best-fit result is marginally acceptable ( $\chi^2/\rm d.o.f.=1.15$, 47 d.o.f., null hypothesis probability 0.24).

We then introduced a break in the description of the jet component (that is, we introduced a broken power law in place of the simple power law) and adopted the same fitting strategy, again under the hypothesis of a variability entirely due to the jet component. An acceptable fit was achieved, and the best fit results are reported in the first column of Table 4, where uncertainties on parameters are computed at 90% for one interesting parameter. We note that using only a broken power law without a reflection component provides a significantly worse best-fit result, with a $\chi^2/\rm d.o.f.$ of 1.20 (46 d.o.f., null hypothesis probability 0.17). Interestingly, the fit would become fully acceptable if the JEM-X/ISGRI cross-calibration is allowed in the range $C_{\rm ISGRI}/C_{\rm JEM-X}=1.25 \div 1.30$.

To the aim to show how strong the need for a Compton reflection component is in our spectra, we also studied the case where the difference in spectrum between Crab and 3C 273 may bring a different cross-calibration factor between JEM-X and ISGRI. We tested the cases of $C_{\rm ISGRI}=0.89$ and $C_{\rm ISGRI}=1.09$, and the best-fit parameters are given in Cols. 2 and 3 of Table 4. As expected from our previous discussion, the higher the ISGRI/JEM-X cross-calibration factor is, the lower is the contribution needed by the Compton reflection. But a minimum value of 1.25 is needed to exclude it, and this contrasts with the latest releases by the hardware teams.

We note that the uncertainties on the normalization factor for the PEXRAV and broken power law (indicated respectively as  $N_{\rm Pex}$ and $N_{\rm Bkp}$ in Table 4) are correlated. Therefore, in order to compare the contribution of the jet in the three epochs, here in terms of the value of the normalization of the broken power law, we performed another fit by fixing the PEXRAV parameters to their best fit value. The uncertainty on the $N_{\rm Bkp}$ under this assumption are provided in parentheses in Col. 1 of Table 4, showing that the jet-component variation between the first and the second week is indeed statistically significant, while the difference between the values in the second and third is marginally consistent with the combined 90% uncertainties on the individual parameters. The spectral energy densities for each week with the best-fit models are shown in Fig. 4. The reflection hump discussed in the previous section is not included in the model.

Thus, from our analysis of the time-resolved X-to-soft-gamma-ray energy spectrum, we can derive that the variability observed from the light curves in this energy range is most likely due to the jet component, described as a broken power law in our emission model, although a non-variable reflection component is also required by the spectral data presented here.

Table 4: Best-fit results for the simultaneous spectral fit of the three epochs (see text for details). We report the values obtained for the nominal Crab cross-calibration factor of ISGRI ( $C_{\rm ISGRI}=0.99$), and for $C_{\rm ISGRI}=0.89$ and $C_{\rm ISGRI}=1.09$. $N_{\rm Pex}$ and $N_{\rm Bkp}$ are the normalization factors for the PEXRAV and broken power law models respectively (reported as photon flux at 1 keV in units of $10^{-3} ~\rm ph/cm^2/s/keV$). $\ \ \ ^*$ error obtained fixing the PEXRAV normalization.


  \begin{figure}
\par\resizebox{8.5cm}{!}{\psfig{figure=0813fig4.ps,width=150.mm}}

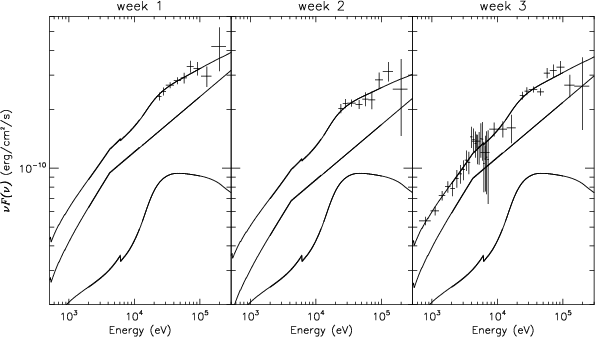

\end{figure} Figure 4: Hard X spectral energy density obtained with ISGRI data for the 3-weeks of the campaign. Each column refers to a week. The SED of the third week includes the JEM-X and XRT data. The overplotted curves refer to the Compton reflection hump (the lower curve), the broken power law (the middle one), and the summation of the two (upper curve). We used the INTEGRAL cross calibration factors obtained for the Crab.
Open with DEXTER


  \begin{figure}
\par\begin{tabular}{c}
\resizebox{8.5cm}{!}{\psfig{figure=0813fig...
...mm]
\resizebox{8.5cm}{!}{\psfig{figure=0813fig6.eps}}\end{tabular}

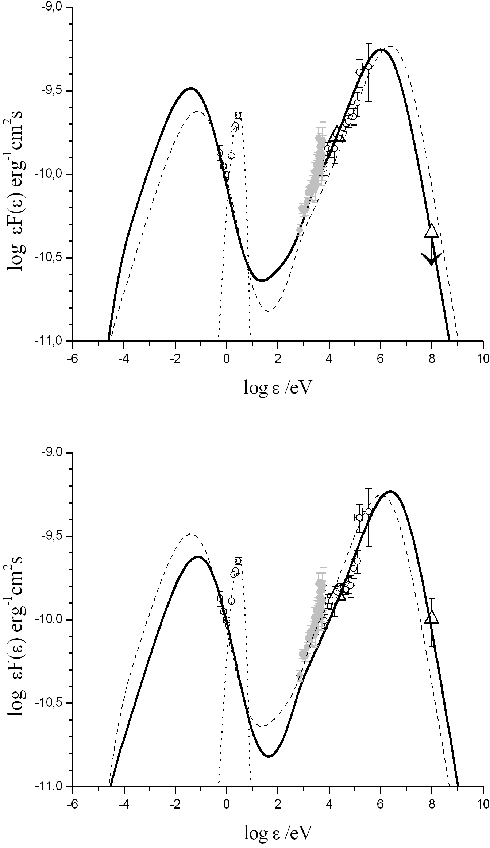

\end{figure} Figure 5: Spectral energy distribution of 3C 273 for the first ( top panel) and the second week ( bottom panel). Triangles are for AGILE data. The grey data refers to the XRT observations, performed in the third week. The line is the model for the simultaneous data of the week. The model for the other week is reported for comparison as a dashed line. The reflection hump is not included in the model. Where not visible the energy range is smaller than the symbol.
Open with DEXTER

4.2 Spectral energy distribution

With the aim of understanding the origin of the gamma-ray emission, we used our multi-frequency data to build a spectral energy distribution (SED). Due to the uncertainty in the evaluation of the gamma-ray flux of 3C 273 for the third week, in the following we refer mainly to the first and the second week of observations.

We made the following approximations in the evaluation of the SED. Similarly to the case discussed in the previous section, for JEM-X we used the spectrum extracted from all the three JEM-X observations together, and we applied a correction factor to the spectra to obtain the observed count rate (in the 5-20 keV band) from each revolution. Due to the statistics, the SPI data are obtained from the integration of the three INTEGRAL revolutions together. Finally, we assumed a photon index of 2.4 to convert counts to photons in the AGILE GRID data.

The resulting SEDs for the first and second week are shown in Fig. 5. We described the broad band emission in the framework of a model including synchrotron emission, synchrotron self Compton and external Compton components (see Maraschi et al. 1992; Marsher & Bloom 1992; Sikora et al. 1994). We did not take into account the reflection hump in the SED model.

Remarkably, the flux distribution in our high gamma-ray state period is similar to that measured during the multi-wavelength campaign performed in June 1991, when gamma-ray variability was not observed. In that campaign (Lichti et al. 1995) the gamma-ray flux was $(56 \pm 8) \times 10^{-8}$ photon cm $^{-2}~\rm s^{-1}$ for E > 70 MeV, and the photon index $2.39 \pm 0.13$, consistent with the AGILE flux of $\big(34_{-10}^{+12}\big)\times 10^{-8}$  $ \rm photon ~ cm^{-2} \rm ~ s^{-1} $ for E > 100 MeV.

The observed variability of the SED between the two epochs cannot be associated with a synchrotron flare. In that case an enhancement of the emission at all the observed wavelengths is expected. The variability behaviour can be reproduced as a shift toward higher energies of the electron density, therefor related not to the injection of a new blob, but to electron acceleration. According to this hypothesis, we modelled the variability keeping the bulk Doppler factor, the blob radius and the disk luminosity unchanged. Instead, we varied the parameters related to the accelerated electrons: i.e. the electron energy distribution ($n_{\rm e}$, $\gamma ^*$ and p2) and, slightly, the tangled magnetic field. But the choice of the SED parameters allowing for a change from the first to the second week is not unique. The chosen parameters of the SED model for the two epochs are reported in Table 5.

Table 5: Parameters for the spectral energy distribution for the first and second week of the campaign. p1 and p2 are the pre and post break spectral index for the electron population, $\gamma ^*$ is the break energy Lorentz factor, $\gamma _{\rm min}$ is the cut-off energy of the electron population, B the tangled magnetic field, r the radius of the spherical blob in the comoving frame, $\delta $ the Doppler factor, $n_{\rm e}$ the electron density.

Actually, the spectral variability that we observed can be interpreted in the context of a standard model of FSRQ as follows. The flux at frequencies > $3 \times 10^{14}$ Hz, consistently with the large ($6^{\circ}$) viewing angle, appears dominated by thermal emission from the disk and/or from the BLR. Thus, we expect the emission in the range of frequencies observed by REM to not vary on daily timescales, and to hide variations of the synchrotron emission except in the near-IR (K and H bands). The REM observations show variations of less than $\sim$$10{-}15\%$ in the near-IR and optical. Our model, shown in Fig. 5, produces no variations of the synchrotron emission in the near-IR and optical energy regions.

A moderate shift of the direct synchrotron spectrum towards higher frequencies is detectable in the far-IR and in the soft X (if not hidden by other thermal components, e.g. the components suggested in Turler et al. 2006, and the soft excess reported in Grandi & Palumbo 2004). But we did not have coverage of that energy region for the whole campaign.

Variations are instead revealed in the inverse Compton reprocessing in the X-ray and gamma-ray domain. The relative variations that we detected, $\sim$20-30$\%$ and a factor of $\sim$2-3, respectively, together with the fact that the gamma-ray flux appears anti-correlated to the X-ray flux, indicates that a shift toward higher energy in the electron density is very likely responsible for the observed variability.

In the model, the associated SSC variation is reflected in a moderate decrease of the leading edge of the SED in the soft X-ray band, whereas the EC by the disk shows up as a flux decrease in the hard X-rays. In the gamma-ray band, the falling portion of the EC spectral energy distribution well describes the observed enhancement.

In the scenario proposed by Sikora et al. (2001), during the acceleration phase, the accelerated electron population increases, saturating at high energy first. When the phase of electrons acceleration stops, the energy break $\gamma ^*$ of the electron population moves to lower energies, reaching the critical energy $\gamma _{\rm C}$ (balancing the radiative cooling time with the duration of the acceleration period) or even lower values. In that model, the gamma-ray light curve reaches its maximum before the hard X, then decays faster than the hard X-ray light curve. That scenario might be able to fit the data of our multiwavelength campaign, provided that the second week is related to an electrons acceleration phase, and the first week to the late phase of a previous episode. Thereby the gamma-ray activity and the high value of $\gamma ^*$ during the second week of observation are the signature of the acceleration phase.

5 Summary and conclusions

We presented data of a pre-scheduled 3-week multi-wavelength campaign on 3C 273 carried out between mid-December 2007 and January 2008, covering from the near-infrared to the gamma-ray energy bands, for the first time after the demise of the EGRET instrument. The source was found in high state in the X-rays, with a 5-100 keV flux a factor of $\sim$3 higher than the typical value in historical observations (e.g., Courvoisier et al. 2003, for the INTEGRAL data). Instead, the AGILE gamma-ray data showed a flux lower than or equal to the EGRET measurements, and the optical/IR measurements provided fluxes very similar to the ``standard values'' for this source.

Our multi-frequency and continuous set of data allowed us to study the short-term variability (days to weeks) of this source. The simultaneous light curves from the different instruments do not show any strong correlation, except for an indication of an anti-correlated variability between X-rays and gamma-rays: all the soft and hard X-ray measurements show a decreasing trend at the time of our single positive detection in gamma-rays in the second week of observation, preceded and followed by non-detections in the first and third week of our campaign.

This behavior can be interpreted and understood when we use our multi-frequency data to model the source spectral energy distribution. Using a model composed of a one-zone homogeneous synchrotron-self-Compton plus external Compton from an accretion disk, we find that the spectral variability between the first and the second week is consistent with an acceleration episode of the electron population responsible for the synchrotron emission. In our model the detectable synchrotron variations are in the far-IR and in the soft X-rays, where we did not have adequate coverage, whereas the near-IR and optical remain almost unchanged. But the signature of the acceleration is revealed by the inverse Compton peak in the X and gamma-ray energy ranges.

We note that shifts of the inverse-Compton peak from observation to observation were previously proposed (see McNaron-Brown et al. 1994) from the comparison of the June 1991 multi-wavelength campaign, and the OSSE observation of September 1994. Our multi-frequency observation and modelling suggests that this behaviour is a more general feature of this source, happening on shorter timescales.

Our observation of a weaker X-ray flux in the second week motivated us to study the Seyfert-like disk reflection hump in this source. The wide band spectral data from the INTEGRAL instruments show that the jet (non-thermal) emission alone does not describe the energy spectrum adequately. A reflection hump improves the X-ray spectral modelling. We then found that in the second week the jet contribution to the X-ray emission becomes dimmer, due to the shift to higher energy of the electron population discussed above, making the likely constant disk contribution to emerge. The quality of our data did not allow us to place any constraints on the possible variability of the reflection component, that in our data is consistent with an intermediate intensity reported form previous observations (e.g., Grandi & Palumbo 2004).

Acknowledgements
The AGILE mission is funded by the Italian Space Agency (ASI) with scientific and programmatic participation by the Italian Institute of Astrophysics (INAF) and the Italian Institute of Nuclear Physics (INFN). We thank the Swift PI N. Gehrels for the approval of the ToO observations, and the Swift team for performing them. We are indeed very grateful to the INTEGRAL Science Operation Center (ISOC) and INTEGRAL Science Data Center (ISDC) teams for the optimal scheduling of the INTEGRAL pointings, and the support and the prompt alerts during the campaign. We thank A. Bazzano for her help in the organization of the campaign, and A. De Rosa for her suggestions.

Appendix A: Complementary data

Table A.1: Hard X data from SuperAGILE and ISGRI. The Flux is reported in mCrab units in the energy band 20-60 keV.

Table A.2: REM and UVOT data for the multiwavelength campaign.
