A&A 494, 237-242 (2009)
DOI: 10.1051/0004-6361:200810746
T. C. Teixeira1,2 - H. Kjeldsen2 - T. R. Bedding3 - F. Bouchy4 - J. Christensen-Dalsgaard2 - M. S. Cunha1 - T. Dall5 - S. Frandsen2 - C. Karoff2 - M. J. P. F. G. Monteiro1,6 - F. P. Pijpers2,7
1 - Centro de Astrofísica da Universidade do Porto, Rua das
Estrelas, 4150-762 Porto, Portugal
2 -
Department of Physics and Astronomy, Aarhus University, 8000 Aarhus C,
Denmark
3 -
Sydney Institute for Astronomy (SIfA), School of Physics, University of Sydney 2006,
Australia
4 -
Laboratoire d'Astrophysique de Marseille, Traverse du Siphon, BP 8, 13376
Marseille Cedex 12, France
5 -
Gemini Observatory, 670 N. A'ohoku Pl., Hilo, HI 96720, USA
6 -
Departamento de Matematica Aplicada da Faculdade de Ciencias da
Universidade do Porto, Portugal
7 -
Blackett Laboratory, Imperial College London, South Kensington, London
SW7 2BW, UK
Received 5 August 2008 / Accepted 18 November 2008
Abstract
We used HARPS to measure oscillations in the low-mass
star Cet. Although the data were compromised by instrumental noise, we
have been able to extract the main features of the oscillations. We found

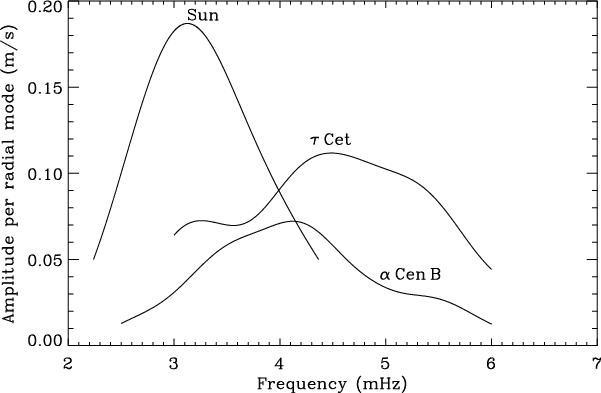

Cet to oscillate with an amplitude that is about half that of the
Sun, and with a mode lifetime that is slightly shorter than solar. The
large frequency separation is 169
Hz, and we have identified modes with
degrees 0, 1, 2, and 3. We used the frequencies to estimate the mean
density of the star to an accuracy of 0.45% which, combined with the
interferometric radius, gives a mass of
(1.6%).
Key words: stars: oscillations - stars: individual: Ceti - stars: individual:
Pavonis - stars: individual:
Centauri B
In the past few years, a new generation of high-resolution, high-precision spectrographs has been providing unprecedented opportunities for studying the fine details of stellar interiors and evolution through the detection of tiny stellar oscillations. The observation and analysis of stellar oscillations, or asteroseismology, has the potential to change dramatically our views of stars.
The G8 V star
Ceti (HR 509; HD 10700; HIP 8102; V=3.50) is
expected to have a convective envelope and therefore to display solar-like
oscillations. Since
Cet has a lower metallicity than the Sun (
;
Soubiran et al. 1998), it bridges the gap towards very
metal-poor population II asteroseismic target stars such as
Ind,
where solar-type oscillations have been detected (Carrier et al. 2007; Bedding et al. 2006).
Moreover, among stars for which a detection of solar-type oscillations have
been attempted (see Bedding & Kjeldsen 2007; and Aerts et al. 2008, for recent
summaries),
Cet has the lowest mass.
As a nearby bright star, Cet has been intensively studied. A
rotational period of 34 days is suggested by sporadic periodicities in
Ca II (Baliunas et al. 1996), but overall
Cet is a very inactive star
with almost no rotational modulation. This led Gray & Baliunas (1994) to propose
that
Cet is seen nearly pole-on, while Judge et al. (2004) have suggested
that it may be in a phase analogous to the solar Maunder minimum. Its
stability makes it a favoured target for testing the velocity stability of
exoplanet programmes (e.g. Butler et al. 1996). Despite many velocity
observations by different groups, no planetary companions have been
reported (Wittenmyer et al. 2006). Direct imaging with the Hubble Space Telescope
also failed to detect a companion (Schroeder et al. 2000). However,
Greaves et al. (2004) have imaged a debris disc around
Cet that has a dust
mass at least an order of magnitude greater than in the Kuiper Belt.
We note that Cet is particularly suitable for an asteroseismic
observing campaign because its radius has been determined
interferometrically with an accuracy of 0.5%. The combination of
interferometric and asteroseismic results has been applied to several other
stars,
as discussed in detail by Creevey et al. (2007) and Cunha et al. (2007). As
stressed by Brown & Gilliland (1994), for example, oscillation frequencies are most
valuable for testing evolution theories when the other fundamental stellar
properties are well-constrained.
Cet satisfies this requirement as
well as can be done for any single star.
![]() |

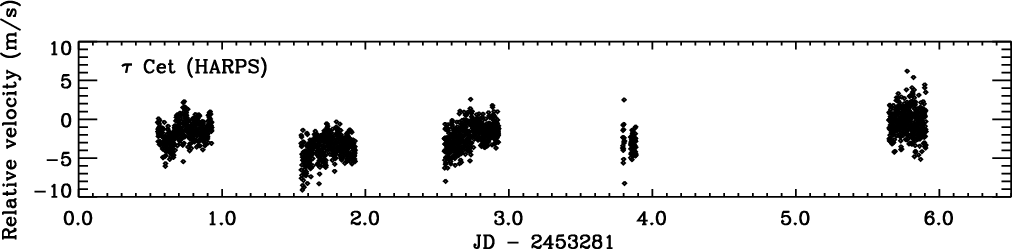

Figure 1:
Time series of velocity measurements of
![]() |
Open with DEXTER |
![]() |

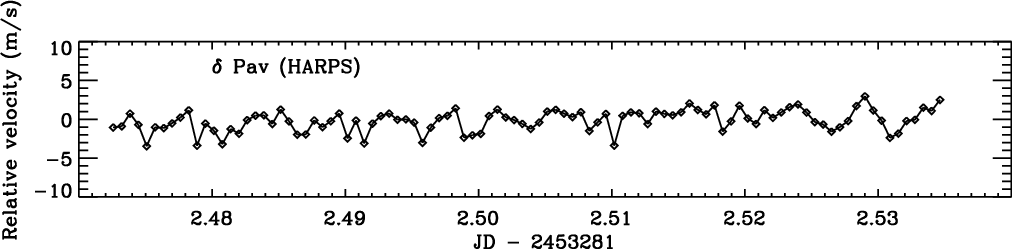

Figure 2:
Velocity measurements of
![]() |
Open with DEXTER |
We were allocated six nights to observe Cet on 2004 October 2-7,
using the HARPS spectrograph (High Accuracy Radial velocity Planet
Searcher) on the 3.6-m telescope at the European Southern Observatory on La
Silla in Chile. This spectrograph includes a thorium emission lamp to
provide a stable wavelength reference.
We obtained 1962 spectra of Cet, with a dead time of 31 s between
exposures. For the first two nights we used an exposure time of 40 s
(resulting in a Nyquist frequency of 7.04 mHz) but shortened this to
23 s (Nyquist frequency 9.26 mHz) for the remainder, in order to
sample better the noise at high frequencies (see below). The velocities
were processed using the method described by Bouchy et al. (2001) and the
resulting velocities are shown in Fig. 1. The fourth and
fifth nights were mostly lost to poor weather.
For about 1.5 h at the start of each night, when Cet was
inaccessible, we observed the star
Pav (HR 7665; HD 190248;
HIP 99240; G6-8 IV; V=3.56). Small amounts of data on this star were
also obtained with UVES at the VLT and UCLES at the AAT by Kjeldsen et al. (2005),
who found oscillations centred at 2.3 mHz with peak amplitudes close to
solar. We obtained a total of 225 spectra of
Pav with HARPS, with
exposure times of 50 s (nights 1 and 2) and 23 s (nights 3 and 5). The
velocities for night 3 (100 data points) are shown in
Fig. 2.
![]() |

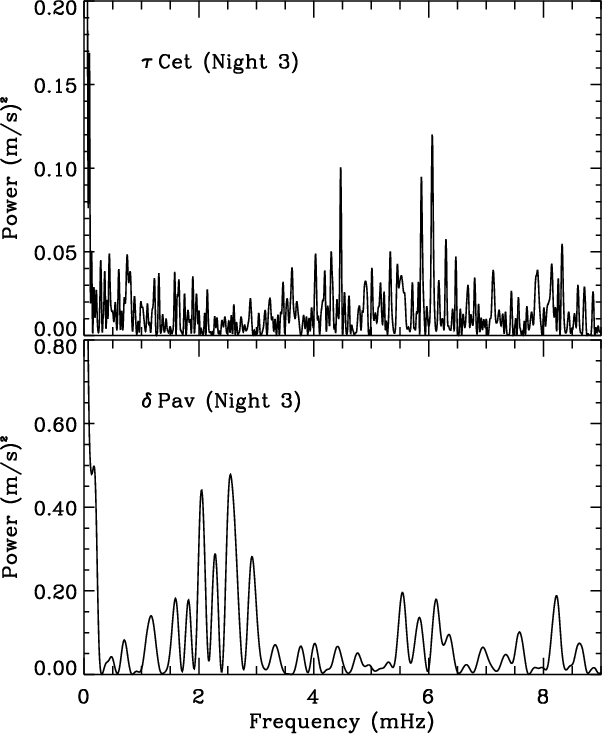

Figure 3:
Power spectrum of velocity measurements
for night 3 only, for ![]() ![]() |
Open with DEXTER |
From the scatter in the velocities and the noise in the power spectra for
both Cet and
Pav, it was obvious that an unexpected noise source
was affecting the velocities. Figure 3 shows the power
spectrum for night 3 for both stars. For
Cet (upper panel), there is
a clear excess at 4 mHz, as expected for oscillations in this star.
However, there is also a significant power excess around 6 mHz. For
Pav (lower panel of Fig. 3), the power centred at
about 2.2 mHz is from oscillations (see Kjeldsen et al. 2005) but we again
see additional power at 6 mHz. The effect of this instrumental noise is
clearly visible by comparing the time series of
Pav in
Fig. 2 of this paper with that in Fig. 2 of
Kjeldsen et al. (2005).
The spurious signal at 6 mHz was later traced to a periodic error in the
telescope guiding system. Noise spikes at 3.1 and 6.2 mHz have been
reported in HARPS observations of other oscillating stars, namely 70 Oph
(Carrier & Eggenberger 2006), Cen A (Bazot et al. 2007) and
Hyi (Bedding et al. 2007).
In the case of
Cet, the 6 mHz noise is particularly problematic
because it covers a fairly broad range of frequencies and because the
stellar oscillations have very low amplitude. There does not seem to
be a strong noise signal at 3 mHz in our data, although it is difficult to
be certain.
Our analysis of the velocity data and of the extracted power spectrum for
Cet follows the method developed and used for
Cen A
(Bedding et al. 2004; Butler et al. 2004),
Cen B (Kjeldsen et al. 2005),
Ind (Bedding et al. 2006)
and
Hyi (Bedding et al. 2007). As usual, we have used the measurement
uncertainties,
,
as weights in calculating the power spectrum
(according to
). The main difference between
Cet
and other stars that we have analysed, apart from the problem of excess
noise from the periodic guiding error, is the single-site nature of the
observations. Because of this, we have not attempted to optimize the
weights to reduce the sidelobes, in the way that we did for other stars.
As for previous stars, we adjusted the statistical weights to account for
bad data points and for night-to-night variations in the noise level. We
did this by measuring the noise at frequencies where the oscillation signal
and the long-term drifts are negligible. The first step was therefore to
remove all power below Hz (to avoid the slow drifts), as well as
all power between
Hz and
Hz (which is dominated by
the oscillations). This filtering was performed by the standard method of
iterative sine-wave fitting (sometimes known as ``pre-whitening''). In this
method, the highest peak is identified in the region of the power spectrum
that is to be removed, the corresponding sinusoid is subtracted from the
time series, the power spectrum is recomputed and the procedure is repeated
until all the power is removed.
Once this was done, the filtered time series for each night was examined
for bad data points. These were identified as those deviating from the
mean scatter by more than 4-,
and were re-assigned lower
statistical weights. We found that more than 10% of data points had
to be significantly down-weighted. This fraction is much greater than for
previous stars that we have observed and indicates the serious effects of
the guiding errors. At the same time, we scaled the statistical weights
on a night-to-night basis, in order to reflect the noise measured at high
frequencies.
The consequence of using the revised weights is a significant improvement
in the signal-to-noise, as can be seen in Fig. 4. Comparison
of the left and right panels in that figure shows that the adjustment of
weights has removed essentially all the excess noise at 6-7 mHz and also
decreased the noise level in the range 1-3 mHz. The mean noise in those
regions, measured in the amplitude spectrum of the whole data set, was
reduced from 6.0 to 4.0 cm s-1. Most of this reduction came from the
down-weighting of bad data points, as described above. Also note that the
strongest oscillation peaks are not as high in the combined data (top panel
of Fig. 4) as in the shorter subsets (middle and bottom
panels). This reflects the finite lifetime of the modes (see
Sect. 3.3).
![]() |

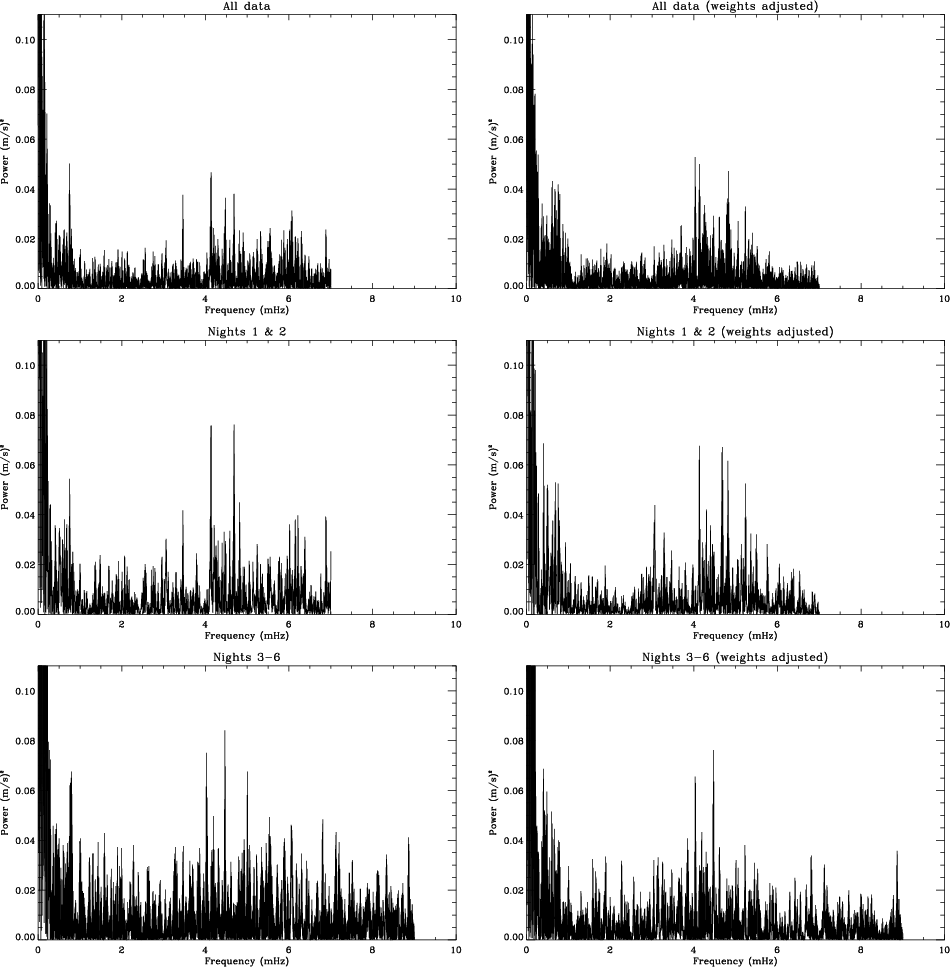

Figure 4:
Power spectrum of ![]() |
Open with DEXTER |
The final power spectrum of Cet is shown in the top-right panel of
Fig. 4. There is a clear excess due to oscillations
which is centred at 4.5 mHz. The next step was to search for a regular
series of peaks, as expected for p-mode oscillations, and to measure the
large frequency separation,
.
We did this in two ways. The first
was to smooth the power spectrum and then calculate the autocorrelation in
the region of excess power, between 2.5 and 6.0 mHz. This produced a
clear peak at 169
Hz.
The second method, which we developed for the Kepler pipeline
(Christensen-Dalsgaard et al. 2007), involved measuring the highest peak in the collapsed
power spectrum for a range of values of the large separation. The
collapsed power spectrum for a given value of
is calculated by
dividing the power spectrum into intervals of length
and summing

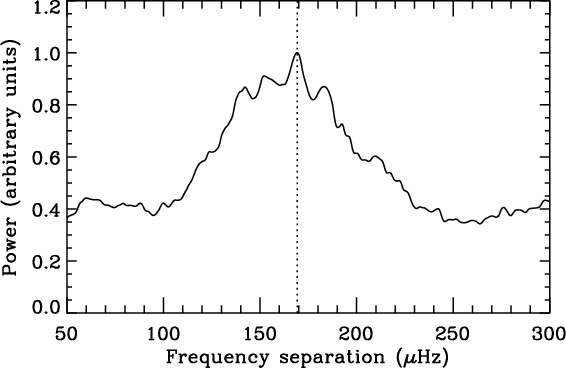

these. The result is shown in Fig. 5, and again we see a
peak at 169
Hz.
Mode frequencies for low-degree p-mode oscillations in main-sequence stars
are well approximated by a regular series of peaks, with frequencies given
by the following asymptotic relation:

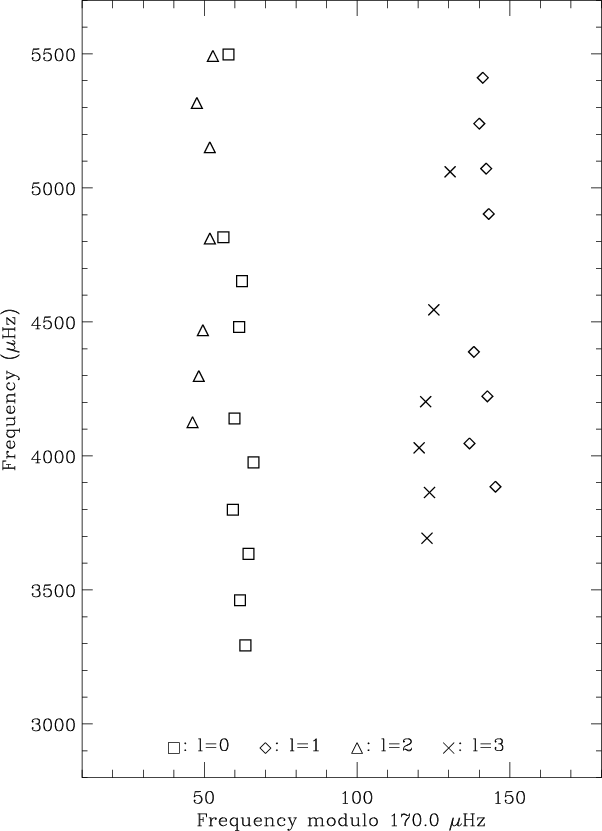

We have extracted the individual oscillation frequencies for Cet
using the standard method of iterative sine-wave fitting down to S/N =
2.5. The single-site nature of the observations and the relatively low
signal-to-noise ratio mean that this process is susceptible to
one-cycle-per-day ambiguities (
). On the other hand, we
are helped greatly by the fact that both the large and small separations
are much greater than the expected mode linewidth, and so all modes are
well separated. Furthermore,
Cet is an unevolved star and so we
expect the oscillation frequencies to follow quite closely the asymptotic
relation, without the presence of mixed modes. We have used this
information to guide our selection of the correct peaks, but we stress that
there is some uncertainty in the correct mode identification.
The extracted frequencies are listed in Table 1. They are
also shown in Fig. 6 in echelle format, where the
frequencies are stacked in segments of length
.
As noted above, the
mode identification is uncertain, and this is particularly true for the
l=0 and l=2 modes above 5 mHz.
A fit to these frequencies provides the various large and small
separations, as listed in Table 2. For the definitions
of these separations see Bedding & Kjeldsen (2003), for example. The separations
generally vary with frequency and so the values in Table 2 are
given at 4.3 mHz. The scatter of these frequencies about smooth ridges
in the echelle diagram is about 1-2 Hz, which indicates the
uncertainties in the individual frequencies in the table. From this
scatter we can estimate the mode lifetime, using the method described by
Kjeldsen et al. (2005). We find a value of
d, which is slightly
lower than the value of
d measured for the Sun
(Chaplin et al. 1997).
![]() |
Figure 5:
Summed power of ![]() ![]() |
Open with DEXTER |
Table 1:
Oscillation frequencies in Cet (in
Hz).
![]() |
Figure 6:
Echelle diagram of oscillation frequencies for
![]() |
Open with DEXTER |
Detailed fitting of the oscillation frequencies of Cet with
theoretical models is beyond the scope of this paper. However, we can use
our results to determine the mean density of the star, via the empirical
method described by Kjeldsen et al. (2008b). This method corrects the
frequencies of stellar models for near-surface effects by making use of the
fact that the offset between observations and models should tend to zero
with decreasing frequency. The method involves fitting both
and the
absolute frequencies of the radial modes (i.e., those having degree l=0).
We applied the method to
Cet, using models computed with the Aarhus
stellar evolution code (ASTEC, Christensen-Dalsgaard 2008a) and the Aarhus adiabatic
oscillation package (ADIPLS, Christensen-Dalsgaard 2008b). The result is a mean
density for
Cet of
g cm-3 (0.45%).
As mentioned in the Introduction, the angular diameter of Cet has
also been measured. This was first done by Pijpers et al. (2003) with the VINCI
instrument on the VLTI. They obtained an angular diameter, corrected for
limb darkening, of
mas (2.5%), where the uncertainty was
dominated by the uncertainty in the angular diameter of the calibrator
star. Subsequently, Di Folco et al. (2004) used the VLTI with smaller
calibrator stars to obtain an improved diameter of
mas
(1.5%). An even more accurate measurement was obtained by
Di Folco et al. (2007) using the FLUOR instrument on the CHARA array, giving
mas (0.5%). The weighted mean of these measurements,
which we adopt here, is
mas (0.5%). Using the revised
Hipparcos parallax for
Cet of
mas
(van Leeuwen 2007) gives a radius of
(0.5%).
Finally, combining this radius with our estimate from asteroseismology of
the mean density gives a mass for
Cet of
(1.6%).
For convenience, we also give an estimate of the luminosity of Cet.
The apparent visual magnitude of
,
with the revised parallax, gives
an absolute magnitude of
.
Using a bolometric correction for
Cet of
(Casagrande et al. 2006) and adopting an absolute
bolometric magnitude for the Sun of
(Bessell et al. 1998), we derive a luminosity for
Cet of
(2.0%).
Table 2:
Oscillation parameters for Cet (see Sect. 3.3).
We have determined the oscillation amplitude per mode from the smoothed
power spectrum, using the method described by Kjeldsen et al. (2008a). This
produces a result that is independent of the stochastic nature of the
excitation and damping. The result is shown in Fig. 7. The
peak of the envelope occurs at frequency
mHz and
the peak amplitude per mode (for radial oscillations) is
cm/s, where the uncertainty is estimated using Eq. (3) of
Kjeldsen et al. (2008a). For comparison, we also show in Fig. 7 the
amplitude curves measured for the Sun (using stellar techniques) and for
Cen B, both taken from Fig. 8 of Kjeldsen et al. (2008a). Note that the
luminosity and mass of
Cen B are, respectively,
(Yildiz 2007) and
(Pourbaix et al. 2002). With this in mind,
we see that the relative amplitudes of the three stars in
Fig. 7 are in reasonable agreement with the L/M scaling
relation proposed by Kjeldsen & Bedding (1995; see also Samadi et al. 2007)
![]() |
Figure 7:
Smoothed amplitude curve for ![]() ![]() |
Open with DEXTER |
We have used HARPS to measure oscillations in the low-mass star Cet.
Although the data were compromised by instrumental noise, we have been able
to extract the main features of the oscillations. We found
Cet to
oscillate with an amplitude that is about half that of the Sun, and with a
mode lifetime that is slightly smaller than solar. The large frequency
separation is 169
Hz, and we have identified modes with degrees 0, 1, 2
and 3. It is important to stress that, given the relatively low
signal-to-noise ratio and the single-site nature of the observations, there
is some uncertainty in the correct mode identification.
We used the frequencies of the radial modes to estimate the mean
density of the star to an accuracy of 0.45%, from which we derived a mass
of
(1.6%). More detailed modelling of the
oscillation frequencies will be the subject of a future paper.
Acknowledgements
We thank the referee for helpful suggestions. This work has been supported by the Danish Natural Science Research Council and the Australian Research Council. M.C. is supported by the Ciencia2007 Programme from FCT (C2007-CAUP-FCT/136/2006).
