All Figures

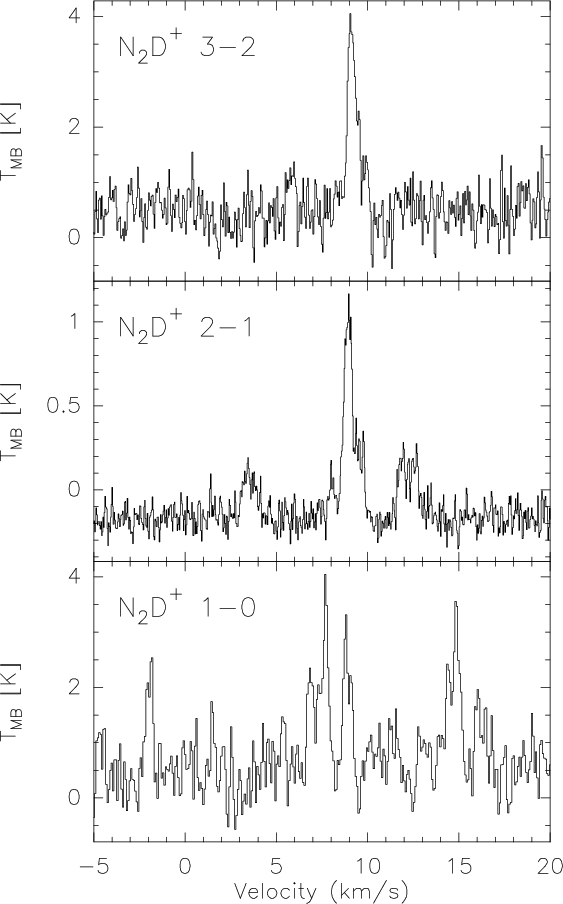

$\begin{figure} \par\includegraphics[width=8cm,clip]{0324fig1.eps} \end{figure}$ Figure 1: Spectra of N₂D⁺ 1-0, N₂D⁺ 2-1, and N₂D⁺ 3-2 toward HH 211, one of the youngest sources in our sample.
Open with DEXTER

In the text

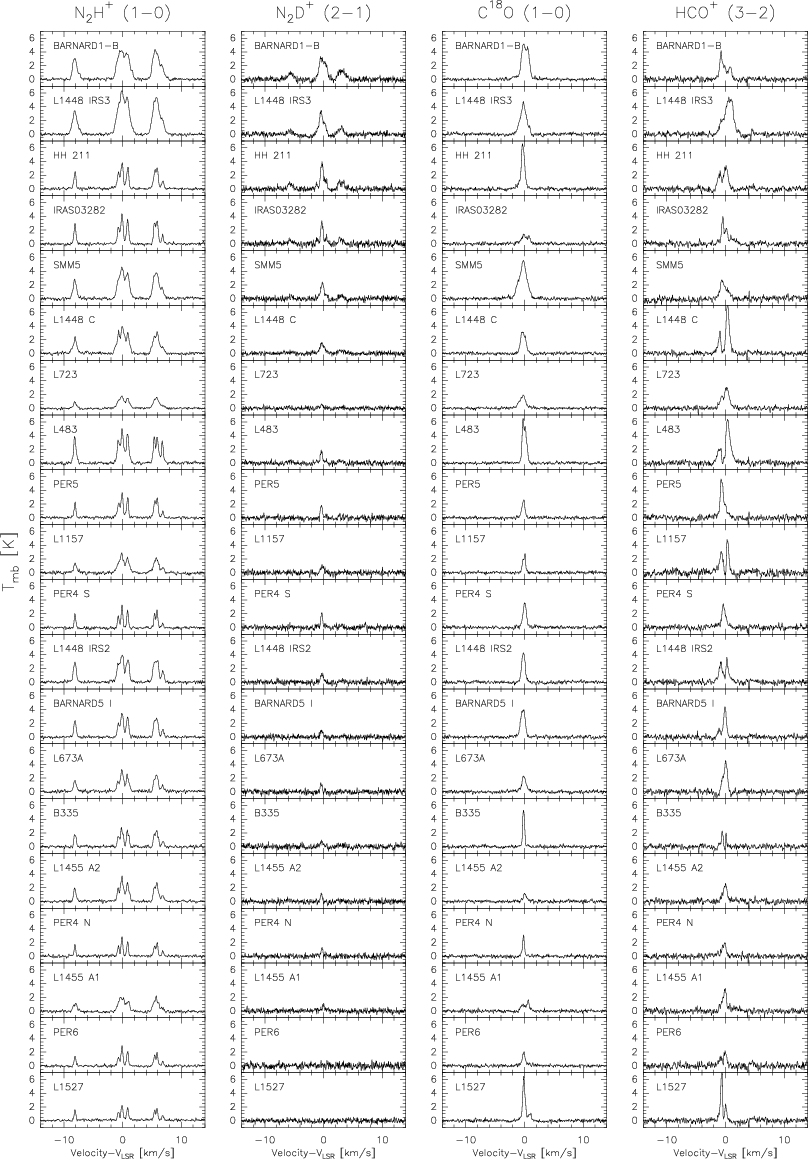

$\begin{figure} \par\includegraphics[width=13cm,clip]{0324fig2.eps} \end{figure}$ Figure 2: Spectra of N₂H⁺ 1-0, N₂D⁺ 2-1, C¹⁸O 1-0, and HCO⁺ 3-2 ( from left to right) of all 20 protostars of our sample. To be able to plot all spectra in one plot, we divided the intensities of HCO⁺ by three.
Open with DEXTER

In the text

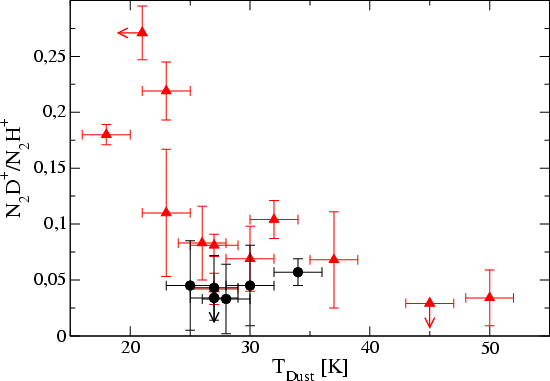

$\begin{figure} \par\includegraphics[width=7.8cm,clip]{0324fig3.eps} \end{figure}$ Figure 3: Deuterium fractionation (N₂D⁺/N₂H⁺ column density ratio) versus dust temperature. The highest N₂D⁺/N₂H⁺ ratios are seen at the lowest temperatures. As $T_{\rm Dust}$ increases, the deuterium fractionation declines. The objects marked with triangles are located in the Perseus cloud.
Open with DEXTER

In the text

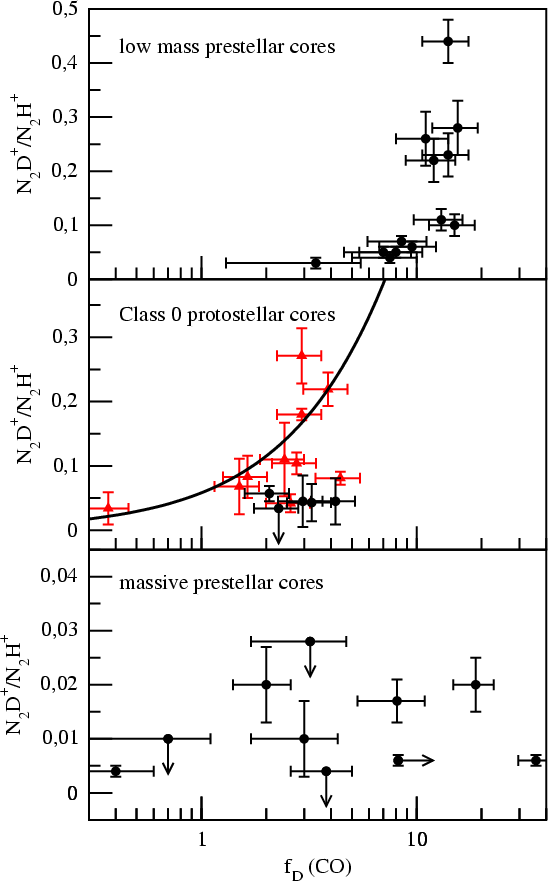

$\begin{figure} \par\includegraphics[width=7.8cm,clip]{0324fig4.eps} \end{figure}$ Figure 4: N₂D⁺/N₂H⁺ column density ratio versus CO depletion factor for prestellar cores ( upper panel, Crapsi et al. 2005), Class 0 protostars ( middle panel, this work) and massive prestellar cores ( lower panel, Fontani et al. 2006). The protostellar objects marked with triangles are located in the Perseus cloud. Among the Perseus objects, $f\rm _D$ (CO) and the deuterium fraction appear correlated. The solid curve in the middle panel is the result of fitting the sub-sample of Perseus cores with a formula adopted from Caselli et al. (1998, see text).
Open with DEXTER

In the text

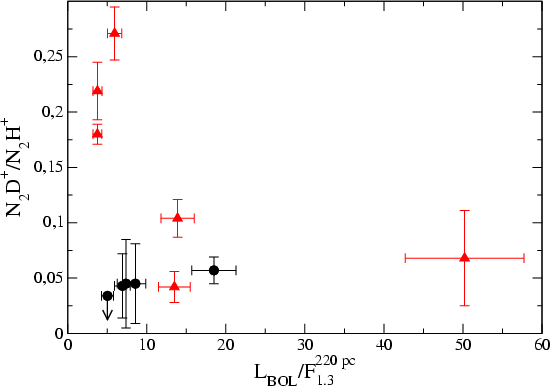

$\begin{figure} \par\includegraphics[width=7.8cm,clip]{0324fig5.eps} \end{figure}$ Figure 5: N₂D⁺/N₂H⁺ versus $L_{\rm BOL}/ F_{1.3}^{D_0}$ . All objects with high deuterium fractionation have low $L_{\rm BOL}/ F_{1.3}^{D_0}$ ratios and are likely to be young objects. L 1527, which has one of the lowest $L_{\rm BOL}/ F_{1.3}^{D_0}$ ratios, also has a quite upper limit on the N₂D⁺/N₂H⁺ ratio.
Open with DEXTER

In the text

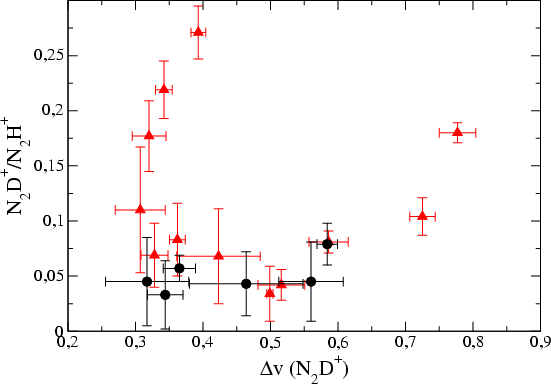

$\begin{figure} \par\includegraphics[width=7.8cm,clip]{0324fig6.eps} \end{figure}$ Figure 6: FWHM of N₂D⁺ 2-1 versus N₂D⁺/N₂H⁺. Triangles are Perseus cores.
Open with DEXTER

In the text

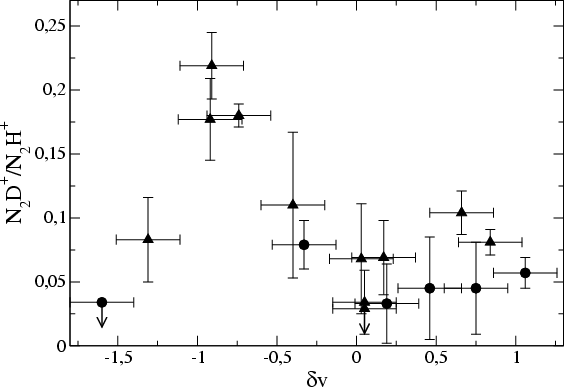

$\begin{figure} \par\includegraphics[width=8cm,clip]{0324fig7.eps} \end{figure}$ Figure 7: Asymmetry parameter $\delta v$ versus N₂D⁺/N₂H⁺ ratio. Only the sources with an unambiguously determined asymmetry parameter are shown. All sources with enhanced deuterium fractionation are located at moderate $\delta v$ of about -0.4, and is increasing with decreasing deuterium fractionation.
Open with DEXTER

In the text

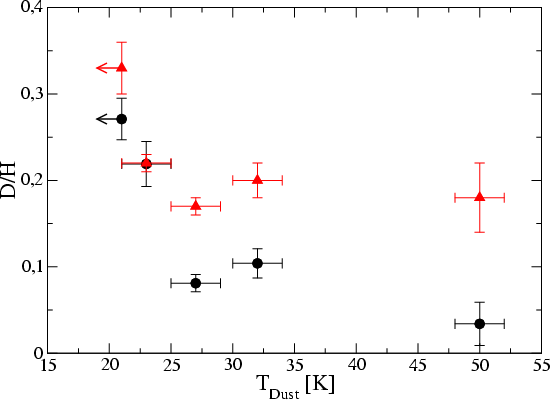

$\begin{figure} \par\includegraphics[width=7.8cm,clip]{0324fig8.eps} \end{figure}$ Figure 8: Deuterium fractionation of NH₃ (red triangles) and N₂H⁺ (black circles) versus dust temperature.
Open with DEXTER

In the text

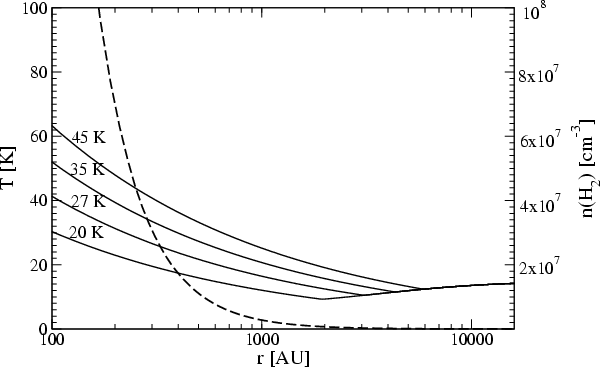

$\begin{figure} \par\includegraphics[width=8.5cm,clip]{0324fig9.eps} \end{figure}$ Figure 9: Density (dashed line) and temperature (solid lines) profiles of the protostellar core models. The four temperature profiles represent models that yield values for $T_{\rm Dust}$ of 20 K, 27 K, 35 K, and 45 K.
Open with DEXTER

In the text

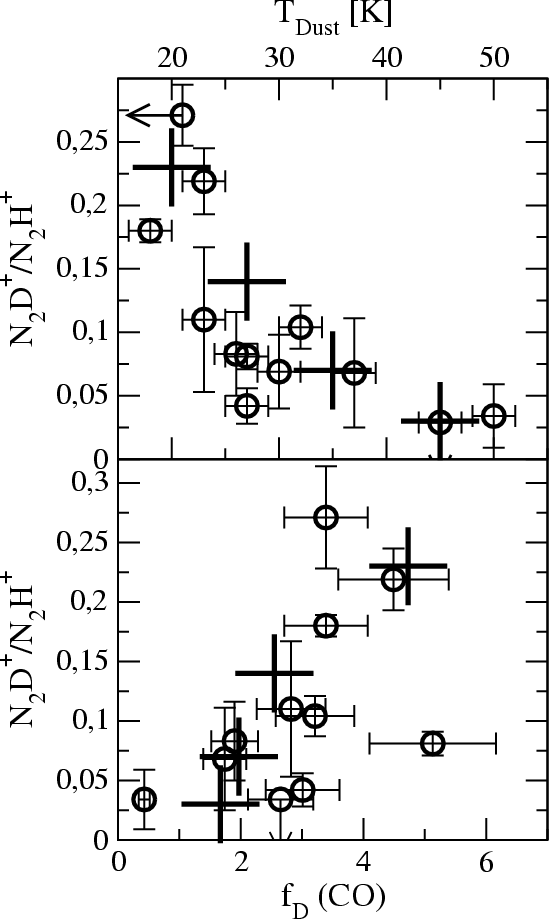

$\begin{figure} \par\includegraphics[width=7.8cm,clip]{0324fi10.eps} \end{figure}$ Figure 10: Upper panel: N₂D⁺/N₂H⁺ ratio versus dust temperature. Lower panel: N₂D⁺/N₂H⁺ ratio and the CO depletion factor $F\rm_D$ (CO). The open circles are the observed values for the subsample of cores in the Perseus cloud; the crosses are the model results. The N₂D⁺/N₂H⁺ ratio of the models was determined using the CTEX method.
Open with DEXTER

In the text

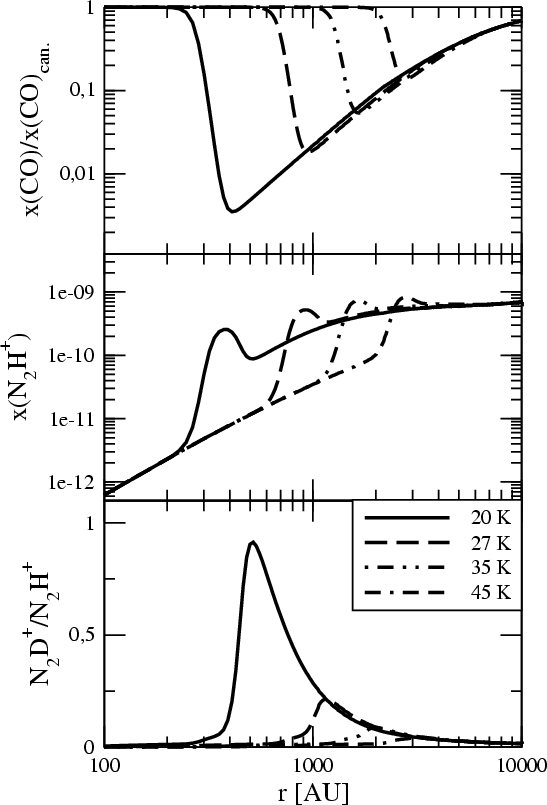

$\begin{figure} \par\includegraphics[width=7.8cm,clip]{0324fi11.eps} \end{figure}$ Figure 11: The relative abundance of CO ( upper panel), N₂H⁺ ( middle panel), and the N₂D⁺/N₂H⁺ ratio are shown as a function of radius. It can be clearly seen that the radius at which CO starts to deplete shifts outwards with increasing temperature, as does the peak of the deuterium fractionation.
Open with DEXTER

In the text

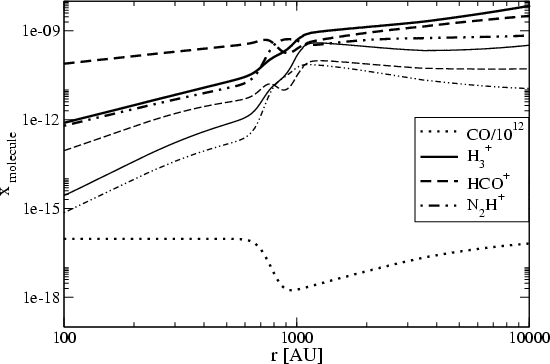

$\begin{figure} \par\includegraphics[width=7.8cm,clip]{0324fi12.eps} \end{figure}$ Figure 12: The abundances of CO, H₃⁺, H₂D⁺, HCO⁺, DCO⁺, N₂H⁺, and N₂D⁺ relative to H₂ are shown as a function of radius. The thick lines show the abundance profile of the protonated species. The thin lines show their singly-deuterated counterparts. These profiles apply to the model with $T_{\rm Dust}=27$ K.
Open with DEXTER

In the text
