A&A 488, 383-399 (2008)
DOI: 10.1051/0004-6361:20078859
A. H. Harutyunyan1, 2 - P. Pfahler3 - A. Pastorello4 - S. Taubenberger3 - M. Turatto1 - E. Cappellaro1 - S. Benetti1 - N. Elias-Rosa3 - H. Navasardyan1 - S. Valenti5,6 - V. Stanishev7 - F. Patat5 - M. Riello8 - G. Pignata9 - W. Hillebrandt3
1 - INAF - Osservatorio Astronomico di Padova, Vicolo dell'Osservatorio 5, 35122 Padova, Italy
2 - Dipartimento di Astronomia, Università degli Studi di Padova, Vicolo dell'Osservatorio 3, 35122 Padova, Italy
3 - Max-Planck-Institut für Astrophysik, Karl-Schwarzschild-Str. 1, 85741 Garching bei München, Germany
4 - Astrophysics Research Centre, School of Mathematics and Physics, Queen's University Belfast, Belfast BT7 1NN, UK
5 - European Southern Observatory (ESO), Karl-Schwarzschild-Str. 2, 85748 Garching bei München, Germany
6 - Dipartimento di Fisica, Università di Ferrara, via Saragat 1, 44100 Ferrara, Italy
7 - Department of Physics, Stockholm University, AlbaNova University Center, 10692 Stockholm, Sweden
8 - Institute of Astronomy, Madingley Rd., Cambridge CB3 0HA, UK
9 - Departamento de Astronomía, Universidad de Chile, Casilla 36-D, Santiago, Chile
Received 16 October 2007 / Accepted 21 April 2008
Abstract
Aims. We present the spectra of 36 supernovae (SNe) of various types, obtained by the European Supernova Collaboration. Because of the spectral classification and the phase determination at their discovery the SNe did not warrant further study, and the spectra we present are the only ones available for the respective objects. In this paper we present and discuss this material using a new software for the automated classification of SNe spectra.
Methods. As a validation of the software, we verify the classification and phase estimate reported for these objects in their discovery/classification circulars. For the comparison, the software uses the library of template spectra of Padova-Asiago Supernova Archive (ASA).
Results. For each spectrum of our sample we present a brief, individual discussion, highlighting the main characteristics and possible peculiarities. The comparison with ASA spectra confirms the previous classification of all objects and refines the age estimates. For our software, we determine numerical limits of ``safe'' spectral classification and the uncertainties of the phase determination.
Key words: supernovae: general - methods: data analysis
Supernovae (SNe) are the catastrophic events terminating the evolution of different kinds of stars. Two main explosion mechanisms are commonly considered: the core collapse of a massive star and the thermonuclear runaway of a white dwarf accreting material from a companion. Core-Collapse (CC) SNe include several types (SNe II, Ib, Ic, IIn, etc.) while the Thermonuclear SNe are observationally called SNe Ia (see Turatto et al. 2007; Turatto 2003, for reviews).
CC SNe are important tools in understanding the latest epochs of the life of massive stars, the chemical enrichment of galaxies and the star formation history of the universe (e.g. Botticella et al. 2007), while type-Ia Supernovae (SNe Ia), on the account of their high luminosity and homogeneous properties, are considered one of the most accurate distance indicators. Indeed, the measurement of SNe Ia at high redshifts gives the best evidence that we are living in an accelerating Universe (see Perlmutter & Schmidt 2003, and references therein). However, the fact that progenitor systems of SNe Ia and their explosion mechanisms are still debated leaves room for a possible luminosity evolution with redshift, which would undermine the results reported so far. Studies of larger and larger datasets confirmed the existence of rather vast variety of SN Ia properties (e.g. Benetti et al. 2004,2005).
The European Supernova Collaboration (ESC) was a European Research Training Network (RTN), founded in 2002 with the goal of improving our understanding of SN Ia physics through a detailed
study of nearby (
6000 km s-1) SNe Ia. During the
following years detailed spectroscopic and photometric monitoring
of 15 nearby SNe Ia (plus 1 SN Ic) was carried
out. The results for 10 of these objects have already been published in
dedicated papers (Elias-Rosa et al. 2006; Taubenberger et al. 2006; Pastorello et al. 2007a; Pignata et al. 2004b; Kotak et al. 2005; Elias-Rosa et al. 2008; Taubenberger et al. 2008; Garavini et al. 2007; Stanishev et al. 2007; Benetti et al. 2004; Altavilla et al. 2007; Pastorello et al. 2007c).
A number of papers with results on the other objects are in preparation (Pignata et al.;
Stanishev et al.; Kotak et al.; Salvo et al.; Kerzendorf et al.; Elias-Rosa et al., in preparation). Using also SNe Ia from this sample, analyses of systematic
properties of SNe Ia have been presented in Benetti et al. (2005), Mazzali et al. (2005),
Hachinger et al. (2006) and Mazzali et al. (2007).
Table 1: SN sample and observations.
In order to select RTN target candidates, prompt classification of newly discovered SNe was required. Thereafter some objects became targets of extensive monitoring, many others did not pass the RTN selection criteria and no follow-up observations were triggered. For these SNe only classification spectra are therefore available. In this paper we present spectra of 36 SNe, obtained during the ESC-related programmes, for which follow-up observations were not activated. These data have not been studied or published so far although in some cases, they contain interesting information. In particular, some of these spectra (4) were obtained at or before maximum light when unique information about the physical conditions and chemical structure of the progenitor star can be retrieved.
The spectra have been classified by means of a new automated tool, specifically developed for this purpose, which compares an input spectrum with the spectra of the Padova-Asiago Supernova Archive (ASA), and identifies the best matching template spectrum. In this way it is possible to determine the spectral classification and the age of the new objects. A set of type-Ia SN spectra of ESC objects with good temporal coverage was also used to test and calibrate the software tool.
The structure of the paper is the following: in Sect. 2 we present our SN sample, observations and data reduction techniques. In Sect. 3 the issue of SN spectral classification is addressed, and in Sect. 4 the software is presented. A discussion of individual spectra is done in Sect. 5 and finally the Sect. 6 gives a short summary.
The sample of 36 SNe is presented in Table 1, where the information on instrumental configurations and observational details is also listed. Seven different telescope + instrument combinations have been used for the observations. The last column of the table contains the references for the discovery and the classification circulars (IAUC, CBET) for each object.
All two-dimensional images were pre-reduced (trimmed, overscan,
bias and flatfield corrected) with standard
IRAF
subroutines. Further data processing was performed using the
procedures from the IRAF CTIOSLIT package. In particular, after the optimised
extractions performed with the APALL task, the one-dimensional
spectra were wavelength-calibrated by comparison with spectra
of arc lamps obtained during the same night and with the same
instrumental configuration. The wavelength calibration was
checked against bright night-sky emission lines. The SN spectra
were then flux-calibrated using response curves derived from
the spectra of standard stars preferably observed during the
same night
.
In some cases two spectra of the same object observed during the same night in different spectral ranges were merged into a single spectrum to gain a wider wavelength coverage and/or higher signal-to-noise ratio (SNR).
Prompt SN type determination is important in the study of SNe. In particular, the success of extensive and time consuming observational campaigns depends crucially on the proper planning of observations, typically obtained in Target of Opportunity mode. A rapid SN classification is usually performed on the basis of one optical spectrum (usually obtained near maximum light) and in general is quite reliable. In a few cases a definitive classification requires the analysis of the spectral evolution.
In the earliest phase when the SN is optically thick, the photosphere emits a continuum radiation field, while line formation occurs above. The ejecta is expanding and the lines are characterised by P-Cygni (P-Cyg) profiles, an emission peak near the rest wavelength of the line and a blueshifted absorption feature. The emission peak is formed by line scattering into the line of sight of photons emitted by the photosphere and would be symmetrical to the line centre wavelength if there was not the absorption. The absorption is formed by scattering out the line of sight of photospheric photons emitted toward the observer. Since this occurs in front of the photosphere, the absorption is blueshifted (see Jeffery & Branch 1990, for a review of spectra formation).
Type-Ia SNe are classified by the presence of lines
of intermediate mass elements such as Si, Ca and S
during the maximum light phase and by the absence of H at any time. Type-Ib SNe are spectroscopically classified by the absence of H Balmer and Si II lines and by the presence of He I features, though, as Branch et al. (2002) showed, weak, broad H
may
also be present. Type-Ic SNe are similar, but with the absence of He lines,
though some weak contamination of He seems to be common to
several type-Ic SNe (Filippenko et al. 1995). Type-II SNe are characterised by strong H Balmer lines.
Most of the SNe fall in one of the above mentioned 4 classes. However, there is an increasing number of peculiar objects, with unprecedented properties and evolution (e.g. SN 2006jc, for which type-Ibn label was coined, Pastorello et al. 2008,2007b), that do not fit within the scheme above. The current taxonomy of SNe is therefore incomplete, ambiguous and not fully satisfactory (see Turatto et al. 2007, and references therein). In a situation in which the classification criteria are not exhaustive, a conservative approach for SN classification is via comparison with other SNe. With this motivation, our group has developed a tool that compares a given input spectrum with the set of spectra from ASA, a large archive of SN spectra, collected by the members of the group during the last decades.
A few groups (see Blondin & Tonry 2007, for a discussion) have developed
software tools for SN spectra analysis. Using
different technical approaches from minimisation
to cross-correlation, these tools aim at different immediate results,
from rapid automatic SN spectra classification to quantification
of spectral differences. The goal of our software is the quantitative classification of SN spectra
by comparison with a large set of template spectra of various SN types
at different phase.
The PAdova Supernova Spectra comPARison TOOl (passpartoo) is a collection of software procedures performing automatic comparison of SN spectra. Designed for different purposes and working with slightly different algorithms, all the procedures carry out an automatic comparison of a given (input) spectrum with a set of well-studied SN spectra (templates), in order to find the template spectrum that is most similar to the given one. The first version of the tool was presented in Harutyunyan et al. (2005). In this paper we used the GEneric cLAssification TOol (GELATO), which is a software for objective classification of SN spectra.
One of the major issues to solve is the treatment of reddening, due both to the Galaxy and to the SN host. We wanted our tool to minimise the impact of the reddening on the comparison result with no assumption on the reddening law, which can be very unusual (cf. Elias-Rosa et al. 2008,2006). To this aim, GELATO divides the input and every template spectrum in a number of separate spectral bins. This approach for spectra comparison was discussed in Riess et al. (1997) and Rizzi (1998) and has the advantage of giving priority to the presence and strength of spectral features. The bins are selected to contain the spectral features most significant for SN classification and dating. The same set of bins is adopted for comparison of spectra of all types with satisfactory results. The current version of GELATO uses 11 bins, 8 of which are from Riess et al. (1997), slightly modified to meet few technical requirements, while 3 have been added to include other spectral features and to enlarge the working spectral range. Table 2 lists the GELATO bins and the corresponding main spectral features.
Table 2: GELATO bins with wavelength ranges and corresponding main spectral features.
The GELATO code works as follows: for all the N bins of an input
spectrum it computes ,
the mean relative distance
between the jth bin of the input spectrum and the corresponding
bin of the template, scaled in flux to match the input one.
This operation is iterated through all the template
spectra and the average of
values for each template
spectrum is calculated. If fi is the input spectrum at wavelength
and Fi the template spectrum, we define
as follows:
![]() |

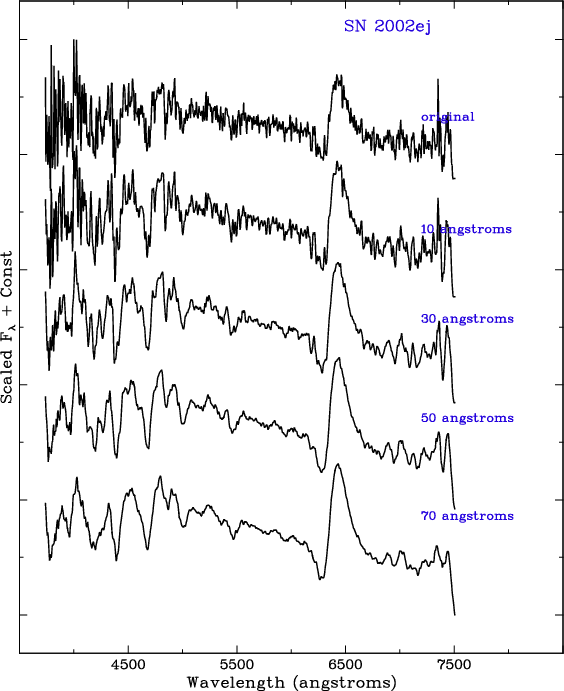

Figure 1: The original and smoothed spectra of SN 2002ej (Sect. 5). The spectra are in the parent galaxy restframe. The number near smoothed spectra are the corresponding box sizes. |
Open with DEXTER |
![]() |

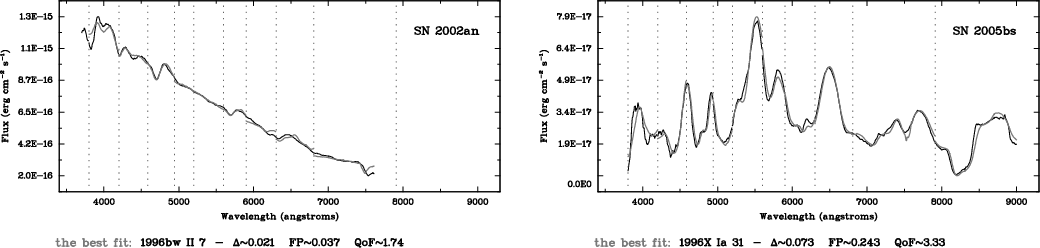

Figure 2: The graphical output of GELATO for the cases of SN 2002an and SN 2005bs from our sample. The spectra are in the parent galaxy rest frame. The black lines are the input spectra and the gray ones the best fitting template spectra, divided in bins and scaled in flux to match the input spectra in the respective bins. |
Open with DEXTER |
The software achieves the goal of finding the best
fitting archive spectrum to a given input spectrum, through the
minimisation of values. However,
alone does not
describe the quality of the fit, which is necessary for a quantitative
comparison of the fits. Thus, we tried to define a quantitative
value providing a measure of quality of fits. In general,
we noted that the values of
computed for the cases of spectra
with dominating continuum and weak spectral features are
systematically lower than those of spectra having many strong
spectral features which can vary in relative intensities and position.
To account for this, we weighted the
values using coefficients that indicate whether the
spectra are more or less feature-rich. We defined the
feature-parameter (FP) as follows:
We tested the QoF values comparing spectra to different sets of
templates. The results combined with visual inspections of the fits showed that
QoF
1.4 means a high/satisfactory quality of the fit
and safe SN type determination, while QoF < 1
occurs when the input has no match in the archive.
Intermediate values 1
QoF < 1.4 may result both for
fair/good fits with correct type detection or poor
fits with incorrect type detection. Further tests will refine
the QoF and establish the confidence levels.
We stress that thanks to the above mentioned subdivision in spectral bins, the best fit procedure depends very little on the slope of the continuum, hence reddening. This can be seen, for example, in the SN 2004aq spectrum fit by SN 1991al (Fig. 7d), for which the QoF = 2.95, despite the significant difference in SED. To verify this we used the original spectrum of SN 2005bs (see Sect. 5 and Fig. 8j) and progressively reddened it up with two reddening laws (RV = 3.1 and 1.8, Elias-Rosa et al. 2006). Then we searched the best fitting templates with GELATO. Table 3 summarises the results. The best fitting template for all the cases was found to be SN 1996X 31 day after maximum, though with slightly decreasing QoF. The test confirms that GELATO is little sensible to the amount of reddening and to the reddening law.
The second crucial ingredient for the automated spectra classification, besides the software tool, is the availability of an extended archive of spectra. Spectra of all SN types from ASA are used as templates for the comparison procedure. These spectra have been collected by the Padova SN group in the course of several long-term projects devoted to the study of the physical properties of SNe including type-Ia SN spectra obtained by the ESC. The archive has also been enriched with publicly available material from the literature. Table 5 lists the archive content on December 2007. It provides the type, redshift, number spectra and phase range of the spectra for each SN. The information about the types and redshifts of SNe are obtained from the up-to-date version of the Asiago SN catalogue (Barbon et al. 1999). Currently there are spectra of 155 type-Ia (including objects like SN 1991T, 1991bg, 2000cx), 168 type-II (including SNe IIL, IIn, IIb) and 65 type-Ib/c SNe (including hypernovae and objects like 1997dq, 2006jc), for a total database of over 2500 spectra. Figure 3 shows the distribution of the templates on the basis of their phase. As one can see from the figure, the template temporal coverage is good at all phases though, as expected, the number of the template spectra is greater near maximum light.
Table 3: Comparison results for reddened spectra of SN 2005bs.
![]() |

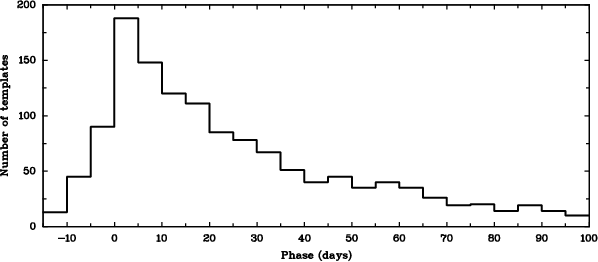

Figure 3: The phase distribution of the template SN spectra. Typically, the phases are relative to the B-maximum for SNe Ia and Ib/c and to the explosion epoch for SNe II. |
Open with DEXTER |
![]() |

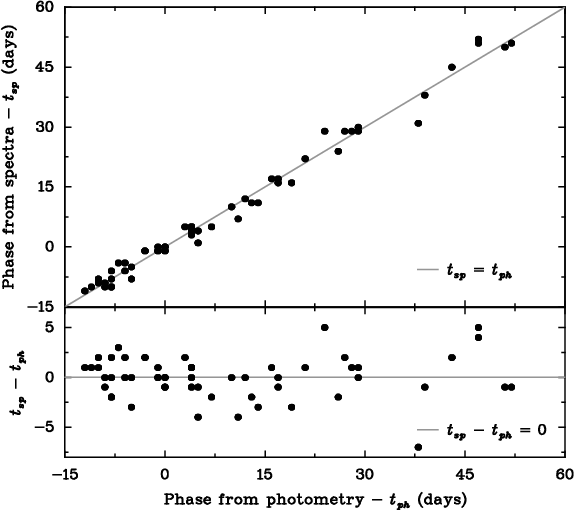

Figure 4: The phases determined with GELATO compared to the phases from photometry for a sample of type-Ia SNe. In the bottom panel are the residuals. |
Open with DEXTER |
![]() |

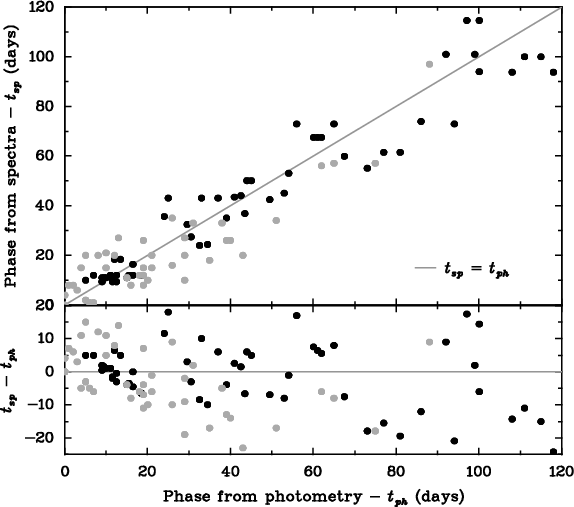

Figure 5: The phases derived with GELATO compared to the phases obtained from photometry for a sample of type-II (black dots) and type-Ib/c (gray dots) SNe. In the bottom panel are the residuals. |
Open with DEXTER |
In general, we adopt as an estimate of the input spectrum age the epoch of the corresponding best fitting template found by GELATO. We carried out several tests to check the ability of GELATO, in combination with ASA to determine the spectral age. To this aim, we used the spectra of a set of well-studied type-Ia SNe 2002bo, 2003cg, 2003du, 2004dt, 2004eo, 2005cf observed by the ESC, for which detailed light curves are available. Each spectrum of these objects was compared with those of a sample of a dozen of template SNe Ia, which include objects spanning the entire range of SN Ia properties (e.g. including SN 1991bg and 1991T). Then, we compared the phases of the best fitting template spectra obtained from the spectral comparison with the phases derived from photometry. The results are plotted in Fig. 4. The plot shows that the two phases are in a good agreement. The difference of the phases has a rms of about 3.1 days in the phase range from 15 to 60 days, while in the range -15 to 15 days it is as small as 1.9 days. The increase of the error with age is expected, because the spectra of SNe Ia change less at late times.
Similar tests done with a set of type-II and type-Ib/c SNe give rms of about 10 days for both samples (see Fig. 5). The errors are larger compared to those of type-Ia SNe due to the heterogeneous behaviour of CC SNe (compared to SNe Ia), to the lack of templates with very good temporal coverage and to the uncertainty in the determination of the explosion epoch for SN II.
Table 4: GELATO's best match templates.
The results of the comparison of our set of 36 spectra with the templates are summarised in Table 4, listing for each object the best template, the phase and the QoF. Figures 6-9 show the plots of the spectra of our objects together with their best fitting templates. Spectra are shown in the parent galaxy restframe and are not corrected for extinction. Below we present a short discussion of individual objects.
SN 2002an was found on Jan. 22.52 by Nakano et al. (2002)
and classified as a type-II supernova by Benetti et al. (2002a).
The spectrum consists of a blue continuum with P-Cyg
profiles of H Balmer and He I 5876 lines. H
is almost
purely in emission (Fig. 6a). The QoF is not high (1.7),
which is due to some discrepancies in the fit. In particular
H
is not well fitted. The most similar template
spectrum is that of the type-II SN 1996bw obtained 7 days after its
discovery (ASA, Benetti & Turatto 1996). For this template the explosion
epoch is not estimated. The spectrum of
another type-II SN 1995ad 12 days after its explosion
(Pastorello 2003) also provides a satisfactory fit. The expansion velocities
deduced from the minima of He I
5876, H
and H
lines
are 9300, 9690 and 9800 km s-1, respectively.
SN 2002bh was found on Feb. 24.3 by Ganeshalingam & Li (2002).
Benetti et al. (2002b) classified it as a type-II supernova. A broad
H emission line is the only strong feature in the noisy spectrum.
Also, broad He I
5876, Fe II and H
features can be identified (Fig. 6b).
From the minimum of H
an expansion velocity of about 12 000 km s-1 is derived. The best fit is with the type-II SN 1995V spectrum (ASA) 8 days after the explosion (Fassia et al. 1998).
The template spectrum does not match well the blue slope of the
spectrum, possibly because of some reddening in the host galaxy.
![]() |

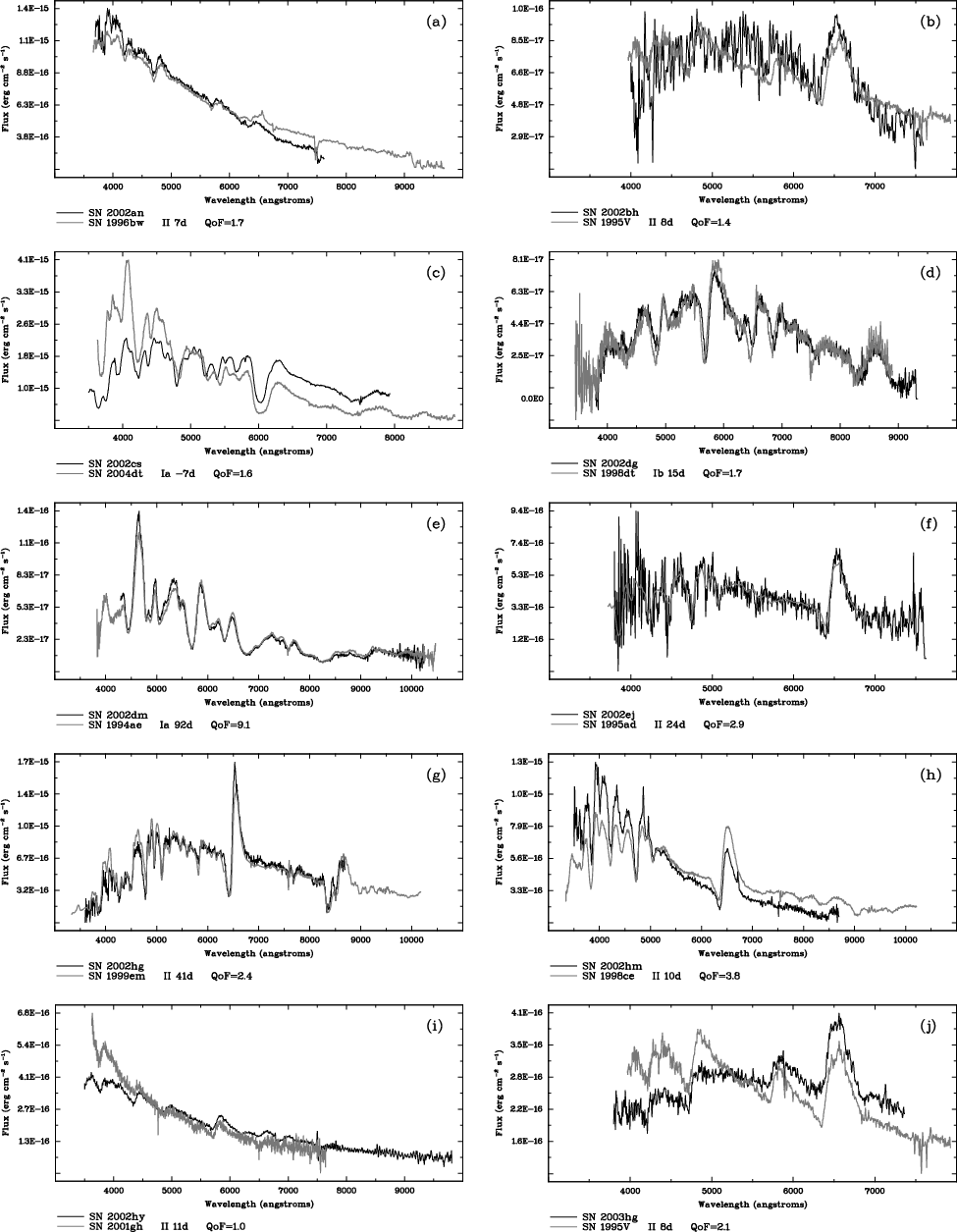

Figure 6: The comparison of the ESC SN spectra of non-ESC targets with their best fitting templates. The spectra are in the parent galaxy restframe and not corrected for extinction. The black lines are the ESC spectra, while the gray ones display template spectra. |
Open with DEXTER |
![]() |

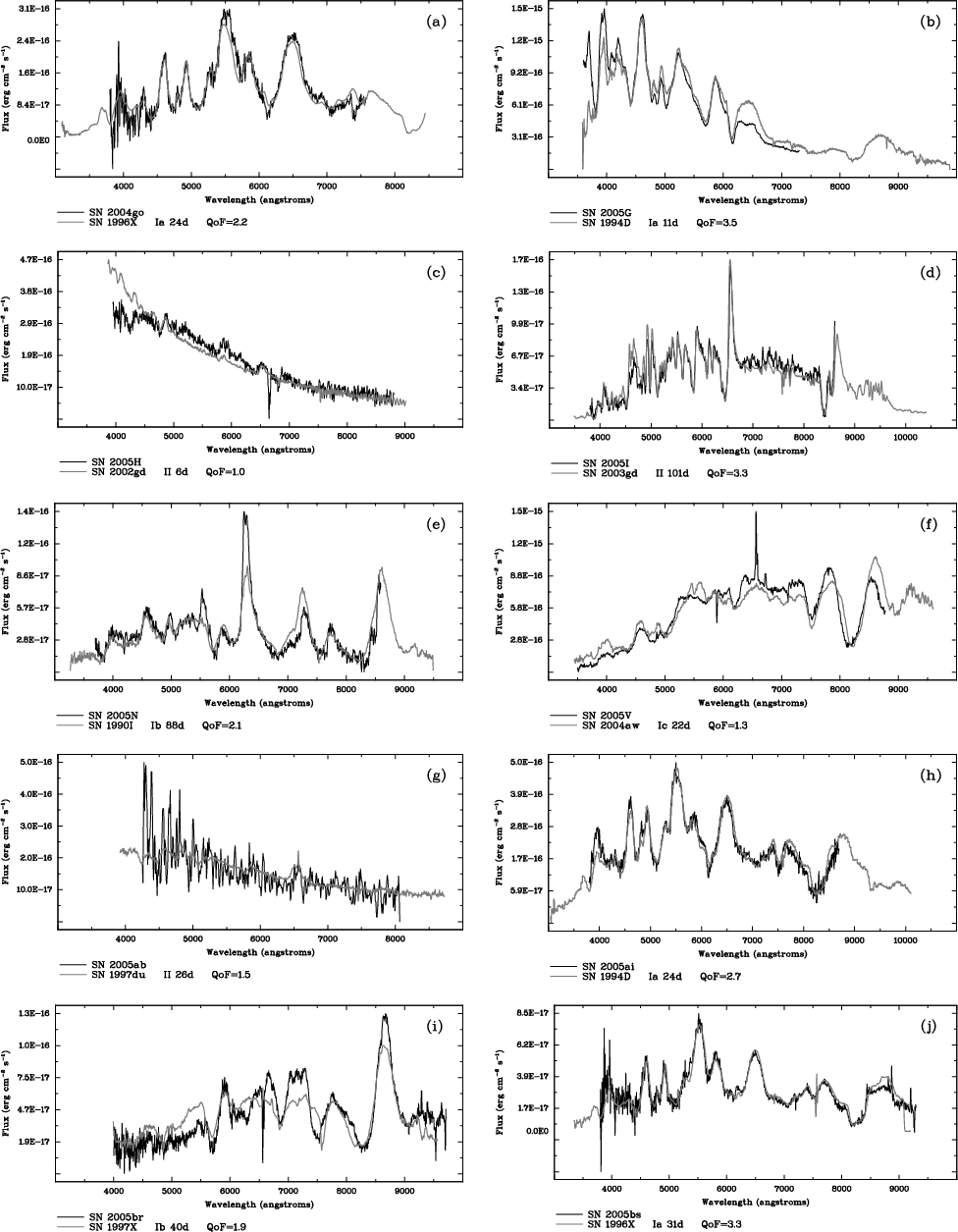

Figure 7: Same as Fig. 6. |
Open with DEXTER |
![]() |

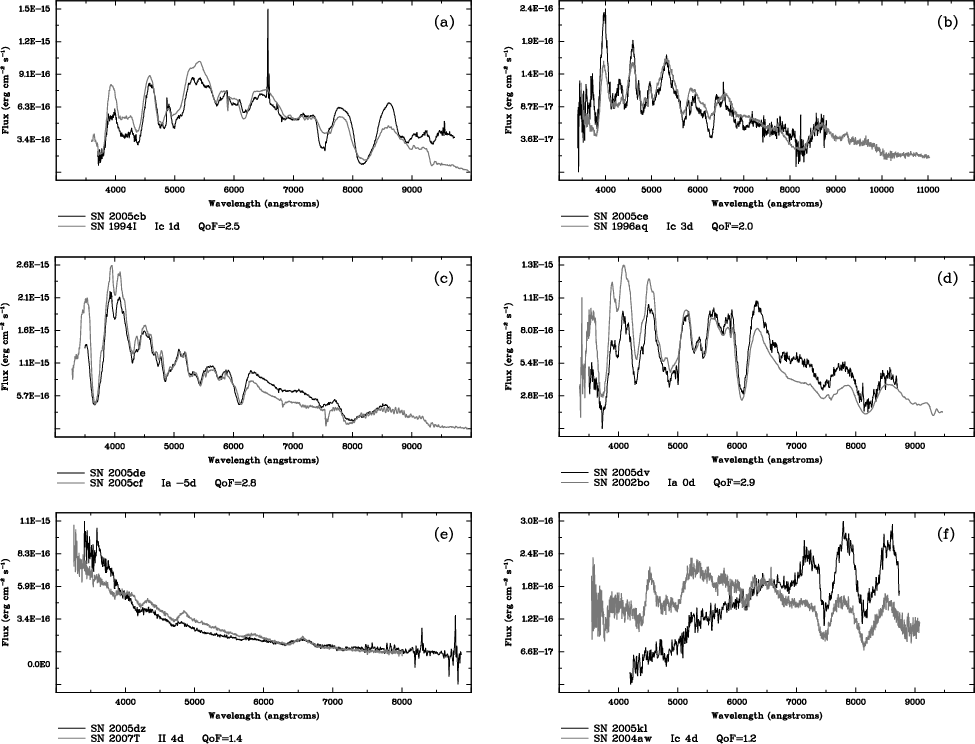

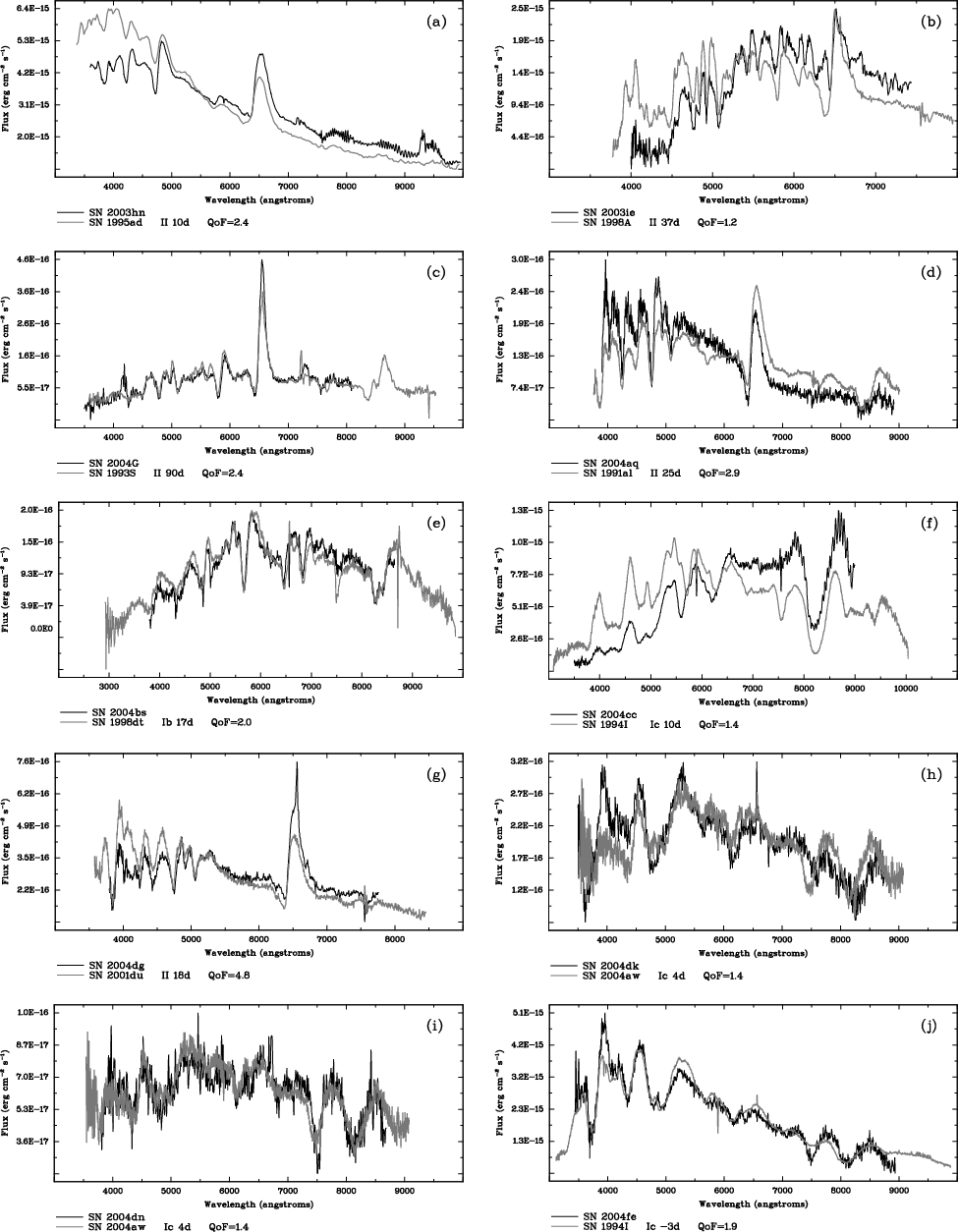

Figure 8: Same as Fig. 6. |
Open with DEXTER |
![]() |
Figure 9: Same as Fig. 6. |
Open with DEXTER |
SN 2002cs was discovered on May 5.5 by Ganeshalingam et al. (2002). The
spectrum is that of a type-Ia supernova, and Riello et al. (2002a) gave
an age estimate of 2
2 days before maximum light
(Fig. 6c). The expansion velocity deduced from the Si II
6355 minimum
is about 15 800 km s-1. Both the expansion velocity and the age
estimates are in agreement with those by Matheson et al. (2002).
The high expansion velocity may be caused
by contamination by a high-velocity component (see Mazzali et al. 2005).
High-velocity features are particularly strong and blended with
the photospheric components in the SNe that belong to the high velocity gradient
(HVG) group (see Benetti et al. 2005). In fact, the closest match we found
is with the HVG SN 2004dt at a phase of -7 days (Altavilla et al. 2007). The shape of the continuum
and interstellar absorption Na I D
5876 feature (in the Galaxy restframe)
of the spectrum suggest the presence of significant extinction.
The value of QoF = 1.6 is mainly due to a mismatch in the line velocity suggesting either an even more extreme case of HVG SN than SN 2004dt or an earlier phase.
Because of the first phase determination
(-2
2 days instead of -7) SN 2002cs was unfortunately not considered
worth of detailed follow-up by the ESC.
SN 2002dg was found on May 31.3 by Wood-Vasey et al. (2002) and
classified as a type-Ib supernova 2-3 weeks after maximum by
Riello et al. (2002b). The spectrum (Fig. 6d)
is most similar to that of the type-Ib SN 1998dt at 15 days from R-band maximum (Matheson et al. 2001). For SN 2002dg, adopting a recession velocity of
14 000 km s-1 derived by Riello et al. (2002b) from the parent
galaxy emission lines, the expansion
velocities measured from the He I 5876 absorption minima of the SN 2002dg
and 1998dt spectra are 9500 and 10 900 km s-1, respectively.
The largest mismatch to the SN 1998dt spectrum is the absorption
at 6270
(rest frame). If this feature is due to H
(see Branch et al. 2002), a transitional type-IIb event may be an alternative
classification. Inspection of the fit (see Fig. 6)
shows that not only the He I features, but also other lines in
the spectrum of SN 2002dg are slightly narrower than in SN 1998dt.
SN 2002dm was found on May 4.76 by Sanders (2002), Turatto et al. (2002) classified it as a type-Ia SN, giving a phase estimate of about 50 days after maximum light. The high SNR spectrum (Fig. 6e) is almost identical to that of SN 1994ae (ASA) at 92 days after maximum light. The large number of features present in the spectrum and the exceptional resemblance to the 1994ae spectrum lead to the best match among the SNe of the sample (QoF = 9.06).
SN 2002ej was discovered on Aug. 9.11 by Puckett & Kerns (2002) and
classified as a type-II supernova two weeks after maximum by
Desidera et al. (2002). On the noisy spectrum P-Cyg profiles of H Balmer,
Fe II and (possibly) Sc II 5240, 5527, 5658 lines are present (Fig. 6f).
The best fitting template (QoF = 2.94) is the one of the type-IIP SN 1995ad at 24 days after explosion epoch (Pastorello 2003). The expansion velocity of SN 2002ej deduced from
the minimum of H
line is about 8070 km s-1.
SN 2002hg was found on Oct. 28.22 by Boles & Schwartz (2002) and
classified as a type-II supernova few weeks past maximum light by
Pignata et al. (2002a). The spectrum shows strong P-Cyg profiles of
H Balmer, Fe II, Ca II (H, K plus IR-triplet), Na I D, O I 7774,
Sc II, Ba II
4934, 6142 lines (Fig. 6g)
and is well-fitted (QoF = 2.4) by a type-II SN 1999em spectrum taken 41 days after
explosion (Elmhamdi et al. 2003). The expansion velocity of SN 2002hg
deduced from the H
line profile is about 6900 km s-1.
SN 2002hm was detected on Nov. 5.16 by Boles (2002) and
classified as a type-II supernova 30 days after maximum light by
Pignata et al. (2002b). The rather blue continuum is
overimposed by P-Cyg profiles of H Balmer, Fe II, Ca II lines (Fig. 6h).
The best fit to this spectrum is provided by the type-II SN 1998ce spectrum
at 10 days after discovery (ASA, Patat & Turatto 1998).
The SN 2002hm spectrum is also well fitted by
SN 1995ad 12 days after explosion (Pastorello 2003),
in agreement with the fact the Na I D feature, typical of type-II SNe at more advanced epochs, is not present yet, thus suggesting an earlier phase than that proposed by Pignata et al. (2002b).
The expansion velocities deduced from the H
and
H
absorption minima in the SN 2002hm spectrum are about
9500 and 8100 km s-1, respectively.
SN 2002hy was found on Nov. 12.1 by Monard (2002) and classified
as a peculiar type-Ib supernova by Benetti et al. (2002c). The blue continuum
is overimposed with strong He I lines at 3889,
4471, 5015, 5876, 6678, 7065 (Fig. 6i). As Benetti et al. (2002c)
mentioned, the He I emission peaks are blueshifted on average by 1800 km s-1. Despite the
peculiarity of the object, GELATO finds a matching spectrum that
contains the He I features with similar line velocity, the SN 2001gh 11 days after discovery (ASA, Valenti 2003; Altavilla 2001).
The second best fitting template is the type-IIb SN 1993J at
4 days after explosion (Barbon et al. 1995), which, however, fails to
reproduce most of the He I features. SN 2001gh is classified as a type-II SN (Altavilla 2001), but because of the presence of strong He lines both SN 2002hy and SN 2001gh should be considered IIb/Ib events (Elias-Rosa et al., in preparation).
SN 2003hg was discovered on Aug. 18.4 by Moore & Li (2003)
and classified as a type-II supernova shortly after explosion (Elias-Rosa et al. 2003).
Broad emission lines of H
(possibly with a boxy profile), and
He I
5876 are present together with absorptions of H
,
and H
(Fig. 6j). The best
fit to this spectrum is with that of the type-II SN 1995V 8 days after
explosion (ASA, the same as in SN 2002bh case).
Despite the different SED, most probably due to reddening (in fact,
Na I D is present with an equivalent width (EW) of about 1.3
),
the QoF is high (2.09).
SN 2003hn was found on Aug. 25.7 by Evans et al. (2003) and
classified as a type-II supernova approximately two weeks after
explosion by Salvo et al. (2003). The spectrum has a blue continuum
and P-Cyg profiles of the H,
H
and He I
5876 lines. H
is present almost purely in emission (Fig. 7a). The best match
of this spectrum is the type-II SN 1995ad spectrum 12 days after
explosion date (Pastorello 2003). The interstellar Na I D absorption feature present in the SN 2003hn spectrum suggests some reddening (EW(Na I D)
0.62
,
corresponding to a lower limit of E(B-V) = 0.089, see Turatto et al. 2003).
The expansion velocities for SN 2003hn deduced from the H
and
H
lines are of about 8700 and 8200 km s-1, respectively.
SN 2003ie was found on Sept. 19.8 by Arbour & Boles (2003) and
classified as a type-II supernova by Benetti et al. (2003).
P-Cyg profiles of H,
H
,
Fe II, Sc II, Na I D and
Ba II lines are overimposed on red continuum (Fig. 7b).
The expansion velocity deduced from the H
absorption minimum is about 5500 km s-1. The best fit to this spectrum is with that of the peculiar type-II SN 1998A 37 days after explosion (Pastorello et al. 2005a). Like in SN 1998A the H
emission shows a significant shift of about
2100 km s-1 towards the blue. This effect is seen also in
SN 1987A and in other type-II SNe (see Pastorello et al. 2005a, for discussion).
SN 2004G was found on Jan. 19.8 by Nakano et al. (2004) and
classified as a type-II supernova about 5 months after explosion by
Elias-Rosa et al. (2004a). The best fit to the SN 2004G spectrum
(Fig. 7c) is with the type-II SN 1993S
90 days after its discovery (ASA). The spectrum
is well-fitted also by the type-II SN 1995ad spectrum 100 days past
explosion (Pastorello 2003). The expansion velocities deduced from
the H
and H
absorption minima
are about 6700 and 4900 km s-1, respectively.
SN 2004aq was discovered on Mar. 2.1 by Armstrong & Buczynski (2004) and
classified as a type-II supernova one month after explosion by
Elias-Rosa et al. (2004b). The spectrum shows P-Cyg profiles of H,
H
,
Ca II and Fe II lines overimposed on a rather blue continuum
(Fig. 7d). The best fit to this spectrum is a type-II SN 1991al spectrum
taken 25 days after discovery (ASA). The minima of the H
and H
absorption components on the SN 2004aq spectrum are blueshifted by about
7700 and 6600 km s-1, respectively, very similar to those of
SN 1991al (7700 and 6500 km s-1). The spectrum of SN 2004aq is
also well fitted by that of the type-II SN 2001du 18 days after
explosion (Smartt et al. 2003).
SN 2004bs was found on May 16.9 by Armstrong (2004) and
classified as a type-Ib supernova about 3 weeks past maximum by
Pignata et al. (2004a). The spectrum is dominated by He I 5876,
6678, 7065 lines with velocities of about 10 800, 10 200
and 10 000 km s-1, respectively (Fig. 7e).
Lines of Fe II, O I and Ca II are also present in the spectrum.
The best matching template is the type-Ib SN 1998dt (ASA),
17 days after R-band maximum (Matheson et al. 2001).
SN 2004cc was found on Jun. 10.3 by Monard & Li (2004) and
classified as a type-I supernova by Matheson et al. (2004) and type-Ic supernova one week before maximum by Foley et al. (2004). P-Cyg profiles of Fe II, Na I D (possibly blended with He I 5876), Si II and Ca II are present on the highly reddened spectrum
(Fig. 7f). Strong Na I D interstellar absorption is detected
in the host galaxy restframe (EW
4.1
). The best fit
to this spectrum is provided by the type-Ic SN 1994I 10 days after
B maximum (Filippenko et al. 1995), although the Na I D (+ He I) absorption
and Fe II features in SN 2004cc are bluer (i.e. with a higher
expansion velocity) than those of SN 1994I. The deep O I feature in the SN 1994I spectrum in not present in SN 2004cc, making this object rather peculiar.
SN 2004dg was discovered on Jul. 19.8 by Vagnozzi et al. (2004) and
classified as a type-II supernova by Elias et al. (2004). The spectrum
shows P-Cyg profiles of H,
H
,
Ca II H&K, Fe II and Ti II lines (Fig. 7g). There is a narrow emission component, probably due
to a nearby H II region, on the broad H
emission profile. The recession
velocity deduced from this narrow emission line is of about 1760 km s-1.
Adopting this recession velocity, the photospheric velocities deduced from
H
and H
are about 8420 and 6970 km s-1, respectively.
The spectrum of the type-II SN 2001du 18 days from explosion
(Smartt et al. 2003) is the best match. Our algorithm provides a very high
QoF = 4.76, despite a stronger H
emission in SN 2004dg and
a slight difference in SED, probably caused by reddening. In fact, on the noisy
continuum a clear Na I D interstellar absorption feature with
EW
1.9
is detected, corresponding to E(B-V) = 0.29 (Turatto et al. 2003).
SN 2004dk was found on Aug. 1.2 by Graham & Li (2004a) and classified
as a type-Ic supernova by Patat et al. (2004a). P-Cyg profiles of Ca II, Fe II,
Na I, Si II and O I lines are present in the spectrum (Fig. 7h).
The spectrum is similar to that of the type-Ic SN 2004aw 4 days after B maximum light
(Taubenberger et al. 2006), though
the O I and Ca II absorption profiles of the SN 2004aw spectrum are
significantly bluer than those of 2004dk. The absorption
minima of Si II 6355
and O I 7774
in the SN 2004dk spectrum
suggest expansion velocities of about 9200 and 7300 km s-1,
respectively. A narrow H
emission probably due to a nearby H II region is present.
The second best fit to this spectrum is by that of SN 1994I 3 days before
maximum light (Filippenko et al. 1995), as mentioned in Patat et al. (2004a).
SN 2004dn was discovered on Jul. 29.4 by Graham & Li (2004b) and
classified as a type-Ic supernova few days before maximum light by
Patat et al. (2004b). Spectral features of
Si II, O I and Ca II are clearly visible (Fig. 7i).
The expansion velocities deduced from Si II 6355
and O I 7774
minima are of about 10 500 and 10 200 km s-1, respectively. The best
fitting template is again that of the type-Ic SN 2004aw 4 days after
maximum (Taubenberger et al. 2006). Having the same best fitting template
means that the spectra of SN 2004dn and 2004dk are also similar.
SN 2004fe was discovered on Oct. 30.3 by Pugh et al. (2004) and
classified as a type-Ic supernova a few days before maximum by
Modjaz et al. (2004). The spectrum (Fig. 7j) shows P-Cyg profiles
of Ca II, Fe II, Na I D, and O I lines.
The best fitting template spectrum is that of the type-Ic SN 1994I 3 days before B maximum (Filippenko et al. 1995). The absorption at about
6170
is probably due to Si II
6355, while the one at
about 6360
is possibly either weak H
or C II
6580
(see Valenti et al. 2008).
SN 2004go was found on Nov. 18.3 by Li et al. (2004) and classified
as a type-Ia supernova 3-4 weeks past maximum by Navasardyan et al. (2004).
The expansion velocity deduced from Si II 6355
absorption minimum
is about 10 200 km s-1. The spectrum (Fig. 8a) is very
similar to that of the type-Ia SN 1996X 24 days after maximum light
(Salvo et al. 2001). The spectra of SN 1994D (Patat et al. 1996) and 2002bo
(Benetti et al. 2004) 24 and 28 days after their B band maxima also provide good fits.
SN 2005G was found on Jan. 14.6 by Graham et al. (2005a) and
classified as a type-Ia supernova about 10 days past maximum by
Navasardyan et al. (2005). Ganeshalingam et al. (2005) report that a
spectrum of SN 2005G taken 2 days before ours shows a narrow
Si II 6355
absorption, a blend of two S II absorptions
around 5500
and a flux density drop blueward of Ca II H&K
lines. The Si II and S II features peculiarities are present
in our spectrum as well (Fig. 8b), but we cannot confirm
the blue flux decline, because of the limited spectral range. Nevertheless,
the spectrum closely resembles (QoF = 3.5) that of the type-Ia
SN 1994D 11 days after maximum light (Patat et al. 1996). The blueshift
of Si II 6355
minimum is of 9600 km s-1.
SN 2005H was found on Jan. 15.2 by Graham et al. (2005b) and
classified as a young type-II supernova by Pastorello et al. (2005b).
The spectrum is dominated by a blue continuum with overimposed
P-Cyg profiles of H,
Fe II and He I (Fig. 8c).
H
is also present, with broad emission and a shallow
absorption. The H
and He I absorption
minima are blueshifted by about 6600 and 6800 km s-1, respectively.
The best fitting template to this spectrum is that of the
SN 2002gd, a low line velocity Ni-poor SN IIP 6 days after explosion
(Pastorello et al. 2004). The featureless spectrum the peculiar line profiles lead, however, to a
very low QoF = 1.01.
SN 2005I was discovered on Jan. 15.6 by Graham et al. (2005b).
Pastorello et al. (2005b) classified it as a type-II supernova
about 3 months after the explosion. The spectrum is characterised
by a red continuum and narrow P-Cyg profiles of H,
H
,
Ca II and Fe II lines (Fig. 8d). The expansion velocities deduced
from the H
minimum is about 4900 km s-1. The best match is with the type-II
SN 2003gd spectrum (ASA). Adopting for SN 2003gd the explosion
epoch found by Hendry et al. (2005), the template is at an epoch of 101 days from the explosion, in good agreement with the phase estimate by Pastorello et al. (2005b).
SN 2005N was found on Jan.19.6 by Puckett et al. (2005a) and
classified as a type-Ib/c supernova in the nebular phase by
Taubenberger et al. (2005a). The spectrum shows strong emission lines
of Mg I] 4571, Na I D, [O I]
6300, 6364, [Ca II]
7291, 7323 and Ca II (Fig. 8e). The best fit to this spectrum is with the type-Ib SN 1990I spectrum 88 days after maximum light (Elmhamdi et al. 2004), which, however, shows weaker [O I] emissions.
SN 2005V was found on Jan. 30.2 by Mattila et al. (2005) and
classified as a type-Ib/c supernova by Taubenberger et al. (2005b). The
spectrum shows P-Cyg profiles of Fe II, Na I D, O I and Ca II lines
overimposed on a very red continuum (Fig. 8f). A narrow
H emission line, due to an underlying H II region, is present.
The best match of this spectrum is with the type-Ic SN 2004aw 22 days after the maximum light
(Taubenberger et al. 2006). The shape of the continuum and the presence
of a deep Na I D absorption line (EW = 5.4
)
in the host galaxy
restframe, suggest that SN 2005V is affected by heavy extinction
(E(B-V) = 0.9, Turatto et al. 2003). The absorption feature at 6200
on the SN 2005V spectrum is most likely due to Si II (possibly blended with H
). There is
no evidence of He I lines.
SN 2005ab was discovered on Feb. 5.6 by Nakano & Kadota (2005).
Benetti & Di Mille (2005) classified it as a type-II SN shortly
after its explosion. On the very noisy spectrum (SNR
6)
a relatively broad (
5000 km s-1) H
emission line
is present (Fig. 8g). The best fitting
template spectrum is that of the type-II SN 1997du 26 days after
its discovery (ASA, Patat 1997). The minimum of the H
line
absorption component in the SN 1997du spectrum is blueshifted by
about 6900 km s-1. Despite the low SNR, the absorptions at about 5770
,
5110
and 4950
seem to be fitted by the SN 1997du absorptions of
the Na I D 5892
,
Fe II 5169
and Fe II 5110
lines, therefore the phase of SN 2005ab could be more advanced than
reported by Benetti & Di Mille (2005).
SN 2005ai was found on Feb. 12.23 by Puckett et al. (2005b) and classified as a type-Ia supernova about one month past maximum light by Taubenberger et al. (2005c). The spectrum is that of a typical type-Ia SN (Fig. 8h), and SN 1994D 24 days after the maximum light (Patat et al. 1996) yields the best match. This spectrum is similar to the spectrum of SN 2004go of the present sample.
SN 2005br was detected on Mar. 28.1 by Monard (2005a) and
classified as a type-Ib supernova about 40 days past maximum by
Turatto et al. (2005). The reddened spectrum shows features of He I
(probably blended with Na I D), O I and Ca II (Fig. 8i).
Also, a rather strong (EW
2.6
)
interstellar Na I D absorption line is
detected. The photospheric expansion velocity deduced from He I 5876
is about 9000 km s-1. The best fit to this spectrum is achieved with the type-Ib SN 1997X 40 days
after discovery (ASA), However, the O I 7774
line is shallower (probably contaminated by a
telluric feature and less blueshifted) in 1997X. Also, a SN 1990U spectrum (ASA) provides a good fit. Adopting the B maximum epoch given by Piemonte (1996) for SN 1990U, the template spectrum
phase is 48 days.
SN 2005bs was found on Apr. 19.1 by Monard (2005b), and Turatto et al. (2005) classified it as a type-Ia supernova. The spectrum (Fig. 8j) resembles very well (QoF = 3.33) that of the type-Ia SN 1996X 31 day after the maximum light (Salvo et al. 2001), in agreement with the estimate by Turatto et al. (2005).
SN 2005cb was found on May 13.22 by Jacques et al. (2005) and classified as a type-Ib/c supernova at about 10 days after maximum by Turatto et al. (2005). P-Cyg profiles of Fe II, Na I D, Si II, O I and Ca II are present in the spectrum (Fig. 9a). The expansion velocities deduced from the minima of Si II and O I features are about 9500 and 11 000 km s-1, respectively. The best fitting template is that of the type-Ic SN 1994I 1 day after B maximum light (Filippenko et al. 1995). SN 2005cb seems to be slightly redder than 1994I at maximum, and has a stronger O I with a higher line velocity.
SN 2005ce was found on May 28.5 by Pugh & Li (2005) and
classified as a type-Ib/c supernova a few days after explosion
by Stanishev et al. (2005a). The spectrum has a blue continuum
with several P-Cyg profiles of Fe II, Ca II lines
and moderately weak absorptions at about 5700 ,
6496
,
6850
and 7060
due to He I, with expansion velocities of
about 8980, 8170, 9100 and 9140 km s-1, respectively (Fig. 9b).
However, the best fit to this spectrum is provided by the type-Ic SN 1996aq
5 days after discovery (ASA). The spectrum is also similar to that of
SN 1994I 10 days after B maximum, though in the SN 2005ce
spectrum the O I feature is much weaker (if any). The deep absorption at about 6294
is
most likely due to H
(probably blended with Si II and C II
6580).
This is supported by the identification of an absorption at about
4689
with H
.
The presence of H
in various SN Ib/c was suspected
(see Branch et al. 2002; Elmhamdi et al. 2006). Usually the H
line optical
depth is small and no apparent H
is detected, while in this case
the H
feature is strong and there is also some hint of H
presence.
With these identifications the photospheric expansion velocities derived
from H
and H
lines are of about 12 300 and 10 600 km s-1.
Although the best fits found by our programme are with type-Ic SNe,
SN 2005ce is a rare and a very interesting example of an intermediate
case between a Ib (with possibly some contamination of H) and Ic event.
SN 2005de was discovered on Aug. 2.28 by Lee et al. (2005) and
classified as a type-Ia supernova one week before maximum by
Wang & Baade (2005). Our spectrum of SN 2005de shows P-Cyg lines of Ca II, Fe II, S II and Si II
(Fig. 9c). The Ca II near-infrared triplet seems to be present with two
components. This was noted by Wang & Baade (2005) who measured a
velocity of about 20 000 km s-1 for the bluer component,
in agreement with our spectrum where the Ca II absorption minimum
is blueshifted by 20 200 km s-1, taking 8579
as the
wavelength reference for the multiplet. Indeed, this high velocity
feature is also present in the best fitting template spectrum of the
type-Ia SN 2005cf 5 days before the maximum light
(Garavini et al. 2007). Mazzali et al. (2005) find that the
presence of high-velocity features is very common, if not
ubiquitous, in the early spectra of SNe Ia.
SN 2005dv was found on Sep. 4.8 by Dimai & Dainese (2005) and
classified as a type-Ia supernova probably before maximum light
by Leonard (2005). The minimum of the Si II 6355 line is
blue-shifted by about 12 600 km s-1 suggesting that the phase
of the spectrum is near-maximum (Fig. 9d).
The best fitting template is that of the type-Ia SN 2002bo at
maximum light (Benetti et al. 2004). The fit reproduces all spectral
features rather well, though in the blue region the continuum of
SN 2005dv spectrum is weaker, probably due to some reddening. This
is confirmed by the presence of a Na I D absorption line
(EW
2.3
)
in the rest frame of the host galaxy,
as noted also by Leonard (2005).
SN 2005dz was found on Sep. 10 by Puckett et al. (2005c) and
classified as a young type-II supernova by Stanishev et al. (2005b).
The blue continuum of the spectrum is superimposed by broad and shallow
P-Cyg profiles of H Balmer and He I 5876 lines
(Fig. 9e). H
is present mostly in emission.
The expansion velocities derived from the H
and H
absorptions are about 12 200 and 10 600 km s-1, respectively. The best fitting template spectrum is that of the type-II SN 2007T 4 days after discovery (Benetti et al. 2007), although the expansion
velocities of 2007T are smaller. The SN 2005dz spectrum is also similar
to that of the type-II SN 2002gd 6 days after explosion (Pastorello et al. 2004).
SN 2005kl was discovered on Nov. 22 by Dimai & Migliardi (2005) and classified as a type-Ic supernova by Taubenberger et al. (2005d). P-Cyg profiles of O I, Ca II and also absorptions due to Si II and Fe II are present in the spectrum (Fig. 9f). The red continuum suggests that the SN is heavily extinguished. The best fitting template is the type-Ic SN 2004aw 4 days after B maximum (Taubenberger et al. 2006), which was also the case for SN 2004dk and 2004dn. The expansion velocity deduced from the Si II absorption is of about 10 000 km s-1.
The European Supernova Collaboration (ESC) was conceived to perform very detailed studies of nearby SNe Ia and carried out extensive follow-up programmes on 15 objects (plus one SN Ic). Integral part of the ESC was a prompt classification programme with ToO observations of selected, newly discovered SNe, with the aim to single out candidates for the following intensive monitoring. In this context several tens of SN candidates were observed which did not meet the ESC requirements as to epoch of discovery and SN type. In this paper we have presented and discussed the spectra of these objects which include 8 type-Ia, 13 type-Ib/c (in 2 cases possibly IIb) and 15 type-II SNe. Each SN spectrum has been analysed by means of a new software tool that compares it with a vast database of SN spectra. For each object we have identified the best fit SN template providing type and a phase estimate. Other information such as the identification of the most prominent spectral features, the expansion velocities of the absorbing layers and possible peculiarities have also been reported.
The comparison with ASA spectra has confirmed
the previous classification of all objects. Nevertheless, in
some cases the new spectral ages differ from the estimates
reported in the original IAU circulars. In the case of SN 2002cs
the new determination of the spectral age (-7 days)
to be compared to the previous one (-2
2 days), shows the
importance of having a reliable and objective classification
tool and a complete archive.
Had such a tool been available in 2002, SN 2002cs would
have become an ESC target for detailed follow-up observations.
The current version of the comparison software, which is now routinely used by
the Padova team for the classification of newly discovered
SNe, has been presented. In particular, we have discussed the
general algorithm and the accuracy of the classification and
phase determination. The classification can be considered
``safe'' when the QoF parameter is larger than 1.4,
while for QoF < 1.4 the type determination must be done ``cum
grano salis''. Values of QoF smaller than 1 mean that no
spectral template similar to the input spectrum is
present in the archive. Typical errors in the epoch determination of 1.9 days
have been found for SN Ia in the early, fast evolving phases, while for later epochs the
uncertainty rises to 3.1 days. Much larger (about 10 days)
is the uncertainty on the epoch determination for CC SNe,
because of their heterogeneity and lack of the extensively
observed templates.
Although this tool already provides satisfactory results, we plan to implement some refinement for what concerns the quantitative measure of the quality of the fits. The SN research community will have access to the tool through a web-based interface that we plan to develop.
Acknowledgements
A.H. acknowledges the support by the Padova municipality ``Padova Città delle Stelle'' prize. M.T., E.C. and S.B. are supported by the Italian Ministry of Education via the PRIN 2006 n.022731_002. G.P. acknowledges support by the Proyecto FONDECYT 30700034. This work is supported in part by the European Community's Human Potential Programme under contract HPRN-CT-2002-00303, ``The Physics of type Ia Supernovae''. The observations on which this paper is based were collected at the European Southern Observatory (Chile), the Calar Alto Observatory (Spain), the Italian Telescopio Nazionale Galileo (La Palma), the Nordic Optical Telescope (La Palma), the Asiago Observatory (Italy). We made use of the NASA/IPAC Extragalactic Database (NED) which is operated by the Jet Propulsion Laboratory, California Institute of Technology, under contract with the National Aeronautics and Space Administration. We thank the anonymous referee for useful comments and suggestions.
Table 5: The archive SNe and spectra.
