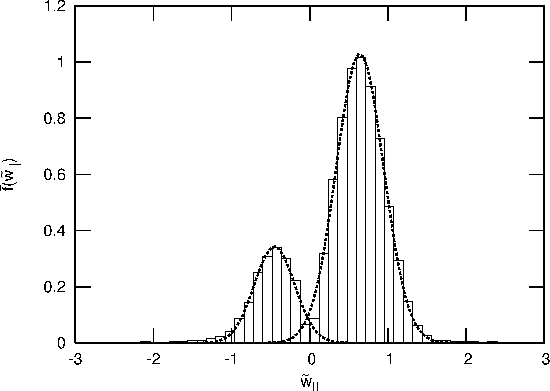

$\begin{figure} \par\includegraphics[width=7.8cm,clip]{9950fig1.eps}\end{figure}$ Figure 1: Normalised ion distribution function on the downstream side of the termination shock. The underlying parameters are described in the text. The sample consists of 30 000 particles. Two humps have been developed in the distribution with one reflected and one continuing beam. The dotted curves are the fit results described in Sect. 3.4.
Open with DEXTER

In the text

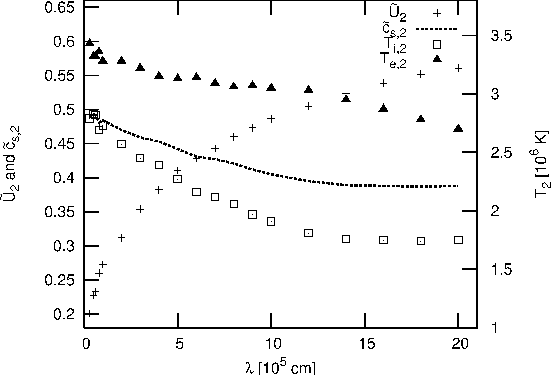

$\begin{figure} \par\includegraphics[width=7.8cm,clip]{9950fig2.eps}\end{figure}$ Figure 2: Dependence of the moments on parameter $\protect\lambda$ . The ordinate for units of velocities is on the left, for the temperatures on the right. Velocities are scaled in units of U₁, and b has a value of $2\times 10^{6}~{\rm cm}$ .
Open with DEXTER

In the text

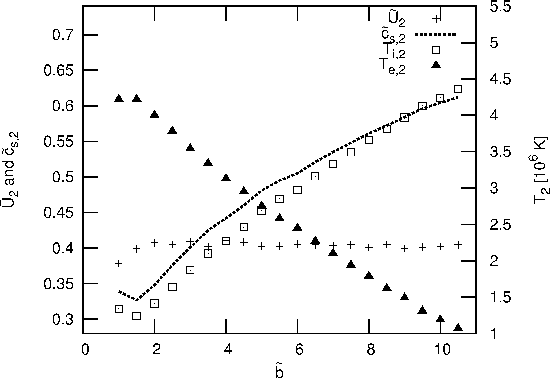

$\begin{figure} \par\includegraphics[width=7.8cm,clip]{9950fig3.eps}\end{figure}$ Figure 3: Dependence of the moments on parameter b. The ordinate for units of velocities is on the left, for the temperatures on the right. Velocities are scaled in units of U₁, $\tilde b$ is scaled as $\tilde b=b/\protect\lambda$ . $\protect\lambda$ is chosen to be $5\times 10^{5}~{\rm cm}$ .
Open with DEXTER

In the text

$\begin{figure} \par\includegraphics[width=7.8cm,clip]{9950fig1.eps}\end{figure}$	Figure 1: Normalised ion distribution function on the downstream side of the termination shock. The underlying parameters are described in the text. The sample consists of 30 000 particles. Two humps have been developed in the distribution with one reflected and one continuing beam. The dotted curves are the fit results described in Sect. 3.4.
Open with DEXTER

$\begin{figure} \par\includegraphics[width=7.8cm,clip]{9950fig2.eps}\end{figure}$	Figure 2: Dependence of the moments on parameter $\protect\lambda$ . The ordinate for units of velocities is on the left, for the temperatures on the right. Velocities are scaled in units of U₁, and b has a value of $2\times 10^{6}~{\rm cm}$ .
Open with DEXTER

$\begin{figure} \par\includegraphics[width=7.8cm,clip]{9950fig3.eps}\end{figure}$	Figure 3: Dependence of the moments on parameter b. The ordinate for units of velocities is on the left, for the temperatures on the right. Velocities are scaled in units of U₁, $\tilde b$ is scaled as $\tilde b=b/\protect\lambda$ . $\protect\lambda$ is chosen to be $5\times 10^{5}~{\rm cm}$ .
