A&A 487, 709-716 (2008)
L.-Y. Zhang1,2 - S.-H. Gu1
1 - National Astronomical Observatories/Yunnan Observatory, Joint laboratory for Optical Astronomy, Chinese Academy of Sciences, Kunming 650011, PR China
2 - Graduate School of Chinese Academy of Sciences, Beijing 100039, PR China
Received 29 February 2008 / Accepted 10 June 2008
Aims. We present the new high-resolution echelle spectra of SZ Psc, obtained in Nov. 2004 and Sep.-Dec. 2006, and study its chromospheric activity.
Methods. By means of the spectral subtraction technique, we analyze our spectroscopic observations including several optical chromospheric activity indicators (the D3, D1, D2, H, and infrared triplet lines).
Results. All indicators show that the chromospheric activity of the system is associated with the cooler component. We find that the values of EW8542/EW8498 are in the range 1-3, which indicates optically thick emission in plage-like regions. The 2006 data suggest the presence of active longitude phenomena. For the 8542 and 8662 and the H lines, it seems that the excess emission is stronger near the two quadratures of system. This may be anti-correlated with the behavior of the D1 line. The absorption features are detected in the subtracted H lines, which could be explained by prominence-like extended material seen on the stellar disk or by mass transfer from the cooler component to the hotter one.
Key words: stars: binaries: eclipsing - stars: binaries: spectroscopic - stars: chromospheres - stars: activity - stars: late-type - stars: individual

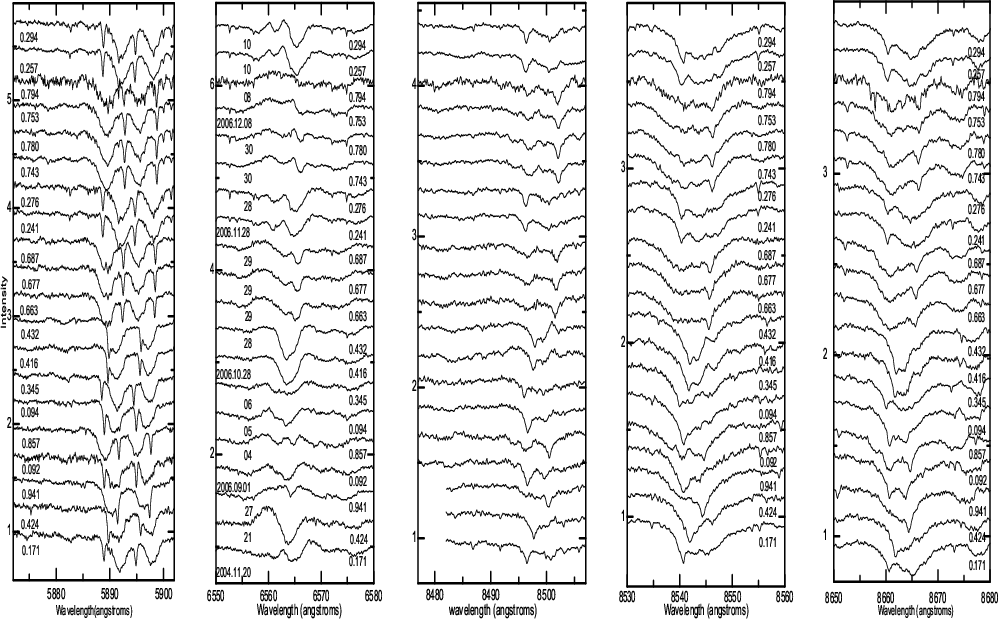

|Figure 1: The D3, D1, D2, H, and IRT line profiles of SZ Psc.|
|Open with DEXTER|
The first variability of the lightcurve of SZ Psc was found by Jensch (1934). Since then, the light-curve variations have been analyzed by many authors (Jakate et al. 1976; Eaton 1977; Catalano et al. 1978; Eaton et al. 1982; Tunca 1984; Doyle et al. 1994a; Antonopoulou et al. 1995; Lanza et al. 2001; Kang et al. 2003; Eaton & Henry 2007). For the distortion wave on the lightcurves of SZ Psc, this has been explained by the starspot model (Eaton & Hall 1979; Lanza et al. 2001; Kang et al. 2003; Eaton & Henry 2007).
The spectroscopic observations have been carried out by many groups (Jakate et al. 1976; Bopp & Talcott 1978; Weiler 1978; Bopp 1981; Ramsey & Nations 1981; Huenemoerder & Ramsey 1984; Fernández-Figueroa et al. 1986; Popper 1988; Fernández-Figueroa et al. 1994; Frasca & Catalano 1994; Montes et al. 1995; Eaton & Henry 2007). Jakate et al. (1976) and Popper (1988) derived the spectroscopic orbital elements on the basis of the radial velocity curves, and they also found strong chromospheric emission in the H & K lines from the cooler component. A flare-like phenomenon was detected in the H & K lines by Fernández-Figueroa et al. (1986). Recently, Eaton & Henry (2007) have revised the orbital elements of the system, but so far there has been no spectroscopic study of the IRT lines for SZ Psc.
SZ Psc is very active, because of its extremely variable H profiles. In 1978, Weiler (1978) found that SZ Psc only exhibited significant variation in its H emission lines near orbital phase 0.8. Moreover, Bopp & Talcott (1978) confirmed this result and found H emission only in the phase range 0.6-0.8. However, Ramsey & Nations (1981) found H emission is in the phase range 0-0.4 and interpreted the H behavior as a flare event that locally injects material into a transient disk or shell structure around the K1 IV star. Afterward, Bopp (1981) discussed an unusual H profile, particularly its large width and double-peaked appearance. Beyond that, Huenemoerder & Ramsey (1984) found that SZ Psc was highly active with the emission from a cooler component and that it had undergone a large H outburst during and after which the profiles were suggestive of a circumstellar origin. The extremely variable H profiles suggest there are two active longitudes. Recently, Eaton & Henry (2007) have found that H emission seems independent of the orbital phase on average, but it can increase markedly within a few orbital cycles.
Up to now, the spectral subtraction technique has been used widely for chromospherically active binary systems in several lines: H & K, b, D3, D1, D2, H, H, IRT (Gunn & Doyle 1997; Gunn et al. 1997; Lázaro & Arévalo 1997; Montes et al. 1997; Arévalo & Lázaro 1999; Frasca et al. 2000; Montes et al. 2000; Shan et al. 2006; Gálvez et al. 2007, etc.). The technique was described in detail for obtaining the chromospheric contribution by Barden (1984) and Montes et al. (1995). Also, it was discussed and applied in the search for prominence-like events (Gunn & Doyle 1997; Gunn et al. 1997).
In this paper, new spectroscopic observations of SZ Psc are analyzed using the spectral subtraction technique. Some new results are derived for the chromospherically active activity of SZ Psc.
The new spectroscopic observations of SZ Psc were carried out with the 2.16 m telescope at the Xinglong station of the National Astronomical Observatories, China, in five observing runs: Nov. 20-27, 2004, Sep. 1-6, 2006, Oct. 28-29, 2006, Nov. 28-30, 2006, and Dec. 8-10, 2006. The Coudé echelle spectrograph with a spectral resolution about 37 000 and a pixel Tektronix CCD detector were used during our observations. The reciprocal dispersions are 0.079 /pixel for the D3, D1, D2spectral region, 0.089 /pixel for the H spectral region, 0.113 /pixel for the 8498 spectral region, 0.115 /pixel for the 8542 spectral region, and 0.117 /pixel for the 8662 spectral region. Correspondingly, the spectral resolution determined as the FWHM of the arc comparison lines is 0.150, 0.160, 0.207, 0.218, and 0.221 , respectively.
Table 1: The observational log of SZ Psc.
The spectra were reduced using the IRAF package. The standard procedures were used, which include image trimming, bias subtraction, flat-field division, background subtraction, cosmic ray removal, and spectrum extraction. The wavelength calibration was obtained by taking the spectra of a Th-Ar lamp. Finally, the spectra were normalized by a polynomial fit to the observed continuum. The normalized spectral profiles are displayed in Fig. 1. During our observations, the signal-to-noise ratio (S/N) varied in quality, and in some instances it suffered from poor seeing and intermittent clouds. For most of the observations, the S/N is more than 100. The observing log is listed in Table 1, which includes the observing date, the Heliocentric Julian Date of observation (HJD), orbital phase, exposure time, and the S/N. The orbital phases were calculated using the revised ephemeris derived by Eaton & Henry (2007).
On some nights of our observing seasons when the telluric
lines were heavy, two rapidly rotating early-type stars, HR 7894
km s-1) and HR 989 (B5V,
were observed. Their observed spectra were fitted using the
high-order spline3 function to derive the telluric line templates.
For the spectra of HR 989, interstellar
were present and removed. The telluric lines in the spectra of SZ Psc were removed by means of these templates obtained on the same
nights. The examples of this procedure in different spectral regions were given by Gu et al. (2002).

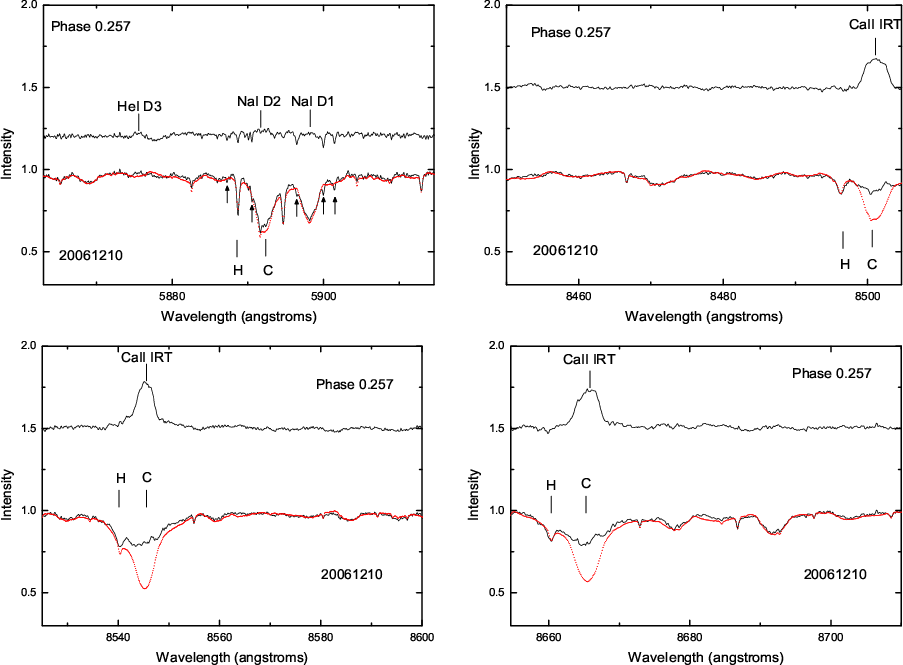

|Figure 2: Samples of the observed, synthesized, and subtracted spectra for the D3, D1, D2, and IRT lines. The dotted lines represent the synthesized spectra and the upper spectra are the subtracted spectra. Vertical arrows mark the telluric lines that appeared in the spectral region.|
|Open with DEXTER|
The normalized spectra of SZ Psc are analyzed using the spectral subtraction technique. In this method, the synthesized spectra is constructed from artificially rotationally broadened, radial-velocity shifted, and weighted spectra of two inactive stars with the same spectral type and luminosity class as the two components of the active system. For our situation, the synthesized spectrum is constructed by means of the program STARMOD (Barden 1985). We observed several stars with spectral types and luminosity classes similar to those of the individual components of SZ Psc. By comparison, we find that two inactive stars HR 7948 (K1IV) and HR 6669 (F8V) are much better templates for SZ Psc. Thus, we chose them as template stars to construct synthesized spectra for all spectral data of SZ Psc. For the hotter component, Strassmeier et al. (1993) gave F8 IV for the spectral type. However, we find that HR 6669 is a better template for the hotter component. Moreover, HR 6669 does have the advantage of being an extremely inactive star (Wright et al. 2004), and Gray et al. (2001) gave F8 V for its spectral type, so the spectral type of the hotter component should be F8V.
In the course of the analysis, the v sin i values (0/78 km s-1) of the components of SZ Psc were used, which are determined from the spectra spanning the wavelength ranges 6389-6477 and 6615-6706 with many photospheric lines. These values are close to 80 km s-1 for the cooler component and less than 5 km s-1 for the hotter component, as published by Eaton & Henry (2007). The intensity weight for each of the two components is obtained from high-quality spectra around phases 0.25 and 0.75 where the two components are separated well. Consequently, the adopted intensity weight ratios are 0.25/0.75 for D3 and D1, D2 spectral region, 0.20/0.80 for H spectral region, 0.18/0.82 for the 8498 spectral region, 0.175/0.825 for the 8542 spectral region, and 0.17/0.83 for the 8662 spectral region.
Samples of the synthesized and subtracted spectra (the observed spectra minus the synthesized one) obtained in the D3, D1, D2, and IRT line regions are displayed in Fig. 2. Since the H features are bizarre, some samples are displayed in Fig. 3. For each sample, we plot the observed (lower solid line), the synthesized (dashed line), and the subtracted spectra (upper solid line), which is offset for better display. In these figures, ``H'' and ``C'' represent the hotter and cooler components, respectively.

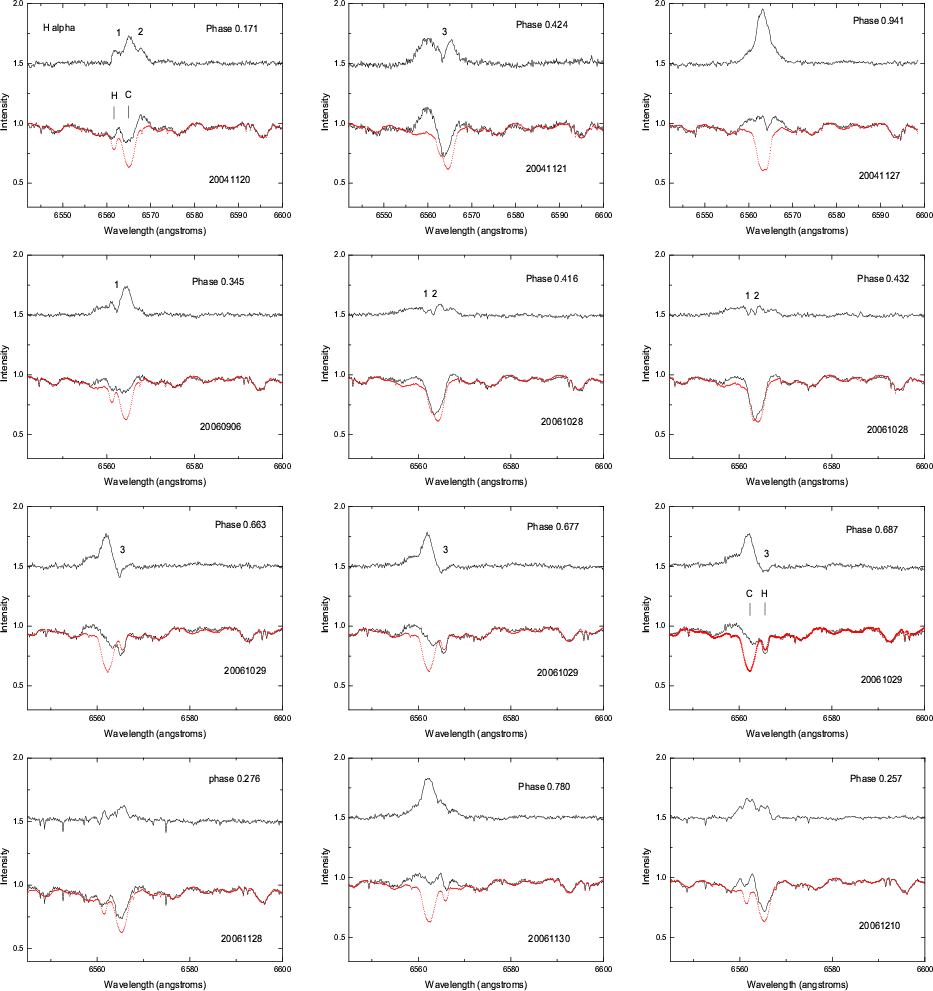

|Figure 3: Samples of the profiles of the H lines. The dotted lines represent the synthesized spectra. The upper spectra are the subtracted spectra. The number indicates that the absorption events appeared in the excess emission profiles.|
|Open with DEXTER|
Table 2: The measurements for the excess emissions of the D1, D2, H, and IRT lines.
The new spectroscopic observations allow us to simultaneously analyze the behavior of the different chromospheric activity indicators formed at different atmospheric heights.
The equivalent widths (EWs) of the excess emissions were measured using the IRAF SPLOT task. When the profiles of two components are easily separated, the EWs were evaluated on the subtracted spectra by integrating over the emission profile. In addition, we measured the EWs using the Gaussian fit (For asymmetric profiles, we used several Gaussian profiles to fit), If the profiles are blended, we measured the EWs using several Gaussian fits. For comparison, we also measured the EWs with the Lorenzian fit. The errors of the EWs were estimated by using the difference between the results of these different methods. The net EWs of the excess emissions are listed in Table 2.
Because of nearly a 4 integral-day period for SZ Psc, it was very difficult to observe effectively, and the phase coverage interval of observation was short per night at a single site, so we only had a few spectra per night. To discuss the rotational modulation of chromospheric activity, we used all of the 2006 data because we only have 3 to 4 data points per rotation in different epochs.
The D1, D2 lines are formed in the upper photosphere and lower chromosphere. The filled-in absorption of the core of the D1, D2 lines could be used as chromospheric activity indicators (Andretta et al. 1997; Monte et al. 1997).
The D lines are characterized by deep absorption (see Fig. 1). The core of the lines does not show any reversal. The application of the spectral subtraction technique reveals that the cores of the D1, D2lines are weak filled-in absorption for the cooler component. In some cases, the D1, D2 lines exhibit obvious excess emission from the cooler component.
The measured EWs of the excess emissions in the D1, line are plotted vs. the orbital phase in Fig. 4. For D1, it seems that there are two minima around the quadratures. That suggests an active longitude phenomenon during our observations.
The D3 line is formed in the upper chromosphere and is an activity indicator for the Sun and late-type stars. The emission of the line is a probe for detecting flare-like events (Zirin 1988). In our set of 20 spectra in two different observing seasons, we observed no flare-like episodes.
IRT lines are important chromospheric
activity indicators for the Sun and late-type stars (Shine & Linsky
1972; Shine & Linsky 1974; Linsky et al. 1979; Foing et al. 1989;
Dempsey et al. 1993; Gunn & Doyle 1997; Montes et al. 1997, 2000; Andretta et al. 2005). They are formed in the lower
chromosphere making them sensitive probes of the temperature minimum
region (Montes et al. 1997).

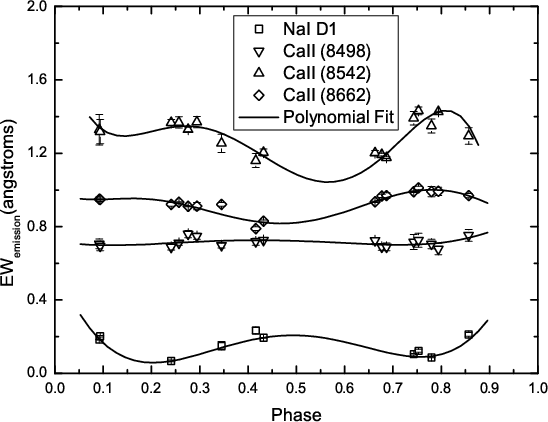

|Figure 4: The EWs of the excess emissions vs. orbital phase for D and IRT lines. The solid line refers to a polynomial fit to the data.|
|Open with DEXTER|
For all the observed spectra (Fig. 1), we can see that the IRT absorption lines are from both components and that the cooler component shows strong filled-in absorption or sometimes even small self-reversal core emission. For the spectra during Nov. 28-30, 2006 and Dec. 8-10, 2006, we note that the 8498 line exhibits weak self-reversal emission in the line core, while the 8542 and 8662 lines show little or no such self-reversal core emission. For the spectra during Oct. 28, 29, 2006, especially the spectra on Oct. 28, 2006, all IRT lines exhibit obvious self-reversal in the line core. This is the strongest for the 8498 line, a little weaker for the 8542 line, and distinctly the weakest for the 8662 line.
The spectral subtraction reveals that the cooler component shows clear IRT excess emission. For the subtracted spectra, we measured the EWs of the excess emission and plotted vs. orbital phase in Fig. 4. From this figure, we find no significant trend in the 8498 data. For the 8542 and 8662 lines, especially for the 8542 line, it seems that there are two active longitudes near phases 0.25 and 0.75. In addition, the excess emission is also stronger (within the errors) at phase 0.09.
The H line is a very useful indicator of chromospheric activity, and it is formed in the middle chromosphere (Montes et al. 1997, etc.).
The H line exhibits variation from absorption to weak emission (see Fig. 1). Also, it is usually filled in with broad emission. All the subtracted H spectra indicate that the cooler component is active. Some excess emission profiles are broader and centered on the cooler component, for example, the spectra at phases 0.941 and 0.780. Furthermore, there are obvious absorption features in the subtracted spectra, at orbital phases 0.171, 0.424, 0.345, 0.663, 0.677, and 0.687. The EWs of the excess emissions for the 2006 data are plotted against orbital phase in Fig. 5. The orbital modulation of the H excess emission is similar to 8542 and 8662 data. It seems that there are also two active longitudes near phases 0.35 and 0.75.
In this paper, we analyze simultaneous spectroscopic observations of several optical chromospheric activity indicators for the RS CVn eclipsing binary system SZ Psc using the spectral subtraction technique. We investigate the details of the excess emission and study the chromospheric emission variation with orbital phase.
For the IRT lines, we find the cooler component of SZ Psc shows filled-in absorption or sometimes even weak self-reversal core emission. This might be due to the low-level plage and high rotational velocity of the cooler component of SZ Psc. For some other chromospherically active binary systems, Montes et al. (2000) also detected a similar feature in the IRT lines.
For the most obvious self-reversal core emission feature, it is normal that the reversal is the strongest for the 8498 line, a little weaker for the 8542 line, and weakest of all for the 8662 line. This is consistent with the observation of the IRT lines of solar plages with different degrees of activity (Shine & Linsky 1972; Shine 1973; Shine & Linsky 1974). The increase in self-reversal core emission in the IRT lines results from the higher temperatures and higher electron densities at a given line optical depth produced by the steeper temperature gradient (Shine & Linsky 1974).
For the ratio between EW8542 and EW8498, we find the values are generally low, between 1-3, which indicates optically thick emission in plage-like regions. In solar plage, the values of EW8542/EW8498 are in the range 1.5-3 (Chester 1991). These low values are also found in other chromospherically active binaries by other authors: Lázaro & Arévalo (1997); Arévalo & Lázaro (1999); Montes et al. (2000); and Gu et al. (2002).
All the H spectra indicate that the cooler component is active. In the subtracted spectra, the excess emission profiles exhibit broad wings. The broad emission feature coincides with the results derived by other authors: Huenemoerder & Ramsey (1984), Eaton & Henry (2007), etc. There are a couple of possible explanations for this. First, the broad component could be interpreted as arising from microflaring. Such broad H components are also detected in some other chromospherically active stars (Hatzes 1995; Montes et al. 2000; etc). Second, it might be caused by instantaneous mass transfer from the cooler component to the hotter one (Bopp 1981). Because the cooler component is filling 82 of its Roche lobe (Lanza et al. 2001), it is very possible that the mass transfer can happen due to the strong chromospheric activity.
In summary, all the analyzed activity indicators show that the cooler component is active. This is consistent with the result that the h&k emission lines are mainly enhanced by the cooler component of the system (Doyle et al. 1994a,b; Kang et al. 2003). Moreover, for the H and K lines of SZ Psc derived by Fernáandez-Figueroa et al. (1986) and Fernáandez-Figueroa et al. (1994), there is obvious emission from the cooler component and no emission from the hotter one.
For the non-eclipsed configuration, the modulation of excess emission with phase indicates the appearance and disappearance of discrete active regions as the star is presenting different hemispheres to us.

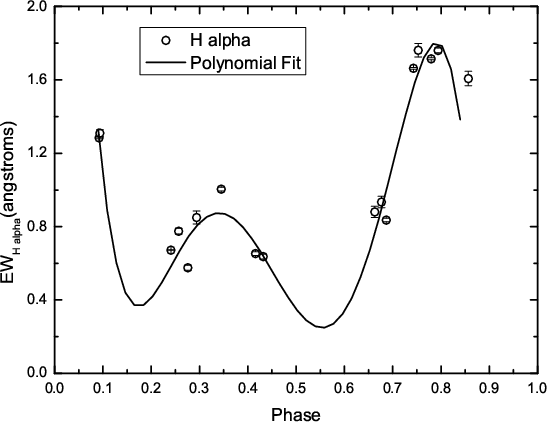

For the cooler component, our result suggests the presence of an active longitude phenomenon during the 2006 epoch. To demonstrate the possible rotational modulation well, we used polynomial function to fit the EWs of D1, IRT, and H excess emission profiles, which are displayed in Figs. 4 and 5. For the 8542 and 8662 and H lines, the excess emissions (with the orbital phase) may be correlated basically, especially around two quadratures. It seems that the emissions are stronger around two quadratures of the system (phases 0.25 and 0.75). However, for the D1 line, it seems that the emission is weaker around the two quadratures, so the D1 line may be anti-correlated with the 8542 and 8662 and the H lines. The reason might be that the lines could be affected by the presence of active spot regions, because the reactions of neutral atoms in their ground states are very sensitive to the photospheric temperature structure (Barradoy Navascués et al. 2001). Moreover, there is some evidence that two variable active regions appear around longitudes and by analyzing a sequence of V-band light curves of SZ Psc (Lanza et al. 2001). In addition, both active longitudes were also suggested by Huenemoerder & Ramsey (1984).
For another chromospherically active binary UX Ari, the favorite active longitudes are also around two quadratures of the system based on the analysis of several chromospheric activity indicators D3, D1, D2, H, and IRT lines (Gu 2005). These active longitude features have also been found using photometry on many other active RS CVn binary systems, such as EI Eri, Gem, HK Lac, and RT And (Olah Hall & Henry 1991; Henry et al. 1996; Berdyugina & Tuominen 1998; and Zhang & Gu 2007).
Table 3: Observed properties of the absorption features identified by Gaussian fitting.
The interesting result from our high-resolution H subtracted spectra is the detection of absorption components at some orbital phases in our observations. The physical properties of the absorptions are listed in Table 3, which includes orbital phase, the radial velocity measured with respect to the cooler component's frame of rest, and the EW of the absorption. Similar peculiarities can be found in the differential spectra of Huenemoerder & Ramsey (1984).
The absorption features may be explained by the stellar prominence. Stellar prominence results in relative absorption while passing between the stellar disk and the observer, and then scatters photons arising in the chromosphere out of the line of sight. This phenomenon was first reported by Collier Cameron & Robinson (1989) for the rapidly rotating star AB Dor. Since then, stellar prominence has been observed as transient absorption (usually) or emission crossing the profiles of the Balmer lines, not only in single stars but also in binary systems (Hall & Ramsey 1994; Cameron et al. 2002).
If the numbered features in Fig. 3 arise from prominences (and are not simply due to less active stellar surface areas or the velocity separation of the components.), we calculate the distances of the prominences from the rotation axis of cooler component, using the simple model (Collier Cameron & Robinson 1989). During Oct. 28, 29, 2006, the distances of the prominences1, 2, and 3 (see Fig. 3) are 3.8 R, 2.5 R, and (R is the radius of the cooler component), respectively. For the prominence3, if we let it go back to the phase 0.432, the velocity of prominence3 should be km s-1. On the other hand, the velocity of the prominence1 detected at phase 0.432 is just inside the range. Thus, prominence1 and prominence3 might came from the same place. During the 2004 observing season, the velocities of the two absorptions are -111 km s-1 blueward and 97 km s-1 redward of the central velocity of the cooler component at phase 0.171, and the velocity of the absorption3 feature is about 57 km s-1 blueward of the cooler component at phase 0.424. If absorption1 and 3 have the same prominence, the distance of the prominence is 1.7 R. The EW of the absorption3 is larger than one of the absorption1. This indicates that the prominence absorption should be much more visible against the disk of the cooler component from the phase 0.171 to 0.424, due to the much greater projected area. For absorption2 at phase 0.171, if the distance of the promience2 is 2.7 R (the average value of the distances of our observed prominences), when moving to 0.424, the radial velocity should be about 185 km s-1 redward of the cooler component. It is just the critical point of the excess emission, and absorption2 should not be visible against the stellar disk at phase 0.424. This is consistent with our result that there is no absorption feature at the critical point of the redward excess emission at phase 0.424.
In the course of the spectral analysis, it was found that there are some absorption components around the primary profiles at some phases such as 0.663, 0.667, and 0.687. These absorptions may also be a mass transfer effect since the cooler component is very close to its Roche lobe and the mass transfer occurs more easily when considering the strong magnetic activity. These phenomena are also found in other RS CVn stars by other authors: Huenemoerder et al. (1989), Hall & Ramsey (1992), Gu et al. (2002).
Unfortunately, our data do not cover the H line. We cannot tell whether this is optically thick or thin structure via the ratio (Huenemoerder et al. 1989). It is impossible to define the nature of the absorption precisely at present.
The results from the analysis of our spectral data of SZ Psc can be summarized as follows.
The authors would like to thank the observing assistants of the 2.16 m telescope of Xinglong station for their help and support during our observations. We are very grateful to Dr. Montes for providing a copy of the STARMOD program. We would also like to thank the anonymous referee for his or her valuable suggestions and comments, which have led to significant improvement in our manuscript. We would also thank Prof. Chris Sterken and the team at the SWYA conference in Blankenberge, Belgium, which led to many improvements, including in the language of the revised manuscript. This work is supported by the NSFC under grants No. 10373023 and 10773027.
