A&A 486, 697-709 (2008)
I. Misgeld1,2 - S. Mieske1 - M. Hilker1
1 - European Southern Observatory, Karl-Schwarzschild-Strasse 2, 85748 Garching bei München, Germany
2 - Argelander Institut für Astronomie, Universität Bonn, Auf dem Hügel 71, 53121 Bonn, Germany
Received 21 April 2008 / Accepted 28 May 2008
Aims. We analyse the properties of the early-type dwarf galaxy population (MV>-17 mag) in the Hydra I cluster. We investigate the galaxy luminosity function (LF), the colour-magnitude relation (CMR), and the magnitude-surface brightness relation down to mag. Another goal of this study is to find candidates for ultra-compact dwarf galaxies (UCDs) in Hydra I.
Methods. Two spectroscopic surveys performed with Magellan I/LDSS2 at Las Campanas Observatory and VLT/VIMOS, as well as deep VLT/FORS1 images in V and I bands, covering the central parts of the cluster, were examined. We identify cluster members by radial velocity measurements and select other cluster galaxy candidates by their morphology and low surface brightness. The candidates' total magnitudes and central surface brightnesses were derived from the analysis of their surface brightness profiles. To determine the faint-end slope of the LF, the galaxy number counts are completeness corrected.
Results. We obtain radial velocities for 126 objects and identify 32 cluster members, of which 5 are previously uncatalogued dwarf galaxies. One possible UCD candidate with MV=-13.26 mag is found. Our sample of 100 morphologically selected dwarf galaxies with MV>-17 mag defines a CMR that extends the CMR of the giant cluster galaxies to the magnitude limit of our survey ( mag). It matches the relations found for the Local Group (LG) and the Fornax cluster dwarf galaxies almost perfectly. The Hydra I dwarf galaxies also follow a magnitude-surface brightness relation that is very similar to that of the LG dwarf galaxies. Moreover, we observe a continuous relation for dwarf galaxies and giant early-type galaxies when plotting the central surface brightness of a Sérsic model vs. the galaxy magnitude. The effective radius is found to be largely independent of the luminosity for MV>-18 mag. It is consistent with a constant value of kpc. We present the photometric parameters of the galaxies as the Hydra I Cluster Catalogue (HCC). By fitting a Schechter function to the luminosity distribution, we derive a very flat faint-end slope of the LF ( ), whereas fitting a power law for MV>-14 mag gives .
Conclusions. Our findings of a continuous CMR and relation for dwarf and giant early-type galaxies suggests that they are the same class of objects. The similarity of those relations to other environments like the LG implies that internal processes could be more important for their global photometric properties than external influences.
Key words: galaxies: clusters: individual: Hydra I - galaxies: dwarf - galaxies: fundamental parameters - galaxies: luminosity function, mass function
Dwarf galaxies are the most abundant type of galaxy in the universe. They are most commonly found in galaxy clusters, such as Virgo, Coma and Fornax (e.g. Roberts et al. 2007; Sandage & Binggeli 1984; Binggeli et al. 1985; Ferguson & Sandage 1988; Secker & Harris 1996). Also in the Local Group (LG) a large number of dwarf galaxies have been identified (e.g. Grebel et al. 2003; van den Bergh 1999,2000; Mateo 1998, and references therein).
The classification of dwarf galaxies is not standardised in the literature. They are usually distinguished from giant elliptical and spiral galaxies by their low luminosities and low surface brightnesses and, just as for giant galaxies, one refers to early-type and late-type dwarf galaxies (dwarf irregulars). In this paper we focus on early-type dwarf galaxies, comprising dwarf elliptical galaxies (dEs) and dwarf spheroidal galaxies (dSphs). In Grebel (2001) dEs are defined as objects with low luminosities ( mag) and typical central surface brightnesses of mag arcsec-2. Dwarf spheroidal galaxies have even lower luminosities ( mag) and central surface brightnesses ( mag arcsec-2). Unless stated otherwise, we use the term dwarf galaxy to refer to both types (dEs and dSphs).
Another probable type of early-type dwarf galaxies has been identified in the nearby galaxy clusters Fornax, Virgo and Centaurus - the so-called ultra-compact dwarf galaxies (UCDs) (e.g. Drinkwater et al. 2000a; Hasegan et al. 2005; Jones et al. 2006; Mieske et al. 2007b; Hilker et al. 1999). UCDs are of intermediate nature between dwarf elliptical galaxies and globular clusters in terms of their morphology, being characterised by sizes of pc and luminosities between -13.5<MV<-11 mag. The luminosities of the brightest UCDs in Virgo and Fornax are comparable to those of nuclei of dwarf ellipticals and late-type spirals. In order to understand the importance of dwarf galaxies for the evolution of larger galaxies and galaxy clusters, it is essential to investigate their properties in different environments.
Current hierarchical cold dark matter (CDM) models of galaxy formation claim that dwarf-sized galactic fragments were very abundant in the early universe. They represent the building-blocks of larger galaxies. The models predict that Milky Way-sized dark matter haloes as well as cluster-sized haloes contain a large number of dark matter subhaloes (Moore et al. 1999). If every small DM subhalo contained luminous matter, hundreds of dwarf galaxies are expected to be observed in the LG, but already there the number of observed satellite galaxies is too low by about one order of magnitude. This discrepancy is known as the missing satellites problem (Klypin et al. 1999) and its origin is still a matter of debate. Either the predictions of the hierarchical models are not reliable, or there is a large number of luminous satellites being not yet discovered, or a major fraction of low-mass DM haloes has not formed any stars. In fact, the analysis of SDSS data recently led to the discovery of several extremely faint ( mag) LG dwarf galaxies (e.g. Belokurov et al. 2006; Zucker et al. 2006a; Willman et al. 2005b,a; Irwin et al. 2007; Simon & Geha 2007; Zucker et al. 2006b), proving that such hardly detectable objects do exist. But they are still not abundant enough to explain the expected DM sub-structure.
A tight colour-magnitude relation (CMR) for early-type cluster galaxies has been known for a long time (Visvanathan & Sandage 1977). It is most commonly explained by an increase of the mean stellar metallicity with increasing galaxy mass, leading to redder colours of the more luminous galaxies (e.g. Kodama & Arimoto 1997; Ferreras et al. 1999). With a large sample from the Sloan Digital Sky Survey, Gallazzi et al. (2006) confirmed this perception. The metallicity of a galaxy strongly depends on the fraction of gas that has been turned into stars. Due to their deeper potential well, massive galaxies are able to retain their interstellar gas and stellar ejecta longer and more effectively than low-mass galaxies since the escape velocity of stellar yields depends on the galaxy mass. Hence, subsequent generations of stars will be formed out of already enriched gas. Because giant elliptical galaxies with their high star formation rate (SFR) consume their gas very fast, the mean stellar metallicity can reach high values in a short time. That accounts for the reddest colours of the most luminous galaxies.
Köppen et al. (2007) demonstrated that a variable integrated galactic initial mass function (IGIMF) that depends on the SFR can also explain the observed mass-metallicity relation. For a low SFR the IGIMF differs from the standard IMF in the sense that fewer high mass stars are expected to form. It has been found that galaxies with a low current SFR contain star clusters with a lower maximum mass (Weidner et al. 2004), and less massive star clusters less likely contain very massive stars (Kroupa & Weidner 2003). Since less massive galaxies are expected to have lower star formation rates, the effective upper mass limit for stars in such galaxies is lower. This reduces the number of type II supernovae as the main source of -elements. Hence, the dependence of the IGIMF on the SFR implies a dependence of the metal abundance on the mass of the galaxy.
As an alternative to the aforementioned scenarios, Worthey (1994) and Poggianti et al. (2001) suggested that a change in the mean age of a stellar population could at least in part explain the CMR. A stellar population will gradually redden as stars with increasing age evolve off the main sequence towards the red giant branch. In this picture, redder colours of more massive galaxies imply systematically older ages. Observational evidence for this was given by Rakos & Schombert (2004), who reported on younger ages of dwarf elliptical galaxies in the Coma and Fornax clusters. Hence, an increase of age at fixed metallicity has the same effect on galaxy colours as an increase of metallicity at fixed age. This ambiguous interpretation of the CMR is based on the well-known age-metallicity degeneracy of integrated optical colours.
Graham & Guzmán (2003), however, showed that there does not exist a dichotomy when relating the magnitude M, the profile shape index n and the central surface brightness of Sérsic (1968) profile fits with each other (except maybe for the most luminous giant ellipticals that deviate from a smooth relation due to their low surface brightness cores). In this study, the interpretation of different galaxy formation mechanisms between giant and dwarf galaxies is not supported. Also the analysis of early-type galaxies in the ACS surveys of Virgo and Fornax cluster surveys (Ferrarese et al. 2006; Côté et al. 2006, 2007, 2008) point to a unification of dwarf and giant galaxies.
Phillipps et al. (1988) and Irwin et al. (1990) argued against the existence of a magnitude-surface brightness relation for dEs. They claimed that the relation in eye-selected samples of dwarf galaxies is merely a result of selection effects, but Karick et al. (2003) and Mieske et al. (2007a) observed such a relation for Fornax dEs for which cluster membership was assured either by an un-biased radial velocity survey (Karick) or by SBF measurements (Mieske).
Hydra I is a relatively poor cluster (richness class R=1, Abell 1958; BM classification III, Bautz & Morgan 1970). A pair of bright galaxies is located near the cluster centre. NGC 3309 is a regular giant elliptical galaxy (E3). The brighter and larger galaxy NGC 3311 possesses an extended cD halo and an extraordinarily rich globular cluster system (McLaughlin et al. 1995; van den Bergh 1977; Mieske et al. 2005a; Wehner et al. 2008).
The cluster is the prototype of an evolved and dynamically relaxed cluster, being dominated by early-type galaxies and having a regular core shape. From X-ray measurements, Tamura et al. (2000) derived an isothermal distribution of the intracluster medium within . They give as the cluster virial mass. From optical studies, Girardi et al. (1995) found a core radius of . Applying the virial theorem to the member galaxies, Girardi et al. (1998) calculated a virial mass of .
Mieske et al. (2005a) estimated the distance to Hydra I from I-band surface brightness fluctuations (SBF). They found the distance to be (distance modulus ). This is at the low end of distance estimates by other authors whose mean is 15% higher (see discussion in Mieske et al. 2005a). From a deep spectroscopic sample of cluster galaxies, extending to , Christlein & Zabludoff (2003), hereafter CZ03, derived as the mean cluster redshift with a velocity dispersion of . This corresponds to a distance of , assuming (Freedman et al. 2001). Already earlier, it was discovered that the cluster is clearly isolated in redshift space, having no foreground galaxies and no background galaxies up to (Richter 1987; Richter et al. 1982). This implies huge empty regions of space of about 50 Mpc path length in front and behind the cluster.
The Hydra I cluster is close enough for current 8-m class telescopes like the VLT to resolve faint dwarf galaxies under good seeing conditions. Only a few images of about arcmin (the typical field-of-view size for most CCD cameras) are needed to observe the cluster centre as well as areas out to about one core radius (see Fig. 1).
In this paper we present a study of the early-type dwarf galaxy population in the Hydra I cluster. The study is based on two spectroscopic surveys and a photometric survey. One spectroscopic survey was performed with LDSS2 at Magellan I and aimed at searching for normal cluster dwarf galaxies. The other spectroscopic survey - performed with VLT/VIMOS - focused on the search for UCDs. The photometric survey, based on deep VLT/FORS1 images, was used to identify other cluster dE/dSph candidates. The paper is organised as follows. In Sect. 2 we describe the observations, the candidate selection and the data reduction for the two spectroscopic surveys. In Sect. 3 the photometric analysis of the candidate cluster dEs/dSphs, as selected from the VLT/FORS1 images, is addressed. Our results are presented in Sect. 4. We summarise and discuss our findings in Sect. 5.
|Figure 1: ( kpc at the cluster distance) image of the Hydra I cluster centred on NGC 3311, extracted from the Digital Sky Survey. The small squares are the fields observed with LDSS2. The large square marks the VIMOS-pointing. The circle indicates the cluster core radius kpc (Girardi et al. 1995), adopting h=0.75.|
|Open with DEXTER|
For the first spectroscopic survey, seven fields in the central region of the Hydra I cluster were observed with Magellan I at Las Campanas Observatory together with the Low Dispersion Survey Spectrograph (LDSS2) in April/May 2001 (see Fig. 1). The goal of the LDSS2-survey was to identify cluster dwarf galaxies by radial velocity measurements.
On Magellan I, LDSS2 images a 7.5' diameter field onto the LCO SITe#1 detector of pixel with a scale of 0.378''/pixel. The high dispersion grism with a central wavelength of 4200 Å and a dispersion of 2.4 Å/pixel was used. With a slit width of 1.25'' (3 pixel), the effective resolution was about 7 Å, corresponding to 525 km s-1 at 4000 Å. Except for fields 4, 6 and 7 (see Fig. 1), two slit masks were observed in each field. For each mask two exposures were taken, each with an integration time of 1200 s.
The objects observed with LDSS2 were selected from VLT/FORS1 images (see Sect. 3.1). This dwarf galaxy sample contains both the bright giant elliptical galaxies and a number of possible dwarf elliptical galaxies (dE, dE,N, dS0) or dwarf spheroidal galaxies (dSph), selected by their morphology. Compact, unresolved objects, being candidates for globular clusters (GCs), isolated nuclei from dissolved dEs, or ultra-compact dwarf galaxies (UCDs), complement the sample. Figure 2 shows a colour-magnitude diagram of all observed objects.

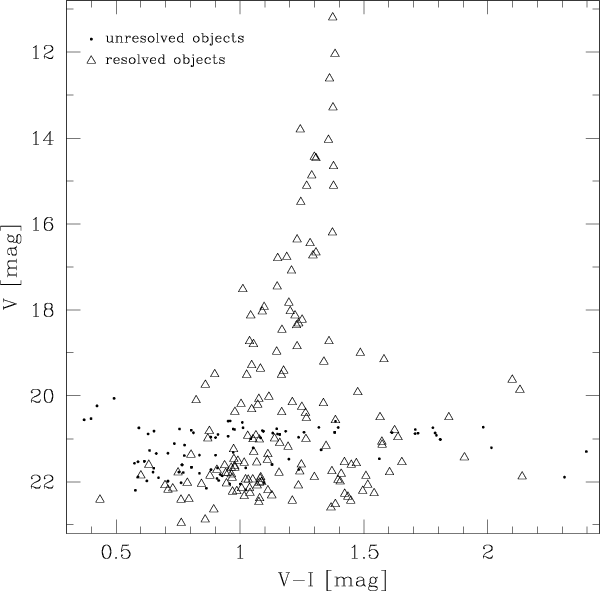

|Figure 2: Colour-magnitude diagram of all observed objects in the seven LDSS2 fields (the dwarf galaxy sample). Dots (open triangles) mark unresolved (resolved) sources, according to SExtractor star-galaxy classifier (Bertin & Arnouts 1996). The photometry is taken from VLT/FORS1 images (see Sect. 3.1).|
|Open with DEXTER|

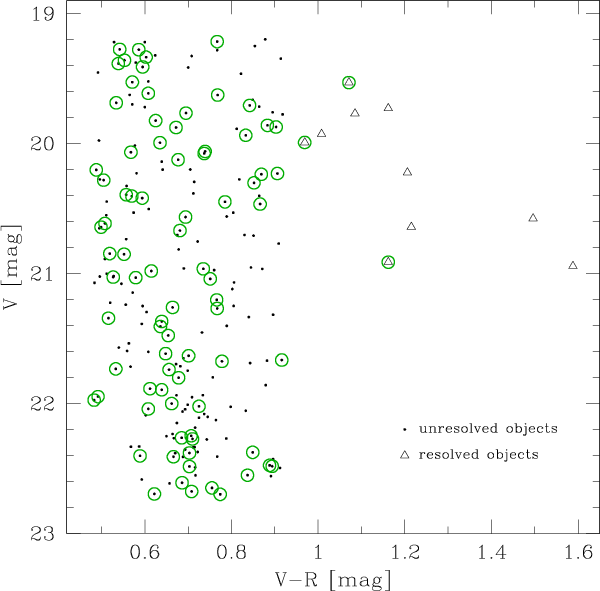

|Figure 3: Colour-magnitude diagram of all photometrically selected objects in the VIMOS-pointing (the UCD sample). Dots are unresolved sources and open triangles are dwarf galaxy candidates. Green open circles mark objects for which a slit could be allocated on the masks.|
|Open with DEXTER|
The candidates for spectroscopy with VIMOS were selected from V and R pre-images. The UCD sample is restricted in magnitude and colour to 19.2<V<22.7 and 0.48<V-R<0.93. Most of the selected objects are GC/UCD candidates, hence, unresolved sources. Additionally, 10 dwarf galaxy candidates were included in the sample. A colour-magnitude diagram of the photometrically selected objects and the subset of finally observed objects in the VIMOS-pointing is shown in Fig. 3.
For the LDSS2 data set, the standard process of data reduction, comprising bias subtraction, cosmic ray removal by means of the lacosmic routine (van Dokkum 2001), correction for spatial distortion, flatfield normalisation and wavelength calibration, was performed with the IRAF-packages onedspec and twodspec. After these reduction steps, the one-dimensional object spectra were extracted with simultaneous sky subtraction. The VIMOS-spectra were extracted by using the data reduction pipeline for VIMOS as provided by ESO's Data Flow System Group. This pipeline performs the basic data reduction steps mentioned above in an automated manner.
Radial velocities were determined by performing Fourier cross-correlations between object and template spectra, using the IRAF-task fxcor in the rv package. The object spectra were initially cross-correlated against six template spectra. One template is a galaxy spectrum of NGC 1396 (Dirsch et al. 2004), a second one is HD 1461, an old metal-rich star in the solar neighbourhood (Chen et al. 2003). The remaining four template spectra were taken from Quintana et al. (1996). Three of them are spectra from early-type galaxies (NGC 1407, NGC 1426, NGC 1700) and one is a synthetic template. The wavelength range of the three galaxy spectra [3800:6500] Å is similar to that of the object spectra. Only the wavelength range of the synthetic spectrum extends to about 7400 Å, making it suitable for cross-correlating the VIMOS-spectra.
The four template spectra from Quintana et al. (1996) were found to give the best cross-correlation results. The peak of the CCF was most pronounced and the coefficient R, which gives the significance of the cross-correlation match (Tonry & Davis 1979), was similar for all four templates. Also the four obtained radial velocities were consistent within the errors. The R-values of the correlations with the other two templates were clearly lower (by about 20-50%).
We used the R coefficient as an indicator for the reliability of our results. Only values of (averaged over the four templates) were considered reliable. This was the limit where the peak of the CCF could easily be distinguished from the noise. Several correlations still showed a clear peak in the CCF, despite having a relatively low S/N ratio (R<4). If in those cases the CCF-peak was visible within the errors at the same radial velocity for all four cross-correlations, the measurement was accepted. Heliocentric velocity correction were applied to all measurements.
The imaging data for Hydra I were obtained in a VLT/FORS1 service mode run in April 2000 at ESO/Paranal (ESO observing programme 65.N-0459(A)). Seven fields were observed in Johnson V and I filters. All images were taken during dark time with a seeing between 0.5'' and 0.7''. The integration time was min for the V images and min for the I images. Since most of the bright cluster galaxies were saturated on the long exposures, their photometric parameters were determined from unsaturated short integration time images (30 s in V and I).
In analogy to our investigations in the Fornax cluster (Mieske et al. 2007a; Hilker et al. 2003), our strategy for identifying dwarf galaxy candidates is a combination of visual inspection of the images and the use of SExtractor (Bertin & Arnouts 1996) detection routines. In a first step, we simulated several LG dEs and dSphs (projected to the cluster distance) and added them to the images. The photometric parameters for these simulated galaxies were taken from Grebel et al. (2003). After that, the images were inspected by eye and we selected candidate cluster dwarf galaxies by means of their morphological resemblance to the simulated LG dwarfs. The main criterion was that they showed an extended low surface brightness envelope and no substructure or clear features such as spiral arms. The search resulted in the selection of 73 previously uncatalogued dE/dSph candidates. Figure 4 shows V-band images of four cluster dwarf galaxy candidates.
We then used the SExtractor detection routines with the aim of quantifying the detection completeness in our data and in order to find more dwarf galaxy candidates, especially at the faint magnitude and surface brightness limits. The detection-sensitive parameters of SExtractor were optimised such that most of the objects of the by-eye-catalogue were detected by the programme. Only three of the obvious by-eye detections were not found by SExtractor, due to the proximity of a bright foreground star. We searched for new dwarf galaxy candidates by focusing on those sources in the SEXtractor output catalogue whose photometric parameters matched the parameter range of the simulated dE galaxies. In Sect. 4.5 we discuss in detail the cuts in magbest, mupeak, fwhm and area that were applied to constrain the output parameter space to those found for the simulated dEs. A total of 9 additional SExtractor detections, covering a magnitude range
-11.7 < MV < -9.7 mag, were found and added to the by-eye catalogue.
|Figure 4: Thumbnails of four cluster dwarf galaxy candidates that fulfil the selection criteria. The thumbnail sizes are ( kpc at the cluster distance).|
|Open with DEXTER|

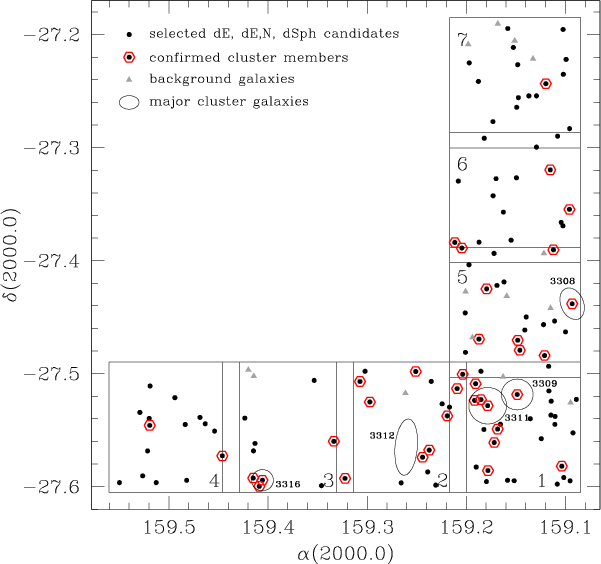

|Figure 5: Coordinate map of the cluster dwarf galaxy candidates, confirmed cluster members, background galaxies and major cluster galaxies with their corresponding NGC number. The seven observed VLT/FORS1 fields are marked by large open squares, the field number is indicated.|
|Open with DEXTER|
Finally, 36 spectroscopically confirmed cluster early-type galaxies from our study and from CZ03 were added to the photometric sample. The CZ03 catalogue has a full spatial coverage over the observed fields and a limiting magnitude of MR=-14 mag. For comparison, also 14 identified background galaxies from the LDSS2 survey were added to the sample. A map of the observed fields and the 132 objects chosen for the photometric analysis is presented in Fig. 5.
The surface brightness profile for each selected object was derived by fitting elliptical isophotes to the galaxy images, using the IRAF-task ellipse in the stsdas package. Sky subtraction and isophote fitting for each object were performed on cut out thumbnails that extended well into the sky region (see Fig. 4). Isophotes with fixed centre coordinates, ellipticity and position angle were fitted to the galaxy images. In particular for the brightest cluster galaxies ( mag), the ellipticity considerably changed from the inner to the outer isophotes. In those cases the ellipticity was not fixed during the fitting procedure.
The photometric parameters of the objects were derived from the analysis of their surface brightness profiles: the total magnitude from a curve of growth analysis and the central surface brightness from both an exponential and a Sérsic fit to the profile. For the fit we excluded the inner 1'' (about 1.5 seeing disks) and the outermost part of the profile, where the measured surface brightness is below the estimated error of the sky background. Photometric zero points were taken from Mieske et al. (2005a). In order to correct for interstellar absorption and reddening the values from Schlegel et al. (1998) were used. They give AV=0.263 mag and E(V-I)=0.110 mag for the coordinates of the Hydra I cluster. Table A.1 in the appendix lists the photometric calibration coefficients for the observed fields (only available on-line).
The obtained photometric parameters along with the available radial velocities for all early-type galaxies in our sample (111 objects) are presented as the Hydra I Cluster Catalogue (HCC) - see Table A.2 in the appendix (only available on-line).
In this section a detailed analysis of the spectroscopic and photometric data is presented. The results of the spectroscopic surveys are given in Sect. 4.1. The properties of the newly discovered GC/UCD candidates are summarised in Sect. 4.2. In Sects. 4.3 and 4.4 the colour-magnitude and the magnitude-surface brightness relation of the Hydra I dwarf galaxies are presented. Section 4.5 addresses the galaxy luminosity function for early-type dwarf galaxies in Hydra I.
A total of 494 objects were selected for spectroscopy. For 365 of these a slit could be allocated on the masks. Reliable radial velocities were measured for 126 objects. Figure 7 shows a coordinate map of all objects that were selected for spectroscopy. The criterion for cluster membership was adopted to be
km s-1 (see Fig. 6). Radial velocity uncertainties were of the order of 20-100 km s-1. Altogether, 75 foreground stars, 19 background objects and 32 cluster members were identified from both spectroscopic samples. 24 of the confirmed cluster galaxies are already known from CZ03, five are previously uncatalogued dwarf galaxies. Three compact cluster members are candidates for bright GCs and/or UCDs.

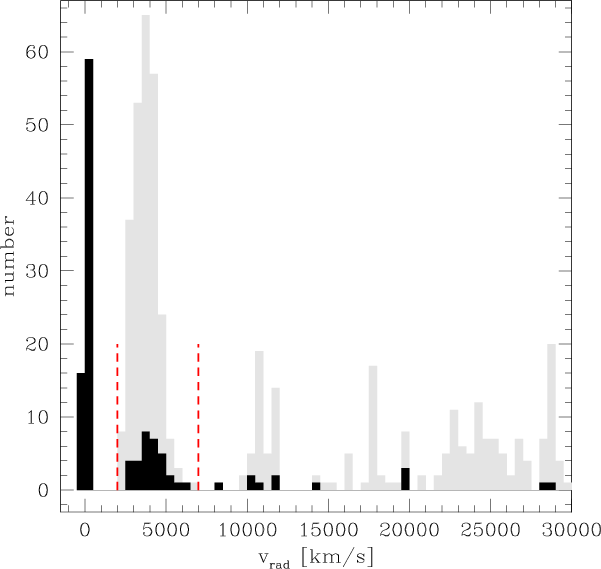

|Figure 6: Radial velocity distribution of all successfully measured objects with km s-1 (black histogram). The grey histogram shows the data from CZ03. Vertical dashed lines mark the velocity range assumed for cluster membership. Note also the overdensity at km s-1 from which we identify five members.|
|Open with DEXTER|

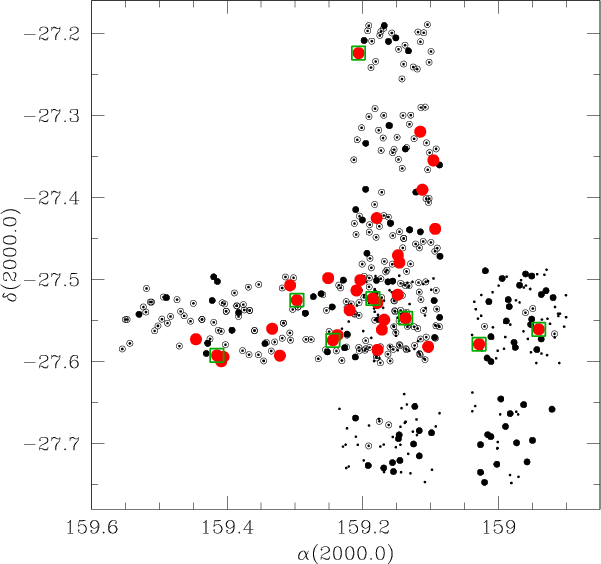

|Figure 7: Coordinates of the 494 objects that were selected for spectroscopy (small dots). Small open circles mark the 365 observed objects, small filled circles are the 126 objects for which a reliable radial velocity could be determined. Red filled circles are cluster members, green open squares mark the 8 newly confirmed cluster members.|
|Open with DEXTER|
279 objects were observed with LDSS2. Reliable radial velocities of 71 objects could be derived. 24 foreground stars, 18 background objects and 29 objects belonging to the cluster were identified. Figure 8 gives a coordinate map, a colour-magnitude diagram, a magnitude velocity and a colour velocity diagram of the successfully observed objects.
In Table A.2 the radial velocities of the 28 resolved cluster members (V<20.5 mag) are given. The mean value is km s-1 with a standard deviation of km s-1. This deviates by from the result of CZ03. However, there is no systematic velocity shift in the LDSS2 data. For the 24 previously known galaxies, differences of km s-1 to the radial velocities from CZ03 are measured. Taking into account the relatively large velocity error of 80 km s-1 in the literature values, 75% of all LDSS2 velocities are still consistent with them. Furthermore, the mean radial velocity of the 24 galaxies from the CZ03 catalogue, which are also in our sample, is km s-1, in agreement with our result. The large discrepancy between the mean radial velocity of our dwarf galaxy sample and the whole CZ03 sample can thus be explained by selection effects.
We note that there is no significant difference in velocity dispersion between brighter (thus more massive) cluster galaxies (V<16 mag) and fainter ones, which would be an indication of mass segregation. We find km s-1 for the brighter galaxies and km s-1 for the fainter ones (90% confidence level). The number counts are too low to judge on a possible larger velocity dispersion for dwarf galaxies as found in the Fornax cluster (Drinkwater et al. 2001).
The colour-magnitude diagram in Fig. 8b clearly shows the CMR of cluster galaxies with V<21 mag, in the sense that fainter galaxies are on average bluer. The only cluster member with V>21 mag is an unresolved source, hence a GC/UCD candidate (see Sect. 4.2). The cluster galaxies have colours of 1.02<V-I<1.38. Five objects (V<18.3 mag) scattering around the CMR belong to a background group at km s-1 (see also Fig. 6). The cluster CMR is analysed in more detail in Sect. 4.3.

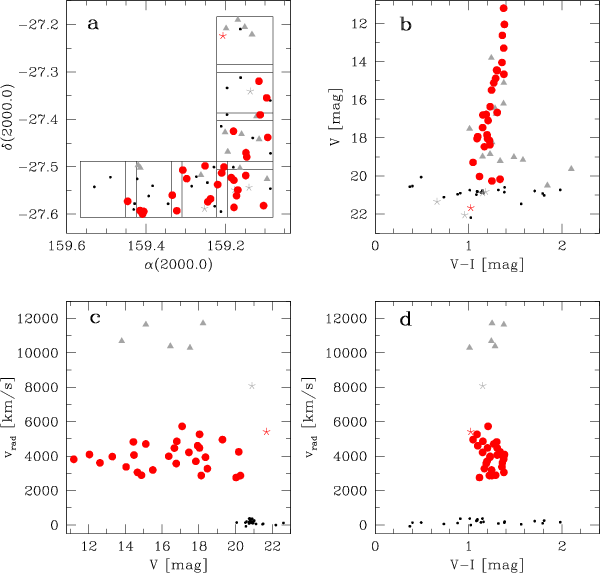

|Figure 8: Properties of all successfully observed objects in our dwarf galaxy sample. Filled red circles are confirmed cluster members, grey triangles represent resolved background objects. Small black dots are foreground stars, asterisks are unresolved cluster members (red) or background objects (grey). a) Coordinate map of all foreground stars, background sources and cluster members. The observed fields are indicated by large open squares. b) Colour-magnitude diagram of all objects. c) Magnitude velocity diagram of all objects, except for background objects with km s-1. d) Colour velocity diagram of all objects, except for background objects with km s-1.|
|Open with DEXTER|

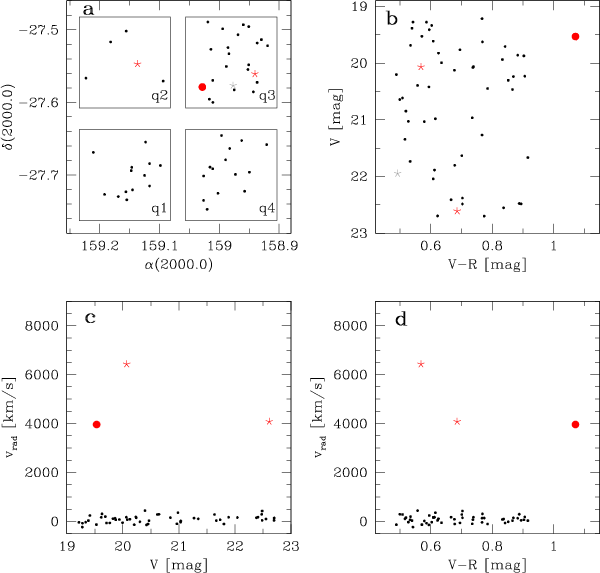

|Figure 9: Properties of all successfully observed objects in the UCD sample. The symbols are as in Fig. 8. a) Coordinate map. The four quadrants (q1-q4) of the VIMOS pointing are indicated by large open squares. Note the low number of successfully observed objects in q2 due to the mask misalignment. b) Colour-magnitude diagram of all objects. c) Magnitude velocity diagram of all objects, except for background objects with km s-1. d) Colour velocity diagram of all objects, except for background objects with km s-1.|
|Open with DEXTER|
Radial velocities of 55 objects could be determined in the UCD sample. 51 foreground stars, one background object and three cluster members were identified. One of the cluster members is a dE galaxy, the others are GC/UCD candidates. Figure 9 shows the properties of the successfully observed objects in the same way as Fig. 8 does for the dwarf galaxy sample. It is obvious from Fig. 9a that there is a very low number of successfully observed objects in the second VIMOS-quadrant (q2). Only 5 out of 27 possible spectra could be extracted due to a misalignment of the slit mask in this quadrant. Table 1 compares the number of selected and observed objects with the number of objects for which a radial velocity could be determined. Overall, 55 out of 215 photometrically selected compact object candidates were successfully observed, corresponding to a completeness of 26%.
Table 1: Objects in the VIMOS-pointing. (A) number of selected objects, (B) number of observed objects, (C) number of objects for which a radial velocity could be determined (see also Fig. 9a).
Table 2: Properties of the GC/UCD candidates found in both samples. The absolute magnitude MV is calculated by adopting a distance modulus of (m-M)=33.07 mag (Mieske et al. 2005a).
We identify three compact unresolved sources as cluster members. Table 2 gives the radial velocity and the photometric properties of those objects. They all have absolute magnitudes brighter than Centauri (NGC 5139), the brightest Milky Way globular cluster (Harris (1996) gives MV=-10.29 mag for Cen). Hence, they either represent very bright globular clusters, or they belong to the class of the so-called ultra-compact dwarf galaxies (UCDs) that were discovered during the past few years in the nearby galaxy clusters Fornax, Virgo and Centaurus (e.g. Drinkwater et al. 2000a; Hasegan et al. 2005; Jones et al. 2006; Mieske et al. 2007b; Hilker et al. 1999).
Given its absolute magnitude of MV=-13.26 mag, the brightest object in this sample clearly falls into the UCD magnitude range of -13.5<MV<-11.0 mag. With km s-1, its radial velocity is more than away from the mean radial velocity defined by our dwarf galaxy sample, but it is still in the range of radial velocities covered by the other cluster galaxies in both the dwarf galaxy sample and the CZ03 sample (cf. Fig. 6). However, with R=5.65 the significance of the cross-correlation match is one of the lowest in the VIMOS-data. Because the slit was not completely centred on the object (due to the mask misalignment in the second VIMOS-quadrant), the S/N ratio of the spectrum was relatively low and the CCF peak was less well visible. Hence, the cluster membership has to be reconfirmed with a higher S/N spectrum.
Note that, based on a purely photometric study, Wehner & Harris (2007) have recently reported on the discovery of 29 UCD candidates around NGC 3311. They have luminosities of -12.3<Mg'<-10.7 mag. They build up the extension of the red GC population towards very high luminosities. Their cluster membership has to be confirmed by radial velocity measurements.
A well-defined CMR for cluster galaxies brighter than mag was already shown in the analysis of the spectroscopic data (Sect. 4.1). Figure 10 shows the colour-magnitude diagram (CMD) of all early-type galaxies in our photometric sample (E and S0 as well as dE/dSph galaxies), as listed in Table A.2. Clearly, the CMR stretches across the entire magnitude range of 11<V0<23 mag, from the brightest giant elliptical galaxies all the way down to the regime of dwarf galaxies. The more luminous galaxies are on average redder than galaxies of lower luminosity. Adopting a distance modulus of (m-M)=33.07 mag (Mieske et al. 2005a), a linear fit to all data points leads to with a rms of 0.12. The larger scatter at the faint magnitudes is consistent with the larger error in (V-I). The magnitude limit at which faint dwarf galaxies could still be identified is mag, comparable to the Local Group dSph Sculptor (Grebel et al. 2003). Due to the detection and resolution limit of our data, we cannot test for the existence of even fainter galaxies in Hydra I.

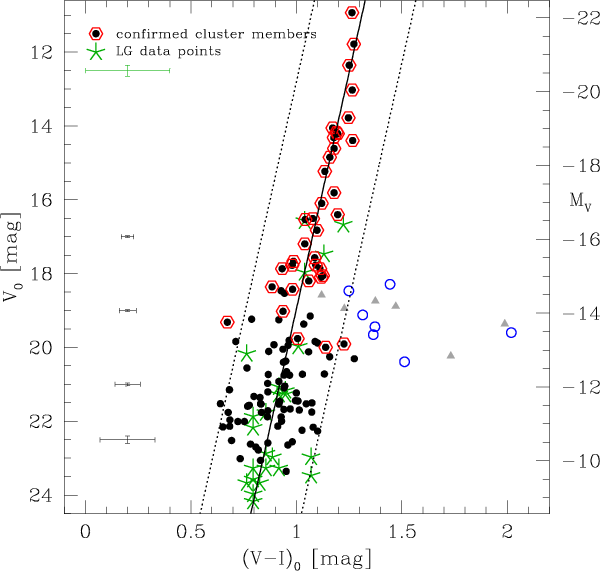

|Figure 10: Colour-magnitude diagram of early-type galaxies in the Hydra I cluster in comparison with Local Group dEs and dSphs. Black filled circles are probable cluster galaxies, selected by their morphology. Red open hexagons mark cluster members, confirmed by radial velocity measurements. Blue open circles are presumable background galaxies (see text for futher explanations). Grey triangles are confirmed background elliptical galaxies with R1/4 surface brightness profiles. Typical errorbars are indicated. The solid line is a linear fit to dwarf galaxies with MV>-17 mag (Eq. (1)). Dotted lines are the deviations from the fit. Green asterisks represent the Local Group dEs and dSphs (data from Grebel et al. 2003) projected to the Hydra I distance. Mean errors for the LG dwarfs are indicated in the upper left corner.|
|Open with DEXTER|
Colour-magnitude relations for dwarf galaxies have been observed in a number of other nearby galaxy clusters, such as Coma, Virgo, Perseus and Fornax (e.g. Conselice et al. 2003; Mieske et al. 2007a; Lisker et al. 2008; Secker et al. 1997; Adami et al. 2006; Hilker et al. 2003; van Zee et al. 2004). The CMR for early-type dwarf galaxies in Fornax is given by
in the magnitude range
-17<MV<-9 mag (Mieske et al. 2007a). Restricting the fit for the Hydra I sample to MV>-17 mag leads to:
In addition, Eq. (1) is compared with the CMR of LG dwarf ellipticals and dwarf spheroidals. Homogeneous (V-I) colours for LG dwarfs do not exist (see Mateo 1998), but they can be calculated from their average iron abundances. Assuming single stellar populations, Hilker et al. (2003) transform the average iron abundances from Grebel et al. (2003) to (V-I) colours using Eq. (4) given in Kissler-Patig et al. (1998). It turns out that the colours, estimated in this way, match remarkably well the CMR found for the Hydra I dwarf galaxies. A linear fit to the LG data gives with a rms of 0.09, matching very well the Hydra I CMR.
However, one has to be aware of the uncertainties in this analysis. Equation (4) in Kissler-Patig et al. (1998) describes a linear relation between the average iron abundances and colours of globular clusters. The direct application to other stellar systems like dwarf galaxies is, in the first instance, not evident. But the assumption of a single stellar population seems to be a good approximation in most cases, since nearby dwarf galaxies are mostly dominated by an old stellar population. Integrated (V-I) colours are tabulated for eight LG dwarfs (Mateo 1998). The comparison of the transformed colours with the measured colours from Mateo (1998) shows only small discrepancies of about 0.1 mag. The errors for the transformed colours, as indicated in Fig. 10, are of the order of mag.
A few remarks about the sample selection have to be made at this point. Object selection solely based on morphological classification can lead to the contamination of the sample with background galaxies that only resemble cluster dwarf elliptical galaxies. Bright background galaxies ( mag) could be excluded from our sample on the basis of radial velocity measurements. Towards the faintest magnitudes ( mag), dwarf galaxies tend to be extended objects with very low surface brightnesses and less concentrated light profiles (typical of dSphs). Apparently small objects of the same apparent magnitude with a high central concentration of light or barely resolved objects, both being likely background galaxies, were therefore excluded (see Sect. 4.5 for more details). In the intermediate magnitude range, the distinction between cluster dEs and background elliptical galaxies was more difficult. As indicated in Fig. 10 by blue open circles, we found seven objects with -14.8<MV<-12.7 mag, appearing very similar to confirmed cluster dEs in terms of their morphology. A first indication that they likely do not belong to the cluster is that they have significantly redder colours than other objects in the same magnitude range. Some of them are even too red to be a galaxy at . Moreover, they have surface brightness profiles that follow the de Vaucouleurs law (R1/4 law), which is typical of giant elliptical galaxies. The comparison with spectroscopically confirmed background galaxies in the same magnitude range, which also exhibit R1/4 surface brightness profiles, shows that they are the same group (see Fig. 10). Hence, it is reasonable to assume that the seven arguable objects only resemble cluster dwarf galaxies, but they are in fact background giant elliptical galaxies.

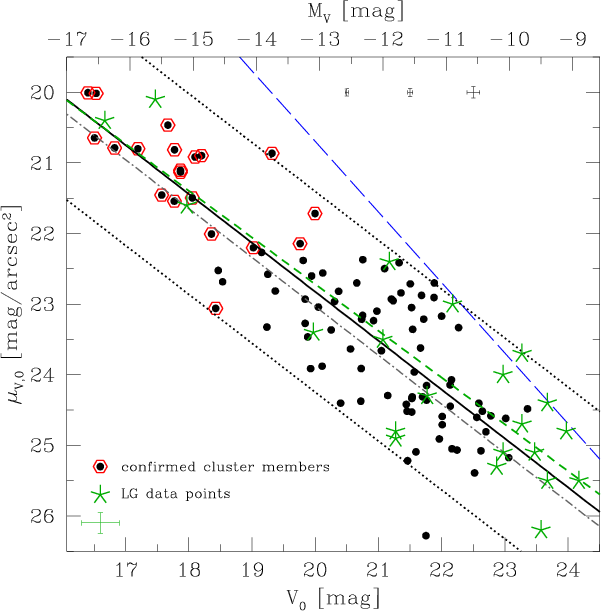

|Figure 11: Magnitude-surface brightness diagram of all early-type dwarf galaxies (MV>-17 mag) in our sample in comparison with Local Group dEs and dSphs. The symbols are as in Fig. 10. Typical errorbars are indicated. The solid line is a linear fit to the data (Eq. (2)). Dotted lines are the deviations from the fit. The dash-dotted line is a fit to the same data, but using a higher distance modulus (see text for details). Green asterisks represent Local Group dEs and dSphs (data from Grebel et al. 2003) projected to the Hydra I distance. The green dashed line is the LG magnitude-surface brightness relation. Mean errors for the LG dwarfs are indicated in the lower left corner. The blue long-dashed line indicates a scale length of for an exponential profile, representing the resolution limit of our images.|
|Open with DEXTER|
In Fig. 11, the central surface brightness ,
as estimated from an exponential law, is plotted vs. MV for all early-type galaxies fainter than MV=-17 mag. A magnitude-surface brightness relation is visible in the sense that the central surface brightness increases with luminosity. A linear fit to the data yields
In order to include also the brighter (MV<-17 mag) cluster early-type galaxies in the analysis, we additionally fitted Sérsic (1968) models to the galaxy surface brightness profiles. The effective surface brightness
against MV is shown in the upper panel of Fig. 12. An increase of effective surface brightness with magnitude is visible between
mag. The effective radius stays virtually constant in this interval, as the (dashed) line, which represents a constant radius of 4'' (0.8 kpc at the cluster distance), illustrates. This phenomenon has also been observed for dwarf galaxies in Coma, Virgo and most recently in the Antlia cluster (Smith Castelli et al. 2008, and references therein).

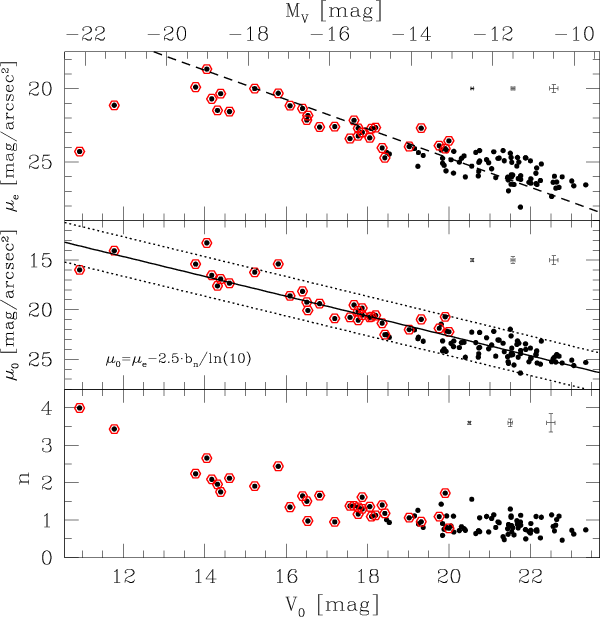

|Figure 12: Results of the Sérsic fits: effective surface brightness ( top panel), central surface brightness ( middle panel) and profile shape index n ( bottom panel) plotted vs. magnitude for all early-type galaxies in our sample. The dashed line in the upper panel indicates an effective radius of 4'' (0.8 kpc at the cluster distance). The solid line in the middle panel is a linear fit to the data (Eq. (3)) with its deviations (dotted lines). Red open hexagons mark spectroscopically confirmed cluster members. Typical errorbars are indicated.|
|Open with DEXTER|

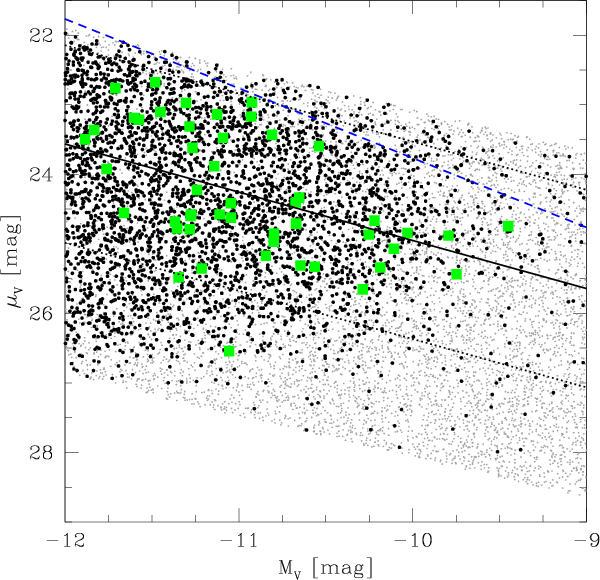

|Figure 13: Plot of the input-parameter range of the artificial dwarf galaxies (small grey dots). Black dots are the simulated galaxies recovered by SExtractor after applying several cuts (see text for further explanation). The objects from Fig. 11 are plotted as green squares. Equation (2) with its deviations is plotted as in Fig. 11. The blue dashed line indicates a scale length of for an exponential profile, representing the resolution limit of our images.|
|Open with DEXTER|
A different behaviour is observed at magnitudes brighter than
mag, in the sense that
levels off, with the exception of NGC 3311, the brightest galaxy in our sample. This has been reported by many authors in the past (e.g. Kormendy 1985; Ferguson & Sandage 1988; Bender et al. 1992), but according to Graham & Guzmán (2003, see their Fig. 12) there is no dichotomy between dwarf galaxies and E/S0 galaxies when plotting the central surface brightness
of a Sérsic model vs. the galaxy magnitude instead of
is given by
in which bn is approximated by
bn = 1.9992n-0.3271 for 0.5<n<10 (Graham & Driver 2005). For our sample,
vs. MV is shown in the middle panel of Fig. 12. A continuous relation is visible for the low mass dwarf galaxies and the high mass Es and S0s (MV<-17 mag). This continuity was also observed in the ACS Virgo and Fornax cluster surveys (Ferrarese et al. 2006; Côté et al. 2006, 2007, 2008). A linear fit to our data reveals a direct correlation between
The lower panel of Fig. 12 shows how the Sérsic profile shape index n varies with magnitude. An increase of n with increasing magnitude is visible for the magnitude range mag, whereas the data points scatters around a mean of n=0.9 for mag. A similar result was obtained for early-type galaxies in the Fornax cluster (Infante et al. 2003).

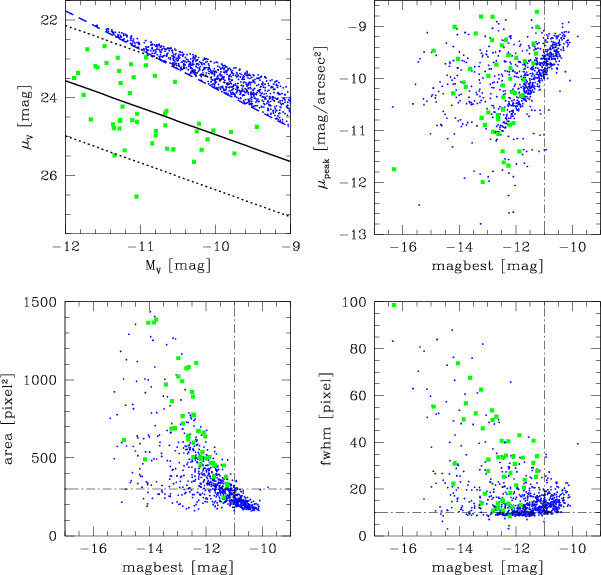

|Figure 14: SExtractor output-parameters of the artificial galaxies below the resolution limit (blue dots). The upper left panel shows the input-parameters MV and . The SExtractor output-parameter magbest is plotted against mupeak ( upper right), area ( lower left) and fwhm ( lower right). Green squares are the objects from Fig. 11. Dash-dotted lines indicate the global cuts on magbest, fwhm and area.|
|Open with DEXTER|

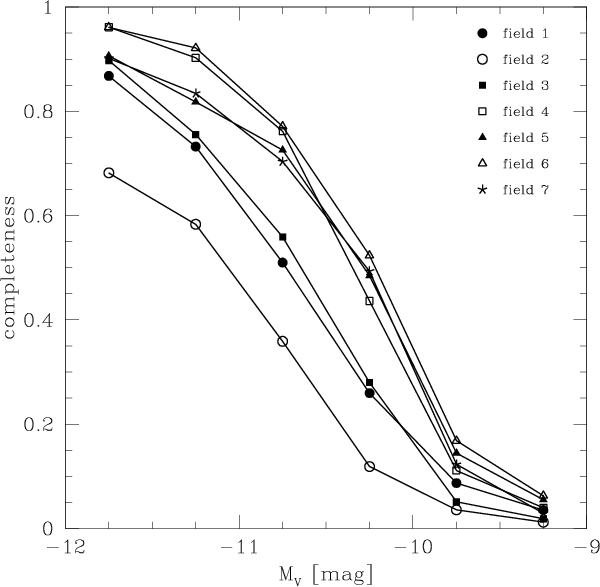

|Figure 15: Completeness as a function of magnitude for the seven observed fields. The low completeness in field 2 is due to the high geometrical incompleteness.|
|Open with DEXTER|
For the study of the faint end of the galaxy luminosity function, the number counts of dE/dSph candidates have to be completeness corrected. For this, we randomly distributed 10 000 simulated dwarf galaxies (in 500 runs) in each of the seven CCD fields, using a C++ code. The magnitudes and central surface brightnesses of the simulated galaxies were chosen such that they extended well beyond the observed parameter space at the faint limits. Exemplary for one field, Fig. 13 shows the input-parameter range of the simulated galaxies. SExtractor was then used to recover the artificial galaxies, and the SExtractor output-parameters, i.e. magbest, mupeak, fwhm, area, were compared with the parameters derived from the sample of actual cluster dwarf galaxies, as described in Sects. 4.4 and 4.3.
As already mentioned in Sect. 3.1, we applied several cuts to the SExtractor output-parameters with the aim of rejecting high surface brightness and barely resolved background objects. These objects were defined to be located above the (blue) dashed line in Fig. 13, which represents the resolution limit of our images. Figure 14 shows the SExtractor output-parameters of the artificial galaxies below this resolution limit. They define well localised areas in plots of magbest versus mupeak, area and fwhm. However, also some of the previously selected dwarf galaxy candidates scatter into the same areas. Hence, we rejected only those objects that simultaneously occupied the locus of unresolved galaxies in all three parameters mupeak, area and fwhm.
In this way we miss only one of the previously selected galaxies but we reject the majority of objects below the resolution limit. Additionally, we applied global cuts at the lower limits of magbest, fwhm and area in order to reject very faint, almost unresolved background objects (see Fig. 14). All artificial galaxies that were recovered after the application of the cuts are highlighted in Fig. 13.
Without applying any cuts, SExtractor recovers 85-95% of the artificial galaxies at mag, except for field 2 where the completeness is only 70%, due to the large spiral galaxy in the field (cf. Figs. 1 and 5). This reflects the geometrical incompleteness caused by blending. By applying the cuts in magbest, mupeak, area and fwhm we further reject about 15% of the artificial galaxies at MV=-12 mag. The fraction of visually classified galaxies with MV>-12 mag that are excluded by applying the same cuts is 6 out of 43. This fraction is consistent with the fraction of excluded artificial galaxies. Since all visually selected galaxies are included into the LF, we scale the completeness values for MV>-12 mag up by 15%, so that they are consistent with the geometrical completeness at MV=-12 mag. Figure 15 shows the corrected completeness values in 0.5 mag bins. The galaxy number counts are completeness corrected individually for each CCD field using these curves.

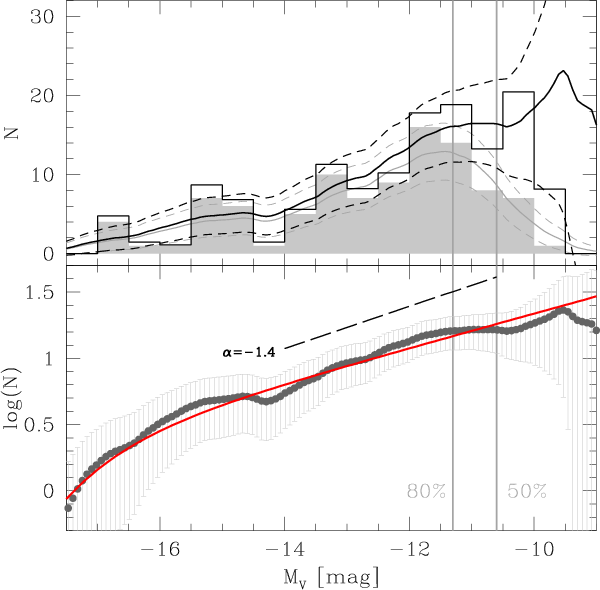

|Figure 16: Luminosity function of the Hydra I dwarf galaxies. The vertical lines mark the 80% and 50% completeness limits. Upper panel: the uncorrected galaxy number counts are displayed by the shaded histogram. The thin grey curve gives a binning independent representation for the counts (Epanechnikov kernel with 0.5 mag width). The completeness corrected number counts are given by the open histogram. The thick black curve represents the completeness corrected number counts with the uncertainties (dashed lines). Lower panel: completeness corrected number counts in logarithmic representation. The best fitting single Schechter function (solid red curve) is overlaid. A power-law slope of is indicated by the dashed line.|
|Open with DEXTER|
In Fig. 16 we show the resulting luminosity function of the Hydra I dwarfs in the magnitude range -17.0<MV<-9.5 mag. By fitting a single Schechter (1976) function to the number counts with a completeness larger than 50%, we derive a faint-end slope of . The slope does not change if we include only data points with a completeness larger than 80%. Alternatively, we fit a power-law model to the faint end of the LF. This results in for -16.0<MV<-10.6 mag and for -14.0<MV<-10.6 mag (indicated by the dashed line in Fig. 16). Interestingly, the small dip in the galaxy LF at about MV=-14 mag (although maybe the result of low number counts) appears near the luminosity where the separation of dEs and dSphs is defined (e.g. Grebel 2001). Hilker et al. (2003) reported on the same phenomenon in the Fornax cluster (see their Fig. 3).
In this paper we presented a spectroscopic and photometric study of the early-type dwarf galaxy population in the Hydra I cluster. Two spectroscopic surveys were analysed, one executed with Magellan I/LDSS2 at Las Campanas Observatory, the other with VLT/VIMOS at ESO/Paranal. The imaging data were obtained with VLT/FORS1. Seven fields were observed in Johnson V and I filters with a seeing between 0.5'' and 0.7''.
This possible detection is intriguing, since such sources are extremely rare in other environments. The complete spectroscopic surveys for Fornax and Virgo have revealed only one single such bright UCD in either cluster (Jones et al. 2006), with all other UCDs being at least one magnitude fainter. Does the possible detection of this bright UCD point to a large number of massive UCDs in Hydra I? The cluster centre is indeed dominated by the cD galaxy NGC 3311 with its very pronounced diffuse light component, which implies that the cluster environment in Hydra I could be more important in shaping the central region than in Fornax or Virgo. A large number of massive UCDs would therefore strengthen the idea of environment dependent UCD formation processes, such as the dynamical transformation of dwarf galaxies (Goerdt et al. 2008; Bekki et al. 2003). Further insight into the nature of the possible UCD candidate - for example its mass-to-light ratio and size - will require space based imaging and high resolution spectroscopy. With only one UCD candidate, it is not possible to make a meaningful statement about the abundance and properties of UCDs in the Hydra I cluster. For this, extended spectroscopic surveys are required.
By radial velocity measurements we confirm the cluster membership of 29 galaxies, of which 5 are previously uncatalogued dwarf galaxies. The confirmed cluster galaxies define a tight colour-magnitude relation (Fig. 8b). From the visual inspection of the images, we identify 82 additional cluster dE/dSph candidates. Our sample of 100 early-type cluster dwarf galaxies fainter than MV=-17 mag follows a colour-magnitude relation being the extension of the CMR of the brighter cluster galaxies (see Fig. 10). This is consistent with earlier studies where early-type dwarf galaxies are reported to follow the CMR of giant early-type galaxies (e.g. López-Cruz et al. 2004; Conselice et al. 2003; Secker et al. 1997; Adami et al. 2006; Hilker et al. 2003).
Our sample of early-type dwarf galaxies defines a magnitude-surface brightness relation in the sense that the central surface brightness (as estimated from an exponential law) increases with luminosity. Local Group dEs and dSphs follow reasonably well the same relation. By fitting Sérsic models to the galaxies surface brightness profiles, we find a common relation for dwarf galaxies and E/S0 galaxies in a diagram, consistent with the results of Graham & Guzmán (2003), Ferrarese et al. (2006) and Côté et al. (2006, 2007, 2008). The slope of the relation is found to be equal to one. Moreover, in a diagram, galaxies fainter than MV = -18 mag define to a good approximation a relation of constant effective radius kpc (see Fig. 12).
Our results, namely the common relations for dwarf galaxies and giant elliptical galaxies in a colour-magnitude and a diagram over a wide range of magnitudes, suggest that dEs are not a separate class of objects but rather the low mass counterparts of massive early-type galaxies. The almost constant effective radius of galaxies with magnitudes -18<MV<-10 mag might indicate the same.
We find a similarity of the Hydra I CMR to both the Fornax and the LG relation. Since the environments in Hydra I and Fornax are different from the Local Group in terms of mean density and strength of the gravitational potential (Girardi et al. 1993,1998; Karachentsev & Kashibadze 2006), this could imply that internal evolution is more important for the global photometric properties of dwarf galaxies than external influences due to different environments. The almost identical magnitude-surface brightness relations of the Hydra I and the LG dwarfs may support this hypothesis. Smith Castelli et al. (2008) argue in the same manner based on the results of their photometric study of the galaxy population in the Antlia cluster. Further deep photometric studies in various clusters of different mass and dynamical state have to be performed in order to investigate the influence of different environments on the photometric and structural properties of dwarf galaxies.
We derive a very flat luminosity function ( , as derived from a Schechter fit) for the Hydra I cluster. Recently, Yamanoi et al. (2007) found for the cluster LF. Our observed fields overlap with their central observed region and we reach a similar limiting magnitude. The seeing of our images is slightly better. However, Yamanoi et al. (2007) do not fit Schechter functions to their data but use a power-law model to determine the parameter at the faint end of the LF. In an analogous manner we derive a slope of from our data, being more consistent with the results of Yamanoi et al. Qualitatively, we find the same behaviour for the Fornax LF (Mieske et al. 2007a; Hilker et al. 2003). When fitting a power-law to the faint end, we derive for -14.0<MV<-9.8 mag, as opposed to when fitting a Schechter function. These findings can be interpreted in the way that the description by a power-law model seems to result in steeper slopes than the description by Schechter functions. The slope of the power-law model might be considered as an upper limit in this context.
We point out that the differences in could also arise from the different methods used to construct the LF. The dwarf galaxy candidates in Yamanoi et al. (2007) were selected only by setting lower limits in FWHM to the SExtractor detections. Contaminating background galaxies were statistically subtracted. No curve-of-growth analysis or surface brightness profile fitting was performed to cross-check the SExtractor results. By means of the surface brightness profile and the colour we could exclude a number of objects from our sample (see Sect. 4.3 and Fig. 10). Our sample should therefore not be contaminated by many background galaxies that only resemble cluster dwarf galaxies.
Being consistent with our results, Trentham & Tully (2002) measured the LF in different local environments (including the Virgo cluster) and found shallow logarithmic slopes of . They applied selection criteria similar to ours (based on surface brightness and morphology). Trentham & Tully (2002) stated that it is unlikely that they have missed a large number of dwarfs, since they were sensitive to very low surface brightness galaxies and the seeing was good enough to distinguish high surface brightness dwarfs from background galaxies. The same is true for our data. We could potentially have missed very compact cluster members that resemble objects like M 32, but these objects are rare (Mieske et al. 2005b; Chilingarian & Mamon 2008; Drinkwater et al. 2000b; Chilingarian et al. 2007) and do not significantly contribute to the LF.
Clearly, for the determination of the faint-end of the LF it is crucial which method is used to identify contaminating background galaxies. Different methods in constructing the LF can lead to different results. One example for this is the Fornax cluster. Applying morphological selection criteria, Hilker et al. (2003) found a flat LF, whereas Kambas et al. (2000) reported on a very steep LF ( ) for the same cluster. However, by comparing the data sets Hilker et al. (2003) could show that most of Kambas' dwarf galaxy candidates were non-members of the Fornax cluster.
We conclude that at least for nearby galaxy clusters that are close enough for large telescopes like the VLT to resolve even faint dwarf spheroidal galaxies under good seeing conditions, the membership assignment by means of morphology and surface brightness seems to be an appropriate way to construct the galaxy luminosity function and constrain photometric scaling relations.
Table A.1: Photometric calibration coefficients.Table A.1 gives the photometric calibration coefficients for the 7 observed fields as indicated in Fig. 5. Zero points (ZP), extinction coefficients k and colour terms (CT) are given for the two filters V and I.
Table A.2 lists the photometric parameters of our sample of 111 early-type galaxies in the Hydra I cluster. The table is ordered by increasing apparent magnitude. The first column gives the object ID, in which HCC stands for Hydra I Cluster Catalogue. Right ascension and declination (J2000.0) are given in columns two and three. The fourth and fifth column list the extinction corrected magnitude V0 and the colour (V-I)0. In columns six and seven, the central surface brightness and the scale length hR of an exponential fit to the surface brightness profile are listed. For objects with mag, and hR are not given, since the surface brightness profile is not well described by an exponential law. Columns eight, nine and ten give the effective surface brightness , the effective radius and the profile shape index n, as obtained from a Sérsic fit. The physical scale is 0.2 kpc/arcsec at the assumed distance modulus of (m-M)=33.07 mag (Mieske et al. 2005a). The last column gives the radial velocities derived in our study as well as those from CZ03.
Table A.2: The Hydra I Cluster Catalogue (HCC).
