M. Gruberbauer¹ - H. Saio² - D. Huber¹ - T. Kallinger¹ - W. W. Weiss¹ - D. B. Guenther³ - R. Kuschnig⁴ - J. M. Matthews⁴ - A. F. J. Moffat⁵ - S. Rucinski⁶ - D. Sasselov⁷ - G. A. H. Walker⁴

1 - Institute for Astronomy (IfA), University of Vienna, Türkenschanzstrasse 17, 1180 Vienna, Austria
2 - Astronomical Institute, Graduate School of Science, Tohoku University, Sendai 980-8578, Japan
3 - Department of Astronomy and Physics, St. Mary's University Halifax, NS B3H 3C3, Canada
4 - Department Physics and Astronomy, University of British Columbia, 6224 Agricultural Road, Vancouver, BC V6T 1Z1, Canada
5 - Dépt. de physique, Univ. de Montréal CP 6128, Succ. Centre-Ville, Montréal, QC H3C 3J7, Canada
6 - Dept. Astronomy & Astrophysics, David Dunlop Obs., Univ. Toronto PO Box 360, Richmond Hill, ON L4C 4Y6, Canada
7 - Harvard-Smithsonian Center for Astrophysics, 60 Garden Street, Cambridge, MA 02138, USA

Abstract
Aims. Despite photometry and spectroscopy of its oscillations obtained over the past 25 years, the pulsation frequency spectrum of the rapidly oscillating Ap (roAp) star $\gamma$ Equ has remained poorly understood. Better time-series photometry, combined with recent advances to incorporate interior magnetic field geometry into pulsational models, enable us to perform improved asteroseismology of this roAp star.
Methods. We obtained 19 days of continuous high-precision photometry of $\gamma$ Equ with the M OST (Microvariability & Oscillations of STars) satellite. The data were reduced with two different reduction techniques and significant frequencies were identified. Those frequencies were fitted by interpolating a grid of pulsation models that include dipole magnetic fields of various polar strengths.
Results. We identify 7 frequencies in $\gamma$ Equ that we associate with 5 high-overtone p-modes and 1st and 2nd harmonics of the dominant p-mode. One of the modes and both harmonics are new discoveries for this star. Our best model solution (1.8 $M_{\odot}$ , log $T_{\rm eff} \sim 3.882$ ; polar field strength $\sim$ 8.1 kG) leads to unique mode identifications for these frequencies ( $\ell = 0$ , 1, 2 and 4). This is the first purely asteroseismic fit to a grid of magnetic models. We measure amplitude and phase modulation of the primary frequency due to beating with a closely spaced frequency that had never been resolved. This casts doubts on theories that such modulation - unrelated to the rotation of the star - is due to a stochastic excitation mechanism.

Key words: stars: chemically peculiar - stars: oscillations - stars: individual: $\gamma$ Equ - stars: magnetic fields - methods: data analysis

1 Introduction - the history of $\gamma$ Equ

Rapidly oscillating Ap (roAp) stars form a class of variables consisting of cool magnetic Ap stars with spectral types ranging from A-F, luminosity class V, and were discovered by Kurtz (Kurtz 1982). Photometric and spectroscopic observations during the last 2 decades characterize roAp stars with low amplitude pulsations (<13 mmag) and periods between 5 to 21 min. It is now widely accepted that the oscillations are due to high-overtone (n >15) non-radial p-mode pulsations. The observed frequencies can be described in a first-order approximation by the oblique pulsator model as described by Kurtz (1982). In this model the pulsation axis is aligned with the magnetic axis, which itself is oblique to the rotation axis of the star. It has since been refined and improved to include additional effects like the coriolis force (Bigot & Dziembowski 2002).

The oscillations in roAp stars are most probably excited by the $\kappa$ mechanism acting in the hydrogen ionization zone (Dziembowski & Goode 1996), while the prime candidate for the selection mechanism of the observed pulsation modes is the magnetic field (e.g. Balmforth et al. 2001; Bigot et al. 2000; Bigot & Dziembowski 2003; Cunha 2006; Cunha & Gough 2000; Saio 2005; Bigot & Dziembowski 2002). Similar to non-oscillating Ap (noAp) stars, the group of roAp stars also shows a distinctive chemical pattern in their atmospheres, in particular an overabundance of rare earth elements, which points to stratification and vertical abundance gradients. Tackling the question of what drives the roAp pulsation, it is important to note that apart from the similar chemical composition, noAp stars show comparable rotation periods and magnetic fields but higher effective temperatures (Ryabchikova et al. 2004). Thus, their hydrogen ionization zone lies further out in the stellar envelope, which prevents efficient driving of pulsation. All together, roAp stars have given new impulse to asteroseismology and 2D mapping of pulsation (Kochukhov 2004), as well as detailed 3D mapping of (magnetic) stellar atmospheres, has become possible. For reviews on primarily observational aspects of roAp stars we refer to Kurtz & Martinez (2000) and Kurtz et al. (2004) and on theoretical aspects to Shibahashi (2003) and Cunha (2005).

$\gamma$ Equ, (HD 201601, HR 8097, A9p, $m_{\rm {V}} = 4.7$ ) was the 6th discovery as a roAp star. It was long known to have a significant magnetic field (Babcock 1958) which is variable with a period of $\sim$ 72 years (Leroy et al. 1994; Bonsack & Pilachowski 1974; Scholz 1979). Rotation, a solar-like magnetic cycle or precession of the star's rotation axis due to its binary companion are candidate mechanisms for this cyclic variation. The binary hypothesis was supported by Scholz et al. (1997), who observed a temporary drop in radial velocity for $\gamma$ Equ during 4 consecutive nights. Their results are however contradicted by Mkrtichian et al. (1998,1999). Magnetic field data spanning more than 58 years indicate that the variation is most likely due to rotation and therefore $P_{\rm {mag}} = P_{\rm {rot}}$ (Bychkov et al. 2006). This explanation is also supported by many spectroscopic observations showing very sharp absorption lines (e.g. Kanaan & Hatzes 1998) which are typical for a slow rotator (or a star seen pole-on).

Kurtz (1983) was the first to detect a pulsation period of 12.5 min (1.339 mHz) with an amplitude varying between 0.32 and 1.43 mmag and speculated about a rotation period of 38 days, inconsistent with the magnetic field measurements mentioned above. Aside from rotation, beating with a closely spaced frequency has been proposed as a cause, for which the present paper gives further evidence. The pulsation was confirmed shortly after Kurtz's study by Weiss (1983). Bychkov (1987) reported first evidence for radial velocity (RV) variations, but it took two more years for a clear detection (Libbrecht 1988). Although unable to detect the 1.339 mHz oscillations reported by Kurtz (1983), Libbrecht discovered three frequencies at 1.365 mHz, 1.369 mHz and 1.427 mHz. He suggested that the amplitude modulation observed in the spectra of roAp stars may not be due to closely spaced frequencies, but rather caused by short mode lifetimes in the order of $\sim$ 1 d. He concluded that both peaks therefore belong to a single p-mode oscillation. The follow-up study by Weiss & Schneider (1989) aimed at performing simultaneous spectroscopic and photometric studies but failed to confirm $\gamma$ Equ's pulsation. The latter authors applied a correlation technique using more than 100 Å wide spectral ranges in order to improve the S/N ratio relative to previous techniques, based on individual lines. This approach turned out to be inapplicable, considering the peculiar abundance structure of roAp star atmospheres which is now well known. Matthews & Scott (1995) then claimed to have detected variability with rather large radial velocity amplitudes but their results were inconsistent with previous findings.

Detailed photometric observations were conducted by Martinez et al. (1996) using a multi-site campaign in 1992, spanning a total of 26 nights. Their results also suggested limited life times of pulsation modes, because additional frequencies appeared in their analysis of individual nights. However, all three frequencies detected so far were confirmed, and prewhitening of 1.366 mHz revealed a fourth eigenfrequency at 1.397 mHz. Using these four frequencies they concluded a spacing of consecutive radial overtones of $\Delta\nu\sim 30~\mu$ Hz based on the asymptotic theory for low-degree, high-overtone p-mode pulsations (Tassoul 1990). They did not detect any evidence for non-linear behavior of the eigenfrequencies (i.e. harmonics) which, as will be shown in this paper, is indeed present in the M OST data. So far their observing campaign was the most recent photometric investigation of $\gamma$ Equ. A period of spectroscopic studies focusing on pulsation, abundance and stratification analyses followed.

Kanaan & Hatzes (1998) reported on RV amplitudes for chromium and titanium and speculated that this is due to their concentration close to the magnetic - hence also pulsation - poles, while other elements (e.g. iron) showing no RV variations may be concentrated at the magnetic equator. Malanushenko et al. (1998) independently arrived at a similar conclusion and they are the first who identified the rare earth elements (REE) Pr III and Nd III to show the largest variations (up to 800 $\rm m~s^{-1}$ ). Most other atomic species had very low or non-measurable RV variations and the authors concluded that previous spectroscopic observations failed to detect significant radial velocity variations due to the chosen spectral regions and/or low spectral resolution. Savanov et al. (1999) further clarified the situation by drawing attention to a possible incorrect identification of spectral lines in Kanaan & Hatzes (1998) and concluded that Pr III and Nd III were responsible for the large RV amplitudes discussed in their analysis.

Further investigations by Kochukhov & Ryabchikova (2001) and Ryabchikova et al. (2002) impressively explained amplitude modulations of different elements and even ions of the same element by lines being formed at different atmospheric depths. The authors also tried a first mode identification based on rather short data sets of line profile variations (LPVs) and they argue for $\ell = 2$ or 3, and $m = -\ell$ or $-\ell + 1$ modes. Shibahashi et al. (2004) disagreed with this analysis and suggested a shock wave causing the observed LPVs which in turn was questioned by Kochukhov et al. (2007) who argued that the pulsational velocity should not exceed the local sound speed. The latter authors propose a modified oblique pulsator model where LPVs are caused by pulsation velocity fields superposed by sinusoidal line width changes due to convection, but which previously was thought to be suppressed. In any case, they agree with Shibahashi et al. that the identification of the primary frequency as an $\ell=1, m=0$ mode is still the most likely explanation, which is also supported by this paper. The issue is still being debated though (Shibahashi et al. 2007).

Despite a history of more than 25 years of observations, the pulsation frequency spectrum of $\gamma$ Equ remains poorly understood. Several frequencies have been published, but up to now these have never been observed simultaneously. This is where M OST steps in, providing the most complete high precision photometric campaign ever conducted for $\gamma$ Equ and covering continuously a timespan of 19 days.

2 Observations and data reduction

2.1 M OST observations

M OST is a Canadian space satellite designed for the detection of stellar variability with amplitudes down to several ppm on time scales up to several days (Walker et al. 2003). The satellite was launched in June 2003 and has since proven to deliver photometric time series of unprecedented precision. It carries a Maksutov telescope with an aperture of 15 cm, uses a broadband filter (350-700 nm) and operates in a low Earth orbit following the terminator in an almost polar orbit. M OST can observe stars in the continuous viewing zone for up to 6 weeks with a pointing precision of $\sim$ 1 $^{\prime\prime}$ . An array of Fabry lenses is used to suppress effects of satellite jitter in the data of primary targets of V<6 mag. $\gamma$ Equ was observed for 19 days from 07/28/2004 to 08/16/2004 with exposures (integration $\rm time = 11$ s) taken continuously once every 30 s. As $\gamma$ Equ was one of the first primary targets observed by M OST, stray light, produced by earthshine, and other instrumental effects were still being investigated at this time with the aim of improving the observing procedures for future runs. In fact, this data set was the basis for the development of the C reduction pipeline for M OST Fabry Imaging targets (Reegen et al. 2006).

2.2 Data reduction using decorrelation

Stray light effects are corrected by computing a correlation between target and background pixels distinguished by a fixed aperture, where target denotes pixels inside the aperture and background characterizes pixels outside the aperture, which are assumed to contain no stellar signal at all. A ``neutral'' area flag, for pixels not used for either purpose, is meant to exclude pixels at the transition zone close to the edge of the aperture.

As it turned out throughout the M OST mission, each target star's photometry suffered specific problems which needed to be addressed individually by optimizing the reduction parameters. Due to bad data quality at the beginning of the $\gamma$ Equ-run about 1060 frames had to be rejected. Additional frames needed to be eliminated due to pointing problems in the early days of M OST operations which resulted in distorted Fabry image geometries identified by comparison to a mean normalized Fabry image. If the pixel values in an individual (normalized) frame deviate by more than $g~\sigma$ , where g is an integer, from the pixel values of the mean normalized reference image, the frame is rejected. Since the mean reference image changes after the elimination process, this step is repeated iteratively until no more frames need to be rejected. Statistics of the reduction process are shown in Table 1.

Table 1: Reduction statistics for $\gamma$ Equ. A total of 49213 frames were gathered. ACS: M OST Attitude Control System.

Tests showed that the number of images in which pixels are deviating by more than 5 $\sigma$ first decreased as expected, but increased after about ten iterations (see Fig. 1, upper panel) and later decreased again, indicating two separate causes for deviating Fabry image geometry. Figure 2 shows the raw light curve after correcting for cosmic rays, phased with the orbital period, clearly indicating which phases are responsible for the image geometry deviations. Not surprisingly, the majority of these rejections concern exposures taken during high stray light phases and therefore cause regular gaps in the final data set (see Fig. 3). To ensure that this reduced duty cycle does not impair the identification of intrinsic frequencies, the analysis was repeated with the data set obtained after the first iteration step in the image geometry evaluation, which eliminated only 807 frames. In the lower panel of Fig. 1 we compare the spectral windows of both reductions, showing that the rejections mainly affected orbit-induced artifacts ( $f_{\rm {orbit}} = 14.19$ d^-1). The final analysis did not yield a different set of intrinsic, but considerably fewer instrumental frequencies.

$\begin{figure} \par\resizebox{8.8cm}{!}{\includegraphics*{8830fg1.eps}} \end{figure}$

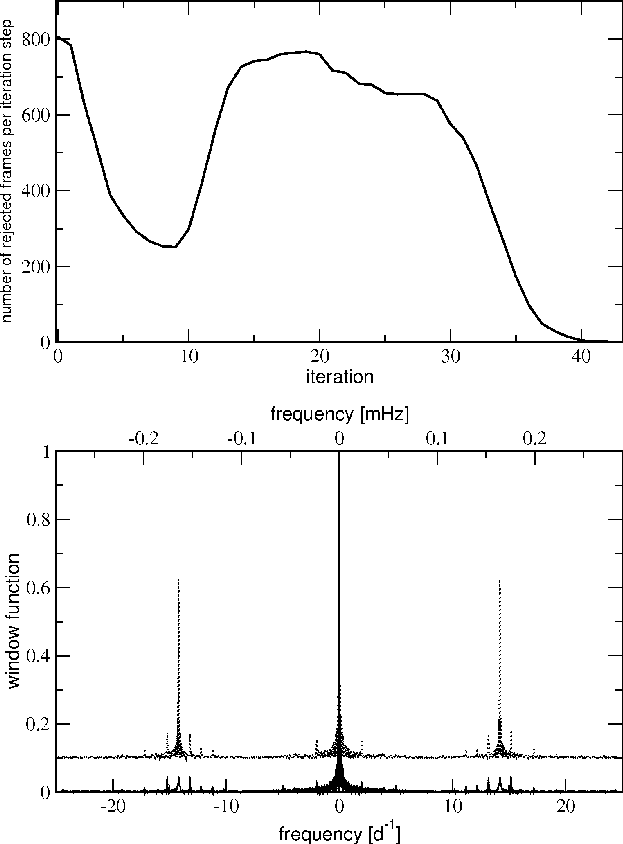

Figure 1: Upper panel: iterative elimination of frames with deviating image geometry. The increasing number of rejections with higher iterations followed by a second decline indicates two separate mechanisms responsible for distorting the Fabry image geometry. Lower panel: window function of the data sets including (solid line) and excluding (dotted line) frames with deviating image geometry. The dotted graph has been shifted by 0.1 for better visibility.

Open with DEXTER

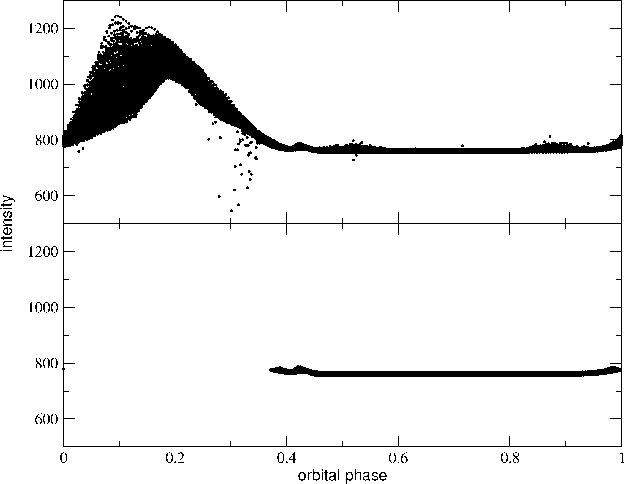

$\begin{figure} \resizebox{8.8cm}{!}{\includegraphics*{8830fg2.eps}} \end{figure}$	Figure 2: Upper panel: the raw light curve after cosmic ray correction, phased with the M OST orbital period. The stray light contamination is mostly confined to orbital phases 0-0.4. Lower panel: same as in the upper panel, but after correcting for deviating image geometry.
Open with DEXTER

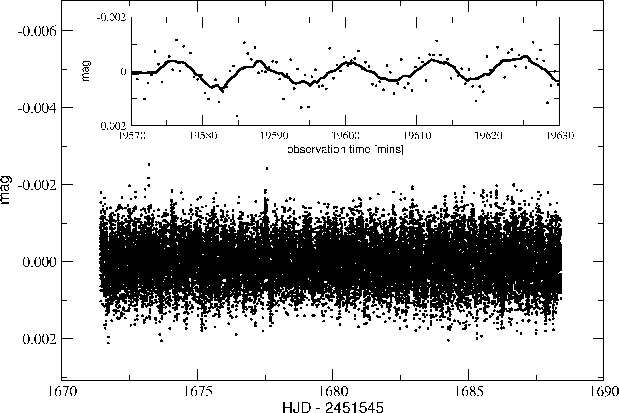

$\begin{figure} \par\resizebox{8.8cm}{!}{\includegraphics*{8830fg3.eps}} \end{figure}$	Figure 3: Final light curve using decorrelation resulting in a duty cycle of $\sim$ 53%. All long-term variations with periods >1 d have been prewhitened. The inset shows a subset spanning about 50 min together with a 10 point ( $\sim$ 4 min) running average. The $\sim$ 12 min oscillation is clearly visible.
Open with DEXTER

2.3 Data reduction using ``doughnut'' fitting

The advantage of this method is the insensitivity of the linear regression to extreme pixel values, for instance due to cosmic ray hits or local stray light effects. Also, contrary to the method described in Sect. 2.2 (see also Reegen et al. 2006), the data set is not split into subsets and processed individually, which could distort the low frequency signal. The entire data set is reduced en-block, no subsets are created which qualifies this procedure as a perfect cross-check for detecting artifacts due to data reduction. The disadvantage of this method is the stray light correction which is less efficient as for the decorrelation method.

3 Frequency analysis

Time series resulting from both reductions outlined in Sect. 2 were analyzed individually. S IGS PEC (Reegen 2007) was used to obtain frequencies by means of the spectral significance between 0 and 360 d^-1 in a prewhitening sequence down to a significance level of 5.46, corresponding roughly to an amplitude S/N ratio of 4. Only frequencies without a counterpart in the sky background were considered, following the procedure described by Reegen et al. (2008). M OST background light curves typically contain several dozen frequencies between 0 and 360 d^-1, produced by stray light and instrumental effects. These are, in most cases well confined to the orbital frequency ( $f_{\rm {orbit}} = 14.19$ d^-1) and harmonics of it, to 1d^-1 side lobes due to the passages of M OST above nearly the same ground pattern after 14 orbits, or are caused by temperature drifts of electronic boards. In the case of $\gamma$ Equ we used a method similar to what is described in Gruberbauer et al. (2007) to identify non-intrinsic frequencies. Finally, the remaining frequencies deduced from both reduction methods were compared and, again, only matching frequencies were taken into account for our final analysis (Fig. 4).

$\begin{figure} \resizebox{8.8cm}{!}{\includegraphics*{8830fg4.eps}} \end{figure}$

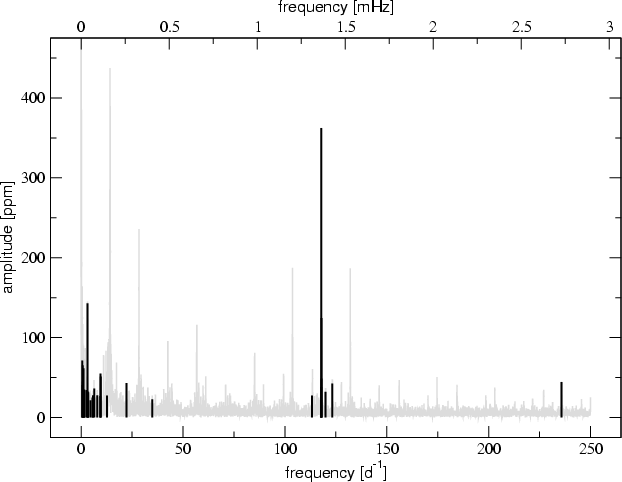

Figure 4: The amplitude spectrum of the final light curve ( gray) presented in Fig. 3 and all frequencies found by S IGS PEC in both reduction methods described in this paper ( black). We consider only frequencies with f > 50 d^-1 to be unaffected by the instrument. $\gamma$ Equ's pulsation is obvious in the range of 100 to 125 d^-1 and the first of two harmonics of $f_{\rm {1}}$ is evident at $\sim$ 235 d^-1.

Open with DEXTER

For the early M OST runs the low-frequency region is known to be affected by an instrumental effect producing spectral features centered on 3.16 d^-1 and multiples of it (Reegen et al. 2006). This instrumental effect is much weaker for the background pixels which explains why the corresponding frequencies remain even after comparisons with the background frequency spectrum and what justifies the rejection of all frequencies below 10 d^-1. Some of the power excess in the low frequency region might be still of stellar origin, but the current data is inconclusive. We also found the frequencies between 10 and 35 d^-1 to be multiples of 3.16 d^-1, but no other M OST data set shows these instrumental effects at such high frequencies. Because we prefer a critical approach, in the end, only the six higher frequencies with f >100 d^-1 were considered to be intrinsic to $\gamma$ Equ beyond doubt.

Table 2 lists the result of our conservative analysis. Two additional significant frequencies, not included in the table, can be found very close to $f_{\rm {1}}$ with amplitudes of $\sim$ 40 ppm, but including them in a Period04 multi-sine fit (Lenz & Breger 2005) fails, because the solution does not converge. Their nature is discussed in Sect. 6.2.

Table 2: The list of frequencies considered to be intrinsic to $\gamma$ Equ. $\sigma _{\rm f}$ : 1 $\sigma$ -uncertainty in frequency, derived according to Kallinger et al. (2007); $\sigma _{\rm a}$ : uncertainty in amplitude; SIG: spectral significance according to Reegen (2007); $\theta$ : phase in radians corresponding to $\cos(2\pi f_i t - \theta )$ .

No obvious spacing, as predicted by the asymptotic theory of non-radial pulsation, can be found in our final set of frequencies. This suggests that the regular spacing of modes with the same degree $\ell$ is disturbed, e.g. by the magnetic field, or that modes of different degree are excited. We therefore turned to fit our observed frequencies to the latest generation of roAp-pulsation models, but using only $f_{\rm {1}}$ to $f_{\rm {5}}$ for the fitting process, as $f_{\rm {6}}$ and $f_{\rm {7}}$ correspond to the harmonics of $f_{\rm {1}}$ .

4 Pulsation models

To compare theoretical frequencies with observed ones of $\gamma$ Equ, we have computed main-sequence evolutionary models for a mass range of $1.75{-}1.85~M_{\rm {\odot}}$ with heavy element abundance of $0.015 \le Z \le 0.025$ and OPAL opacities (Iglesias & Rogers 1996). A list of the individual models, and how we organised them into grids, is presented in Table 3. For standard models, envelope convection is suppressed ( $\alpha = 0.0$ ), and to mimic depletion of helium abundance in the outermost layers of a star, the helium abundance Y is given as Y = 0.01 + 0.27(x₂+x₃), where x₂ and x₃ are fractions of singly and doubly ionized helium, respectively (cf. Balmforth et al. 2001). Nonetheless, the effects of convection were also tested by computing all grids except Grid 4 with $\alpha = 1.5$ and homogeneous He abundance in the outer layers, but otherwise the same parameters. Grid 4 included a homogeneous distribution (mixing) of He in the envelope but no convection.

Nonadiabatic frequencies of axisymmetric (m=0) high order p-modes under the presence of a dipole magnetic field were calculated using the method described in Saio (2005). Outer boundary conditions are imposed at an optical depth of 10^-3. A reflective mechanical condition ( $\delta p/p \rightarrow$ const.) is adopted. All frequencies presented in this paper are less than the acoustic critical frequencies of corresponding models.

Since the latitudinal dependence of amplitude under the presence of a magnetic field cannot be expressed by a single Legendre function, we expand it into a truncated series of components proportional to Legendre functions P_{l_j} with l_j = 2j - 1 for odd modes and l_j = 2j for even modes, where we have included twelve terms; i.e., $j = 1, 2, \ldots, 12$ . The latitudinal degree $\ell$ is not a definite quantity for a pulsation mode any more, because pulsation energy is distributed among twelve components associated with P_{l_j}. For convenience we still use $\ell$ representing the l_j value of the component associated with the largest kinetic energy. Sometimes the distribution of the kinetic energy among the components is broad so that the identification of $\ell$ is ambiguous, and the value of $\ell$ may change as the strength of the magnetic field changes. Also, for a mode associated with $\ell$ , the latitudinal dependence of amplitude on the stellar surface may be considerably different from that of $P_\ell(\cos\theta)$ as shown in Saio & Gautschy (2004); Saio (2005) (see also below).

5 Model fitting

Pulsation models were calculated taking into account a magnetic dipole with polar field strength, $B_{\rm {P}}$ , up to 12 kG. These models were tried to match the currently estimated parameter space of $\gamma$ Equ, which is $\log T_{\rm {eff}} = 3.882 \pm 0.011$ K, $\log L/L_{\rm {\odot}} = 1.10 \pm 0.03$ , and $M \sim 1.74 \pm 0.03$ $M_{\rm {\odot}}$ (Kochukhov & Bagnulo 2006). Figure 5 shows the position and parameters of all models involved. For the corresponding values and further details, we again refer to Table 3.

To increase the resolution of our model grid, the mode frequencies were interpolated linearly in $B_{\rm {P}}$ and ( $\log T_{\rm {eff}}$ , $\log L/L_{\rm {\odot}}$ ) for a fixed mass and chemical composition. The step width for the interpolation was chosen to be 0.02 kG in $B_{\rm {P}}$ and 0.00002 in $\log T_{\rm {eff}}$ . Since not all modes with the same degree $\ell$ and radial order n converge in the model calculations, the sequence of frequencies for a specific mode may not cover the entire chosen stellar fundamental parameter space ( $\log T_{\rm {eff}}, \log L/L_{\rm {\odot}}$ , and M). Finally we used a single coordinate, $\Delta \nu$ , according to

$\begin{figure} \par\resizebox{8.8cm}{!}{\includegraphics*{8830fg5.eps}} \end{figure}$

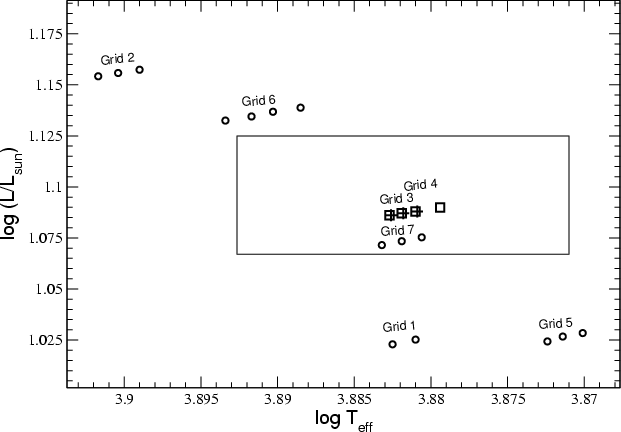

Figure 5: A schematic diagram of the calculated grids and their model parameters following the notation of Table 3. Since Grid 3 and Grid 4 partially overlap, all grid points for Grid 3 are shown as + symbols, while Grid 4 is indicated by rectangles. Observational uncertainties for $\gamma$ Equ's estimated position in the HR diagram (Kochukhov & Bagnulo 2006) are represented by the large rectangle.

Open with DEXTER

The best fitted models, represented by a minimum $\chi ^2$ , are listed in Table 4. Grid 3, as defined in Table 3, outperforms the other models by far. It is the only model grid that manages to produce frequencies that fit all five observed frequencies on average to within the uncertainties ( $\chi ^2 \le 1$ ), as it is illustrated by the upper panel of Fig. 6. As expected, including convection for Grid 3 destroys the fit, while for grids with large $\chi ^2$ it has the opposite effect. The best fit is located at the center of an extended patch. Its proximity to a genuine calculated model ensures that this good fit is not an artifact produced by the interpolation (also see Sect. 6). The mean parameter values for the $\chi ^2 \le 1$ region with the mentioned interpolation step size are $\log T_{\rm {eff}}=3.8818$ , $\log L/L_{\rm {\odot}} = 1.0871$ and $B_{\rm {P}} = 8.1~\rm {kG}$ .

Figure 7 shows an échelle diagram of the best fitted model together with the observations. $f_{\rm {1}}$ , the primary frequency, is identified as an $\ell=1$ mode. $f_{\rm {2}}$ and $f_{\rm {3}}$ are matched by consecutive $\ell = 4$ modes. The remaining two frequencies, $f_{\rm {4}}$ and $f_{\rm {5}}$ , are fitted by modes of degree $\ell = 2$ and $\ell = 0$ . As a comparison, the lower panel of Fig. 6 shows the fitting results to Grid 6, a grid with considerably larger $\chi ^2$ values. Interestingly, while all grids except Grid 3 fail at delivering $\chi^2 < 1$ -results, the mode identification remains stable for grids with $\chi^2 < 4$ . In particular, the two closely spaced model frequencies in the vicinity of $f_{\rm {1}}$ and $f_{\rm {2}}$ are found to fit the same degrees $\ell$ = 1 and 4 for Grids 3, 7 $\alpha$ , 5 $\alpha$ , and 6. This is not the case for 6 $\alpha$ and 1 $\alpha$ . Thus, in our grids there seems to be a tendency towards the mode identification of Grid 3 for better fitted models. Also, convection is shown to radically influence the model frequencies.

In Fig. 6 obvious discontinuities can be seen in the fitting results. They are produced when the interpolation routine cannot find two modes of equal spherical degree $\ell$ and radial order nin both models that are acting as sampling points. This can happen, as already mentioned in Sect. 4, when the $\ell$ -value of a mode formally changes, because the former associated spherical harmonic does no longer supply most of the kinetic energy. Also, the cyclic variation of the damping rate as a function of $B_{\rm {P}}$ , as shown in Saio & Gautschy (2004), has an effect on the ``availability'' of certain modes. Around the maximum of the damping rate, the kinetic energy is so broadly distributed among the different $\ell$ -components that convergence of the model calculations starts to fail. This effect is clearly visible as the two large discontinuities in each panel of Fig. 6, which bears resemblance to what is presented in Saio & Gautschy (2004).

Table 3: List of all stellar evolution models computed for $\gamma$ Equ with polar magnetic field strengths ranging from 0 to 10 kG in steps of 0.2 kG, except of Grid 7 which was calculated up to a magnetic field strength of 12 kG.

$\begin{figure} \par\resizebox{8.8cm}{!}{\includegraphics*{8830fg6a.eps}}\par\vspace*{3mm} \resizebox{8.8cm}{!}{\includegraphics*{8830fg6b.eps}} \end{figure}$

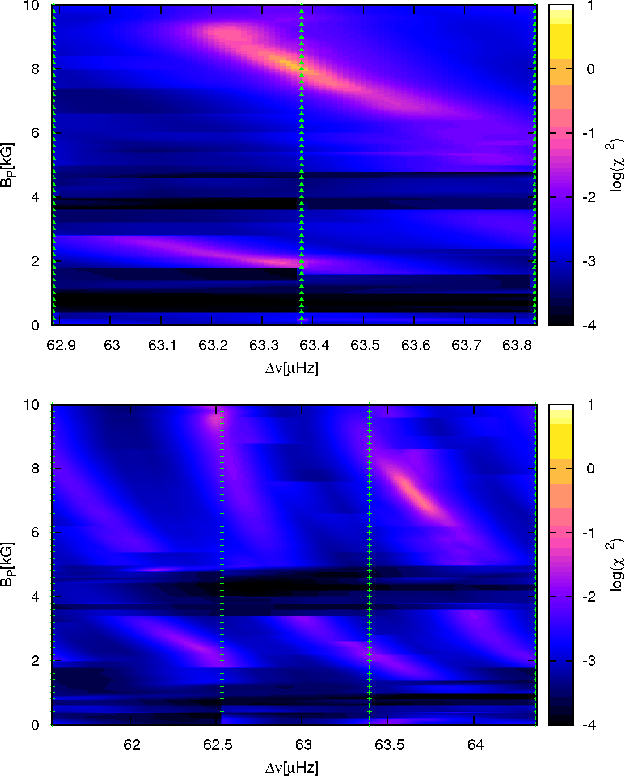

Figure 6: Upper panel: color coded inverse $\chi ^2$ values obtained when fitting the 5 intrinsic frequencies of $\gamma$ Equ to model frequencies of Grid 3. The vertically aligned symbols represent the calculated model positions - all other model frequencies are derived via linear interpolation. Discontinuities are due to a lack of converging model frequencies. Some modes of a certain degree and radial order are missing in the individual genuine models. Also, sudden changes of the frequency spacing due to the magnetic field, can change the quality of the fit quite rapidly. Lower panel: Grid 6 shows a pattern similar to Grid 3 but delivers larger $\chi ^2$ values. It gives, however, the same mode identification. Note the different scale of the abscissa!

Open with DEXTER

$\begin{figure} \par\resizebox{8.8cm}{!}{\includegraphics*{8830fg7a.eps}}\par\vspace*{3mm} \resizebox{8.8cm}{!}{\includegraphics*{8830fg7b.eps}} \end{figure}$

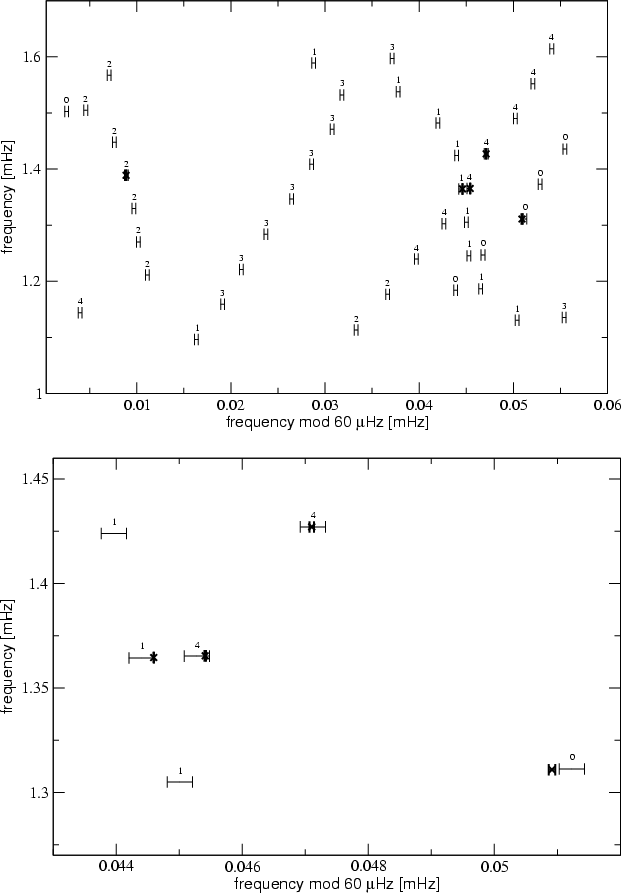

Figure 7: Upper panel: échelle diagram of the best fitted stellar model ( $\chi ^2 = 0.744$ , Grid 3). The corresponding parameters are $\log T_{\rm {eff}}=3.8818$ , $\log L/L_{\rm {\odot}} = 1.0871$ , and $B_{\rm {P}} = 8.06$ kG. The model frequencies are represented by their estimated error bars, the numbers above denote the mode degree $\ell$ . Black cross symbols indicate the position of the observed frequencies with error bars. Lower panel: a close-up of the region in the échelle diagram including $f_{\rm {1}}$ , $f_{\rm {2}}$ , $f_{\rm {3}}$ , and $f_{\rm {5}}$ illustrating the quality of the fit more clearly. $f_{\rm {5}}$ is not matched to within the 1 $\sigma$ -error, but $f_{\rm {1}}$ to $f_{\rm {3}}$ dominate the $\chi ^2$ statistics because of their high significance.

Open with DEXTER

$\begin{figure} \par\resizebox{8.8cm}{!}{\includegraphics*{8830fg8.eps}} \end{figure}$

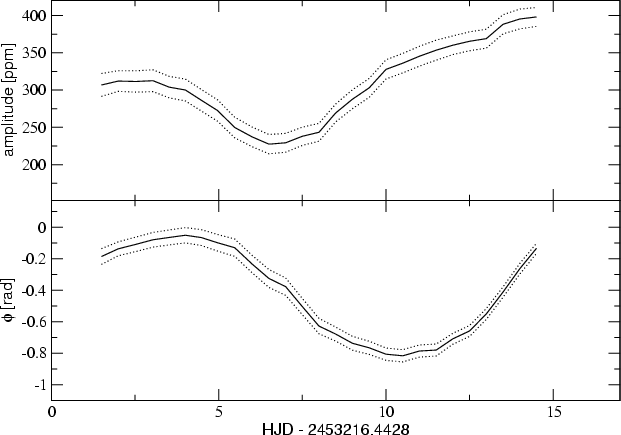

Figure 8: Upper panel: amplitude modulation of the primary frequency, $f_{\rm {1}}$ , as found by a least-squares fit with a fixed frequency to subsets of the light curve. Lower panel: phase changes of $f_{\rm {1}}$ determined in the same way as the amplitude modulation. The dotted lines represent the 1 $\sigma$ -confidence limits. The similarity of amplitude modulation and phase shift, as well as the minimum amplitude coinciding with the time of the phase shift turning point, suggest an amplitude modulation due to beating of two closely spaced frequencies with a beat frequency of $\sim$ 0.07 d^-1 ( $\sim$ 0.0008 mHz). This corresponds to the beat frequency of $f_{\rm {1}}$ and $f_{\rm {2}}$ .

Open with DEXTER

Table 4: $\chi ^2$ values of the best fits in the corresponding model grids. Models taking convection into account are denoted by an index $\alpha$ .

6 Discussion

6.1 The frequencies of $\gamma$ Equ

Data obtained by M OST have allowed us to unambiguously identify 7 frequencies (Table 2) above 1.3 mHz, including the first two harmonics of the primary frequency, which significantly exceed the mean noise level of $\sim$ 10 ppm between 1.15 and 1.75 mHz. The comparison with Martinez et al. yields a match for $f_{\rm {1}}$ , $f_{\rm {3}}$ , and $f_{\rm {4}}$ . Our $f_{\rm {2}}$ has never been detected before, probably because $f_{\rm {1}}$ and $f_{\rm {2}}$ could not be resolved as individual frequencies. This is also important for the discussion on amplitude modulation of the primary frequency, for which we refer to the next section. Our value for $f_{\rm {5}}$ is comparable to their $\nu_1=1.321$ mHz (taken from Weiss 1983), but differs by $\sim$ 0.01 mHz. We assume that they have misidentified a 1-day alias of the real frequency but this is difficult to asses, since no frequency uncertainties are known for this data set. Given that the data set from Weiss (1983) spans only three nights, the poor frequency resolution $1/T_{\rm {obs}} \simeq 0.33~\rm {d}^{-1} = 0.004$ mHz supports our assumption. Thus, we can for the first time confirm and expand the previous set of frequencies unambiguously.

When discussing published amplitudes (including those in the present paper) one has to keep in mind that two different properties prevent a direct comparison. First, amplitude modulations are present which lead to different amplitudes for observations obtained at different beating phases. Second, it has been well known since the eighties that amplitudes (Weiss & Schneider 1984) and phases (Weiss 1986) depend on wavelength and the former are rapidly decreasing towards the red. The passband of M OST is broad compared to the Strömgren system, frequently used for roAp star photometry, hence the observed M OST amplitudes are intrinsically smaller.

6.2 Amplitude modulation

We find $f_{\rm {1}} + f_{\rm {beat}} \simeq f_{\rm {2}}$ . The best fitting pulsation model predicts both $f_{\rm {1}}$ and $f_{\rm {2}}$ to be eigenfrequencies of the star, hence we conclude that the ``closely spaced frequencies''-hypothesis is correct. It comes as no surprise that previous observations, especially time-resolved spectroscopy, could not explain the modulation effect, since it is impossible to resolve $f_{\rm {2}}$ with short time bases. The possibility of unresolved modes in such data should be taken into account when studying pulsation via residual spectra, produced by subtraction of a mean spectrum phased by only a single pulsation frequency. For ground-based photometry, the aliasing problem and the higher noise level might also have contributed to the difficulty of detecting $f_{\rm {2}}$ .

We have found no evidence for modulation of the other frequencies, but we can comment on two other significant frequencies with amplitudes $\sim$ 40 ppm close to $f_{\rm {1}}$ which are not instrumental. These frequencies appear to be Fourier artifacts produced by irregularities in the beating of $f_{\rm {1}}$ and $f_{\rm {2}}$ . As mentioned in Sect. 3, a multi-sine fit fails to converge if they are included in the solution. We have to mention here again that the broad filter band pass used by M OST may be disadvantageous for such investigations.

6.3 On the validity of interpolated frequencies

To increase the resolution of our grid, we used linear interpolation in temperature, luminosity, and polar magnetic field strength, respectively. It may be questioned if such an interpolation is a sensible approach. For a test we compared interpolated values with genuine models. For all genuine models $m_{\rm {g}}$ enclosed by 2 additional genuine models $m_{\rm {g,1}}$ and $m_{\rm {g,2}}$ , we produced frequencies at the position of $m_{\rm {g}}$ by interpolation between $m_{\rm {g,1}}$ and $m_{\rm {g,2}}$ . The deviation of the interpolated frequencies from their genuine values, normalized to the gap in $\log T_{\rm {eff}}$ between the enclosing and the enclosed models, was calculated and over 16 000 frequencies were compared. Figure 9 shows a histogram of the results. It illustrates that our interpolation delivers a reasonable approximation to genuine models, as long as the gaps in between the reference models remain reasonably small.

In the case of Grid 3 (see Table 3) we also repeated the frequency fitting procedure. We interpolated between 3a and 3c and omitted the 3b-models of Grid 3. Figure 10 shows the $\chi ^2$ -statistics for our observed frequencies based on an interpolation in this much coarser grid (best fit with $\chi^2 = 2.642$ ). A comparison of Fig. 10 with the upper panel of Fig. 6 again shows that interpolation is applicable for small gaps in between genuine models, which is also reflected in the results of the fitting procedure. Since not all modes can be approximated sufficiently through linear interpolation, as indicated by the outliers in Fig. 9, it is necessary to check whether the modeled frequencies that fit the observations satisfy the linear assumption. Figure 11 presents the absolute (rather than the normalized) deviation of the interpolated frequencies from the genuine frequencies for the 3b-models. It shows that the interpolated values of all 5 modes that fit the observations are hardly deviating from their genuine values - the deviations lie well within the model uncertainties.

It is important to note that all of the modes which fit the observed frequencies are actually not expected to be excited according to current model physics. This hints at remaining problems concerning the stability analysis or the implemented driving mechanism.

$\begin{figure} \par\resizebox{8.8cm}{!}{\includegraphics*{8830fg9a.eps}}\par\vspace*{3mm} \resizebox{8.8cm}{!}{\includegraphics*{8830fg9b.eps}} \end{figure}$

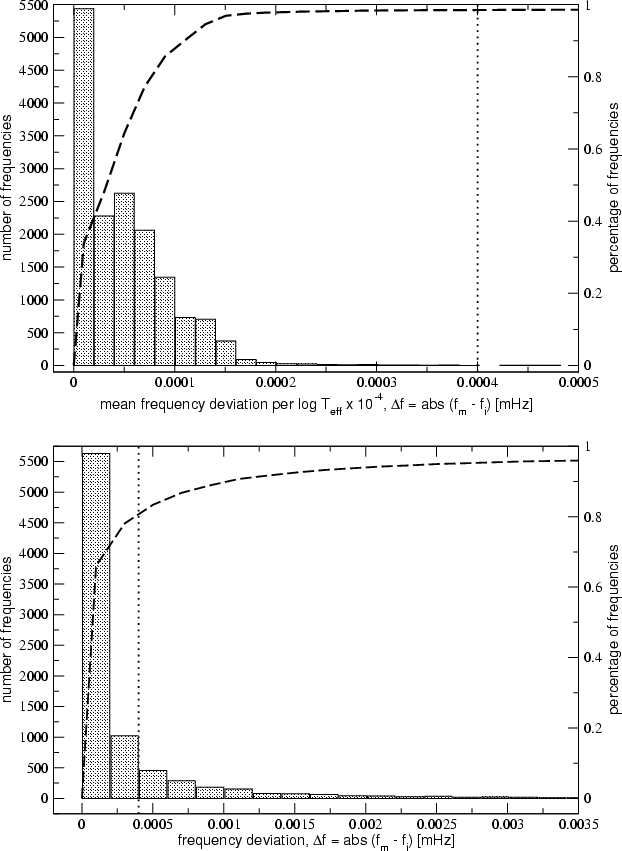

Figure 9: Upper panel: a histogram of the normalized deviation of 16 050 frequencies, interpolated as a function of $\log T_{\rm {eff}}$ , from their values in genuine models. The bars show the number of frequencies deviating within a certain range. The dotted line gives the estimated upper limit of the model uncertainties. The dashed line shows the total percentage of frequencies, as indicated by the right-hand side ordinate, as a function of frequency deviation. Lower panel: a histogram of the absolute frequency deviation of 8523 frequencies, interpolated as a function of $B_{\rm {P}}$ , from their genuine counterparts. No normalization was necessary, since the interpolation was performed with a step size of 0.2 kG for each frequency. The dashed and dotted lines have the same meaning as in the upper panel.

Open with DEXTER

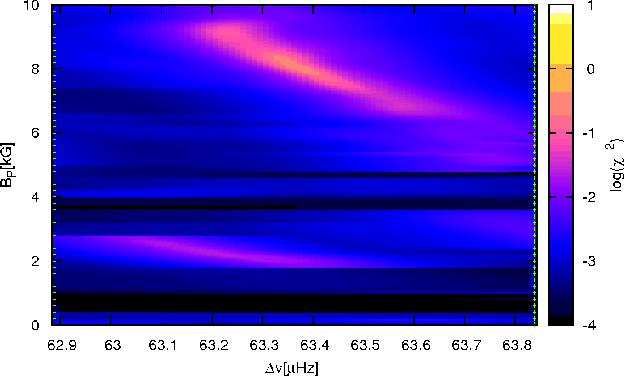

$\begin{figure} \par\resizebox{8.8cm}{!}{\includegraphics*{8830fg10.eps}} \end{figure}$	Figure 10: The result of fitting our observed frequencies to a model grid calculated by interpolation between 3a and 3c. Although the 3b-models are omitted and no fit with $\chi ^2 \le 1$ is found, the figure compares well to the upper panel of Fig. 6. Linear interpolation in $B_{\rm {P}}$ is therefore a reasonable approximation to genuine models for our fitting procedure.
Open with DEXTER

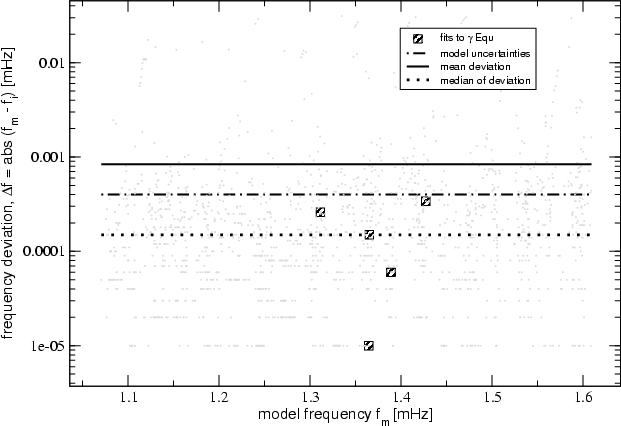

$\begin{figure} \par\resizebox{8.8cm}{!}{\includegraphics*{8830fg11.eps}} \end{figure}$	Figure 11: The absolute deviations of all interpolated frequencies at the position of 3b, using Grid models 3a and 3c, from the genuine frequency values. All 5 modes, which match the observed frequencies of $\gamma$ Equ best and are indicated by boxes, are deviating less than the model uncertainties.
Open with DEXTER

6.4 Latitudinal amplitude dependence

For $f_{\rm {2}}$ , $f_{\rm {3}}$ ( $\ell = 4$ ) and $f_{\rm {5}}$ ( $\ell = 0$ ) the amplitude distributions are strongly concentrated around $\cos\theta \approx 0.65$ , drastically different from those for non-magnetic stars. Although the light variation from an $\ell = 4$ mode of a non-magnetic star is expected to suffer from a strong cancellation on the stellar disk, Fig. 12 indicates that our cases $f_{\rm {2}}$ and $f_{\rm {3}}$ seem hardly affected by this effect.

$\begin{figure} \resizebox{8.8cm}{!}{\includegraphics*{8830fg12.eps}} \end{figure}$

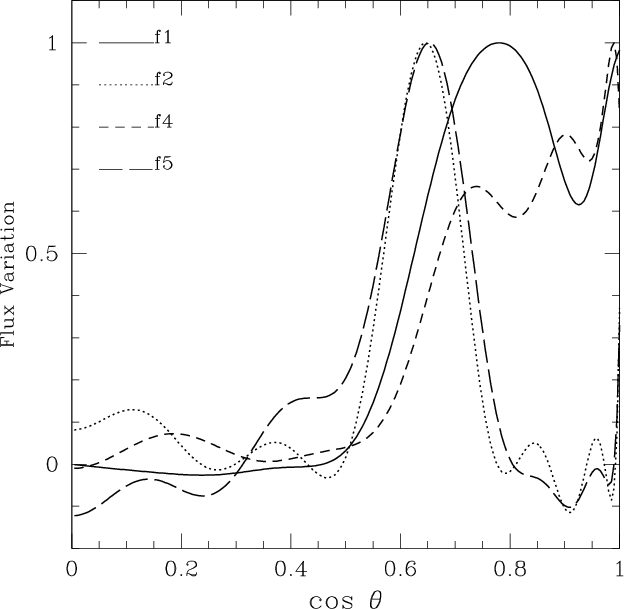

Figure 12: Latitudinal variation of the perturbation of radiative flux on the surface is shown for each mode matched to $\gamma$ Equ. (The case of $f_{\rm {3}}$ is not shown because it is very close to that of $f_{\rm {2}}$ .) The ordinate shows $\cos\theta$ with $\theta$ being co-latitude ( $\cos\theta = 1$ at poles). The plots are the real parts of the eigenfunctions for the flux perturbation at $B_{\rm {P}}=8$ kG for model 3b (Table 3). Each curve is normalized as that the maximum is unity.

Open with DEXTER

7 Conclusion

Pulsation amplitude changes for roAp stars were discussed in the literature as a consequence of limited mode life time or beating frequencies. For $\gamma$ Equ we can clearly identify the beating frequencies, which seriously questions excitation mechanisms for roAp stars based on stochastic processes.

Finally, we could identify the modes of all 7 frequencies detected so far in $\gamma$ Equ as $\ell = 0$ , 1, 2 and 4, with $f_{\rm {6}}$ and $f_{\rm {7}}$ being the harmonics of $f_{\rm {1}}$ produced by non-linear pulsation. Since we are not able to calculate non-axisymmetric modes, all of these frequencies are assumed to be (m=0) p-modes. While we cannot rule out the possibility of excitation of frequencies with ( $m\neq0$ ), axisymmetric modes are most probable, because of the extremely long rotation period of $\gamma$ Equ and the assumption of a magnetic dipole. The assignment of any $\ell$ -value to these modes, however, has to be understood as a convenient simplification. In the presence of strong magnetic fields a mode's oscillation behavior cannot be described by a single spherical harmonic. Consequently, we alert the reader that analysis techniques using this assumption, e.g. mode identification based on LPVs, should be adjusted for magnetic effects on the pulsation geometry.
