A&A 479, 493-501 (2008)
DOI: 10.1051/0004-6361:20078956

Detection of circumstellar CH₂CHCN, CH₂CN, CH₃CCH, and H₂CS

M. Agúndez¹ - J. P. Fonfría¹ - J. Cernicharo¹ - J. R. Pardo¹ - M. Guélin²

1 - Departamento de Astrofísica Molecular e Infrarroja, Instituto de Estructura de la Materia, CSIC, Serrano 121, 28006 Madrid, Spain
2 - Institut de Radioastronomie Millimétrique, 300 rue de la Piscine, 38406 St. Martin d'Hères and LERMA/École Normale Supérieure, 24 rue Lhomond, 75231 Paris, France

Received 29 October 2007 / Accepted 6 December 2007

Abstract
Aims. We report on the detection of vinyl cyanide (CH₂CHCN), cyanomethyl radical (CH₂CN), methylacetylene (CH₃CCH), and thioformaldehyde (H₂CS) in the C-rich star IRC +10216. These species, which are all known to exist in dark clouds, were detected for the first time in the circumstellar envelope around an AGB star.
Methods. The four molecules were detected through pure rotational transitions in the course of a $\lambda$ 3 mm line survey carried out with the IRAM 30-m telescope. The molecular column densities were derived by constructing rotational temperature diagrams. A detailed chemical model of the circumstellar envelope is used to analyze the formation of these molecular species.
Results. We have found column densities in the range 5 $\times$ 10¹²-2 $\times$ 10¹³ cm^-2, which translates to fractional abundances relative to H₂ of several 10^-9. The chemical model is reasonably successful in explaining the derived abundances through gas phase synthesis in the cold outer envelope. We also find that some of these molecules, CH₂CHCN and CH₂CN, are most probably excited through infrared pumping to excited vibrational states.
Conclusions. The detection of these species stresses the similarity between the molecular content of cold dark clouds and C-rich circumstellar envelopes. However, some differences in the chemistry are indicated by partially saturated carbon chains being present in IRC +10216 at a lower level than those that are highly unsaturated, while in TMC-1 both types of species have comparable abundances.

Key words: astrochemistry - stars: circumstellar matter - stars: AGB and post-AGB - stars: carbon - stars: individual: IRC +10216

1 Introduction

The chemical complexity of circumstellar envelopes (CSEs) around carbon-rich AGB stars is illustrated by the well known object IRC +10216, where more than 60 different molecular species have been identified to date. Due to the carbon-rich nature of the gas, the vast majority are oxygen-deprived hydrocarbons with a very concrete structure consisting of a linear and highly unsaturated backbone of carbon atoms. Among these species are cyanopolyynes HC_2n+1N, polyacetylenic radicals C_nH, carbenes H₂C_n, allenic radicals HC_2nN, as well as sulphur and silicon-bearing carbon chains C_nS, SiC_n (Cernicharo et al. 2000). The synthesis of these molecules involves the photodissociation and photoionisation by interstellar UV photons of parent species out-flowing from the star and subsequent neutral-neutral and ion-molecule gas phase reactions in the cold outer envelope (e.g. Lafont et al. 1982; Nejad & Millar 1987; Millar et al. 2000; Millar & Herbst 1994). Thus, reactive molecules are distributed in circumstellar shells, as confirmed by interferometric observations (e.g. Guélin et al. 1993).

This type of chemistry resembles what is occurring in cold dense clouds, such as TMC-1, which are also rich in highly unsaturated carbon chain molecules. The unsaturated character is typically the result of low temperature non-equilibrium chemistry and reflects the low reactivity of H₂ with most hydrocarbons at low temperatures. Dark clouds contain however a sizable fraction of partially saturated species, such as methylpolyynes CH₃C_2nH (n=1,2 Irvine et al. 1981; Walmsley et al. 1984), methylcyanopolyynes CH₃C_2n+1N (n=0,1,2 Snyder et al. 2006; Matthews & Sears 1983a; Broten et al. 1984), cyanomethyl radical CH₂CN (Irvine et al. 1988), vinyl cyanide CH₂CHCN (Matthews & Sears 1983b), cyanoallene CH₂CCHCN (Lovas et al. 2006), and highly saturated hydrocarbons such as propylene CH₂CHCH₃ (Marcelino et al. 2007).

The question of why those partially saturated species are not detected in IRC +10216 is a critical one for the understanding of low-temperature non-equilibrium chemistry. We have thus embarked on a deep search for partially saturated organic molecules in IRC +10216. In this paper we present the detection of CH₂CHCN, CH₂CN and CH₃CCH, which were observed for the first time in a CSE around an AGB star. The related species CH₃CN has been already identified in this source by Johansson et al. (1984). Finally, we also report on the detection of thioformaldehyde in IRC +10216.

2 Spectroscopy and observations

The four molecules in this paper (CH₂CHCN, CH₂CN, CH₃CCH, and H₂CS) were identified in space for the first time towards Sagittarius B2 (Gardner & Winnewisser 1975; Irvine et al. 1988; Snyder & Buhl 1973; Sinclair et al. 1973) by observation of rotational transitions. The microwave spectrum of all these species has been extensively studied in the laboratory so that their spectroscopic properties are accurately known; see a compilation in the JPL and Cologne databases for molecular spectroscopy (Pickett et al. 1998; Müller et al. 2005).

CH₂CHCN is a planar asymmetric rotor with a- and b-type allowed transitions ( $\mu_{\rm a}$ = 3.815 D and $\mu_{\rm b}$ = 0.894 D; Stolze & Sutter 1985). All the transitions observed in IRC +10216 belong to the stronger a-type.

The radical CH₂CN has two interchangeable hydrogen nuclei with non zero spin which result in two distinct groups of rotational levels: ortho (parallel spins) and para (antiparallel spins) with relative statistical weights 3:1, between which both radiative and collisional transitions are highly forbidden. The electronic ground state is ²B₁, thus, the quantum number $K_{\rm a}$ is even for ortho levels and odd for para levels. The para ground state (1_1,1) lies 14.15 K above the ortho ground state (0_0,0). This assignment is reversed compared to more common species with a ¹A₁ electronic ground state (H₂CO, H₂CS, ...), where the quantum number $K_{\rm a}$ is odd for ortho levels and even for para levels, with the rotational ground state having para symmetry. Its dipole moment is relatively large: $\mu_{\rm a}$ = 3.5 D (Ozeki et al. 2004). The unpaired electron causes spin-rotation coupling which splits each transition $N^{'}_{K^{'}_{\rm a},K^{'}_{\rm c}}$- $N^{''}_{K^{''}_{\rm a},K^{''}_{\rm c}}$into two components. Further hyperfine coupling of rotation with the non-zero spin of ¹H and ¹⁴N nuclei produces a myriad of components whose frequencies have been precisely measured in the laboratory (Ozeki et al. 2004).

Propyne (CH₃CCH) is a prolate symmetric top molecule whose rotational levels are divided into two different species, A-type and E-type, not connected radiatively. Its dipole moment is relatively small: $\mu_{\rm a}$ = 0.784 D (Burrell et al. 1980). The rotational spectrum was first measured by Trambarulo & Gordy (1950) and is now known with a high accuracy for its ground and some excited vibrational states (Müller et al. 2002).

H₂CS is an asymmetric rotor which, analogously to CH₂CN, has two interchangeable hydrogen nuclei so that its rotational levels are grouped into ortho ($K_{\rm a}$ odd) and para ($K_{\rm a}$ even), with statistical weights 3:1. The ortho ground state (1_1,1) lies 14.9 K above the para ground state (0_0,0). Its dipole moment was measured by Fabricant et al. (1977) to be $\mu_{\rm a}$ = 1.647 D.

The observations shown in Fig. 1 were made with the IRAM 30-m telescope during several sessions from 1990 to 2006, most of them after 2002 in the context of a $\lambda$ 3 mm line survey of IRC +10216 (Cernicharo et al., in preparation). SIS receivers operating at 3 and 2 mm were tuned in single sideband mode, with typical image rejections larger than 20 dB at 3 mm and around 15 dB at 2 mm. We express intensities in terms of $T_{\rm A}^*$, the antenna temperature corrected for atmospheric absorption and for antenna ohmic and spillover losses. The uncertainty in $T_{\rm A}^*$due to calibration is estimated to be around 10%. Data were taken in the standard wobbler switching mode with a beam throw of 4'. Pointing and focusing were checked by observing nearby planets and the quasar OJ 287. The back end used was a filterbank with a bandwidth of 512 MHz and a spectral resolution of 1.0 MHz. The system temperature was 100-150 K at 3 mm and 200 K at 2 mm. On source integration times ranged from 2 to 20 h, resulting in rms noise levels of 1-3 mK in  $T_{\rm A}^*$.

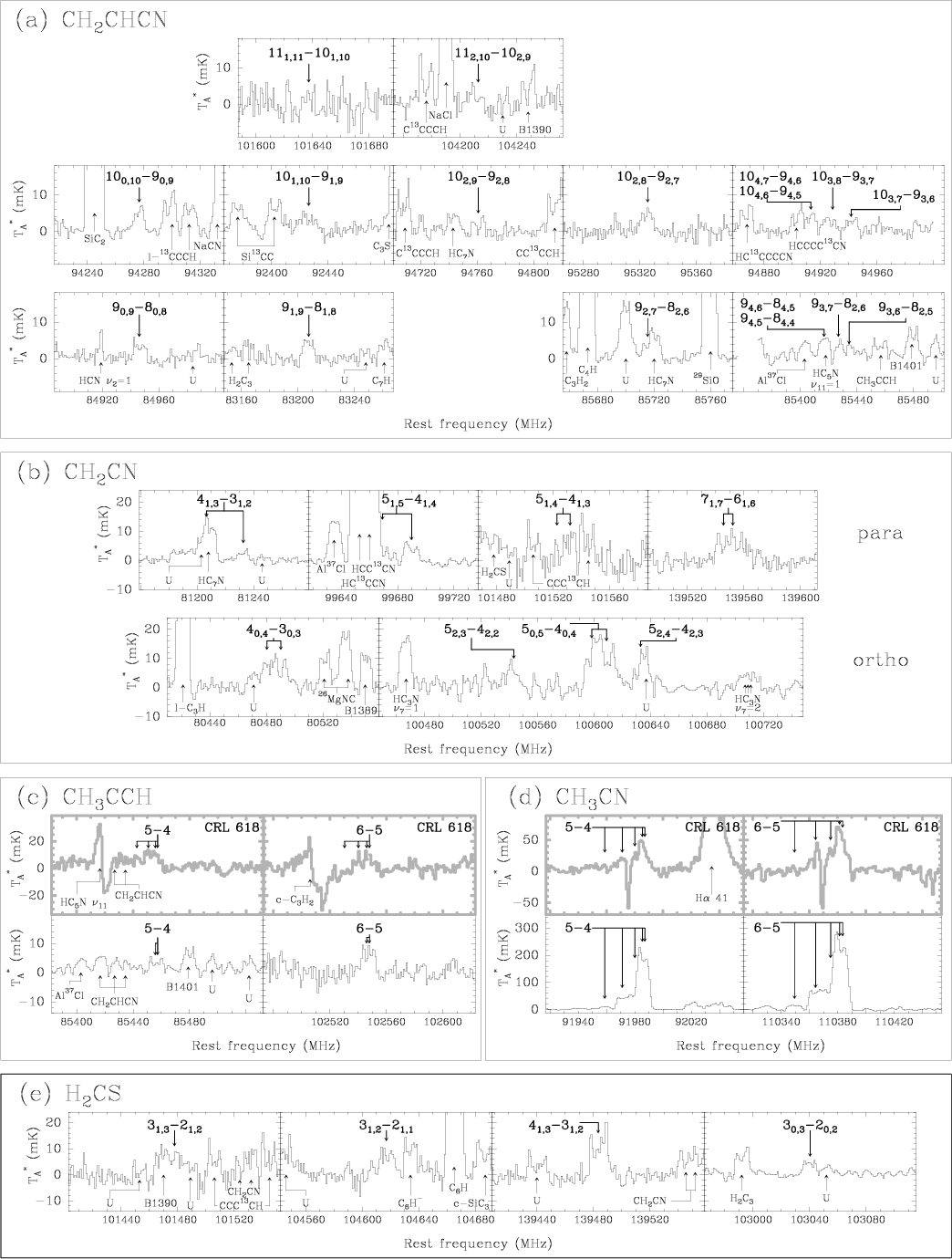

	Figure 1: Rotational lines of a) CH2CHCN, b) CH2CN, c) CH3CCH, d) CH3CN, and e) H2CS observed toward IRC +10216 with the IRAM 30-m telescope at a spectral resolution of 1 MHz. The frequency scale is computed for an LSR source velocity of -26.5 km s-1. For comparison purposes, the thick grey panels show spectra corresponding to CRL 618 (from Pardo et al. 2007). ``U'' means Unidentified line.
Open with DEXTER

Table 1: Line parameters of CH₂CHCN, CH₂CN, CH₃CCH, and H₂CS in IRC +10216.

3 Results

Figure 1 shows the observed spectra of IRC +10216 corresponding to the CH₂CHCN, CH₂CN, CH₃CCH, and H₂CS lines. The observational line parameters, obtained by using the SHELL fitting routine of the CLASS package, are given in Table 1. Linewidths have been fixed in many cases due to limited signal-to-noise (S/N) ratio or due to blending with other lines. The measured widths are consistent with an expansion velocity  $v_{\rm exp}$ around 14.5 km s^-1, in agreement with most of the molecular lines arising from the expanding envelope of IRC +10216 (Cernicharo et al. 2000). There are no missing lines of CH₂CN, CH₃CCH or H₂CS in the 3 mm atmospheric window. However, some lines of CH₂CHCN having similar strengths and upper level energies to those reported in Table 1 are not listed due to a complete blending with a stronger line or due to a low sensitivity of the spectra. For example the 11_0,11-10_0,10 transition at 103 575 MHz is blended with a strong component of the J= 21/2-19/2 $^2\Pi_{1/2}$ $\nu_7=1$ doublet of C₄H.

The line profiles can give us information on the spatial distribution of the molecules. In a spherically expanding envelope and for lines with a low optical depth, a double-peaked shape indicates that the emitting species has a distribution with an angular extent comparable or larger than the telescope beam (HPBW = 21''-31'' for IRAM 30-m at $\lambda$ 3 mm), while a flat-topped profile indicates that the emitting region is not spatially resolved by the telescope beam. The lines of CH₃CN in IRC +10216 have a double-peaked character (see Fig. 1), which indicates that this molecule has an extended distribution. In the case of the four species with which we are concerned, the low S/N ratio of most of the observed lines makes it difficult to distinguish whether line profiles are predominantly double-peaked or flat-topped for a given species. Therefore, any conclusion about the spatial distribution of the molecules derived from the line profiles must be taken with caution. We will, nevertheless, consider that CH₂CHCN, CH₂CN, CH₃CCH, and H₂CS have an extended distribution, based on chemical arguments (see Sect. 3.2 and Fig. 3), which essentially fills the telescope beam. Under such hypothesis, we have constructed rotational temperature diagrams to derive beam averaged column densities.

For CH₂CHCN (see Fig. 2) we derive a total column density $N_{\rm tot}$ = (5.5 $\pm$ 1.5) $\times$ 10¹² cm^-2and a rotational temperature of 46 $\pm$ 16 K, which is within the range of rotational temperatures derived for other shell-distributed molecules in IRC +10216: 20-50 K (Cernicharo et al. 2000).

In the case of CH₂CN, we have used all the observed lines - ortho and para - in a single rotational diagram (see Fig. 2). Given that the lines are detected with a low S/N ratio, we do not aim at determining the O/P ratio although the available data is consistent with the statistical value 3:1. We derive a rotational temperature of 50 $\pm$ 13 K and a total column density of $N_{\rm tot}$ = (8.6 $\pm$ 1.4) $\times$ 10¹² cm^-2, which is comparable to that of the related species CH₃CN (see Table 2).

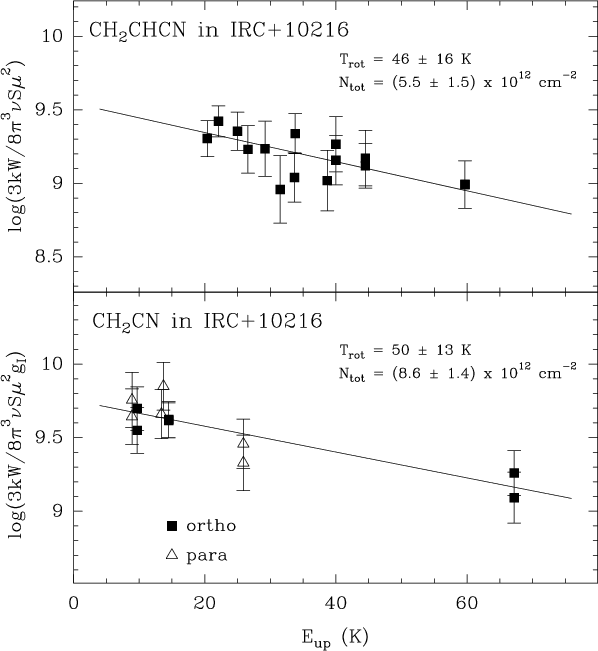

	Figure 2: Rotational temperature diagrams of CH2CHCN and CH2CN in IRC +10216. $T_{\rm rot}$ and $N_{\rm tot}$ have been determined from a weighted least-squares fit to the observational points, and their uncertainties reflect the 1$\sigma$ errors in the fits to the line profiles plus the 10% estimated uncertainty in the calibration.
Open with DEXTER

The two CH₃CCH lines detected are very likely a sum of the K = 0, 1 components, although the low S/N ratio does not allow us to clearly distinguish them. Assuming a rotational temperature of 30 K we tentatively derive a total column density of 1.8 $\times$ 10¹³ cm^-2. This value is comparable to the column density of CH₃CN in IRC +10216, which is detected through lines about 25 times stronger than those of CH₃CCH due to its much larger dipole moment ( $\mu_{\rm CH_3CN}$ = 3.925 D versus $\mu_{\rm CH_3CCH}$ = 0.780 D).

Both CH₃CN and CH₃CCH have been also detected in the C-rich preplanetary nebula CRL 618 (Pardo & Cernicharo 2006; Cernicharo et al. 2001; Pardo et al. 2007; see also Fig. 1), which is in a evolutionary stage immediately following that of IRC +10216. However, the CH₃CCH/CH₃CN ratio is noticeably different in these two objects. In IRC +10216 both molecules are present with a similar abundance (CH₃CCH/CH₃CN = 0.6). In contrast, in CRL 618 methylacetylene is much more abundant than methyl cyanide (Pardo et al. 2007), not only in the region corresponding to the first post-AGB ejections (CH₃CCH/CH₃CN = 6) but also in the warm and dense inner regions where UV photons efficiently drive a rich C-based photochemistry (CH₃CCH/CH₃CN = 15). Such a stage has not yet been reached by IRC +10216.

The four lines of H₂CS observed in IRC +10216 have similar $E_{\rm up}$ values, thus it is rather difficult to constrain the rotational temperature. Assuming an statistical O/P ratio of 3:1 and a rotational temperature of 30 K we derive a total column density $N_{\rm tot}$ = 1.0 $\times$ 10¹³ cm^-2 for thioformaldehyde, which is almost twice larger than that of formaldehyde (Ford et al. 2004; see Table 2).

4 Chemical modelling

In order to explain how the detected species are formed we have constructed a detailed chemical model of the outer envelope. The chemical network consists of 385 gas phase species linked by 6547 reactions, whose rate constants have been taken from Cernicharo (2004), Agúndez & Cernicharo (2006) and from the UMIST Database for Astrochemistry (Woodall et al. 2007). The temperature and density radial profiles as well as other physical assumptions are taken from Agúndez & Cernicharo (2006). The resulting abundance radial profiles for CH₂CHCN, CH₂CN, CH₃CCH, H₂CS and related species are plotted in Fig. 3. The model predicts that these four molecules would display an extended shell-type distribution with an angular radius of about 20''. The predicted and observed column densities are summarized in Table 2.

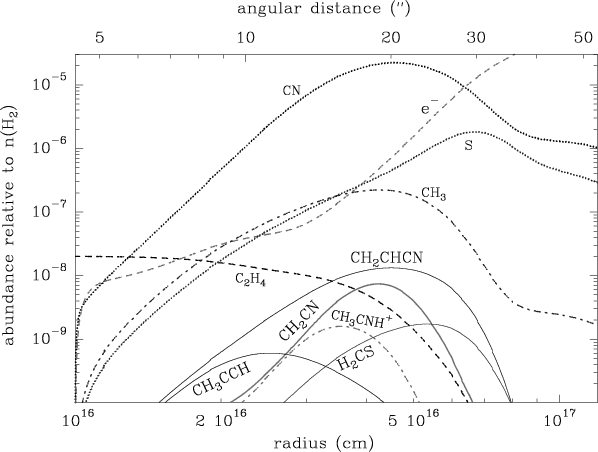

	Figure 3: Abundances of CH2CHCN, CH2CN, CH3CCH, H2CS (solid lines) and related species (dotted and dashed lines) given by the chemical model, as a function of radius ( bottom axis) and angular distance ( top axis) for an assumed stellar distance of 150 pc.
Open with DEXTER

Vinyl cyanide results from the reaction between CN and ethylene, the latter being found in the inner envelope with an abundance relative to H₂ of 2 $\times$ 10^-8 (Goldhaber et al. 1987). This reaction has been studied in the laboratory and found to be very rapid at low temperature (Sims et al. 1993) yielding vinyl cyanide (Choi et al. 2004):

$$% \rm CN + C_2H_4 \longrightarrow CH_2CHCN + H.$$ (1)

Our model predicts a total column density $N_{\rm tot}$ = 1.4 $\times$10¹³ cm^-2, which reasonably agrees with the value derived from the observations. The analogue of reaction (1) replacing C₂H₄ by C₂H₂ is the main formation pathway of HC₃N in IRC +10216. The much larger column density of HC₃N compared to that of CH₂CHCN (more than two orders of magnitude; see Table 2) reflects the large excess of acetylene over ethylene in the inner envelope of IRC +10216. In dark clouds, reaction (1) is also probably the main formation route to vinyl cyanide (Herbst & Leung 1990).

Table 2: Column densities of selected molecules in IRC +10216.

The dissociative recombination (DR) of the ion CH₃CNH⁺ is the major pathway to form both CH₂CN and CH₃CN:

$$% \begin{array}{rl} \rm CH^+ \stackrel{H_2} \longrightarrow C... ...2CN \\ &\rm\stackrel{e^-} \longrightarrow CH_3CN. \end{array}$$ (2)

The branching ratios of the channels giving CH₂CN and CH₃CN are not known and are assumed to be equal. In our model, the major destruction process for both CH₂CN and CH₃CN is the photodissociation by interstellar UV photons. The photodissociation rate of CH₃CN has been calculated by Roberge et al. (1991) but that of CH₂CN is unknown and we assume it to be the same as that of CH₃CN. Since the chemistry of these two molecules is relatively well constrained in IRC +10216, they are formed by the same reaction and their destruction is dominated by just one process, we may use the observed CH₂CN/CH₃CN ratio to estimate the branching ratios of the DR of the CH₃CNH⁺ ion. We find an 80% for the channel (CH₃CN + H) and 20% for (CH₂CN + H₂ or 2H). This estimate will be strongly affected if the photodissociation rate of CH₂CN is very different from that of CH₃CN but not if, as suggested by Herbst & Leung (1990) and Turner et al. (1990), CH₂CN reacts with atomic oxygen, the abundance of which is low in IRC +10216 at the radius where CH₂CN is present.

The related species CH₃C₃N is formed by the same sequence of reactions that produces CH₃CN, just replacing HCN by HC₃N. Its predicted column density is lower than that of CH₃CN by more than one order of magnitude. However, since our model predicts less CH₃CN than observed, the CH₃⁺ ion is probably underproduced, the column density of CH₃C₃N is most likely underestimated. If CH₃C₃N were present with a column density of several 10¹¹ cm^-2, the expected brightness temperatures would be a few mK and therefore it could be detectable. In fact, our IRAM 30-m line survey at $\lambda$ 3 mm of IRC +10216 (Cernicharo et al., in preparation) shows two unidentified features with $T_{\rm A}^*$ $\sim$2-3 mK at 86 756 MHz and 103 280 MHz that could correspond to the J = 21-20 and J = 25-24 transitions of CH₃C₃N respectively. The spectra covering other 3 mm transitions of CH₃C₃N are not sensitive enough to confirm or discard the presence of this species.

The synthesis of CH₃CCH involves various ion-molecule reactions with the dissociative recombination of the ions C₃H₅⁺ and C₄H₅⁺ as the last step. The model underestimates the observed CH₃CCH column density by one order of magnitude, probably due to uncertainties and/or incompleteness in the chemical network. The heavier chain CH₃C₄H is predicted to have a column density even higher than that of CH₃CCH. The smaller rotational constant B and larger rotational partition function of CH₃C₄H makes it less favorable for being observed at millimetre wavelengths. However its larger dipole moment ( $\mu_{\rm CH_3C_4H}$ = 1.207 D versus $\mu_{\rm CH_3CCH}$ = 0.784 D) could result in line intensities similar to those of CH₃CCH. Our IRAM 30-m $\lambda$ 3 mm data shows an unidentified feature with $T_{\rm A}^*$ $\sim$ 3 mK at 81 427 MHz that could be assigned to the J = 20-19 transition of CH₃C₄H. As occurs with CH₃C₃N, the detection of CH₃C₄H remains tentative since our current spectra covering other 3 mm lines is not sensitive enough.

Lastly, as previously discussed by Agúndez & Cernicharo (2006), H₂CS is formed by the neutral-neutral reaction S + CH₃ and the dissociative recombination of H₃CS⁺. The predicted column density is $N_{\rm tot}$ = 1.3 $\times$ 10¹² cm^-2, which is a factor 7 lower than the value derived from observations. We note that a significant fraction of both H₂CO and H₂CS could be formed on grain surfaces by hydrogenation of CO and CS respectively. It is remarkable that in IRC +10216 thioformaldehyde is more abundant than formaldehyde, despite the cosmic abundance of oxygen being 50 times larger than that of sulphur. The carbon-rich character of the CSE makes oxygen-bearing species to have a very low abundance.

5 Excitation mechanism: infrared pumping

The chemical model predicts that the molecules formed in the outer envelope have their peak abundances between 3 $\times$ 10¹⁶ cm and 6 $\times$ 10¹⁶ cm, which corresponds to angular radii of 13''-26'' for an assumed distance to IRC +10216 of 150 pc (see Fig. 3). Interferometric observations at millimetre wavelengths have located the molecular shell at about 15''(Lucas et al. 1995; Guélin et al. 1993; Audinos et al. 1994) although the exact value depends on the molecule and transition mapped. At this distance the gas density is a few 10⁴ cm^-3 and the gas kinetic temperature is lower than 20 K (Skinner et al. 1999). We may ask ourselves how the rotational levels are excited to result in rotational temperatures for CH₂CHCN and CH₂CN of 40-50 K, well above the gas kinetic temperature.

Collisions with H₂ molecules do not seem to be responsible of such an excitation. For example, in the case of the cyanomethyl radical the collision coefficients  $\gamma_{\rm ul}$ for CH₂CN-H₂ have not been measured or calculated but should be similar to those calculated for CH₃CN-H₂ by Green (1986), at least for the $K_{\rm a}$ = 0 ladder (see Turner et al. 1990, for more details). Thus, adopting a deexcitation collision coefficient $\gamma_{\rm ul}$ = 10^-10 cm³ s^-1, typical for $\Delta$J = -1, $\Delta$K = 0 transitions of CH₃CN, and an Einstein coefficient for spontaneous emission of $A_{\rm ul}$ = 5 $\times$ 10^-5 s^-1, the resulting critical density is $n_{\rm crit}$ = $A_{\rm ul}$/ $\gamma_{\rm ul}$ = 5 $\times$ 10⁵ cm^-3. This value is larger than the gas density expected at a distance of 4-5 $\times$ 10¹⁶ cm, so that the rotational levels are not thermalized and collisional excitation by itself should result in a rotational temperature lower than the gas kinetic temperature. In the cases of molecules such as CH₂CN, with a relatively large dipole moment, i.e. whose rotational levels are hardly thermalized in the outer envelope, and which have rotational temperatures above the kinetic temperature of the gas, the excitation is most probably dominated by a radiative mechanism.

Absorption of infrared photons and pumping into excited vibrational levels followed by radiative decay to rotational levels in the ground vibrational state has been invoked many years ago as the main excitation mechanism for some circumstellar molecules in IRC +10216 (Morris 1975). As a matter of fact, several molecules present in the outer envelope have been detected in excited vibrational states, e.g. C₄H $\nu_7$ = 1, 2 ($\nu_7$ = 131 cm^-1; Yamamoto et al. 1987; Guélin et al. 1987), HC₃N $\nu_7$ = 1 ($\nu_7$ = 223 cm^-1; Cernicharo et al. 2000), l-C₃H $\nu_4$ = 1 ($\nu_4$ = 28 cm^-1; Cernicharo et al. 2000), and SiC₂ $\nu_3$ = 1 ($\nu_3$ = 160 cm^-1; Cernicharo et al. 2000; Gensheimer & Snyder 1997). Radiative transfer calculations have also evidenced the importance of infrared pumping in exciting molecules such as HC₅N (Deguchi & Uyemura 1984) and H₂O (Agúndez & Cernicharo 2006) in IRC +10216. For this process to be efficient, the molecules must have vibrational modes active in the infrared, sufficiently strong and with a frequency at which the central object emits a high flux. The spectrum of IRC +10216 as seen by ISO peaks at a wavelength of $\sim$10 $\mu$m (Cernicharo et al. 1999) and the flux is very large within a wide wavelength range (see below). In fact, the excited vibrational states of C₄H, HC₃N, l-C₃H, and SiC₂ detected have wavelengths between 45 and 357 $\mu$m.

In the case of CH₂CHCN, there exists a large number of vibrational modes, the strongest of which are the bending modes $\nu_{12}$ and $\nu_{13}$ at 972 cm^-1 (10.3 $\mu$m) and 954 cm^-1 (10.5 $\mu$m) respectively (Khlifi et al. 1999; Cerceau et al. 1985). For CH₂CN the only available experimental information concerns the $\nu_5$ mode at 664 cm^-1 (15.1 $\mu$m; Sumiyoshi et al. 1996).

In order to give a quantitative estimate of how important is the infrared pumping compared to excitation by collisions, we may evaluate the rates of both processes. The excitation by infrared pumping operates through absorption of an infrared photon and promotion of a molecule from a given rotational level in the ground vibrational state (v₀, J'') to another rotational level in an excited vibrational state (v₁, J), from which it decays spontaneously to a different rotational level of the ground vibrational state (v₀, J') through either a single transition or a radiative cascade process. The rate at which the latter level (v₀, J') is populated is then governed by the rate of the absorption process: v₀, J''  $\rightarrow$ v₁, J, which is given by:

$$% R_{\rightarrow v_0, J'} = B_{v_0 \rightarrow v_1} 4 \pi \overline{J} \qquad [=] \quad {\rm s}^{-1}$$ (3)

where $B_{v_0 \rightarrow v_1}$ is the Einstein coefficient for absorption and $\overline {J}$ is the mean intensity, averaged over all solid angles, at the frequency of the infrared band. The deexcitation from the level (v₁, J) can be assumed as instantaneous in IRC +10216 for all relevant wavelengths.

The rate at which the rotational level (v₀, J') is populated by collisions with H₂ molecules is given by:

$$% C_{\rightarrow v_0, J'} = \gamma_{\rm lu} n(H_2) \qquad [=] \quad {\rm s}^{-1}$$ (4)

where $\gamma_{\rm lu}$ is the coefficient for rotational excitation, within the ground vibrational state, by collisions with H₂ and $n\rm (H_2)$ is the H₂ volume density.

To estimate the infrared flux in the outer envelope we have used the radiative transfer model described in Fonfría et al. (2007) and the ISO observations of IRC +10216 (Cernicharo et al. 1999). The best fit to the observed continuum between 7 and 27 $\mu$ is shown in the lower panel of Fig. 4. The SiC band at 11.3 $\mu$m is correctly reproduced. At long wavelengths the model seems to underestimate the absolute observed flux, which is nevertheless affected by the uncertainties in the multiplicative calibration factors applied in the data reduction (Swinyard et al. 1998).

The model has been used to calculate the radiation field at a distance of r = 5 $\times$ 10¹⁶ cm (20'') from the star (see upper panel in Fig. 4). The calculated spectral energy distribution can be approximated by a blackbody with a radius $R_{\rm bb}$ = 13 R_* and a temperature $T_{\rm bb}$ = 550 K (see upper panel in Fig. 4), so that we may use the Planck function for such a blackbody to evaluate 4$\pi$ $\overline {J}$ and see whether the rate for infrared pumping exceeds or not the collisional excitation rate. The radiative over collisional ``excess'' ( $R_{\rightarrow v_0, J'}$/ $C_{\rightarrow v_0, J'}$) may be evaluated as:

$$% \frac{R_{\rightarrow v_0, J'}}{C_{\rightarrow v_0, J'}} = \... ...\nu_{\rm IR}/k T_{\rm bb})} - 1] \gamma_{\rm lu} n({\rm H}_2)}$$ (5)

where ( g_{v1, J}/ g_{v0, J''}) is the ratio between the statistical weights of the (v₁, J) and (v₀, J'') states, $\nu_{\rm IR}$ and $A_{v_1 \rightarrow v_0}$ are the frequency and Einstein coefficient of spontaneous emission of the vibrational transition, and h and k are the Planck and Boltzmann constants. Adopting, to a first approximation, ( g_{v1, J}/ g_{v0, J''}) equal to unity and taking into account the variation of the H₂ volume density with radius, $n\rm (H_2)$[cm^-3] = 3.1 $\times$ 10³⁷/r² with r expressed in cm (see e.g. Agúndez & Cernicharo 2006), we arrive at:

$$% \frac{R_{\rightarrow v_0, J'}}{C_{\rightarrow v_0, J'}} = \... ...mu {\rm m}])} - 1\} \gamma_{\rm lu}[{\rm cm^3 \;s^{-1}}]}\cdot$$ (6)

The radiative over collisional excess is independent of radius, since both the radiation field and the H₂ volume density decrease with the square of the radius, and only depends on the wavelength and strength of the vibrational band and on the collision coefficient. Just as an example, if we take typical values $\gamma_{\rm lu}$ = 10^-10 cm³ s^-1 and $A_{v_1 \rightarrow v_0}$ = 1 s^-1 (adequate for vibrational modes sufficiently strong), we obtain that the rate of infrared pumping exceeds the collisional excitation rate for vibrational modes with wavelengths  $\lambda_{\rm IR}$ larger than $\sim$6 $\mu$m. Bending modes have usually wavelengths larger than this lower limit, thus if the mode is active in the infrared and sufficiently strong, the rotational levels of that molecule will be mostly excited through infrared pumping in the circumstellar envelope of IRC +10216. For example, the two bending modes of CH₂CHCN $\nu_{12}$ (972 cm^-1; 10.3 $\mu$m) and $\nu_{13}$ (954 cm^-1; 10.5 $\mu$m) have Einstein coefficients for spontaneous emission of 2.9 s^-1 and 2.8 s^-1 respectively. The collision coefficients  $\gamma_{\rm ul}$ for CH₂CHCN-H₂ are not known, but according to Eq. (6), values as large as 5 $\times$ 10^-9 cm³ s^-1 are required for making collisions to dominate over infrared pumping. Thus, this molecule will be preferably excited by infrared pumping through these two bending modes in IRC +10216.

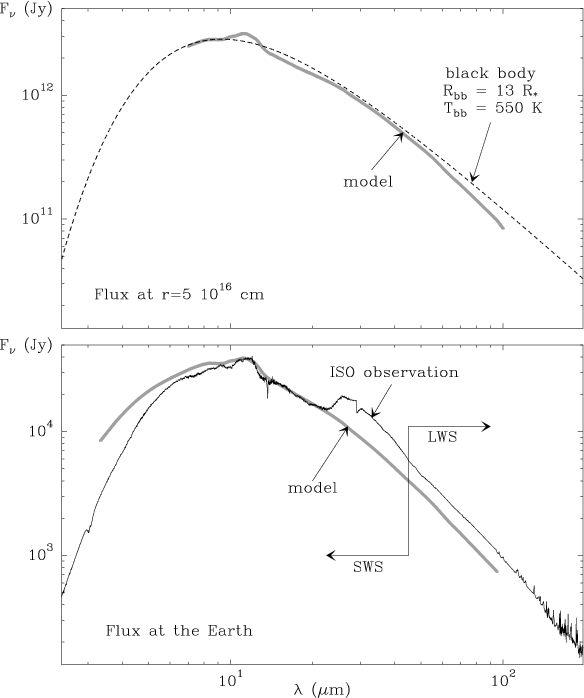

Figure 4: Spectral energy distribution of IRC +10216 at infrared wavelengths. The lower panel shows the fit to the continuum observed by ISO. Most of the discrepancies between model and observations in the 7-20 $\mu$m range are likely due to molecular infrared bands, which are not considered in the model. In the top panel the radiation field (4$\pi$ $\overline {J}$) at a point 5 $\times$ 1016 cm away from the star, as given by the model, is compared to that expected with a central blackbody of radius 13 R* and temperature of 550 K.

Open with DEXTER

6 Discussion

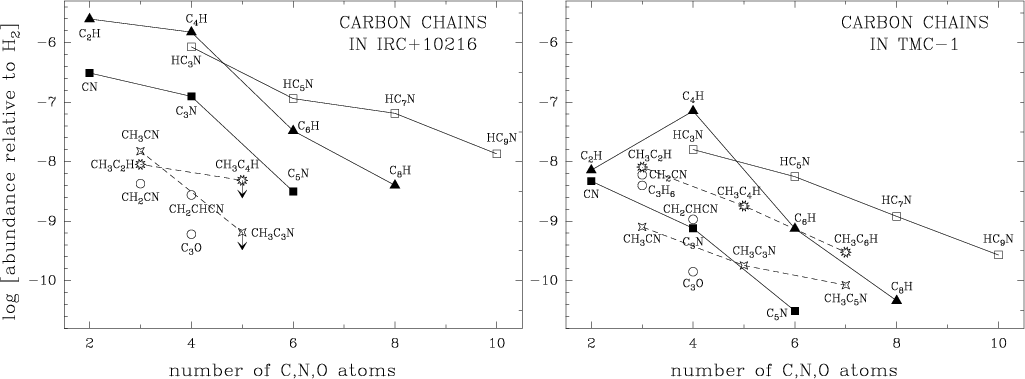

Figure 5: Abundances of carbon chain molecules in IRC +10216 and TMC-1. The diagram is an extension of that published by Cernicharo et al. (1987). The fractional abundances relative to H2 are computed from the molecular column densities and the total H2 column density. We use N(H2) = 1022 cm-2 in TMC-1 (Cernicharo & Guélin 1987) and N(H2) = 2 $\times$ 1021 cm-2 in IRC +10216. The latter value corresponds to the total H2 column density contained in an outer shell extending from 2 $\times$ 1016 cm to 7 $\times$ 1016 cm, where all the molecules considered in the diagram are most probably present. The choice of these boundaries is not critical for the values of the molecular abundances. Only if any of the molecules considered does not form in the outer envelope but in the inner regions of the CSE, then its abundance would be substantially overestimated.

Open with DEXTER

The detection in IRC +10216 of the partially saturated organic molecules reported in this Paper invites for a comparison to TMC-1, the other Galactic source that displays, together with IRC +10216, the largest wealth in unsaturated carbon chain molecules. For that purpose we have represented in Fig. 5 the fractional abundances of carbon chains in these two sources as a function of the number of heavy atoms.

Chemistry proceeds in a different way in these two objects. In IRC +10216 interstellar UV photons drive the chemistry by photodissociating the closed shell molecules flowing out from the inner envelope. In TMC-1 the gas is well shielded against the interstellar UV field and the built-up of molecules is driven by ionisation by cosmic rays. This introduces a sharp difference in the time scales of the processes being at work. In IRC +10216 the gas travels throughout the CSE during a few thousands of years and the chemical processes take place in shorter time scales. In TMC-1 the built-up of molecules has time scales of the order of millions of years and the depletion from the gas of some species, due to condensation on grains, is a major issue at late times. A consequence of this is the lower level at which molecules are present in TMC-1 compared to IRC +10216. As an example we see in Fig. 5 that the most abundant carbon chains in both sources are those with a highly unsaturated character, cyanopolyynes and polyyne radicals, the abundances of which are larger in IRC +10216 than in TMC-1 by more than one order of magnitude.

Another important difference between these two sources could lie in the C/O ratio. In IRC +10216, the processes of dredge-up related to the AGB phase have resulted in a photospheric C/O ratio higher than 1. This controls the chemistry in the outer envelope: almost all the oxygen keeps locked into CO during most of the expansion while the carbon in excess can participate in a rich carbon chemistry. In TMC-1 it is not clear whether the C/O ratio is higher or lower than 1. The large number of carbon chains found argues in favor of a C/O ratio >1, which is unusual for a dense cloud, and some chemical models have used it because a better agreement with observations is achieved (Smith et al. 2004). On the other hand, oxygen is cosmically more abundant than carbon and TMC-1 contains a substantial number of O-bearing molecules (Ohishi & Kaifu 1998), which points toward a C/O ratio <1. If the latter is true, then the carbon chemistry would be limited due to the presence of atomic oxygen which tends to destroy the chemical complexity (Herbst et al. 1994), something that does not happen in IRC +10216 due to the unavailability of free atomic oxygen (Millar & Herbst 1994). This could also explain the systematically lower abundances of carbon chains in TMC-1 compared to IRC +10216.

If we focus on partially saturated species, such as methylpolyynes, methylcyanopolyynes, CH₂CN or CH₂CHCN, then we note that in IRC +10216 they are present at a lower level than the highly unsaturated species, while in TMC-1 partially saturated and highly unsaturated molecules have abundances in many cases comparable; e.g. compare the ratio of the abundances of CH₂CN and HC₃N in both sources. Thus, chemistry seems to favor the presence of species with a higher degree of saturation in dark clouds than in C-rich circumstellar envelopes. The recent detection of the highly saturated hydrocarbon propylene in TMC-1 (Marcelino et al. 2007) supports this point.

In IRC +10216 the UV field which drives the chemistry is mostly photodissociating but not ionising, so that the dominant reactions are neutral-neutral rather than ion-molecule. In TMC-1, the chemistry is triggered by cosmic rays ionisation, and ion-molecule reactions do greatly participate in the built-up of molecules. Note that chemical models have traditionally explained the formation of molecules in interstellar clouds by means of ion-molecule reactions. However, since it was discovered that some neutral-neutral reactions are very rapid at low temperatures, it is now thought that these latter reactions dominate the formation of highly unsaturated carbon chains such as cyanopolyynes (Herbst et al. 1994). That is, in general terms we may state that ``current gas phase chemical models form highly unsaturated carbon chains mostly by neutral-neutral reactions while partially saturated molecules are generally formed by ion-molecule reactions''. Therefore, ion-molecule reactions could be, ultimately, the responsible of the higher degree of saturation observed in TMC-1 compared to IRC +10216. Grain surface reactions, which are very efficient in producing highly saturated molecules, could also play a role in the peculiar chemistry of TMC-1. However, it is not clear how these mantle species would be desorbed to the gas phase at the low temperatures prevailing in these regions.

7 Conclusions

In summary, we have shown that apart from the abundant highly unsaturated cyanopolyynes and polyyne radicals, analogous molecules with a higher degree of saturation are also present in IRC +10216. In this paper we have presented the detection of CH₂CHCN, CH₂CN, CH₃CCH, and also of thioformaldehyde. The relatively high rotational temperatures, 40-50 K, derived for CH₂CHCN and CH₂CN suggest that these species are excited in the circumstellar envelope through radiative pumping to excited vibrational states.

The formation of partially saturated organic molecules in IRC +10216 resembles that occurring in cold dense clouds and stresses the similarity between the chemistry in these two types of sources. However, unlike in TMC-1, their abundances are much lower than those of highly unsaturated molecules, like cyanopolyynes and polyyne radicals, which reflects the differences in the chemical processes at work in dark clouds and C-rich circumstellar envelopes.

Acknowledgements

We acknowledge comments and suggestions from the referee. This work has been supported by Spanish MEC through grants AYA2003-2785, ESP2004-665 and AYA2006-14876, by ``Comunidad de Madrid'' under PRICIT project S-0505/ESP-0237 (ASTROCAM) and by the European Community's human potential Programme under contract MCRTN-CT-2004-51230 (The Molecular Universe). MA also acknowledges funding support from Spanish MEC through grant AP2003-4619.
