A&A 468, 617-625 (2007)
DOI: 10.1051/0004-6361:20077289

A multi-transition molecular line study of candidate massive young stellar objects associated with methanol masers

M. Szymczak¹ - A. Bartkiewicz¹ - A. M. S. Richards²

1 - Torun Centre for Astronomy, Nicolaus Copernicus University, Gagarina 11, 87-100 Torun, Poland
2 - Jodrell Bank Observatory, University of Manchester, Macclesfield, Cheshire SK11 9DL, UK

Received 13 February 2007 / Accepted 19 March 2007

Abstract
Aims. We characterize the molecular environment of candidate massive young stellar objects (MYSOs) signposted by methanol masers.
Methods. Single pixel observations of 10 transitions of HCO⁺, CO and CS isotopomers were carried out, using the IRAM 30 m telescope. We studied a sample of 28 targets for which the 6.7 GHz maser emission positions are known with a sub-arcsecond accuracy.
Results. The systemic velocity inferred from the optically thin lines agrees within $\pm$3 km s^-1 with the central velocity of the maser emission for most of the sources. About 64% of the sources show line wings in one or more transitions of CO, HCO⁺ and CS species, indicating the presence of molecular outflows. Comparison of the widths of line wings and methanol maser emission suggests that the 6.7 GHz maser line traces the environment of MYSO of various kinematic regimes. Therefore, conditions conducive for the methanol maser can exist in the inner parts of molecular clouds or circumstellar discs as well as in the outer parts associated with molecular outflows. Calculations of the physical conditions based on the CO and HCO⁺ lines and the CS line intensity ratios refine the input parameters for maser models. Specifically, a gas number density of <10⁷ cm^-3 is sufficient for strong maser emission and a high methanol fractional abundance (> $5\times10^{-7}$) is required.

Key words: ISM: molecules - radio lines: ISM - stars: formation - masers

1 Introduction

There is compelling evidence that methanol masers are a signature of recent or ongoing high-mass star formation (Menten 1991). However, it is not yet fully understood when they appear in an evolutionary sequence and what they actually trace. The evaporation of grain mantles is postulated as the main process enhancing the fractional abundance of methanol molecules in the gas phase up to 10^-6 (Dartois et al. 1999). This implies that methanol masers can emerge after the formation of an embedded heating source. Methanol maser sources rarely show strong (>100 mJy) free-free emission at centimetre wavelengths implying that they precede the development of detectable ultra-compact HII (UCHII) region (Walsh et al. 1998; Codella & Moscadelli 2000). The estimated lifetime of methanol masers is a few $\times10^4$ yr (van der Walt 2005) which is similar to the typical dynamical timescales of molecular outflows. High spatial resolution observations revealed a variety of maser site sizes from 40-1200 AU (e.g. Norris et al. 1998; Walsh et al. 1998; Minier et al. 2000). The maser emission arises either from circumstellar discs or behind shocks tracing outflows from massive young stellar objects (MYSOs). No object was found that unequivocally confirms one of these scenarios.

Table 1: List of targets.

The non-linear nature of maser amplification means that it is difficult to relate the maser line intensity directly to the physical parameters of the active region. Theoretical models predict the formation of methanol maser lines under a rather wide range of gas and dust temperatures (30-200 K and 100-300 K, respectively) and hydrogen number densities ( 10⁵-10⁸ cm^-3) (Cragg et al. 2002). Thus, it appears that a better understanding of the environments in which the masers arise is required in order to realise their full potential as probes of the formation of high-mass stars.

In this paper we report our attempts to constrain the range of environments probed by methanol masers using observations of thermal emission from other molecular species and lines. Specifically, the ratios of the intensities of different transitions of CS and C³⁴S molecules are used to obtain the temperature and density of the gas. The optically thin and thick lines of CO and HCO⁺ are used to constrain the column density. These techniques were successfully used to characterize other samples of MYSOs (e.g. Plume et al. 1997; Beuther et al. 2002a; Purcell et al. 2006). Additionally, the molecular line profiles yield information on the kinematics of various parts of the molecular clouds surrounding the high-mass protostars (e.g. Fuller et al. 2005; Purcell et al. 2006).

A homogeneous and unbiased sample of MYSOs is necessary in order to address these issues properly. Our recent 6.7-GHz unbiased survey for methanol masers in selected regions of the Galactic plane (Szymczak et al. 2002) provides such a complete, sensitivity limited sample of candidate MYSOs. Objects identified in the survey probably represent a class of MYSOs in an early evolutionary phase. Some groups and individual sources in this class, selected using various diagnostics of high-mass star formation, have been studied in thermal molecular lines (Brand et al. 2001; Beuther et al. 2002a; Fuller et al. 2005), but this is the first published study of a homogeneous sample based solely on the presence of detectable methanol masers.

2 The sample

The 28 sources observed in this study (Table 1) were chosen from a sample of 100 methanol maser sources found in the Torun 32 m telescope blind survey for the 6.7 GHz methanol line in the Galactic plane area $20^\circ\leq l\leq 40^\circ$ and $\vert b\vert\leq 0\hbox{$.\!\!^\circ$ }52$(Szymczak et al. 2002). This flux-limited ( $3\sigma \simeq 1.6$ Jy) subsample includes 25 out of 26 sources which were undetected prior to the Torun survey. Therefore, our subsample specifically excludes previously known sources associated with OH maser emission (Caswell et al. 1995) or with IRAS-selected bright UCHII candidates (Schutte et al. 1993; van der Walt et al. 1995; Walsh et al. 1997). Assuming that CH₃OH masing precedes the appearance of OH masers and detectable UCHII regions, the objects studied here represent sites of high-mass star formation at a very early stage. The average peak maser flux of the 28 targets is 17.3 Jy, a factor of 2.6 lower than that of the other 72 objects in the original sample, suggesting that distant or intrinsically faint objects may be over-represented in our subsample. The subsample studied here is most certainly not complete.

2.1 Astrometric positions

The coordinates and position uncertainties of the brightest 6.7-GHz maser component in each source are presented in Table 1. The LSR velocity of this component ($V_{\rm p}$) and its peak flux density ($S_{\rm p}$) are given for each target. The positions and flux densities of all but three objects were measured with the Mark II - Cambridge baseline of MERLIN in two sessions between 2002 May and 2003 May. For the three objects not measured the peak velocities were taken from Szymczak et al. (2002).

The observational setup and data reduction were described in Niezurawska et al. (2005). A primary goal of those astrometric measurements was to determine the positions with sub-arcsecond accuracy for follow-up VLBI observations. Measurement errors mainly depended upon the ratio of the beam size to the signal to the noise ratio (Thompson et al. 1991). If the emission was complex we took the dispersion of neighbouring maxima as the position uncertainty. The N-S elongation of the synthesized beam close to declination 0$^\circ$ produces a split peak, in which case the position uncertainty in that direction was taken as half the separation of the maxima. Consequently, for sources with a single clear peak, the position errors in right ascension were as small as 0 $.\!\!^{\prime\prime}$02 but increased up to 0 $.\!\!^{\prime\prime}$90 for sources with complex emission. The respective errors in the declination were 0 $.\!\!^{\prime\prime}$14 and 1 $.\!\!^{\prime\prime}$6. Comparison with our unpublished VLBI observations reveals position differences between MERLIN and VLBI measurements no worse than a few tens of milli-arcseconds. This implies that the values listed in Table 1 are maximal position errors for most of the targets. The flux densities listed in Table 1 are a factor of 2-3 lower than those measured with the single dish (Szymczak et al. 2002) and should be considered as lower limits. The exact flux scale and gain-elevation effects for low-declination sources are not yet fully investigated at 6 GHz but comparison of calibration sources in common with other experiments shows that the uncertainties are  $10{-}\le50\%$. This suggests that about half the methanol flux arises on scales larger than the beam size of 50-100 mas.

2.2 Distances

The distances were determined using the Galactic rotation curve of Brand & Blitz (1993) and the central velocity of each 6.7 GHz methanol maser profile as measured by Szymczak et al. (2002). Selection of this velocity as a reliable estimator of the systemic velocity is proven in Sect. 6.1. The sources are all in the first quadrant so that there is an ambiguity between the near and far kinematic distances. In most cases we are unable to resolve this ambiguity because there are no independent distance measurements in the literature for our sample. Based on the arguments discussed in Walsh et al. (1997), we adopted the near kinematic distances (Table 4).

3 Observations and data reduction

Observations were carried out between 2004 September 28 and October 2 with the IRAM 30 m telescope. Ten transitions of HCO⁺, CO and CS isotopomers were observed. Two or three SIS receivers tuned to single sideband mode were used simultaneously, in combination with the VESPA autocorrelator as well as with 100 kHz and 1 MHz filter banks. Table 2 lists the rest line frequencies, half power beam widths (HPBWs), velocity resolutions and typical system temperatures for each transition.

The data were taken using the position switching mode. The off positions were typically 30$^\prime$  away from the targets. In the few cases, especially for the C¹³O J=2-1 line, where emission was seen at the reference position, the offsets were increased up to 45$^\prime$  in the direction away from the Galactic plane. The observations were centered on the target positions listed in Table 1. Integration times on-source in total power mode were 12-18 min per frequency setting, resulting in rms noise levels ranging from $\approx$0.05 K at 87 GHz to $\approx$0.90 K at 245 GHz for a spectral resolution of 0.10-0.16 km s^-1. Pointing was checked regularly on nearby continuum sources and was usually found to be within 2 $^{\prime\prime}$ and always within 3 $^{\prime\prime}$. The spectra were scaled to the main beam brightness temperature ( $T_{\rm mb}$) using the efficiencies supplied by the observatory. Comparison of our data with those taken by Brand et al. (2001) with the same telescope and spectral resolutions for a source in common, 36.115+0.552, implies consistent intensity scales within less than 30%.

The data reduction was performed using the CLASS software package. Low order polynomials were applied to remove baselines from the calibrated spectra. The line parameters were determined from Gaussian fits and are listed in Table A.1 where the following information is given: the rms (1$\sigma$) noise level, the extreme velocities $V_{\rm s}$, $V_{\rm e}$ where the intensity drops below the 2$\sigma$ level, the peak temperature $T_{\rm mb}$, the velocity of the peak $V_{\rm p}$, the line width at half maximum $\Delta V$ and the integrated line intensity $\int T_{\rm mb}{\rm d}v$. Velocities are in the LSR frame. In several cases where the profiles were non-Gaussian, these values were read off from the spectra. In some cases the spectra were smoothed to improve the signal to noise ratio. In this paper, only the autocorrelation spectra are analyzed.

Table 2: Observing parameters.

4 Results

The basic parameters of molecular transitions derived from Gaussian analysis are assembled in Table A.1, while the spectra are shown in Fig. A.1.

The sensitivity achieved and detection rate for each transition are summarized in Fig. 1. The histogram counts as detected only those lines with $T_{\rm mb}>3\sigma$. ¹³CO(2-1), C¹⁸O(2-1), CS(2-1) and CS(3-2) lines were detected in all sources. HCO⁺(1-0) and H¹³CO⁺(1-0) lines were detected in all but one source. The detection rates in C³⁴S(2-1) and C³⁴S(3-2) transitions were about half of those in CS(2-1) and CS(3-2) lines. Because the sensitivities achieved for these four lines were comparable, these detection rate differences reflect a real drop in the number of sources exhibiting emission at the same level in the C³⁴S(2-1) and C³⁴S(3-2) lines. In contrast, the lower detection rates in the CS(5-4) and C³⁴S(5-4) transitions appear to reflect the drop in sensitivity.

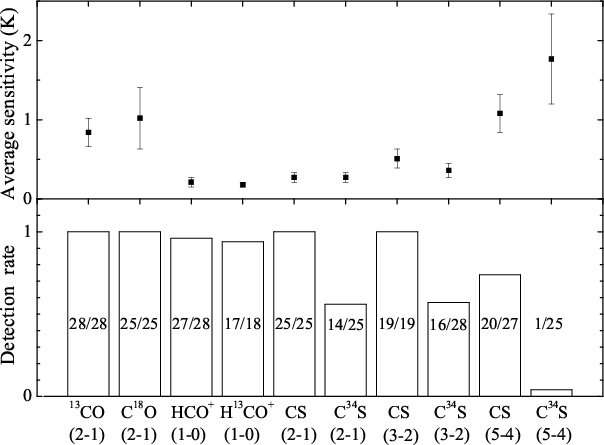

	Figure 1: The average sensitivity achieved for each transition ( top) and the detection rate ( bottom). The ratio of the number of detected to observed objects is shown in each of the bars.
Open with DEXTER

4.1 Systemic velocities

Five of the observed lines (C¹⁸O(2-1), H¹³CO⁺(1-0) and the J=2-1, 3-2 and 5-4 transitions of C³⁴S) are expected to be optically thin (Plume et al. 1997; Brand et al. 2001; Purcell et al. 2006). These lines can be used to determine source systemic velocities. In order to test whether these species trace the same or similar kinematic regimes we compare their line parameters. The C³⁴S(5-4) line is excluded from the following analysis due to very low number of detections.

The average intensities of the H¹³CO⁺(1-0) and C³⁴S lines are very similar and are a factor of 8 weaker than the average intensity of the C¹⁸O(2-1) line. This implies that the parameters of the latter line, especially $V_{\rm p}$, are determined most accurately.

We note that some line rest frequencies adopted from Brand et al. (2001) differ slightly from those recommended by Lovas (2003). In the extreme case of C³⁴S(3-2) this results in the velocity difference of 0.07 km s^-1. Moreover, the uncertainties in the line rest frequencies introduce a maximum uncertainty of $\pm$0.17 km s^-1 to the derived line velocity for the H¹³CO⁺(1-0). We assume that the above uncertainties affect the velocity estimates by up to 0.24 km s^-1. Comparison of the velocities of the four optically thin lines in our sample reveals no significant average differences higher than 0.30 km s^-1. This suggests the same kinematic behaviour of these low-density gas tracers.

At 100 K the thermal linewidths of C¹⁸O(2-1) and H¹³CO⁺(1-0) are 0.24 km s^-1 whereas those of C³⁴S(2-1) and C³⁴S(3-2) are 0.20 km s^-1. The observed linewidths are much broader, suggesting that turbulence or bulk gas motions play a significant role in the line broadening. The mean linewidth ratios of the optically thin lines are 5-10% higher than unity. This bias is relatively small and suggests that the lines trace the same molecular gas in the beam. The systemic velocities are listed in Table 4. They are primarily the C³⁴S(2-1) and C³⁴S(3-2) line peak velocities. If emission in these lines is absent or weak the other optically thin lines are used. In two sources, 37.030-0.039 and 37.600+0.426, the systemic velocities are derived from CS(5-4) and HCO⁺(1-0) profiles, respectively. We conclude that in most cases the observed optically thin lines are well fitted by single Gaussian profiles (deviations are discussed in Sect. 4.2.2) and their peak velocities are within $\pm$0.4 km s^-1 of each other for almost all sources in the sample. Therefore, these lines provide reliable estimates of systemic velocity of sufficient accuracy to allow comparison with the methanol maser velocities listed in Szymczak et al. (2002).

4.2 Shape of profiles

We analyse the molecular line profiles in order to search for specific signatures of ordered motions such as infall, outflow or rotation. Inward motion can be signposted by blue asymmetric profiles (Myers et al. 1996; Fuller et al. 2005) if the molecular spectral lines trace sufficiently dense gas. Signatures of outflow or rotation are generally manifested in the line wings.

4.2.1 Asymmetry

We analysed line asymmetry quantitatively using the asymmetry parameter (Mardones et al. 1997), $\delta v=(v_{\rm thick}- v_{\rm thin}$)/ $\Delta V_{\rm thin}$, where $v_{\rm thick}$ and $v_{\rm thin}$ are the peak velocities of optically thick and optically thin lines, respectively and $\Delta V_{\rm thin}$is the line width at half maximum of the optically thin line. We used C³⁴S(2-1) as the optically thin line and the best available measure of the systemic velocity of MYSOs. Figure 2 shows histograms of the distribution of $\delta v$ for the optically thick lines ¹³CO(2-1), HCO⁺(1-0), CS(2-1), CS(3-2) and CS(5-4). There are approximately equal numbers of blue and red asymmetric profiles in our sample. Specifically, we note that there is no evidence for an excess of blue-shifted emission in the optically thick lines. Such an excess is postulated as the signature of inward motion of the gas (Myers et al. 1996). We suggest that motions other than infall, i.e. turbulence, rotation and outflow, are the dominant factor producing asymmetric profiles for most of the sources in our sample. It is possible that infall signatures could be masked by the relatively low resolution (typically $\ge$0.2 pc, i.e. at a distance of 5 kpc and spatial resolution of 10 $^{\prime\prime}$) of our observations, since even the near kinematic distances are >3 kpc for $\sim$80% of the sources (the average $D_{\rm near}$ is $5.2\pm2.5$ kpc for the whole sample).

We therefore examined separately the 5 closest ( $D_{\rm near}<2.8$ kpc) objects with well-determined asymmetry parameters. Two of these, 26.598-0.024 and 30.316+0.069, consistently show negative values of $\delta v$, i.e. blue asymmetry, in the ¹³CO(2-1), HCO⁺(1-0), CS(2-1) and CS(3-2) line profiles (Fig. A.1). The corresponding values of $\delta v$ are -0.38, -0.82, -0.15 and -0.18 for source 26.598-0.024 and -0.43, -0.60, -0.33 and -0.37 for source 30.316+0.069. Their asymmetry parameters are smaller for the optically thin lines (i.e. C¹⁸O(2-1) and H¹³CO⁺(1-0)), in the range from -0.20 to 0.0. Such a dependence of the amount of blue asymmetry on the optical depth of the transition is typical in molecular cores experiencing infall (Narayanan et al. 1998). We suggest that these two sources are the clearest infall candidates although source complexity or a combination of outflow and rotation could contribute to asymmetries in optically thick profiles.

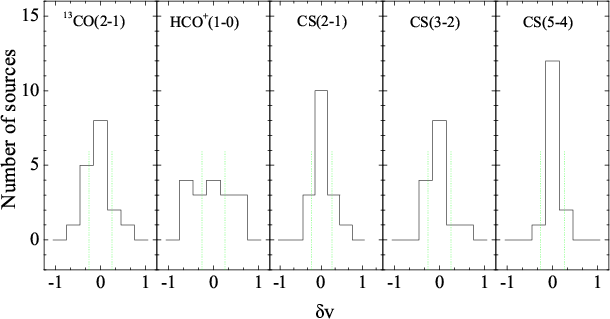

	Figure 2: Histograms of the distribution of the asymmetry parameter $\delta v$ for the five transitions. The range of $\vert\delta v\vert< 0.25$ marked by the dotted lines corresponds to the spectra with no asymmetry.
Open with DEXTER

4.2.2 Wings

Wing emission is identified by the presence of residuals after Gaussian fitting and by comparing the same transitions of optically thick and thin isotopomers. A single Gaussian function provides a good fit to most of the optically thin lines analyzed in Sect. 4.1, but in a few cases the residuals are at a level $\ge$$3\sigma$, assumed to be wing emission. We cannot exclude the possibility that they are weak separate component(s), given the limitations of our signal to noise ratio and spectral resolution, but we note that the blue and/or red residuals are non-Gaussian in most cases. 4 out of 25 sources detected in the C¹⁸O(2-1) line show weak (3-4$\sigma$) wing emission of width 4.5-8 km s^-1 (Table 3) which mostly is seen from the red or blue sides of the profiles. In the H¹³CO⁺(1-0) line the wing emission is seen in 2 out of 17 objects detected (Table 3). 25.410+0.105 is a peculiar source showing broad (7-8 km s^-1) and symmetric wings in both lines (Fig. A.1).

In contrast, the optically thick lines show more frequent absorption dips, multiple components and wings. In several cases identification of the wings is difficult. The ¹³CO(2-1) profiles are especially complex; commonly they are fit by 2-5 Gaussians. These profiles can be interpreted as multiple emitting regions along the same line of sight. The ¹³CO(2-1) lines show evidence of wings in only 3 objects (Table 3).

Table 3: Statistics of wing occurrence. Entries marked Y or N indicate symmetric wings and no wings respectively, Yb or Yr indicate wing emission seen from the blue and red sides of the profiles, respectively. An interrogation point (?) indicates a tentative wing and the absence of entry indicates no observation.

The HCO⁺(1-0) lines are also complex, often exhibiting two or more components or broad line wings (Fig. A.1). They appear to consist of the superposition of several emitters seen along the line of sight or of (self)absorption by cooler gas on the near side of the source. Wings are identified in 17 out of 27 detections (Table 4). The wing full width ranges from 6 to 20 km s^-1 with a mean value of  $10.3 \pm 3.3$ km s^-1.

Evidence for wings is seen in the CS(2-1) transition for 9 out of 25 sources and in the CS(3-2) transition for 7 out of 19 sources (Table 3). Their full widths are from 8 to 19 km s^-1.

We conclude that 64% (18/28) of the sources show residual line wings at least in one line when a Gaussian profile is used to fit the CO, HCO⁺ and CS molecular lines. Detection of the wings may indicate molecular outflows from the MYSOs identified by methanol masers but we caution that such detections based on our data alone are only tentative.

Table 4: Derived properties.

5 Derivation of physical parameters

5.1 Column densities

In order to estimate the column density of H¹³CO⁺from the observed HCO⁺(1-0) and H¹³CO⁺(1-0) line parameters, we follow the procedure outlined in Purcell et al. (2006) and references therein. Briefly, the main assumptions made are: (i) HCO⁺(1-0) is optically thick and H¹³CO⁺(1-0) is optically thin. (ii) Both lines form in the same gas and share the same excitation temperature. (iii) The excitation temperature is equal to the rotational temperature. (iv) The gas is in local thermodynamic equilibrium. (v) The beam filling factor is one for both lines.

The derived H¹³CO⁺ column density, N(H¹³CO⁺), (Table 4) ranges from $1.3{-}5.1\times10^{12}$ cm^-2 and the median value is $2.2\times10^{12}$ cm^-2. We derive a value of N(H¹³CO⁺) a factor of 4 smaller than the value found by Purcell et al. (2006) for two of the sources common to both samples, 22.357+0.066 and 23.707-0.198. This is probably because Purcell et al. applied corrections for self-absorption, leading to higher estimates of the HCO⁺(1-0) line intensities and lower optical depths, compared with our study. We adopt an abundance ratio of [H¹³CO⁺]/[H₂] = $3~\times$10^-11 (Girart et al. 2000), from which we obtain the H₂ column density from $4.3{-}17.0\times10^{22}$ cm^-2with the median value of $7.3\times10^{22}$ cm^-2.

We apply the same method to estimate the column density of C¹⁸O, N(C¹⁸O), from the line parameters of ¹³CO(2-1) and C¹⁸O(2-1), assuming that ¹³CO(2-1) is optically thick and C¹⁸O(2-1) is optically thin. For our sample N(C¹⁸O) is $0.9{-}32.6 \times 10^{15}$ cm^-2 (Table 4) with the median value of  $4.6 \times10^{15}$ cm^-2. The temperature varies between 10 and 30 K. The resulting H₂ column density ranges from $5.4\times10^{21}{-}1.9\times10^{23}$ cm^-2 for an abundance ratio [C¹⁸O]/[H $_2]=1.7 \times 10^{-7}$(Frerking et al. 1982).

We conclude that the CO and HCO⁺ data provide consistent estimates of the column density of H₂ towards the methanol maser sources. The range of N(H₂) derived here is in good agreement with that reported for high-mass protostar candidates associated with methanol masers; $3\times10^{22}{-}2\times10^{23}$ cm^-2(Codella et al. 2004; Minier et al. 2005; Purcell et al. 2006). However, it is significantly lower than N(H $_2)\ge 4\times10^{23}$ cm^-2 reported in some earlier works (e.g. Churchwell et al. 1992) for ultra-compact HII regions. This discrepancy is likely due to the temperatures of 10-30 K derived here which is significantly lower than $\ge$100 K assumed in Churchwell et al. (1992).

We notice that a dispersion of the N(C¹⁸O) is a factor of 7 larger than that of the N(H¹³CO⁺) (Table 4). In two sources 22.357+0.066 and 26.598-0.024 the N(C¹⁸O) is extremely large (> $1.9\times 10^{16}$ cm^-2). In consequence, the values of N(H₂) derived from the C¹⁸O is a factor of 1.5 and 3.1, respectively, higher that those derived from the H¹³CO⁺. This discrepancy suggests that the methanol masers in these sources probe regions with the abundance ratio of ¹³CO/C¹⁸O significantly lower than a typical ratio of 6.5-7 (Frerking et al. 1982; Beuther et al. 2000). A decrease of ¹³CO/C¹⁸O ratio is predicted in the PDR model in a clumpy cloud; in small clumps the C¹⁸O molecule is nearly completely photodissociated whilst it is protected from photodissociation in large clumps (Beuther et al. 2000, and references therein). Object 26.598-0.024 with the highest value of N(C¹⁸O) is also a candidate infall object (Sect. 4.2.1) and one can speculate that it is the youngest methanol maser in our sample; the maser emission forms in large clumps at nearly systemic velocity. Another explanation of low ¹³CO/C¹⁸O intensity ratio can be that our 11 $^{\prime\prime}$ beam probes the methanol maser sites where the C¹⁸O cores did not coincide with the¹³CO cores. This observational fact is well documented in Brand et al. (2001) at least for their sources Mol 98 and Mol 136 (see their Fig. 5). Furthermore, the C¹⁸O emission is less extended than the ¹³CO emission; by a factor of $\sim$3-5 for common source 35.791-0.175. This explanation seems to be less plausible as a similar effect can be observed for HCO⁺ and H¹³CO⁺ lines.

5.2 Gas density and temperature

We used the escape-probability modelling code RADEX on-line to estimate the density and temperature of the gas required for the observed line temperature ratios of CS and C³⁴S. Because these parameters cannot be derived independently for diatomic molecules (Schilke et al. 2001) we calculate the models for 30, 60 and 90 K with gas number densities of 10⁴-10⁷ cm^-3, CS column densities of 10¹²-10¹⁷ cm^-2 and linewidth of 1 km s^-1. We performed the calculations for the 16 sources for which all three CS lines were detected and we assumed that beam dilution is comparable for all these transitions. We used a $\chi^2$ minimization procedure to fit the models to the observed line ratios. The derived parameters are listed in Table 4. We found equally reasonable fits for 10 sources using models at kinetic temperatures of both 30 and 60 K. Five sources have good fits only for a single kinetic temperature. We could not find a satisfactory fit for the source 35.791-0.175 as its CS(2-1) and CS(3-2) lines are strongly self-absorbed (Fig. A.1) and thus its line ratios are poorly constrained.

Using a temperature of 60 K the average logarithmic number density is $5.7 \pm 0.7$ and the average logarithmic column density of CS is $14.7 \pm 0.6$ for the sample. These values are consistent with 5.9 and 14.4, respectively, reported for a large sample of massive star formation sites selected by the presence of H₂O masers (Plume et al. 1997). Our estimates are also in good agreement with those based on the nine-point CS maps of high-mass protostellar candidates (Beuther et al. 2002a; Ossenkopf et al. 2001) and calculated with more sophisticated models. Taking the CS fractional abundance as $\sim$ $8\times 10^{-9}$ (Beuther et al. 2002a) our estimate of the CS column density implies a mean N(H₂) of $6.3\times10^{22}$ cm^-2 which is in very good agreement with the estimates based on CO and HCO⁺ data (Sect. 5.1).

Our C³⁴S data are less useful to estimate the gas density and temperature because the line ratios are poorly constrained for most of the targets. 26.598-0.024 is the only source for which we are able to determine C³⁴S line ratios but the results are inconsistent with those obtained from the CS data. This indicates that the escape probability model provides only a crude estimate to the physical parameters and the assumption of homogeneous parameters across the cloud is not fulfilled (Ossenkopf et al. 2001).

6 Discussion

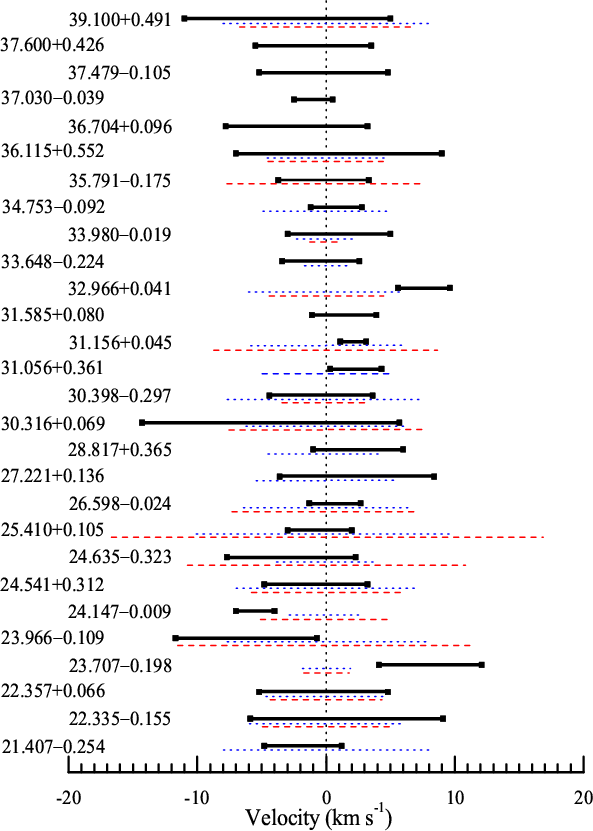

	Figure 3: Comparison between the velocity ranges of 6.7 GHz methanol maser (thick bars) (Szymczak et al. 2002) and 13CO (dotted bars) and HCO+ (dashed bars) line wings. The dotted vertical line marks the systemic velocity.
Open with DEXTER

6.1 Kinematics

The present survey reveals new information regarding the kinematics of molecular gas surrounding massive forming stars. In the following we attempt to answer the question of whether the 6.7 GHz methanol maser and the thermal molecular lines arise from similar or different kinematic regimes.

The velocity ranges of 6.7 GHz methanol masers, ¹³CO and HCO⁺ line wings are plotted in Fig. 3. This plot clearly shows that the systemic velocity derived in this study (Table 4) is in good agreement with the methanol maser central velocities, $V_{\rm m}$, derived from Szymczak et al. (2002). We note that in many sources $V_{\rm m}$ does not coincide with the peak maser velocity $V_{\rm p}$. The average value of $V_{\rm m}-V_{\rm sys}$ is $0.04\pm 0.60$ km s^-1. The difference is less than 3 km s^-1 for 23 sources (82%). $V_{\rm m}$ is offset by >4 and $\le$8.1 km s^-1 with respect to $V_{\rm sys}$ in 5 sources (18%), 23.707-0.198, 23.966-0.109, 24.147-0.009, 30.316+0.069 and 32.966+0.041 (Figs. 3 and A.1). This does not necessarily imply that the different species arise from separate regions along the same line of sight. Two of the sources, 24.147-0.009 and 32.966+0.041, have ranges of maser emission $\Delta V_{\rm m}\le4$ km s^-1 which is a factor of two narrower than the mean value of  $8.3 \pm 0.9$ km s^-1 for the sample but this could be simply an effect of inhomogeneous conditions in molecular clumps; the maser emission is sustained in one or a few clumps of sizes a few $\times$10¹⁵ cm (Minier et al. 2000). The effect of clumping is clearly seen even in regular structures (Bartkiewicz et al. 2005). The other three sources exhibit maser emission at velocities which differ from the systemic velocity by less than 4 km s^-1. In source 30.316+0.069 the maser spectrum is double (Szymczak et al. 2000) and one of the peaks near 49 km s^-1 is close to the systemic velocity of 45.3 km s^-1, so that the maser emission related to the thermal molecular lines has a width of about 6 km s^-1. We conclude, $V_{\rm m}$ is a reliable estimator of the systemic velocity, with an accuracy better than 3 km s^-1, for most of the sources in our sample.

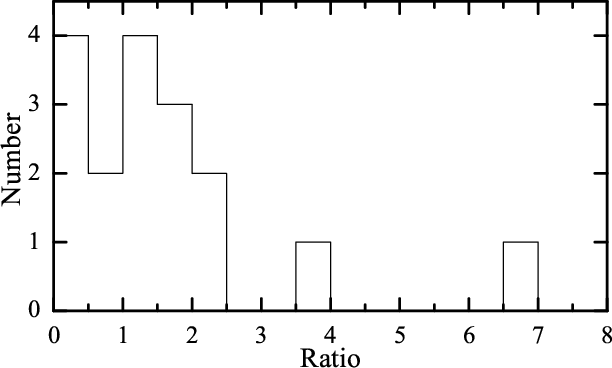

	Figure 4: Histogram of the ratio of methanol maser velocity spread to HCO+ line wings spread.
Open with DEXTER

The overlap between the velocity ranges of the methanol masers and the ¹³CO/HCO⁺ line wings is remarkable. Figure 4 shows a histogram of the ratio of methanol maser velocity spread, $\Delta V_{\rm m}$, to HCO⁺ line wings spread. This ratio ranges from 0.2-6.7 and the median value is 1.3. Similar trends are observed in the ratio of $\Delta V_{\rm m}$ to ¹³CO line wings spread. In 12 out of 23 sources where we detected ¹³CO/HCO⁺ wings, $\Delta V_{\rm m}$ falls entirely within the wing velocity ranges and in 9 sources there is an overshoot of $\le$4 km s^-1. The ¹³CO/HCO⁺ line wings appear to provide a good indication of the presence of outflow and their widths can serve as an approximate measure of outflow velocities. The present observations used beamwidths of 11 $^{\prime\prime}$  and 27 $^{\prime\prime}$  for ¹³CO and HCO⁺ lines, respectively, which sample a small fraction of the molecular cloud, centered on the methanol maser position.

The outflow velocity can be reliably estimated from these data only for the fortunate case when the axis of outflow lies along the line of sight. One source in our sample, 25.410+0.105, has been mapped in the ¹²CO(2-1) line by Beuther et al. (2002b) who measured a wing velocity range of 14 km s^-1, which is comparable with our estimate. In this object the maser emission, with velocity width of 5 km s^-1, is closely centered on the systemic velocity. The velocity ranges of the ¹³CO and HCO⁺ wings are 11 and 18 km s^-1, respectively. This indicates that the maser emission traces a small portion of the kinematic regime of the ¹³CO and HCO⁺ lines or it is completely unrelated. Figure 3 indicates that sources 21.407-0.254, 26.598-0.024, 31.156+0.045 and 35.791-0.175 share similar properties with 25.410+0.105. VLBI observations of 35.791-0.175 (Bartkiewicz et al. 2004) support the above interpretation. In this object the 6.7 GHz methanol maser emission appears to come from part of a circumstellar disc.

Our sample contains 4 objects (23.707-0.198, 24.147-0.009, 32.966+0.041, 36.115+0.552) for which the velocity range of the maser emission is very similar to or slightly overshoots that of the ¹³CO/HCO⁺ line wings. If we assume that the width of ¹³CO and HCO⁺ line wings is a measure of the outflow velocity, in these objects the 6.7 GHz methanol masers arise in outflows. This scenario appears to be supported by VLBI observations of 36.115+0.552 (Bartkiewicz et al. 2004); the maser emission comes from two well separated regions which probably represent a bipolar outflow. In this case the methanol maser traces the same or a very similar kinematic regime as that of the ¹³CO and HCO⁺ lines.

Sources 22.355-0.155 and 27.221+0.136 appear to possess complex kinematics in the regions where the methanol masers operate. A close inspection of their 6.7 GHz spectra (Szymczak et al. 2002) suggests that some spectral features arise from the inner parts of the molecular cloud whilst other features form in outflows. VLBI studies of maser emission and detailed measurements of the kinematic properties of the molecular emission are needed to verify this suggestion.

6.2 Implications for the evolutionary status

One of the important findings of our observations is the detection of a considerable number of sources with line wings. We identified residual line wings in 18 out of 28 sources when a Gaussian profile was used to fit the CO, HCO⁺ and CS molecular lines. The line wings appear to be the best indicators of outflow motions in most cases. The presence of line wings in about 64% of sources in the sample suggests a close association of the methanol masers with the evolutionary phase when outflows occur. This result is consistent with that reported by Zhang et al. (2005). They mapped the CO(2-1) line in a sample of 69 luminous IRAS point sources and found that about 60% of them were associated with outflows. However, with the present data we cannot resolve whether the methanol maser sites and the outflows have a common origin. Because of clustering in high mass star formation (e.g. Beuther et al. 2002a) it is possible that some masers in the sample are not actually associated with outflowing sources.

Codella et al. (2004) proposed an evolutionary sequence for UCHII regions in which the earliest phase is marked by maser emission and molecular outflows not yet large enough to be detected with single-dish observations. The present data suggest that our sources are slightly more evolved because several of them show evidence of outflows. Their age therefore seems to be less than a few 10⁴ yr (Codella et al. 2004) which is consistent with a statistical estimate of $3{-}5\times10^4$ yr for the methanol maser lifetime (van der Walt 2005).

6.3 Constraints on maser models

The present study allows us to refine the range of physical conditions required to produce strong methanol masers at 6.7 GHz. Theoretical modelling by Cragg et al. (2002) demonstrated that a maser line of 1 km s^-1 width attains a peak brightness temperature of $\sim$10¹¹ K for a dust temperature >100 K and a methanol column density > $5\times10^{15}$ cm^-2. They found that methanol masers can be produced under a wide range of the physical conditions. In fact, for a methanol fractional abundance from $3\times10^{-8}$ to 10^-5, masing is predicted for the gas density range $10^5{-}2\times 10^8$ cm^-3 and the methanol column density range $5\times10^{15}{-}2\times10^{18}$ cm^-2 (Cragg et al. 2002). The gas density inferred from our observations is between 10⁵ and 10⁷ cm^-3; higher values (>10⁷ cm^-3) are less probable. The hydrogen column density from 10²² to $2\times10^{23}$ cm^-2, inferred here, translates well into the above range of methanol column densities for methanol fractional abundances of $5\times10^{-7}{-}10^{-5}$. This suggests that 6.7 GHz maser emission is less probable in environments with a lower methanol fractional abundance of the order of 10^-8. We conclude that our study well refines a range of the input parameters of Cragg et al.'s maser model. Specifically, a high methanol fractional abundance of > $5\times10^{-7}$ is required whilst a gas density <10⁷ cm^-3 is sufficient for the production of methanol masers.

7 Conclusions

We have observed 10 transitions of HCO⁺, CO and CS isotopomers at millimetre wavelengths in order to characterize the physical conditions in a sample of 28 MYSOs identified by the presence of methanol masers. No other preconditions were involved in the sample selection. The observations were centered at maser positions known with a sub-arcsecond accuracy. The main conclusions of the paper are summarized as follows:

1.

The systemic velocity determined from the optically thin lines C¹⁸O(2-1), H¹³CO⁺(1-0), C³⁴(2-1) and C³⁴(3-2) agrees within $\pm$3 km s^-1with the central velocity of the methanol maser emission for almost all the sources.

2.

18 out of 28 sources show residual line wings at least in one line when a Gaussian function was used to fit the CO, HCO⁺ and CS lines. Detection of the line wing emission suggests the presence of molecular outflows in these sources. Their occurrence needs to be confirmed by mapping observations.

3.

Comparison between the kinematics of the methanol masers and of the thermal molecular lines reveals that they trace a wide range of molecular cloud conditions. In some objects the maser emission occurs in a narrow velocity range centered at the systemic velocity, which may indicate that the innermost parts of a molecular cloud or a circumstellar disc is the site of maser emission. In other objects the velocities of maser features are very similar to, or slightly overshoot, the velocity ranges of the thermal molecular line wings, suggesting that the masers arise in outflows. There are also objects where the maser emission reveals more complex kinematics.

4.

The column density of H₂ derived from the CO and HCO⁺ lines are between 10²² and $2\times10^{23}$ cm^-2. We use our measurements of the intensity ratios of the CS lines to infer that methanol masers arise from regions with a gas density of 10⁵-10⁷ cm^-3, a kinetic temperature of 30-100 K and a methanol fractional abundance of $5\times10^{-7}{-}10^{-5}$. This represents a significant refinement to the input parameters of methanol maser models.

Acknowledgements

We like to thank the staff of the IRAM 30 m telescope for help with the observations and the unknown referee for helpful comments. This work has been supported by the Polish MNiI grant 1P03D02729.

References

• Bartkiewicz, A., Szymczak, M., & van Langevelde, H. J. 2004, in Proceedings of the 7th European VLBI Network Symposium, 187 [arXiv:astro-ph/0412002] (In the text)
• Bartkiewicz, A., Szymczak, M., & van Langevelde, H. J. 2005, A&A, 442, L61 [NASA ADS] [CrossRef] [EDP Sciences] (In the text)
• Beuther, H., Kramer, C., Deiss, B., & Stutzki, J. 2000, A&A, 362, 1109 [NASA ADS] (In the text)
• Beuther, H., Schilke, P., Menten, K. M., et al. 2002a, ApJ, 566, 945 [NASA ADS] [CrossRef] (In the text)
• Beuther, H., Schilke, P., Sridharan, T. K., et al. 2002b, ApJ, 383, 892 [NASA ADS] (In the text)
• Brand, J., & Blitz, L. 1993, A&A, 275, 67 [NASA ADS] (In the text)
• Brand, J., Cesaroni R., Palla, F., & Molinari S. 2001, A&A, 370, 230 [NASA ADS] [CrossRef] [EDP Sciences] (In the text)
• Caswell, J. L., Vaile, R. A., Ellingsen, S. P., Whiteoak, J. B., & Norris, R. P. 1995, MNRAS, 272, 96 [NASA ADS] (In the text)
• Churchwell, E., Walmsley, C. M., & Wood, D. O. S. 1992, A&A, 253, 541 [NASA ADS] (In the text)
• Codella, C., Lorenzani A., Gallego, A. T., Cesaroni, R., & Moscadelli, L. 2004, A&A, 417, 615 [NASA ADS] [CrossRef] [EDP Sciences] (In the text)
• Codella, C., & Moscadelli, L. 2000, A&A, 362, 723 [NASA ADS] (In the text)
• Cragg, D. M., Sobolev, A. M. & Godfrey, P. D. 2002, MNRAS, 331, 521 [NASA ADS] (In the text)
• Dartois, E., Schutte, W., Geballe, T. R., et al. 1999, A&A, 342, L32 [NASA ADS] (In the text)
• Girart, J. M., Estalella, R., Ho, P. T. P., & Rudolph, A. L. 2000, ApJ, 539, 763 [NASA ADS] [CrossRef] (In the text)
• Frerking, M., Langer, W., & Wilson, R. 1982, ApJ, 262, 590 [NASA ADS] [CrossRef] (In the text)
• Fuller, G. A., Williams, S. J., & Sridharan, T. K. 2005, A&A, 442, 949 [NASA ADS] [CrossRef] [EDP Sciences] (In the text)
• Lovas, F. J. 2002, NIST Recommended Rest Frequencies for Observed Interstellar Molecular Microwave Transitions - Revision: http://physics.nist.gov/PhysRefData/Micro/Html/contents.html (In the text)
• Mardones, D., Myers, P. C., Tafalla, M., et al. 1997, ApJ, 489, 719 [NASA ADS] [CrossRef] (In the text)
• Menten, K. M. 1991, ApJ, 380, L75 [NASA ADS] [CrossRef] (In the text)
• Minier, V., Booth, R. S., & Conway, J. E. 2000, A&A, 362, 1093 [NASA ADS] (In the text)
• Minier, V., Burton, M. G., Hill, T., et al. 2005, A&A, 429, 945 [NASA ADS] [CrossRef] [EDP Sciences] (In the text)
• Myers, P. C., Mardones, D., Tafalla, M., Williams, J. P., & Wilner, D. J. 1996, ApJL, 465, 133 [NASA ADS] [CrossRef] (In the text)
• Narayanan, G., Walker, C. K., & Buckley, H. D. 1998, ApJ, 496, 292 [NASA ADS] [CrossRef] (In the text)
• Niezurawska, A., Szymczak, M., Richards, A. M. S., & Cohen, R. J. 2005, BaltA, 14, 429 [NASA ADS] (In the text)
• Norris, R. P., Byleveld, S. E., Diamond, P. J., et al. 1998, ApJ, 508, 275 [NASA ADS] [CrossRef] (In the text)
• Ossenkopf, V., Trojan, C., & Stutzki J. 2001. A&A, 378, 608 (In the text)
• Plume, R., Jaffe, D.T., Evans, N.J.II, Martin-Pintado, J., & Gomez-Gonzalez, J. 1997, ApJ, 476, 730 [NASA ADS] [CrossRef] (In the text)
• Purcell, C. R., Balasubramanyam, R., Burton, M. G., et al. 2006, MNRAS, 367, 553 [NASA ADS] (In the text)
• Schilke, P., Pineau de Forets, G., Walmsley, C. M., & Martin-Pintado, J. 2001, A&A, 372, 291 [NASA ADS] [CrossRef] [EDP Sciences] (In the text)
• Schutte, A. J., van der Walt, D. J., Gaylard, M. J., & MacLeod, G. C. 1993, MNRAS, 261, 783 [NASA ADS] (In the text)
• Szymczak, M., Hrynek, G., & Kus, A. J. 2000, A&AS, 143, 269 [NASA ADS] (In the text)
• Szymczak, M., Kus, A. J., Hrynek, G., Kepa, A., & Pazderski, E. 2002, A&A, 392, 277 [NASA ADS] [CrossRef] [EDP Sciences] (In the text)
• Thompson, A. R., Moran, J. M., & Swenson, J. R. 1991, Interferometry and synthesis in radio astronomy (In the text)
• van der Walt, J. 2005, MNRAS, 360, 153 [NASA ADS] (In the text)
• van der Walt, D. J., Gaylard, M. J., & MacLeod, G. C. 1995, A&AS, 110, 81 [NASA ADS] (In the text)
• Walsh, A. J., Hyland, A. R., Robinson, G., & Burton, M. G. 1997, MNRAS, 291, 261 [NASA ADS] (In the text)
• Walsh, A. J., Burton, M. G., Hyland, A. R., & Robinson, G. 1998, MNRAS, 301, 640 [NASA ADS] (In the text)
• Zhang, Q., Hunter, T. R., Brand, J., et al. 2005, ApJ, 625, 864 [NASA ADS] [CrossRef] (In the text)




Online Material

Appendix A: Line parameters and spectra

Table A.1: Results on line parameters. The parameters for tentative detections are italicized. ⁱ possible interstellar origin of the red-shifted emission, ^s smoothed, ^w the $\Delta V$ in parentheses is the FWHM taken over the whole line for profiles with a dip which is <0.5 $T_{\rm peak}$

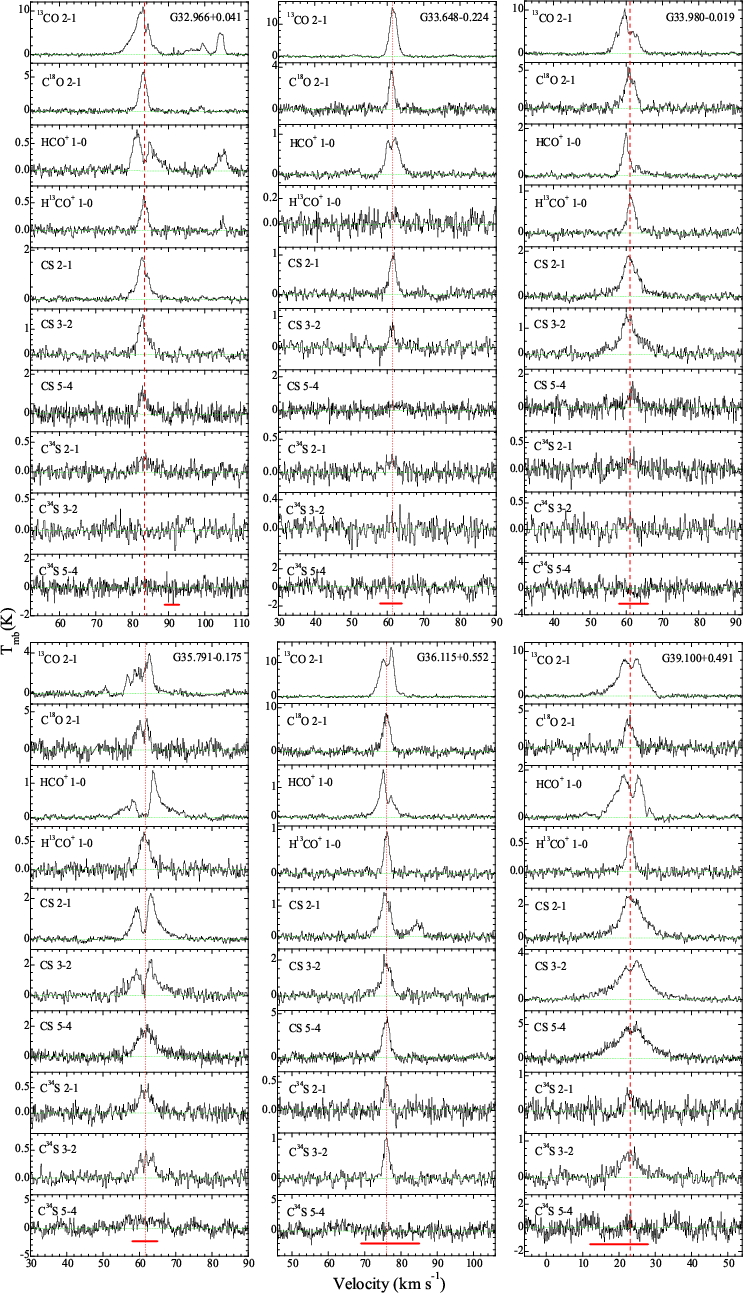

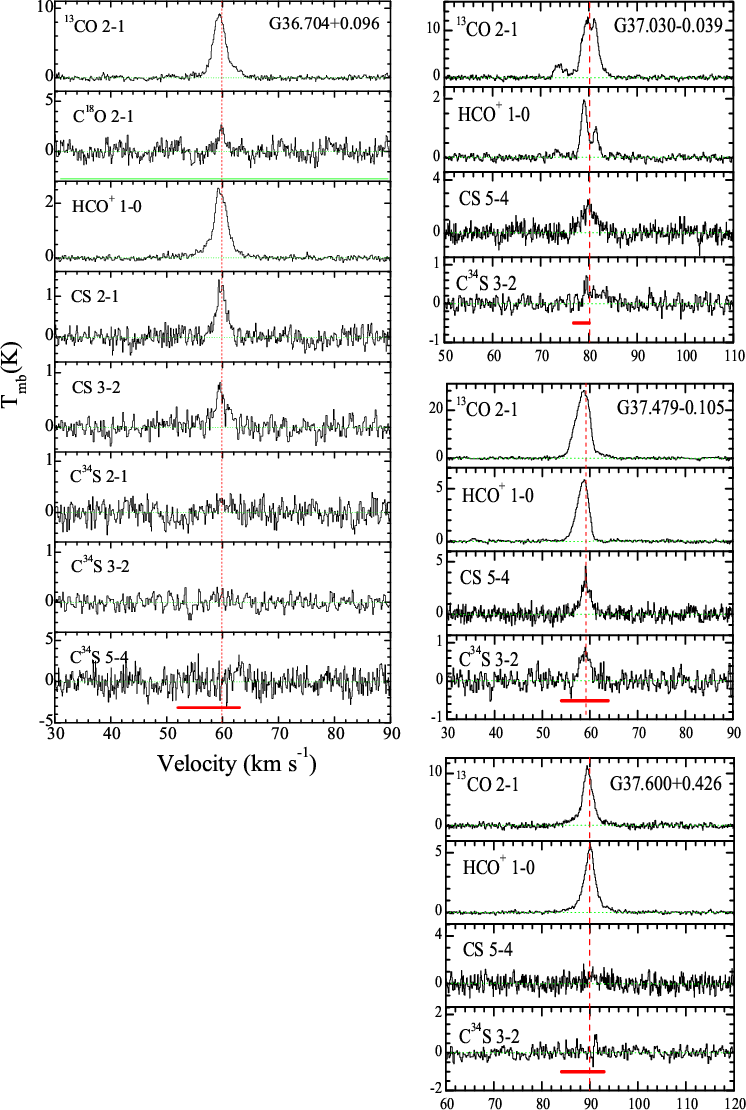

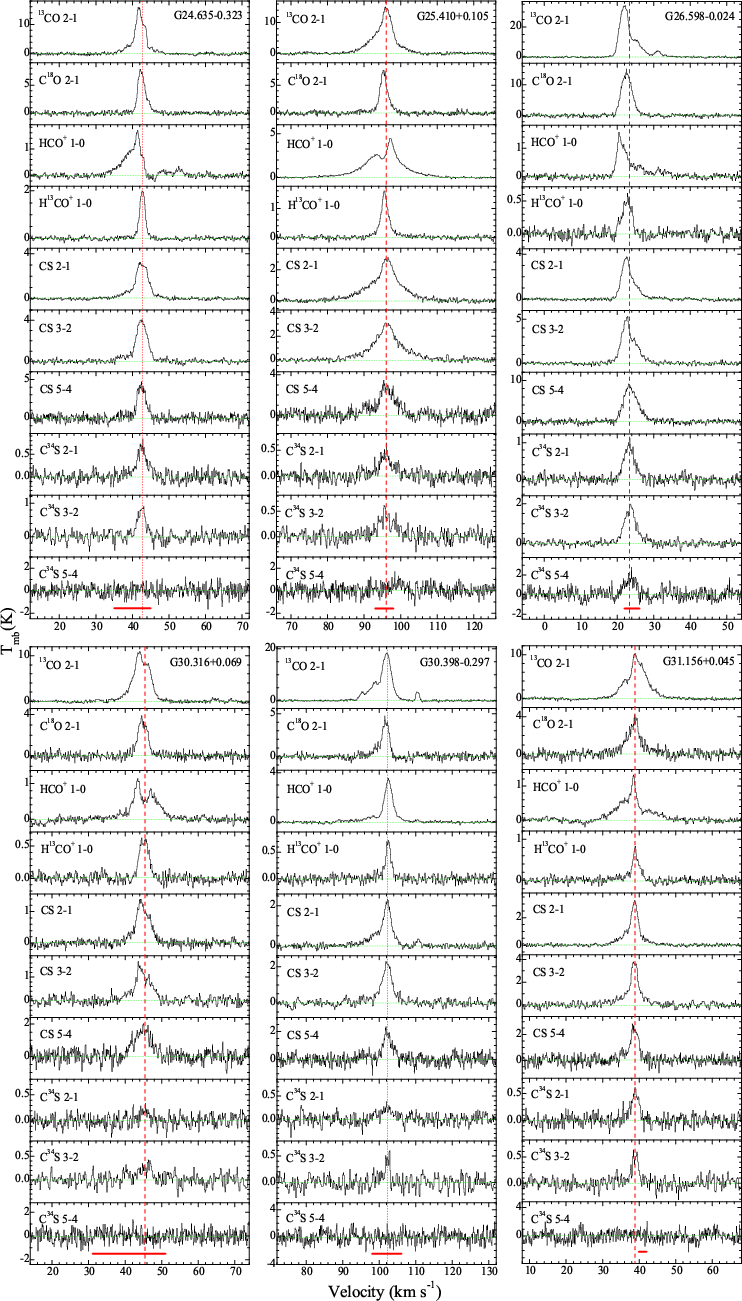

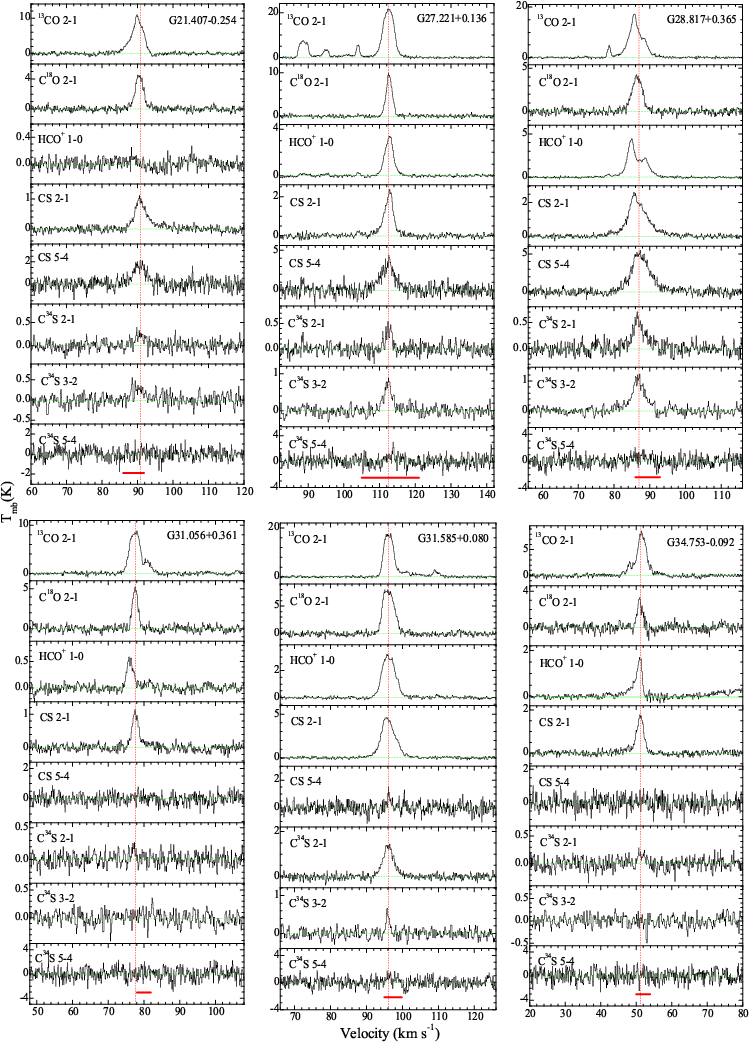

Figure A.1: Spectra of sources. Source names, molecules and transitions are indicated. The main beam brightness temperature ( $T_{\rm mb}$) is plotted against velocity ( $V_{\rm LSR}$). The dashed vertical line shows the systemic velocity as inferred from a Gaussian fit of one of the optically thin transition (see text for details) for each target. The dotted horizontal lines show the $T_{\rm mb}=0$ K level in each spectrum. The thick bottom bar indicates the velocity range of the 6.7 GHz methanol maser emission (Szymczak et al. 2002) for each source.

Figure A.1: continued.

Figure A.1: continued.

Figure A.1: continued.

Figure A.1: continued.
