A&A 461, 923-929 (2007)
DOI: 10.1051/0004-6361:20066122
M. Orienti1,2 - D. Dallacasa1,2 - C. Stanghellini2
1 - Dipartimento di Astronomia, Università di Bologna, via Ranzani 1,
40127 Bologna, Italy
2 -
Istituto di Radioastronomia - INAF, via Gobetti 101, 40129 Bologna,
Italy
Received 27 July 2006 / Accepted 25 September 2006
Abstract
Aims. We constrain the spectral ages for two very asymmetric Compact Symmetric Objects (CSO) from the B3-VLA-CSS sample, and we investigate the role of the ambient medium potentially able to influence the individual source evolution.
Methods. Multi-frequency VLBA observations have been carried out to study the distribution of the break frequency of the spectra across different regions of each source.
Results. From the analysis of synchrotron spectra and assuming an equipartition magnetic field, we find radiative ages of about 3 and
4 years for B0147+400 and B0840+424, respectively. The derived individual hot-spot advance speed is in the range between 0.03c and 0.3c, in agreement with kinematic studies carried out on other CSOs. The very asymmetric morphology found in both sources is likely related to an inhomogeneous ambient medium in which the sources are growing, rather than to different intrinsic hot-spot pressures on the two sides.
Key words: galaxies: active - galaxies: evolution - radio continuum: galaxies - radiation mechanisms: non-thermal - galaxies: ISM
Table 1:
Basic information on the VLBA observations: Col. 1: source
name (B1950); Col. 2: Observed frequency; Col. 3: Date of observations;
Col. 4: missing antenna; Cols. 5 and 6: shortest and longest projected
baselines; Cols. 7-9: beam major and minor axis and PA of
the full resolution images; Col. 10: 1
rms noise level on the
full resolution image plane.
Two independent pieces of evidence strongly support the youth scenario: the kinematic study of hot-spot separation velocities (e.g. Polatidis & Conway 2003; Gugliucci et al. 2005), and the measure of radiative age from the analysis of the source spectrum (Murgia 2003; Murgia et al. 1999); both find ages of about 103-105 years.
On the other hand, the alternative model, the frustration scenario (Baum et al. 1990; van Breugel et al. 1984), which postulates that the radio source is trapped by an unusually dense gas, lacks any observational evidence, at least for the CSOs observed so far (see e.g. Fanti et al. 2000; Siemiginowska et al. 2005).
Synchrotron spectral ageing is based on the determination of the
spectral break, which occurs at progressively lower frequencies as time
passes. Indeed, according to various source growth models
(i.e. Kardashev 1962; Pacholczyk 1970; Jaffe &
Perola 1974), relativistic electrons located in different
source regions have been deposited at different times, and
locally the electron age measures the time elapsed since their
production and/or latest acceleration (
)
when they
crossed the hot-spot during its outward motion. The radiative age can
be easily computed once the break frequency (
)
and the
magnetic field (B) are known:
On the other hand, the radiative age of the back-flow tail in the lobes measures the time elapsed since the last acceleration of those particles, namely when the hot-spot crossed that location during its outward expansion. The best (i.e. oldest) measure of the radiative age then comes from the innermost edges of the lobes, where the electrons were deposited at the very beginning.
Multi-frequency NRAO VLBA images can be very effective in constraining the source age in small radio sources whose radio emission contains a substantial contribution from the mini-lobes. Using multi-frequency images with pc-scale resolution it is possible to study the spectral ageing in intrinsically very small radio galaxies: it is important to distinguish regions in which electrons are injected/accelerated (i.e. core and hot-spots) from those in which electrons age, like in the back-flow tails of the mini radio lobes.
This paper reports the results of new multi-frequency L (1.4-1.6 GHz), C (4.5-4.9 GHz) and X (8.1-8.5 GHz) bands) VLBA observations of two CSOs from the B3-VLA-CSS sample (Fanti et al. 2001): B0147+400 and B0840+424. For both sources the core has been clearly detected.
Throughout this paper, we assume H0= 71 km s-1 Mpc-1,
and
,
in a flat
Universe.
The correlation was performed at the VLBA correlator in Socorro, and data reduction was carried out with the NRAO AIPS package. After the application of system temperature and antenna gain information, the amplitudes were checked using the data on DA 193 (J0555+398) which is unresolved on a large subset of baselines at all frequencies, and whose flux density is monitored at the VLA in C and X bands.
In both observations the sources DA 193 and J0927+3902 were both used to generate the bandpass correction.
The error on the absolute flux density scale can be estimated within 3-5% on the basis of the fluctuations of the amplitude gain solutions.
In C and X bands the instrumental polarization was removed by
using the AIPS task PCAL; the absolute orientation of the electric
vector of DA 193 and J0927+3902 was compared with the VLA/VLBA
polarization calibration database to derive the corrections. The
values derived from the two sources were in excellent agreement (2
). The calibration of the instrumental polarization
was not performed for the L band data.
The images at each individual frequency were obtained after a number of phase-only self-calibration iterations. Information on the full resolution Stokes I images is given in Table 1. Stokes U and Q images were produced from the final dataset.
As last step, we produced
images at 1.6, 4.5, 4.9, 8.1 and 8.5 GHz, using natural grid weighting and the same uv-range common to all the observing frequencies for each source
(1.05-41 M
and 0.88-40 M
for B0147+400
and B0840+424 respectively),
in order to have almost the same uv and image sampling,
as well as restoring beam, as for the 1.4 GHz data.
For each source, these low-resolution images were combined to produce a multi-frequency data cube, which was then analyzed by the synage++ software (Murgia 2000) for subsequent spectral studies. Image registration was checked by comparing the location of optically thin bright features. In this paper, we do not show the full-resolution images since they do not add any new information to those presented by Dallacasa et al. (2002) and Orienti et al. (2004).
Spectral index imaging is quite a hard task for VLBI experiments, since it is difficult to obtain well matched uv-coverages at the various observing frequencies. In particular there is a lack of short spacings at high frequencies.
In our VLBA observations, the key addition of a single VLA antenna makes the differences in the sampling density at short spacing less effective, allowing us to produce high-resolution spectral index images. Furthermore, the availability of 6 independent frequencies allows us to determine the source age by fitting the spectra in each pixel, with a good confidence level.
The multi-frequency high-resolution images provided by VLBA allow the determination of the nature of the source components (core, jets, lobes and hot-spots) and therefore, allow us to choose the best model to fit the observed spectral shapes. Indeed, although the radiative losses always imply a high-frequency steepening, the local spectral shape is strongly related to the evolution of the emission from an electron population and by the possible presence of injection of fresh relativistic electrons. For example, in the hot-spots, we expect that the observed spectra are well fitted by models predicting a continuous injection of fresh particles, while lobes and extended features will be better fitted by single-injection models (i.e. JP, Jaffe & Perola 1974; KP, Kardashev 1962; Pacholczyk 1970) where the radiative losses play an important role in modifying the initial spectral shape.
A previous work on the spectral ageing in two CSOs (Murgia 2003) has shown that the break frequency decreases if we move from regions near the hot-spot toward those located at the inner edges of the lobe, in the core direction. This is consistent with the dynamical scenario in which the electrons deposited at the centre of the source are older than those found closer to the hot-spot, which is what is expected if the source is expanding with time and the principal site of particle acceleration is the hot-spot.
Therefore, to obtain a measure of the source age, it is possible to investigate how the break frequency changes across the lobes, where electrons age without any further substantial acceleration and, locally, without any new supply of fresh particles.
As mentioned in Sect. 3, the pc-scale resolution achieved by the
VLBA enables us to study extremely compact source components, found
to be unresolved with other radio telescopes.
We perform a detailed spectral ageing study of the CSO sources
B0147+400 and B0840+424 from the B3-VLA-CSS sample (Fanti et al. 2001).
Both radio sources are characterized by a weak core and two very
asymmetric, both in arm-length ratio and brightness,
well-resolved mini-lobes.
In B0147+400
the two mini-lobes lie roughly in the East-West direction, and
are connected by an extended, steep-spectrum (
)
bridge
visible in the L band only,
while
in B0840+424 the mini-lobes are deployed roughly in the North-South
direction.
In the standard source model, the brightest component is also the farthest from the core, since the differences in brightness and arm-length ratio are due to beaming effects and path delay. In radio galaxies where the radio axis is oriented at large angles to the line of sight, such asymmetries are expected to be quite small. On the contrary, in the two sources in this paper, the brightest lobe is the one closest to the core, while the faintest one is much further away, suggesting a strong influence exerted by the ambient medium, which can be quite complex and inhomogeneous on such small scales. For a more detailed description of the morphologies and the physical parameters of both sources, see Orienti et al. (2004) and Dallacasa et al. (2002).
The brightest hot-spot (labeled SH in Fig. 1)
is embedded in the SE component and, with its
flux density (208, 158 and 121 mJy at L, C and X band
respectively, Dallacasa et al. 2002; Orienti et al. 2004), dominates the radio emission (68%) in Cand X bands.
It is best fitted by
a power-law with an injection spectral index of
.
This implies that there is a continuous supply and re-acceleration of
fresh relativistic electrons, in agreement with what is predicted by the
source growth models.
On the other hand, the faint hot-spot embedded in the NW component
(labeled NH) is well fitted by a higher injection spectral index of
.
In the source B0840+424 the Northern and Southern components are
15 and
100 mas apart from the core (labeled C in
Fig. 1), with a flux density
ratio of
/
and 7.1 at C and
X bands
(Orienti et al. 2004).
The brightest hot-spot (labeled NH) is located at the centre of the
Northern component. The hot-spot can only be fitted by a
single-injection model, with an
of
0.40,
similarly to what is found in the bright hot-spot of
B0147+400. However,
this can be easily explained by considering a strong contamination by
the lobe emission.
The hot-spot embedded in the Southern component (labeled SH) is not
bright and well-defined as in the Northern lobe, and it displays a
higher injection spectral index of
.
In both sources, the faintest hot-spots have
steeper than what is found by Orienti et al. (2004).
However, that work, based on 3 independent frequencies only, provided
good fits for a range of injection spectral indices. The availability
of 6 independent spectral points in this study allows
us to set stronger constraints
on the fits and their parameters.
![]() |

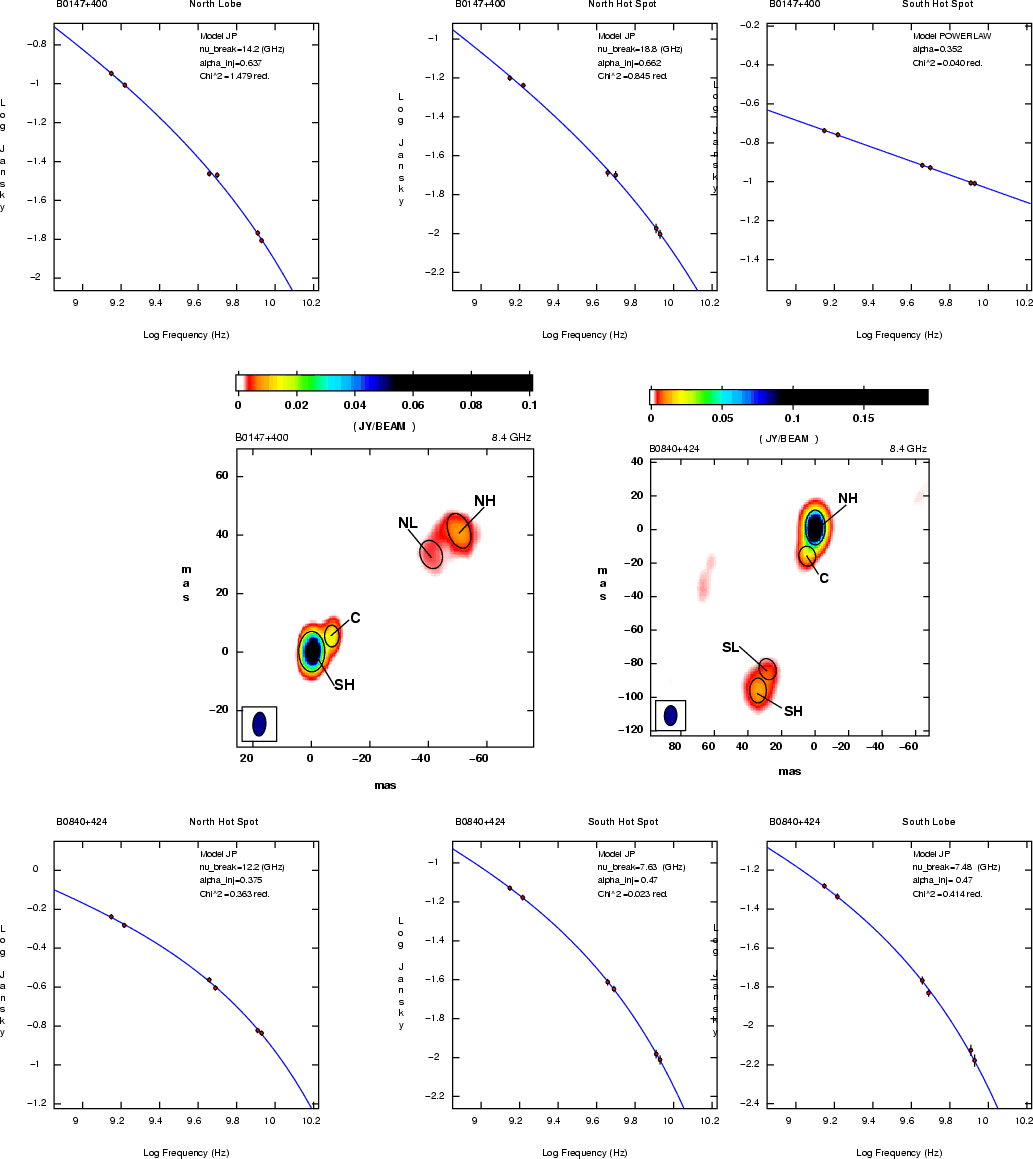

Figure 1:
The spectral fits in the lobes and hot-spots of B0147+400 and
B0840+424. On each fit we report the model, the injection spectral
index, the break frequency and reduced-chi-squared. The upper
panel shows, clockwise,
the local spectra in the Northern lobe (NL), Northern
hot-spot (NH) and Southern hot-spot (SH) of the source
B0147+400. The bottom panel shows, clockwise,
the local spectra in the
Norther hot-spot (NH), Southern hot-spot (SH) and Southern lobe (SL)
of the source B0840+424. The spectra of the core components are not shown, since they can be found in Orienti et al. (2004).
The restoring beam ( HPBW) is 8.20 ![]() ![]() |
Open with DEXTER |
Since the electrons in the lobes have likely received the last
acceleration in the corresponding hot-spot, we fit their spectra
with a single-injection model
with the
derived for the hot-spot.
We try to fit the spectra with both the JP and KP models. The JP model
assumes that the pitch angle
between the electron
velocity and the magnetic field direction is continuously
re-isotropized, making the electrons age in the same way. In the KP model, the pitch angles of the electrons populations are
constant, making electron populations with different
age
in different ways.
Although both models provide similar fits to our spectra, the
fits with the JP model have
smaller reduced
than the KP.
In B0147+400, we studied the break frequency across the Northern lobe
(labeled NL). Using the injection spectral index of
as derived for the northern hot-spot, we find
a minimum break frequency
GHz.
In the case of B0840+424, we fitted the spectra across the Southern
lobe (labeled SL) with a JP model with
of 0.50,
obtaining the lowest break frequency of 7.4 GHz.
For both sources, we have considered different regions across the lobe, and the final choice was made on the best compromise between the largest distance from the hot-spot and the need for significant emission at the highest frequencies.
These compact components are better visible in the full resolution images at the highest observing frequency. Indeed, in the X band they account for almost 10% of the total flux density of the whole source.
Neither core shows any significant flux density variability in the X band in our data.
Table 2: Source ages. Column 1: the source name; Col. 2: the redshift; Col. 3: the total linear size; Col. 4: the equipartition magnetic field, computed assuming the source parameters from Orienti et al. (2004); Col. 5: the radiative age, computed using Eq. (1) and the lowest break frequency as described in Sect. 4.2; Col. 6: the projected linear size, in pc, between the region considered to derive radiative age and the location of the corresponding hot-spot; Col. 7: the projected distance, in pc, between the core component and the faintest hot-spot; Col. 8: the mean advance speed of the faintest hot-spot; Col. 9: the source age; Col. 10: the projected distance between the core and the brightest hot-spot; Col. 11: the mean advance speed of the brightest hot-spot.
In this paper, the magnetic field of the source components has been computed assuming minimum energy and equipartition conditions, and using standard formulae (Pacholczyk 1970). Furthermore, proton and electron energies have been assumed to be equal, with a filling factor of unity (i.e. the source volume is fully and homogeneously filled by relativistic plasma); an ellipsoidal geometry and an average optically thin spectral index of 0.7 have been adopted. The observational parameters involved, such as the flux density and the projected linear size of the source components, are from Orienti et al. (2004).
We also point out that the magnetic field of CSS sources is of a few orders of magnitude higher than that "equivalent'' to the Cosmic Microwave Background radiation photons. Inverse Compton losses are, therefore, neglected, the synchrotron being the main cooling mechanism.
Furthermore, even adiabatic losses are negligible, since the energy spent due to the adiabatic expansion is three orders of magnitude smaller than the synchrotron emission.
Unfortunately, both sources lack spectroscopic redshifts. The source B0147+400 has no optical identification, while B0840+400 can be identified with a galaxy in the Sloan Digital Sky Survey (SDSS). With the magnitudes provided by the SDSS for the source B0840+424, we made use of the HyperZ code (Bolzonella et al. 2000) to infer the photometric redshift. We obtained a photometric redshift of 0.35, with a probability of 83%.
Since most of the intrinsic physical parameters, such as the magnetic
field (
)
and the linear size (LS), critically depend on
the redshift, for each source we provide a set of values considering
a few cases in which z is in the range of 0.2-1.0 (Table 2).
The radiative ages found in this way are in the range of
103-104 years.
However, as previously mentioned, this should not be considered as the
source age.
Models of source evolution predict that relativistic electrons are
deposited in the region of last acceleration, where they age, while
the hot-spot continues through the interstellar medium.
Therefore, the electrons considered for the previous computation have no
memory of the original injection by the core, since they have
already been re-accelerated by the hot-spot.
The radiative ages
derived give us an indication of the time elapsed since the last
acceleration in the hot-spot.
Measuring the distance between the region considered for the radiative
age and the hot-spot, we can estimate the hot-spot advance speed. In
both sources, the hot-spot has covered a distance of 20 mas
from the region where we could measure the radiative age, which
implies a range of mean hot-spot velocities of 0.08c to
0.31c for B0147+400 and between 0.038c and 0.086c for
B0840+424,
depending on the source redshift (Table 2).
Since we know the distance between the hot-spot and the core
component, and assuming a mean hot-spot velocity over the whole
lifetime of the source (Polatidis & Conway
2003), we can constrain the true source age. In the
case of B0147+400, the core-hot-spot separation is 53 mas, which leads
to a source age in the range of
3 and
.
For the source B0840+424, the distance between the core and
the hot-spot is larger (97 mas), and we derive ages between
4 and
4 years, (
years, considering the photometric redshift of 0.35).
We can also estimate the mean advance speed of the brightest hot-spot, dividing its distance from the core by the source age. We obtain velocities ranging from 0.01c to 0.05c and 0.002c and 0.014cfor the brightest hot-spots of B0147+400 and B0840+424 respectively (Table 2). With such velocities, it is not possible to detect any hot-spot advance over a short period of time. We compared the data at the two epochs available, observed about three years apart, by means of the MODELFIT and the JMFIT, but we did not find any significant variation in the position of the most compact source components. The accuracy in the determination of the component position is in agreement with the above results.
No significant (3
noise level) polarized emission
was detected for the target sources in C and X bands,
consistent with previous VLA observations (Fanti et al. 2001)
at the same frequencies, where both sources appear unresolved and
unpolarized at a resolution of
0
4.
Polarization images are not shown.
The local upper limits we could infer are of 0.03% and 0.14% for the Southern and Northern components of B0147+400 respectively, and of 0.01% and 0.08% for the Northern and Southern components of B0840+424.
Our results are in good agreement with those found by Fanti et al. (2004).
In fact, although we do not know the redshift of both sources, we can
estimate their projected linear sizes 520 and 900 pc for
B0147+400 and B0840+424, respectively (Table 2). Following the
work of Fanti et al. (2004), both sources fall in the interval
of unpolarized CSS sources even in the X band, suggesting that the source
size is not large enough to lead the radio emission to emerge out of
the "Faraday screen''.
The approach used to infer the source age, described in Sect. 4.3, is based on the strong assumption that the hot-spot velocity derived is truly representative of the mean individual hot-spot advance speed. However, there are several mechanisms that would cause the instantaneous hot-spot speed to vary, such as hydrodynamically introduced internal pressure changes (Norman 1996), as well as an inhomogeneous external medium.
The large asymmetries both in arm-ratio and brightness shown by B0147+400 and B0840+424 strongly suggest that at least one of the two aforementioned possibilities applies. In Table 3, we report the hot-spot internal pressures computed assuming that the source components are in the minimum energy condition. Contrary to expectations, we find that in both sources the hot-spot with the highest pressure is the slowest one, suggesting that the asymmetric morphology is more likely due to an inhomogeneous clumpy ambient medium.
Using simple one-dimensional ram-pressure arguments, the advance speed v of the hot-spot is determined by the equilibrium between the
internal pressure
and the ram-pressure of the external
medium:
If in Eq. (2) we consider
the average hot-spot velocity (Table 2) and the minimum
pressure (Table 3), computed at an indicative redshift of 0.35, for both sources we find that the brightest and closest hot-spot
is likely digging its way through a quite dense medium
(
and 50.0 cm-3, for B0147+400 and B0840+424
respectively), similar to what one can expect in a cloud, while the
farthest component is likely moving through an intercloud medium
(
and 0.08 cm-3, for
B0147+400 and B0840+424 respectively)
where the external density is
about 3 orders of magnitude smaller.
Such clouds, indicating the presence of a rich and clumpy interstellar medium interacting with a CSS/GPS radio source, have been found by means of high-resolution spectral studies of the neutral hydrogen (Morganti et al. 2004; Labiano et al. 2006).
In the GPS ULIRG galaxy 4C 12.50, Morganti et al. (2004)
detected a cloud with an H I mass of a few 105 to 106
and
pc in size, corresponding to a
density of
cm-3.
Labiano et al. (2006) studied the H I absorption in the two very asymmetric CSS sources 3C 49 and 3C 268.3, in which the brightest lobe is also the closest to the core, as in our targets.
In both sources, H I absorption was detected in the brightest
(and closest) lobe only.
The absorber medium has been interpreted in terms of clouds which are
in the environment of the GPS/CSS radio source, with densities of
220/ cm-3 (
,
for 3C 49) and
360/
cm-3 (
,
for 3C 268.3), where
is the covering factor.
These values are in good agreement with the characteristics of the ISM in the Narrow Line Region (NLR; Fanti et al. 1995), in which the hot-spots of the aforementioned sources actually reside.
Table 3: The hot-spot pressure. Column 1: the source name; Col. 2: the source component; Col. 4: VLBA flux density at 8.4 GHz; Cols. 5, 6: deconvolved angular size of the major and minor axis of the source component; Col. 7: the minimum pressure, computed assuming the minimum energy condition, and an indicative redshift of 0.35.
Our results on B0147+400 and B0840+424 are consistent with a picture in which one side of the radio source is strongly interacting with a dense cloud, while the other is expanding through an intercloud medium. The interaction with the cloud causes the lobe to propagate more slowly, and favours radio emission by means of compression and shocks (Jeyakumar et al. 2005; Bicknell et al. 2003), which increase the energy production efficiency. Furthermore, the clouds can also act as a Faraday screen, leading to the observed depolarization as found in both sources.
The detection of such asymmetric CSOs may be favoured by a selection effect. The interaction with a dense ambient medium may enhance the radio emission, making these objects more detectable. This is in agreement with other studies based on the asymmetries of CSOs (Saikia et al. 2003), in which on such a small scale, the probability that the brightest component is also the closest one to the core is higher than in larger sources.
The strong asymmetries in the arm ratio and brightness found in both sources are more likely due to a strong influence exerted by a clumpy and inhomogeneous medium, rather than a change in the hot-spot internal pressure. The brightest and closest component is partially and temporarily confined by a dense cloud which slows its propagation, while the other component is expanding through a more diluted ambient medium.
From this result, we infer that the knowledge of the properties of the ambient medium surrounding the radio source is of fundamental importance in order to draw a complete and reliable picture of the individual source evolution.
Acknowledgements
We like to thank the anonymous referee for carefully reading the manuscript and valuable suggestions. The VLBA is operated by the US National Radio Astronomy Observatory which is a facility of the National Science Foundation operated under a cooperative agreement by Associated Universities, Inc. This work has made use of the NASA/IPAC Extragalactic Database NED which is operated by the JPL, California Institute of Technology, under contract with the National Aeronautics and Space Administration.
