All Figures

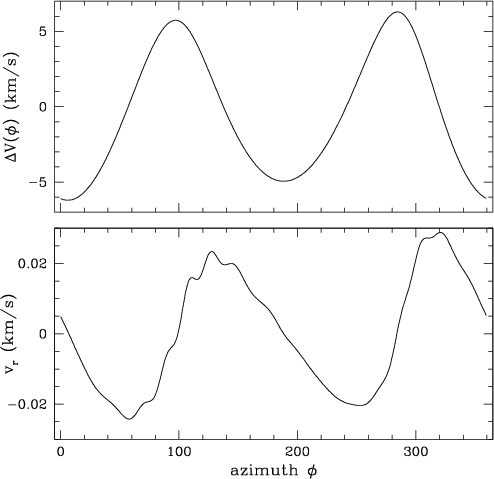

$\begin{figure} \par\includegraphics[width=7cm,clip]{5776fig1.ps}\end{figure}$ Figure 1: Top: the difference of azimuthal velocity of each surface element and the rigidly rotating inner stellar body, $\Delta V$ ( $\phi$ ) along the equatorial region for a $P_{\rm orb}=$ 5 d binary system. The angle $\phi$ is measured with respect to the line connecting the two stars. Bottom: the component of the velocity in the radial direction of each surface element along the equatorial belt for the same model. The star is rotating at twice the orbital frequency.
Open with DEXTER

In the text

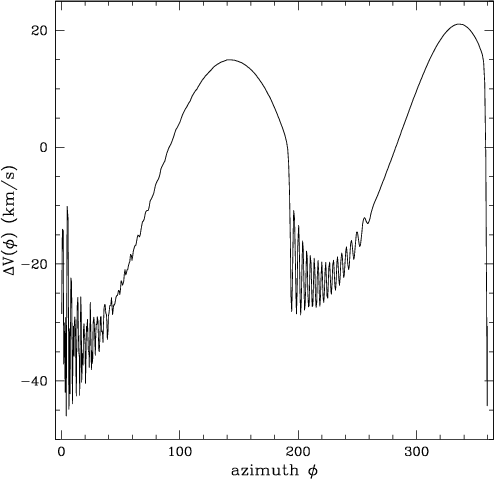

$\begin{figure} \par\includegraphics[width=7cm,clip]{5776fig2.ps}\end{figure}$ Figure 2: The azimuthal velocity $\Delta V$ ( $\phi$ ) along the equatorial region of surface elements with angle $\phi$ at a given time, for the $P_{\rm orb}=$ 2.5 day binary system and with $\delta R$ = 0.01 R₁ and $\nu =$ 0.0043 $R_\odot ^2$ d^-1.
Open with DEXTER

In the text

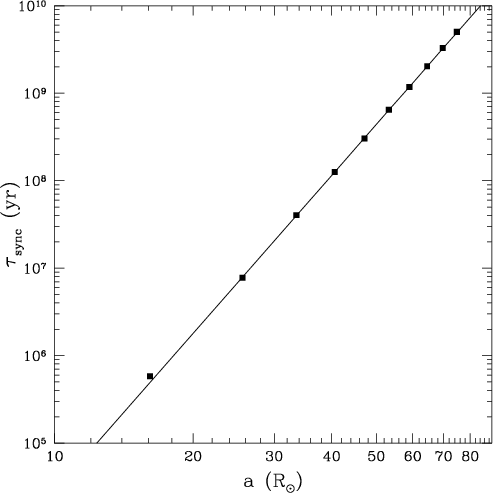

$\begin{figure} \par\includegraphics[width=7cm,clip]{5776fig3.ps}\end{figure}$ Figure 3: Synchronization timescales (squares) calculated from our tidal oscillation model for a fixed $\beta =$ 2, and $\delta R$ = 0.01 R₁, and for values of $\nu$ as listed in Table 1 compared with Zahn's (1977) relation for stars with convective envelopes (continuous line).
Open with DEXTER

In the text

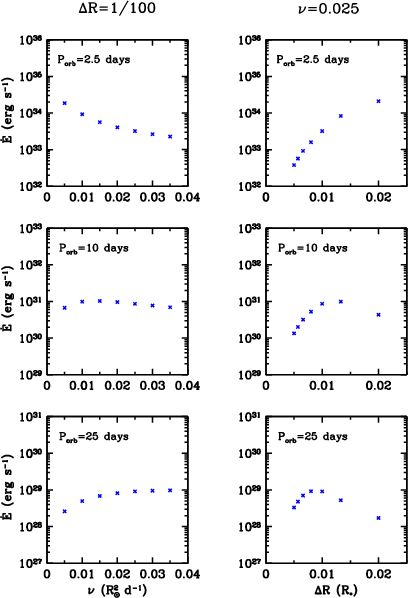

$\begin{figure} \par\includegraphics[width=5.8cm,clip]{5776fig4.eps}\end{figure}$ Figure 4: Energy dissipation rates calculated for different viscosities $\nu$ with a fixed layer thickness $\delta R$ = 0.01 R₁ ( left column) and for a changing layer thickness with a fixed viscosity $\nu =$ 0.025 $R_\odot ^2$ d^-1 ( right column). Three binary systems with different orbital periods are illustrated, from top to bottom: $P_{\rm orb}=$ 2.5, 10 and 25 d.
Open with DEXTER

In the text

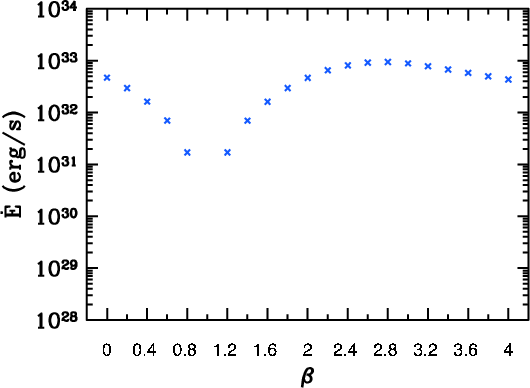

$\begin{figure} \par\includegraphics[width=7.55cm,clip]{5776fig5CMJN.eps}\end{figure}$ Figure 5: Energy dissipation rates for different values of $\beta$ , for a binary system with M₁= 5 $M_\odot$ , M₂= 4 $M_\odot$ , R₁= 3.2 $R_\odot$ , $P_{\rm orb}=$ 5 d, $\delta R$ = 0.01 R₁ and $\nu =$ 0.005 $R_\odot ^2$ d^-1.
Open with DEXTER

In the text

$\begin{figure} \par\includegraphics[width=7cm,clip]{5776fig2.ps}\end{figure}$	Figure 2: The azimuthal velocity $\Delta V$ ( $\phi$ ) along the equatorial region of surface elements with angle $\phi$ at a given time, for the $P_{\rm orb}=$ 2.5 day binary system and with $\delta R$ = 0.01 R₁ and $\nu =$ 0.0043 $R_\odot ^2$ d^-1.
Open with DEXTER

$\begin{figure} \par\includegraphics[width=7cm,clip]{5776fig3.ps}\end{figure}$	Figure 3: Synchronization timescales (squares) calculated from our tidal oscillation model for a fixed $\beta =$ 2, and $\delta R$ = 0.01 R₁, and for values of $\nu$ as listed in Table 1 compared with Zahn's (1977) relation for stars with convective envelopes (continuous line).
Open with DEXTER

$\begin{figure} \par\includegraphics[width=5.8cm,clip]{5776fig4.eps}\end{figure}$	Figure 4: Energy dissipation rates calculated for different viscosities $\nu$ with a fixed layer thickness $\delta R$ = 0.01 R₁ ( left column) and for a changing layer thickness with a fixed viscosity $\nu =$ 0.025 $R_\odot ^2$ d^-1 ( right column). Three binary systems with different orbital periods are illustrated, from top to bottom: $P_{\rm orb}=$ 2.5, 10 and 25 d.
Open with DEXTER

$\begin{figure} \par\includegraphics[width=7.55cm,clip]{5776fig5CMJN.eps}\end{figure}$	Figure 5: Energy dissipation rates for different values of $\beta$ , for a binary system with M₁= 5 $M_\odot$ , M₂= 4 $M_\odot$ , R₁= 3.2 $R_\odot$ , $P_{\rm orb}=$ 5 d, $\delta R$ = 0.01 R₁ and $\nu =$ 0.005 $R_\odot ^2$ d^-1.
Open with DEXTER
