A&A 460, 925-933 (2006)
D. A. N. Müller1 - R. Schlichenmaier2 - G. Fritz2,3 - C. Beck2
1 - European Space Agency, Research and Scientific Support Department, c/o NASA Goddard Space Flight Center, Mail Code 612.5, Greenbelt, MD 20771, USA
2 - Kiepenheuer-Institut für Sonnenphysik, Schöneckstr. 6, 79104 Freiburg, Germany
3 - Arnold Sommerfeld Center for Theoretical Physics, Theresienstr. 37, 80333 München, Germany
Received 18 July 2006 / Accepted 15 September 2006
Context. Sunspot penumbrae harbor highly structured magnetic fields and flows. The moving flux tube model offers an explanation for several observed phenomena, e.g. the Evershed effect and bright penumbral grains.
Aims. A wealth of information can be extracted from spectropolarimetric observations. In order to deduce the structure of the magnetic field in sunspot penumbrae, detailed forward modeling is necessary. On the one hand, it gives insight into the sensitivity of various spectral lines to different physical scenarios. On the other hand, it is a very useful tool to guide inversion techniques. In this work, we present a generalized 3D geometrical model that embeds an arbitrarily shaped flux tube in a stratified magnetized atmosphere.
Methods. The new semi-analytical geometric model serves as a frontend for a polarized radiative transfer code. The advantage of this model is that it preserves the discontinuities of the physical parameters across the flux tube boundaries. This is important for the detailed shape of the emerging Stokes Profiles and the resulting net circular polarization (NCP).
Results. (a) The inclination of downflows in the outer penumbra must be shallower than approximately ; (b) observing the limb-side NCP of sunspots in the Fe
Conclusions. 1 1564.8 nm line offers a promising way to identify a reduced magnetic field strength in flow channels; (c) the choice of the background atmosphere can significantly influence the shape of the Stokes profiles, but does not change the global characteristics of the resulting NCP curves for the tested atmospheric models.
Key words: Sun: sunspots - Sun: photosphere - Sun: magnetic fields - Sun: atmosphere - Sun: infrared
Spectral line profiles in the penumbra are characterized by line shifts and line asymmetries of their intensity (Stokes I) as well as in polarized light (Stokes Q, U, and V). A suitable measure of the asymmetry of Stokes-V profiles is the area asymmetry or net circular polarization, NCP, of a spectral line, which we define as
The advent of modern polarimeters like the Advanced Stokes Polarimeter (ASP, Skumanich et al. 1997) at the NSO Vacuum Tower Telescope in Sunspot, New Mexico, and the Tenerife Infrared Polarimeter (TIP, Mártinez Pillet et al. 1999) and the Polarimetric Littrow Spectrometer (POLIS, Beck et al. 2005) at the Vacuum Tower Telescope (VTT) on Tenerife has brought new challenges to observers as well as theoreticians. It is now possible to routinely record maps of the full Stokes vector for a whole sunspot. This facilitates the study of spectral signatures of magnetic flux tubes in the penumbra by analysis of maps of the NCP.
So far, the spectral synthesis has been limited to atmospheric models based on snapshots of the moving tube model simulations by Schlichenmaier et al. (1998) and to configurations in a two-dimensional plane ("slab models''). Such slab models have been used earlier by Solanki & Montavon (1993), Sánchez Almeida et al. (1996) and Martínez Pillet (2000), and led to the picture of the "uncombed'' penumbra: Approximately horizontal magnetic flux tubes are embedded in a more inclined background field that is at rest. The sharp gradient or even discontinuity of the velocity of the plasma between the inside of the tube and the static surroundings result in the observed NCP. While two-dimensional models reproduce the observed NCP and its center-to-limb variation, they are limited to the few geometric cases where a flux tube is exactly aligned with the line-of-sight (LOS). Thus, they do not give any information about the NCP at different positions within the penumbra.
We showed (Müller et al. 2002; Schlichenmaier et al. 2002, hereafter M02) that a wealth of additional information is contained in NCP maps, which can be retrieved with the help of a three-dimensional model. Discontinuities in the azimuth of the magnetic field (as measured in the observer's coordinate system) lead to a characteristic pattern of the NCP within the penumbra. Specifically, it was shown that the apparent symmetry within the spot is broken due to the following fact: the discontinuities in the magnetic field azimuth are different for two locations that are symmetrically located in the spot with respect to the "line-of-symmetry'', i.e. the line connecting disk-center and sunspot center (Fig. 1). These azimuth discontinuities have been confirmed observationally by Bellot Rubio et al. (2004).

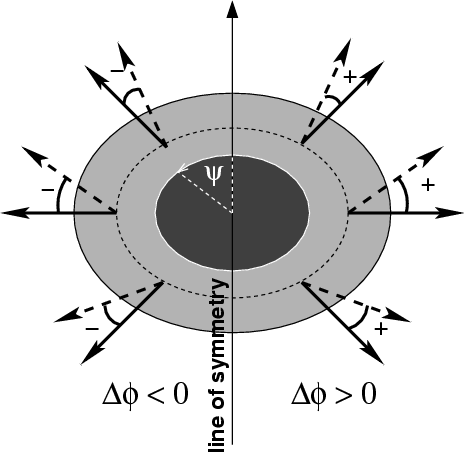

|Figure 1: Pictorial representation of the difference in azimuth, , between the magnetic field vector inside a flux tube (solid arrows) and that of the background field (dashed arrows). The tubes are nearly horizontal, while the field vector of the background has a steeper inclination, but is also in the plane spanned by the spot axis and the flux tube axis.|
The impact of this geometric effect on the NCP strongly varies between spectral lines at different wavelengths. A comparison of the NCP of different spectral lines can thus be used to diagnose the magnetic field inclination and orientation of flow channels in the penumbra. As an example, we consider the two iron lines Fe 1 1564.8 nm and Fe 1 630.25 nm. Both lines are Zeeman triplets and have similar Landé factors of g=3 and g=2.5, respectively. It turns out that the infrared line (Fe 1 1564.8 nm) is far more susceptible to the symmetry breaking than the visible line (for details, cf. M02).
In order to gain a better understanding of the different factors that determine the NCP and its spatial variation within the penumbra, we have constructed a 3D geometric model (VTUBE) of a magnetic flux tube embedded in a background atmosphere. This model serves as the frontend for a radiative transfer code (DIAMAG, Grossmann-Doerth 1994). Combining the two, we can generate synthetic NCP maps for any desired axisymmetric magnetic field configuration and arbitrary flux tube properties. The model has been built to offer a high degree of versatility, e.g. the option to calculate several parallel rays along the line-of-sight that intersect the tube at different locations. One can then average over these rays to model observations of flux tubes at different spatial resolutions and for different magnetic filling factors of the atmosphere. Furthermore, we can also take into account radial variations of the physical properties of the flux tube. Doing so, one can e.g. model the interface between the flux tube and its surroundings.
In the simplest case, the VTUBE model reduces to a general model for a two-component atmosphere, i.e. an atmosphere with a static background component and a flow component. Thus, it can also be used for flux tube models other than the moving tube model considered here.
|Figure 2: Magnetic flux tubes in the penumbra. For a given heliocentric angle , the azimuth and the inclination of the magnetic field vary with the location of the flux tube in the sunspot, characterized by the spot angle .|

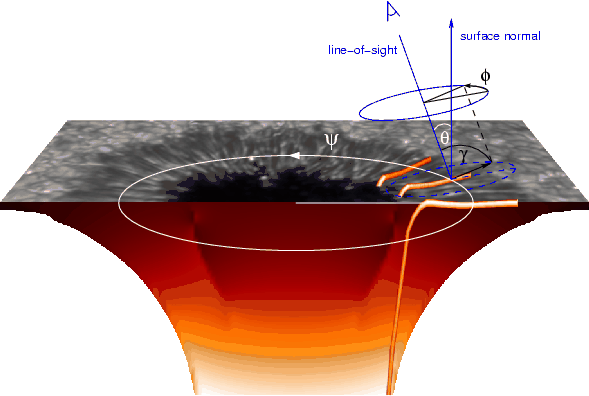

Figure 2 shows the relevant angles that appear in the model. For a given heliocentric angle , the azimuth and the inclination of the magnetic field vary with the location of the flux tube in the sunspot, characterized by the spot angle . For the calculations presented in this paper, no averaging over parallel rays was performed, and the physical quantities were kept constant along the flux tube radius (thin flux tube approximation).

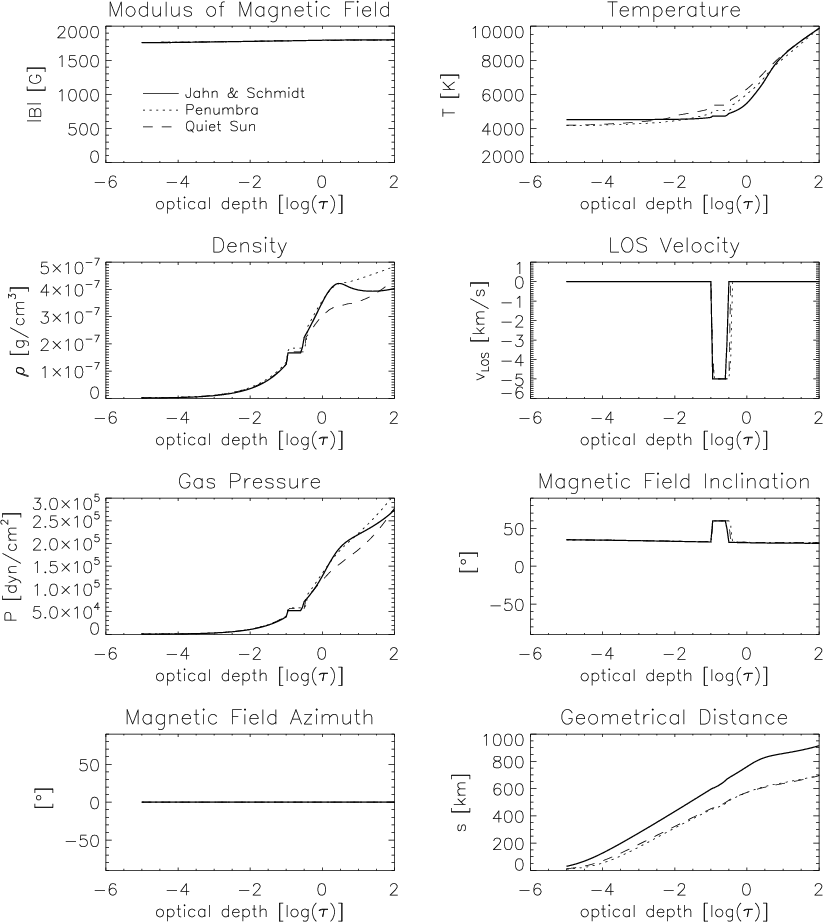

|Figure 3: Physical parameters along the line-of-sight for three different atmospheric models. The geometrical location of the flux tubes has been adjusted so that the top of the flux tube is located at for a vertical line-of-sight ( ) for all three models. The example shows a magnetic flux tube with a flux of 1016 Mx in the outer penumbra ( r = 12 000 km), observed at a heliocentric angle of and a spot angle of . The flow speed inside the tube is v0 = 10 km s-1 which results in a line-of-sight velocity of km s-1. Since the flux tube is aligned with the line-of-sight, the azimuth angle is zero.|
Apart from the details of the magnetic flux tube, the VTUBE model allows the user to specify the background atmosphere. We assume that the thermodynamic part of the atmospheric model only depends on the geometrical height, z. Thus, temperature, T, pressure, p, and density, , are prescribed in tabulated form, with data obtained either from semi-empirical or theoretical models. The magnetic field structure is described independently from the thermal structure. This is done because we are interested in the effect of varying physical parameters of the flux tube, and there is so far no self-consistent 3D MHD model of flux tubes in the penumbra available. For atmospheric models for which the magnetic vector field has not been determined, one has to take care that the parametrization of the magnetic field is consistent with the thermodynamic structure.
We use the same parametrization as in M02 to model an axisymmetric magnetic field whose strength decreases radially as B (r) = B0 / (1+(r/r*)2) and whose inclination decreases linearly as . In these expressions, r denotes the radial distance from the spot center, r* is the radial distance at which the magnetic field has decreased by 50%, and indicates the radial distance at which the field becomes horizontal. This represents an extension to the work of Beckers & Schröter (1969) which takes into account more recent observations (e.g. Title et al. 1993), according to which the magnetic field of a sunspot is not horizontal at the spot boundary (r = r*, where r* is the radius at which the field strength has dropped to half its maximal value), but shows a small inclination with respect to the surface. Adopting values of B0 = 2700 G, r* = 16 800 km, and km yields an inclination of at r=r*, and a vertical gradient of the magnetic field in the spot center of G/km, which agrees fairly well with the value of G/km as determined from the model of Jahn & Schmidt (1994, hereafter JS94) for r=0.
In this work, we experiment with three different background atmospheres. The first one is the penumbral model of JS94 which was used as a background atmosphere for the MHD simulations of Schlichenmaier et al. (1998) and for the NCP calculations of M02. The second one is the penumbral model of Bellot Rubio et al. (2006) which is based on high-resolution intensity profiles of the non-magnetic Fe 1 557.6 nm line, obtained with the TESOS spectrometer at the Vacuum Tower Telescope on Tenerife. The third one is the quiet sun model of Holweger & Müller (1974) modified by Schleicher (1976) to account for the chromospheric temperature rise. This model was chosen to study the effect of a slightly higher temperature in the line-forming region of the atmosphere.
Figure 3 shows the physical parameters along the line-of-sight for the three different atmospheric models with a horizontal magnetic flux tube. The upper right panel shows the temperature of these three atmospheric models as a function of optical depth. Between and , the quiet sun model is up to 570 K hotter than the model of Bellot Rubio et al. (2006) and up to 860 K hotter than the atmosphere of JS94.

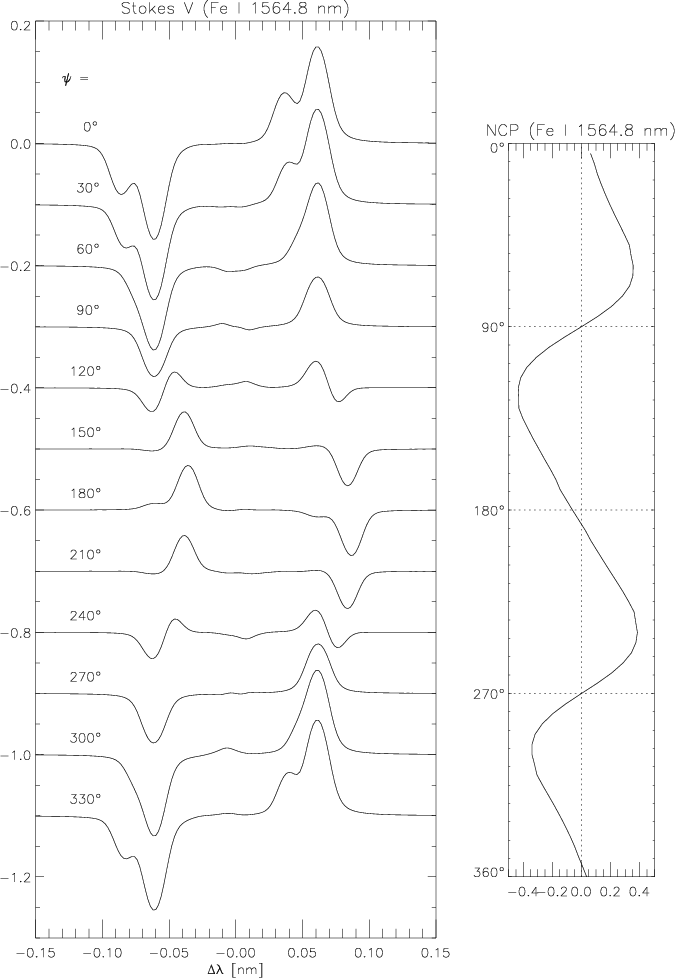

|Figure 4: Stokes-V profiles and NCP for a horizontal magnetic flux tube with a flux of 1016 Mx, embedded in the penumbral atmospheric model of Bellot Rubio et al. (2006), observed at a heliocentric angle of . The stack plot on the left side shows Stokes-V profiles for different positions along a radial cut at r=12 000 km through the outer penumbra, specified by the spot angle . The right plot shows the corresponding NCP, i.e. the integral over the Stokes-V profiles. As expected, it is seen that the NCP vanishes for and , where the line-of-sight is perpendicular to the flow.|
Since spectra yield information about the atmospheric parameters as a function of optical rather than geometrical depth and since the NCP is very sensitive to the exact location of the flow channel along the line-of-sight, the location of the flux tube has been adjusted to allow a comparison between the different models. The top of the tube was placed at a relative height of zt=-50 km for the JS94 model, zt=+82 km for the penumbral model of Bellot Rubio et al. (2006) and zt=+78 km for the quiet sun model of Schleicher (1976), so that the top of the flux tube is located at an optical depth of for a vertical line-of-sight ( ). The example shows a magnetic flux tube with a flux of 1016 Mx in the outer penumbra ( r = 12 000 km), observed at a heliocentric angle of and a spot angle of (i.e. center-side penumbra). The flow speed inside the tube is v0 = 10 km s-1 (this speed is used for all calculations in this paper unless otherwise noted) which results in a line-of-sight velocity of km s-1. The minus sign indicates that the flow is directed towards the observer. Since the flux tube is aligned with the line-of-sight, the azimuth angle is zero.
Once the background atmosphere has been defined, the following steps are performed to assemble a realization of the penumbral flux tube model:
To illustrate how the shape of Stokes-V profiles is connected to a NCP curve, Fig. 4 shows Stokes-V profiles and the corresponding NCP for a straight horizontal magnetic flux tube. The tube contains a magnetic flux of 1016 Mx, is embedded into the penumbral atmospheric model of Bellot Rubio et al. (2006) and is observed at a heliocentric angle of . The stack plot on the left side shows Stokes-V profiles for different positions along a radial cut at r=12 000 km through the outer penumbra, specified by the spot angle, . The spot angle runs counter-clockwise from the line connecting the center of the spot and the center of the solar disk (see Fig. 2). For example, corresponds to a position in the center-side penumbra where the Evershed flow is directed towards the observer. This can be seen by the blue-shifted component of the Stokes-V profile. The right plot shows the corresponding NCP, i.e. the integral over the Stokes-V profiles. As expected, it is seen that the NCP vanishes for and , where the line-of-sight is perpendicular to the flow.
The Zeeman splitting of a spectral line is proportional to the square of its wavelength, , while the Doppler shift increases only linearly with . Due to this elementary difference, the effect of a flow channel in the line-of-sight of a magnetized atmosphere is most clearly seen for longer wavelengths, e.g. in the infrared. In the upper and lower profiles in Fig. 4 ( ), the flux tube component of the Stokes-V profile is clearly visible as a small hump (or "line satellite'') in the wing of the background component. In this case, the observer is looking at the center-side penumbra. For and , the NCP vanishes since the line-of-sight is perpendicular to the flow. The azimuthal variation of the NCP is approximately antisymmetric with respect to the line connecting spot center and disk center. This behavior is characteristic of the infrared line Fe 1 1564.8 nm and is known as the effect (see Sect. 4.2 and M02 for details).

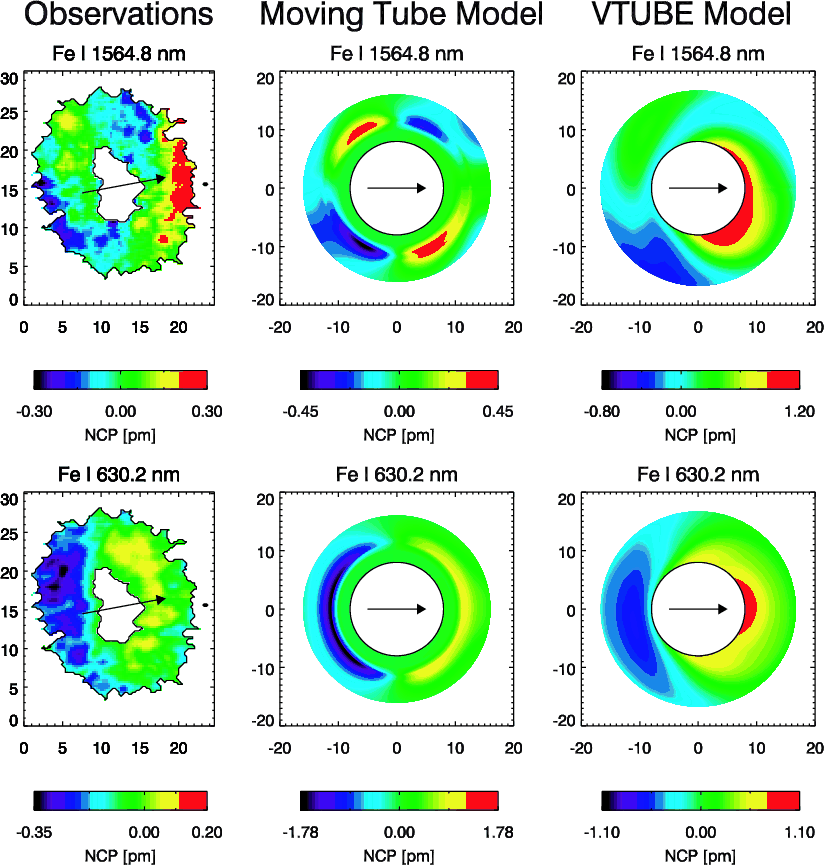

|Figure 5: Maps of net circular polarization (NCP) for an heliocentric angle of . Upper row: infrared line, bottom row: visible line. Columns from left to right: observations (VTT, Tenerife), NCP maps synthesized from the moving tube model, and maps from the new and generalized VTUBE model. The arrows point towards disk center. The absolute magnitude of the NCP is higher for the synthetic maps than for the observations since a filling factor of unity is assumed. The color coding for all maps represents the NCP, measured in pm, and the spatial scales are in Mm.|
Figure 5 shows a comparison between NCP maps from observations, the moving tube model, and maps that are constructed with the new VTUBE model. The upper row shows NCP maps of the Fe 1 1564.8 nm infrared line, the bottom row shows NCP maps of the Fe 1 630.25 nm visible line:

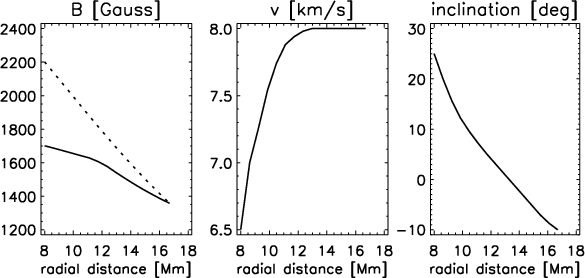

|Figure 6: Radial dependence of flow and magnetic field of the two components. These values are used to construct the NCP maps in the right panel of Fig. 5. The left panel shows the radial variation of the magnetic field strength of the strong background (dotted line) and weak tube (solid line) component. The middle and right panels display the flow speed and the inclination of the tube component relative to the horizontal.|

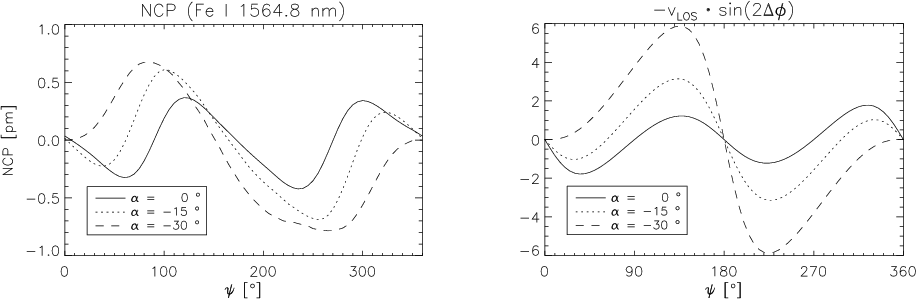

|Figure 7: Variation of the NCP along a circular cut in the outer penumbra for the infrared line Fe 1 1564.8 nm. For tube inclination angles of , the curve has two pronounced maxima and minima, while there is only one of each for smaller angles, i.e. more vertical downflows. The different shapes of the curves can be approximated by the term where is the line-of-sight velocity and is the jump in the azimuth of the magnetic field between the flux tube and the background atmosphere.|

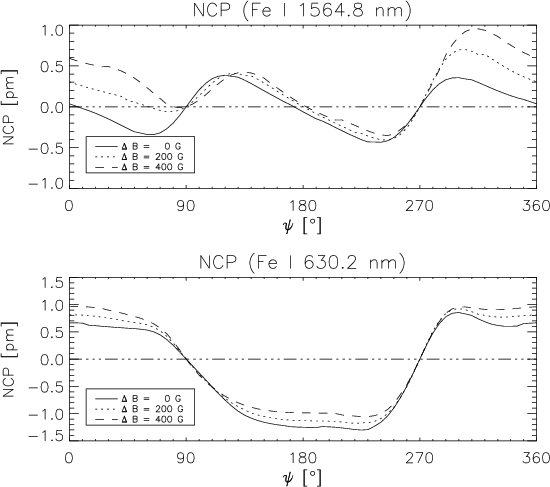

|Figure 8: Introducing a jump in the magnetic field strength between the flux tube and the background increases the NCP. For the infrared line ( upper panel), the effect is largest for the center-side penumbra.|
Figure 7 shows the variation of the NCP along a circular cut in the outer penumbra for the infrared line Fe 1 1564.8 nm. For tube inclination angles of , the curve has two pronounced maxima and minima, while there is only one of each for smaller angles, i.e. more vertical downflows.

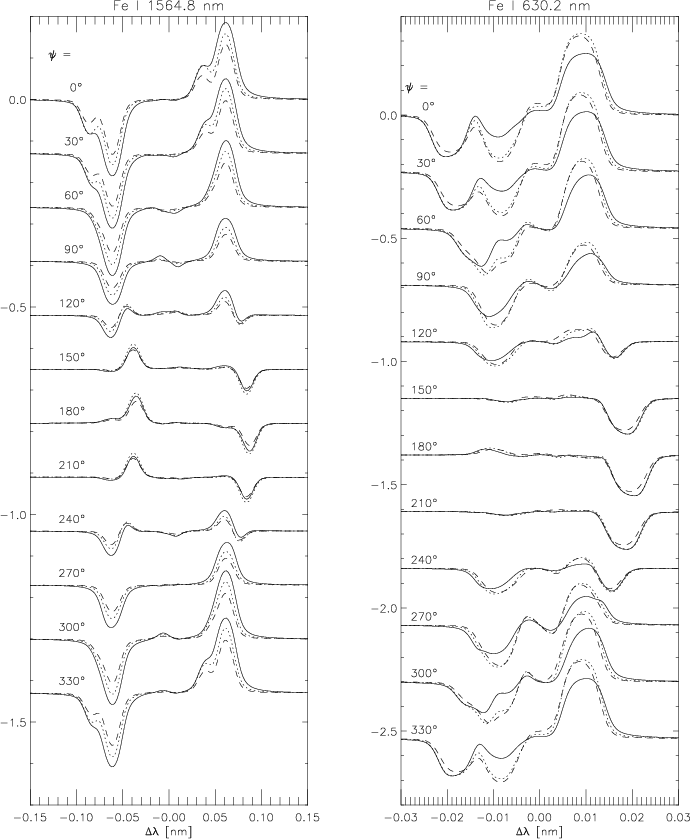

|Figure 9: The effect of a jump in the magnetic field strength between the flux tube and the background. The left panel shows the Stokes-V profiles of the infrared line, the right panel the Stokes-V profiles of the visible line. The solid line corresponds to G, the dotted line to G and the dashed line to G.|
There are two points to be made here. The first one is that the different shapes of the curves can be explained by applying the simplified analytical model of Landolfi & Landi Degl'Innocenti (1996). In this model, a thin slab of moving plasma is located on top of a semi-infinite static atmosphere, and the two parts are permeated by different magnetic fields. In M02 we showed that their findings can also be applied to the slightly more complex situation of a magnetic flux tube embedded in a static background atmosphere. The NCP resulting from such an atmosphere with a flow channel can be caused by the gradient or jump in (a) the magnetic field strength ( effect), (b) its inclination ( effect) and/or (c) the azimuth ( effect). As described in detail in paper M02, we showed that the effect is the dominant one for the infrared line Fe 1 1564.8 nm. In this case, the NCP is proportional to where is the line-of-sight velocity and is the jump in the azimuth of the magnetic field between the flux tube and the background atmosphere. This term is plotted in the right panel and qualitatively reproduces the symmetry properties of the NCP displayed in the left panel.
The second point we would like to make is that the observed azimuthal variations of the NCP in the infrared line always show two maxima and two minima. Comparing this with models where the angle of the flux tube was varied, this finding rules out flux tubes that descend at an angle steeper than about .

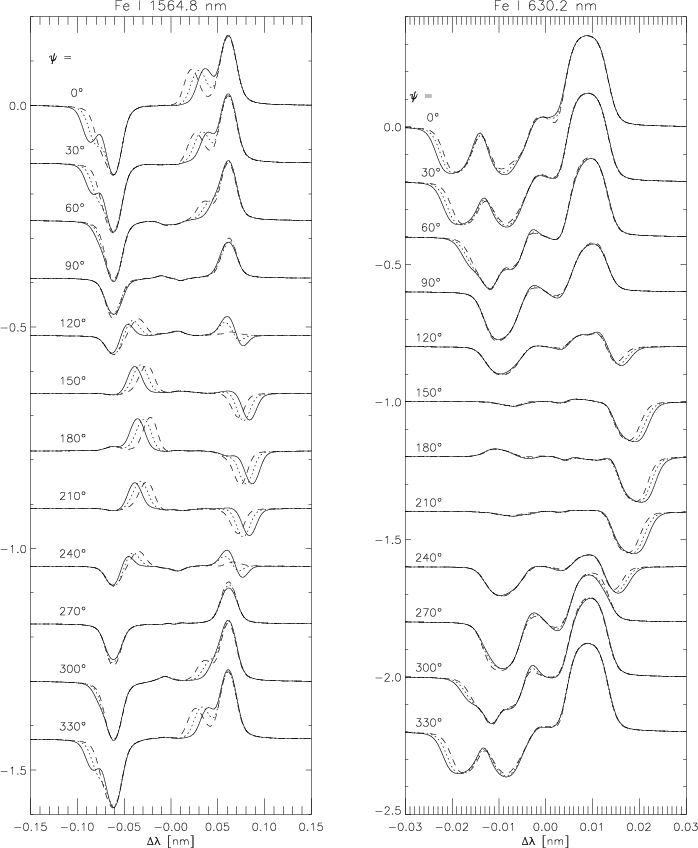

|Figure 10: The effect of different background atmospheres. The left panel shows the Stokes-V profiles of the infrared line, the right panel the Stokes-V profiles of the visible line. The solid line corresponds to the JS94 model, the dotted line to the Bellot Rubio et al. (2006) model and the dashed line to the model of Schleicher (1976).|
Recent observations by Bellot Rubio et al. (2004) and Borrero et al. (2004) suggest that the magnetic field strength in penumbral flux tubes is lower than in its surroundings. One way of confirming this conjecture is to look for the signature of a discontinuity in the magnetic field strength in the NCP. Figure 8 shows the azimuthal variation of the NCP for both the infrared and the visible line for the atmospheric model of Bellot Rubio et al. (2006). The effect of lowering the magnetic field strength inside the flux tube is the following: For the infrared line Fe 1 1564.8 nm, the NCP strongly increases in the center-side penumbra ( ). The dotted lines in the plots corresponds to a jump in magnetic field strength of G, the dashed lines corresponds to G. For the visible line Fe 1 630.25 nm, the effect is much smaller and consists of a small increase of the NCP in the center-side penumbra and a small decrease of the NCP in the limb-side penumbra. The explanation for this behavior is given in Fig. 9: the left panel shows the Stokes-V profiles of the infrared line, the right panel the Stokes-V profiles of the visible line (same line-styles as in Fig. 8). Let us take a look at the center-side profiles around : it can be seen that upon reduction of the field strength inside the tube, the two small humps of the flux tube component of the profile move closer together due to the reduced Zeeman effect. For the blue wing of the Stokes-V profile, this means that the small hump merges with the main lobe, which reduces the integrated area over the blue wing. For the red wing, on the contrary, the small hump becomes more and more disconnected from the main lobe. This increases the integrated area under the red wing, with the result that the total integral over the Stokes-V profile increases. In the case of the visible line, reducing the magnetic field strength increases the NCP just a little on the center-side (because the flux tube component of the Stokes-V profile is less split due to the Zeeman effect). On the limb-side, the NCP is slightly reduced for the same reason (compare the profiles in the right panel of Fig. 9).
In conclusion, observing the limb-side NCP of sunspots in the Fe 1 1564.8 nm line offers a promising way to identify a reduced magnetic field strength in flow channels. If the NCP is significantly different from zero and does not show antisymmetry around the line connecting spot center and disk center, this is a strong hint for a lower magnetic field strength in the flux tubes.
In order to check whether the atmospheric background model has a strong influence on the NCP, we calculated the same model with different background atmospheres. The remaining parameters ( r = 12 000 km, , , G) were kept constant. Figure 10 shows stack plots of the resulting Stokes-V profiles and Fig. 11 displays the corresponding NCP curves.
In the case of the infrared line Fe 1 1564.8 nm (left panel), the profiles look similar in shape for all three atmospheric models. The line depths are largest for the JS94 model, followed by the Bellot Rubio et al. (2006) model and the Schleicher (1976) model. This is simply a result of the temperature difference in the line-forming region between the three models: The JS94 model is the coolest model and thus absorbs more strongly than the warmer model of Bellot Rubio et al. (2006) and the even hotter model of Schleicher (1976). This is consequently reflected in the NCP curves which are similar in shape for all three atmospheres, but slightly larger in amplitude the cooler the model is.
For the visible line Fe 1 630.25 nm, the situation is slightly more involved. The right panel of Fig. 10 shows significant differences in the shapes of the profiles on the center-side. To be more precise, the unshifted components of the Stokes-V profiles for the JS94 model differ from those of the other two models in the sense that both wings are less pronounced than for the other two atmospheric models. The reason for this is that the JS94 model is a relatively simple theoretical one in which the temperature gradient almost vanishes above , i.e. directly above the flux tube. For this reason, the line formation nearly ceases above the flux tube which results in the odd shapes of the unshifted Stokes-V components. A closer look at the line formation process reveals that the Stokes-V profiles for reach their final shape already around for this model, while this state is only reached around and for the models of Bellot Rubio et al. (2006) and Schleicher (1976), respectively.
For the infrared line Fe 1 1564.8 nm, the vanishing temperature gradient of the JS94 model above the flux tube does not significantly affect the shape of the Stokes profiles since this line is formed in deeper layers of the atmosphere.
Despite the fact that the Stokes-V profiles vary for the different atmospheric models, the resulting NCP curves for the Fe 1 630.25 nm line do not differ strongly. The slightly higher NCP for this model on the center-side penumbra can be attributed to the difference in line formation described above. From these findings, we conclude that the choice of the atmospheric background model can significantly influence the shape of the Stokes profiles, but does not change the global characteristics of the resulting NCP curves for the tested models.

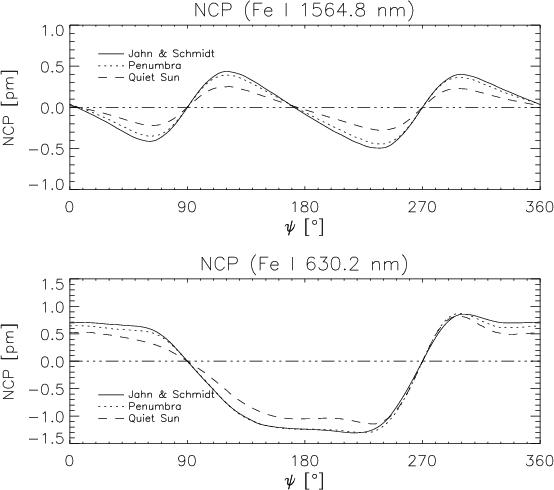

|Figure 11: Azimuthal variation of the NCP for different background atmospheres. The upper panel shows the Stokes-V profiles of the infrared line, the lower panel the Stokes-V profiles of the visible line. The solid line corresponds to the JS94 model, the dotted line to the one of Bellot Rubio et al. (2006) and the dashed line to the model of Schleicher (1976).|
For comparison, Fig. 12 shows the observed azimuthal variation of the NCP for the infrared line Fe 1 1564.8 nm and the visible line Fe 1 630.25 nm. As noted above, the absolute magnitude of the observed NCP is lower than the one calculated from the synthetic profiles since the latter assume a filling factor of unity, i.e. each line of sight is passing through the center of a magnetic flux tube. The exact calibration of the zero-level of the observed NCP is very difficult, therefore Fig. 12 shows the unshifted raw data.

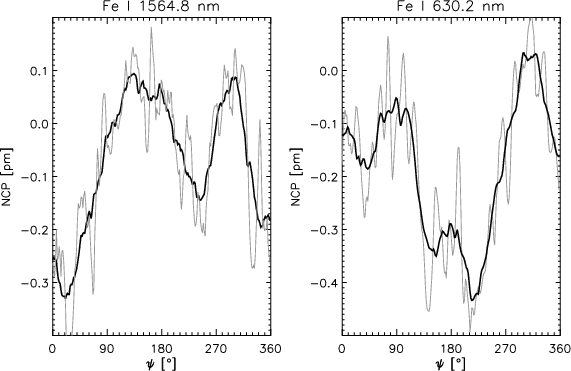

|Figure 12: Observed azimuthal variation of the NCP for the infrared line ( left panel) and the visible line ( right panel). The thin lines show the raw data, the thick lines are smoothed with a boxcar average of .|
We have presented a generalized geometrical model that embeds an arbitrarily shaped flux tube in a stratified magnetized atmosphere. The new model is a versatile tool to calculate the spectral signature of flux tubes in the penumbra and especially to make predictions about the flow speed and tube inclination from observed maps of the net circular polarization. From the first applications of the new model, we find that
The authors would like to thank W. Schmidt and the anonymous referee for useful and constructive comments which helped to improve the quality of this paper. C.B. acknowledges a grant by the Deutsche Forschungsgemeinschaft, DFG.
In order to construct a computationally efficient algorithm that is able to calculate the physical properties along the line-of-sight, we use the parametrized 3D model described below. In contrast to an explicit 3D model where one generates a three-dimensional box for all the physical properties and then intersects this box with a line-of-sight, our model generates the line-of-sight variables directly from geometrical considerations.
We start with a two-dimensional definition of the flux tube
axis, which is given by a polygon or spline function and is embedded
in the (r,z)-plane as shown in Figs. A.1a and b. This figure shows an example of a straight tube with a constant inclination angle, ,
but in principle,
is variable along the tube. A complete set of physical quantities relevant for the radiative transfer code is assigned to each point along the tube axis. The local radius of the tube,
is calculated from the condition that the magnetic
is constant along the tube,

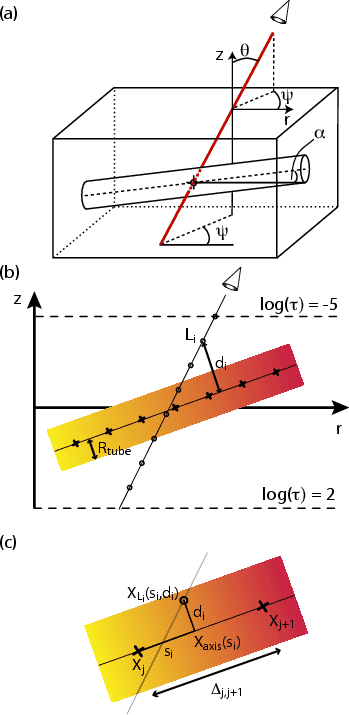

|Figure A.1: Panel a) shows a flux tube, inclined by an angle and observed at a heliocentric angle and a spot angle . Panel b) shows the flux tube intersected by the LOS, projected into the (r,z)-plane. For each point Li on the LOS, the minimal distance di to the flux tube axis is calculated. If this distance is smaller than the local tube radius, the point Li lies inside the flux tube. Typically, the radiative transfer equation is integrated from an optical depth of out to (indicated as dashed lines for a vertical LOS). In panel c), the relevant dimensions for the interpolation of an arbitrary physical quantity X are depicted. First, a linear interpolation along the flux tube axis is carried out, thus leading to a value at distance si from Xj. Second, starting from the value at the flux tube axis, one can prescribe an arbitrarily shaped radial dependence, which results in XLi(si,di).|
Based on the coordinates (ri,zi) of the points Li we can easily
interpolate the scalar quantities from tabulated background model
values (temperature T, pressure p, density ,
strength B). In addition, one needs the
magnetic field azimuth
and its inclination
to the LOS (see Figs. A.2b and c). Let
tangent vector along the LOS (directed into the spot) and the magnetic field vector. The inclination
is then given by
(compare Fig. A.2c)

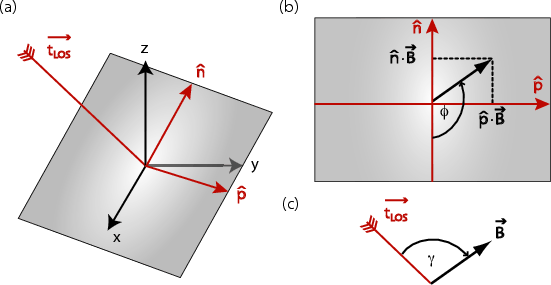

|Figure A.2: a) Illustration of the local coordinate system ( ), spanning the plane perpendicular to the line-of-sight. The azimuthal angle with respect to the line-of-sight is shown in b), whereas c) shows the definition of the inclination between the line-of-sight and the magnetic field.|
In order to calculate the magnetic field azimuth ,
we have to project the
magnetic field vector onto the plane perpendicular to the LOS as illustrated in Fig. A.2a. We define
as the unit vector perpendicular
and the z-axis (
is consequently located
in the (x,y)-plane) and
as the unit vector normal on
A closer look at Fig. A.2b shows that
is given by
If a point Li lies inside the flux tube, the physical
properties are interpolated from the values provided along the flux
tube polygon. In particular, one first interpolates the quantity of
interest (here symbolically termed X) linearly along the flux tube
axis. If the two nearest flux tube neighbors of Li are the points j and j+1 with quantities Xj and Xj+1, respectively, we obtain
in a distance si from j (compare Fig. A.1b)
The vector-valued quantities (i.e. the velocity and the magnetic field) are assumed to be oriented parallel to the flux tube axis and their strength is interpolated from the values given on the axis in the aforementioned manner. The projection onto the plane perpendicular to the LOS is carried out analogously to the previously described way (compare Fig. A.2 and Eq. (A.3)).
After all physical quantities have been projected onto the line-of-sight, they are passed to the radiative transfer code. Scanning the spot angle and the radial position of the line-of-sight within the penumbra, one can now easily obtain maps of all four Stokes parameters or any derived quantities.
