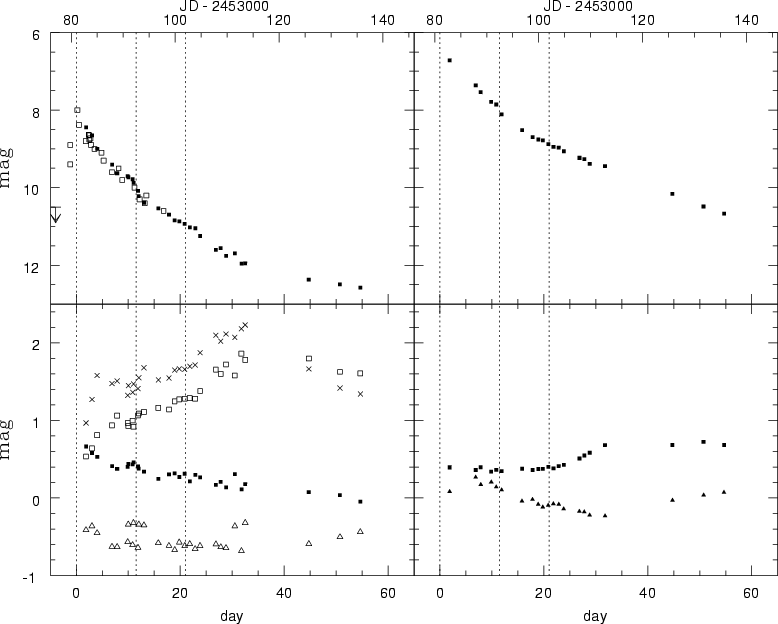

Figure 1:
Upper left panel: V band light curve. Filled symbols
represent our data points, empty symbols represent IAUC data.
Vertical dotted lines represent maximum light, t2, and t3.
Data points are affected by errors
![]() |
Open with DEXTER |
![]() |

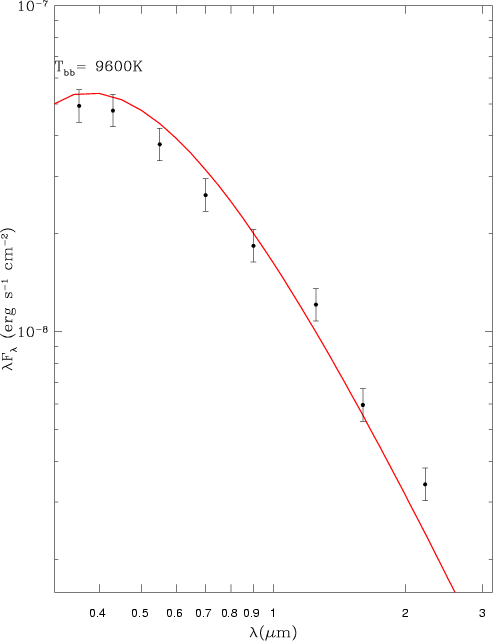

Figure 2: Spectral energy distribution of V5114 Sgr one day after maximum. The magnitudes in the various bands have been corrected for interstellar extinction. |
Open with DEXTER |
![]() |

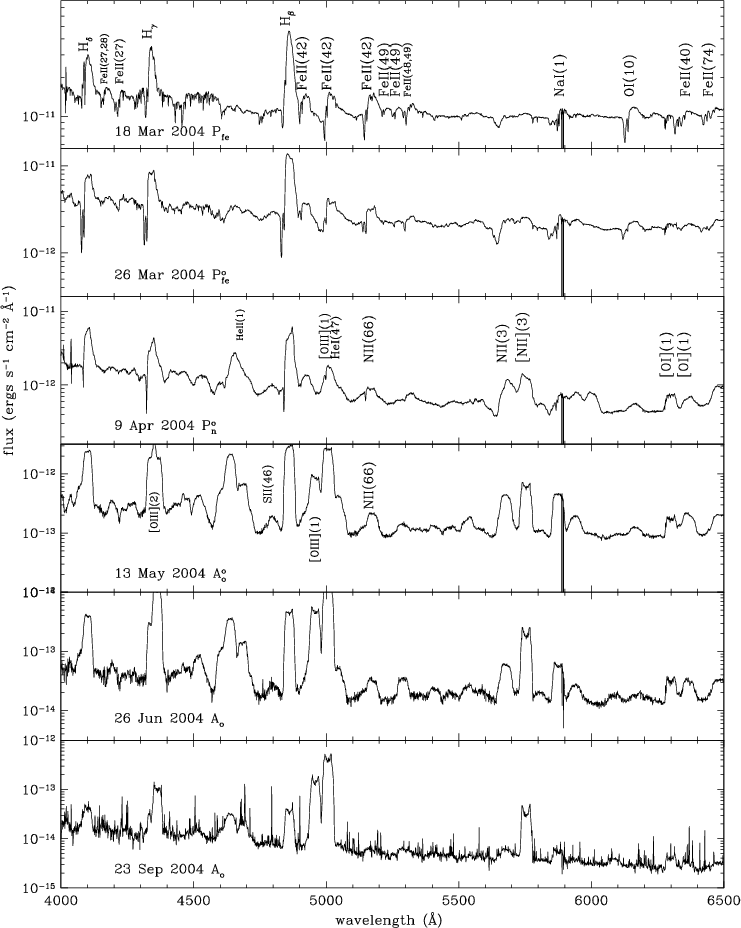

Figure 3: Dereddened spectra of V5114 Sgr (blue part). Fluxes are in logarithmic scale to show the less intense lines. |
Open with DEXTER |
![]() |

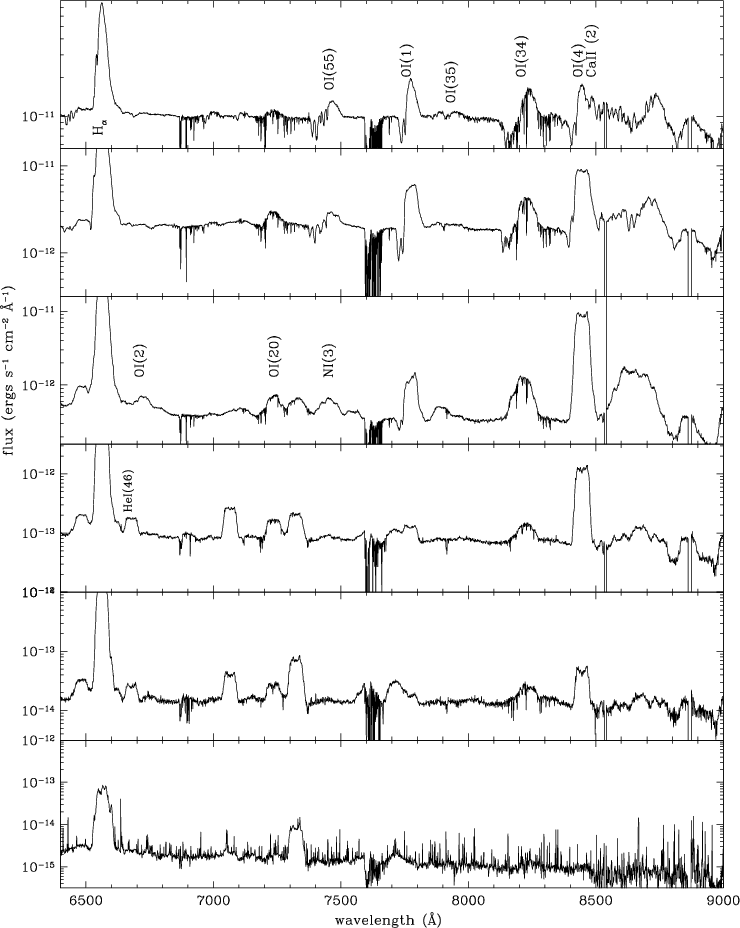

Figure 4: Dereddened spectra of V5114 Sgr (red part). Fluxes are in logarithmic scale to show the less intense lines. |
Open with DEXTER |
![]() |

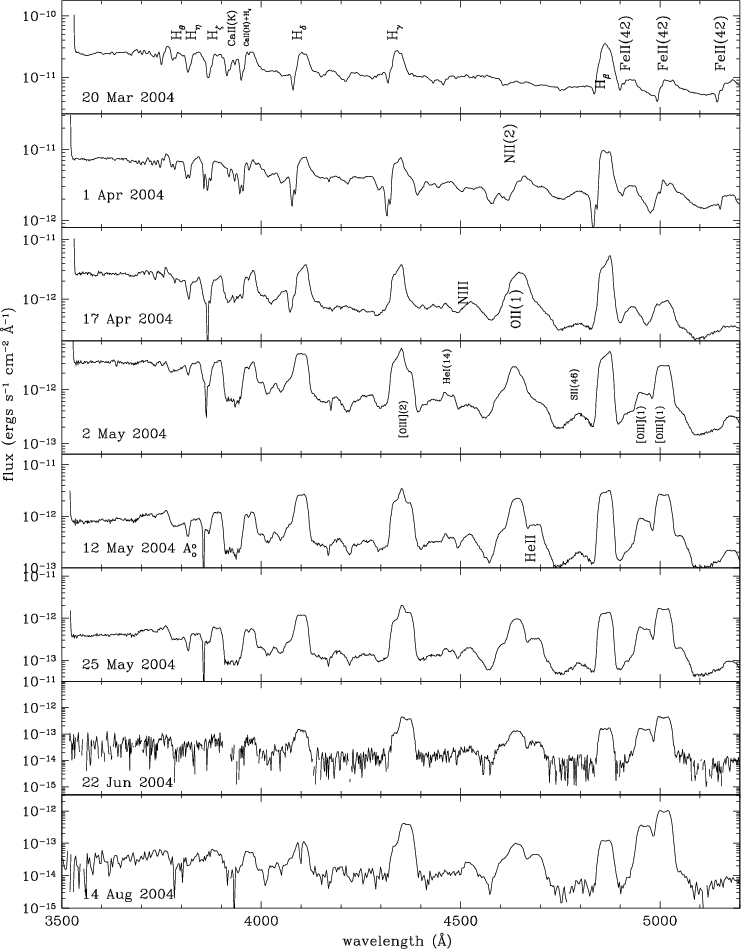

Figure 5:
Dereddened spectra of V5114 Sgr taken at CTIO and covering the
region 3500-5200 ![]() |
Open with DEXTER |
![]() |

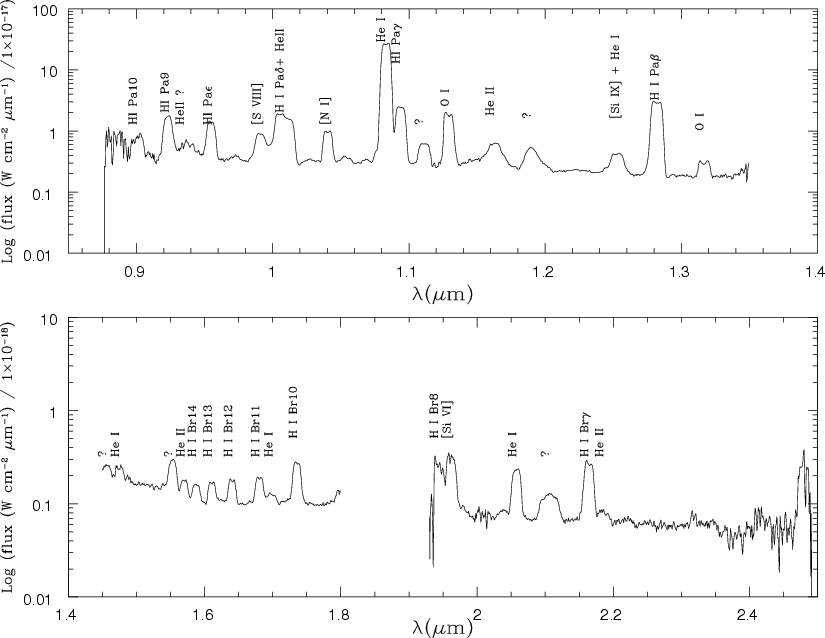

Figure 6: Dereddened IR spectrum of V5114 Sgr observed with NIRIS at Lick Observatory on June 22, 2004 UT. Upper panel shows the "blue'' part of the spectrum and the lower panel shows the "red'' part. |
Open with DEXTER |
![]() |
Figure 7:

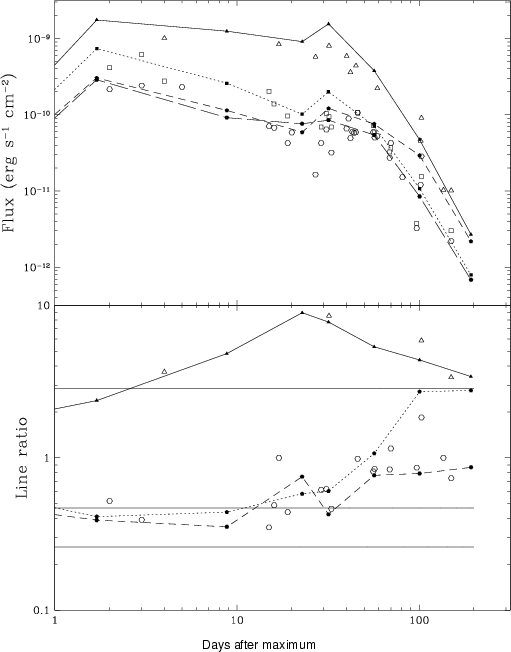

Upper panel: evolution of Balmer lines fluxes.
Triangles represent H![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() |
Open with DEXTER |
![]() |

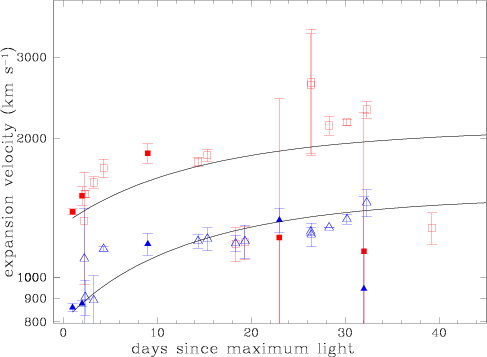

Figure 8: Velocities of the ejecta. Measures are derived as average of P-Cyg profiles of Balmer lines. Squares refer to the faster absorption system and triangles to the slower one. Filled symbols refer to FEROS observations and empty sybols to CTIO observations. Continuous lines are exponential description of the evolution (see text). |
Open with DEXTER |
