A&A 455, 903-921 (2006)
DOI: 10.1051/0004-6361:20065084

ACIS-I observations of NGC 2264. Membership and X-ray properties of PMS stars[*]

E. Flaccomio - G. Micela - S. Sciortino

INAF - Osservatorio Astronomico di Palermo Giuseppe S. Vaiana, Palazzo dei Normanni, 90134 Palermo, Italy

Received 24 February 2006 / Accepted 5 April 2006

Abstract
Aims. This paper's goal is to improve the member census of the NGC 2264 star-forming region and study the origin of X-ray activity in young PMS stars.
Methods. We analyze a deep, 100 ks long, Chandra ACIS observation covering a $17'\times17'$ field in NGC 2264. The preferential detection in X-rays of low-mass PMS stars gives strong indications of their membership. We study X-ray activity as a function of stellar and circumstellar characteristics by correlating the X-ray luminosities, temperatures, and absorptions with optical and near-infrared data from the literature.
Results. We detect 420 X-ray point sources. Optical and NIR counterparts are found in the literature for 85% of the sources. We argue that more than 90% of these counterparts are NGC 2264 members, thereby significantly increasing the known low-mass cluster population by about 100 objects. Among the sources without counterpart, about 50% are probably associated with members, several of which we expect to be previously unknown protostellar objects. With regard to activity we confirm several previous findings: X-ray luminosity is related to stellar mass, although with a large scatter; $L_{\rm X}/L_{\rm bol}$ is close to, but almost invariably below, the saturation level, 10-3, especially when considering the quiescent X-ray emission. A comparison between CTTS and WTTS shows several differences: CTTS have, at any given mass, activity levels that are both lower and more scattered than WTTS; emission from CTTS may also be more time variable and is on average slightly harder than for WTTS. However, we find evidence in some CTTS of extremely cool, ${\sim}0.1{-}0.2$ keV, plasma which we speculate is heated by accretion shocks.
Conclusions. Activity in low-mass PMS stars, while generally similar to that of saturated MS stars, may be significantly affected by mass accretion in several ways: accretion is probably responsible for very soft X-ray emission directly produced in the accretion shock; it may reduce the average energy output of solar-like coronae, at the same time making them hotter and more dynamic. We briefly speculate on a physical scenario that can explain these observations.

Key words: stars: activity - stars: coronae - stars: pre-main sequence - open clusters and associations: individual: NGC 2264 - X-rays: stars

1 Introduction

The collapse of molecular cores and the early evolution of pre-main sequence (PMS) stars+disk systems involve a variety of complex phenomena leading to the formation of main sequence (MS) stars and planetary systems. Most of these phenomena, and their influence on the outcome of the formation process, are not yet fully understood.

The X-ray observations of star-forming regions have proved an invaluable tool for star formation studies. On one hand, because of the much higher luminosity of PMS stars in the X-ray band with respect to older field stars, deep imaging observations are one of the few effective means of selecting unbiased samples of members comprising both classical T-Tauri stars (CTTS) and, most importantly, the otherwise hard to distinguish weak-line T-Tauri stars (WTTS). Selection of a complete member sample is of paramount importance for any star formation study, such as those focused on the initial mass function (Salpeter 1955), the star formation history (e.g. Palla & Stahler 2000), the evolution of circumstellar disks and planetary systems (e.g. Haisch et al. 2005), and binarity (e.g. Lada 2006). On the other hand, the conspicuous X-ray activity of PMS stars is one of the aspects of the PMS stellar evolution that are not yet well understood, both with respect to its physical origin and to its consequences for the stellar/planetary formation process. Indeed, the ionization and heating caused by the penetrating X-ray emission might have a significant impact on the evolution of star/disk systems (Glassgold et al. 2004; Igea & Glassgold 1999), as well as on that of the star forming cloud as a whole (Lorenzani & Palla 2001).

The high X-ray activity levels of PMS stars (e.g. Preibisch et al. 2005) have often been attributed to a "scaled up'' solar-like corona formed by active regions. This is the same picture proposed for MS stars, for which the X-ray activity is related to the stellar rotation (e.g. Pizzolato et al. 2003), evidence that a stellar dynamo is responsible for the creation and heating of coronae. For most non-accreting PMS stars (WTTS), the fractional X-ray luminosity, $L_{\rm X}/L_{\rm bol}$, is indeed close to the saturation level, 10-3, seen on rapidly rotating MS stars (Flaccomio et al. 2003b; Preibisch et al. 2005; Pizzolato et al. 2003). This might suggest a common physical mechanism for the emission of X-rays in WTTS and MS stars or, at least, for its saturation. However, the analogy with the Sun and MS stars may not be fully valid, because: i) the relation between activity and rotation is not observed in the PMS (Preibisch et al. 2005; Rebull et al. 2006); ii) with respect to the Sun at the maximum of its activity cycle, saturated WTTS have $L_{\rm X}/L_{\rm
bol}\sim1000$ times greater and plasma temperatures that are also significantly higher.

The X-ray emission of CTTS, PMS stars that are still undergoing mass accretion, is even more puzzling. With their circumstellar disks and magnetically regulated matter inflows and outflows, CTTS are complex systems. With respect to their X-ray activity, the bulk of the observational evidence points toward phenomena similar to those occurring on WTTS. However, CTTS have significantly lower and unsaturated values of $L_{\rm X}$ and $L_{\rm X}/L_{\rm bol}$(Flaccomio et al. 2003b,a; Preibisch et al. 2005; Damiani & Micela 1995). In apparent contradiction to this latter result, high-resolution X-ray spectra of two observed CTTS, TW Hydrae (Kastner et al. 2002; Stelzer & Schmitt 2004) and BP Tau (Schmitt et al. 2005), have indicated that soft X-rays may also be produced in accretion shocks at the base of magnetic funnels. Moreover, magnetic loops connecting the stellar surface with the inner parts of a circumstellar disk may produce some of the strongest and longer-lasting flares observed on PMS stars (Favata et al. 2005). The recent detection of X-ray rotational modulation (Flaccomio et al. 2005), however, implies that emitting structures are generally compact, so that these long loops cannot dominate the quiescent X-ray emission.

NGC 2264 is a $\sim$3 Myr-old star-forming region located at $\sim$760 pc (Sung et al. 1997) in the Monoceros. Compared to the Orion Nebula Cluster (ONC) and Taurus, NGC 2264 has intermediate stellar density and total population, making it an interesting target for investigating the dependence of star formation on the environment. It is on average older than the ONC (${\sim}1$ Myr), but star formation is still active inside the molecular cloud in at least two sites where a number of protostars and prestellar clumps have been detected (Peretto et al. 2006; Young et al. 2006). It is therefore a useful target for the study of the formation and time evolution of young stars. Its study is eased by the presence of an optically thick background cloud, effectively obscuring unrelated background objects, and by the low and uniform extinction of the foreground population (Rebull et al. 2002; Walker 1956). Despite being the first star forming region ever identified as such, the low-mass population of NGC 2264 is still not well characterized: proper motion studies (Vasilevskis et al. 1965) have been restricted to high mass objects; several studies have identified the CTTS population using disk and accretion indicators (Rebull et al. 2002; Lamm et al. 2004; Park et al. 2000), but have missed WTTS; past X-ray observations with ROSAT (Flaccomio et al. 2000) have been useful in identifying the WTTS population, but have not been sensitive enough to detect low-mass ( $M\le0.3~M_\odot$) and embedded stars. We present here results from the analysis of a deep Chandra observation of the region. Another similar observation of a region just to the north of the one considered here has been analyzed by Ramírez et al. (2004a). The X-ray properties of NGC 2264 members derived in the present paper and by Ramírez et al. (2004a), augmented with similar data for the Orion Flaking Fields (Ramírez et al. 2004b) are studied by Rebull et al. (2006) in comparison with the results of the COUP survey (Getman et al. 2005). Results from the same Chandra observation analyzed here on the peculiar binary system KH 15D have been presented by Herbst & Moran (2005). Finally, the properties of three embedded X-ray sources near Allen's source, observed with XMM-Newton, have been recently presented by Simon & Dahm (2005).

The paper is organized as follows. We begin (Sect. 2) with the presentation of the X-ray data, its reduction, source detection, and photon extraction. In Sect. 3 we then introduce the optical and near infrared data used to complement the X-ray observation. In Sect. 4 we present the temporal and spectral analysis of X-ray sources and derive X-ray luminosities. Sections 5 and 6 then discuss our results with respect to cluster membership and the origin of X-ray activity on PMS stars. We finally summarize and draw our conclusions in Sect. 7.


2 X-ray data and preparatory analysis


  \begin{figure}
\par\includegraphics[width=8.8cm]{5084_f1.ps}
\end{figure} Figure 1: Digitized Sky Survey image of NGC 2264. The field of view of the Chandra-ACIS observation discussed in this paper is shown as a white square. The famous Cone Nebula is visible toward the bottom of the image and the O7 star S Mon is close to the upper edge.
Open with DEXTER

We obtained a 97 ks long ACIS-I exposure of NGC 2264 on 28 Oct. 2002 (Obs. Id. 2540; GO proposal PI S. Sciortino). The $17\hbox{$^\prime$ }\times17\hbox{$^\prime$ }$ field of view (FOV) of ACIS is shown in Fig. 1, superimposed on the Digitized Sky Survey image of the region. It was centered on RA 6$\rm ^ h$40$\rm ^m$58 $.\!\!^{\rm s}$7, Dec 9$^$34$^\prime$14 $^{\prime\prime}$ (roll angle: 79$^\circ$). Figure 2 shows a color rendition of the spatial and spectral information we obtained. ACIS was operated in FAINT mode with CCD 0, 1, 2, 3, 6, and 7 turned on. Data obtained with CCD 6 and 7, part of the ACIS-S array, will not be discussed in the following because of the very degraded point-spread function (PSF) and effective area resulting from their large distance from the optical axis.


  \begin{figure}
\par\includegraphics[width=17cm]{5084_f2.ps}
\end{figure} Figure 2: NGC 2264 as seen in X-rays by ACIS. The true color (RGB) image is constructed from images in three energy bands: [200:1150] eV (red), [1150:1900] (green), and [1900:7000] (blue). Red therefore indicates soft and unabsorbed sources, blue hard and/or absorbed sources.
Open with DEXTER

2.1 Data preparation

Data reduction, starting from the level 1 event file, was performed in a standard fashion, using the CIAO 2.3 package and following the threads provided by the Chandra X-ray Center[*]. Several IDL custom programs were also employed. First, we corrected the degradation in the spectral response due to the charge transfer inefficiency (CTI), which occurred in particular during the first months of the Chandra mission, using the ACIS_PROCESS_EVENTS CIAO task. We then produced a level 2 event file by retaining only events with $\rm grade=0,\ 2,\ 3,\ 4,\ 6$ and $\rm status=0$. Finally we corrected the data for the time dependence of the energy gain using the CORR_TGAIN utility.

The X-ray stellar sources have, on average, a different spectrum with respect to the ACIS background. The total signal-to-noise ratio (SNR) of sources can therefore be maximized by filtering out events with energy outside a suitable spectral band: we first performed a preliminary source detection as discussed in Sect. 2.2 on the whole event list. We then defined a radius, R97, for each source such that 97% of the PSF counts fall within this radius (Sect. 2.3). We extracted source photons for all sources from circles with $R=0.5\times R_{97}$ and background photons from a single background region that excludes photons from all sources within their respective R97 (a sort of "Swiss cheese'' image with the sources carved out). We then computed the total SNR of sources[*] for a fine grid of minimum and maximum energy cuts. The highest source SNR was obtained for $E_{\rm min}=200~{\rm eV}$ and $E_{\rm max}=7000~{\rm eV}$. With these cuts, the number of photons in the source extraction area (including background photons) is reduced to 96% of the total, while the background is reduced to 28% of the total. We checked that consistent results are obtained by maximizing the SNR of faint sources only (<20 net counts), which may have a different average spectrum and are the ones we are most interested in for the purpose of detection.

After filtering in energy, the time-integrated background is 0.07 counts per arcsec2, consistent with nominal values. The background was constant in time except for a small flare with a peak reaching about twice the quiescent rate. The flare starts 13 ks after the beginning of the observation and lasts ${\sim}1$ ks. The effect of the background flare on source light curves is negligible however, even for faint sources, i.e. those most affected by the background. This is confirmed by the negative results of Kolmogorov-Smirnov variability tests (see Sect. 4.1) performed on the background extraction regions relative to each source. In the study of source lightcurves (Sect. 4.1), we will therefore assume a constant background.


2.2 Source detection

We detected sources using the PWDetect code (Damiani et al. 1997)[*]. The significance threshold was set to 4.6$\sigma $. According to extensive simulations of source-free fields with the background level of our observation, this threshold corresponds to an expectancy of 10 spurious sources in the whole FOV. PWDetect reports 423 sources. Upon careful inspection we removed three entries relative to sources that were detected twice, leaving a total of 420 distinct sources. Twenty eight of these are below the 5.0$\sigma $ significance threshold, corresponding to the more conservative criteria of one expected spurious source in the FOV. Background-subtracted source counts in the 0.2-7 keV band are derived by PWDetect directly from the wavelet transform of the data. Effective exposure times at the source positions, averaged over the PSF, are also computed by PWDetect from an exposure map created with standard CIAO tools assuming an input energy of 2.0 keV[*]. Detected sources are listed in Table 1. In the first eight columns we report source number, sky positions with uncertainty, distance from the Chandra optical axis, source net counts (in the 0.2-7 keV band), effective exposure time, and the statistical significance of the detection.


2.3 Photon extraction

Source and background photon extraction for spectral and timing analysis was performed using CIAO and custom IDL software. We first determined the expected PSF for each source using the CIAO MKPSF tool, assuming a monochromatic source spectrum (E=1.5 keV). We thus determined the expected encircled energy fraction as a function of distance from the source. Photons' extraction circles were defined so as to contain 90% of the PSF, save for 28 sources for which the encircled PSF fractions were reduced to values ranging from 74% to 89% to avoid overlap with neighboring sources. The local background for each source was determined from annuli whose inner radii exclude 97% of the PSF and whose outer radii are twice as large. In order to eliminate contamination of the background regions due to the emission of neighboring sources, we excluded from these annuli all the intersections with the 97% encircled counts circles of other sources. The area of background extraction regions were computed through a mask in which we drilled regions outside the detector boundaries and circles containing 97% of the PSF photons from all sources.

For sources with at least 50 photons, source and background spectra suited to the XSPEC spectral fitting package were then created using standard CIAO tools. Corresponding response matrices and effective areas (RMF and ARF files, respectively) were also produced with CIAO. For spectral analysis, spectra were energy binned so that each bin contains a fixed number of photons, depending on net source counts $N_{\rm src}$: 15 photons per bin for $N_{\rm src}>200$, 10 photons for $100<N_{\rm src}<200$, and 5 photons for $N_{\rm src}<100$. Because spectral analysis (Sect. 4.2) was restricted to energies >0.5 keV, the first energy bin was forced to begin at that energy.


3 Ancillary data

In this section we discuss the non-X-ray data that we collected from the literature on the known objects in the FOV of our ACIS observation, and in particular on the detected X-ray sources. We first describe the cross-identifications with spatially complete optical, NIR, and X-ray catalogs (Sect. 3.1) and the informations we collected and/or derived from these catalogs (Sect. 3.2). We then briefly discuss the identifications of our X-ray sources with spatially incomplete mid-IR and millimiter catalogs (Sect. 3.3).


3.1 Cross-identifications - optical/NIR/X-ray catalogs

We cross-identified our X-ray source list with catalogs from the following optical/NIR surveys covering the whole area of our ACIS field: 2Mass (NIR photometry), Walker (1956, optical photometry + spectroscopy), Rebull et al. (2002, optical/NIR photometry + low resolution optical spectroscopy)[*], Lamm et al. (2004, optical photometry + variability), Dahm & Simon (2005, optical photometry + spectroscopy), Flaccomio et al. (2000, <)413#>X-ray sources#. The seven cross-identified catalogs are listed in the first column of Table 2. In the 2nd column, we indicate the number of objects within the ACIS FOV and, in the third, the number of objects identified with ACIS sources and of those for which the identification is unique. Adopted positional tolerances for cross-identifications are reported in the 4th column, either as a single figure for the whole catalog or as a range when defined for each individual object (see the table footnotes). They are based on the uncertainties quoted for each catalog.

Among the catalogs considered here, the deepest photometric surveys are 2Mass in the NIR (JHKs[*]) and Lamm et al. (2004) in the optical ( $VR_{\rm c}I_{\rm c}$). A comparison with the isochrones of Siess et al. (2000, hereafter SDF) in the optical and NIR color-magnitude diagrams (Figs. 3 and 4) indicates that at the distance of NGC 2264, 2Mass reaches down to about 0.1 $M_\odot $ for 10 Myr old stars, i.e. the oldest expected in the region, while Lamm et al. (2004) reaches slightly deeper for unabsorbed stars, but is obviously less sensitive to highly absorbed ones. Within the ACIS FOV, spectral types are given for 7 stars by Walker (1956), for 87 stars by Rebull et al. (2002), for 150 stars by Lamm et al. (2004), and for 157 stars by Dahm & Simon (2005).

Table 2: Catalogs used for cross-identification

We created a master list of cross-identified objects following a step-by-step procedure. In the first step we matched ACIS sources with 2Mass objects: first we registered the ACIS coordinates to the 2Mass ones by iteratively cross-identifying the two catalogs and shifting the ACIS coordinates by the mean offset of uniquely identified source pairs. Identification radii were chosen as the quadrature sum of the position tolerances defined above (Table 2). We then created a joint catalog of objects containing all matched and unmatched ACIS and 2Mass objects, assigning them coordinates from 2MASS when available. In the following step we repeated the above process using the ACIS+2Mass catalog as reference and matching it with the Rebull et al. (2002) one. We then repeated the process with the Flaccomio et al. (2000), X-ray source list, then with the Lamm et al. (2004), Dahm & Simon (2005), and Walker (1956) catalogs. The coordinate shifts of all catalogs with respect to the 2Mass system are given in Table 2 (Cols. 5 and 6), along with the median offsets between object positions and the reference 2Mass catalog. After each step, identified source pairs and unidentified objects were checked individually and a small fraction of the identifications (${<}1\%$) were modified. In the first step, for example, five identifications between four ACIS and five 2Mass sources were added: in two cases (sources #64 and #404), 2Mass sources were only slightly more distant with respect to the identification radii. In another case, the X-ray source, #102, was situated at the edge of the detector, and its position was therefore more uncertain than the formal error indicated. In the last case the X-ray source, #237, was detected between two nearby 2Mass objects and an identification was forced with both.


  \begin{figure}
\par\includegraphics[width=7.8cm]{5084_f3.ps}

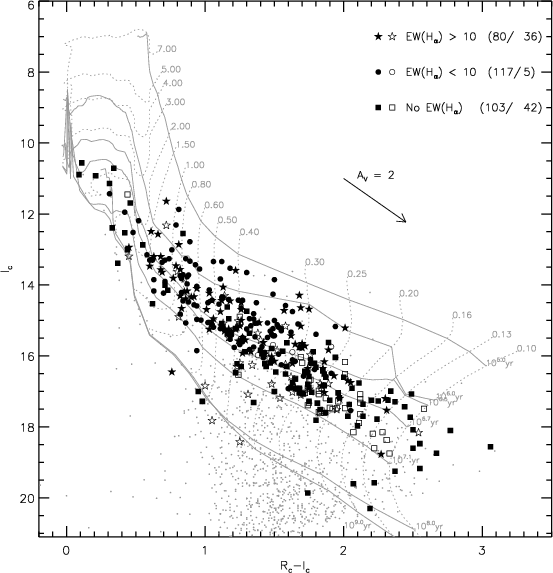

\end{figure} Figure 3: Optical color-magnitude diagram of all the objects in the ACIS field of view. Larger symbols indicate X-ray sources or likely NGC 2264 members as defined in Sect. 3.2. Filled symbols refer to ACIS detected objects. As indicated in the legend, when possible we distinguish between CTTS and WTTS as defined by the EW of their $\rm {\rm H}_\alpha $ line. The number of detected and undetected objects in each class is indicated in the legend. The grid shows the SDF evolutionary tracks and isochrones transformed to colors and magnitudes using the conversion table in Kenyon & Hartmann (1995).
Open with DEXTER


  \begin{figure}
\par\includegraphics[width=7.8cm]{5084_f4.ps}

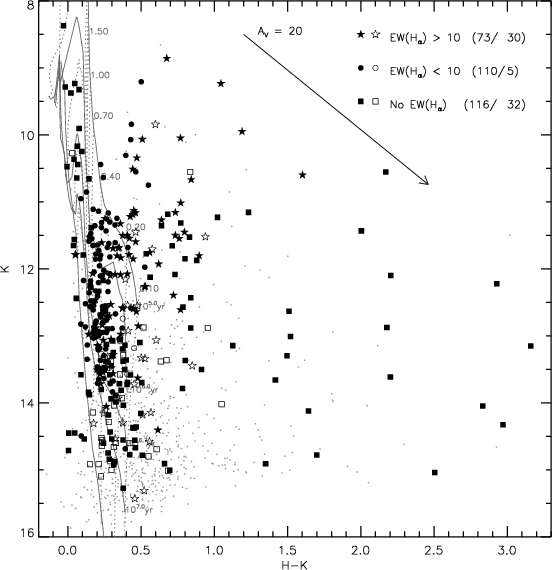

\end{figure} Figure 4: Near-IR color magnitude diagram for the objects in the ACIS FOV. Symbols and tracks as in Fig. 3.
Open with DEXTER

Table 3 lists, for the 1888 distinct objects in the ACIS FOV, consolidated coordinates and cross-identifications numbers for each of the seven catalogs. 425 rows refer to objects related to one of the 420 ACIS sources: 351 are identified with a single optical/NIR counterpart, two are identified with 5 and 2 counterparts respectively, and 67 do not have any optical or near-infrared identification. The other 1463 rows in Table 3 refer to non ACIS-detected objects. For these latter we computed upper limits to the ACIS count rate using PWDetect and the same event file used for source detection. Measured count rates, repeated from Table 1, and upper limits are reported in Col. 12 of Table 3.

Focusing on the identification of ACIS sources with optical/NIR catalogs, given the relatively large number objects in the field of view, we can wonder how many of the identifications are due to chance alignment and not to a true physical association. We can constrain the number of chance identifications by assuming that positions in the two lists are fully uncorrelated. Because this is definitively not the case for our full X-ray source catalog, our estimate can only be considered a loose upper limit. Furthermore, limiting our X-ray sample to the 28 sources with significance below 5.0$\sigma $, 9 of which are expected to be spurious and whose positions will indeed be random, we can place an upper limit on the fraction of spurious sources associated with an optical object. This value is of interest when studying the X-ray properties of optically/NIR selected samples. In order to estimate the number of spurious identifications assuming uncorrelated positions, we proceeded as follows: for each X-ray source we considered optical objects within a circular neighborhood of area $A_{\rm nei}$, within which source density is assumed uniform. We then estimated the fraction of $A_{\rm nei}$ covered by identification circles. The sum of these fractions is our upper limit to the number of chance identifications. We repeated the calculation for radii of the neighborhood circle from 1.0$^\prime$ to 4.0$^\prime$. The upper limit to the number of chance identifications for the full sample of ACIS sources ranges from 13 to 15. For the 28 source with significance ${<}5.0\sigma$, we instead estimated no more than 2.5 chance identifications. If we assume that, out of the 28 sources, only the nine spurious detections have positions that are indeed uncorrelated with optical objects, we can scale this result and conclude that ${\sim}1$ spurious X-ray source will be identified by chance with an optical object. Conversely, we can most likely locate spurious sources among the 15 sources whose detection significance is below 5.0$\sigma $ and that are not identified with optical/NIR catalogs.


3.2 Characterization of stars in the FOV

We collected optical and NIR data from the literature for all the stars in the master catalog assembled in the previous section. In Table 4 we report photometry and spectral types for our X-ray sources with unique optical identification. A total of 300 X-ray detected stars were assigned both $R_{\rm c}$ and $I_{\rm c}$ magnitudes and are plotted in Fig. 3 as filled symbols; 299 have H and Kmagnitudes and are plotted in Fig. 4 (264 of these also appear in Fig. 3). In both color-magnitude diagrams (CMDs), we also show SDF tracks and isochrones for reference, transformed to colors and magnitudes using the conversion table given by Kenyon & Hartmann (1995) and shifted along the reddening vectors by the median extinction of known members ( $A_{\rm V}=0.44$) and vertically by the distance modulus corresponding to the adopted distance. The extinction law was adopted from Rieke & Lebofsky (1985). For stars with spectral types, we derived effective temperatures, $T_{\rm eff}$, bolometric corrections, BCI, and intrinsic colors, (R-I)0, using the relations compiled by Kenyon & Hartmann (1995) and, for the temperatures of M stars, the intermediate-gravity scale of Luhman (1999). Using the available $R_{\rm c}$ and $I_{\rm c}$photometry, we then derived extinction values ( $A_{\rm V}= 4.46\times
E(R-I)$, where E(R-I)=(R-I)0-(R-I)) and bolometric luminosities ( $L_{\rm bol}= -0.4\times[I_{\rm c}-BC_I-A_{\rm V}/1.63-DM(760~\rm pc)$]). Finally we estimated masses and ages from the theoretical HR diagram, Fig. 5, through interpolation of the SDF evolutionary tracks. In summary, out of the 351 X-ray sources with a unique optical/NIR identification, we estimated $T_{\rm eff}$ for 165 X-ray sources, $A_{\rm V}$ and  $L_{\rm bol}$ for 163, masses and ages for 161.

Other than the sample of X-ray detected stars, that are likely cluster members, as discussed in Sect. 5, we also consider another sample of 83 X-ray undetected likely cluster members. These, plotted with empty symbols in Figs. 3-5, were chosen according to their position in the I vs. R-Idiagram, the strength of the ${\rm H}_\alpha $ line (measured either spectroscopically or photometrically) and optical variability: first, we defined a cluster locus in the I vs. R-I diagram using the SDF tracks and the observed concentration of X-ray sources. The cluster locus was defined as the area either above the 107.1 Myr isochrone or to the left of the 0.8 $M_\odot $ evolutionary track[*]. We then considered the following as likely members: (i) stars in the cluster locus and with strong ${\rm H}_\alpha $ emission according to the narrow-band ${\rm H}_\alpha $ photometry of Lamm et al. (2004), using the same criterion discussed by these authors; (ii) stars in the cluster locus with moderate (chromospheric) ${\rm H}_\alpha $ emission and with variable optical lightcurves (both periodic and irregular), again as discussed by Lamm et al. (2004); (iii) stars for which spectroscopic observations of the ${\rm H}_\alpha $ line were available and for which the measured EW was larger than 10 (the canonical CTTS threshold). In this sample of 83 X-ray undetected likely members, we were able to determine masses and ages for 16 stars.


  \begin{figure}
\par\includegraphics[width=7.8cm]{5084_f5.ps}

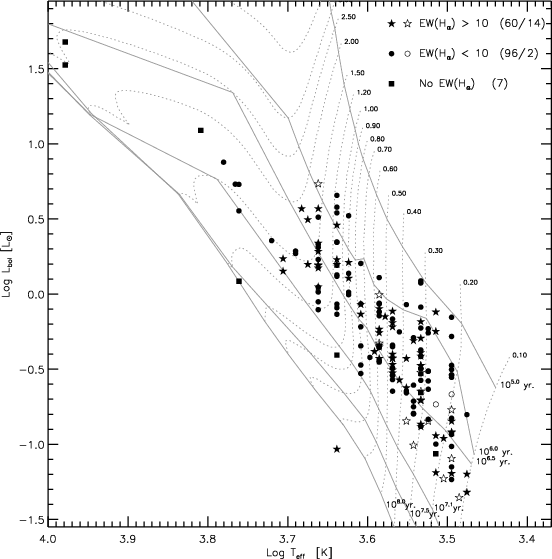

\end{figure} Figure 5: Theoretical HR diagram for the subsample of likely members that could be placed in this diagram through optical photometry and spectral types. Symbols as in Fig. 3. Tracks and isochrones are by SDF.
Open with DEXTER

Knowledge of the extinction is fundamental for deriving intrinsic X-ray luminosities of detected stars or upper limits for undetected ones (Sect. 4.3). For stars with no optical spectral type, $A_{\rm V}$ cannot be determined as indicated above. We therefore estimated extinctions from the NIR J-H vs. H-K diagram by de-reddening stars that could be placed in this diagram onto the expected intrinsic locus. This was taken from Kenyon & Hartmann (1995) for the stellar contribution and supplemented with the CTTS locus of Meyer et al. (1997). The degeneracy in the reddening solutions was solved by always taking the first intercept between the intrinsic locus and the reddening vector. Stars whose position was within 1.5$\sigma $ of the loci were assigned zero extinction. In summary, we obtained a total of 278 and 62 extinction values for X-ray detected stars and undetected likely members, respectively. These number exceed the number of extinctions derived from optical data by 115 and 46 for the same samples. Although these NIR extinction values are arguably more uncertain than the ones derived from spectral types, they are especially valuable for highly extinct objects.


3.3 Cross-identifications - MIR/mm catalogs

In addition to the wide field surveys described in Sect. 3.1, we also correlated our X-ray sources with three mid-infrared (MIR) and millimeter (mm) catalogs recently published for the IRS 2 and IRS 1 regions: Young et al. (2006, hereafter Y06), Teixeira et al. (2006, T06), and Peretto et al. (2006, P06). These three surveys target very young and/or embedded objects and are therefore ideal for checking the nature of X-ray sources with no optical/NIR counterpart. They are, however, limited in area coverage: T06 lists Class I/0 sources detected with SPITZER in a ${\sim}3\times 3$ arcmin2region close to IRS 2, Y06 lists all SPITZER detected objects in a dense but even smaller $ {\sim} 2\times 2$ arcmin2 region slightly south-east of IRS 2, P06 list the pre/protostellar cores detected at 1.2 mm in both the IRS 1 and IRS 2 regions.

Within the area of Y06, the only MIR work available so far that lists all the objects detected in the surveyed region, we find MIR counterparts for 2 out of 4 X-ray sources lacking optical/NIR counterparts. In total, 4 of the 67 unidentified X-ray sources were assigned new counterparts: #145 was associated with source 12 of T06, a Class I/0 source; #228 was associated with the D-MM 15 mm core, indicated by P06 as probably starless; #244 was associated with source 43 in Y06 and is, judging from its spectral energy distribution (SED), an absorbed class II/III PMS star that is relatively bright in K-band (K=12.15, Y06)[*]; finally, #274 was associated with the D-MM 10 mm core, indicated as starless by P06, with source 1656 in Y06 and source 15 in T06 (characterized by a steeply rising MIR SED).

Among the X-ray sources with optical/NIR counterparts, 17 in the region covered by Y06 were identified with SPITZER sources, of which one, #281, is a likely Class I source (Y06's source 62). Three more X-ray sources were identified with Class I/0 sources in the list of T06: #150 and #242 also having NIR counterparts, and #194 (see also Sect. 6.3) with both NIR and optical (I=19.89) counterpart. As for the P06 mm-cores, identifications are made uncertain by the limited spatial resolution of the mm data (cf. P06). The core D-MM 14, classified as protostellar by P06, is probably associated with ACIS source #89 (offset: 1.2''), an optically faint (V=20.91) and NIR bright (K=10.6) star with intense ${\rm H}_\alpha $ emission: $EW({\rm H}_\alpha)=458$. Quite similarly, C-MM 1, also indicated as a protostellar core by P06, is offset by 1.3'' from the ACIS source #361, an optically visible source with strong ${\rm H}_\alpha $ (V=18.55, K=11.85, $EW({\rm H}_\alpha)=231$)[*] and it is therefore likely to be associated with it. Finally, C-MM 5, classified by P06 as a protostellar core, might be associated with ACIS # 305 (offset: 1.9''). This ACIS source is in turn most likely associated with IRS 1 (offset: 0.8'', Schreyer et al. 2003). Note, however, that P06 suggests that C-MM 5 may not be associated with IRS 1. A more detailed analysis of the X-ray properties of young protostars in NGC 2264 will be the subject of a future paper.


4 Analysis

In this section we analyze the X-ray properties of our ACIS sources as indicated by their ACIS lightcurves (Sect. 4.1) and spectra (Sect. 4.2). The results of the spectral analysis are then used in Sect. 4.3 to estimate X-ray luminosities.


  \begin{figure}
\par\includegraphics[width=7.8cm]{5084_f6.ps}
\end{figure} Figure 6: Fraction of variable stars as a function of count statistics for stars with ${\rm H}_\alpha $ EW greater and smaller than 10 (i.e. CTTS and WTTS). Note that counts bin are centered at the plot symbol and are 0.8 dex wide, so that successive bins are not independent. Error bars are based on binomial statistics. Symbols referring to the two subsamples are slightly shifted in the horizontal direction with respect to each other so to avoid confusion. The total numbers of objects in the subsamples are given in the legend, while the numbers of objects from which each variability fraction is computed are shown beside the plotting symbols.
Open with DEXTER


4.1 Temporal analysis

Source variability was characterized through the Kolmogorov-Smirnov test. Column 9 of Table 1 reports the resulting probability that the distribution of photon arrival times is not compatible with a constant count-rate. Given the sample size (420 sources), a value below 0.1% (obtained for 72 sources) indicates the light-curve is almost certainly variable, while a <1% value (87 sources) indicates probable variability, although up to ${\sim} 4~
({=}420\times 0.01)$ of the variable sources might actually be constant. If we are not interested in the individual sources but in the overall fraction of variable sources, we can place a lower limit on this quantity by computing the minimum number of variable sources as a function of probability threshold, $P_{\rm th}$: $N_{\rm min}= N(P_{\rm KS} <
P_{\rm th})-420\times P_{\rm th}$. The maximum $N_{\rm min}$ is obtained for $P_{\rm th}=15$%, for which $N(P_{\rm KS} < P_{\rm th})=189$ and $N_{\rm min}=126$. We conclude that within our observation at least 30% (126/420) of the lightcurves are statistically inconsistent with constancy. This fraction is certainly a lower limit to the true number of variable sources, as our ability to tell a variable source from a constant one is influenced by photon statistics. This is clearly indicated by the dependence of the fraction of variable sources on source counts. If for example, we restrict the above analysis to sources with more than 100(500) counts, a total of 145(33) sources, we find that at least 54%(73%) of these are variable.

We next investigated whether different kinds of stars, classified from optical data, showed different variability fractions. From the previous discussion, it is clear that for a meaningful comparison, source statistics must be taken into account. Figure 6 shows the variability fraction, $f(P_{\rm KS}<1\%)$, as a function of source counts for CTTS and WTTS, as distinguished by their ${\rm H}_\alpha $equivalent width. Variability fractions are computed for sources with counts in intervals spanning 0.8 dex (because in the figure points are spaced by 0.1 dex, only one point every eighth is independent). Error bars on the variability fractions are estimated by assuming binomial statistics: $\delta f= [f\times(1-f)/N_{\rm src}]^{1/2}$, where $N_{\rm src}$is the number of sources in each count bin. In addition to the expected increase in the variability fraction with source statistics, we note that CTTS appear to be more variable with respect to WTTS, at least when considering stars with more than $\sim$200 counts. Figure 7 shows a similar comparison for two mass segregated sub-samples: $0.3< M/M_\odot < 0.7$ and $0.7 < M/M_\odot <
2.0$. Lower mass stars appear to be more variable, and again this difference is noticeable only for stars that are bright enough. We quantified the differences between variability fractions, by testing, for each count bin, the null hypothesis that the two samples are drawn from the same parent population. We chose the difference of the two observed variability fractions, $\Delta f$, as statistics. We then numerically computed the probability that a $\Delta f$ equal or larger than the observed one is obtained by randomly drawing pairs of numbers from binomial distributions appropriate to the two sample sizes but characterized by the same probability of observing a variable source, i.e. the variability fraction. Because this number is not well constrained, we conservatively took as our confidence level the minimum that is obtained varying this fraction between 0 and 1. The results of these tests indicate that the differences in the variability fractions are statistically not highly significant: in the bin centered at $\sim$400 counts, the low mass stars are more variable than higher mass stars with a 94% confidence, and CTTS are more variable than WTTS with a 92% confidenceand in the bin centered at $\sim$800 counts. We thus consider these results as tentative. However we note that the significance of the difference between CTTS and WTTS in NGC 2264 is strengthened by the fact that a similar result, with a similar confidence, was also obtained by Flaccomio et al. (2000) using totally independent ROSAT data.


  \begin{figure}
\par\includegraphics[width=7.8cm]{5084_f7.ps}
\end{figure} Figure 7: Fraction of variable stars as a function of count statistics for stars in two different mass ranges: [0.3-0.7] $M_\odot $ and [0.7-2.0] $M_\odot $. Symbols and legend as in Fig. 6.
Open with DEXTER


4.2 Spectral analysis

We have analyzed the X-ray spectra of the 199 sources with more than 50 detected photons. Spectral fits were performed with XSPEC 11.3 and with several shell and TCL scripts to automate the process. For each source we fit the data in the [0.5-7.0] keV energy interval[*] with several model spectra: one and two isothermal components ( APEC), subject to photoelectric absorption from interstellar and circumstellar material ( WABS). Plasma abundances for one-temperature (1T) models were fixed at 0.3 times the solar abundances (Wilms et al. 2000), while they were both fixed at that value and treated as a free parameter for two-temperature (2T) models. The absorbing column densities, $N_{\rm H}$, were both left as a free parameter and fixed at values corresponding to the optically/NIR determined extinctions, when available: $N_{\rm H}=1.6\times
10^{21}A_{\rm V}$ (Vuong et al. 2003). A total of three or six models were thus fit for each source depending on the availability of optical extinction values. For each model, spectral fits were performed starting from several initial conditions for the fit parameters as indicated in Table 5. For example for isothermal models with free $N_{\rm H}$, two values of $N_{\rm H}$ and four values of kT were adopted as initial conditions, for a total of eight distinct fits. For each model the adopted fit parameter set was chosen from the model fit that minimizes the $\chi^2$. This procedure was adopted in order to reduce the risk that the $\chi^2$ minimization algorithm used by XSPEC finds a relative minimum.

Table 5: Initial conditions for XSPEC models.

Next, we considered which of the available model fits for each source (three or six, reference model names are given in Table 5) was the most representative of the true source spectrum, and thus the one to be adopted for the following considerations. The goal was twofold: to characterize the emitting plasma, in order to investigate its origin, and to determine accurate intrinsic band-integrated X-ray luminosities. Crucial for this latter step is to determine extinction ($N_{\rm H}$, see Sect. 4.3). Generally speaking, models must have enough components to yield statistically acceptable fits according to the $\chi^2$ or, equivalently, the null probabilities (n.p.) that the observed spectra are described by the models. However, models with too many free parameters with respect to the spectra statistics, while formally yielding good fits, will not be constrained by the data and will yield limited physical information. A particularly severe problem with CCD-quality (ACIS) low-statistic spectra is the degeneracy between absorption and temperature: an equally good fit can be often obtained with a cool plasma model with a large emission measure but suffering high absorption, or with a warmer temperature and a lower extinction. It is therefore desirable to check the $N_{\rm H}$ obtained from the fits with independent information from optical/NIR data. Figures 8 and 9 show the cumulative distribution of the n.p. for spectral fits performed with four different models, respectively for faint and bright sources ( $50 <
{\rm cnts} < 300$, ${\rm cnts} > 300$). The models are 1T, 2T, and, for sources with independent $N_{\rm H}$ estimates, 1T $_{A{\rm v}}$ and 2T $_{A{\rm v}}$. In this kind of plot the distribution for a perfectly adequate spectral model should follow the diagonal, that for an oversimplified model should fall below the diagonal, and that for an over-specified model should lie above. For faint sources, 1T model appears perfectly adequate. Fixing the $N_{\rm H}$ to the optically determined value worsens the agreement somewhat but still results in fits that are, when considered individually, acceptable for the most part. A 2T model with free $N_{\rm H}$ appears to be too complicated (and therefore unconstrained), while a 2T model with fixed $N_{\rm H}$ is more acceptable, but still on average too sophisticated for the quality of these low-statistic spectra. For brighter sources we notice instead that 1T models are on average not favored, while 2T models are still not always needed.


  \begin{figure}
\par\includegraphics[width=7.8cm]{5084_f8.ps}

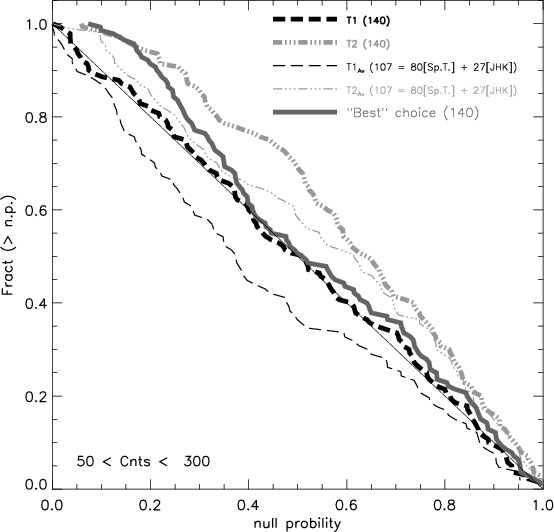

\par\end{figure} Figure 8: Cumulative distribution of null probabilities resulting from X-ray spectral fits. The curves refer here to X-ray sources with more that 50 counts (the minimum for which we performed spectral fits) and less than 300 counts. The different lines refer to different physical models (one and two temperature, with free of fixed $N_{\rm H}$) as indicated in the legend, along with the number of sources that enter in each distribution. For the models with fixed $N_{\rm H}$, we also indicate the number of $N_{\rm H}$ derived from optical spectral types + photometry and of those derived from 2MASS J, H, and K photometry. The gray thick line refers to the "best'' choice of models described in Sect. 4.2.
Open with DEXTER


  \begin{figure}
\par\includegraphics[width=7.8cm,clip]{5084_f9.ps}

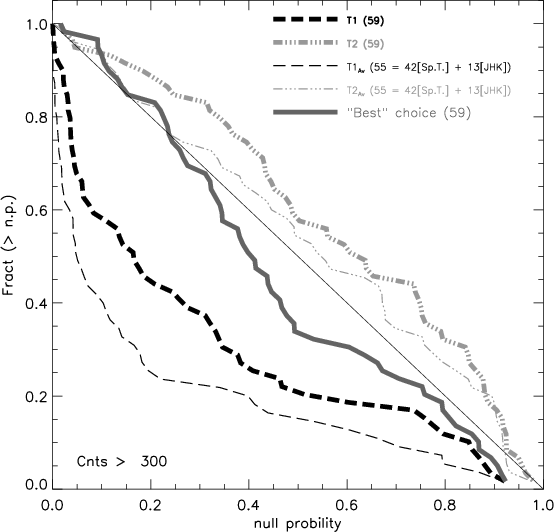

\par\end{figure} Figure 9: Same as Fig. 8 for sources with more than 300 counts.
Open with DEXTER

For most sources more than one spectral model is statistically acceptable. We choose a best-guess model as the simplest that still gives a statistically acceptable fit. The compelling reason to choose this approach is the mentioned degeneracy between temperature and absorption. Note for example that, from Fig. 8, one could be tempted to always choose 1T models with free $N_{\rm H}$ for faint sources, as these models appear to be statistically perfectly adequate for representing the spectra. However, when examined individually, many of these 1T spectral fits have rather degenerate fit solutions, i.e. large and correlated uncertainties on the $N_{\rm H}$ and kT values, also implying large uncertainties on unabsorbed fluxes. This degeneracy can be broken by using the additional information on absorption coming from optical/NIR data, when available and compatible with the X-ray spectra.

After some experimenting, we chose our best-guess model according to the following empirical scheme: if n.p.(1T $_{A_{\rm v}}) > 20\%$ we chose the 1T $_{A{\rm v}}$ model. Otherwise, if n.p.(1T$) > 20\%$ we chose the 1T model (with free $N_{\rm H}$). If both of the previous tests for isothermal models failed, we tried with two temperature models, this time lowering our n.p. threshold to 5%. First we tried the 2T $_{A{\rm v}}$ model (n.p.( ${\rm 2T}_{A_{\rm v}}) > 5\%$) and then the 2T model (n.p.(2T$) > 5\%$). As a last resort, in case none of the previous models could be adopted, we chose the 2Tab model (free $N_{\rm H}$, free abundances). Although the above scheme was designed so as to favor simple models, the different n.p. thresholds resulted in four cases (sources #257, #275, #280, and #300) in adopting 2Tab models that were either statistically worse or comparable to simpler 1T, 1T $_{A{\rm v}}$, or 2Tab $_{A{\rm v}}$ models. We therefore adopted these latter. After careful examination of individual fits, the spectral models adopted for four more sources (#97, #104, #127, and #241) were modified. In these cases the automatic choice would result in unphysical, unusual, or unconstrained temperatures and absorptions, whereas our adopted models are both statistically and physically acceptable[*].

The solid gray lines in Figs. 8 and 9 refer to the final choice of best-guess models. Table 6 lists the end result of our spectral analysis: we report the adopted model, the source of the adopted $N_{\rm H}$, the null probability, the plasma temperature(s) and normalization(s), the observed and absorption corrected fluxes in the [0.5-7] keV band.

In summary, out of the 199 sources with more than 50 counts, we adopted isothermal models in 147 cases and two component models in the remaining 52 cases. For 138 sources we adopted a spectral fit in which the $N_{\rm H}$ was fixed, in 101 cases to the value estimated from the optically determined $A_{\rm V}$ and in 37 cases from NIR photometry. In the remaining 61 cases, $N_{\rm H}$ was treated as a free fit parameter. Out of these 61 cases, independent estimates of extinction were available from optical and NIR data in 21 and 3 cases respectively, but our algorithm (or, for sources #97 and #127, our choice) preferred the spectral fit with free $N_{\rm H}$. We examine these cases more in detail to assess the ambiguities in the model fits and the consequences on the derived X-ray fluxes.

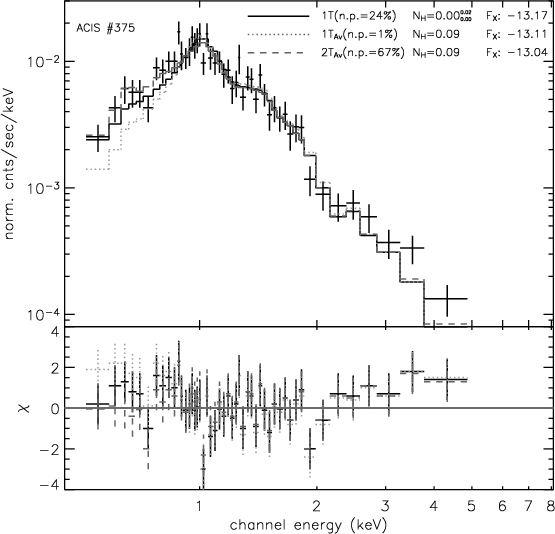

Figure 10 illustrates one such case: source #375. Here the extinction determined from the 1T (kT=1.3 keV) spectral fit (90% confidence interval: $N_{\rm H}<2\times 10^{20}$ cm-2) is lower than that estimated from the $A_{\rm V}$ ( $9\times 10^{20}$ cm-2). Fixing the $N_{\rm H}$to that value yields an unsatisfactory isothermal fit. However, adding a second cool isothermal component to the spectral model (kT=0.25 kev), a good fit can be obtained even when fixing the $N_{\rm H}$. This is quite a typical example of the degeneracy in the fitting of sources with low/moderate statistics. We can estimate the uncertainty in the X-ray unabsorbed fluxes derived from the spectral fits due to this degeneracy, as the difference between the fluxes derived from the two acceptable fits: for source #375, for example, this is 0.14 dex. More generally, acceptable fits with $N_{\rm H}$ fixed to the optical/NIR values could be obtained in 22 of the 24 cases in which our procedure preferred the spectral fit with free $N_{\rm H}$. In five cases[*], among which the one described above, in order to reconcile the observed spectra with the optical extinction, an additional cool thermal component ( kT=0.22-0.34) would be required to compensate for the higher $N_{\rm H}$. If for these five sources the true $N_{\rm H}$ were the optically derived ones, we are underestimating the unabsorbed fluxes by 0.14-0.37 dex (mean 0.2dex) by choosing the 1T fit with free (lower) $N_{\rm H}$. For the other 17 sources, fixing the $N_{\rm H}$ would not require an additional component: reasonable fits ( $\rm n.p.> 5$%) were obtained even with the same models (1T in 16 cases, 2Tab for source #187). In 10 of these 17 cases the adopted fits with free $N_{\rm H}$ lead to smaller absorptions and slightly hotter (0.2-0.3 keV) temperatures (the cool temperature for #187), while the opposite happens in the 7 other cases. Had we fixed the $N_{\rm H}$to the optical values in these 17 cases, we would have obtained unabsorbed fluxes on average $\sim$0.03 dex larger and always within 0.20 dex (in either direction) of the adopted ones.


  \begin{figure}
\par\includegraphics[width=7.8cm]{5084_f10.ps}\end{figure} Figure 10: Upper panel: spectrum of source #375 with overlaid three different spectral models, 1T with both free and fixed $N_{\rm H}$ (solid and dotted lines, respectively) and 2T with fixed $N_{\rm H}$ (dashed line). Null probabilities, $N_{\rm H}$ values (in units of 1022 cm-1), and unabsorbed fluxes for each model are given in the legend. Note that the 1T and $2T_{A{\rm v}}$models are both statistically acceptable. Lower panel: residuals for the three models in terms of sigmas (error bars all of unit size).
Open with DEXTER

From this discussion of the 22 cases with most ambiguous extinctions ( ${\sim} 14\%$ of the sources for which we have optical/NIR $N_{\rm H}$), we conclude that (i) typical uncertainties in the unabsorbed flux are less than 0.2 dex and that (ii) individual X-ray fluxes corrected using an $N_{\rm H}$ from spectral fits can be as wrong as $\sim$0.4 dex, if the cool temperature is altogether missed by the spectral fit with a consequent underestimation of the $N_{\rm H}$.

Two more sources have incompatible X-ray and optical extinctions according to our choice of best model. Source #234 did not enter into the previous discussion because it has the least acceptable fits of the whole sample, at most $\rm n.p. =1.6$% for a 2T model with free $N_{\rm H}$(note, however, that with an adequate spectral model, we would expect three sources out of 199 to have lower n.p.). Adopting the optical $N_{\rm H}$ ( $1.8\times 10^{21}$) would result in an unabsorbed flux that is only 0.07dex larger with respect to the one obtained leaving $N_{\rm H}$ as a free fit parameter ( $N_{\rm H}=0.59^{0.78}_{0.16}\times 10^{21}$). Source #71 is a more interesting case. Figure 11 shows its spectrum, with spectral fits obtained with free and fixed $N_{\rm H}$. The X-ray-derived extinction ( $N_{\rm H}=19^{26}_{14}\times 10^{21}$) is about 17 times larger than estimated from the optical reddening ( $N_{\rm H}=1.1\times 10^{21}$)[*]. The discrepancy is highly significant and independent of the considered spectral model. We note that the detected emission from this source is dominated by a powerful flare, with a peak count rate $\sim$100 times what it was before and after the flare. A possible scenario to explain the high absorption might involve a solar-like coronal mass ejection associated with the flare, providing the additional absorbing material. This hypothesis has been formulated by Favata & Schmitt (1999) to explain a more modest increase in $N_{\rm H}$ during a powerful flare observed on Algol. Further discussion of the physical interpretation of spectral fit results is deferred to Sect. 6.


  \begin{figure}

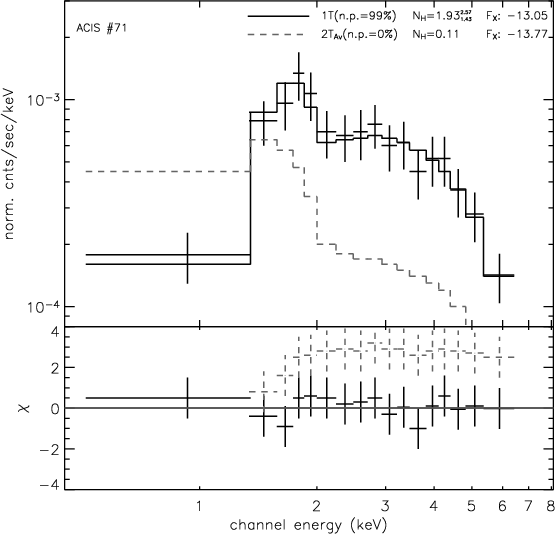

\par\includegraphics[width=7.8cm]{5084_f11.ps}\end{figure} Figure 11: Some as Fig. 10 for source #71. In this case we plot the 1T model with free $N_{\rm H}$ and the 2T model with $N_{\rm H}$ fixed to the optical value. Note how even adding a second component, it is impossible to reconcile the observed spectrum with the $N_{\rm H}$ implied by the optical absorption and a standard absorption law.
Open with DEXTER


  \begin{figure}
\par\includegraphics[width=7.8cm]{5084_f12.ps}\end{figure} Figure 12: Count-rate to unabsorbed flux conversion factor as a function of $N_{\rm H}$ as derived from spectral fits. Circles refer to the spectral fits in which $N_{\rm H}$ was treated as a free parameter, star-symbols and squares to fits in which $N_{\rm H}$ was fixed to the values derived from the optical $A_{\rm V}$ or from the NIR photometry, respectively. The three curves indicate polynomial fits to the data obtained for the whole sample of 199 sources and for subsamples of sources with less than 100 counts (59 sources) or more than 300 counts (56 sources). The gray histogram (vertical scale on the right hand side) shows the distribution of absorption values, derived from the $A_{\rm V}$ or the NIR CCD, of X-ray sources with less than 50 counts, for which count-rate to flux conversion factor was determined using the polynomial fit to faint sources (<100 counts, dotted curve).
Open with DEXTER


4.3 X-ray luminosities

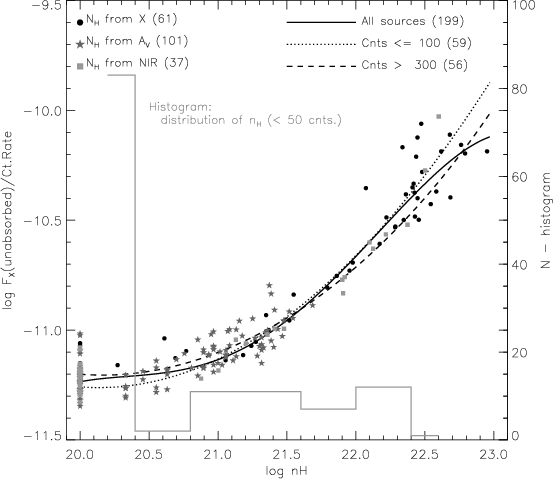

Extinction-corrected X-ray luminosities in the [0.5-7.0] keV band were estimated for all sources for which an indication of extinction was available. For the 199 sources with more than 50 counts and for which spectral fits were performed, we computed $L_{\rm X}$ from the $F_{\rm X}[u]$(unabsorbed fluxes) column in Table 6, adopting a distance of 760 pc, adequate for NGC 2264 members. For the fainter sources, for which spectral fits were not performed, we derived a count-rate to unabsorbed flux conversion factors using the results of the spectral fits for the brighter stars. Figure 12 shows the run of the flux/rate ratio vs. $N_{\rm H}$ for this sample. Different symbols indicate different origins of the absorption values (see previous section). We then performed polynomial fits to the data points for the whole sample, for the 56 sources with more than 300 counts, and for the 59 sources with less 100 counts. Results are shown in Fig. 12. Because the sources for which we want to determine fluxes have <50 counts, we adopt the latter fit as our relation between $N_{\rm H}$ and the conversion factor:

 \begin{displaymath}\log \frac{F_{\rm X}(u)}{Ct.Rate}= 58.62 -6.942\times \log N_{\rm H}+ 0.1724\times (\log
N_{\rm H})^2
\end{displaymath} (1)

where the units are ergs cm-2. The $1\sigma$ dispersion of the data-points around this relation is 0.1 dex, which can be taken as an upper limit to the error on the source flux introduced by ignoring the spectral shape of faint sources. From the observed count-rates, we thus estimated fluxes for 127 X-ray sources with <50 counts and with $N_{\rm H}$ estimates coming from either the $A_{\rm V}$ or the JHK photometry. The gray histogram in figure 12 shows the distribution of $N_{\rm H}$ for these sources. Results are reported in Table 1. Note that we do not quote X-ray fluxes for faint sources without an independent extinction estimate. Upper limit fluxes for 425 X-ray undetected stars in the ACIS FOV and with an absorption estimate (out of a total of 1463) were similarly computed from the upper-limits to the count rates.


5 Results - membership

In this section we define a sample of 491 likely NGC 2264 members within the FOV of our ACIS observation. The X-ray sources account for 408 objects while the remaining 83 are selected on the basis of the strength of ${\rm H}_\alpha $ line and of optical variability as described in Sect. 3.2. The likely members are indicated in Table 3 by an asterisk following the identification number. We first consider the possibility of extragalactic contamination and then discuss the nature of X-ray sources with and without optical/NIR counterparts separately.


5.1 Extragalactic X-ray sources

Extragalactic contamination is expected only among X-ray sources that lack an optical and/or NIR counterpart. We reach this conclusion by considering the 489 ACIS sources of a probably non stellar origin detected in the Chandra Deep Field North (CDFN; Barger et al. 2003; Alexander et al. 2003)[*]. After defining random positions in our FOV for each CDFN source, we compared their observed count rates with upper limits computed from our ACIS data at those positions (see Sect. 3.1). We then selected CDFN sources that would have been detected with our exposure: a total of $139\pm 3$ objects[*]. Next, we compared the positions of these simulated CDFN AGNs in the optical (I vs. R-I) and NIR (H vs. H-K) color-magnitude diagrams[*] with those of the X-ray sources in the NGC 2264 exposure that could be placed in the same diagrams. These plots show that AGNs are considerably fainter on average than our identified X-ray sources that can be placed in either of these diagrams, and only two or three of the AGNs that we could have detected occupy positions that overlap with the loci where our X-ray sources are found. Moreover, in this comparison we have totally neglected the effect of extinction. Because of the dark cloud in our line of sight, the number of AGNs we are sensitive to is certainly much reduced with respect to the above estimate, and their optical and NIR luminosities should also be considerably reduced. We therefore conclude that the contamination of AGNs to the sample of X-ray-selected probable members with optical/NIR identification is negligible.


5.2 X-ray sources with optical/NIR counterparts

In Fig. 3 we show the optical CMD for the 300 X-ray sources that can be placed in such a diagram and for the 83 other undetected problable members discussed in Sect. 3.2. Note that the X-ray sources are found for the most part in the locus expected for NGC 2264 members (i.e. the previously defined cluster locus). However some X-ray sources lie below that locus, their position being compatible with the one expected for MS foreground stars. Very few, if any, of the X-ray sources in this diagram may be background MS stars, which are expected to lie below the 1 Gyr isochrone. In order to reduce contamination in the sample of likely members to a minimum, we excluded X-ray sources that lie outside the cluster locus, i.e. below the 107.1 Myr isochrone and to the right of the 0.8 $M_\odot $evolutionary track, but we made an exception for two sources: (i) #305 (I=17.28, R-I=0.98), associated with the IRAS source IRS-1, classified as a Class I object by Margulis et al. (1989) but more recently suggested as a deeply embedded B star in a more evolved evolutionary stage (Schreyer et al. 2003)[*]; (ii) #309 (I=16.45, R-I=0.76), a known member, because indeed the peculiar and well-studied accreting binary system KH 15D (e.g. Dahm & Simon 2005; Herbst & Moran 2005; Hamilton et al. 2005). The 8 sources that lie to the right of the 0.1$~M_\odot$ track are considered likely members, either of very low (sub)stellar mass or else very absorbed. Since we lack $A_{\rm V}$ values from optical spectra, we can check these two possibilities using our X-ray data and the JHK photometry. Out of these 8 sources, 4 (#125, #192, #251, #273) are highly absorbed as indicated by their X-ray spectra (or hardness ratios) and/or their positions in the J-H vs. H-K diagram. Another three sources (#215, #316, #358) however appear to have negligible absorption and are good candidates for detected brown dwarfs.

Only 10 X-ray sources (out of 300) are excluded as members because they are incompatible with our cluster locus in the optical CMD and might be associated with field stars[*]. Among them only one (source #258, an X-ray faint, $L_{\rm X}/L_{\rm bol}=-4.8$, and soft G5 star) could be placed in the HR diagram of Fig. 5, where it lies on the 100Myr isochrone. Although we exclude these 10 sources from our sample of likely members, some of them might actually be members.

Our next step was to statistically estimate the number of foreground stars that, if present in our FOV and detected by ACIS, contaminate our list of 290 (=300-10) X-ray detected cluster-locus candidate members, as well as the 10 X-ray sources outside of the cluster locus. We considered the volume-limited stellar samples of the NEXXUS survey (Schmitt & Liefke 2004), extracting from it a nearly complete sample of stars of spectral types F to M within 6 pc from the Sun. These stars are well characterized optically and have known distances and X-ray luminosities as measured with ROSAT. We estimated the number of foreground stars, $N_{\rm fg}$, in our FOV assuming that the spatial density of field stars in the direction of NGC 2264 is uniform and equal to that in the solar neighborhood[*]. We next randomly drew $N_{\rm fg}$stars from the NEXXUS sample and assigned them random distances, d, in the range [0-760] pc, according to a uniform stellar density. With these distances and assuming an isothermal X-ray spectrum with kT=0.3 keV, we converted the NEXXUS X-ray luminosities to ACIS count rates using an $N_{\rm H}$-dependent conversion factor calculated with the "Portable, Interactive Multi-Mission Simulator'' (PIMMS). The hydrogen column density toward each star was estimated as $\rho\times
d$, where the volume density $\rho$ was set to 0.3  $\rm cm^{-3}$ and the distance is expressed in cm[*]. We finally compared these simulated count-rates with upper limits estimated at random positions in the ACIS FOV estimated using PWDetect (Sect. 3.1). This simulation was repeated 100 times, varying the sample of NEXXUS stars and their position in space. On average, the sample of foreground stars that we would have detected counts 20 stars, 15 of which should fall in the cluster locus and 5 outside of it. About half of the 10 stars outside the cluster locus are thus expected to be cluster members, thus reinforcing the arguments given in the previous paragraph. Within the cluster locus, only 5% (15/290) of the X-ray sources are estimated to be non-members[*]. Given that eighty of the X-ray sources in the cluster locus had not been previously selected as likely members because of either their ${\rm H}_\alpha $ emission or optical variability, we estimate that our sample contains ${\sim}65$ new optically visible members.

Fifty-one more X-ray sources were identified with optical or NIR objects but could not be placed in the optical CMD (14 have Imagnitudes but no R, 37 are only detected in 2MASS). Extending the previous result, and because we can exclude an extragalactic nature for these sources, we consider these stars as additional candidate members. Only four of them had previous indication of membership from their ${\rm H}_\alpha $ or optical variability.


  \begin{figure}
\par\includegraphics[width=7.8cm]{5084_f13.ps}

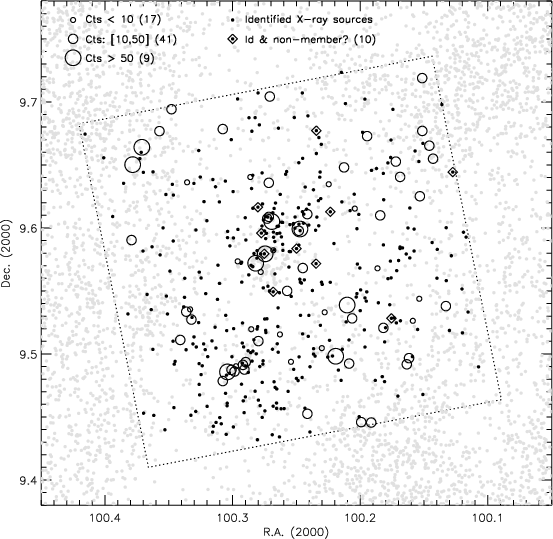

\end{figure} Figure 13: Spatial distributions of sources around the ACIS FOV (the area within the dotted square). Light gray points: cataloged optical/NIR objects not detected in X-rays. Black symbols: X-ray detected objects. Squares with dots: X-ray sources that might be non-members because of their position in the optical CMD (Sect. 5). Empty circles with size indicating source statistics (see legend): unidentified X-ray sources.
Open with DEXTER

5.3 Sources with no optical/NIR counterpart

Sixty-seven ACIS sources are not identified with any object listed in the full-field optical/NIR catalogs we have considered[*]. None of them was detected by Flaccomio et al. (2000) with the ROSAT HRI[*]. They have significantly fewer detected counts than identified sources. Fifteen of them have detection significance ${<}5.0\sigma$, and the 10 expected spurious detections (cf. Sect. 2.2) are most likely found in this group. Nine have more than 50 counts and were subject to spectral analysis.


  \begin{figure}
\par\includegraphics[width=6.8cm]{5084_f14a.ps}\medskip
\par\incl...
...84_f14c.ps}\medskip
\par\includegraphics[width=6.8cm]{5084_f14d.ps}

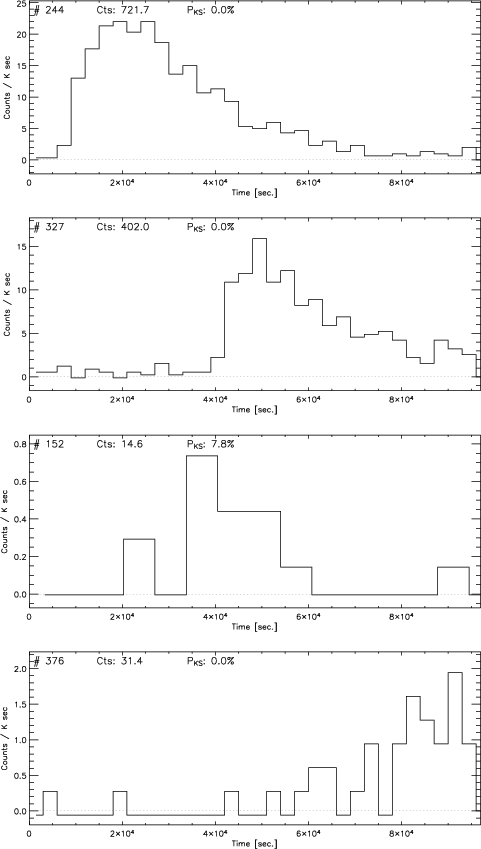

\end{figure} Figure 14: Lightcurves for four "flaring'' sources (#152, #244, #327, and #376) with no optical/IR counterpart. The background subtracted count rate is plotted vs. the time since the beginning of the observation. Source number, net counts, and the result of the KS variability test are given in the upper part of each panel.
Open with DEXTER

Depending on the optical depth of the background cloud, a number of AGNs are expected to be detected in our FOV and will be found among the non-identified sources (Sect. 5.1). It is therefore reasonable to ask whether the characteristics of our sources without counterparts are compatible with an AGN nature. The X-ray spectra of AGNs should be rather hard and well fit by power-law models with indexes between $\sim$0.9 and $\sim$1.9[*]. Their lightcurves should be constant or slowly varying. They should be distributed uniformly in space or anti-correlated with the cloud optical depth. With respect to this latter point, Fig. 13 shows, with different symbols, the spatial distribution of several classes of objects: X-ray sources without counterparts in three source count ranges, cross-identified X-ray sources, all the other X-ray undetected objects in our master catalog. This last group contains for the most part background field stars whose density is a good indicator of the optical depth of the molecular cloud. Note how the X-ray sources with counterparts, i.e. likely members, lie preferentially in front of or close to the cloud and have a highly structured distribution (cf., Lamm et al. 2004), with at least two concentrations in the south and toward the field center, corresponding to two well-known embedded sub-clusters roughly centered on IRS 1 (Allen's source, e.g. Schreyer et al. 2003) and IRS 2 (e.g. Williams & Garland 2002).


  \begin{figure}

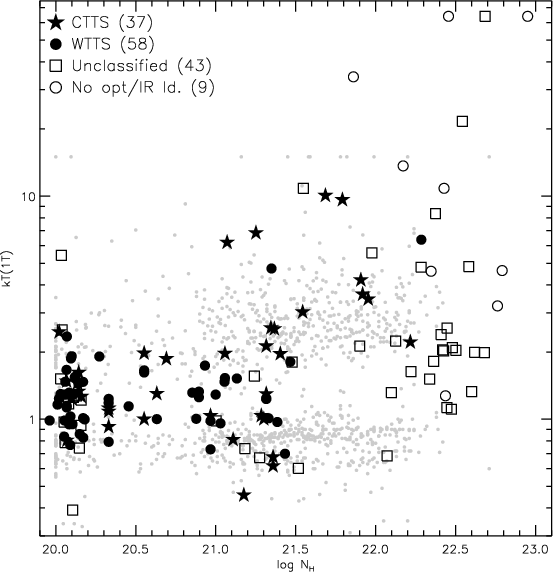

\par\includegraphics[width=7.8cm]{5084_f15.ps}\end{figure} Figure 15: Large black symbols: kT vs. $N_{\rm H}$ for NGC 2264 sources for which isothermal models were adopted. We distinguish (see legend) CTTS and WTTS, stars that are identified with optical and/or NIR sources but for which the PMS class is unknown, and X-ray sources that are not identified with any known optical/NIR object. Note that stars with $\log N_{\rm H} < 20.1$ have been shifted to that value and their horizontal position slightly randomized so that the symbols do not overlap completely. The small gray circles show for comparison the two temperatures derived by Getman et al. (2005) for a sample of 566 ONC members observed by the COUP collaboration.
Open with DEXTER

We first discuss the nine unidentified sources with more than 50 counts: two of them (#244, #327), located in the IRS 1 and IRS 2 regions, show distinct long-lasting flares (Fig. 14) and are therefore most likely PMS stars or YSOs. As discussed in Sect. 3.3, source #244 is actually identified with a SPITZER source and, although missing in the 2MASS catalog, it is rather bright in K. The spectra of the other seven are compatible with both isothermal models and power-law models. Assuming isothermal models, they have higher extinctions and temperatures with respect to the 190 sources with counterparts and >50 counts (cf. Fig. 15): the median $N_{\rm H}$ is $2.7 \times 10^{22}\rm ~ cm^{-2}$, vs. $7\times
10^{20}\rm ~ cm^{-2}$ and the median kT is 13.7 keV vs. 1.33 keV. Neither the $N_{\rm H}$ nor the kT are incompatible with those of other highly extinct X-ray sources with counterparts (cf. Fig. 15), which we have argued are most likely not AGNs. Due to the high extinction, the $L_{\rm X}$ of these sources (if at the distance of NGC 2264) is also high: median $\log L_{\rm X}=30.4$ vs. $\log L_{\rm X}=29.8$ for identified sources. If instead we assume that the correct models are power laws, the best-fit indexes range between 0.252.0-0.23 and 4.16.52.5 (median 1.6). The two flaring sources have power indexes with 90% confidence above the range expected for AGNs, and the same is true also for source # 162 ( $\Gamma = 4.1^{6.5}_{2.5}$), which also lies in the IRS 2 region and is therefore likely to be a star (the isothermal fit yield a rather common kT=1.27 keV). Two more (# 228, # 274) of the remaining six objects, although with rather hard and absorbed spectra, are clustered around IRS 2 and are therefore also likely to be YSOs. We thus conclude that 50% (5 out of 9) or more of the unidentified sources with more than 50 counts are likely to be stars.


  \begin{figure}
\par\includegraphics[width=7.8cm]{5084_f16.ps}

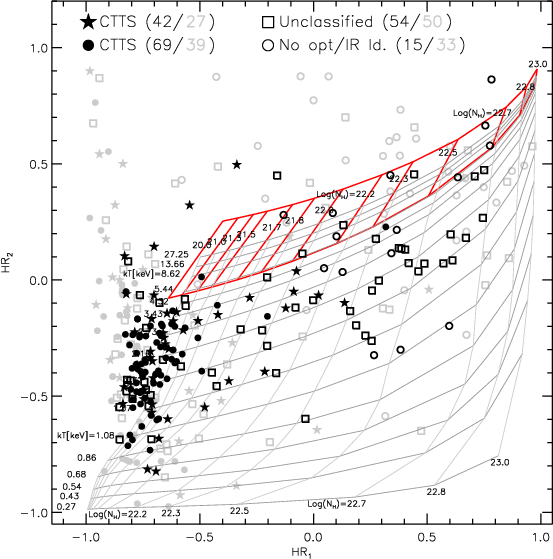

\end{figure} Figure 16: HR1=(M-S)/(M+S) vs. HR2=(H-M)/(H+M), where H, M, and Sare the photon fluxes in the [500:1700] eV, [1700:2800] eV, and [2800:7000] eV bands. Sources for which 1$\sigma $ uncertainties on HR1 and HR2 are less than 0.3 are plotted in black and those with larger uncertainties in gray. Symbols are as in Fig. 15. The number of plotted sources in each class are given in the legend. The light gray grid indicates the expected loci of isothermal sources of a given kT absorbed by interstellar matter of varying $N_{\rm H}$. Values of kTs and $\log N_{\rm H}$ are given on the left and top/bottom of the grid. The upper thick-line grid indicates the region expected for AGNs (power-law spectra with indexes between 0.9 and 1.9).
Open with DEXTER

Turning to the remaining 58 sources with less than 50 counts, two show flares (#152 and #376, Fig. 14) and are likely to be stars. The others, although maybe a little less spatially concentrated than sources with counterparts, seem to follow a similar distribution in the sky. We conclude that, rather qualitatively, a sizable fraction (on the order of $50\%$) of them are associated with NGC 2264. This conclusion is corroborated by the distribution of unidentified sources in the HR1 vs. HR2 hardness ratio diagram, Fig. 16. We show for reference a grid of expected loci for absorbed isothermal spectra and the region where power-law sources with indexes between 0.9 and 1.9 should lie. Both grids are computed using PIMMS. We note that both HR1 (most sensitive to $N_{\rm H}$) and HR2(most sensitive to kT) are on average significantly different for sources with and without counterparts, indicating that non-identified sources are on average characterized by hotter and more absorbed emission. However, the region occupied by about half of the unidentified sources is also occupied by a number of absorbed sources with counterparts, i.e. probable members, while the rest appear to be significantly hotter and possibly compatible with the expected AGN locus.

In conclusion, our 67 sources lacking optical/NIR counterparts are good candidates for new embedded members. Given their absorption, these are rather luminous X-ray sources. They are thus unlikely to be low-mass stars that have escaped optical/NIR detection because intrinsically fainter than the detection limit. Given the small dependency of $L_{\rm X}/L_{\rm bol}$ on mass (Flaccomio et al. 2003a; Preibisch et al. 2005), low-mass stars are indeed usually faint in X-rays. Non-identified sources might be embedded protostars (class I and class 0 objects), medium/high-mass very obscured PMS members of NGC 2264 or extragalactic objects shining through the background molecular cloud. They certainly deserve to be followed up with more sensitive IR observations.


6 Results - X-ray activity

Our data indicate that the source of X-ray emission in NGC 2264 low-mass members is hot (0.3-10 keV) thermal plasma. The X-ray emission is highly variable in time, the most prominent phenomena being impulsive flares due to magnetic reconnection events. These observations fit well with a solar-like picture of coronal emission and are quite usual for PMS stars. They are, for example, in qualitative agreement with those recently reported for the $\sim$1 Myr old stars in the ONC by the COUP collaboration (Preibisch et al. 2005). The spectral and temporal characteristics of PMS stars are, broadly speaking, also similar to those of active MS stars, e.g. in the young Pleiades cluster.

The most striking differences with respect to MS stars are the X-ray luminosities and the plasma temperatures, both of which are usually found to be higher. As for $L_{\rm X}$, we note that the fractional X-ray luminosities ( $L_{\rm X}/L_{\rm bol}$) of PMS stars are comparable or smaller than those of saturated MS stars. Therefore, the higher $L_{\rm X}$ can be explained by the almost saturated emission of PMS stars and by their larger bolometric luminosities. The higher temperatures might instead indicate a difference in the heating mechanism and/or, a larger contribution to the average flux of flares with hard spectra. At least three questions remain open. First and foremost, the nature of the ultimate mechanism that sustains PMS coronae. While for partially convective MS stars this is identified with the $\alpha-\omega$ dynamo thanks to the observed relation between activity and stellar rotation, no such evidence is available for PMS stars (Flaccomio et al. 2003a; Preibisch et al. 2005; Rebull et al. 2006). Second, the extent and geometry of coronae and, in particular, the possibility of interactions of plasma-filled magnetic structures and circumstellar disks (Jardine et al. 2006; Favata et al. 2005). Third, the role of accretion and outflows: soft X-ray emission has been inferred to originate both at the interface between the accretion flow and the photosphere and within the stellar jets (Bally et al. 2003; Kastner et al. 2002). In this section we now use our data to statistically investigate the dependence of activity, in terms of emission level, variability, and spectra, on the stellar and circumstellar characteristics. First, however, we discuss the results of our X-ray spectral analysis in more detail, with respect to plasma temperatures and absorption values.

Figure 15 shows the plasma temperature as a function of absorption for all the sources with spectral fits and for which we adopted isothermal models. Figure 17 similarly shows the two best-fit plasma temperatures of sources for which we adopted 2T models. First of all we observe that 2T models were required only for $\log N_{\rm H} < 21.5$, probably because higher column densities absorb the cool component to the extent that it becomes unobservable. Moreover, in the $N_{\rm H}$ range covered by both models, 2T models were statistically favored in sources with higher statistics while low-statistic sources were in most cases successfully fit with a single plasma component with temperature roughly intermediate between those of the two components in 2T models. For 1T models we also note a certain correlation between kTand $N_{\rm H}$ (Fig. 15). While a positive slope of the lower envelope of the datapoints is easily explained as a selection effect, this is not the case for the upper envelope. The paucity of sources with low $N_{\rm H}$ and high kT indicates that the X-ray emitting plasma of highly extinct sources is intrinsically hotter than that of optically revealed PMS stars. These hot, highly extinct sources are good candidates for embedded Class 0/I protostars, which have already been suggested to have harder X-ray spectra (Imanishi et al. 2001).

Figure 18 shows the run of kT1 and kT2 with stellar mass for 2T models. As for the two previously discussed plots, we also show for reference the temperatures obtained by the COUP collaboration (Preibisch et al. 2005) for $\sim$1 Myr old stars in the ONC[*]. With respect to the ONC, temperatures in NGC 2264 appear to be lower on average. This could indicate that at $\sim$3 Myr the hot flaring component of the X-ray emission has become less important. It could also result from a lower fraction of CTTSs given that CTTS tend to have slightly higher plasma temperatures than WTTS (see Sect. 6.1).


  \begin{figure}
\par\includegraphics[width=7.8cm]{5084_f17.ps}

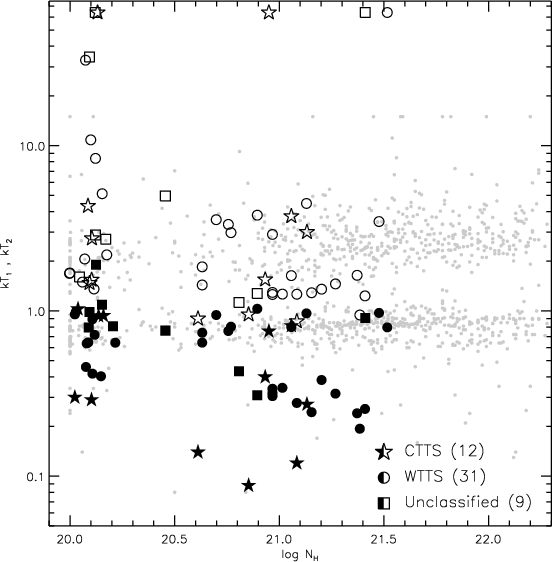

\end{figure} Figure 17: kT1 and kT2 as a function of $N_{\rm H}$ for sources for which 2T spectral fits were adopted. The results for NGC 2264 presented in this paper are shown as larger symbols, filled ones for the cool component temperature and empty ones for the hot component. Stars, circles, and squares indicate CTTS, WTTS, and unclassified stars, respectively. The small gray circles show for comparison the two temperatures derived by Getman et al. (2005) for a sample of 566 ONC members observed by the COUP collaboration.
Open with DEXTER


  \begin{figure}
\par\includegraphics[width=7.8cm]{5084_f18.ps}

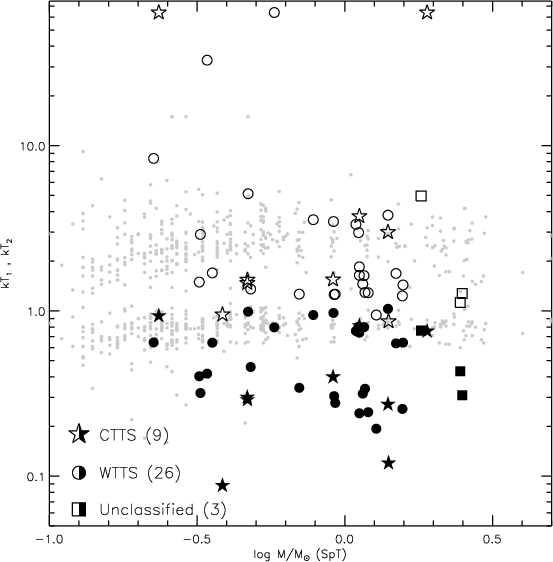

\end{figure} Figure 18: kT1 and kT2 as a function of stellar mass for sources that are both placed in the theoretical HR diagram and for which we adopted a 2T spectral model. Symbols and legend as in Fig. 17.
Open with DEXTER

We also note that the temperatures of the two isothermal components show a larger scatter in the NGC 2264 stars than in the COUP data. This could be due to: i) larger uncertainties in the NGC 2264 results because of the shorter exposure time and longer distance with respect to the ONC; ii) the shorter exposure time resulting in a stronger influence of spectral time variability on the time-averaged spectra; iii) a real evolutionary effect (e.g. most ONC stars are CTTS, while in NGC 2264 we observe a more varied mixture of CTTS and WTTS); iv) the existence of an additional thermal component that is only sometimes present and/or revealed by the spectral fitting process. In this respect Figs. 17 and 18 indicate, for sources fit with 2T models, an interesting feature: an apparent separation of the temperatures into two branches, more evident for the cool isothermal component. Taking kT1=0.5 keV as the dividing line between the two branches, we have 23 and 29 sources in the cool and hot branches, respectively. The hot branch has median kT1 and kT2 of 0.8 and 3.6 keV, respectively, roughly coincident with the temperatures of most COUP sources. The cool branch has median kT1 and kT2 of 0.3 and 1.3 keV, respectively. Since this latter median kT2 is similar to the temperatures found for sources that were successfully fit by 1T models, it is reasonable to hypothesize that the EM distributions of these sources have three peaks: one corresponding to the cool $\sim$0.3 keV component that is not present and/or visible for sources in the hot branch, and two peaks at hotter temperatures (i.e. $\sim$0.8 and $\sim$3.6 keV) that are, however, well-represented by an isothermal component with intermediate temperature. Given the limited statistics of our sources, three component spectral models are not needed, although physically reasonable, and would therefore remain unconstrained by the data.

As for the physical origin of the two branches, we note that, with respect to the hot branch, stars in the cool branch have lower counts (median counts 270 vs. 630), are significantly less variable according to the KS test (variability fraction 30% vs. 66%, at the 1% confidence level), and are slightly more likely to be CTTS (CTTS fraction: 33% vs. 23%). We note that the difference in variability fractions is unlikely to be explained by statistics alone (cf. Figs. 6 and 7). If the $kT_2\sim
3$ keV component is due to flaring, it is then possible that the $kT_1\sim 0.3$ keV component becomes detectable preferentially when flaring is absent, so that the hot component is suppressed. This soft emission might be physically assimilated to the X-ray emission from the solar corona, which would indeed show temperatures similar to 0.3 keV if analyzed with ASCA SIS (cf. Table 1 in Orlando et al. 2001), an instrument with a response similar to ACIS. The emission measures we derive for the $\sim$0.3 keV component of our NGC 2264 sources ( $3.1\times10^{52}{-}1.6\times10^{54}$ cm-3), although much larger than those estimated for the Sun, could still be explained by much larger filling factors ($\sim$1) and/or larger scale heights of the densest structures (i.e. active region cores).


6.1 Activity in CTTS and WTTS

Comparing the plasma temperatures of CTTS and WTTS that are well fit by a single temperature model (37 CTTS, 58 WTTS), we learn that the former are statistically hotter, with a median kT of 1.5 keV vs. 1.3 keV (K-S test probability that the two distributions are compatible: 0.2%). A similar comparison for the two plasma temperatures of stars that required a 2T spectral model (12 CTTS and 31 WTTS) is inconclusive, possibly because of the lower number of stars. However, we have noted above that CTTS appear to be more common among stars with low values of kT1 (Fig. 17). In particular, the three stars with the lowest kT1 are all CTTS. Figure 19 shows the ACIS spectra for these three sources, #17, #111, and #183. The two thermal components of the best-fit models are shown separately, and the temperatures and absorptions are reported from Table 6. The most striking case appears to be source #183, which has the highest kT1 (0.14 keV) and shows a clear double-peaked spectrum. The emission measure (EM) of the cool plasma is estimated to be $5.7\times10^{53}~\rm cm^{-3}$. The other two sources have lower kT and higher EMs (#17: kT1=0.09 keV, $EM=2.3\times10^{54}\ \rm cm^{-3}$; #111: kT1=0.12 keV, $EM=1.2\times10^{54}\ \rm cm^{-3}$). We also note that among the three sources #183 has the largest ${\rm H}_\alpha $ line equivalent width: 27.9 vs. 10.9 and 18.2 for #17 and #111.


  \begin{figure}
\par\includegraphics[width=5.5cm]{5084_f19a.ps}\medskip
\par\incl...
...19b.ps}\medskip
\par\includegraphics[width=5.5cm]{5084_f19c.ps}

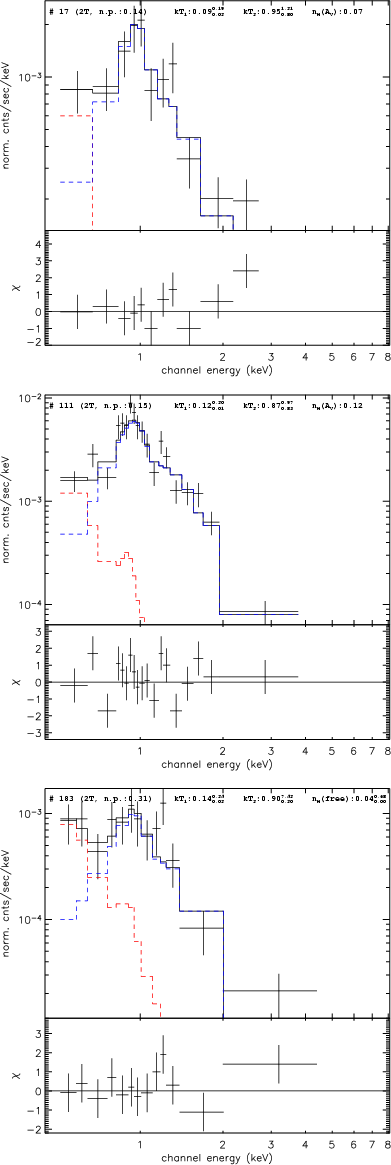

\par\end{figure} Figure 19: ACIS spectra of three CTTS with a very low kT1. At the top of each panel, we report the source number, fit model, goodness of fit (null probability), kT1, kT2, and $N_{\rm H}$ values, in units of $10^{22}\ cm^{-2}$. For these, we also indicate in parenthesis their origin, "$A_{\rm V}$'', or, for source #183, "free'', i.e. derived from the X-ray spectral fitting.
Open with DEXTER

As noted in the previous section, low kT1 values are usually associated with low kT2. For the three CTTS just discussed, for example, the kT2 values, 0.87-0.95 keV, are among the lowest observed and are very similar to the cool component for the majority of PMS stars. This suggests that the ultra-cold component is present and/or observable with our spectra only when kT=2-4 kev plasma is absent.

A similar trend can be observed for 1T fits (Fig. 15): among the six lowest kTs (kT < 0.68 keV), the EW( ${\rm H}_\alpha $) is known for three stars, and it indicates accretion (i.e. a CTTS) in all cases. CTTS thus appear to possess both warmer and cooler plasma than WTTS. If this result is confirmed with more statistical significance by further observations, it could imply that the accretion process results, on one hand, in more frequent/energetic flares and, on the other, in a very cool X-ray plasma produced in the accretion shock (cf. the cases of TW Hydrae and BP Tau: Schmitt et al. 2005; Kastner et al. 2002; Stelzer & Schmitt 2004).

We now investigate the X-ray activity levels ($L_{\rm X}$ and $L_{\rm X}/L_{\rm bol}$) as a function of bolometric luminosity, stellar mass, and accretion properties for the subsample of stars for which stellar masses were derived by placement in the theoretical HR diagram (Fig. 5) and interpolation of the SDF tracks (160 X-ray detected stars, excluding one possible non-member and two stars outside the tracks). For this investigation we also include upper limits for 16 X-ray undetected likely members. Note that a more exhaustive account of the relation between activity and stellar properties, using the X-ray data presented here in conjunction with those of Ramírez et al. (2004a) for another field in NGC 2264 and those of Ramírez et al. (2004b) for the "Orion Flanking Fields'', can be found in Rebull et al. (2006). In that paper the samples for each cluster included many more stars than we have here, but with more uncertain stellar parameters on average. Here we take a different approach, focusing only on the NGC 2264 members in our FOV that are well characterized optically.

Our $L_{\rm X}$-mass scatter plot is shown in Fig. 20. We observe the commonly found mass-$L_{\rm X}$ correlation (e.g. Rebull et al. 2006), although with a large spread. The position of upper limits indicates that our sensitivity limit is $\log L_{\rm X} \sim 29$ ergs/s, which appears to correspond to a completeness limit in mass at about 0.3-0.4 $M_\odot $. Moreover we note that, at each stellar mass for which our sample is reasonably complete, CTTS are on average fainter and more scattered with respect to WTTS, confirming the results obtained for ONC stars (Flaccomio et al. 2003a; Preibisch et al. 2005). A similar plot is shown for $L_{\rm X}/L_{\rm bol}$in Fig. 21. $L_{\rm X}/L_{\rm bol}$ appears to be generally high, roughly between 10-4 and the saturation level $\sim$10-3.0. Twenty-two sources actually have measured $L_{\rm X}/L_{\rm bol}$above the saturation limit. However, a large fraction of these, 73%, are variable, a significantly higher variability fraction than among sources below the saturation threshold (16%). Moreover, most of the sources with the highest values of $L_{\rm X}/L_{\rm bol}$ show large flares, which if excluded would bring them close to or below the saturation level. Flaccomio et al. (2003a) found evidence for ONC stars of a decrease in $L_{\rm X}/L_{\rm bol}$ at the very lowest masses. Our sample of stars with mass estimates is not complete enough at those masses to study this effect in detail. However, consistent with these results, we do note a decrease in the upper envelope of the $L_{\rm X}/L_{\rm bol}$ vs. mass relation for $M/M_\odot \lesssim 0.3$. Considering CTTS and WTTS separately, the difference in activity is less striking in this plot compared to the $L_{\rm X}$-mass one. However, Fig. 22 shows, separately for the two PMS classes, the distributions of $L_{\rm X}/L_{\rm bol}$, both for the whole mass range and for the subsample with $M>0.6~M_\odot$. As noted above this latter sample should be almost complete, according to the $L_{\rm X}$-mass relation. All the distributions take into account upper limits via the Kaplan-Meier estimator. For both samples, and in particular for the mass-restricted one, we observe that CTTS are less active than WTTS. Median $\log L_{\rm X}/L_{\rm bol}$ values differ by 0.32 and 0.41 dex for the two subsamples. The statistical significance of the difference is confirmed by the five two-sample tests in the ASURV package (Feigelson & Nelson 1985), giving probabilities that the $\log L_{\rm X}/L_{\rm bol}$ distributions of CTTS and WTTS are taken from the same parent distribution of <0.02% for the whole stellar sample and of <0.3% for the mass-restricted one. We note that this latter result differs from that of Preibisch et al. (2005), who find a statistically significant difference in the activity levels of CTTS and WTTS in the ONC only for stars in the 0.2-0.5 $M_\odot $ mass range.


  \begin{figure}
\par\includegraphics[width=7.8cm]{5084_f20.ps}

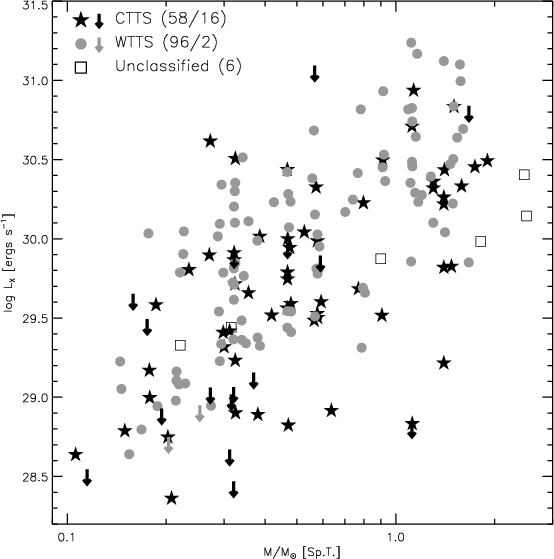

\end{figure} Figure 20: log $L_{\rm X}$ vs. mass for likely members placed in the theoretical HR diagram. Black stars and arrows indicate CTTSs (detections and upper limits, respectively). Gray circles and arrows indicate WTTSs. Squares indicate detections of unclassified PMS class. The legend gives the number of detections and upper limits for each of the three subsamples.
Open with DEXTER


  \begin{figure}

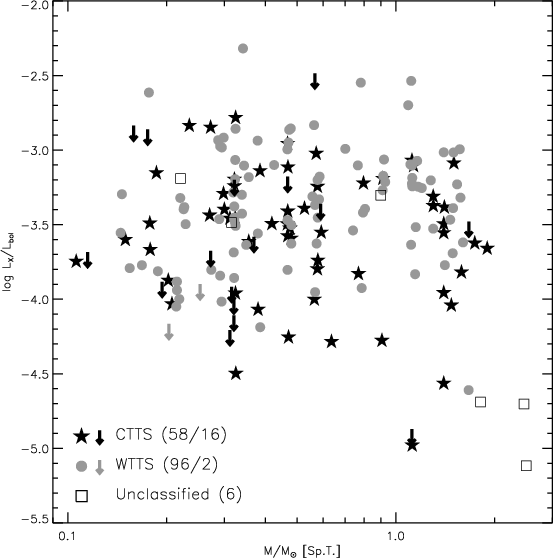

\par\includegraphics[width=7.8cm]{5084_f21.ps}\end{figure} Figure 21: log $L_{\rm X}/L_{\rm bol}$ vs. mass for the same stars as in Fig. 20.
Open with DEXTER


  \begin{figure}
\par\includegraphics[width=7.8cm]{5084_f22.ps}

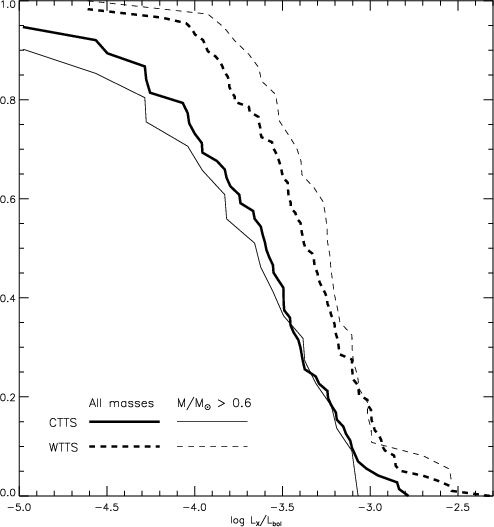

\par\end{figure} Figure 22: Distribution of log $L_{\rm X}/L_{\rm bol}$ for WTTS and CTTS (solid and dashed lines, respectively). The thick lines refer to the whole sample of stars depicted in Fig. 21; the thin lines to stars more massive than 0.6 $M_\odot $. Note how in both cases CTTS are on average less active than WTTS.
Open with DEXTER

Finally we used our data to repeat the correlation analysis between $L_{\rm X}$ and $L_{\rm bol}$ performed by Preibisch et al. (2005) for ONC stars classified as CTTS and WTTS. Using the estimation maximization (EM) algorithm in the ASURV package, we found very nearly linear correlations between $L_{\rm X}$ and $L_{\rm bol}$ for the two classes of stars: $\log L_{\rm X}=
(1.02\pm0.09)\log L_{\rm bol}+ 30.21\pm0.05$ for WTTS ($1\sigma$dispersion: 0.4 dex) and $\log L_{\rm X}= (1.02\pm0.12)\log L_{\rm bol}+
29.92\pm0.07$ for CTTS ($1\sigma$ dispersion: 0.5 dex). As in the ONC case, accreting stars in NGC 2264 thus appear to be fainter on average than non accreting ones with the same $L_{\rm bol}$ (in this case by a factor of 2) and to have slightly more scattered $L_{\rm X}$ values. However, we note that the power-law slope derived by Preibisch et al. (2005) for accreting stars in the ONC ($0.6\pm0.1$) is significantly shallower than the one derived here and that the $1\sigma$ dispersion of points with respect to the best-fit relations appear to be larger in the ONC: 0.5 vs. 0.4 dex for WTTS and 0.7 vs. 0.5 for CTTS. The differences might be interpreted as an evolutionary effect, given that the ONC is younger than NGC 2264 ($\sim$1 vs. $\sim$3 Myr) and that accretion disks are expected to have evolved significantly in the older cluster (Flaccomio et al. 2003c). We note, however, that the comparison between the effects of accretion on X-ray activity in the two regions is made uncertain by the different accretion indicators used in the two cases, the $\rm {\rm H}_\alpha $ and the Ca II equivalent widths for NGC 2264 and the ONC, respectively.


6.2 KH 15D

The peculiar binary system KH 15D has been the subject of many investigations. Herbst & Moran (2005), in particular, analyzed the same X-ray data discussed here to conclude that the system is a very weak source of X-ray emission for its mass and age. They tentatively attribute the low X-ray emission to the high eccentricity of the binary system and/or to the close periastron approach of the two stars, which may either disrupt the stellar magnetosphere and/or adversely affect the stellar dynamo.

The X-ray luminosity we derive for KH 15D (our source #309), based on 21.6 detected photons, is $1.3\times 10^{29}$, lower by 0.07 dex than the value reported by Herbst & Moran (2005). This difference is small and within the uncertainties but, given that the two values are derived from the same X-ray data, we investigated the matter further. This discrepancy can be fully explained by the different estimated number of source photons, 21.6 vs. 22.5, the assumed value of interstellar absorption, $9\times 10^{20}$ vs. $2\times 10^{20}$ cm-2, and the assumed source spectrum[*]. The 0.07 dex difference in $L_{\rm X}$, however, is not particularly relevant for the physical conclusions regarding the low $L_{\rm X}$ of the system. KH 15D is not shown in our $L_{\rm X}$-mass scatter plot (Fig. 20) because the system is located in the HR diagram below the grid of the evolutionary tracks (Fig. 5) and we did not derive a mass. By extrapolating the tracks one would estimate a mass of 0.6-0.7 $M_\odot $, consistent with the value used by Herbst & Moran (2005), 0.6 $M_\odot $. Thus placing KH 15D in the $L_{\rm X}$-mass diagram we notice that it would fall below the bulk of the other NGC 2264 members but in an area that is populated by other CTTSs. The value of $\log L_{\rm X}/L_{\rm bol}$ we derive from our data, -3.45, is moreover perfectly in line with most of the other NGC 2264 members (cf. Fig. 21). We therefore tend to believe that, rather than being affected by the peculiar binary orbits, the low X-ray emission of KH 15D is due to the same mechanism that suppresses activity in CTTSs.


6.3 Embedded XMM-Newton sources studied by Simon & Dahm (2005)

Simon & Dahm (2005, hereafter SD05) studied three embedded X-ray sources close to IRS 1 in detail (see also Sect. 3.3) using XMM-Newton EPIC data taken in March 2002, i.e. 7 months before our ACIS exposure. All three sources are retrieved in our data and we now compare the results with respect to spectral characteristics, variability, and average X-ray luminosities.

EPIC source #26 (our source #194) was the stablest of the three sources. The lightcurves were constant in both observations; the absorption was identical, $N_{\rm H}=2.6\times 10^{22}$ cm-2; and the kT was also the same within uncertainties[*]: $2.09\pm0.23$ keV (EPIC) vs. kT=2.44.81.5 keV (ACIS). The X-ray luminosity, however, when corrected for the different energy band used by SD05 (1-10 keV vs. our 0.5-7 keV) and for the different assumed distance (d=800 pc, vs. our 760 pc), seems to have dropped by a factor $\sim$2 between the two observations.

The EPIC source #10 (our source #141) showed a dramatic flare toward the end of SD05's exposure with the peak count rate reaching $\sim$100 times brighter than the quiescent emission before the flare. Our lightcurve is instead compatible with constant emission. DS05 have analyzed the spectrum during the flare, while we report results for the average spectrum, which is, however, built from only $\sim$65 photons. There is no evidence of variation in the absorption: DS05 find $N_{\rm H}=2.26\pm0.16\times 10^{22}$ cm-2 vs. our $2.6^{4.3}_{1.5}\times 10^{22}$ cm-2. The temperatures are, however, very different owing to the bright flare in the EPIC data: $kT=12.94\pm3.30$ keV vs. kT=2.06.11.0 keV. The X-ray luminosities are also very different, with the SD05 value ( $L_{\rm X}=32.37$) about 2 dex larger than the value obtained from our analysis and corrected for the different bands and distances. It is, therefore, likely that we observed the source in a state similar to the pre-flare state in the SD05 data.

Finally, the lightcurve of EPIC source #1 (our source #296) showed a remarkable rise in count rate during the XMM exposure, by a factor $\geq $7 in about 8 ks, and then began what appears a slow decay for the remaining 30 ks of the observation. An isothermal spectral fit gave a very high absorption, $N_{\rm H}=9.32\pm0.15\times 10^{22}$ cm-2, temperature, $kT=10.38\pm0.54$ keV, and total luminosity $L_{\rm X}=1.1\times
10^{33}$ erg s-1 (in the 1-10 keV band). From our ACIS data we derive a two order-of-magnitude lower luminosity $L_{\rm X}=1.1\times 10^{31}$, a somewhat colder plasma, kT=4.89.63.0 keV and a 5-fold lower absorption $N_{\rm H}=1.9^{2.4}_{1.6}\times 10^{22}$ cm-2. The lightcurve indicates a roughly linear decay of the count rate during the 100 ks of our observation from $\sim$6 cts ks-1 to $\sim$2 cts ks-1. We note that our value of $N_{\rm H}$ (90% confidence interval corresponding to $A_{\rm V}=10{-}15$) agrees roughly with the absorption SD05 derived for the source from NIR spectroscopy ( $A_{\rm V}=15{-}20$) and, contrary to the value observed during the XMM-Newton exposure, does not imply a higher gas-to-dust ratio than in the interstellar medium. We speculate that the high absorption seen by SD05 was due to a solar-like CME associated with the flare as we have also speculated for our source #71 in Sect. 4.2.


7 Summary and conclusions

We observed NGC 2264 with Chandra-ACIS for 97 ks, detecting a total of 420 X-ray point sources. We identified 85% of the X-ray sources with known optical and NIR objects, while 67 sources remain with no counterparts in the considered optical/NIR catalogs. More than 90% of the 353 X-ray sources with counterparts are expected to be members of NGC 2264. Using ${\rm H}_\alpha $ and optical variability data from the literature we selected a further sample of 83 X-ray undetected likely members in the FOV of our ACIS observation, bringing the census of likely members with optical/NIR counterparts to more than 400 stars. Taking the small estimated contamination from field stars into account, we have thus increased the known member census of the region by about 100 objects, mostly very low-mass stars, and including some candidate brown dwarfs. A further group of 10 X-ray sources, excluded from the member sample because their position in the optical CMD is discrepant with the cluster locus, is also likely to include members. Moreover, among the 67 sources with no optical/NIR counterparts, we argue that about half are previously unrecognized embedded members and good candidates for X-ray detected Class 0/I sources. The other half are instead likely associated with extragalactic objects. The coming SPITZER data will be very useful for clarifying the nature of each source and will allow a systematic study of X-ray activity in the protostellar phase.

We determined X-ray unabsorbed fluxes and luminosities for 326 sources for which absorption could be estimated, either from the X-ray spectra, from optical spectral types and photometry ($A_{\rm V}$), or from NIR photometry. With the aim of shedding light on PMS X-ray activity, we then performed a detailed study of X-ray lightcurves and spectra and studied the relation between the properties of X-ray emitting plasma and stellar/circumstellar characteristics. We confirm several previous findings: X-ray luminosity is related to bolometric luminosity and to stellar mass; $L_{\rm X}/L_{\rm bol}$ is on average high and fairly independent of mass, other than for a possible drop at $\sim$$M_\odot $ and a shallow decrease for $M/M_\odot \lesssim 0.3$. The mass-$L_{\rm X}$ relation appears to be better defined for WTTS than for CTTS, and CTTS have on average lower activity levels at any given bolometric luminosity and mass. We found tentative evidence that CTTS are more time variable with respect to WTTS, which might be related to the time-variable nature of the accretion process if it plays a role in the X-ray emission. With respect to spectral characteristics, the plasma on CTTS is on average slightly hotter than on WTTS, a finding possibly related to the higher variability of CTTS. However, we also observe that the sources with the coolest plasma are preferentially CTTS. Three CTTSs in particular appear to have plasma at ${\sim}0.1{-}0.2$ keV, i.e. comparable to the temperatures expected for plasma heated by accretion shocks, as observed on TW Hydrae ( $kT\sim0.25$ keV, Kastner et al. 2002; Stelzer & Schmitt 2004). The estimated emission measures of this cool plasma are between 4 and 17 times larger than on TW Hydrae ( $EM=1.3\times10^{53}$ cm-3), maybe as a result of the expected higher accretion rates of NGC 2264 stars. These results, taken as a whole, reinforce the mounting evidence that activity in low-mass PMS stars, while generally similar to that of saturated MS stars, is significantly affected by mass accretion. This influence has at least two aspects: accretion is, on one hand, a positive source of very soft X-ray emission produced in the accretion shock. On the other hand, it reduces the average energy output of coronae and makes the emission more time variable. Preibisch et al. (2005) discuss several possible explanations for the suppression of activity. They favor the idea that accretion modifies the magnetic field geometry and results in the "mass-loading'' of field lines, thus hampering the heating of plasma to X-ray temperatures. It is at the same time conceivable that the resulting magnetic field structure will be less stable because of the the temporal variability of the mass accretion rate, as well as the rotational shear at the inner edge of the circumstellar disk. To tackle the so-far elusive activity-accretion relation, a better characterization of the circumstellar/accretion properties, e.g. measures of massaccretion rates, is essential. Particularly useful in this respect would be contemporary observations in the X-ray band and in accretion/outflow sensitive optical/NIR lines.

Acknowledgements

The authors wish to thank the anonymous referee for comments that helped to improve this work and acknowledge financial support from the Ministero dell'Istruzione dell'Universitá e della Ricerca, PRIN-INAF and contract ASI-INAF I/023/05/0.
