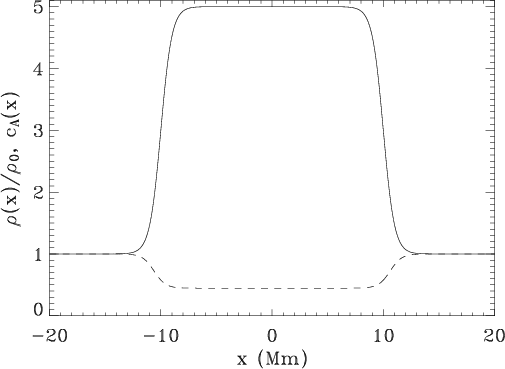

$\begin{figure} \par\includegraphics[width=7.2cm,clip]{4816f1.eps}\end{figure}$ Figure 1: Dimensionless density (Eq. (1)), solid line, and Alfvén speed, dashed line, profiles across the uniform unperturbed magnetic field (i.e. along x-coordinate) which is used as an equilibrium configuration in our model of a footpoint of a solar coronal loop or a polar region plume.
Open with DEXTER

In the text

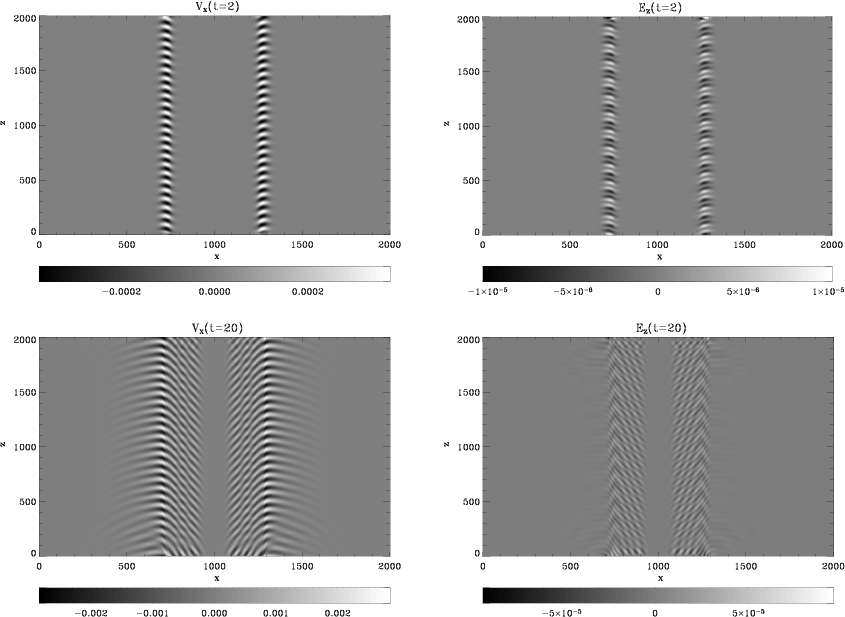

$\begin{figure} \par\includegraphics[width=5.7cm,clip]{4816f2a.eps}\hspace*{5mm} ... ...c.eps}\hspace*{5mm} \includegraphics[width=5.7cm,clip]{4816f2d.eps} \end{figure}$ Figure 2: Intensity plots of V_x and E_z at t=2 and 20 for the case of k=1, $\nu = 0.7$ Hz, $\lambda _{\rm A} = 6.3$ Mm.
Open with DEXTER

In the text

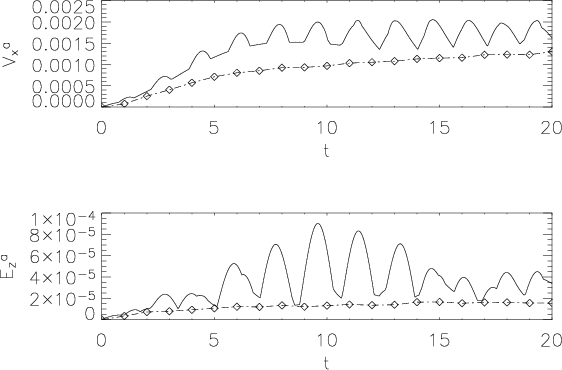

$\begin{figure} \par\includegraphics[width=8cm,clip]{4816f3.eps}\end{figure}$ Figure 3: Time evolution of the amplitudes of $V_x \equiv V_x^a$ and $E_z\equiv E_z^a$ . Solid lines represent solutions using the linear McCormack code, while dash-dotted lines with open symbols are the solutions using the non-linear code Lare2d. Here A=0.05, k=1, $\nu = 0.7$ Hz, $\lambda _{\rm A} = 6.3$ Mm, and both runs have 2000 $\times$ 2000 spatial grid resolution.
Open with DEXTER

In the text

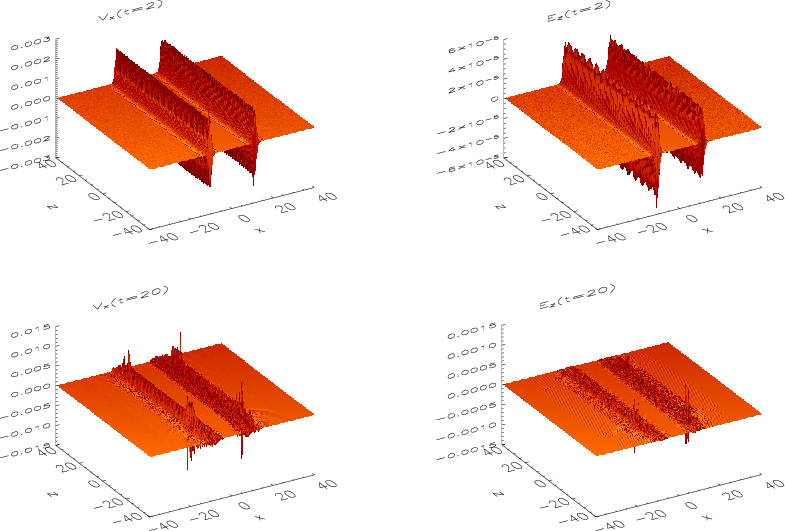

$\begin{figure} \par\includegraphics[width=4.8cm,clip]{4816f4a.eps}\hspace*{1.3cm... ...ps}\hspace*{1.3cm} \includegraphics[width=4.95cm,clip]{4816f4d.eps} \end{figure}$ Figure 4: Snapshots of V_x and E_z at t=2 and 20 for the case of k=10, ${\nu = 7}$ Hz, $\lambda _{\rm A} = 0.63$ Mm.
Open with DEXTER

In the text

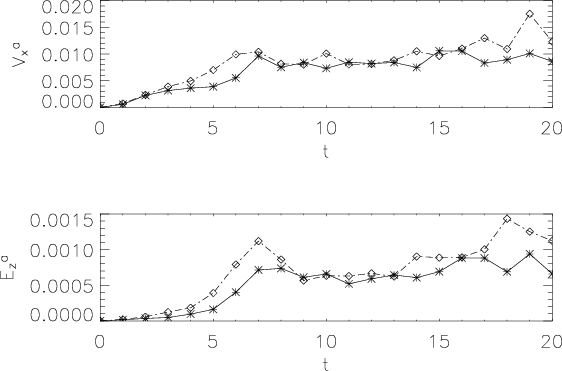

$\begin{figure} \par\includegraphics[width=8cm,clip]{4816f5.eps}\end{figure}$ Figure 5: Time evolution of the amplitudes of $V_x \equiv V_x^a$ and $E_z\equiv E_z^a$ . Solid lines with stars represent solutions using the Lare2d code with 4000 $\times$ 4000 resolution, while dash-dotted lines with open symbols are the same but with 2000 $\times$ 2000 resolution. Here A=0.05, k=10, ${\nu = 7}$ Hz, $\lambda _{\rm A} = 0.63$ Mm.
Open with DEXTER

In the text

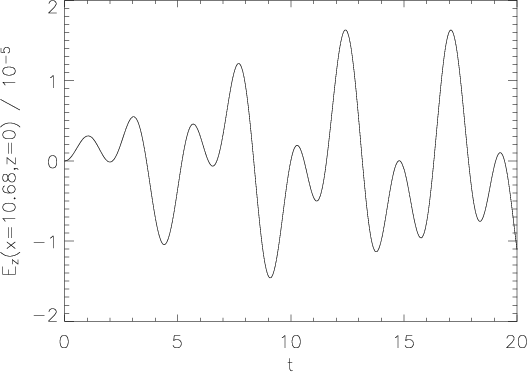

$\begin{figure} \par\includegraphics[width=7.5cm,clip]{4816f6.eps}\end{figure}$ Figure 6: Time evolution of E_z at a point (x=10.68,z=0). Here k=1, $\nu = 0.7$ Hz, and $\lambda _{\rm A} = 6.3$ Mm.
Open with DEXTER

In the text

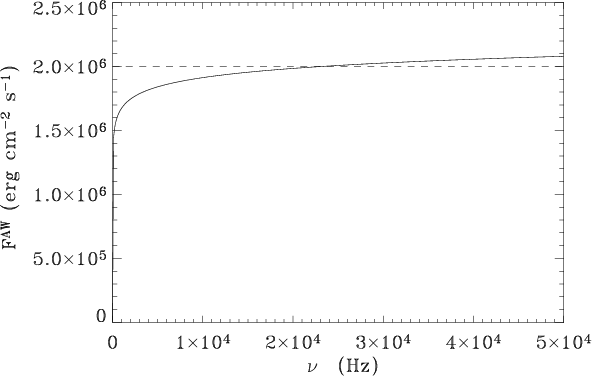

$\begin{figure} \par\includegraphics[width=8.4cm,clip]{4816f7.eps}\end{figure}$ Figure 7: Plot of the flux carried by Alfvén waves from 10^-4 Hz up to a frequency $\nu$ versus that frequency as inferred from the empirically constrained spectrum of Cranmer et al. (1999). The solid line corresponds to Eq. (18), while the dashed line shows te coronal heating requirement for a temperature of 1 MK.
Open with DEXTER

In the text

$\begin{figure} \par\includegraphics[width=7.2cm,clip]{4816f1.eps}\end{figure}$	Figure 1: Dimensionless density (Eq. (1)), solid line, and Alfvén speed, dashed line, profiles across the uniform unperturbed magnetic field (i.e. along x-coordinate) which is used as an equilibrium configuration in our model of a footpoint of a solar coronal loop or a polar region plume.
Open with DEXTER

$\begin{figure} \par\includegraphics[width=5.7cm,clip]{4816f2a.eps}\hspace{5mm} ... ...c.eps}\hspace{5mm} \includegraphics[width=5.7cm,clip]{4816f2d.eps} \end{figure}$	Figure 2: Intensity plots of V_x and E_z at t=2 and 20 for the case of k=1, $\nu = 0.7$ Hz, $\lambda _{\rm A} = 6.3$ Mm.
Open with DEXTER

$\begin{figure} \par\includegraphics[width=8cm,clip]{4816f3.eps}\end{figure}$	Figure 3: Time evolution of the amplitudes of $V_x \equiv V_x^a$ and $E_z\equiv E_z^a$ . Solid lines represent solutions using the linear McCormack code, while dash-dotted lines with open symbols are the solutions using the non-linear code Lare2d. Here A=0.05, k=1, $\nu = 0.7$ Hz, $\lambda _{\rm A} = 6.3$ Mm, and both runs have 2000 $\times$ 2000 spatial grid resolution.
Open with DEXTER

$\begin{figure} \par\includegraphics[width=4.8cm,clip]{4816f4a.eps}\hspace{1.3cm... ...ps}\hspace{1.3cm} \includegraphics[width=4.95cm,clip]{4816f4d.eps} \end{figure}$	Figure 4: Snapshots of V_x and E_z at t=2 and 20 for the case of k=10, ${\nu = 7}$ Hz, $\lambda _{\rm A} = 0.63$ Mm.
Open with DEXTER

$\begin{figure} \par\includegraphics[width=8cm,clip]{4816f5.eps}\end{figure}$	Figure 5: Time evolution of the amplitudes of $V_x \equiv V_x^a$ and $E_z\equiv E_z^a$ . Solid lines with stars represent solutions using the Lare2d code with 4000 $\times$ 4000 resolution, while dash-dotted lines with open symbols are the same but with 2000 $\times$ 2000 resolution. Here A=0.05, k=10, ${\nu = 7}$ Hz, $\lambda _{\rm A} = 0.63$ Mm.
Open with DEXTER

$\begin{figure} \par\includegraphics[width=7.5cm,clip]{4816f6.eps}\end{figure}$	Figure 6: Time evolution of E_z at a point (x=10.68,z=0). Here k=1, $\nu = 0.7$ Hz, and $\lambda _{\rm A} = 6.3$ Mm.
Open with DEXTER

$\begin{figure} \par\includegraphics[width=8.4cm,clip]{4816f7.eps}\end{figure}$	Figure 7: Plot of the flux carried by Alfvén waves from 10^-4 Hz up to a frequency $\nu$ versus that frequency as inferred from the empirically constrained spectrum of Cranmer et al. (1999). The solid line corresponds to Eq. (18), while the dashed line shows te coronal heating requirement for a temperature of 1 MK.
Open with DEXTER
