1 - Astronomical Institute "Anton Pannekoek'', University of Amsterdam, Kruislaan 403, 1098 SJ Amsterdam, The Netherlands
2 - European Southern Observatory, Karl-Schwarzschild Strasse 2, Garching-bei-München, 85748, Germany
3 - Instituut voor Sterrenkunde, Katholieke Universiteit Leuven, Celestijnenlaan 200B, 3001 Heverlee, Belgium

Abstract
High-quality K-band spectra of strongly reddened point sources, deeply embedded in (ultra-)compact H II regions, have revealed a population of 20 young massive stars showing no photospheric absorption lines, but sometimes strong Br $\gamma$ emission. The Br $\gamma$ equivalent widths occupy a wide range (from about 1 to over 100 Å); the line widths of 100-200 km s^-1 indicate a circumstellar rather than a nebular origin. The K-band spectra exhibit one or more features commonly associated with massive young stellar objects (YSOs) surrounded by circumstellar material: a very red colour $(J-K) \ga 2$ , CO bandhead emission, hydrogen emission lines (sometimes doubly peaked), and Fe II and/or Mg II emission lines. The large number of objects in our sample allows a more detailed definition and thorough investigation of the properties of the massive YSOs. In the (K, J-K) colour-magnitude diagram (CMD) the massive YSO candidates are located in a region delimited by the OB zero-age main sequence, Be stars, Herbig Ae and Be stars, and B[e] supergiants. The massive YSO distribution in the CMD suggests that the majority of the objects are of similar spectral type as the Herbig Be stars, but some of them are young O stars. The spectral properties of the observed objects do not correlate with the location in the CMD. The CO emission must come from a relatively dense ( ${\sim} 10^{10}~ {\rm cm}^{-3}$ ) and hot ( $T\sim 2000{-}5000$ K) region, sufficiently shielded from the intense UV radiation field of the young massive star. The hydrogen emission is produced in an ionised medium exposed to UV radiation. The best geometrical solution is a dense and neutral circumstellar disk causing the CO bandhead emission, and an ionised upper layer where the hydrogen lines are produced. We present arguments that the circumstellar disk is more likely a remnant of the accretion process than the result of rapid rotation and mass loss such as in Be/B[e] stars.

Key words: infrared: stars - stars: formation - stars: early-type - stars: circumstellar matter - stars: pre-main sequence

1 Introduction

The observational study of massive stars at the earliest evolutionary phases is a rapidly expanding field. Although over the past decades significant progress has been made in unravelling the formation process of low-mass stars (e.g. Shu et al. 1987), it is not well understood how massive stars form. The contraction timescale is short, so that already very early in their formation massive stars will produce a copious radiation field that may hamper or even reverse the accretion process (Wolfire & Cassinelli 1987). This has led to the suggestion that stars more massive than ${\sim} 10~ M_{\odot}$ cannot form through (spherical) accretion alone, but instead form by collisions of intermediate-mass stars (Bonnell et al. 1998). Alternatively, non-spherical accretion through a disk could solve the "radiation pressure problem'' (e.g. Yorke & Sonnhalter 2002). Therefore, the detection of circumstellar disks around young massive stars is regarded as an essential step in understanding the formation of the most massive stars. Observations at centimeter and millimeter wavelengths suggest that rotating circumstellar disks are present around high-mass young stellar objects (e.g. Shepherd et al. 2001; Patel et al. 2005; Minier et al. 1998; Beltrán et al. 2004; Jiang et al. 2005; Chini et al. 2004).

Newly born massive stars are deeply embedded inside their natal cloud, obscured from view by 10-100 mag of visual extinction. One of the first observable signatures is the radio and infrared emission produced by the ultra- (or hyper-)compact H II region that emerges when the contracting star becomes hot enough to ionise the surrounding material. Although radio and infrared observations provide information on the amount of ionising radiation, these diagnostics do not allow an accurate determination of the photospheric properties of the embedded young massive star(s) (for reviews, see e.g. Churchwell 2002,1991; Hanson 1998; Garay & Lizano 1999).

Our strategy aims at the direct observation of the ionising star(s) of (ultra-) compact H II (UCHII) regions at near-infrared wavelengths, where the extinction is strongly reduced ( $A_{\rm K} \simeq 0.1 A_{\rm V}$ ), but the (reprocessed) emission by dust at longer wavelengths has not yet set in. Recent developments in near-infrared instrumentation have made this approach feasible. By first identifying the candidate ionising stars in IRAS sources with UCHII colours (cf. Kaper et al. 2006) and subsequent K-band spectroscopic follow-up (Bik et al. 2005), their properties can be determined.

It turns out that our sensitivity allowed us to detect about half of the UCHIIs in the near-infrared. As shown in Kaper et al. (2006); Bik et al. (2005) and Hanson et al. (2002), the UCHII regions are always located in larger, extended HII regions. Apart from the near-infrared counterparts of some of the UCHII regions, we have spectroscopically identified two other types of objects in those extended regions. The first type includes the photospherically detected OB stars. Their photospheric properties are determined by applying the spectral classification criteria as proposed by Hanson et al. (1996) and by measuring the shape of the line profiles. These objects cannot be distinguished from normal "naked'' OB stars. This suggests that these stars have already reached the main-sequence phase (Hanson et al. 2002; Bik et al. 2005,2003).

In this paper we focus on the spectroscopic properties of the second type of objects; 20 objects that we encountered in our survey of southern UCHIIs. Their spectroscopic and photometric properties differ from normal main-sequence OB stars and exhibit features commonly associated with massive young stellar objects. In our definition, a massive YSO has already contracted to stellar dimensions and likely commenced with core hydrogen burning, thereby separating a massive YSO from a high-mass protostar which would still be in its contraction phase.

The observational characteristics of massive YSOs are not well defined, but include: (i) a red continuum, likely due to hot dust; (ii) a location inside a star forming region; and (iii) an emission-line spectrum (H I, Fe II, Mg II, Na I, CO first overtone emission). The detection of emission in the first overtone bands of CO (at 2.3 $\mu$ m) is an important signature, as it is considered to be an indication for the presence of a dense circumstellar disk. CO first-overtone emission has rarely been detected in any astronomical object (McGregor et al. 1988). The first detection of CO bandhead emission in a massive YSO was reported by Scoville et al. (1983,1979) in the Becklin-Neugebauer (BN) object. Geballe & Persson (1987), Carr (1989) and Chandler et al. (1993) detected CO emission in another four high-luminosity YSOs: S106, NGC 2024-IRS2, S140 and GL2789. Modelling by Chandler et al. (1995) showed that vibrational temperatures of ${\sim} 3500$ K are required to produce the relative band strengths and that the size of the emitting region has to be quite small ( ${\sim} 1$ AU) and dense ( $n \sim 10^{10}$ cm^-3). A circumstellar disk could provide this environment, shielding the CO from the hot stellar radiation field. Alternatively, the CO might be shock-heated due to the interaction of a stellar wind with the surrounding cloud (see also Tan 2004; Scoville et al. 1983, in the case of the BN object), or emerging from the stellar wind itself (Chandler et al. 1995). It is not clear why some YSOs show CO emission and others do not.

Hanson et al. (1997) analysed the young ( ${\la} 1$ Myr) stellar population of M 17 and uncovered a handful of massive YSOs. K-band spectroscopy revealed that the hottest O stars are naked, while some of the later O and B stars show clear disk signatures (near-infrared excess, CO emission, double-lined Pa $\delta$ profiles). Similar conclusions were reached by Blum and collaborators based on their systematic study of the stellar content of obscured galactic giant H II regions (Conti & Blum 2002; Blum et al. 2000,1999,2001; Figuerêdo et al. 2005,2002).

In the following we present K-band spectra of 20 candidate massive YSOs deeply embedded in UCHIIs, obtained with ESO's Very Large Telescope and ISAAC. We study the spectral characteristics of these potentially very young massive stars, and search for signatures that may reveal information on the process of their formation. In the next section (Sect. 2) we introduce our sample and describe the observations and data reduction process. In Sect. 3 the K-band spectra and near-infrared photometry are presented. In Sect. 4 we discuss some well-studied objects showing similar signatures as encountered in our massive YSO sample. In Sect. 5 we put the observed properties of our massive YSO sample in perspective and provide arguments that we have detected very young massive stars of which at least some are surrounded by a circumstellar disk, most likely remnant of the accretion process. We end this paper with a summary of our conclusions (Sect. 6).

2 Sample definition and data reduction process

The candidate massive YSOs discussed in this paper are selected from a survey of near-infrared bright point sources deeply embedded in high-mass star forming regions (Kaper et al. 2006). Based on their position in the colour-magnitude diagram, the most luminous and reddest sources, and thus the potentially newly born massive stars are identified. A medium-resolution ( R = 10 000) K-band spectrum has been obtained with ISAAC on the ESO VLT at Paranal, Chile. This spectral resolution, as well as the obtained high signal-to-noise ratio, permits an accurate correction for telluric absorption lines and enables us to discriminate between stellar and nebular emission. Given the demand on spectral resolution, a narrow slit ( $0.3 \hbox{$^{\prime\prime}$ }$ ) is used, thus limiting the K-band magnitude of the targets to brighter than $K \simeq 13$ .

A number of objects turn out to be late-type foreground stars, but the majority are of early (OB) spectral type (Bik et al. 2005). Many show a photospheric spectrum for which the K-band spectral type has been determined, resulting in a reliable assessment of their stellar parameters. Apparently, these stars, though embedded in a young H II region, have already become "normal'' OB main sequence stars. Several objects, however, do not show a photospheric spectrum, but exhibit a broad Br $\gamma$ emission line; these objects define the sample of the present paper (Table 1). The photometric and spectral properties of the 20 candidate massive YSOs are outlined in the next section.

Long-slit (120 $^{\prime\prime}$ ) K-band spectra of these objects are obtained in two wavelength settings, the first setting with a central wavelength of 2.134 $\mu$ m including Br $\gamma$ ("Br $\gamma$ -setting''). The spectrum covered in this setting was used to identify the objects. To further investigate their potential massive YSO nature, for 15 objects we also obtained spectra in another setting covering the first four CO first-overtone bands (central wavelength 2.234 $\mu$ m "CO-setting''). The presence of CO first-overtone emission is an important signature of massive YSOs, and modelling these bands provides information on the geometry and nature of their circumstellar material (e.g. Bik & Thi 2004).

The observations in the Br $\gamma$ -setting were carried out partly in visitor mode (March 18-20, 2000) and partly in service mode (between May 8 and July 16, 2000). The observations in the CO setting were also obtained in two runs, one visitor mode run (February 21-23, 2002) and a service mode run in the period July 7 to August 2, 2002.

The spectra are electric ghost, dark- and flat-field corrected. The wavelength calibration of the spectra taken in the Br $\gamma$ setting is performed using arc spectra with the IRAF task identify. For the spectra obtained in the CO setting the wavelength calibration is performed using telluric OH emission lines (Rousselot et al. 2000). The accuracy of the wavelength calibration is ${\sim} 3$ km s^-1. In order to correct for telluric emission the object was "nodded'' between two positions on the slit (A and B) such that the background of position A is recorded while the source is at position B and is subtracted from the observation where the source is at position A, and vice versa. The offset between the A and B positions was chosen such that the stars on the slit do not overlap. In some objects the nebular emission (in, e.g., the Br $\gamma$ line) is extended so that the emission in the A image is overlapping with the emission in the B image. After subtraction this results in artifacts at the position of the nebular lines. We have inspected the 2D spectra of all sources for the presence of nebular emission and conclude that in most cases the contribution (positive or negative) of nebular emission to the stellar (Br $\gamma$ ) emission is negligible. However, in a few cases the nebular contribution is significant ( ${\sim}50$ % of the total flux in the case of 06412nr121, 17136nr649 and 18006nr766, see Fig. 2).

Telluric absorption lines were removed using stars of spectral type A, observed under identical sky conditions (for the list of standard stars, we refer to Bik et al. 2005). First, the only photospheric line (Br $\gamma$ ) in the spectrum of the A star needs to be divided out. It turns out that the best result is achieved when first the telluric features are removed from the K-band spectrum of the telluric standard using a high-resolution telluric spectrum (obtained at NSO/Kitt Peak). This spectrum is taken under very different sky conditions, so a lot of remnants are still visible in the corrected standard star spectrum, but without this "first-order'' telluric-line correction, a proper fit of Br $\gamma$ cannot be obtained. The Br $\gamma$ line is fitted by a combination of two exponential functions. The error on the resulting Br $\gamma$ equivalent width (EW) of our target star is about 5%. After the removal of the Br $\gamma$ line of the A star, the telluric lines are removed by taking the ratio of the target spectrum with the obtained telluric spectrum. In the CO setting no stellar features are present in the telluric standard star spectrum. The telluric-line correction is done using the IRAF task telluric, which allows for a shift in wavelength and a scaling in line strength yielding a more accurate fit. The task uses a cross-correlation procedure to determine the optimal shift in wavelength and the scaling factor in line strength, which can be changed interactively. The shifts are usually a few tenths of a pixel (1 pixel corresponds to 16 km s^-1); also the scaling factors are modest ( ${\sim} 10$ %).

3 K-band photometric and spectral properties of massive YSO candidates

In this section we present the K-band spectra of 20 objects selected from our sample of obscured point sources in high-mass star-forming regions that display a broad, spectroscopically resolved Br $\gamma$ emission line. In Table 1 the objects and some of their observed properties are listed. In the remaining part of the paper we will name the objects after the first 5 digits (i.e. the right ascension) of the IRAS point source they are associated with, together with a number based on our photometry (e.g. object 227 in IRAS 06058+2138 we refer to as 06058nr227, cf. Kaper et al. 2006). These objects are further characterised by a continuum slope that is on average much redder than that of the OB stars, that are also present in most of these regions, indicating that these objects possess an infrared excess. We obtained photometric data in two near-infrared bands (J and K). That is not sufficient to discriminate an IR excess from extinction in a colour-colour diagram.

In the following we first discuss the photometric properties of these objects. After that, we evaluate the spectral features detected in the Br $\gamma$ setting; subsequently, the spectra obtained in the CO setting are discussed.

3.1 Position in the colour-magnitude diagram

$\begin{figure} {\includegraphics[width=16cm,clip]{2403fig1.eps} }\end{figure}$

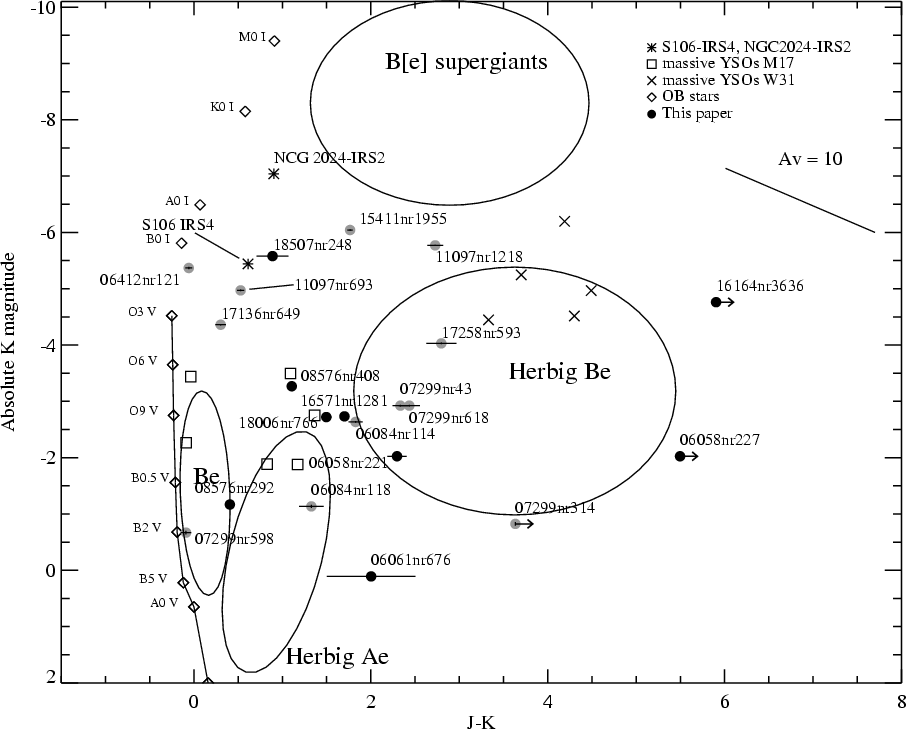

Figure 1: Distribution of massive YSOs in the (K, J-K) colour magnitude diagram. The zero-age main sequence (ZAMS) is indicated, as well as the location of some supergiants ( $\diamond$ ). For each object an estimate of the amount of interstellar extinction has been obtained using other members of the embedded cluster. In some cases a spectrum of a spectroscopically identified OB star (Bik et al. 2005) could be used (black circle); alternatively, an average value for the reddening is derived assuming that the other cluster members are main sequence stars (grey circle). The diagonal line in the top-right of the figure is the dereddening line representing 10 magnitudes of visual extinction. The adopted distance and the uncorrected values of K and J-K are listed in Table 1. The objects marked by a " $\sq$ '' and a " $\times$ '' symbol are the extinction corrected positions of the massive YSOs found in M 17 (Hanson et al. 1997) and W31 (Blum et al. 2001), respectively. The position of NGC 2024-IRS2 (Lenorzer et al. 2004) and S106 (Felli et al. 1984) is indicated by a " $\star$ ''. For comparison, the areas occupied by Herbig AeBe stars (Eiroa et al. 2002), B[e] stars (Voors 1999), and Be stars (Dougherty et al. 1994) are indicated.

Open with DEXTER

In Fig. 1 the objects are plotted in a (K,J-K) colour-magnitude diagram. The observed K-band magnitude is transformed to absolute magnitude by taking into account the distance and interstellar reddening. The adopted distance is listed in Table 1. The solid line is the location of the zero-age main sequence (ZAMS) (Cox 2000; Hanson et al. 1997).

It turns out that practically all candidate massive YSOs are members of an embedded cluster (cf. Kaper et al. 2006). The massive YSOs located in IRAS 06412-0105 and IRAS 15411-5352 look isolated, but those regions are associated on a larger scale with (massive) starforming regions. Our observations also do not go deep enough to exclude the presence of low-mass members of the cluster. In some cases we have been able to spectroscopically identify other early-type cluster members (Bik et al. 2005). As the intrinsic colour (J-K)₀ of all early-type main-sequence stars is ${\sim}{-}0.2$ , it is then straightforward to derive the amount of interstellar reddening.

Assuming that the extinction does not vary a lot over the H II region, this method to estimate the reddening could be applied to nine objects (black circles in Fig. 1). For the other objects (grey circles) the average (J-K) of the embedded cluster members was taken to measure the reddening, assuming that these stars are all on the main sequence and thus have $(J-K)_{0} \sim 0$ . It may well be that the massive YSOs are more embedded compared to the already emerged OB stars, and then the derived amount of interstellar extinction is a lower limit. However, the assumption that the extinction is uniform over the H II region is not likely to be valid. To illustrate this with an example, the visual extinction measured in the direction of NGC 2024-IRS2 is about 3 mag higher than to NGC 2024-IRS2b, just $5 \hbox{$^{\prime\prime}$ }$ away (Lenorzer et al. 2004; Bik et al. 2003).

The objects in Fig. 1 show a wide range in (J-K), from 0 to almost 6. Also a number of objects have a very bright Kmagnitude. If we assume that the K-band flux can be fully attributed to photospheric emission, the absolute K-band magnitude of about half of the stars would be too bright to be main sequence O stars and would have to be classified as supergiants. The star-forming regions containing these objects are supposed to be young and unlikely to host evolved supergiants. This is an indication that the bright K-band magnitude is due to a near-infrared excess.

For most UCHII regions distance determinations are not very reliable. The distances are mostly based on the radial velocities measured in molecular lines (e.g. Bronfman et al. 1996) and converted to a distance using a rotation model for the galaxy (e.g. Brand & Blitz 1993). These distance determinations give a near and a far solution in some directions and, furthermore, the model does not account for peculiar motion. Brand & Blitz (1993) show that in some directions the observed radial velocity spread can be up to 30-40 km s^-1, which makes the distance determination uncertain. If a star of known spectral type is detected in the embedded cluster, another constraint on the distance is obtained, so that, e.g., the distance ambiguity can be resolved (cf. Bik et al. 2005).

For 5 regions a spectroscopic parallax based on optical data has been determined. IRAS 17136-3617 and IRAS 18006-2422 are visible in the optical, while IRAS 06058+2138, IRAS 06061+2151 and IRAS 08576-4334 are associated with an optically visible H II region or OB association (for references, see Col. 12 of Table 1).

Table 2: Identification of the lines detected in the K-band spectra of candidate massive YSOs. Column 1 lists the rest wavelength, Col. 2 the corresponding element and Col. 3 the line transition.

Table 3: Equivalent width (EW) measurements of the emission line objects. Upper table: Cols. 2-7 give the EW for the spectral lines in the Br $\gamma$ setting. The EWs are measured in Å ngström and emission is given as positive. In Col. 8 the FWHM of Br $\gamma$ is given in km s^-1. Columns 9 and 10 show whether the CO and Pfund-lines are present in the spectra or not. ("-'' means not present, "n'' means not observed). Middle table: the EW measurements of the Pf-lines. The "b'' means that the line could not be measured because of blending with the CO lines. The Pf-lines of 16571nr1281 are double peaked with an average peak separation of $189 \pm 33$ km s^-1. Lower table: the EW measurements of the CO first-overtone bandheads. The "b'' means that the lines are blended with cold CO absorption lines or Pfund lines.

$\begin{figure} {\includegraphics[width=15.2cm,clip]{2403fig2a.eps} } \end{figure}$

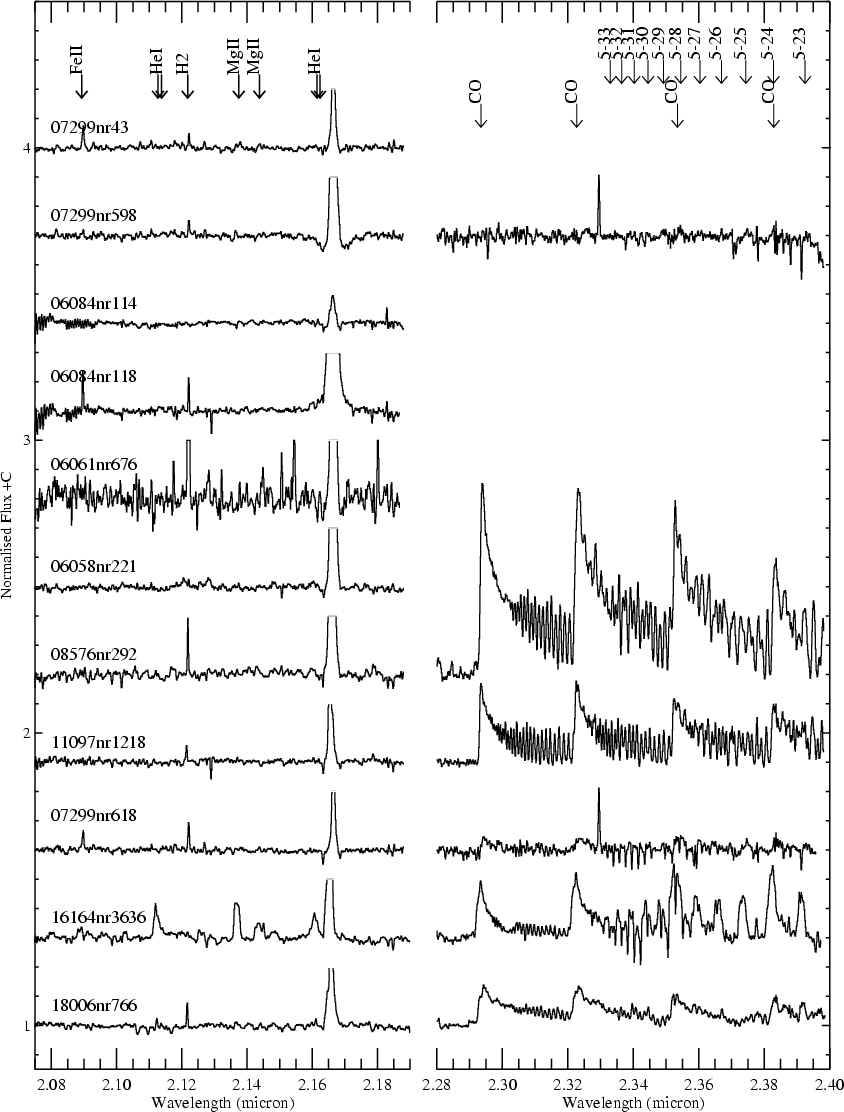

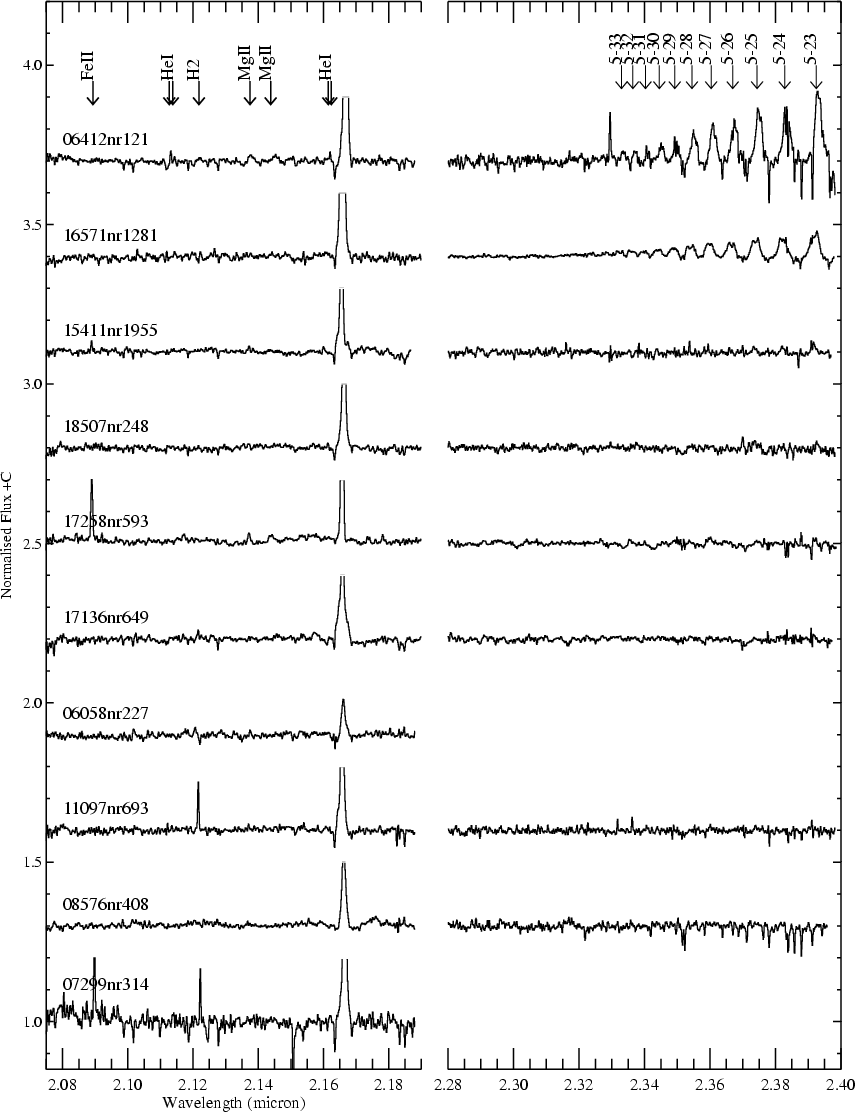

Figure 2: K-band spectra of candidate massive YSOs in two wavelength settings: the Br $\gamma$ setting (2.08-2.19 $\mu$ m, left) and the CO setting (2.29-2.40 $\mu$ m, right). The spectra are normalised to the continuum. Note the gap in wavelength between the two settings. At the top of the figure the identification of the spectral lines is given. The CO setting displays the most prominent differences between the targets. Note the double-peaked Pfund emission lines in 16571nr1281. The narrow absorption lines present in the CO setting of 08576nr408 and 17258nr593 are remnant telluric lines.

Open with DEXTER

$\begin{figure} {\includegraphics[width=15.2cm,clip]{2403fig2b.eps} } \end{figure}$	Figure 2: Normalised K-band spectra of candidate massive YSOs (continued). CO first-overtone emission is detected in 5 objects with pronounced difference in line shape. 16164nr3636 and 18006nr766 show both CO and Pfund emission lines. The narrow absorption lines present in the CO setting of 07299nr598 are remnant telluric lines.
Open with DEXTER

3.2 Br $\gamma$ setting

The objects in our sample were selected based on the presence of a broad Br $\gamma$ emission line. The spectra are displayed in Fig. 2. Table 2 lists the identification of the lines detected in the spectra. The full width at half maximum (FWHM) ranges from 100 to 230 km s^-1 (the spectral resolution is ${\sim} 30$ km s^-1). The large FWHM suggests that the emission has a circumstellar (e.g. a rotating disk) and not a nebular origin. In a H II region of 10 000 K the isothermal sound speed is 17 km s^-1 and would remain unresolved. We note, however, that hydrogen recombination lines detected at radio wavelengths in some hyper-compact H II regions display comparable widths (Kurtz & Franco 2002). In two objects (16164nr3636 and 06412nr121) He I emission lines are detected. In the case of 06412nr121 these lines are not resolved, suggesting a nebular origin. In 16164nr3636 the lines are broad and resolved like the Br $\gamma$ line, and probably produced in the circumstellar environment. He I emission is only produced if the nebula is exposed to the strong UV field of a hot, early-type star (cf., e.g., Hanson et al. 2002; Martín-Hernández et al. 2003). In the majority of objects nebular, spatially extended, H₂ 1-0 S(1) emission is observed. This emission is produced by molecular hydrogen that is excited by either shocks or the UV radiation field.

The strength of the Br $\gamma$ emission covers a wide range (measured equivalent width (EW) from 1 to over 100 Å, with the majority between 1 and 10 Å, Table 3). We do not find a relation between the Br $\gamma$ strength and width, nor does the Br $\gamma$ strength correlate with the appearance of other lines detected in this wavelength setting. One object, 06058nr221, shows a double-peaked Br $\gamma$ profile, with a peak separation of 95 km s^-1 (Fig. 3). Such a double-peaked profile is also observed (though in Pa $\delta$ ) in massive YSOs detected in M 17 (Hanson et al. 1997). The double-peaked nature suggests the presence of a rotating disk. The Br $\gamma$ profile in several other targets displays an asymmetry. Figure 3 highlights some of the observed Br $\gamma$ lines. Some objects show an additional red component, while other objects exhibit blue-shifted emission. There are no signatures indicating the presence of C IV and N III emission lines, demonstrating that these stars are not "normal'' OB supergiants with a strong stellar wind causing the Br $\gamma$ emission (Hanson et al. 1996).

Several objects exhibit an Fe II emission line (2.089 $\mu$ m), while a few show broad Mg II emission (2.138, 2.144 $\mu$ m). The Mg II emission is likely produced by the excitation through Ly $\beta$ fluorescence (Bowen 1947). Like the Fe II emission, the Mg II emission lines indicate the presence of a dense and warm (several 1000 K) circumstellar environment (McGregor et al. 1988).

$\begin{figure} {\includegraphics[width=17cm,clip]{2403fig3.eps} }\end{figure}$

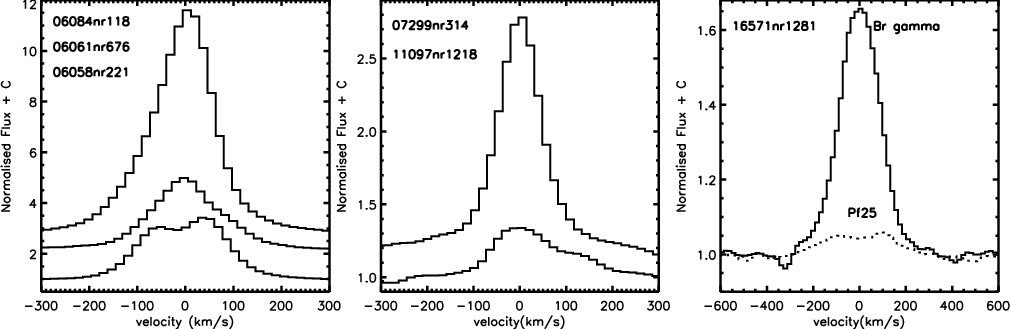

Figure 3: Differences in Br $\gamma$ line morphology. The top spectrum in the left panel (06084nr118) shows a blue extended wing, while the bottom spectrum in the middle panel exhibits a red extended wing of the Br $\gamma$ profile. The bottom spectrum of the left panel (06058nr221) displays a double peaked Br $\gamma$ line with a peak separation of 95 km s^-1, suggesting that it originates in a rotating disk. In the right panel, the Br $\gamma$ line and Pf25 line of 16571nr1281 are plotted. By measuring the width of the two lines (Table 4), Pf25 turns out to be much broader (and double peaked) than the Br $\gamma$ line. Two telluric lines at -360 and 345 km s^-1 with respect to Br $\gamma$ hamper an accurate determination of the Br $\gamma$ line wings.

Open with DEXTER

3.3 CO setting

3.3.1 CO first-overtone emission

One of the most remarkable spectral features found in these objects is the CO first-overtone emission in the range from 2.29-2.40 $\mu$ m. CO bandheads are detected in 5 sources (Fig. 2), with different shapes of the bandhead. The objects 11097nr1218 and 08576nr292 show a very steep bandhead, while the other 3 objects have a more shallow bandhead shape and exhibit an extended blue wing. The shape of the bandhead reflects the velocity dispersion of the CO molecules. In 11097nr1218 and 08576nr292 the CO gas has a small velocity dispersion, which also results in a high contrast in the rotational J lines. In the other objects the CO molecules have a much larger velocity dispersion, resulting in a reduced contrast of the J lines and a broadening of the bandheads.

The observed extended blue wing of the bandhead cannot be explained by a gaussian velocity distribution. A Keplerian velocity distribution, however, can reproduce such a bandhead shape. Chandler et al. (1995,1993) have observed and modelled high resolution CO 2-0 observations of a sample of YSOs and modelled the kinematics of the CO gas. These models are based on a circumstellar accretion disk or a neutral stellar- or disk wind. Most of the objects display a CO bandhead with a blue shoulder, for which Chandler et al. (1995) obtained the best fit with a circumstellar disk. A detailed analysis and modelling of the CO first-overtone bands in our massive YSO sample support this conclusion and is presented in Bik & Thi (2004). Similar results have been obtained by Blum et al. (2004). Contrary to the large difference in shape of the CO bandheads, the FWHM of Br $\gamma$ is rather constant, also the CO lines with a small velocity dispersion show a broad FWHM of Br $\gamma$ (Table 3). This suggests that Br $\gamma$ is not formed in the same region/geometry as the CO bandheads.

In the spectra of 16164nr3636 and 07299nr618, also CO absorption lines are detected ( 2.33 - 2.35 $\mu$ m). These lines are the lower J-lines of the 2-0 bandhead and indicate cold ( ${\sim} 40$ K), foreground molecular gas.

3.3.2 Pfund lines

In five objects hydrogen Pfund lines are detected, including two which also have the CO first-overtone bands in emission. In the spectrum of 16571nr1281 the Pf-lines are double peaked with a separation of $189 \pm 33$ km s^-1 suggestive of a disk origin. In Table 4 the FWHM of Pf25 is given in comparison with the Br $\gamma$ line. It turns out that the Pf25 line is always much broader than Br $\gamma$ , which would be consistent with a disk origin (Sect. 5).

The Pf-line emission indicates a line forming region of high density ( $N_{\rm e} \sim 10^{8}~ {\rm cm}^{-3}$ ). The flux ratio of Pf25 and Br $\gamma$ is listed in the last column of Table 4. The ratio varies from 0.08 to 0.3, in all cases larger than what is expected in the optically thin case B scenario (<0.02, Storey & Hummer 1995). This means that when the emission of the Pf25 and Br $\gamma$ are emitted by the same gas, this gas must be (partially) optically thick. However, when the two lines are produced at different locations, this ratio provides us with the ratio of the two line forming surface areas assuming that the emitting material is fully optically thick.

If the Pf-lines originate in a Keplerian disk, they are likely formed in the inner disk region, while for example Br $\gamma$ is formed in a much more extended part of the disk. In such a scenario the FWHMs of the Pf-lines and Br $\gamma$ are expected to be different: Br $\gamma$ is predominantly formed in the more slowly rotating outer parts of the disk (larger surface area) and thus will have a smaller FWHM.

Table 4: The FWHM of the Br $\gamma$ line compared with that of the hydrogen Pf25 line. The Pf23 line is stronger than the Pf25, but this line is heavily contaminated by residuals of atmospheric lines. For the fitting of 18006nr766 the Pf23 line is used, because Pf25 is not detected. In the last column the flux-ratio of Br $\gamma$ and Pf25 is listed.

4 Comparison to well studied objects

In order to better understand the nature of the objects presented in this paper as well as the physical conditions under which the spectral lines are formed, the observed photometric and spectral properties of the candidate massive YSOs are compared to those of well-studied objects in the same area of the CMD.

In the following section we will first discuss some objects of which the massive YSO nature has been established based on a broad range of observations. After that we discuss the supposedly "more evolved'' objects like Be and B[e] stars which show similar K-band spectra. In the last part of this section the observed properties of the candidate massive YSOs are discussed in detail and compared to those of the reference objects. The existing spectra of those objects are usually of worse quality and resolution than the spectra of the candidate YSOs presented in this paper. This makes a quantitative comparison difficult.

When objects have similar near-infrared spectra, this does not necessarily mean that they are in the same phase of stellar evolution; it does, however, indicate that both classes of objects provide the physical conditions under which a certain near-infrared spectrum is produced.

In Table 5 the near-infrared photometric and spectroscopic properties of the reference objects discussed in this section are summarized. Below, a short description of the special characteristics of the object or classes of objects is given.

4.1 (Massive) Young Stellar Objects

S106-IRS4
S106 is one of the prototype massive YSOs. The broad shape of the CO bandheads in the K-band spectrum (Table 5) is explained by emission from a narrow region in a circumstellar disk (Chandler et al. 1995). The source is further characterised by a bi-polar outflow ( $v_{\rm exp} = 200$ km s^-1), with a very pronounced equatorial gap. The gap is also visible in the radio, where extinction does not play a role (Bally et al. 1983). This indicates that the gap is not caused by additional extinction, but is probably the result of a shadow produced by a circumstellar disk, which is supporting the results of the fits of the CO bandheads.

BN object
Among the YSOs, the Becklin-Neugebauer (BN) object is one of the best studied. The CO bandheads are rather steep. If the CO emission would come from a disk, the modest velocity broadening leads to the conclusion that the disk is viewed almost pole-on. Scoville et al. (1983) suggest that CO emission comes from a shock-heated thin layer far from the star caused by the motion of the BN object through a cold medium.

NGC 2024-IRS2
The infrared source NGC 2024-IRS2 was discovered by Grasdalen (1974) and long thought to be the ionising source of the Flame Nebula (NGC 2024). However, Bik et al. (2003) identified NGC 2024-IRS2b as the ionising source, a late O, early B star. Using simple gas and dust models of prescribed geometry Lenorzer et al. (2004) argue that the infrared flux from the circumstellar material of NGC 2024-IRS2 is produced by a dust-free, dense gaseous disk. The density in the disk of NGC 2024-IRS2 is on the order of $10^{14} - 10^{15}~ {\rm cm}^{-3}$ in the equatorial plane at the stellar surface. This is 2-3 orders of magnitude higher than in classical Be stars (Waters et al. 1991).

A near-infrared study of the young H II region M 17 by Hanson et al. (1997) has revealed a sample of massive stars possessing a near-infrared excess. The K-band spectral properties are identical to the objects presented here. Spectra obtained around 1 micron revealed double peaked Pa $\delta$ emission, superposed on photospheric absorption lines. In the optical where the circumstellar material does not produce excess emission, the photospheric spectrum of the underlying star is visible. The spectral types derived from these spectra are early and mid-B.

Herbig Ae/Be stars
The circumstellar emission of Herbig Ae stars is produced by a passive, dusty circumstellar disk (e.g. Millan-Gabet et al. 2001; Eisner et al. 2003; Mannings & Sargent 1997). For the Herbig Be stars the geometry of the circumstellar material is not obvious. At sub-mm wavelengths the predicted emission produced by a cold, massive circumstellar disk is not detected, suggesting that the geometry of the circumstellar material of the Herbig Be stars is different from that of the Herbig Ae stars. Natta et al. (2000) suggest that this may reflect a difference in time scales. The dispersal of the in-falling envelope by radiation pressure may trigger a rapid evolution of the circumstellar disk, and the disk will disappear much faster than in the case of Herbig Ae stars. When the Herbig Be stars become optically visible, their disks may already have disappeared. Fuente et al. (2003) found evidence for a disk around 3 Herbig Be stars, but the derived masses ( $10^{-3} {-} 10^{-2} ~{M}_{\odot}$ ) are substantially lower than the mass of the disks around Herbig Ae stars ( $10^{-2} {-} 10^{-1}~ {M}_{\odot}$ ).

4.2 Main-sequence and more evolved stars

Be stars
Be stars are rapidly rotating main sequence or (sub)giant stars that are characterised by H $\alpha$ emission produced by high density circumstellar gas. Often the H $\alpha$ line is double peaked. Their infrared spectra are dominated by hydrogen lines (Vandenbussche et al. 2002; Hony et al. 2000), including many from higher energy levels. Interferometric observations have confirmed the hypothesis that the circumstellar gas is distributed in a disk-like geometry (Stee et al. 1998; Vakili et al. 1998). The physical mechanism producing and maintaining these circumstellar disks is not known, but is likely related to the rapid rotation of the central star.

B[e] stars
B[e] stars show hydrogen lines in emission but also include forbidden lines in their optical spectra, mainly of [Fe II] and other low ionisation species. Contrary to Be stars, these stars exhibit a strong near-infrared and mid-infrared excess. The SED peaks between 5 and 10 $\mu$ m, showing the signature of a hot (500-1000 K) dust component (Voors 1999). The B[e] stars comprise stars of very different nature. The classification scheme proposed by Lamers et al. (1998) includes a class of supergiants as well as a class of pre-main sequence objects. However, for many B[e] stars the evolutionary status is unknown. The infrared excess of B[e] supergiants is likely caused by a highly non-spherical wind which is much denser and slower at the equator than in the polar regions (Zickgraf et al. 1985). This is likely due to the rapid rotation of the star (Pelupessy et al. 2000)

4.3 Classification of our objects

A detailed description of the fields and stellar populations hosting the massive YSO candidates discussed in this paper is given in Kaper et al. (2006). Here we focus on the characteristics relevant for a better understanding of the physical nature of these objects. In Table 6 a summary is given of the properties of the objects. The objects will be discussed in groups based on their position in the CMD (Fig. 1).

$\begin{figure} {\includegraphics[width=16cm,clip]{2403fig4.eps} }\end{figure}$

Figure 4: K-band images overlayed with radio continuum data of 3 UCHII regions. Panel a): K-band image of IRAS 06061+2151 (Kaper et al. 2006) overlayed with a VLA 3.6 cm image (Kurtz et al. 1994). A (G188.796+01.030), B (G188.793+01.030) and C (G188.794+01.031) correspond to 3 UCHII regions, with UCHII region A coinciding with the 06061nr676. Panel b) K-band image of IRAS 06412-0105 (Kaper et al. 2006) overlayed with a VLA 1.3 cm image (Kurtz, priv. comm.). Panel c) VLT K-band acquisition image of IRAS 07299-1651, where the position of the radio source is indicated (Walsh et al. 1998). None of the three sources are coinciding with the radio source, which may be even more embedded.

Open with DEXTER

4.3.1 Objects with B spectral type

The majority of the candidate massive YSOs have positions in the CMD which suggest that they are of B spectral type. A few objects hardly show any infrared excess and have colours similar to Be stars (07299nr598 and 08576nr292, Fig. 1). The spectral types of these objects (Table 6, Col. 7) are estimated by subtracting a typical K-band excess for Be stars ( $\sim$ 0.6 mag). The K-band spectrum of 07299nr598 also has the characteristics of a Be star. Underneath the Br $\gamma$ emission line, a broad photospheric absorption component is detected. This is also seen in the late-type Be stars (Clark & Steele 2000). The spectrum of 08576nr292, however, does not have the spectral characteristics of Be stars and shows strong CO bandheads.

The other objects with a larger J-K are located in the same area as the Herbig Be stars. None of the stars show similarities with the Herbig Ae stars, indicating that the stars we have detected are more massive. The spectral properties, however, are less homogeneous. Some objects show CO bandheads, some Pf-lines, while other objects only show Br $\gamma$ emission. This difference in spectral signature is, however, also seen in Herbig Be stars.

4.3.2 Objects with O spectral type

A small group (5 objects) is located close to S106 in the CMD. Their luminosity suggests that the central stars are O stars. They have a relatively blue colour ( $J-K \sim 0{-}2$ ), suggesting a similar structure of the circumstellar material (Sect. 5.3). Mid-infrared data of 11097nr693 indicate a very blue SED (Barbosa et al. 2003), likely dominated by circumstellar gas instead of dust.

The spectral properties, however, are not similar to S106, but also differ among each other. Apart from the He I emission, the spectral features do not depend strongly on the luminosity of the stars, but are much more determined by the physical conditions, like temperature and density in the circumstellar material. The main effect which seems to depend on the luminosity is the relatively blue colour of the more massive objects.

The object which resembles the spectroscopic properties of S106 most is 16164nr3636. The presence of cold CO absorption lines and the position in the CMD suggest that this object is deeply embedded. The extinction of the neighbouring OB stars used to deredden 16164nr3636 is obviously much less than the real extinction in this line of sight. The CO-bandheads in this object posses a blue wing which is naturally explained by a Keplerian rotating disk (Bik & Thi 2004).

4.3.3 Objects showing strong Br $\gamma$ emission

In the majority of the candidate massive YSOs in our sample the Br $\gamma$ EW is around 10 Å or less. In three objects, however, the EW is significantly higher: 06058nr221, 06061nr676, 06084nr118 (30-100 Å, Table 3). These objects are all located in the lower part of the CMD (Fig.1). They are of equal luminosity as the Herbig Ae stars, but significantly redder ( $J-K \sim 2$ ).

Mid-infrared observations show that 06084nr118 has a very red mid-infrared SED (Persi & Tapia 2003), suggesting that the source is still heavily embedded. The IR-luminosity they derive is 350 $L_{\odot}$ , which corresponds to an embedded star with a spectral type later than B3. The radio spectral energy distribution has a negative slope, is variable and has a non-thermal origin. Gómez et al. (2002) suggest that the radio emission is originating in an active magnetosphere, like observed towards T Tauri stars. The derived IR-luminosity as well as the position in our CMD suggest that this object is much more luminous than a T Tauri star. It has a K-band magnitude similar to Herbig-Ae stars.

The Br $\gamma$ line of 06058nr221 is double peaked with a separation of 95 km s^-1, suggesting an origin in a rotating disk. The disk hypothesis has not been confirmed by CO or Pfund lines, as no observations were performed in this setting. 06061nr676 is one of the few objects being the near-infrared counterpart to a radio UCHII region (see Sect. 4.4), which might be contributing to the Br $\gamma$ emission.

4.4 Ionising sources of UCHII regions

Kaper et al. (2006) find a near-infrared counterpart of an UCHII radio source in 44% of the fields containing such a source. This is in agreement with the results of Hanson et al. (2002), who show that only half of the radio UCHII regions have a near infrared counterpart.

The UCHII regions without a near-infrared counterpart are apparently still so heavily embedded that they are not detectable at near-infrared wavelengths. By comparing the positions of the candidate massive YSOs with those of the UCHII regions, we find that 3 massive YSOs in our sample are coincident with a radio source (see Table 6, Col. 5), although the radio counterpart of one of them, 06084nr118, does not have the radio properties of a typical UCHII region (see Sect. 4.3.3).

To illustrate this, in panel (a) and (b) of Fig. 4 two sources are displayed with a radio counterpart, while panel (c) shows an example of a region where the radio source is not the counterpart of the massive YSO, but of a more embedded source. In panel (a), the K-band image of IRAS 06061+2151 demonstrates that 06061nr676 is part of a larger cluster and the only source coincident with a radio source (source A: G188.796+01.030). Panel (b) shows the K-band image of IRAS 06412-0105 where 06412nr121 falls in the center of the radio emission. Because of the large distance to this source (7.3 kpc), the extent of the region (0.8 pc) suggests that this region is not an UCHII but a more evolved H II region.

5 Discussion

We have observed a large sample of candidate massive YSOs located in high-mass star-forming regions. The observed photometric and spectral characteristics show that these objects are surrounded by circumstellar material. The next question to address is whether this material is located in a circumstellar disk and, if this is the case, whether these disks are remnants of the accretion process, or formed as a consequence of the mass-loss process and rapid rotation such as in Be and B[e] stars.

5.1 Origin of the spectral lines

The different spectral lines observed in the K-band spectra of the candidate massive YSOs are formed in regions with different physical conditions. These conditions provide information on the origin of the material. In some of the objects the spectral lines indicate that they are formed in a rotating disk (see Table 6, Col. 6).

5.1.1 High-density indicators

The special conditions required to emit the CO first-overtone emission are suggestive of an origin in a circumstellar disk. The CO is only emitted at high density because the critical density of the CO overtone transitions is high ( $10^{10} {-} 10^{11}~\rm {cm}^{-3}$ ). The excitation temperature has to be high as well ( $2000{-}4000~\rm {K}$ ). The disk hypothesis is supported by the shape of the CO bandheads of two objects (16164nr3636 and 18006nr766). They show a CO bandhead profile displaying a blue wing, which can be explained by CO gas in Keplerian rotation (Bik & Thi 2004).

CO bandheads can also be produced in a shock front. This is suggested for the BN object where Scoville et al. (1983) propose that the CO is formed in the shock-front between the H II region and the ambient molecular cloud. Another tracer of shocks is H₂, which is also observed towards our candidate massive YSOs. However, the H₂ is spatially extended, and possibly formed in the photo-dissociation region by UV excitation. The CO is only observed towards the point sources, suggesting that the CO and H₂ emission are not formed by the same process.

Pfund-lines probe high-density material which is also an indication for a disk-like geometry. This is confirmed for the Pf-lines in 16571nr1281, which are double peaked, indicating that the lines are emitted in a disk. The Pf-lines in 16164nr3636 and 18006nr766 have a width comparable to that of the CO bandheads. This suggests that the lines share the same kinematics. They cannot be formed in the same region, as the Pf-lines are formed in ionised gas with a temperature too high to coexist with CO molecules. This leads to the suggestion that, in case of a circumstellar disk, the CO is formed in the neutral mid-plane, and the Pf-lines originate in the ionised upper layers.

Two of our reference objects, S106 and NGC 2024-IRS2, show similar bandhead profiles. In these objects also other evidence for a circumstellar disk is found. In the case of S106, evidence for a disk comes from the observed geometry of the extended optical and near-infrared emission (cf. Smith et al. 2001). For NGC 2024-IRS2, the infrared SED points to a (gaseous) disk (Lenorzer et al. 2004).

5.1.2 Origin of Br $\gamma$ emission

The majority of the objects, however, do not show Pfund or CO emission and therefore might have another geometry of the circumstellar material. The Br $\gamma$ line, however, which is present in all the spectra, shows a remarkably similar behaviour in all objects. This might suggest that the formation mechanism of the Br $\gamma$ line could be similar for all objects. Especially the FWHM of Br $\gamma$ is rather constant, it varies between 100 and 220 km s^-1. The EW of Br $\gamma$ ranges from 1 to 10 Å, except in 3 objects where the EW is much larger (upto 100 Å, see Table 3). Similar EW values are found in Be stars, where the larger EWs are found for the objects with the earlier spectral type (B0-B2) (Clark & Steele 2000).

If the circumstellar matter is, like the CO and Pf-lines suggest, in the shape of a circumstellar disk, Br $\gamma$ emission may be produced in the ionised upper layers of the disk. The Br $\gamma$ emission will be formed over a fairly large area of the circumstellar disk and the emission will be dominated by the largest surface area. This in contrast to the Pf-lines which are only formed in the high-density inner parts of a disk, which makes them much broader than the Br $\gamma$ line (Table 4).

The width of the Br $\gamma$ line suggests that the line is not formed in the H II region itself. The sound speed in (ultra) compact H II regions is too low to account for the Br $\gamma$ line widths. For an isothermal H II region of 10 000 K, the sound speed is about 17 km s^-1. We note that in hyper-compact H II regions broad radio recombination lines up to 180 km s^-1 are observed (Kurtz & Franco 2002), which probably reflects their expansion velocity. These objects are heavily embedded, much more than the UCHII regions and will, very likely, not be visible in the near-infrared.

The large width of the Br $\gamma$ line could also be explained by a bipolar outflow. The red-shifted and the blue-shifted lobes tilted in the line of sight would then be responsible for the observed width. However, the other spectral lines which then also should be produced in these outflows have different FWHMs, some are broader and some are even unresolved. This would be unlikely in the case of a bipolar outflow. Additionally, our objects show a very strong continuum which is not observed in that case.

Also a normal stellar wind as observed for OB stars would not explain the Br $\gamma$ emission lines. Only in supergiants the Br $\gamma$ line is in emission. But these stellar winds have terminal velocities of the order of 1500 km s^-1. Supergiants are not expected in young star-forming regions. If the lines are formed in a stellar wind, Br $\gamma$ would be broader than the Pf-lines (Lamers et al. 1996), which is not seen in the data (Table 4).

It is also possible that the Br $\gamma$ line is formed in a disk-wind (Drew et al. 1998). If the central star is emitting a lot of UV radiation, it will ionise the surface of the disk so that the disk evaporates (see Sect. 5.3). This will then result in a dense and low velocity disk wind, where the outflow velocity will soon dominate the rotational velocity. The line widths predicted by Drew et al. (1998) are of the order of 200 km s^-1. This scenario would also explain the difference in width of the CO and Br $\gamma$ lines in 08576nr292 and 11097nr1218, where the CO can be formed in a disk seen face on and Br $\gamma$ is originating from a disk-wind.

Summarising, the broad CO emission as well as the double-peaked Pf-lines strongly suggest that the material in these objects is located in a circumstellar disk. By comparing the behaviour of Br $\gamma$ in all the objects, the origin in a disk-wind seems the most plausible explanation. This means that all the objects may be surrounded by a circumstellar disk. The absence of CO bandheads in the spectra of most of the objects might therefore be related to the special conditions required to emit the first-overtone emission, rather than the abundance of the CO molecules.

5.2 Nature of the objects

The aim of this project is to identify the ionising source(s) of UCHII regions, and to determine their physical nature. The regions were selected based on the detection of an UCHII radio source and its connection with an IRAS point source fulfilling the UCHII colour-colour criterion of Wood & Churchwell (1989a). The near-infrared surveys of UCHII regions performed by Hanson et al. (2002) and Kaper et al. (2006) demonstrate that only half of the UCHII radio sources show a near-infrared counterpart. After comparison of the positions of the candidate massive YSOs with those of the UCHII radio positions, only a few objects turn out to be the actual near-infrared counterpart of an ultra-compact radio source (see Sect. 4.3). All objects, however, are part of more extended sites of (massive) star formation which also host UCHII regions.

The fact that the candidate massive YSOs are located inside regions of star formation suggests that these objects are young. However, also around main sequence OB stars, disks are observed (Be and B[e] stars). The densities derived for the disks of Be stars are too low to emit the CO bandheads ( ${\sim} 10^{10}~ {\rm cm}^{-3}$ , Waters et al. 1991). Also disk-winds are not observed in Be stars. Studies of Be star abundances in open clusters suggest that the Be phenomenom mainly occurs in the second half of their main sequence lifetime (Fabregat & Torrejón 2000). In B[e] stars, CO emission is observed; Kraus & Lamers (2003) show that in a very dense, non-spherical stellar wind, such densities can be reached. Only supergiants have these strong stellar winds. None of the candidate massive YSOs is found near the location of the B[e] supergiants in the CMD (Fig. 1).

5.3 Disruption of disks around young massive stars

In some of the star-forming regions where the massive YSOs are detected, also massive stars are found which already cleared their circumstellar environment. Observations of M 17 (Hanson et al. 1997) as well as giant H II regions (Blum 2003) give similar results.

In our spectroscopic sample we find that most of the O stars "already'' cleared out their environment while a relatively larger fraction of the B stars are still surrounded by circumstellar material. This leads to the suggestion that the most massive stars clear out their environment fastest.

This trend is also seen when inspecting the location of the massive YSOs in the CMD. The majority of the massive YSOs have a position in the CMD indicating spectral type B. A few objects, however, show evidence that the central star is a hot O star (see Sect. 4.3). The location of these sources in the CMD is near S106 for which a spectral type O6-O8 has been proposed (e.g. van den Ancker et al. 2000). Note that the position of NGC 2024-IRS2 also suggests an O star as the central source. However, when taking into account a strong K-band excess and the identification of the main ionising source of NGC 2024, NGC 2024-IRS2b (O8), it is more likely that NGC 2024-IRS2 is an early B star (Lenorzer et al. 2004; Bik et al. 2003).

The objects where the central star likely is an O star show a (J-K) colour which is on average much bluer than those of the objects which are of spectral type B. This difference in colour suggests that the disk properties of these objects are different. O stars produce much more EUV radiation and possess stronger stellar winds than B stars, which shortens the destruction timescale of disks around O stars.

Table 7: Two different effects are responsible for the destruction of circumstellar disks around O stars; the photo-evaporation process and the direct interaction between the wind and the disk. In the first 3 columns, the stellar parameters are given used in the calculation of the timescales (Mokiem et al. 2004; Lenorzer et al. 2004). In Col. 4, the gravitational radius is given. Beyond this radius matter is removed by photoevaporation, while inside of it, the stellar wind directly removes material from the disk. Cols. 5 and 6 give the typical timescales for these two processes. The formulae are taken from Hollenbach et al. (2000,1994).

Hollenbach et al. (2000,1994) investigated the different destruction mechanisms of disks around young stars. For OB stars, the outer regions of the disk will be photoevaporated. The extreme-UV photons ionise the top-layer of the disk. This gas will be heated to 10⁴ K and obtain a velocity dispersion given by the local sound speed ( ${\sim} 10$ km s^-1). Near the star this velocity will be smaller than the escape velocity. The gravitational radius ( $r_{\rm g}$ ), the radius at which the sound-speed is equal to the escape velocity ranges from ${\sim} 500$ AU for O3 stars to ${\sim} 100$ AU for early B (Table 7). Beyond the gravitational radius, the sound speed will exceed the escape velocity so that the matter can freely escape from the disk, e.g. in the form of a disk wind.

This model discriminates between two scenarios, the weak wind case and the strong wind case. For massive stars, the strong-wind case is applicable. In this strong-wind case, the disk is flattened by the stellar wind. The strong stellar wind prohibits that ionised gas located beyond $r_{\rm g}$ is freely escaping from the disk surface, but is dragged over the surface of the disk to the point where the ram pressure of the wind balances the thermal pressure of the ionised hydrogen. From there on, the gas can freely escape from the disk. This strong-wind case leads to a faster destruction of the disk than the weak-wind case.

The timescale as derived by Hollenbach et al. (1994) depends on the number of ionising continuum photons, the mass-loss rate, the wind velocity and the mass of the disk. The stellar parameters are taken from Mokiem et al. (2004) and Lenorzer et al. (2004). By assuming a disk mass of 2 solar masses (see Yorke & Welz 1996; Hollenbach et al. 1994), the destruction timescale ranges from somewhat less than 10⁵ year for a disk around an early O star, to ${\sim} 5\times 10^{5}$ year for a disk surrounding a B0 V star (Table 7). The assumption in this model is that the material in the disk is not replenished, and that accretion has stopped. These short timescales indicate that already very soon after the accretion stops, the outer disk regions will be rapidly destroyed by the EUV photons of the star.

For the destruction of the regions located within the gravitational radius, the direct interaction with the stellar wind is much more important. By considering the momentum transferred by the collision of a spherical wind with the disk Hollenbach et al. (2000) derive a timescale for this process. Typical timescales for the destruction of the inner parts of the disk by the interaction with the stellar wind are given in Col. 6 of Table 7. The mass of the disk inside this gravitational radius is taken to be 10% of the total disk mass.

Comparison of the two timescales (Table 7) shows that first the outer regions of the disk are destroyed by photo-evaporation and that the inner parts of the disk are removed at a later stage. So observationally one should look for indicators of a remnant disk by probing material near the star, i.e. warm gas and dust, and not the cold material probed at mm wavelengths.

The detected number of massive YSOs which harbour an O star compared to the amount of massive YSOs which are of spectral type B is qualitatively consistent with the trend suggested by this model. The destruction of the disks around young O stars is much faster than those around B stars, so the probability to detect an O star surrounded by a remnant accretion disk is much smaller than such a disk around a young B star. This suggests that these objects are really young massive stars surrounded by a remnant accretion disk. Observations of Herbig Be stars also show the effect of the outer parts of the disk being photoevaporated by the UV photons. The disk masses, if detected at all, are substantially lower than those around Herbig Ae stars (Natta et al. 2000; Fuente et al. 2003).

6 Conclusions

In this paper, high-resolution K-band spectra of candidate massive YSOs located in high-mass star-forming regions are presented. The results can be summarised as follows:
