All Figures

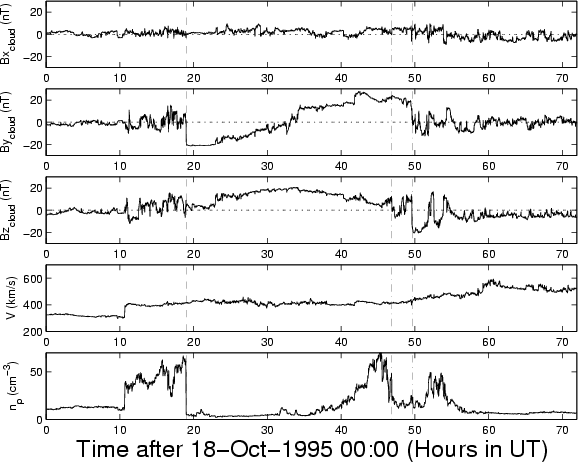

$\begin{figure} \par\includegraphics[width=8.2cm,clip]{4806fig_1.eps}\end{figure}$ Figure 1: Wind observations for the magnetic cloud observed on 18-20 October, 1995 (one minute cadence). From the upper to the lower panel: radial ( $B_{x, \rm cloud}$ ), azimuthal ( $B_{y, \rm cloud}$ ), and axial ( $B_{z, \rm cloud}$ ) components of the magnetic field (local coordinates, as deduced from the MV), bulk velocity (V), and proton density ( $n_{\rm p}$ ), as a function of time (in hours, after 00:00 UT, October 18, 1995). Dashed lines mark the front boundary of the cloud (18:58 UT, October 18, 1995). Between dash-dotted lines we mark the range of possible ends of the cloud (October 19, 22:54 UT and October 20, 01:38 UT).
Open with DEXTER

In the text

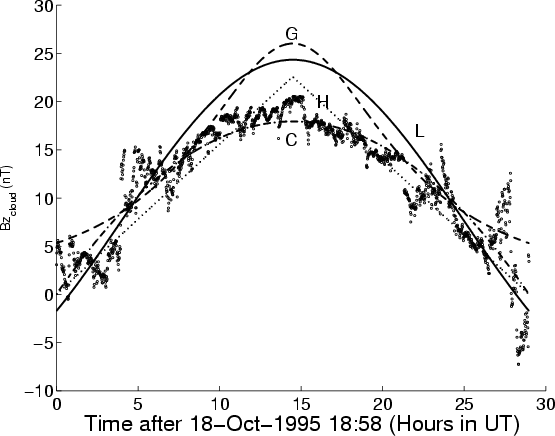

$\begin{figure} \par\includegraphics[width=7.9cm,clip]{4806fig_2.eps}\end{figure}$ Figure 2: Axial component, $B_{z, \rm cloud}$ , of the cloud magnetic field (local coordinate system from MV) as a function of time (in hours, after 18:58 UT, October 18, 1995). Dots correspond to the observed field (temporal cadence of one minute), solid line to the Lundquist model, dashed line to the Gold-Hoyle model, dotted line to the Hidalgo model and dash-dotted line to the Cid model.
Open with DEXTER

In the text

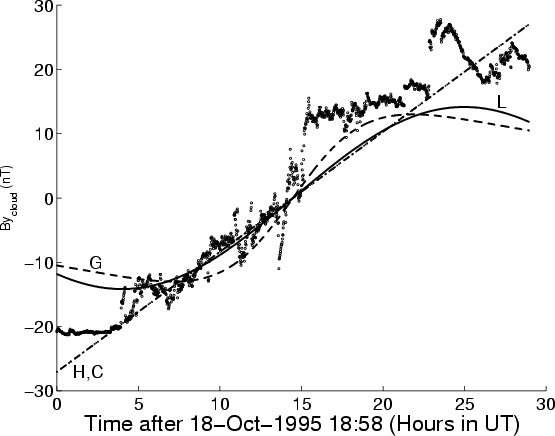

$\begin{figure} \par\includegraphics[width=7.9cm,clip]{4806fig_3.eps}\end{figure}$ Figure 3: Field component in the direction orthogonal to both the spacecraft trajectory and the MC axis. $B_{y, \rm cloud}$ is the azimuthal component of the magnetic field with the hypothesis of negligible impact parameter. The plotting convention is the same as in Fig. 2.
Open with DEXTER

In the text

$\begin{figure} \par\includegraphics[width=8cm,clip]{4806fig_4.eps}\end{figure}$ Figure 4: Axial magnetic field (B₀), axial twist per unit length ( $\tau _0$ ), fluxes ( $F_\phi /L$ and F_z) and helicity (H/L), for the different chosen end times, as a function of the corresponding estimated MC radius R (see Sect. 4.6). Asterisks and solid line correspond to model L, triangles and dashed line to model G, X-symbol and the dotted line to model H, the O-symbol and dot-dashed line to model C. The vertical dashed line shows the end boundary of the magnetic cloud set on October 19, 22:54 UT. The radius range corresponds to the 21 equi-spaced end boundaries chosen between October 19, 17:31 UT and October 20, 01:38 UT.
Open with DEXTER

In the text

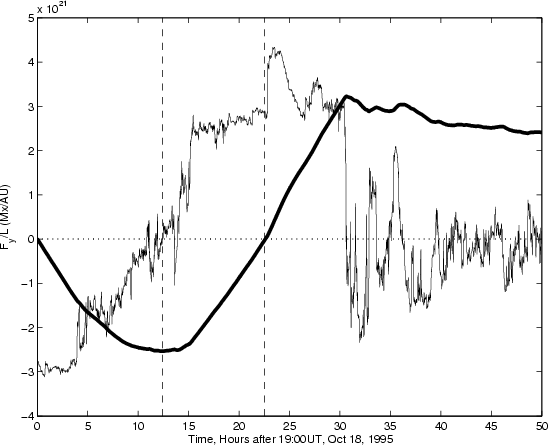

$\begin{figure} \par\includegraphics[width=7.8cm,clip]{4806fig_5.eps}\end{figure}$ Figure 5: Accumulative flux of $B_{y, \rm cloud}$ (thick solid line) starting from the leading boundary of the cloud. Thin solid line shows $B_{y, \rm cloud}$ as a reference (in arbitrary units). The times of minimum and null flux accumulation are marked with vertical dashed lines.
Open with DEXTER

In the text

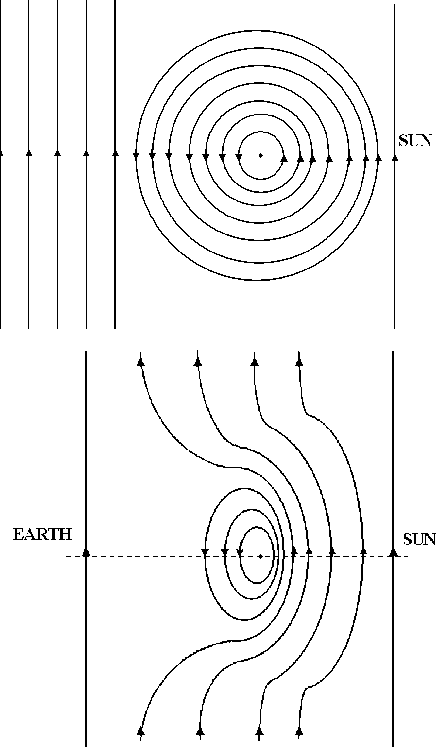

$\begin{figure} \par\hspace*{-1.2cm} \includegraphics[width=7cm,clip]{4806fig_6a.eps}\vspace*{2mm} \includegraphics[width=6cm,clip]{4806fig_6b.eps}\end{figure}$ Figure 6: Schematic 2D view of the magnetic cloud embedded in the solar wind near the Sun ( top) and during the spacecraft passage at 1 AU ( bottom). Because the MC is faster than the surrounding solar wind and their magnetic fields form a large angle (anti-parallel in the scheme), reconnection is forced in front of the MC (see Sect. 5.2). The horizontal dashed line in the bottom figure indicates the spacecraft trajectory.
Open with DEXTER

In the text

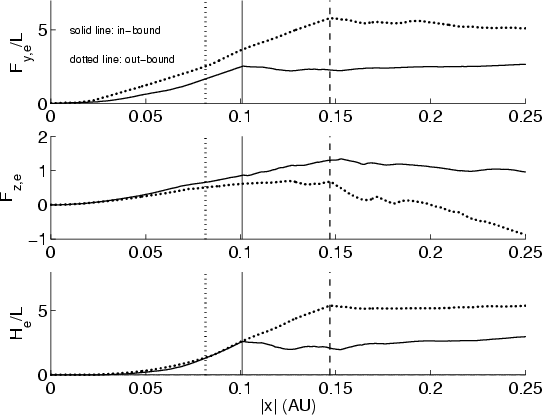

$\begin{figure} \par\includegraphics[width=7.8cm,clip]{4806fig_7.eps}\end{figure}$ Figure 7: Accumulative azimuthal flux per unit length ( $F_{y,e} /L \approx F_{\phi ,e} /L$ , in 10²¹ Mx/AU), axial flux (F_z,e, in 10²¹ Mx), and magnetic helicity per unit length (H_e/L, in 10⁴² Mx²/AU), as function of |x| where x is the coordinate along the projection of the spacecraft trajectory orthogonal to the MC axis. The location of the MC centre was chosen at 07:26 UT on October 19 (Sect. 5.1). The solid vertical line shows the position of the front of the MC (at $x=X_{\rm in}$ ) and the dotted vertical line the position of the rear boundary (at $x=X_{\rm out}$ ) selected to have flux balance in $B_{y, \rm cloud}$ . The dashed vertical line shows the position of the back of the MC (at $x=X_{\rm back}$ ).
Open with DEXTER

In the text

$\begin{figure} \par\includegraphics[width=7.9cm,clip]{4806fig_2.eps}\end{figure}$	Figure 2: Axial component, $B_{z, \rm cloud}$ , of the cloud magnetic field (local coordinate system from MV) as a function of time (in hours, after 18:58 UT, October 18, 1995). Dots correspond to the observed field (temporal cadence of one minute), solid line to the Lundquist model, dashed line to the Gold-Hoyle model, dotted line to the Hidalgo model and dash-dotted line to the Cid model.
Open with DEXTER

$\begin{figure} \par\includegraphics[width=7.9cm,clip]{4806fig_3.eps}\end{figure}$	Figure 3: Field component in the direction orthogonal to both the spacecraft trajectory and the MC axis. $B_{y, \rm cloud}$ is the azimuthal component of the magnetic field with the hypothesis of negligible impact parameter. The plotting convention is the same as in Fig. 2.
Open with DEXTER

$\begin{figure} \par\includegraphics[width=7.8cm,clip]{4806fig_5.eps}\end{figure}$	Figure 5: Accumulative flux of $B_{y, \rm cloud}$ (thick solid line) starting from the leading boundary of the cloud. Thin solid line shows $B_{y, \rm cloud}$ as a reference (in arbitrary units). The times of minimum and null flux accumulation are marked with vertical dashed lines.
