A&A 452, 795-802 (2006)
W. Domainko1 - M. Mair1 - W. Kapferer1 - E. van Kampen1 - T. Kronberger2,1 - S. Schindler1 - S. Kimeswenger1 - M. Ruffert3 - O. E. Mangete3
1 - Institut für Astro- und Teilchenphysik, Leopold-Franzens Universität Innsbruck, Technikerstraße 25, 6020 Innsbruck, Austria
2 - Institut für Astrophysik, Universität Göttingen, Friedrich-Hund-Platz 1, 37077 Göttingen, Germany
3 - School of Mathematics, University of Edinburgh, Edinburgh EH9 3JZ, Scotland, UK
Received 26 July 2005 / Accepted 22 February 2006
We investigate the impact of galactic mass loss triggered by ram-pressure stripping of cluster galaxies on the evolution of the intra-cluster medium (ICM). We use combined N-body and hydrodynamic simulations together with a phenomenological galaxy formation model and a prescription of the effect of ram-pressure stripping on the galaxies. We analyze the effect of galaxy - ICM interaction for different model clusters with different masses and different merger histories. Our simulations show that ram-pressure stripping can account for 10% of the overall observed level of enrichment in the ICM within a radius of 1.3 Mpc. The efficiency of metal ejection of cluster galaxies depends in the first few Gyr of the simulation mainly on the cluster mass and is significantly increased during major merger events. Additionally we show that ram-pressure stripping is most efficient in the center of the galaxy cluster and the level of enrichment drops quite fast at larger radii. We present emission-weighted metallicity maps of the ICM which can be compared with X-ray observations. The resulting distribution of metals in the ICM shows a complex pattern with stripes and plumes of metal-rich material. The metallicity maps can be used to trace the present and past interactions between the ICM and cluster galaxies.
Key words: galaxies: clusters: general - galaxies: abundances - galaxies: interactions - galaxies: ISM - X-rays: galaxies: clusters
The presence of an embedding medium has an influence on the evolution of galaxies. This effect will be most important in high density environments like those of galaxy clusters. One mechanism by which galaxies can lose part of their inter-stellar medium (ISM) due to interaction with their surroundings is ram-pressure stripping (Gunn & Gott 1972). Observations show that this mechanism is at work in several galaxies in the Virgo cluster (e.g. Cayatte et al. 1990; Kenney et al. 2004; Vollmer et al. 2004) and in the Coma cluster (Bravo-Alfaro et al. 2000, 2001). Galaxies subject to ram-pressure stripping will lose part of their ISM which has been enriched with heavy elements by their stars. This will have an impact on the chemical abundance of the surrounding intra-cluster medium (ICM). X-ray observations revealed that the ICM is highly enriched with heavy elements (about 0.3 solar in iron: e.g. Fukazawa et al. 1998). With the recent X-ray satellites Chandra and XMM it is even possible to study the 2D distribution of the heavy elements (e.g. Schmidt et al. 2002; Furusho et al. 2003; Sanders et al. 2004; Fukazawa et al. 2004; Hayakawa et al. 2004). As heavy elements cannot be produced in the ICM itself, part of this medium seems to originate from cluster galaxies. Although ram-pressure stripping of cluster galaxies will contribute to the chemical enrichment of the ICM, several other mechanisms like galactic winds (de Young 1978), galaxy-galaxy interaction (e.g. Kapferer et al. 2005a) or intra-cluster supernovae (Domainko et al. 2004) will also play an important role. Each mechanism will result in a characteristic distribution of metal rich material in the ICM, so with the distribution of heavy elements the origin of the metals can be constrained. Observational evidence for some chemical enrichment due to ram-pressure stripping has been found: high metallicity regions in the ICM of the galaxy cluster Abell 1060 stripped from cluster galaxies were measured (Hayakawa et al. 2004). Indeed it has been argued that ram-pressure stripping can act as an enrichment agent over a long period of cluster evolution (Finoguenov et al. 2000) and at low redshifts (Oosterloo & van Gorkom 2005). Hence metals are a good tracer of the present and past interaction processes between galaxies and the ICM.
The high level of enrichment in the ICM has triggered much discussion about the origin of these metals. Several groups here investigated the chemical evolution of the ICM with extensive numerical simulations. De Lucia et al. (2004) and Nagashima et al. (2005) investigated this problem using N-body simulations combined with semi-analytic galaxy formation and evolution. They conclude that most of the metals are ejected by supernova-driven galactic winds mainly from the most massive galaxies and they find that there has been a mild chemical evolution since z = 1. They do not predict the distribution of the metals in the ICM. Tornatore et al. (2004) use a smooth particle hydrodynamic simulation and emphasize the contribution of different supernova types to the enrichment but do not investigate in detail the influence of different ejection mechanisms. Their results indicate that the simulations still lack a feedback mechanism that quenches star formation and transports metals at low redshifts.
In contrast to these papers, our calculations emphasize the transport mechanisms of the enriched material and we use a shock capturing method for the hydrodynamic treatment (see also Schindler et al. 2005; Domainko et al. 2005). Furthermore we are able to trace the distribution of the enriched material lost by the cluster galaxies. In this paper we investigate the impact of the enrichment of the ICM by ram-pressure stripping of cluster galaxies. Other processes are studied elsewhere (e.g. Kapferer et al. 2006, 2005b).
The effect of ram-pressure stripping on individual galaxies has been studied analytically and numerically by several groups. A first analytical criterion for ram-pressure stripping was given by Gunn & Gott (1972). According to this criterion galaxies lose material if the force due to ram-pressure stripping exceeds the restoring gravitational force of the galaxy. One result of this consideration is the presence of a stripping radius in ram-pressure affected galaxies outside of which the galactic gravitational potential is too shallow to prevent the ISM from being stripped. Various authors studied this stripping radius with respect to ram-pressure and galaxy properties (e.g. Abadi et al. 1999; Vollmer et al. 2001; Roediger & Hensler 2005). In general these authors found a reasonable agreement between the analytically estimated stripping radius and the stripping radius determined by numerical simulations. Additionally Roediger & Hensler (2005) discussed the most appropriate analytical description with respect to the numerical results. These authors adapt the estimate used by Mori & Burkert (2000) which compares the thermal ISM pressure with ram pressure. For the case of a constant ram pressure acting on the galaxy, Roediger & Hensler (2005) found the closest coincidence between analytical description and numerical simulation for the estimate introduced by Mori & Burkert (2000). For the case of a time-dependent ram pressure as is the case for galaxies moving on non-circular orbits through a galaxy cluster, Vollmer et al. (2001) concluded that the Gunn & Gott (1972) criterion adapted to the galactic inclination angle can explain the HI deficiency of the galaxies in the Virgo cluster. Further numerical simulations for ram-pressure stripping on galaxy scales were presented in several papers (e.g. Abadi et al. 1999; Quilis et al. 2000; Mori & Burkert 2000; Vollmer et al. 2001; Toniazzo & Schindler 2001; and Roediger & Hensler 2005). In contrast to those papers we present simulations showing the impact of ram-pressure stripping of all cluster galaxies on the ICM. We obtain simulations on galaxy cluster scales and compute the efficiency and time dependence of galactic mass loss triggered by ram-pressure stripping. In this paper we focus on the effect of ram-pressure stripping on the metal enrichment of the ICM. The effect on the galaxies will be shown in van Kampen et al. (in prep.).
This paper is organized as follows: in Sect. 2 we present the numerical method used. In Sect. 3 we describe the general simulation setup and the properties of the model clusters. In Sect. 4 we show our results. In Sect. 5 we summarize and discuss the results obtained.
We use the same general simulation setup as described in Schindler et al. (2005).
Our starting point is a model for the dark matter distribution within and around the cluster, for which we use N-body simulations. The N-body code is that of Barnes & Hut (1986), adapted to include a halo formation recipe that prevents over merging on small scales (van Kampen et al. 1999). This paper assumes a CDM cosmology, with , , h=0.7, and . Initial conditions are produced using the constrained random field method of Hoffman & Ribak (1991), as implemented by van de Weygaert & Bertschinger (1996). Constraints are put on the smoothed density field in the form of peak heights for a Gaussian window of 6 Mpc, which produce a rich cluster in the center of the box for peaks above three times the rms density fluctuation at that scale. The N-body simulations are obtained within a box of 46 Mpc (for H0 = 70 km s-1 Mpc-1) with 643 particles. The softening length of the N-body simulation is 20 kpc which is also the resolution of the dark matter distribution. The whole cluster is described by tens of thousands of dark matter particles, which can easily resolve the radial structure of the cluster as well as substructures. The halos of the galaxies are represented by groups of particles with a minimum of 10 particles with a half-mass radius of the smallest halo of 30 kpc. For these galactic halos we assume an isothermal profile. The galactic dark matter halo gravitation is treated without any spatial detail by simply applying the gravitational potential.
For the hydrodynamic part of the simulation we use a shock capturing, grid based scheme (PPM, Collela & Woodward 1984; Fryxell et al. 1989). PPM is a higher order version of the Riemann solver based Godunov method (Godunov 1959). This allows us to study all the dynamical effects in the ICM connected to subcluster mergers with high accuracy. To achieve high resolution at the cluster center where most of the stripping is expected to happen and also to trace infalling gas-rich galaxies from outside the cluster, we compute our simulation on multiple refined grids (Ruffert 1992). Radiative cooling of the ICM is treated according to the cooling functions given by Sutherland & Dopita (1993). Metallicity is used as a tracer to follow the gas which is lost by the cluster galaxies. Metallicity is handled as a single quantity therefore we do not distinguish between different chemical elements (like iron and elements) but assume solar composition. Additionally to the bulk motion of the ICM, diffusion should also further disperse the stripped gas. In the presented paper we are mainly interested in the distribution of the enriched material, therefore only the effect of diffusion on heavy nuclei is investigated. Diffusion strongly depends on the mass and the charge of the nuclei involved (see Lang 1999, Chapter 3.1.2 and 3.1.5). The most prominent detection of metals in the ICM is connected to the presence of iron. Diffusion will spread iron in the ICM within the Hubble time on length scales of less than 100 kpc. Therefore this process is inefficient in further distributing iron on galaxy cluster scales.
The halo formation recipe that is part of the N-body code allows us to easily generate halo merging histories, and also the merging histories of the galaxies occupying the halos. Simple prescriptions for gas cooling, star formation and feedback mechanisms make up our phenomenological galaxy formation model, which is an improved version of the model of van Kampen et al. (1999). We include a disk model, which is similar to that of Mo et al. (1998), but with the inclusion of an observed threshold for star formation in disks (Kennicut 1989; Martin & Kennicutt 2001). The adoption of the Mo et al. approximations produce a gas and stellar disk with the same exponential scale-length, but different cut-off radii and central densities. Our modeling of the metallicity evolution is described in two papers: in Kapferer et al. (2006) the coupled circuit of the evolution of the stellar, cold and hot gas components is given; the chemical evolution of the stellar populations can be found in van Kampen et al. (1999). The star formation history of each galaxy is constrained by its merger history. Halo-halo mergers and galaxy-galaxy mergers trigger short bursts of star formation. Metals that are produced in disk stars can either be added to the cold gas disk or can be ejected directly into the hot gas, or into the ICM for cluster galaxies that have their hot gas halos stripped. We choose the extreme scenario to add metals produced in disk stars to the cold gas in the disk which can then be stripped off through ram-pressure stripping. We do not replenish the stellar disk with stellar ejecta along the path of a galaxy: star formation is truncated "forever'' if the whole gas disk is stripped, and the galaxy ends up as an S0 if the stellar disk is prominent enough, and as an elliptical if it is not. In reality, some stellar mass loss will also occur after star formation has ended. Intermediate mass stars will eject material in the form of AGB winds and supernova Ia ejecta.
To calculate the mass loss of cluster galaxies due to ram-pressure stripping
we follow the classical Gunn & Gott (1972) criterion
because Vollmer et al. (2001) concluded that for non
circular orbits the Gun & Gott (1972) criterion additionally extended
for the inclination angle of the galaxy can explain the HI deficiency of galaxies
located in the Virgo cluster. According to
this criterion, material is lost by a galaxy if the force due to ram-pressure
exceeds the restoring gravitational force.
The Gunn & Gott (1972) criterion is given by:
After the stripping radius is reached, the mass loss continues due to Kelvin-Helmholz instabilities (Mori & Burkert 2000). Since Roediger & Hensler (2005) argued that the contribution to the mass loss caused by Kelvin-Helmholz instabilities is small, we do not account for this mass loss in our further calculations.
Observations of nearby spiral galaxies show that abundance gradients are present in their disks (see e.g. Henry & Worthey 1999). The slopes of the gradients depend on the morphology of the galaxy (Henry & Worthey 1999). This feature influences the enrichment of the surrounding medium due to ram-pressure stripping. For the case of galactic metallicity gradients that flatten in the outer parts of the galaxy we expect only a limited effect on the proposed enrichment process. In this case the mean abundance of the gas is close to the abundance of the bulk of the gas which is located at large galactic radii. This issue demands further analysis. As a first approach we do not consider galactic abundance gradients in our simulations. In future, more refined, studies we will investigate the impact of galactic abundance gradients on the ICM enrichment.
In our simulations, several galaxies move with a velocity relative to the
embedding medium which is higher than the local sound velocity. In this
case of supersonic galaxies, the classical Gunn & Gott (1972)
approach has to be modified. Supersonic galaxies will form bow shocks in front
of them and the stripping criterion has to be applied to the conditions behind
these bow shocks. Hydrodynamic quantities behind the bow shocks can be
calculated as functions
of the quantities in front of the bow shock according to the Rankine-Hugoniot
conditions for all Mach numbers M > 1.
Using the equation of continuity at the bow shock we can calculate
the ratio between densities and velocities in front of and behind the bow
We run the hydrodynamic simulation on four levels of nested grids centered on the cluster centers, the largest grid being (20 Mpc)3 and the smallest (2.5 Mpc)3. Each of the nested grids has a resolution of 1283 grid cells. We start the hydrodynamic simulation at a redshift of z = 1 for numerical reasons and follow the evolution of the ICM to a redshift of z = 0. This is the time interval of interest as ram-pressure stripping is expected to be most efficient after the galaxy clusters have formed.
In order to test the impact of ram-pressure stripping on different galaxy clusters we chose model clusters that span a wide range of masses and evolutionary histories. Our model clusters contain no cD galaxies and do not feature cooling cores at their centers. The model clusters are as follows:
The first quantity of interest is the total amount of material and metals ejected into the ICM by ram-pressure stripping. As ram-pressure stripping is a process dependent on the environment it is expected that the total amount of material stripped from the affected cluster galaxies will depend on the properties of the cluster. Galaxy clusters with higher masses strip galaxies more efficiently than galaxy clusters with lower masses. This is due to a higher ICM density and to a higher velocity dispersion in high mass systems.
In our simulation we derive the total amount of metals stripped from the cluster galaxies. By comparing the total mass of metals stripped we test the dependence of galactic metal loss on cluster mass. We find that the total mass loss is highest in the high mass cluster (model cluster 1) and lower in the low mass clusters. We see that in the high mass cluster in our sample (model cluster 1) the total amount of metals ejected into the ICM is about four times higher than in the model clusters with lower mass.
Another interesting quantity is the fraction of the ICM that originates from cluster galaxies and is lost by them due to ram-pressure stripping. To investigate this question, we compare the mass of the hot ICM, which in our simulations has never been inside any galaxy, to the amount of material that has been lost by the galaxies (see Fig. 2).

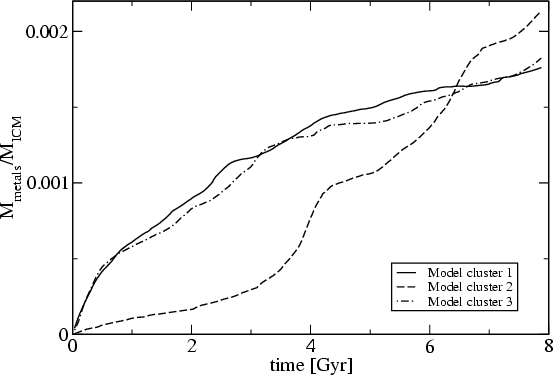

|Figure 1: Temporal metallicity evolution in the different model clusters. The values are given for all galaxies located inside the central (2.5 Mpc)3 of our simulations. For an explanation of the different slopes for the different model clusters see Sect. 4.2.|
|Open with DEXTER|

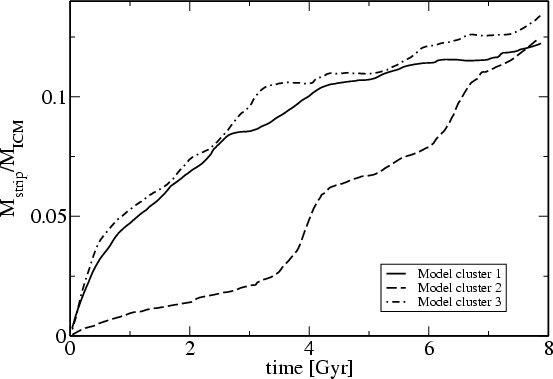

|Figure 2: Fraction of the ICM that originates from cluster galaxies and is lost by them due to ram-pressure stripping. The values are given for the central (2.5 Mpc)3 of our simulations. For an explanation of the different slopes for the different model clusters see Sect. 4.2.|
|Open with DEXTER|
We find that about 10% of the ICM in the central (2.5 Mpc)3 of our simulation originates from ram-pressure affected galaxies. The fraction of the ICM that originates from cluster galaxies is comparable for all our model clusters (see Fig. 4.2). This result is expected since in the high mass cluster the mass of the ICM is larger than in the clusters with lower mass. Mixing then the ICM in the high mass cluster with a larger amount of material lost by the galaxies results in a comparable fraction of lost ICM to primordial ICM as in the low mass clusters.
We now investigate the combined mass loss rate of all cluster galaxies as a function of time. The time evolution of the mass and metal ejection is different for different model clusters (see Figs. 1 and 2). With the analysis of the total mass loss rate of all cluster galaxies as a function of time, we further explore this behavior. The mass loss of all cluster galaxies as a function of time is shown in Figs. 3 and 4.
We find that in the first 3 Gyr the mass loss rate in the high mass cluster (model cluster 1) is about an order of magnitude higher than the mass loss rate in low mass clusters. There is also a prominent peak at the start of the simulation in model cluster 1. This first peak originates from the mass loss of gas rich galaxies that experience the effect of ram-pressure for the first time by switching on the calculation. After 3 Gyr the mass loss of the galaxies in the high mass cluster drops significantly. We interpret this as an effect of cluster mass. Stripping in the high mass cluster can reduce the size of the gas disks of galaxies quite fast and then this mechanism becomes less efficient (see Fig. 3).
The situation is very different for the merging cluster (model cluster 2). In the case of a cluster experiencing mergers the prehistory of ram-pressure is also followed within the infalling subsystems. In this system, mass loss starts at a low rate but between 3 Gyr and 5 Gyr the rate rises by an order of magnitude. In this time interval the major cluster merger occurs. Here we see the influence of the merger history on the evolution of the mass loss rate due to ram-pressure stripping (see Fig. 4). At about 6 Gyr several galaxy groups fall towards the cluster center and the mass loss rate increases again. Subcluster mergers can raise the stripping rate by an enhanced velocity dispersion, increased ICM density and infall of gas-rich galaxies onto the main cluster. The strongly enhanced mass loss rate during subcluster mergers is also the reason for the quite different slopes for model cluster 1 and 3 and model cluster 2 in Figs. 1 and 2. The influence of cluster mergers on ram-pressure stripping of cluster galaxies is further analyzed in Mair et al. (in prep.).

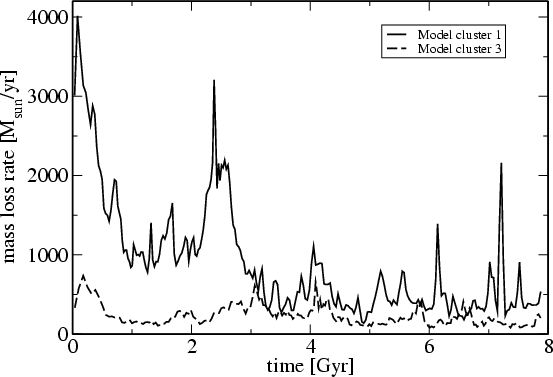

|Figure 3: Combined mass loss rate of all galaxies as a function of time. The values are given for the central (2.5 Mpc)3 of our simulations. In this plot the influence of cluster mass on the combined stripping rate of all cluster galaxies can be seen. Model cluster 1 is about twice as massive as model cluster 3.|
|Open with DEXTER|

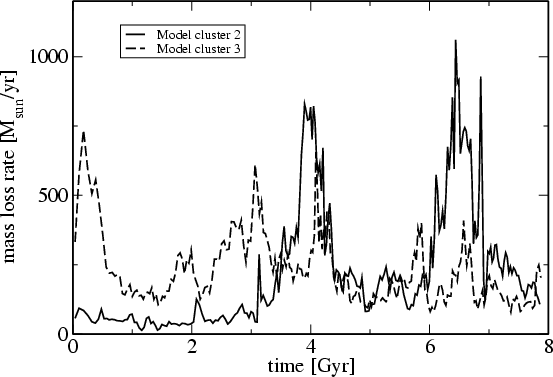

|Figure 4: Combined mass loss rate of all galaxies as a function of time. The values are given for the central (2.5 Mpc)3 of our simulations. In this plot the influence of the merger histories of the galaxy clusters on the combined stripping rate can be seen. Model cluster 2 undergoes a major merger at t = 4 Gyr.|
|Open with DEXTER|
Model cluster 3 features a similar mass loss rate of its galaxies (with some scatter due to small merger events) over the entire simulation time of 8 Gyr. Hence on cluster scales ram-pressure stripping is a process that can act over a quite long period of time. This supports the idea of some enrichment over the whole redshift range of cluster evolution by ram-pressure stripping (Finoguenov et al. 2000).
Gas originating from cluster galaxies is enriched with heavy elements due to feedback processes from stars and supernovae. If a large amount of this gas is lost by the galaxies, the ICM into which this gas is mixed will also be enriched up to a certain level. In this section we investigate the contribution of ram-pressure stripping on the chemical evolution of the ICM. Tornatore et al. (2004) have argued that some galactic mass loss and metal transport at low redshifts is needed to explain the overall chemical abundance of the ICM. Ram-pressure stripping is a promising candidate that could account for the necessary mass transfer away from the cluster galaxies.
We explore the ability of ram-pressure stripping to enrich at low redshifts. The mean observed chemical abundance of the ICM is about 0.3 solar. For comparison with the observed values we derive the mean chemical abundance in the central (2.5 Mpc)3 of our simulation. The final level of enrichment is 0.03 solar for model cluster 1, 0.05 solar for model cluster 2 and 0.04 solar for model cluster 3. This corresponds to a contribution of 10-15% to the observed overall enrichment of the ICM, depending on cluster mass and evolutionary history of the cluster. For the galaxy cluster that experiences a major merger (Model cluster 2), the enrichment happens later in cluster evolution in comparison to the non-merging cluster (e.g. Model cluster 1). The fraction / (see Fig. 1) rises faster than the fraction / (see Fig. 2) for model cluster 2. This effect results from the internal metallicity evolution of the cluster galaxies. Material that is stripped later from galaxies is enriched to a higher level since stellar feedback acts for a longer period of time on this gas.
For a better comparison of the results of our simulations with X-ray observations we derive emission weighted metallicity profiles. These are shown for the three model clusters in Fig. 5. The profiles for all three model clusters are remarkably similar and do not show a strong signature of the different merger histories of the different systems.

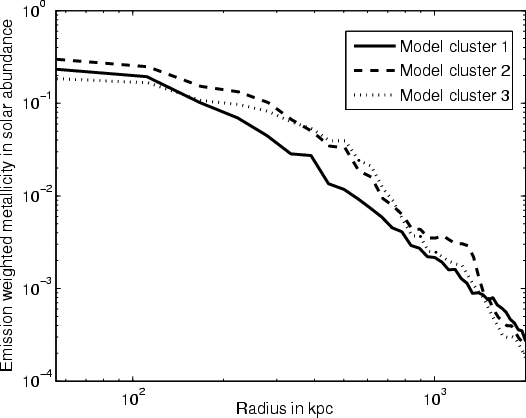

|Figure 5: Emission weighted metallicity profiles of the three model clusters at a redshift of z = 0. Ram-pressure stripping can account for the observed metallicity in the central 100 kpc in all simulations, but at larger radii processes other than ram-pressure stripping have to contribute to the enrichment of the ICM.|
|Open with DEXTER|
In the calculated profiles we clearly see the highest level of chemical enrichment of the ICM at the cluster center. At the cluster center the environmental impact on the galaxies will be most important so it is expected that the enrichment is most pronounced there. In the central 100 kpc ram-pressure stripping can account for an enrichment of about 0.2 solar which is close to the observed value. At larger radii the chemical abundance drops very quickly and processes other than ram-pressure stripping must contribute to the chemical evolution of the ICM.
Metallicity can be used as a tracer to identify the location of the gas lost by cluster galaxies. To investigate the distribution of the enriched material and to compare our simulations with observed galaxy clusters, we obtain emission weighted metallicity maps. For a discussion on the effect of diffusion on the metallicity distribution see Sect. 2.2. In contrast to the full 3D distribution of the metal-rich areas, enriched material located in high density regions is much more pronounced in emission weighted metallicity maps. The emission weighted metallicity maps clearly show a complex pattern of the chemically enriched material (see Fig. 6). The nonuniform distribution of the enriched material is in good agreement with recent observations (e.g. Hayakawa et al. 2004).

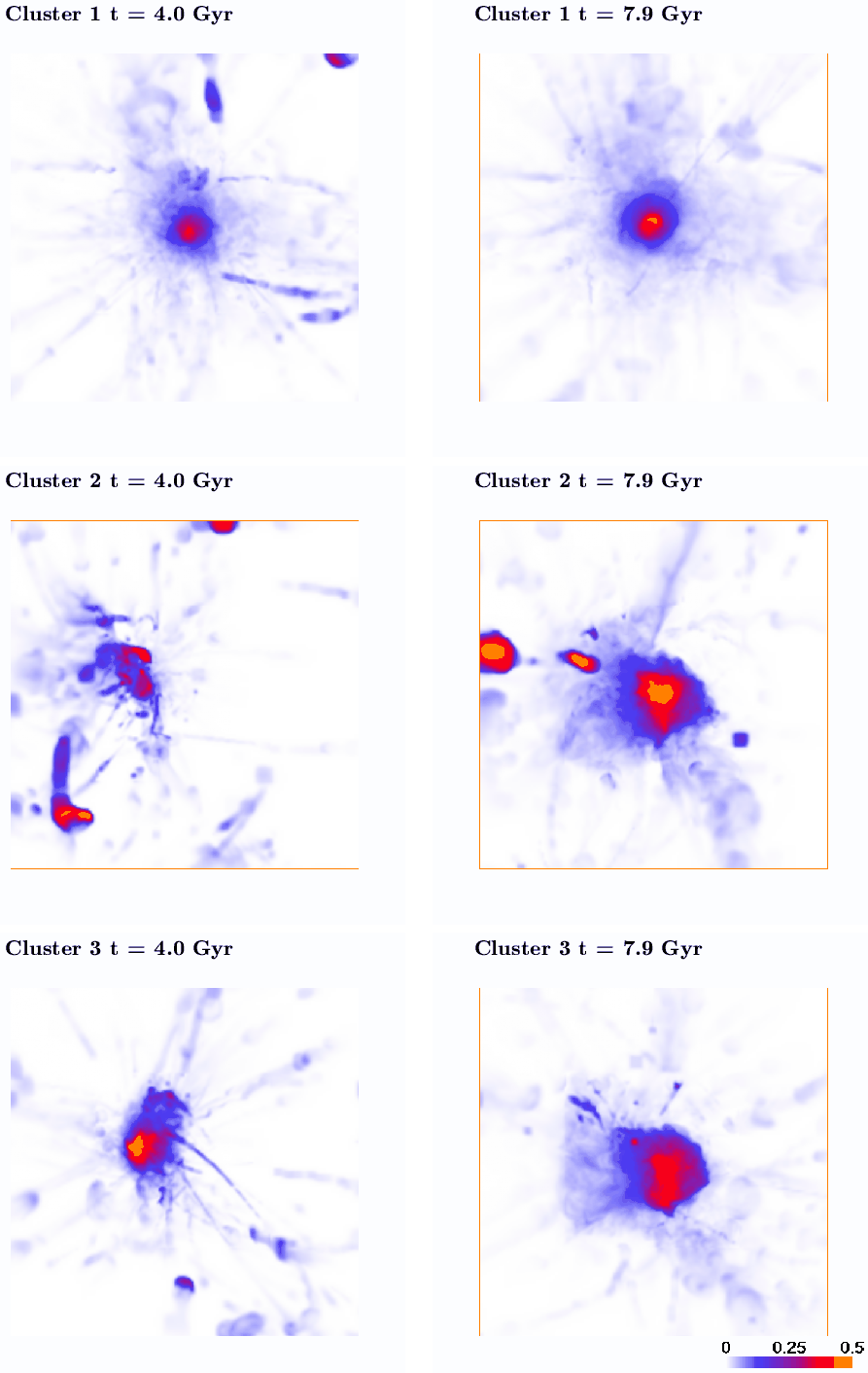

|Figure 6: Emission weighted metallicity maps of the model cluster. The size of the boxes is 5 Mpc on a side. The level of enrichment is given in solar units.|
|Open with DEXTER|
In all the model clusters we see stripes of metal rich material that was left behind by infalling galaxies. Some of them are even several hundred kpc long. It is interesting to note the similarity of these stripes with the plume of stripped gas observed at the center of the Virgo cluster in HI (Oosterloo & van Gorkom 2005) and with the trails of ionized gas behind two galaxies in Abell 1367 (Gavazzi et al. 2001). In contrast to these observations, material in our computed enriched stripes is already mixed with the hot ICM. Evaporation of stripped gas clouds at the center of our model cluster ( 108 K, 10-3 cm-2) can occur within 107 yr (Vollmer et al. 2001), which is the typical time step of the hydrodynamic simulation. Stripped gas from cluster galaxies is indeed seen in the hot (T = 108 K) ICM of the Coma cluster (Finoguenov et al. 2004) in X-ray observations.
The non-merging model cluster 1 shows metal maps with an almost spherically symmetric appearance. There is only little evolution between 4.0 Gyr and 7.9 Gyr in our simulation (see Fig. 6 two panels at the top). This is in good agreement with the results of Sect. 4.2. In contrast model cluster 2 shows a very complex distribution of the enriched material and there is a lot of enrichment between a simulation time of 4.0 Gyr and 7.9 Gyr. The subcluster merger can clearly be seen in the panel showing the situation at 4.0 Gyr. The emission weighted metallicity maps for model cluster 2 are presented in Fig. 6 in the two central panels. Several stripes of enriched material can be seen in the maps of model cluster 3 (see Fig. 6 lower two panels). There is also some evolution up to the end of the simulation at 7.9 Gyr.
Thus, our simulations enable us to derive abundance maps of the ICM. With the help of these maps we can identify the origin of highly enriched regions that have recently been observed with X-ray observations (e.g. Hayakawa et al. 2004). Furthermore we can investigate the location and the fate of the stripped material and compare this to up to date X-ray data (e.g. Finoguenov et al. 2004).
In the present paper we investigate the chemical enrichment of the ICM due to ram-pressure stripping of cluster galaxies from z = 1 to z = 0. We find that ram-pressure stripping plays a significant role in this stage of cluster evolution. In particular we investigate the efficiency, time dependence and spatial distribution of this process:
In forthcoming, more refined studies we will also investigate the impact of additional effects like abundance gradients in the galaxies, stripping due to Kelvin-Helmholz instabilities, shapes of bow shocks of supersonic galaxies and different galaxy evolution scenarios on the enrichment of the ICM due to ram-pressure stripping.
The authors want to thank the anonymous referee for insightful and substantial comments that greatly improved the clarity and content of this paper. This work was supported by the Austrian Science Foundation FWF under grant P15868, UniInfrastruktur 2004, Tiroler Wissenschaftsfonds, the AUSTRIAN GRID, a graduate scholarship from the University of Innsbruck, DFG grant Zi 663/6-1, the European Commission through grant number HPRI-CT-1999-00026 (the TRACS Program at EPCC) and by the European Commission's Research Infrastructures activity of the Stucturing the European Research Area programme, contract number RII3-CT-2003-506079 (HPC-Europa). M.M. acknowledges the support of a Doktoratsstipendium of the LFU Innsbruck. EvK is supported by the FWF through grant P18416. Edmund Bertschinger and Rien van de Weygaert are acknowledged for providing their constrained random field code, Joshua Barnes and Piet Hut are acknowledged for allowing use of their treecode.
