A&A 451, 1065-1079 (2006)
T. Gehren1 - J. R. Shi1,2 - H. W. Zhang1,3 - G. Zhao1,2 - A. J. Korn1,4
1 - Institut für Astronomie und Astrophysik der Universität München, Scheinerstr. 1, 81679 München, Germany
2 - National Astronomical Observatories, Chinese Academy of Sciences, Beijing 100012, PR China
3 - Department of Astronomy, School of Physics, Peking University, Beijing 100871, PR China
4 - Uppsala Astromical Observatory, Box 515, 75120 Uppsala, Sweden
Received 28 October 2005 / Accepted 23 January 2006
Aims. Parameters for 55 nearby metal-poor stars are determined using high-resolution spectroscopy. Together with similar data taken from a recent analysis, they are used to show trends of their Galactic evolution with stellar [Fe/H] or [Mg/H] abundances. The separation of abundance ratios between disk and halo stars is used as a basic criterion for population membership.
Methods. After careful selection of a clean subsample free of suspected or known binaries and peculiar stars, abundances of Mg, Na and Al are based on NLTE kinetic equilibrium calculations applied to spectrum synthesis methods.
Results. The relation between [Na/Mg] and [Fe/H] is a continuous enrichment through all three Galactic populations spanning a range of values between a metal-poor plateau at [Na/Mg] = -0.7 and solar values. [Al/Mg] displays a step-like difference between stars of the Galactic halo with and the two disk populations with . [Al/Mg] ratios, together with the [Mg/Fe] ratios, asymmetric drift velocities V, and stellar evolutionary ages, make possible the individual discrimination between stars of the thick disk and the halo. At present, this evidence is limited by the small number of stars, and by the theoretical and empirical uncertainties of stellar age determinations, but it achieves a high significance.
Conclusions. While the stellar sample is not complete with respect to space volume, the resulting abundances indicate the necessity to revise current models of chemical evolution to allow for an adequate production of Al in early stellar generations.
Key words: line: formation - line: profiles - stars: abundances - stars: late-type - Galaxy: evolution
Stellar populations were originally recognized and defined according to their kinematic properties (Oort 1926; Baade 1944; Roman 1955), and it was not until Eggen et al. (1962) that kinematic data were correlated with mean metal abundances. In a first attempt to understand the formation of the Galaxy, their investigation established the meaning of eccentric stellar orbits as well as that of the asymmetric drift velocity. At about the same time, Wallerstein (1961) recognized that there is some evidence for non-solar abundance ratios of the -elements, particularly in kinematically extreme stars of population II, which then was related to the stellar component of the Galactic halo. Later, Gilmore & Reid (1983) found that the Galactic disk, originally associated with population I stars, is actually composed of two (sub)populations, a thin and a thick disk.
At that time, the topic was controversial (see e.g. Bahcall & Soneira 1984; Bahcall et al. 1985), and even today the notion of a third Galactic population is not very popular among some astronomers. Roughly ten years later, Edvardsson et al. (1993) presented a first comprehensive abundance analysis of disk stars resulting in a more or less smooth change of individual element abundance ratios [X/Fe]. While this chemical enrichment was interpreted as a continuous evolution of stellar generations, the first clear separation of thin and thick-disk stars was presented by Fuhrmann (1998, 2004) who was able to show that the thick disk is a distinct stellar component, both in terms of abundances and age, whereas the kinematic properties are by far less conclusive when looking for an old metal-poor population. Moreover, he gives evidence for the speculation that the thick disk is not at all a minor component of the Milky Way, and that instead the halo component, i.e. the original population II, consists of only a very few objects if it is a separate population at all. Fuhrmann shows that the distinction between stars of thin and thick disk requires a careful determination of the [Mg/Fe] ratio.
Other element ratios have been investigated in thick-disk stars by Gratton et al. (2000) and Prochaska et al. (2000) who confirm the separate nature of the thick disk. Generally, the roughly constant [Mg/Fe overabundance found among thick-disk stars has convinced many authors to accept that this stellar component must have formed on a short (SN II) time scale of <1 Gyr. The age determinations supplied by Fuhrmann also seem to indicate that the thick disk is nearly as old as the Galaxy itself, and that star formation stopped for a few billion years before the formation of the thin disk started. In combination with his unexpected high mass density estimate of the thick disk, it would not leave a central role for the Galactic halo. A closer examination of Fuhrmann's data, however, reveals a weak trend in the chemical evolution of the thick disk [Fe/Mg] ratio (see Fig. 34 in Fuhrmann 2004). Such a trend is more clearly visible in the [Ba/Eu] ratios presented by Mashonkina et al. (2004) which indicates the onset of s-process contributions from stars of significantly lower masses. Thus, both the Fe/Mg and the Ba/Eu enrichment in thick-disk stars must be interpreted in terms of nuclosynthesis different from that in SN II alone.

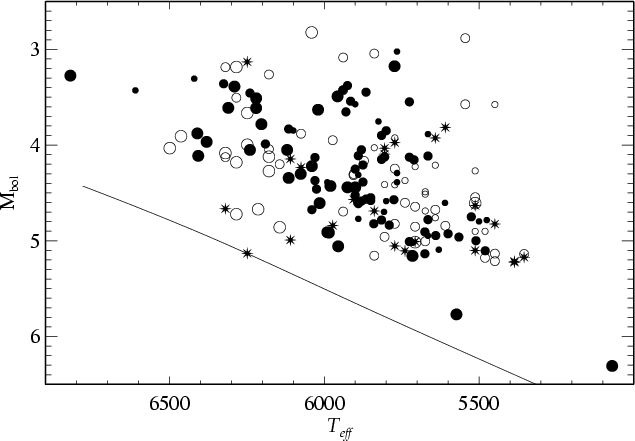

|Figure 1: Temperature-magnitude diagram of unevolved near-turnoff stars, based on HIPPARCOS parallaxes. Filled circles refer to stars observed, open circles to the rest of the sample with temperatures approximated from a simple B-V vs. correlation. Symbol sizes increase with the (U-B) excesses in the three intervals [0.10-0.14], [0.14-0.20] and >0.20. Star symbols denote peculiar stars (binaries etc.). The zero age main sequence for [Fe/H] = -1.5 is plotted for comparison. The two stars at the extreme left are G9-16 and HD 128167, that on the lower right is HD 103095.|
|Open with DEXTER|
As is the case with the distinction between thin and thick disk, there exists a floating boundary between thick disk and halo, as far as kinematics and metal abundances are concerned. Concepts of metal-weak thick-disk stars or metal-rich halo stars have occasionally been debated with no real definition of their properties. Still, the most reliable discrimination is possible for the more extreme cases of very metal-poor stars such as those found recently in large surveys or stars with retrograde Galactic orbits. However, such stars are extremely rare, and the bulk of stars with halo kinematics has metal abundances between [Fe/H] = -2.5 and -0.6 (see Laird et al. 1988), at least in the local space volume. Recent spectroscopic abundance results have started to establish more reliable measures to identify the very first stages of Galactic evolution. Mashonkina et al. (2004) found a significant offset of the [Eu/Mg] ratios of stars commonly attributed to the Galactic halo with respect to the thick disk, and Gehren et al. (2004, Paper I) present a similar gap for the [Al/Mg] ratio. Both results refer to the abundances of elements or isotopes that depend on enhanced neutron fluxes, but the logarithmic abundance ratios of [Eu/Mg] and [Al/Mg] are of opposite sign. As yet no explanation has been found for these trends.
The above abundance results are obtained with refined atomic models and corresponding NLTE calculations. It has been emphasized that in particular Na and Al are extremely sensitive to deviations from LTE. Consequently, all previous LTE abundance analyses of these elements are obsolete for stars less metal-rich than the Sun as was shown in Paper I. Here, we report new NLTE abundance analyses of metal-poor stars selected for their high proper-motion and UV excess (see Paper I, for a full description of the sample). Figure 1 displays the stars observed and analyzed as well as those left for future analyses. In this paper, Sect. 2 describes the newly observed spectra, Sect. 3 gives short comments on the atmospheric models, the stellar parameters derived from spectroscopy, the atomic models and the NLTE calculations. Section 4 presents the abundance results for the new stars, in Sect. 5 we discuss the implications for stellar populations and nucleosynthesis, followed by a short section of conclusions.
High-resolution spectra for 63 stars have been obtained with the FOCES échelle spectrograph at the Calar Alto 2.2 m telescope during observing runs in February and June 1999, May 2000, March 2002 and January 2003. Most of the exposures were taken with the CCD resulting in a nominal 2-pixel spectral resolution of 40 000. In some exposures the resolution was slightly lower due to an increased slit-width allowing for bad seeing and transparency. For a better comparison with more metal-poor stars some subdwarfs were observed with the CCD resulting in . Most of the exposures cover a spectral range from 3900 to 9000 Å, and for most stars the observations were split into at least three single exposures with a maximum of 1800 s integration each. The basic observational data are given in Table 1, where the last four stars are not members of the standard sample. Parallaxes (mas) and proper motions (mas/y) are taken from the HIPPARCOS catalogue (Perryman et al. 1997). N and refer to the number of spectra taken and the total exposure time (s). Data reduction has been described in Paper I. Here, we mention only that the increased redundancy resulting from multiple exposures guarantees optimal spectroscopy. In particular the outstanding continuum definition resulting from the FOCES fibre coupling is important for the determination of Balmer line profiles. The S/N ratio near H is in most cases around 200, with exceptions for some of the fainter objects, for which it may be as low as 100.
To allow for a comparison with more extremely metal-poor stars, four additional reference stars, observed with the same instrument and resolution, were added.
Table 1: Spectra obtained with the FOCES echelle spectrograph at the Calar Alto 2.2 m telescope. See text for further explanations.

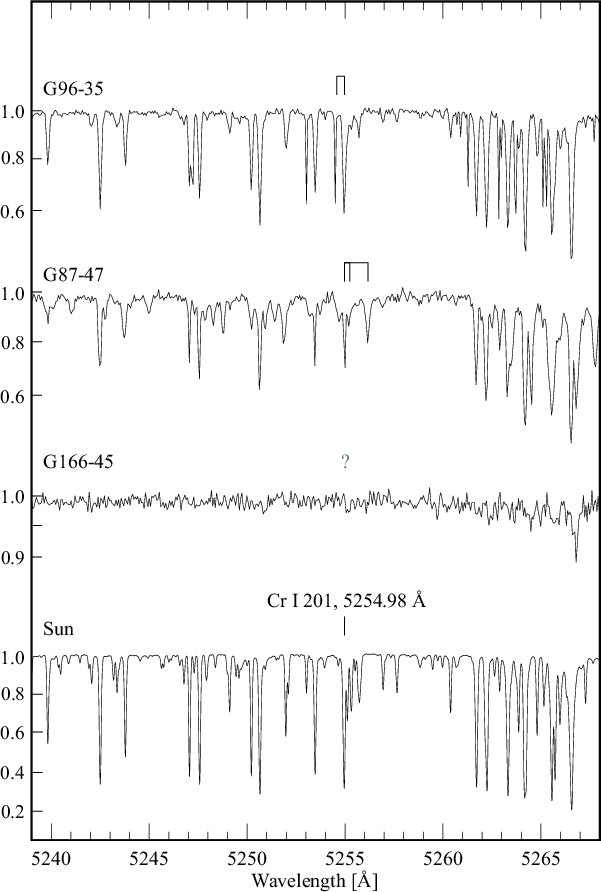

|Figure 2: Double-lined spectra detected in the sample. The components have been marked for the Cr I 201 line at 5254.98 Å. The flux axis is compressed to show approximately the same dynamic range for each star. See text for details.|
|Open with DEXTER|
It has been mentioned in Paper I that quite a number of the sample stars emerged
as spectroscopically peculiar, either being spectroscopic binaries or
showing Ca II H+K emission cores. The high fraction of binaries among metal-poor
stars has also been put forward by Latham et al. (2002) and
Fuhrmann (2004) who arrive at a binary fraction very similar to that of
normal field stars of the thin disk. Our current list is nearly as contaminated
by binaries as was that of Paper I, and we expect that some more binaries would
have been detected if the signal and the spectral resolution were increased.
Clearly double-lined spectra were detected only for two stars, G96-35 and
G87-47. G166-45 could not be fully resolved at our spectral resolution. It is
one of the limiting cases where
R = 60 000 would have helped to resolve the
asymmetry which was detected near the maximum of a correlation with the solar
spectrum. In stars such as HD 104800 we detect a systematic line asymmetry
probably hiding a secondary component at a velocity difference of
only -5 km s-1, which could not be resolved with our resolution of 40 000. Therefore we
have to accept the fact that reliable abundance analyses are possible only for 51 out of 59 stars, and that some of the analyzed single-lined binaries may not
represent their binary system adequately. Unlike among the stars of Paper I no
strong Ca II emission cores were found in this subsample. In the following some
given for the stars that were found spectroscopically peculiar.
G78-1: known as a single-lined binary (Laird et al. 2002) with a peak-to-peak velocity amplitude of 9 km s-1. Spectrum does not look suspicious.
G96-35: spectrum shows a double-lined system of similar line strengths at km s-1 (see Fig. 2).
G87-47: this spectrum is triple-lined with a strong secondary component at +68 km s-1 and another weak component which is only partly resolved at +15 km s-1. Figure 2 gives an impression of the complex spectral appearance.
G40-8: according to Laird et al. (2002) this is a single-lined binary. The combined spectrum indicates a temperature around 5600 K, and a metal abundance of -0.2.
G9-16: characterized by unusually strong Balmer lines that indicate a temperature significantly above the metal-poor turnoff. This star could be a blue straggler.
G58-23: again, a single-lined binary of Latham et al.'s (2002) table. The spectrum of this star is of roughly solar temperature, and it appears more metal-poor, with [Fe/H .
HD 97855A: visual binary, clearly separated from HD 97855B which itself is a binary.
HD 104800: as noted above this star is probably a spectroscopic binary. Its spectrum shows systematically asymmetric absorption lines, which could be the result of a fainter secondary component near a velocity difference of km s-1.
HD 107582: Latham et al. provide a preliminary orbit with a very small velocity amplitude. The spectrum is that of a solar temperature dwarf with [Fe/H and [Mg/Fe .
HD 108754: spectroscopic binary (SB1) according to Halbwachs et al. (2003), with a short period of 25 days.
G166-45: the star has been identified as an SB2 by Smith et al. (1998; see also Carney et al. 1994). Our relatively noisy spectra do not allow a final conclusion (see Fig. 2), but the asymmetric velocity correlation function also suggests a spectroscopic binary at the spectral resolution limit.
Model spectra are synthesized from model atmospheres calculated in local thermodynamic equilibrium (LTE). The atmospheric models have been described in a number of papers (Gehren et al. 1991; Fuhrmann et al. 1993). They are plane-parallel and in hydrostatic equilibrium, with convective energy transfer calculated from the mixing-length theory as described by Böhm-Vitense (1958) using a mixing-length parameter of . Opacities are provided by the most important bf absorbers including Rayleigh scattering, and by opacity distribution functions based on Kurucz' (1992) line lists, with a systematic adjustment of the metal abundances of to account for the difference between ODF Fe abundances and a solar value of which is required by fits to theoretical models. With respect to recently calculated hydrostatic models using opacity sampling (see Grupp 2004a,b), the ODF models are identified by a somewhat different temperature scale that accounts for the different temperature stratifications.

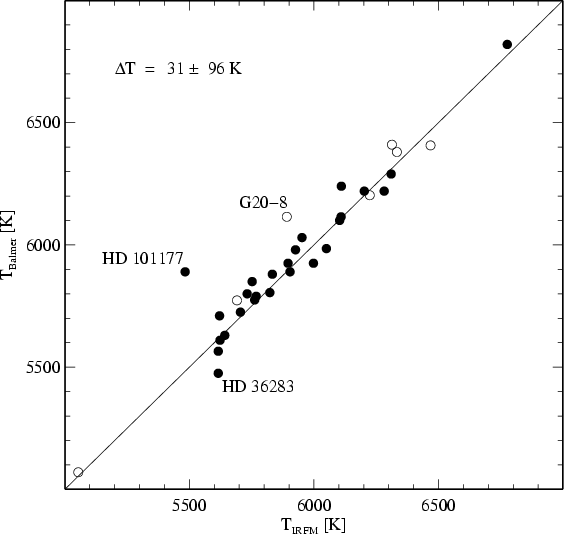

|Figure 3: Comparison of effective temperatures derived from the infrared flux method (Alonso et al. 1996; Blackwell & Lynas-Gray 1997) and from Balmer lines (this paper). Open circles refer to the metal-poor reference stars, filled circles represent the standard sample.|
|Open with DEXTER|
Surface gravity data are directly obtained using HIPPARCOS parallaxes, together with a reasonable guess of the stellar mass. The latter is uncritical and can be obtained with sufficient accuracy from (differential) stellar evolutionary tracks such as those of VandenBerg et al. (2000). The error budget is therefore relatively small with temperature errors mostly between and 100 K, and surface gravity errors of .
The Fe abundance and the microturbulence are obtained from Fe II lines where no evidence for a deviation from LTE is found. It is clear that for the most extremely metal-poor stars the determination of is more uncertain than for more metal-rich stars. For these stars other lines have also been taken into account. All abundance results except those for Fe II are based on NLTE line formation.
The nature of NLTE effects in the light elements Na, Mg and Al was already discussed in Paper I. It is interesting to note that whereas Na I levels are populated by recombination and collisional decay, both Mg I and Al I are dominated by depopulation due to photoionization. The result of such different ionization processes is most remarkable in some of the extremely metal-poor stars, where the [Al/Na] abundance ratio under LTE and NLTE conditions differs by one order of magnitude.
NLTE line formation calculations have been applied to the present subsample of stars using the same atomic models described in Paper I, except that we took into account the fine structure splitting of the 3p3P term in Mg I, and that of the 3p2P term in Al I. These model variations introduced small systematic changes in the population densities and corresponding abundance determinations of the order of <0.05 dex, which made us recalculate the stellar subsample from Paper I in order to retain consistent abundance results. The same set of absorption lines (Table 2 of Paper I) was also used to derive single line abundances from profile fits applying either LTE or NLTE population densities.
Table 2: Stellar parameters and final abundances of the new program stars including 4 more extreme metal-poor reference stars. is the microturbulence, n denotes the number of spectral lines analyzed. is the maximum surface gravity error emerging from errors in temperatures, masses and parallaxes (see text).
Abundances for the new sample stars are shown in Table 2. Not included are stars from Table 1 that show any kind of spectral peculiarity. Due to a degraded S/N below 4000 Å, no Al abundance could be determined for a small number of stars at the faint end.
Table 2 also indicates the maximum errors in surface gravity that propagate from mass, temperature and parallax according to . All values larger than 0.15 dex are essentially determined by a large parallax error. We note that even the maximum surface gravity errors do not affect the abundances for neutral metals very much. The reason is that all numerical experiments show . The error variation results from line strength; very strong lines such as Mg I 5183 Å in more metal-rich stars show that the strongest influence of the gravity error produces a Mg abundance error of -0.1 dex for a surface gravity error of 0.2 dex. For unsaturated neutral lines the error is almost negligible, and a mean abundance error combining the analysis of weak and strong lines will be close to -0.05 dex for a surface gravity error of 0.2.
Eleven stars in Table 2 have maximum surface gravity errors above ; only three of them are above 0.3. Note that there is a general trend towards uncertain parallaxes with decreasing metal abundances. Statistically, this is easily understood as the result of an increasing space volume. These stars, as well as a number of them in Paper I, do not have strong metal lines; their metal abundances are derived from weak lines that do not depend on surface gravity at all. We also note in passing that an error in surface gravity as large as 0.3 dex is one of the most extreme cases when examining stars near the turnoff.
Another case is the influence on abundance ratios, in particular [Na/Mg] or [Al/Mg]. As was outlined above, even the most extreme assumptions about abundance errors due to uncertain parallaxes lead to values around 0.1 dex, where it is most important that such abundance errors of Na, Mg and Al cancel to the per cent level because these elements are all analyzed from their neutral lines. They all have a similar mix of strong (resonance) and subordinate lines which respond to surface gravity variations close to the same amount. As an example, for the very metal-poor star, G41-41, with a parallax error contribution of more than 2 dex, we can safely limit the surface gravity to an error of 0.5, i.e. . Within these limits the resulting abundance ratios vary by less than 0.02.
At the per cent level of abundance ratio accuracy the error does not seem to depend very much on gravity determination. This is similar for except for a few stars (e.g. HD 101177, see Fig. 3). The reason is that error progression from tends to cancel to a certain degree for all neutral metals, and the corresponding budgets as well as that of mean microturbulence errors are predominantly systematic for all lines of a particular ion in the spectrum of a star.
Our most important errors show up in the standard deviation of single lines. Consequently, using a common microturbulence value the abundances of the subordinate 3p-5s lines in Na I at 6154 and 6160 Å are different from those of the other Na lines already in the Sun (see Baumüller et al. 1998, Table 1). This result could be due to the different influence of hydrodynamic flow patterns, and it may document the limits of plane-parallel abundance analyses. A similar discrepancy occurs between the forbidden Mg I line at 4571 Å and the Mg I b triplet at 5172 and 5183 Å. Confirming earlier results, we also find significant NLTE effects for the forbidden transition, but they coincide with similar abundance effects in the b lines. In both types of lines such NLTE effects are due to a shift of the line-formation region to deeper and therefore hotter layers resulting from systematic changes in the ionization equilibrium. Aside from hydrodynamical and NLTE influence two other problems are apparent:

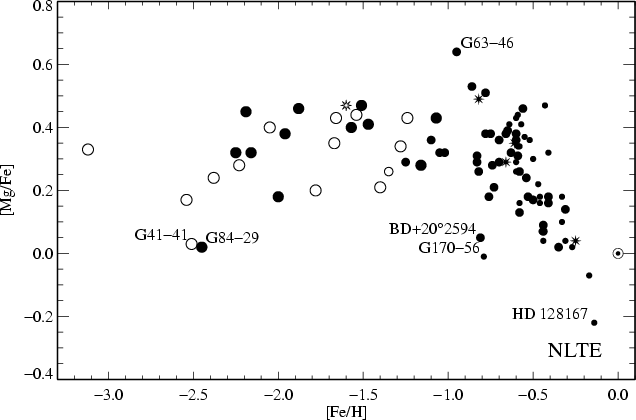

|Figure 4: -element ratio [Mg/Fe] as a function of metal abundance. Filled circles represent our sample, open circles are the metal-poor reference stars. Symbol size refers to (U-B) excesses as in Fig. 1.|
|Open with DEXTER|
There are quite a few outliers in Fig. 4, with G63-46 representing the upper limit of the Mg/Fe ratio in the sample. According to its kinematics this could be either a thick disk or a halo star. At the other end we find two other stars, G170-56 and BD+202594 with [Mg/Fe] abundance ratios near to or even below zero. These stars both differ significantly from the rest of the disk stars by their kinematics (see below). At lower metallicities similar Mg/Fe ratios are found for G41-41 and G84-29, two halo turnoff stars with very nearly the same stellar parameters. As was discussed above there is no room for large errors in the abundance ratios. However, whether these stars are genuinely anomalous or only at the outer wings of an otherwise normal abundance distribution remains uncertain.

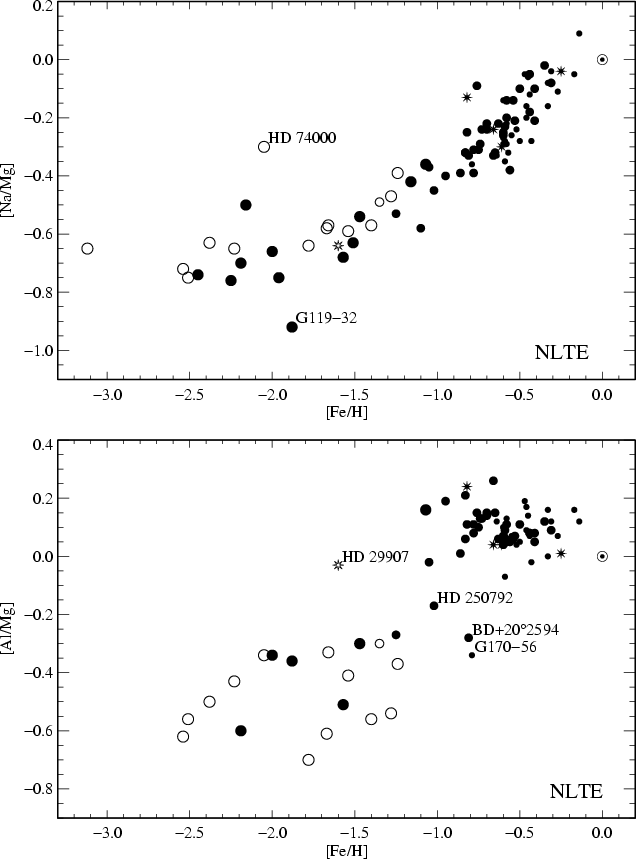

|Figure 5: Element ratios [Na/Mg] ( top) and [Al/Mg] ( bottom) as a function of the metal abundance [Fe/H]. Symbols have the same meaning as in Fig. 4.|
|Open with DEXTER|
Figure 5 shows the abundance ratios [Na/Mg] and [Al/Mg] as functions of the metal abundance. Both panels display very different relations. The [Na/Mg] ratio seems to document a smooth continuous enrichment of the sodium abundance. Its overall scatter is significantly smaller than that of [Mg/Fe], which may reflect a relatively tight coupling of the Mg and Na synthesis. The two outliers are HD 74000, a star being notoriously peculiar (see Beveridge & Sneden 1994), and G119-32, a subdwarf with an extreme retrograde orbit. The most extremely metal-poor stars found to date, HE 0107-5240 (Christlieb et al. 2004) and HE 1327-2326 (Frebel et al. 2005) have been reported to host LTE Na abundances as high as [Na/Mg and 0.4, respectively, values that are fully outside our relation. Unfortunately, a more comprehensive abundance analysis by Cohen et al. (2004) does not list Na abundances.
The [Al/Mg] ratio instead shows a clear separation near a metal abundance of [Fe/H and an abundance ratio of [Al/Mg . These dividing lines were already detected (with slightly different abundance values) in Fig. 13 of Paper I, where only a much smaller subsample could be analyzed. Disregarding HD 29907 which according to Lindgren & Ardeberg (1996) is a single-lined binary, a few remarks are appropriate:

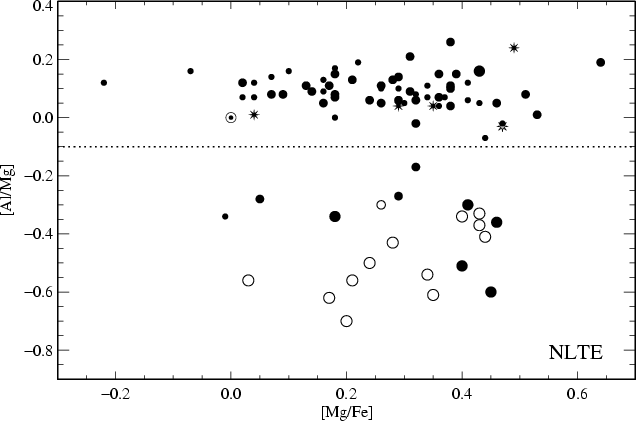

|Figure 6: Element ratio [Al/Mg] as a function of the ratio [Mg/Fe]. Note the separation between the Al-rich and the Al-poor stars at [Al/Mg] = -0.1.|
|Open with DEXTER|
Except for the work of Baumüller & Gehren (1997), Baumüller et al. (1998), and Zhao & Gehren (2000) there are no systematic analyses of Na, Al and Mg including a full account of NLTE line formation for metal-poor unevolved stars. Therefore no direct comparison of our results is possible. However, there are a number of abundance analyses that are carried out under the LTE assumption. Some of them have used NLTE corrections such as those published in the above papers. Whereas these corrections generally give a raw account of the difference between thermal and non-thermal ionization and excitation, they depend on the precise determination of all stellar parameters. Individual corrections treated in such a global way will therefore produce additional abundance scatter in any stellar sample, which may then hide properties of the correlations between the abundance ratios. This is shown in Fig. 7, which demonstrates that NLTE corrections - although following a general abundance trend - can vary strongly with individual stellar parameters.
Of course, the main result is the strong increase with decreasing metal abundance of NLTE Al abundances with respect to LTE, and the simultaneous decrease of the NLTE Na abundances. As stated in Paper I, these large NLTE corrections make LTE abundance analyses of both Na and Al nearly useless for an investigation of Galactic chemical evolution. This is an important limitation for LTE analyses, at least for stars with metal anbundances less than [Fe/H] < -1.5.
In a recent paper Jonsell et al. (2005) have published abundances for a number of metal-poor stars. Their analysis is in LTE, and their abundances are correspondingly different from those reported here. They claim that NLTE corrections for the Na I 5682/5688 doublet are small enough to be neglected. In fact, the corrections are around -0.1 for mildly metal-poor stars, and they even decrease with decreasing metal abundance. However, the equivalent widths decrease as well, and the cited abundance values for HD 84937, HD 140283 or similarly metal-poor stars refer to mÅ. Our VLT spectrum of HD 140283 which has S/N > 350, and which is probably not worse than that of Jonsell et al., shows only a marginal sign of this doublet with equivalent widths of 0.7 and 2.5 mÅ, respectively. In a spectral region such as Å measurement of equivalent widths is very uncertain because of some unidentified continuum depression encountered there. On the other hand, our present NLTE calculations fit to the 5682/5688 doublet and the D lines simultaneously, whenever both can be measured, with a scatter usually below 0.03. Therefore a systematic difference of 0.2 dex is found between their and our metal-poor stars' Na abundances.

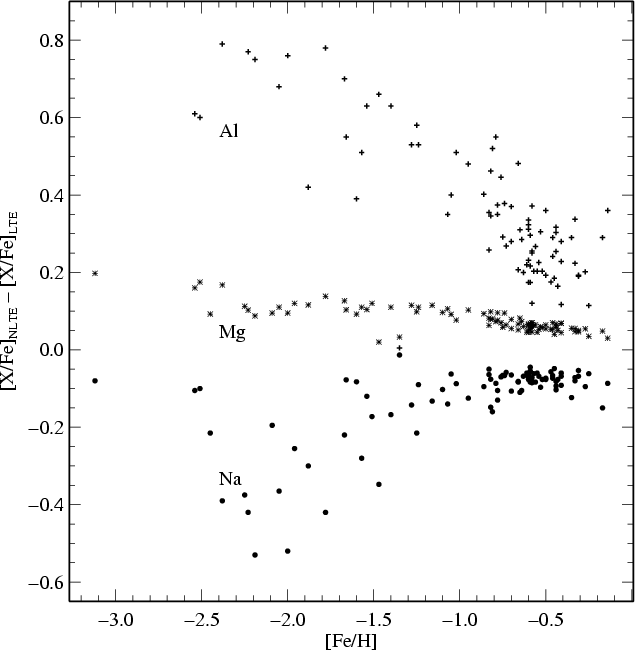

|Figure 7: Difference of element abundance ratios calculated under NLTE and LTE assumptions, respectively.|
|Open with DEXTER|
On the other hand, our NLTE Al abundances that could be determined simultaneously for up to 7 lines including the resonance line, reduced the scatter of the single line abundances by factors of two or three. The often reiterated statement that the uncertainty of collisional cross-sections determines the NLTE results, is simply wrong. There is quite a number of elements such as Na or Si that do not seem to depend on collisions very much at all. Even photoionization-dominated elements such as Mg or Al are not very sensitive to variations of the bound-bound hydrogen collision factors, as we confirmed when experimenting with new atomic models. As an example Table 3 lists the corresponding changes in the [X/Fe] ratios when varying from 0.001 to 1.0 for a typical metal-poor turnoff star, similar to our model of G165-39. We used the observed spectra of this star to perform these calculations which were restricted to the strong lines in the spectrum, because weaker lines are hardly observed in very metal-poor stars. Note the extreme abundance differences for Na and Al with respect to LTE, which is only approached with very high values of ( ).
Table 3: Abundance ratios [X/Fe] for varying collision parameter compared with LTE results for a typical turnoff star, where X represents the elements Na, Mg and Al. All abundance ratios refer to abundances calculated for the spectra of G165-39.
Iron seems to be particularly sensitive to the choice of , due to reasons that are not yet well understood (Korn et al. 2003; Shchukina et al. 2005), and at present it is not possible to model the excitation equilibrium of Fe I very well.
It was mentioned above that one of the most important goals of our project is the detection of the population membership for individual stars. The basic question, if the stellar population is still a reasonable concept in view of highly complex merging scenarios, cannot be answered that simply. It may help to find out if it can keep its old meaning or eventually has to take on a new one. Although population originally described stellar kinematics, and correlations with element abundances entered the scene only later, it seems very clear now that both properties contribute to the notion of such words as "halo'' or "thick disk''. A third stellar property, the evolutionary age, was introduced to the discussion of stellar populations by Fuhrmann (1998), who claimed to have separated the thin and thick disk populations with the help of abundance ratios [Mg/Fe], kinematics (mostly the asymmetric drift velocity), and the age derived from a differential application of modern evolutionary grid calculations.
A more comprehensive study of the problem has been published recently by Bensby et al. (2005). Since their results were obtained with LTE, the abundance ratios for a number of elements are not significant on an absolute scale, but they appear to confirm Fuhrmann's results on a differential scale for a number of other elements.
This paper shows how such a discrimination can be found between halo and thick disk stars. Starting with the abundance ratios, Figs. 5 and 6 already suggest that the Al/Mg ratios provide the means for a clear separation between halo and (thick or thin) disk stars. For a first approximation, Fig. 6 is divided into two regions with a cut at [Al/Mg] = -0.1. In this paper, all stars below that limit are tentatively assigned the label "halo'', and the rest is named "disk'' stars bearing in mind that this type of classification requires confirmation from stellar kinematics and ages.
Table 4: Kinematic results, ages and classification of metal-poor stars analyzed in this paper. Columns (3) to (7) are in km s-1, Col. (9) is in solar masses, and Col. (10) in Gyr. Classification in terms of population membership refers to abundances ratios (left), kinematic properties (middle), and ages (right). The following notation is used: D: thin disk ([Al/Mg] > -0.1 and [Mg/Fe] < 0.25, V > -40 km s-1, age < 10 Gyr), T: thick disk ([Al/Mg] > -0.1 and [Mg/Fe] > 0.25, -120 < V < -20 km s-1, age > 10 Gyr), and H: halo ([Al/Mg] < -0.1, V < -50 km s-1, age > 10 Gyr). Whenever parallax errors are >25% masses and ages have not been determined because of uncertain absolute magnitudes.
Table 4 presents the kinematic data for the new stars observed. They will be supplemented here by the data of Paper I. Some of the radial velocities have been redetermined from our spectra. The Local Standard of Rest velocities refer to a solar motion of km s-1 (see Hogg et al. 2005).
Except for a few stars, the program stars have reliable parallaxes with HIPPARCOS measurements resulting in . The stars with higher parallax errors are G84-29, G99-21, and G165-39, all with , and the more extreme stars of the reference sample G41-41, G48-29, and G64-12 with fractional errors of between 0.65 and 1.50. Because of significant parallax error propagation into transversal space velocities these stars are excluded from the kinematic analysis. The corresponding space velocities of these stars (comments 1 or 2 in Table 4) may be in error by large amounts.
It was mentioned before in many publications, that stellar kinematics can only lead to a statistical description of the Galactic populations. This is also evident for our sample, demonstrated in the Toomre diagram (Fig. 8) as clearly as in Fig. 9, where the asymmetric drift velocities are plotted against the [Al/Mg] abundance ratios. Similar to kinematic properties of the thick disk (see Fuhrmann 2004), there exists a substantial overlap between the "halo'' and the thick disk. We find high-velocity thick-disk stars such as HD 148816 and HD 160693 at total space velocities that are generally reserved for halo stars. In fact, HD 148816 is kinematically extreme in that it even follows a retrograde Galactic orbit. On the other hand, a number of halo stars with very low space velocities are found, among them HD 31128 and HD 97320. Since we had to disregard the extreme stars with uncertain parallaxes, the maximal space velocity of our sample is near km s-1 (HD 74000, G20-8).
The distribution of the asymmetric drift velocities is seen best in abundance plots such as Fig. 9. Here, the stars with low space velocities appear as the positive tail of a halo velocity distribution centered near V = -220 km s-1. It is also easy to recognize that the overlap of the asymmetric drift velocity distributions of the three Galactic populations is fairly strong. In our admittedly non-representative sample there do not exist clear limits between thin and thick disk. Kinematically, such boundaries do not exist either between thick disk and halo. It is the additional knowledge of the [Al/Mg] abundance ratios that can resolve the overlap in drift velocities. We note that the correlations with the other velocity components U and W are even less conclusive than that with the asymmetric drift.
A few stars do not fit into the picture. Most conspicuous is HD 148816. According to kinematics it would be a clear halo candidate, with a velocity component W = -71 km s-1 and an asymmetric drift velocity of = -258 km s-1. Its abundances, however, are typical for thick-disk stars (see Paper I). It could be important to have a more complete abundance analysis for this star. The problem remains that HD 148816 follows a retrograde orbit with only a moderate U velocity. This is not what one would expect for a disk star. The case of HD 97320 is less extreme. Its total space velocity is near 92 km s-1, of which most is due to the U component. HD 29907 is a single-lined binary (Lindgren & Ardeberg 1996), a status that does not explain, why the Al abundance is so high, [Al/Fe] = 0.41. In every other aspect that star would be a halo star.
In Fig. 5 another two stars, BD+202594 and G170-56 (see Paper I), were conspicuous with their Fe abundances being substantially higher than expected for halo stars. Though not quite as metal-rich, HD 250792 shows similarly high Fe abundances. According to an [Fe/H] criterion the three stars would rather belong to the thick disk, whereas [Al/Mg] identifies them as halo star candidates. What is more important, all three stars have retrograde Galactic orbits, and it seems impossible to relate their membership to a dissipative disk population.
Unfortunately, stellar evolution on the main sequence and around the turnoff is
still one of the more complicated and therefore uncertain topics of current
research. This is so because a number of physical processes cannot be properly
addressed. It starts with the -element abundance ratios, the solar value
of which has recently been revised by -0.25 dex (Asplund et al. 2005). A corresponding change in opacities and mass densities is
the result, because all other physical processes have to be normalized to the
solar model, which would have to be revised by quite an amount. In turn, such a
revision of the solar model is in apparent contradiction to the solar standard
model which seemed to be well established by comparison with helioseismology
(Bahcall et al. 2005a,b). Another problem is diffusion, a process
generally neglected in most of the available stellar model grids. It essentially
decreases the time scale of main sequence evolution. It is only realistic to
admit that the determination of stellar ages, whether in Globular Clusters or in
the field, cannot yet be achieved on an absolute time scale. Instead it may be
possible to calculate a set of differential ages with a less extreme
error estimate. As discussed below for some cases, there exists currently no
reliable way to estimate such errors. Whereas masses can perhaps be determined
for stars off the main sequence with a differential accuracy better than
the error estimate of stellar ages - even differentially and off
the main sequence - depends on both individual stellar parameter error bars and
more theoretical insight into the results of metal diffusion.

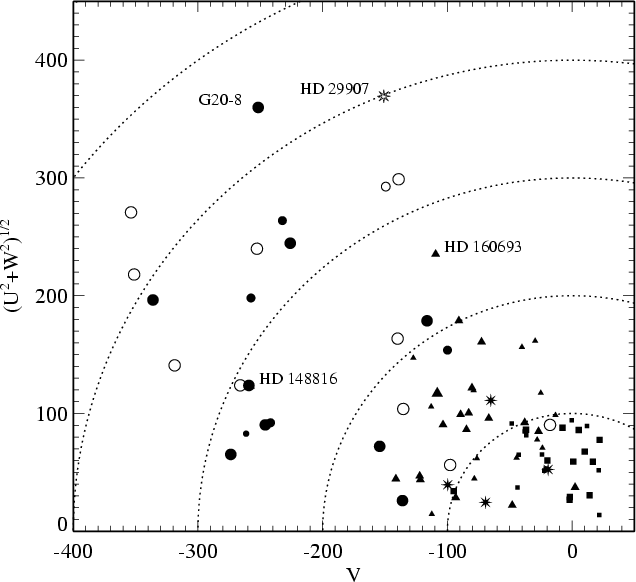

|Figure 8: Galactic space velocities of the stellar sample. Open symbols refer to the extremely metal-poor reference sample, filled symbols to the metal-poor standard sample. Circles follow the requirement [Al/Mg] < -0.10, triangles require [Al/Mg] > -0.10, but [Mg/Fe] > 0.25, and squares represent stars with [Mg/Fe] < 0.25. Star symbols denote peculiar objects as defined in Table 1.|
|Open with DEXTER|
|Figure 9: Correlation of asymmetric drift velocities and [Al/Mg] abundance ratios. Symbols are the same as in Fig. 8.|
|Open with DEXTER|

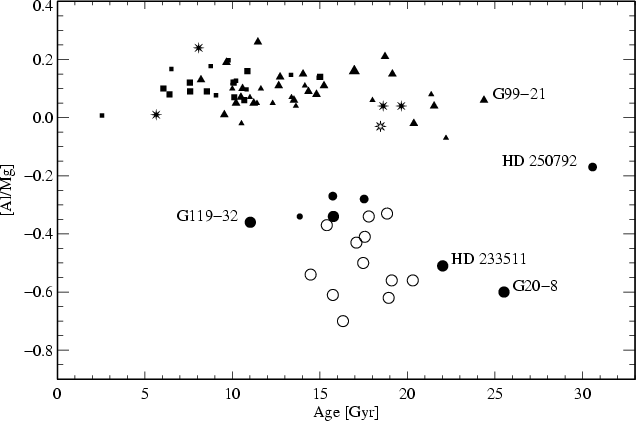

|Figure 10: Correlation of stellar ages and [Al/Mg] abundance ratios. Symbols are the same as in Fig. 8.|
|Open with DEXTER|
For our age estimates the same grid of stellar models as in Paper I was used (VandenBerg et al. 2000), where no diffusion is accounted for. Masses and ages from the fits to such evolutionary tracks are given in Cols. (7) and (8) of Table 4. Missing ages document the failure to find a consistent solution by logarithmic interpolation in a set of parameters, , , [Fe/H], and [/Fe], where the latter was simply replaced by [Mg/Fe]. As is evident from Table 4, some of the stellar ages are beyond 20 Gyr, a completely unrealistic value, both absolute and differentially. Of the rest of the sample, most of the halo stars have values above 15 Gyr, still unacceptable in view of the WMAP results that center around an age of the universe of 13.7 Gyr (Spergel et al. 2003). Therefore, the best to be expected is some very coarse order of ages. This is given in Fig. 10, and even there the unreasonable spread of halo star ages tells us that there does not exist at present a reliable way to derive stellar ages of metal-poor main sequence or turnoff stars.
The reason for our failure to determine the ages of thick disk and halo stars is not clear at this moment. In fact, there are many ways to produce systematic errors both on the empirical and the theoretical side of the problem. We start with the theoretical side, where we have already mentioned above that the problem of the oxygen (and neon) abundances has not been solved (Bahcall et al. 2005a), although there remains the possibility to replace part of the solar oxygen by neon and retain essentially the same solar model (Bahcall et al. 2005b). Of course, a higher solar neon abundance may have a differential effect that could show up in metal-poor stars. The change of the -element parameter [/Fe] (previously based on oxygen) due to neon would be -0.1 dex if a decrease of were compensated by an increase of . Reducing [/Fe] by 0.1 dex would, however, not change the stellar ages very much.
Larger corrections could instead be achieved by taking into account He diffusion as calculated for metal-poor halo stars by Salaris et al. (2000). It may account for isochrone shifts of up to 200 K, which is about the necessary adjustment to reduce most of our empirical stellar ages (see Table 4) to acceptable values of, say, 14 Gyr. This is particularly valid for the bulk of the halo stars with ages between 15 and 20 Gyr.
A second diffusion correction is introduced by metal diffusion, i.e. metal nuclei sinking down below the stellar surface with respect to hydrogen. That process is estimated to be particularly efficient for metal-poor stars (Richard et al. 2002a,b), and the effect is supposed to take on a maximum near stars of 0.7 to 0.8 , i.e. just the mass range most important in our investigation. Thus, halo and thick disk stars are probably all affected, and their present metal abundance may well be associated with an initial value that was 0.3 dex higher. In that case our age determinations are built on metal abundances that are too low by that amount. Repeating the isochrone fits with more metal-rich mixtures could then again relax the resulting ages by roughly 2 Gyr, although possibly not as much as with the He diffusion. Both effects require improved stellar evolution models taking account of diffusion processes, turbulent phenomena, and radiative acceleration.
On the empirical side, some of the stars with ages above 15 Gyr are extremely sensitive to changes in stellar parameters, in particular effective temperatures and -element ratios (e.g. [Mg/Fe]). Consequently, some of the extreme turnoff stars are reduced to ages of 14 Gyr, if were increased by 200 or 250 K. This would result in roughly the same change of fitting ages as could be achieved by including diffusion in the stellar structure models as discussed above. Our current temperature scale, calibrated with Balmer line profiles, and in accordance with the infrared flux method results, gives no reasonable way to increase atmospheric temperatures as would be necessary for the ODF models. Balmer line profile fitting using the original Ali & Griem (1965, 1966) approximation to resonance broadening, rather underestimates line-broadening processes (see Barklem et al. 2000), and it would emerge into a general decrease of our temperature scale when strengthening the line-broadening processes. Opacity sampling models using a reduced resonance-broadening parameter to fit the solar Balmer lines, however, require increased effective temperatures for metal-poor turnoff stars (Grupp 2004b).
Absolute magnitudes are mostly reliable, because they are based on HIPPARCOS parallaxes. There are a few exceptions, where parallax errors play a role (see Sect. 5.1), but they are not always identical with the highest ages in Fig. 10. Stars like G119-32 and HD 103095 are so near to their initial main sequence that their ages can be determined only with large error bars. The conclusion is that some of the other stars may still hide an undetected peculiarity. Note also, that uncertain parallaxes affect the surface gravities, although they do not very much affect the abundance ratios (see Sect. 4).
Keeping in mind that the halo stars in Fig. 10 mostly require a negative age correction, it seems as if the unmodelled diffusion is responsible for their high ages. It is the single most evident systematic error source if the empirical temperature determination is disregarded (see above). But even with appropriate age corrections halo stars could not be separated from thick-disk stars were it not for their different [Al/Mg] abundance ratios. Therefore, stellar ages alone cannot be used for population identification, at least not for individual stars.
The wide distribution of the asymmetric drift velocities of halo stars in Fig. 9 proves that kinematic properties of these stars cannot be used for any other but a statistical identification of metal-poor stars. For velocities as far off as V = -100 km s-1 there are thick-disk and halo stars, and for V = -40 km s-1 all three populations may be co-existent. According to Fig. 10 this may be different for the ages. At least the thin-disk stars seem to be separated from the other two populations. However, as noted in Paper I, our sample of metal-deficient stars does not reproduce the age gap between thin and thick-disk found by Fuhrmann (2004).
Table 5: Definition of population membership for different stellar properties.To find a reproducible way to address the individual population membership of our stars, single flags have been set for each of the 3 categories, abundance, kinematics, and age. They follow a system of parameters defined in Table 5. Such a set of definitions is always somewhat arbitrary, so it will be used here only as a working hypothesis taking into account very rough boundaries between parameter distributions. Such identification flags are set in Cols. (11) to (13) of Table 4. We note that the boundaries set for kinematics and age are particularly uncertain.
Analysis of the classification flags including the data of Paper I makes it necessary to remove from the sample all stars for which one of the three categories could not be measured. This is the result of missing or unreliable data (uncertain parallaxes) or a failure of the age fit due to the limitation of the grid of evolutionary tracks. Out of 92 stars included so far 14 do not provide all parameters. Out of the remaining 78 stars 56 (71.8%) fit into the three categories. They can be assigned a unique population identification with no further investigation. Most of the rest of the sample fits to at least two categories, always including abundances. Whenever one of the categories fails it is important to look for an explanation.
Eleven stars have a discrepant age. Four of them are within 1 Gyr of the boundary. These are all thin-disk stars and need no further investigation because of the uncertainty of both age determination and the setting of a boundary. Two other stars have peculiar abundances. According to their Al/Mg ratio, G63-46 and HD 200580 are of thick-disk type, but their other abundance ratios are [Mg/Fe] = 0.64 and 0.46, and [Al/Fe] = 0.83 and 0.67, respectively. This indicates a strong over-abundance of -elements only, since [Na/Fe] = 0.24 and 0.36, respectively, is similar to values found in the other thick-disk stars. Two stars, HD 56513 and HD 103095, are so near to their initial main sequence, that their ages are completely unreliable because they vary with very small changes of the stellar parameters. This is a particular problem for HD 103095 and its temperature uncertainty of at least 100 K. Note that we have also assumed that [/Fe] = [Mg/Fe]. Two of the remaining three stars, HD 108076 and HD 110897, yield ages that are 5 Gyr above the thin-disk boundary. They are relatively sensitive to changes in both and [/Fe]. Adjusting their ages to the upper limit of the thin-disk requires a temperature correction of +100 K. A single star, HD 59984, can not easily be explained. The age defect is similar to that of the high -element thick-disk stars G63-46 and HD 200580, but both [Mg/Fe] and Vof HD 59984 are more near to thin-disk characteristics.
Nine stars have discrepant kinematics. Four of them are within 10 km s-1 of the kinematic boundary, and they are probably all thick-disk stars. HD 29907 is a thick-disk star if its Al/Mg ratio is used as a criterion. This may or may not have to do with its companion star, but it could also mean that our Al/Mg boundary is a bit too low. In that case, HD 29907 would be a halo star, in better agreement with the drift velocity of V = -151.0 km s-1. HD 69611 is classified as a thick-disk star according to its Al/Mg ratio. Its drift velocity is V = -141.3 km s-1, which is low for our definition, but may represent an outlier of the thick-disk population. HD 88446 is more extreme. According to its abundances and age it is undoubtedly a thin-disk star, which is in apparent conflict with its low drift velocity (-97.3 km s-1). A similar case is HD 96094 with V = -50.1 km s-1, however, this could still be a thin-disk star. As already discussed in Sect. 5.1, HD 148816 represents a real problem. This is a peculiar star both in terms of its abundances or kinematics. It is hard to believe that retrograde orbits are possible in a disk population, but neither Na/Fe nor Al/Fe are within the abundance distributions of halo stars.
Another two stars are problematic. HD 134169 has high [Mg/Fe] = 0.53 and [Al/Fe] = 0.54, which suggests that it belongs to the thick disk whereas both kinematics and age identify it as a thin-disk star. HD 198300 would also be classified as a thick-disk star with [Mg/Fe] = 0.29, whereas both kinematics and age would yield a thin-disk result. The Mg/Fe value is very near to the discrimination boundary, thus taking account of the analysis errors it could be at the top of the thin-disk values.
Among the stars with coherent classification criteria, we find the more metal-rich "halo'' stars G170-56, HD 250792, and BD+202594. With their retrograde orbits, these stars may in fact extend the generally accepted halo star Fe abundances to values as high as [Fe/H] = -0.8 (the so-called metal-rich halo stars). Another explanation would instead identify those stars as members of some accreting process at a very early stage of Galactic evolution (Gratton et al. 2003). However, this would not explain why the stars are much more enriched in iron than the rest of the halo stars. Therefore, we may as well accept them as members of the Galactic halo, which itself could be composed of merging events.
As a result, our classification scheme seems to work well. The [Al/Mg] abundance ratios, together with [Mg/Fe] allow for an immediate identification of nearly 75% of the sample stars. Eliminating the uncertain stellar ages as a population indicator, that number would rise to 87%. Again, reshaping both kinematic and abundance boundaries by a small amount would push the result to 94%. The remaining stars withstand a reasonable identification. They are either peculiar in abundances or kinematics, and they deserve a closer look in future investigations (HD 88446, HD 148816).
The abundance ratios of [Na/Mg] and [Al/Mg] have not been discussed in the literature in much detail since the early work on carbon burning nucleosynthesis published by Arnett & Truran (1969) and Truran & Arnett (1971). The resulting yields of typical supernovae seem to depend on the temperature of the exploding shell, the initial C/O ratio after core He burning, and the neutron excess. In a standard scenario today the above parameters are calculated from exploding supernova models on the basis of consistently chosen model characteristics (see Woosley & Weaver 1995). In this environment 23Na results from carbon burning whereas 27Al would be produced during neon burning with only a small fraction coming from carbon burning. In principle, both elements should therefore be primary.
However, the yields of 23Na and 27Al are both shown to depend on the
available neutron excess
prior to the supernova explosion (Woosley &
Weaver 1995; Arnett 1996, Chap. 9). In stellar generations
hosting already a significant metal abundance, therefore, 23Na and 27Al should
behave more like secondary nuclei obtaining at least a fraction of the
additional neutrons from stable neutron-rich nuclei that were produced in
preceding stellar generations. The smaller the metal mass fraction in the
stellar parent generation, the more important becomes the primary process
based only on 12C produced by He burning. This bimodal scheme was noted
already by Arnett (1971) and Woosley & Weaver (1982), and it
seems to work in the upper panel of Fig. 11 which reproduces Fig. 5, together with the chemical evolution curve of Timmes et al.
(1995). Except for the extremely metal-poor tail, for which we have only
the evidence from a single star (G64-12), we note a shift of the observed [Na/Mg] with respect to the predicted path of chemical evolution by -0.3in [Fe/H]. Most of that shift can be eliminated reducing the iron yield by a
factor of 2 in the theoretical evolution models (see Figs. 17 and 18 of Timmes
et al. 1995). Our [Na/Fe] and [Na/Mg] ratios are then in full
agreement with the predictions of supernova synthesis provided the mass cut is
adjusted as was already proposed by Timmes et al.

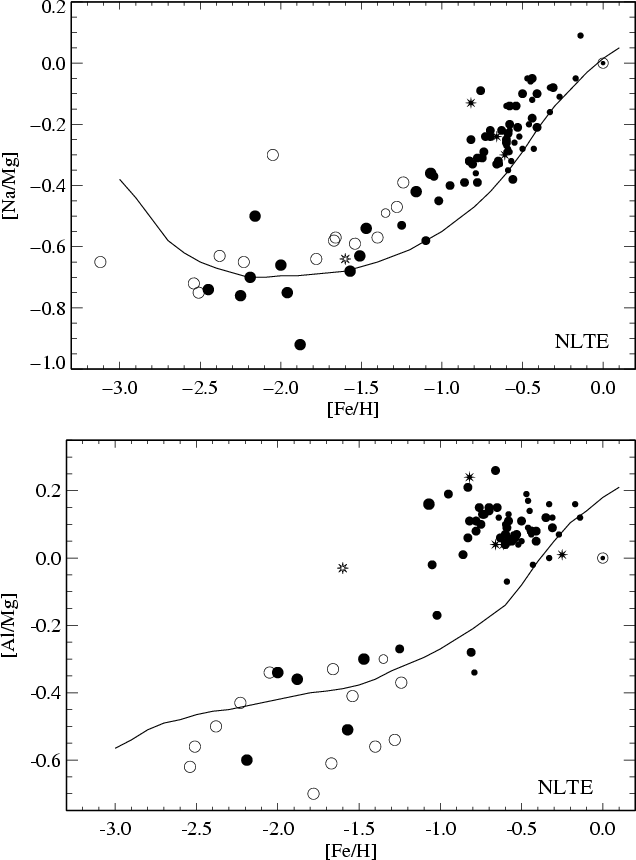

|Figure 11: Galactic evolution of [Na/Mg] and [Al/Mg] abundance ratios. Abundances are the same as in Fig. 5. The theoretical curves are from Timmes et al. (1995).|
|Open with DEXTER|
Ryan et al. (1996) have addressed the problem for Al, although their data did not allow then to detect anything other than a smooth increase of the [Al/Mg] ratio with [Fe/H], with some flattening of the [Al/Fe] ratio at low metal abundances. Their [Al/Mg] ratios differ from that calculated by Timmes et al. (1995), which were based on the explosion models of Woosley & Weaver (1995). They are, however, in agreement with our results, provided that their Al abundances are corrected for relatively strong NLTE effects. As a result, we find in the lower panel of Fig. 11 a significant discrepancy between theoretical and empirical data, not so much for the extremely metal-poor stars but in particular for stars of the thick and thin disk. We have no doubt that our Al/Mg abundance ratios for these stars are well-determined. Differential errors among the abundances should be very small, possibly less than 0.05 dex; therefore the slight increase of the [Al/Mg] ratios towards lower metal abundances in the disk could be real, although it is statistically not significant. But even if the NLTE corrections were cut in half, the [Al/Mg] ratios would be constant in the disk populations, where Timmes et al. predict a factor of two increase. Taken at face value, this means that in disk stars 27Al is not affected by a secondary process.
Why do 23Na and 27Al follow such different enrichment histories? It is obvious that the different behaviour of Na and Al, in particular the primary character of [Al/Mg] in the disk stars, cannot be explained in a simple way. As is already seen from Fig. 6 the two disk populations with 63 stars occupy an abundance level of , which must be considered a very small scatter. On the other hand, the 22 extremely metal-poor (halo) stars show a completely different abundance ratio of . With our current set of data it cannot be excluded that there is a small trend of [Al/Mg] increasing with [Fe/H] at the metal-poor end as is suggested by the more extreme stars in Ryan et al.'s (1996) sample. That would be as well compatible with the results of Cohen et al. (2004) who instead obtain a slight decrease with increasing metal abundance in their most metal-poor stars. Although the scatter among the halo stars is relatively large, it is important to note that here the [Al/Mg] ratio does not vary with [Mg/Fe]. This is the same behaviour as found for the disk populations with the single difference that the Al/Mg ratio in the halo is a factor of three smaller than in the thin or thick disk. Since the distribution of Mg/Fe ratios is similar in halo and (thick) disk populations, the difference must be hidden in the properties of the progenitor stars that produced either of the two abundance ratios.
Tsujimoto et al. (2002) have proposed a scenario in which the [Al/Mg] ratios are produced during two generations of SN-induced star formation. There the enrichment of primary nuclei such as 24Mg depends strongly on the first-generation (Pop III) stellar mass, while the [Al/Mg] ratio varies with the mass of the second-generation supernova. The independence of [Al/Mg] could therefore be due to the parent supernovae. Thus halo stars would be third-generation long-lived objects that have individual (unmixed) chemical properties with a relatively large scatter of [Al/Mg] ratios. This hypothesis could also explain the [Na/Mg] ratios and their smaller scatter in halo stars, but not the different behaviour of the two elements in stars of the disk populations.
In stars of the thick (and thin) disk the [Na/Mg] ratio is well explained as the result of a secondary process, i.e. the increase of metals that feed additional neutrons into the carbon burning shell. The reason for a nearly constant [Al/Mg] ratio in both disk populations remains to be detected.
The results of our spectroscopic investigations of metal-poor stars have brought to light a well-defined criterion to distinguish stars of the two oldest populations of the Galaxy, the thick disk and the halo. The quantity to be observed is the [Al/Mg] abundance ratio which is found to stay below -0.1 in halo stars, and above that limit in the thick disk. This criterion still holds in an approximate way when abundances are determined assuming LTE, although it is then shifted to -0.45.
Due to the strong influence of NLTE effects in the atmospheres of metal-poor stars these abundances cannot be determined in a reliable way assuming LTE. There occurs a step-like change of the [Al/Mg] ratio between the two populations, which is not reproduced in the other neutron-rich light element, sodium. [Na/Mg] varies smoothly with the overall metal abundance behaving like a typical secondary element. The [Na/Mg] ratio is therefore inappropriate to detect a star's population membership.
The other typical properties of Galactic stellar populations, kinematics and age, generally confirm the [Al/Mg] classification, although with much less significance. This is not surprising if thick disk and halo are essentially coeval, as was suggested by Fuhrmann (2004). It is also compatible with the notion of kinematic properties following a broad distribution of velocities.
Whereas the observed [Na/Mg] ratios are well explained by carbon burning as described in Timmes et al. (1995), nucleosynthesis of aluminium requires a discontinuous enrichment, possibly indicating two different sites of element production.
This research was supported by the Deutsche Forschungsgemeinschaft with grants Ge490/28-1, Ge490/30-1 and 446 CHV 112, the Leopoldina Foundation under grant BMBF-LPD 9901/8-87, and by the National Natural Science Foundation of China under grant No. 10433010. We acknowledge in particular the generous support obtained from the Sino-German Center, Beijing, for the Workshop on Stellar Abundances and Galactic Chemical Evolution, held in Qingdao, China, August 2004.
