Abstract
Context. Gamma-ray emission in the TeV (10¹² eV) range has been detected by HESS from two X-ray binaries: PSR B1259-63 and LS 5039. In both, the early-type star provides large numbers of target photons for pair-production with TeV ${\gamma }$ -rays. This results in a modulation of the ${\gamma }$ -ray flux as the relative positions of the ${\gamma }$ -ray source and companion star change with orbital phase for the observer.
Aims. The extent to which this variable absorption can provide useful diagnostics for the location and nature of ${\gamma }$ -ray emission is examined.
Methods. The absorption spectrum and transmitted flux are calculated by integrating the $\gamma \gamma$ cross-section along the line-of-sight, taking into account the orbit, the spectrum and the finite size of the companion star in LS 5039, PSR B1259-63 and LSI +61 ${\hbox {$^\circ $ }}$ 303, a system similar to LS 5039 but still undetected at TeV energies.
Results. In LS 5039, emission close to a black hole or a neutron star primary is considered. In both cases, the transmitted flux >250 GeV drops by an order-of-magnitude near periastron ( $\phi$ = 0). A black hole yields a clear spectral signature in the average spectrum at $\approx$ 400 GeV. A neutron star yields more variability, with the spectral feature moving from 200 GeV ( $\phi$ = 0.1) to 3 TeV ( $\phi$ = 0.7). Only 20% of the flux is absorbed at $\phi$ = 0.7, allowing for an almost direct view of the intrinsic spectrum. Low variability will require emission on large scales, more than 0.7 AU away to have <50% absorption in a jet. In LSI +61 ${\hbox {$^\circ $ }}$ 303, significant absorption (up to 90% of the 100 GeV flux) is predicted only slightly before periastron, accompanied by a spectral hardening above 1 TeV. In PSR B1259-63, although 40% of the flux is absorbed before periastron, the large variability seen by HESS is due to the ${\gamma }$ -ray emission process.
Conclusions. The predictions made here are essential to distinguish variability in the emission of ${\gamma }$ -rays from that due to absorption. A modulation would provide a novel way to constrain the ${\gamma }$ -ray source. Its absence would imply that ${\gamma }$ -ray emission occurs on large scales.

Key words: radiation mechanisms: non-thermal - stars: individual: LS 5039 - stars: individual: LSI +61 ${\hbox {$^\circ $ }}$ 303 - stars: pulsars: individual: PSR B1259-63 - gamma rays: theory - X-rays: binaries

Massive X-ray binaries, composed of a neutron star or black hole in orbit around an early-type star, have long been recognized as possible ${\gamma }$ -ray emitters (Weekes 1992). Recently, the HESS collaboration has reported very high energy (VHE) ${\gamma }$ -ray emission in the TeV (10¹² eV) range from two such systems. The first, PSR B1259-63 (=SS 2883) is a 47.7 ms radio pulsar in a 3.4 yr orbit around a B2Ve star. Variable ${\gamma }$ -ray emission was detected by HESS during periastron passage (Aharonian et al. 2005c). Here, the relativistic pulsar wind is confined by the stellar wind from the massive companion. Particles at the termination shock produce the non-thermal emission (Tavani et al. 1994). The second, LS 5039 (=RX J1826.2-1450), is a tight 4-day binary composed of an O6V star and an unknown compact object. Resolved radio emission from the source is thought to arise from a weakly relativistic jet with $v\approx0.3c$ ; LS 5039 has also been associated with the EGRET source 3EG 1824-1514 (Paredes et al. 2000). This suggests LS 5039 might be a scaled-down analogue of extragalactic blazars. The VHE emission is hard (power law photon index $\approx$ -2) and continuously detected over a timespan of 3 months in 2004 (Aharonian et al. 2005b).

The large stellar luminosity (2 $\times$ $10^5~L_\odot$ in LS 5039) provides an abundant source of seed photons for inverse Compton scattering with high energy particles. At the same time, the dense radiation field can absorb very high energy ${\gamma }$ -ray emission through pair production $\gamma\gamma\rightarrow {\rm e}^+{\rm e}^-$ (Gould & Schréder 1967). With stellar effective temperatures in the 20 000-40 000 K range, the typical target photon energy is a few eV which is in the energy range for pair production with TeV photons. The cross-section maximum occurs close to the threshold energy and has an amplitude $\sigma_{\gamma\gamma}\approx \sigma_{\rm T}/5$ where $\sigma_{\rm T}$ is the Thomson cross-section. The star luminosity is very high ( 10³⁸-10³⁹ erg s^-1) for radii $\sim$ $10~R_\odot$ . At a distance $d\approx$ 0.1 AU corresponding to periastron in LS 5039 (see Sect. 3), the stellar radiation density in 3.5 eV photons is $n_\star\approx 10^{14}~{\rm photons~cm}^{-3}$ . A rough estimate of the ${\gamma }$ -ray opacity is $\tau_{\gamma\gamma}\approx \sigma_{\gamma\gamma}n_\star d\approx 20$ . The detection of VHE photons from LS 5039 is therefore intriguing.

The $\gamma \gamma$ opacity depends strongly on the geometry. The opacity can be greatly reduced compared to the simple estimate above because line-of-sight ${\gamma }$ -rays travel in an anisotropic radiation field. Diffusion in the wind is too small to significantly isotropize radiation (Böttcher & Dermer 2005). The absorption will vary depending upon the relative location of the source of ${\gamma }$ -rays, the companion star and the observer. In binary systems, the orbit and companion star type can be constrained by optical observations. If ${\gamma }$ -ray emission is isotropic and close to the compact object, absorption will be periodically modulated in a predictable way (Moskalenko 1995; Protheroe & Stanev 1987). Contrast this situation with that in blazars, where the sources of radiation (accretion disc, broad line region) that can absorb ${\gamma }$ -rays close to their production site are poorly known. A generic overview of $\gamma \gamma$ absorption in binaries is presented in Sect. 2.

The effects of ${\gamma }$ -ray absorption are predicted in Sects. 3 and 4 for LS 5039, PSR B1259-63 and LSI +61 ${\hbox {$^\circ $ }}$ 303 (=V615 Cas), a system very similar to LS 5039. Comparisons with existing or future observations (will) provide useful diagnostics of the location of ${\gamma }$ -ray emission and its nature. Böttcher & Dermer (2005) present calculations for LS 5039, focusing on emission from a black hole jet, and assuming e=0 and a point source approximation for the star. Here, expected differences in absorption lightcurves and spectra for ${\gamma }$ -ray emission close to a black hole or a neutron star primary are examined for LS 5039 and LSI +61 ${\hbox {$^\circ $ }}$ 303 using the measured orbits and taking into account the finite star size. Expectations if emission arises from a jet are considered in Sect. 5. In this work, the $\rm e^+e^-$ pairs created by absorption are assumed to escape the system or radiate at much lower frequencies. Possible caveats when the pairs radiate back in ${\gamma }$ -rays and initiate an electromagnetic cascade are discussed in Sect. 6.

2 VHE ${\gamma }$ -ray opacity around massive stars

$\begin{figure} \par\includegraphics[width=15.25cm,clip]{4233fi1}\end{figure}$

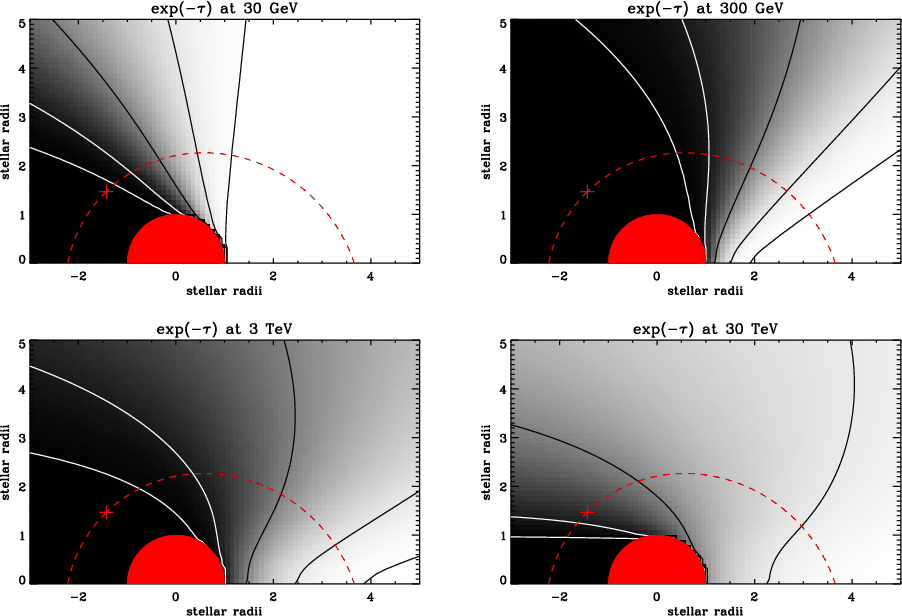

Figure 1: Gamma-ray absorption map around a massive star. The grey-scale at each location corresponds to the integrated $\gamma \gamma$ absorption seen by a VHE photon emitted at this location and travelling in the plane of this figure towards an observer located at infinity to the right. The plotted value is exp $(-\tau _{\gamma \gamma })$ , on a linear scale with black corresponding to high absorption and white to low absorption. Absorption is shown for VHE photons with energies of 30 GeV, 300 GeV, 3 TeV and 30 TeV. Full lines are contours corresponding to 99%, 90% (white), 50%, 10% and 1% (black) of the emitted flux being absorbed. The star is located at the origin, has a 10 $R_\odot$ radius and an effective temperature of 40 000 K. The orbit of the binary system LS 5039 is (partially) shown as a dotted line for illustrative purposes. Here, the binary would be seen edge-on (i = 90 $^\circ$ ) by the observer at right. Gamma-rays emitted close to the compact object towards this observer are more or less absorbed according to orbital phase, with maximum absorption occurring after periastron (marked by a cross). The resulting flux modulation would be close to that shown in Fig. 2 for the case of i = 60 $^\circ$ .

Open with DEXTER

The absorption of a ${\gamma }$ -ray of energy E on a star photon of energy $\epsilon$ occurs above an energy threshold given by (Gould & Schréder 1967)

The cross-section maximum occurs close to the threshold, a useful feature for quick estimates but one that errs as the angular dependence has a significant effect. For instance, ${\gamma }$ -rays propagating directly away from the source of target photons are not absorbed (the energy threshold given by Eq. (1) is infinite). The decrease in the radiation field density when integrating over the photon path also reduces the total opacity. The opacity seen by a ${\gamma }$ -ray of given energy will therefore depend strongly on its emission location with respect to the star in the binary.

The opacity depends also on the spectrum of target photons. High energy ${\gamma }$ -rays are able to interact with the stellar Rayleigh-Jeans tail while lower energy ${\gamma }$ -rays interact with the exponentially decreasing Wien part. At periastron, the compact object in LS 5039 is only $\approx$ 1 $R_\star$ away from the surface of the star (Fig. 1). The finite size of the star can change results from a point source approximation (e.g. Moskalenko 1995), notably by giving a non-zero opacity for a radially outgoing ${\gamma }$ -ray. All these effects can be accurately computed (Appendix).

2.1 Angular dependence

A map of absorption around a star is shown in Fig. 1 for various ${\gamma }$ -ray energies. The star has an effective temperature $T_\star= 40~000$ K and radius $R_\star=10~{R}_\odot$ , appropriate for the O6.5V star in LS 5039 (Sect. 3). The grey scale represents the amount of flux absorption exp $(-\tau _{\gamma \gamma })$ depending upon location of ${\gamma }$ -ray emission. The ${\gamma }$ -rays are emitted in the plane of the figure, towards an observer situated at infinity to the right. Note that the solution has cylindrical symmetry about the line-of-sight to the star center.

At low energies, the opacity is small until the ${\gamma }$ -ray has an energy above the minimum threshold for head-on interaction with stellar photons $kT_\star$ . The opacity then rises quickly as the target radiation density initially increases exponentially. At progressively larger ${\gamma }$ -ray energies, the dominant effect in setting the opacity becomes the angular dependence (top panels).

At a given ${\gamma }$ -ray energy, there is a cone pointing outwards close to the star for which $\tau_{\gamma\gamma}$ is reduced. The opening angle roughly corresponds to the threshold for interaction with stellar photons at the Wien cutoff. Keeping $\epsilon(1-\vec{e}_\gamma \vec{e}_\star)$ constant in Eq. (1) and starting on the x-axis, ${\gamma }$ -rays interact with an exponentially increasing density of stellar photons as the angle increases. However, because of the finite size of the star, the absorption can still be high in this cone if the ${\gamma }$ -ray is emitted close to the star. For example, >50% of the 3 TeV photons emitted outwards <0.5 $R_\star$ away from the star are still absorbed (bottom left panel of Fig. 1).

As the energy of the ${\gamma }$ -ray further increases (bottom panels), the dominant effect in modifying the opacity is the decrease in radiation density since the interaction now occurs with Rayleigh-Jeans photons. The decrease in opacity is then roughly independent of location. The situation is slightly more complex on-axis as the angular dependence is always important there.

2.2 Orbital variability

The existence of a cone with low ${\gamma }$ -ray opacity shows that VHE emission can occur close to the massive star without significant absorption. However, this configuration is variable as the binary aspect changes for the observer. Assuming isotropic emission close to the compact object, in a small region compared to the binary size, the resulting absorption lightcurve at a given energy depends on the orbital parameters (orbital period $P_{\rm orb}$ , total mass M, eccentricity e, periastron longitude $\omega$ and inclination i, see Appendix). Knowledge of the orbital parameters obtained, for example, via pulsar timing or radial velocity studies, leads to constraints on the physics of VHE emission by comparing expected and observed lightcurves.

The case for which absorption is invariant of orbital phase is for a face-on, circular (i=e=0). An inclined, circular orbit results in absorbed flux lightcurves which are symmetric with respect to the orbital phase of superior or inferior conjuction. The changing orbital separation in an eccentric orbit varies the absorption even with i=0 $^\circ$ . Eccentric orbits typically result in ${\gamma }$ -ray lightcurves with a flux dip at periastron.

2.3 Absorbed spectrum

The maps in Fig. 1 show that the extinction depends on location but also on energy. Pure ${\gamma }$ -ray absorption produces an absorption trough in the spectrum that, if measured, can provide important diagnostics for emission processes (Böttcher & Dermer 2005). The location of maximum absorption changes as the compact object revolves around the massive star, providing further diagnostic power. The trough is quite wide, becoming obvious only for data covering a large span in energies. For temperatures typical of massive stars, this span is $\sim$ 30 GeV-30 TeV (Sect. 3). The emitted ${\gamma }$ -ray spectrum is softened by absorption in data limited to the low energy end ( $\la$ 300 GeV) while it is hardened at high energies ( $\ga$ 300 GeV). In contrast, the spectral energy distribution of the extragalactic background light results in a softening at TeV energies of the emitted ${\gamma }$ -ray spectrum from blazars (Stecker et al. 1992). Gamma-ray absorption by Galactic background radiation is negligible for X-ray binaries.

3 Gamma-ray absorption in LS 5039

The origin of the VHE emission detected by HESS from LS 5039 has yet to be established. An intriguing possibility is that the emission occurs in a relativistic jet as in blazars. Resolved radio emission in LS 5039, attributed to a mildly relativistic jet, constitutes a strong argument in favour of this possibility. Alternatively, the VHE emission could be a result of the interaction of a pulsar relativistic wind with the stellar wind from the massive star, as in PSR B1259-63 (Tavani et al. 1994; Maraschi & Treves 1981). The similarity in spectral energy distributions between LS 5039 and PSR B1259-63 argues in favour of this interpretation.

Can the expected ${\gamma }$ -ray absorption be used to investigate the origin of the ${\gamma }$ -ray emission? The star temperature and radius derived from optical spectroscopy are $T_\star\approx39~000$ K and $R_\star\approx9.3~R_\odot$ (Casares et al. 2005a, thereafter C05). The star mass is $\approx$ $23~M_\odot$ . Radial velocity studies provide a good determination of $P_{\rm orb}\approx 3.906$ days, eccentricity $e\approx0.35$ and periastron angle $\omega\approx226$ $^\circ$ . The orbital solution of C05, which includes data from McSwain et al. (2004) whilst adding better phase coverage, supersedes previous determinations. By assuming that the secondary is pseudo-synchronized (in co-rotation at periastron), C05 find $i\approx25$ $^\circ$ and a compact object mass 3.7 $\pm$ $1.3~M_\odot$ . Whether the star has had time to pseudo-synchronize in this young, massive X-ray binary is not clear, and a neutron star cannot be firmly ruled out yet. Taking into account the mass function and the more conservative constraints on the system inclination i derived by C05, two orbital solutions are adopted here to illustrate the possible extremes: one with i=60 $^\circ$ , corresponding to a canonical 1.4 $M_\odot$ neutron star; and one with i=20 $^\circ$ , implying a 4.5 $M_\odot$ black hole.

Hereafter, the ${\gamma }$ -ray emission is assumed constant, isotropic and occuring in a small region (compared to the binary separation) close to the compact object. Pairs created by the absorption of ${\gamma }$ -rays are further assumed to escape freely or to radiate their energy at frequencies below those of interest. These assumptions are examined in Sects. 5 and 6. The aims are to investigate (1) how much absorption occurs and at what phases; (2) expected observational signatures; (3) whether a black hole or a neutron star primary can be distinguished.

3.1 Orbital variation of absorption

$\begin{figure} \par\includegraphics[width=7.55cm,clip]{4233fi2a}\vspace*{5mm} \includegraphics[width=7.55cm,clip]{4233fi2b}\end{figure}$

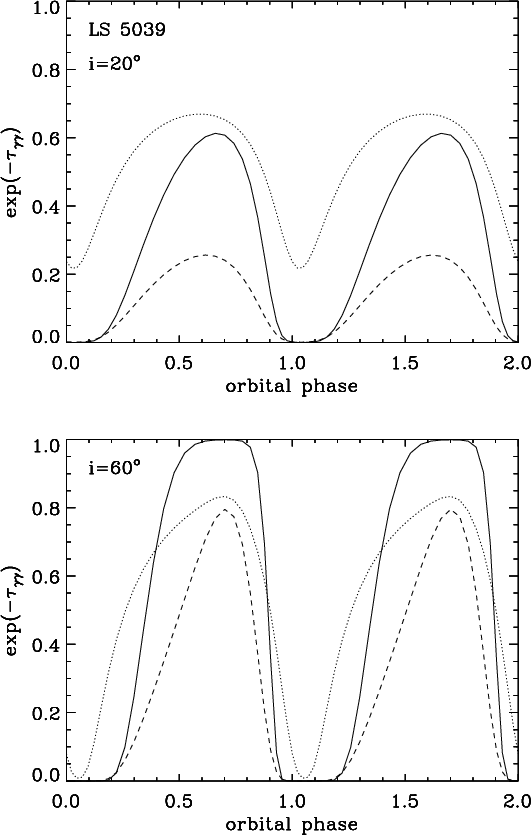

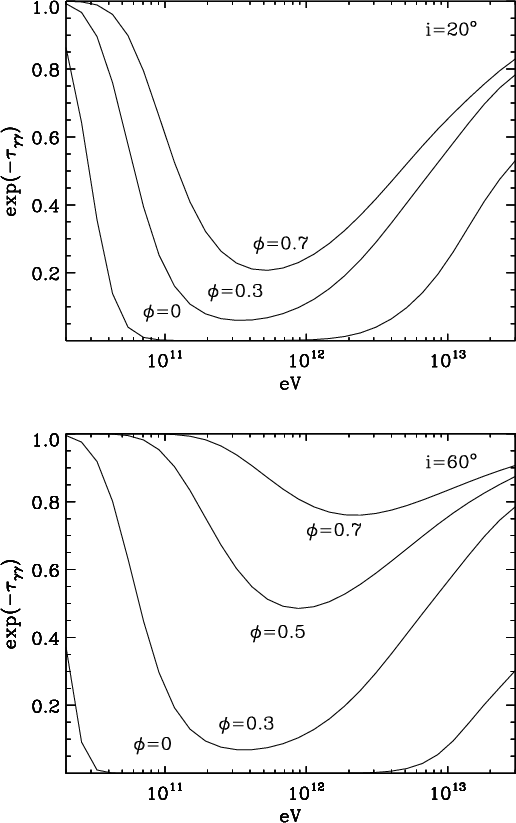

Figure 2: Modulation of the ${\gamma }$ -ray transmission exp $(-\tau _{\gamma \gamma })$ with orbital phase in LS 5039 for two values of the system inclination i. A canonical neutron star corresponds to i=60 $^\circ$ while i=20 $^\circ$ implies a $4.5~M_\odot$ black hole. Isotropic ${\gamma }$ -ray emission is assumed to occur at the location of the compact object. The solid line is for 100 GeV photons (HESS threshold), dashed is for 1 TeV and dotted for 10 TeV photons. Periastron passage is at $\phi =0$ .

Open with DEXTER

$\begin{figure} \par\includegraphics[width=7.55cm,clip]{4233fi3}\end{figure}$

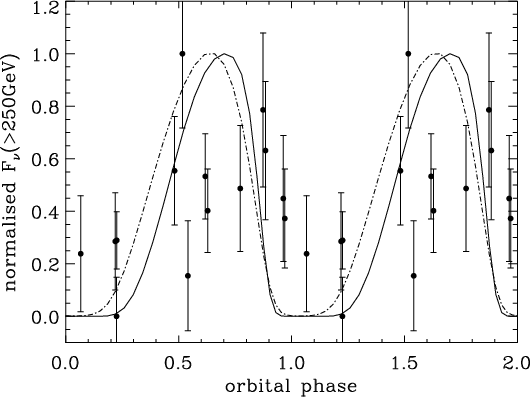

Figure 3: HESS observed lightcurve of LS 5039 in 2004 (points with error bars, Aharonian et al. 2005b), folded on the orbital period using the ephemeris of C05. The expected lightcurve caused by absorption is plotted as a solid line for i=60 $^\circ$ and as a dashed line for i=20 $^\circ$ . Here, the lightcurves are integrated above 250 GeV and normalized to their maximum (Fig. 2 showed the absorption for given energy). The orbital phase of the peak and the duration of strong absorption (>90%) are different between emission close to a black hole (i=20 $^\circ$ ) and close to a neutron star (i=60 $^\circ$ ).

Open with DEXTER

$\begin{figure} \par\includegraphics[width=7.35cm,clip]{4233fi4a}\vspace*{5mm} \includegraphics[width=7.35cm,clip]{4233fi4b}\end{figure}$

Figure 4: Spectrum of ${\gamma }$ -ray absorption at selected orbital phases $\phi$ for two inclinations i of LS 5039 (see Fig. 2). The absorption spectrum varies little for i=20 $^\circ$ . The line-like absorption feature may therefore be easier to detect for low inclinations, despite the stronger absorption near periastron for i=60 $^\circ$ . In the latter case, although spectral variations will be easier to detect, the large differences in absorption spectrum can swamp out the line feature in a phase-averaged spectrum. An almost absorption-free view of the intrinsic spectrum is expected at flux maximum for i=60 $^\circ$ .

Open with DEXTER

The orbital variation of ${\gamma }$ -ray absorption at various energies is shown in Fig. 2 for i=20 $^\circ$ and i=60 $^\circ$ . In both cases, significant absorption in the 0.1-1 TeV band is predicted at periastron. The opacity reaches $\tau_{\gamma\gamma}\approx 40$ at phase $\phi\approx0.1$ for 200 GeV photons (i=60 $^\circ$ ). However, the opacity is smaller than unity over a large fraction of the orbit. VHE ${\gamma }$ -rays escape because of the anisotropy of the target radiation field. The minimum absorption (peak flux) occurs at $\phi\approx 0.6$ when the compact object is far from the star and close to the observer.

A non-detection of the periodic variation by HESS would suggest that ${\gamma }$ -ray emission occurs far from the companion star. Indeed, the available HESS lightcurve from 2004 is statistically constant at the 15% confidence level (Aharonian et al. 2005b). A periodogram shows no peak with more than 2 $\sigma$ significance (Aharonian et al. 2005b). However, only 14 nightly flux averages over 120 days are available. Future observations will allow firmer conclusions to be drawn.

The amplitude and asymetry of the variation decrease with inclination. However, these differences may be difficult to distinguish when comparing to observations of lightcurves integrated above the instrumental enegy threshold. The absorbed fluxes for the two inclinations are plotted in Fig. 3 along with the HESS 2004 lightcurve from Aharonian et al. (2005b). The intrinsic spectrum was assumed to be a power law ${\rm d}N_\gamma\propto E^{-2.4}{\rm d}E$ , which was integrated after absorption above the same threshold as the HESS data (250 GeV) to yield the expected flux variations. The average expected photon index is consistent in both cases with the HESS measurement (-2.12 $\pm$ 0.15, Aharonian et al. 2005b). For an inclination of 20 $^\circ$ (black hole), the average fraction of the intrinsic flux that is absorbed above 250 GeV is 89%. For i=60 $^\circ$ (neutron star), the fraction is 64%. In Fig. 3, the observed and expected lightcurves are renormalised to their maximum. The length of the absorption "eclipse'' is longer and the peak flux occurs later in phase for a high inclination.

3.2 Absorption spectrum

The average absorption is greater for low inclinations as the angle between the star, emission location and observer ( $\psi$ , Fig. A.1) stays close to 90 $^\circ$ . Therefore, spectral signatures of $\gamma \gamma$ absorption should be easier to see in a phase-average spectrum if emission occurs close to a black hole.

The absorption spectra expected at various orbital phases, and for the two inclinations considered, are shown in Fig. 4. There is a clear absorption at all orbital phase with limited spectral changes in the i=20 $^\circ$ case (black hole). The shape is roughly independent of phase with maximum absorption occuring around 400 GeV. In contrast, the energy of maximum absorption changes dramatically in the i=60 $^\circ$ case, shifting from 0.2-0.3 TeV to 2-3 TeV when going from orbital phase $\phi=0.1$ to $\phi=0.7$ . Hence, more dramatic changes are expected in phase-binned spectra if the inclination is high.

The 2004 HESS spectrum covers the 0.3-3 TeV range. Weighting by the integrated flux, the phase-averaged absorption for i=20 $^\circ$ would produce a hardening of almost 0.5 of the intrinsic photon index between 0.3-3 TeV, assuming power-law emission at the source. Of course, a single power-law fit would not be an adequate description for a high S/N spectrum of the absorbed ${\gamma }$ -rays. When i=60 $^\circ$ , the amplitude of the variations in absorption is greater, but the phase-averaged hardening is slight, $\approx$ 0.1 in photon index. Spectral changes are complex in this case, depending upon energy threshold. Above a few TeV, the overall effect is a spectral hardening at low fluxes compared to high fluxes. With a threshold at a few 0.1 TeV, the spectrum may appear to soften at high fluxes as the absorption trough moves to more than a TeV and more low energy photons are detected. For a neutron star, the orbital phase at which the flux peaks provides an almost direct view of the intrinsic spectrum, with at most $\approx$ 20% absorption at 2-3 TeV. The intrinsic spectrum is always significantly absorbed ( $\tau_{\gamma\gamma}\ga 1$ ) in the black hole case.

4 Gamma-ray absorption in LSI +61 ${\hbox {$^\circ $ }}$ 303 and PSR B1259-63

Absorption in LSI +61 ${\hbox {$^\circ $ }}$ 303 and PSR B1259-63 is investigated here under identical assumptions as LS 5039 for the gamma-ray emission (constant, isotropic, close to compact object). PSR B1259-63 has been detected by HESS near periastron. Inaccessible to HESS (but accessible to MAGIC and VERITAS), LSI +61 ${\hbox {$^\circ $ }}$ 303 has yet to be detected by ground-based Cherenkov telescopes.

4.1 LSI +61 ${\hbox {$^\circ $ }}$ 303

LSI +61 ${\hbox {$^\circ $ }}$ 303 is a massive X-ray binary with a very similar spectral energy distribution to LS 5039. It also has resolved radio emission. LSI +61 ${\hbox {$^\circ $ }}$ 303 has long been associated to hard ${\gamma }$ -ray emission with possible counterparts seen by Cos-B and EGRET. This prompted Maraschi & Treves (1981) to propose that high energy emission in LSI +61 ${\hbox {$^\circ $ }}$ 303 is powered by an interacting pulsar wind. Jet models have been proposed by Bosch-Ramon & Paredes (2004) and Romero et al. (2005). The B0V star has $T_\star\approx 22~500$ K and $R_\star\approx 10~R_\odot$ . Recently, Casares et al. (2005b) have updated the orbital parameters from optical spectroscopy, finding $P_{\rm orb}\approx 26.496$ days, $e\approx0.72$ , $\omega\approx21$ $^\circ$ . Radial velocity studies are insufficient to rule out a neutron star. As with LS 5039, two cases are studied, representing extremes compatible with observations; one with i=60 $^\circ$ for a 1.4 $M_\odot$ neutron star, and one with i=20 $^\circ$ for a 4 $M_\odot$ black hole.

The absorption lightcurve is shown for both cases in Fig. 5. The orbit is wider than in LS 5039 so that the variation in ${\gamma }$ -rays absorption occurs essentially only close to periastron. The distance to the star is then $\approx$ 0.1 AU, as with LS 5039. The stellar luminosity is lower in LSI +61 ${\hbox {$^\circ $ }}$ 303 than in LS 5039, so that not all the ${\gamma }$ -rays are absorbed at periastron despite the similar distance. At apastron the orbital separation is $\approx$ 0.7 AU but there is still some absorption, around $20\%$ of the 1 TeV flux, because the compact object is behind the star when projecting the orbit onto the sky.

The amplitude of the variations is greater at high inclinations, as in LS 5039. The spectral changes expected close to periastron for i=60 $^\circ$ are dramatic, with peak emission that follows the minimum within a few days. Figure 5 shows the strong hardening of the spectrum above 1 TeV with lower fluxes. The absorption feature outside of periastron is a 20% effect. LSI +61 ${\hbox {$^\circ $ }}$ 303 suffers less absorption for most of its orbit so should be more easily detected at VHE energies than LS 5039, if the same processes are indeed at work in the two.

$\begin{figure} \par\includegraphics[width=7.55cm,clip]{4233fi5a}\vspace*{5mm} \includegraphics[width=7.55cm,clip]{4233fi5b}\end{figure}$

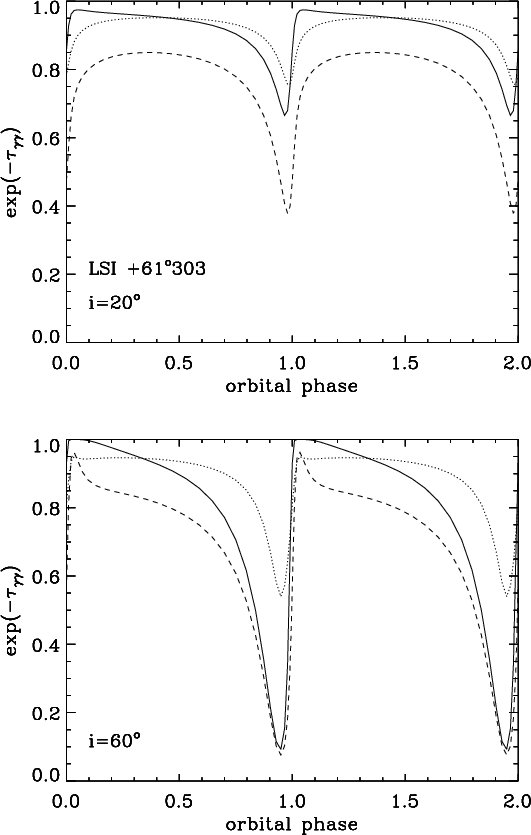

Figure 5: Modulation of the ${\gamma }$ -ray transmission with orbital phase in LSI +61 ${\hbox {$^\circ $ }}$ 303 for i=20 $^\circ$ (4 $M_\odot$ black hole) and i=60 $^\circ$ (1.4 $M_\odot$ neutron star). The solid line is for 100 GeV photons, dashed is for 1 TeV and dotted for 10 TeV photons. Significant absorption occurs only slightly before periastron ( $\phi =0$ ) in both cases. As with LS 5039, a higher inclination leads to a larger amplitude of absorption.

Open with DEXTER

$\begin{figure} \par\includegraphics[width=7.35cm,clip]{4233fi6} \end{figure}$	Figure 6: LSI +61 ${\hbox {$^\circ $ }}$ 303 absorption spectrum at orbital phases $\phi =0.05$ , 0.5 and 0.95 assuming i=60 $^\circ$ (see bottom panel of Fig. 5). There is a dramatic spectral change within a couple of days of periastron.
Open with DEXTER

4.2 PSR B1259-63

$\begin{figure} \par\includegraphics[width=7.35cm,clip]{4233fi7}\end{figure}$

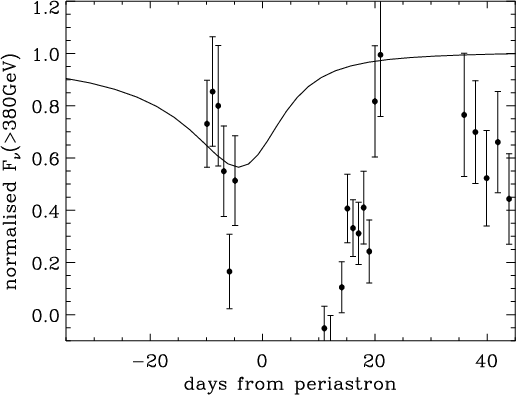

Figure 7: Modulation caused by ${\gamma }$ -ray absorption around periastron in PSR B1259-63. The data points are the HESS integrated lightcurve above 380 GeV measured during the 2004 periastron passage (Aharonian et al. 2005c). The data are renormalised to the maximum 10^-7 m^-2 s^-1. The solid line is the integrated flux above the same threshold after absorption, assuming constant power law emission wih a photon index of -2.8. Absorption plays a minor role in the observed variability.

Open with DEXTER

Pulsar timing in PSR B1259-63 allows an accurate determination of orbital parameters: $P_{\rm orb}\approx 1236.7$ days, $e\approx0.87$ , (star) $\omega\approx138.7$ $^\circ$ , $i\approx 35$ $^\circ$ . The star has $T_\star\approx 27~000$ K and $R_\star\approx 10~R_\odot$ for a total luminosity of 5.8 $\times$ $10^4~L_\odot$ (Johnston et al. 1994). Figure 7 shows the expected lightcurve around periastron passage, taking only absorption into account. The ${\gamma }$ -rays are emitted at the pulsar location with a power law spectrum ${\rm d}N_\gamma\propto E^{-2.8}{\rm d}E$ . The pulsar is $\approx$ 10¹³ cm at its closest to the Be star, further away than LS 5039 or LSI +61 ${\hbox {$^\circ $ }}$ 303. Although the pulsar is $\ga$ 20 $R_\star$ away from the star, there is still some absorption because of the orbital orientation; photons emitted at $\phi\approx 0$ must travel near the star on their way to the observer.

Maximum absorption occurs slightly before periastron, with up to 40% of the ${\gamma }$ -rays above the HESS threshold (380 GeV) being absorbed. The measured HESS lightcurve has a greater amplitude with a minimum occuring later than expected. Absorption is clearly not sufficient to explain the observations and some of the variability must be intrinsic. A likely possibility is the angle-dependence in the inverse Compton interactions producing the TeV emission (Kirk et al. 1999). VHE emission would not be isotropic. Models should be compared to absorption corrected fluxes. Finally, hardening by absorption of the 0.3-3 TeV spectrum is at most 0.2 in photon index, too small to be measured by HESS.

5 LS 5039 and LSI +61 ${\hbox {$^\circ $ }}$ 303: opacity in a jet?

Are there good reasons to expect that ${\gamma }$ -rays are emitted at the location of the compact object? For a binary plerion like PSR B1259-63, most of the VHE emission should occur close to the pulsar wind termination shock (Kirk et al. 1999; Tavani et al. 1994). The overall geometry is set by the stagnation point $R_{\rm s}$ , the point on the orbital axis where ram pressure from the stellar and pulsar wind balance (Maraschi & Treves 1981). For LS 5039, $(R_{\rm s}/d) \approx 0.1\dot{E}_{36}^{1/2}$ where d is the orbital separation (0.1-0.2 AU in LS 5039) and $\dot{E}_{36}=10^{36}$ erg s^-1 is the pulsar spindown power (taken equal to that measured in PSR B1259-63). The assumed stellar wind has a mass loss rate of $10^{-7}~M_\odot$ yr^-1 and a coasting speed $v_{\rm w}=2000$ km s^-1, appropriate to LS 5039 (C05). The stagnation point in PSR B1259-63 is also at about a tenth of the orbital separation (Tavani et al. 1994). VHE emission in this case can be expected to occur on a small scale compared to the orbital separation, close to the pulsar.

There is no such certainty with a black hole (or neutron star) jet. Jet models for the ${\gamma }$ -ray emission have been proposed for both LS 5039 and LSI +61 ${\hbox {$^\circ $ }}$ 303 (Paredes et al. 2005; Bosch-Ramon & Paredes 2004; Romero et al. 2005). Although the gravitational potential energy reservoir that can be tapped is largest close to the black hole, most of the energy may not be radiated there if it is carried by protons or Poynting flux (Sikora et al. 2005). Shocks or reconnection can convert kinetic or electromagnetic energy into radiation progressively over large distances, up to a termination shock with the ISM. There is evidence for X-ray synchrotron emission on parsec scales from high energy electrons in the relativistic jet of XTE J1550-564 (Corbel et al. 2002).

5.1 Variation with height

The change in flux absorption with height above the orbital plane in LS 5039 is shown in Fig. 8. The inclination is 20 $^\circ$ and the black hole is at periastron. Absorption decreases to less than 50% at all energies when emission occurs more than $\approx$ 0.7 AU away from the plane, as discussed in Aharonian et al. (2005b,a) and Böttcher & Dermer (2005). The same calculation for LSI +61 ${\hbox {$^\circ $ }}$ 303 yields a distance of $\approx$ 0.1 AU. If VHE emission can be independently linked to a relativistic jet, a lack of temporal or spectral absorption signatures will imply emission at large distances.

Unlike TeV blazars, the target photon field here is external to the jet and $\gamma \gamma$ absorption will not be reduced by relativistic aberration. At a given energy, the dependence of the opacity with height is set by the companion light, providing constraints on models as in Blandford & Levinson (1995) where the jet is structured by the ${\gamma }$ -photosphere.

5.2 Beaming

The height at which $\tau_{\gamma\gamma}<1$ in LS 5039 corresponds to roughly 10⁷ gravitational radii $R_{\rm g}$ for a stellar mass black hole. In blazars, VHE emission is often proposed to occur in the broad line region at parsec-scales, i.e. about $10^4~R_{\rm g}$ for a $10^9~M_\odot$ black hole. In the internal shock model, the distance of first interaction is $\sim$ $\Gamma^2 c\Delta t$ where $\Delta t$ is the observed timescale and $\Gamma$ is the typical bulk Lorentz factor of ejecta (Spada et al. 2001). Assuming LS 5039 is a genuine microblazar with scaled-down physics, then $\Delta t$ would be reduced with black hole mass. For the given emission distances, the conclusion would be that $\Gamma$ in LS 5039 is at least the same, if not higher than in blazars.

Could ejections in LS 5039 have $\Gamma\approx 10$ , as inferred in blazars from opacity arguments and ${\gamma }$ -ray modelling (Ghisellini et al. 1998; Dondi & Ghisellini 1995)? Emission from a jet will be deboosted if viewed at an angle larger than $\approx$ 25 $^\circ$ for $\Gamma$ = 10. The system inclination required for a black hole primary is close to this value. In this case, emission from a jet perpendicular to the orbital plane would not be boosted. This might fit with the weak X-ray to ${\gamma }$ -ray luminosity observed ( $\sim$ 10³⁴ erg s^-1). Then, LS 5039 would not be a genuine microblazar with the jet along the line-of-sight.

Current VLBI radio observations of LS 5039 only indicate a mildly relativistic outflow with $v\la0.4c$ (Paredes et al. 2000). Yet, the Lorentz factors of TeV blazars deduced from $\gamma \gamma$ absorption are known to be much greater than those measured at larger distances by VLBI observations (Piner & Edwards 2004). In both cases, there would be a puzzling discrepancy between the high $\Gamma$ inferred from ${\gamma }$ -ray studies and the low $\Gamma$ measured on larger scales in radio.

$\begin{figure} \par\includegraphics[width=7.35cm,clip]{4233fi8}\end{figure}$

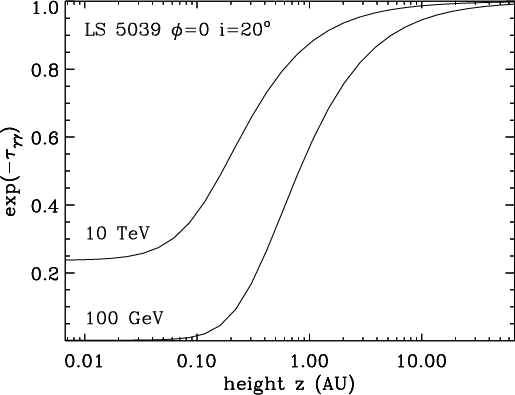

Figure 8: Variation in transmitted flux with height z above the plane in LS 5039. The assumed jet is perpendicular to the orbital plane, the inclination is 20 $^\circ$ and the black hole is at periastron. The absorption is shown for 100 GeV and 10 TeV photons. The curve for 1 TeV photons would be indistinguishable from the 100 GeV curve in this plot. VHE photons emitted a few AU away from the black hole suffer little absorption. For comparison purposes, the orbital separation in LS 5039 varies between 0.1 and 0.2 AU.

Open with DEXTER

6 Effect of pair production

The $\rm e^+e^-$ pairs created by absorption can boost stellar photons to very high energies via inverse Compton interactions. These ${\gamma }$ -rays can in turn be absorbed and a cascade follows. The initial pair created by absorption of a 1 TeV photon has a Lorentz factor $\gamma \approx 10^6$ . In LS 5039, their inverse Compton interaction with stellar photons occurs in the Klein-Nishina regime on a timescale $t_{\rm KN}\approx8\gamma_6 d_{0.1}^2 \left[\ln \gamma_6 +1.2 \right]~{\rm seconds}$ (Blumenthal & Gould 1970), with d_0.1 = 0.1 AU. Hence, the typical distance travelled by the pair before a photon is boosted to high energies is small enough compared to the binary size to start a cascade. However, the cascade will be quenched if the pair loses energy preferentially to another emission process that does not re-emit VHE ${\gamma }$ -rays (e.g. synchrotron; Aharonian et al. 2005a; Bednarek 1997).

The cascade reduces the effective $\tau_{\gamma\gamma}$ , since absorbed ${\gamma }$ -rays are partly re-radiated (at lower energies). If $\tau_{\gamma\gamma}$ is very high, energy initially radiated in the absorbed band is degraded to frequencies below the pair production threshold ( $\la$ 30 GeV in LS 5039). The pile up at these frequencies might account for the luminosity step between the EGRET (GeV energies) and HESS (TeV energies) measurements (see Fig. 1 in Aharonian et al. 2005a). Absorption of a constant spectrum in $\nu F_\nu$ from GeV to TeV energies cannot account for this difference. Such a spectrum would, on average, only be absorbed by a factor 3-10 above 250 GeV (Sect. 3.1) when the luminosity jump is $\approx$ 30. Taking into account the photons degraded to lower energies by the cascade would raise the absorption step. Orbital variability would then even be expected at energies below the interaction threshold ( $\la$ 30 GeV, hence in the EGRET or GLAST range), in antiphase with the absorption lightcurves. Bednarek (1997) called this " ${\gamma }$ -ray focusing by soft radiation''.

Angular effects must be considered for $\gamma \gamma$ opacities of a few. The estimate of the Klein-Nishina interaction timescale assumes an isotropic photon bath. Just as the $\gamma \gamma$ absorption is changed by the geometry, the pair motion with respect to the star will change the inverse Compton opacity. Maximum boost will be achieved for head-on collisions with stellar photons. Because of momentum conservation, the cascade should tend to develop along the direction where the initial photon was emitted. However, the cascade is effectively isotropized as the gyroradius is small compared to the interaction length (Bednarek 1997). Radiation can then be redistributed at other orbital phases.

A quantitative description of these effects is feasible by Monte-Carlo methods (Sierpowska & Bednarek 2005; Bednarek 2000,1997) but is beyond the scope of this work. A model of the intrinsic spectrum should be considered before doing this. Cascades will probably be important only when the $\gamma \gamma$ opacity is high and the source behind the star in the plane of the sky. This ensures maximum energy boost and maximum density of stellar photons along the initial development of the cascade. This is the case at periastron in LS 5039 but not in LSI +61 ${\hbox {$^\circ $ }}$ 303 (source close to front of the star at maximum absorption) and even less in PSR B1259-63 (low $\tau_{\gamma\gamma}$ ). The amplitude of flux variations will be smaller, though perhaps not noticeably so on a linear scale and with energy thresholds $\ga$ 100 GeV, which are usually at or above the energy of maximum absorption (e.g. compare the Cen X-3 lightcurves above 300 GeV with and without cascade in Bednarek 2000). The absorption spectrum around periastron will be softened. The changes will be small when $\tau_{\gamma\gamma}\la 1$ . Qualitative differences in absorption at TeV energies for a neutron star or black hole case should therefore remain.

7 Conclusion

The intense stellar radiation field in massive X-ray binaries provides a novel way of investigating very high energy processes around compact objects. Because of the dependence of the $\gamma \gamma$ cross-section on angle, the anisotropy of the field has a strong effect on the opacity to very high energy ${\gamma }$ -rays $\ga$ 10 GeV. The orbital orientation to the observer and location of emission are crucial in determining the absorption. In PSR B1259-63 this leads to significant absorption before periastron, although the pulsar is > $20~R_\star$ from its stellar companion.

The changing radiation field modulates the gamma-rays in a predictable fashion. The result is a controlled, repeatable experiment that can help pinpoint the location of emission. Comparing the predictions to observations is essential to single out the variability at the source from that due to absorption in the binary. In LS 5039, the binary separation is only 2-4 $R_\star$ yet absorption can be much smaller than implied by simple estimates. Indeed, absorption of ${\gamma }$ -rays emitted close to a neutron star (implying a high inclination) is negligible at inferior conjunction. The spectrum above 1 TeV is considerably hardened near periastron in LS 5039 and LSI +61 ${\hbox {$^\circ $ }}$ 303. LSI +61 ${\hbox {$^\circ $ }}$ 303 is largely absorption-free which should ease its detection at high energies by MAGIC or VERITAS, if similar processes are at work in both sources.

The detection of an orbital modulation of the TeV flux in LS 5039 would imply emission within the system, either from a pulsar wind termination shock or from the inner region of a jet. If the primary is a black hole, the inclination will be $\approx$ 20 $^\circ$ and the absorption spectrum has a break at $\approx$ 400 GeV with limited orbital spectral changes. For a neutron star, the inclination is $\approx$ 60 $^\circ$ and the break is expected to change from 0.2 to 2 TeV from low to high fluxes. The absence of orbital variations or spectral signatures in VHE observations of LS 5039 would suggest emission occurring in regions of low $\gamma \gamma$ opacity. Jet emission at large distances compared to the system scale would be the prime candidate.

Appendix A: Calculation of ${\gamma }$ -ray absorption in a massive X-ray binary system

$\begin{figure} \par\includegraphics[width=6.7cm,clip]{4233fi9}\end{figure}$

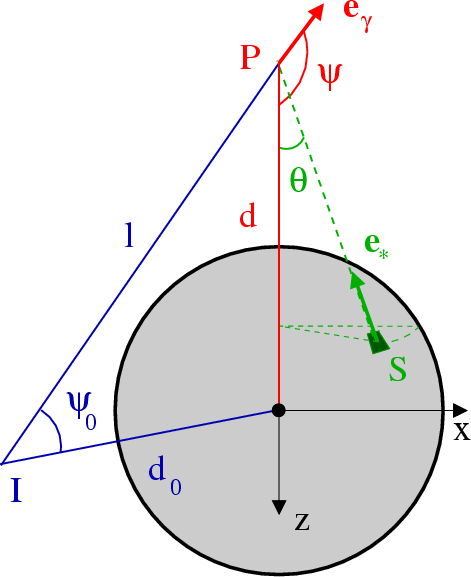

Figure A.1: Geometry for absorption of a ${\gamma }$ -ray at a location P due to $\rm e^+e^-$ pair creation with stellar photons emitted at S. The ${\gamma }$ -ray is emitted at I and l is the length of the ${\gamma }$ -ray path to P. The (x, z) plane is defined by the star center and ${\gamma }$ -ray path.

A.1 Opacity in vicinity of the star

The differential absorption opacity seen by a ${\gamma }$ -ray of energy E located at a position P and travelling in the direction $\vec{e}_\gamma$ due to photons of energy $\epsilon$ emitted at S along $\vec{e}_\star$ is (Gould & Schréder 1967)

The $\gamma \gamma$ interaction cross-section $\sigma_{\gamma \gamma}$ depends only on s, defined as (Gould & Schréder 1967)

The massive star dominates the radiative output in LS 5039, LSI +61 ${\hbox {$^\circ $ }}$ 303 and PSR B1259-63 so that any other source of radiation for pair-production with TeV ${\gamma }$ -rays is neglected. The star has a radius $R_\star$ and is assumed to have a blackbody radiation density with a temperature $T_\star$

When $R_\star\ll d$ , an integration of Eq. (A.8) over $\theta$ and $\phi$ returns the point source approximation

$\begin{figure} \par\includegraphics[width=7.35cm,clip]{4233fi10}\end{figure}$

Figure A.2: For a ${\gamma }$ -ray emitted directly away from the star ( $\psi =\pi$ ), the point source approximation (Eq. (A.9)) predicts no absorption. The exact transmitted flux exp $(-\tau _{\gamma \gamma })$ , calculated using Eq. (A.8) is shown here for a 1 TeV ${\gamma }$ -ray as a function of the distance of its emission point ( $R_\star$ = 10 $R_\odot$ , $T_\star$ = 40 000 K). Because of the star's finite size, there is absorption even for $\psi =\pi$ when the ${\gamma }$ -ray is at distances $\protect\la$ $2~R_\star$ .
