A&A 449, 631-639 (2006)
I. H. Park1 - V. Wakelam2 - E. Herbst3
1 - Chemical Physics Program, The Ohio State University, Columbus, OH 43210, USA
2 - Department of Physics, The Ohio State University, Columbus, OH 43210, USA
3 - Departments of Physics, Chemistry and Astronomy, The Ohio State University, Columbus, OH 43210, USA
Received 26 October 2005 / Accepted 7 December 2005
Aims. We report a detailed attempt to model the ortho-to-para abundance ratio of c-C3H2 so as to reproduce observed values in the cores of the well-known source TMC-1. According to observations, the ortho-to-para ratios vary, within large uncertainties, from a low of near unity to a high of approximately three depending on the core.
Methods. We used the osu.2003 network of gas-phase chemical reactions augmented by reactions that specifically consider the formation, depletion, and interconversion of the ortho and para forms of c-C3H2 and its precursor ion c-C3H3+. We investigated the sensitivity of the calculated ortho-to-para ratio for c-C3H2 to a large number of factors.
Results. For the less evolved cores C, CP, and D, we had no difficulty reproducing the observed ortho-to-para ratios of 1-2. In order to reproduce observed ortho-to-para ratios of near three, observed for the evolved cores A and B, it was necessary to include rapid ion-catalyzed interconversion processes.
Key words: astrochemistry - ISM: abundances - ISM: clouds - ISM: molecules - ISM: individual objects: TMC1
The cyclic isomer of C3H2 has been observed in the interstellar medium in transitions belonging to both spin states: for o-C3H2, the observed lines include the b-type transitions 110-101, 212-101, 312-303, 321-312 and 330-321 at 18.3, 85.3, 83.0, 44.1, and 27.1 GHz respectively, whereas for p-C3H2, the observed b-type transitions include 202-111, 211-202, 220-211 and 322-313 lines at 82.1, 46.8, 21.6, and 84.7 GHz respectively (Takakuwa et al. 2001; Cernicharo et al. 1999; Madden et al. 1989; Morisawa et al. 2005; Matthews & Irvine 1985; Thaddeus et al. 1985). With this many transitions, ortho-to-para ratios of reasonably high accuracy can be obtained, allowing a detailed understanding of the chemical processes involved and possibly even the history of the source.
In the terrestrial laboratory one often refers to two types of mixtures for and species involving two protons: the common variety, in which the ortho-to-para ratio is three, and the variety, in which the ortho-to-para ratio reflects thermal equilibrium. In the interstellar medium, however, the ortho-to-para ratio at low temperatures is probably governed by kinetic rather than thermodynamical considerations, including processes on grains, and is likely to be time-dependent and may even reflect the original circumstances of the molecule formation (Le Bourlot 2000; Tiné et al. 2003; Takahashi 2001). In fact, detailed estimates of the steady-state interstellar ortho-to-para H2 ratio at 10 K show that it is approximately 10-3 (Pagani et al. 1991; Le Bourlot et al. 1999; Le Bourlot 1991), far higher than the equilibrium value of .
Molecular hydrogen is unique in showing such a strong deviation between thermal and normal values for the o/p ratio at temperatures in the vicinity of 10 K. For heavier species, this deviation is much smaller because more levels of each spin modification are thermally populated so that values of 3.0 for the thermal ratio pertain to quite low temperatures. For H2CO, (Dickens & Irvine 1999; Kahane et al. 1984), this ratio is reached at temperatures as low as 15 K, while for c-C3H2, the ratio is reached under thermal conditions at temperatures under 5 K (Takakuwa et al. 2001). Nevertheless, the actual o/p ratio in cold dense interstellar sources is determined by kinetic considerations and may well be significantly under three at 10 K clouds for heavy species with two equivalent protons, as detected for the species H2CO, H2CS, and H2CCO (Dickens & Irvine 1999; Minh et al. 1991; Ohishi et al. 1991).
Although the ortho-to-para abundance ratio of c-C3H2 had been studied observationally in TMC-1 by Madden et al. (1989) and Takakuwa et al. (2001) and in L1527 by Takakuwa et al. (2001), this work is motivated by the recent observational work of Morisawa et al. (2005) (hereafter, MFK), who measured the ratio in a more comprehensive manner for the six different cores within the TMC-1 ridge: A, B, C, D, CP, and E. Their measured ratios range from (TMC-1D and CP) to (TMC-1A and B). Note that Core D sometimes refers to some substructure near the CP condensation, in which case, it can be referred to as CP-b (Hirahara et al. 1992), but other authors have used Core D to be the same as Core CP (), which is the very well-studied core where the abundances of complex carbon chains peak (Smith et al. 2004). In addition, TMC1-B is the so-called ammonia peak (Howe et al. 1996). The current understanding is that some of the cores (e.g. Core B) are more evolved than others (e.g. Core CP) although the cause of the differential evolution is not fully understood (Hartquist et al. 1996; Markwick et al. 2000; Howe et al. 1996).
Table 1 shows the observed o/p abundance ratios of c-C3H2 in the six cores (MFK) along with measured fractional abundances (X) of o-C3H2 with respect to H2 and estimated ages of the cores. Although the determination of cloud ages is still contentious, there is a sufficient consensus concerning the chemical indicators of age to use the results in this paper. It can be seen that, as noted by MFK, the ortho-to-para ratio seems to be generally correlated with the evolution of the core; i.e., for all cores other than Core E, the older the core chemically, the higher the ortho-to-para ratio within large uncertainties, especially for the higher ortho-to-para ratios.
Table 1: Some c-C3H2 observations of the cores in the TMC-1 ridge.
MFK used a simple model of a small number of gas-phase chemical reactions to understand their measured abundance ratios in terms of the evolution of the cores. They showed that the ortho-para chemistry of c-C3H2 is rather simple compared with other heavy molecules that have been studied, so that a complete understanding of the o/p abundance ratio is possibly obtainable. Our detailed model is based on their simple one, with, as discussed below, the important reactions for the formation and depletion of the ortho and para forms of c-C3H2 and its protonated ion precursor embedded in a large chemical network.
Table 2: Dominant reactions, branching ratios, and rate coefficients for the C3H2 ortho/para problem.
In this paper, we report the results of our detailed gas-phase chemical model of the ortho-to-para abundance ratio of c-C3H2. The remainder of this paper is divided as follows. In Sect. 2 we discuss the details of our gas-phase chemical model, while in Sect. 3, we illustrate our results for the ortho-to-para ratio of c-C3H2 as a function of time. We also compare our results with the model of MFK. As will be seen, our standard results are not capable of producing o/p ratios greater than 2.1, so we consider some additional direct chemical processes that can convert the form of the ring molecule to its form. With these processes, we are able to account for the possibly high o/p ratio in the more evolved cores. We then subject our results to an uncertainty analysis. Section 4, the discussion, concludes the paper.
Once produced, c-C3H2 is destroyed by reactions with a variety of ions
while its precursor ion can be destroyed by neutral species in addition to
One can see that in the absence of C3H2 reactions involving ions other than protonating ones, of ion-atom reactions involving C3H3+, and of dissociative recombination of this ion to form any products other than C3H2, there is a quasi-cycle or loop in which once the protonated ion C3H3+ is formed, dissociative recombination and protonation serve only to convert these species into one another. As these processes occur, ortho-para conversion also occurs, as we shall now discuss.
The basic structure of the reaction scheme commences with the production of p-C3H3+ by radiative association because the H2 reactant, as discussed in the Introduction, is overwhelmingly para in nature for cold clouds. Thus the zero nuclear spin of H2 and the spin of the individual proton in C3H+ can combine only to form a resultant nuclear spin of 1/2, which corresponds to a para form of C3H3+. Once p-C3H3+ is formed, it undergoes dissociative recombination to form both p- and o- forms of C3H2 (as well as other neutral products). The C3H2 species can then undergo protonation reactions with a variety of ions designated HX+; these processes lead to both ortho and para versions of the protonated ion. As the loop reactions continue, sizable proportions of o-C3H2 are built up. In competition with the production of ortho species within the loop, other reactions serve to force the system to exit the loop, including (i) non-protonating ion-molecule reactions with C3H2; (ii) dissociative recombination of C3H3+ to form products other than C3H2, (iii) ion-atom reactions involving C3H3+. Of course, in a complex model, some of the products formed outside of the loop can eventually lead to reactions such that the products are once again C3H2 and its protonated ion. In addition to the cycle of protonation and dissociative recombination, there may also be direct conversion processes; such processes will be discussed later but can be seen in Table 2 as part of our alternative models.
In order to determine the selection rules and branching ratios for
ortho/para products in protonation and dissociative recombination, we have
used the approach of Oka (2004), in which angular momentum algebra is
applied to the addition of the nuclear spins of the reactants to determine
the spin angular momenta of the intermediate complex, which then dissociates
into product states of given spin angular momentum. In the language of the
rotation group, if one considers the two reactants to have proton nuclear
spins of I1 and I2, the combined spin state can be written as
This state leads to the intermediate state
which means that the complex can have total proton spin angular momentum
ranging from I1 + I2 down to
|I1 - I2|. Each of these
angular momenta can then dissociate into product spin states given by
angular momentum rules (Oka 2004). The approach of Oka is most valid
for processes in which many rotational states of the products can be
produced. These processes can be exothermic reactions or even thermoneutral
reactions if the energy is sufficiently high. In this limit, one need not
worry much about the rotational quantum number J, since many different J states are produced. For low-temperature thermoneutral processes, on the
other hand, where a small number of J states may be produced, the role of
the individual J states needs to be taken into account in a comprehensive
quasi-phase-space theoretical approach (Gerlich 1990; Gerlich & Schlemmer 2002; Herbst 1982).
Although the approach of Oka (2004) lends itself naturally to the
idea of a reaction intermediate in which all protons are indistinguishable
from one another and can be facilely exchanged during the life of the
complex, it is also possible to remove this assumption. In fact, in our use
of the treatment for the ion H3+, we assume that the protonation
reactions occur by simple transfer of a proton rather than formation of a
complex consisting of C3H2 and H3+. Our branching
fractions are the same as those used by MFK, who derived
theirs with the approach of Quack (1977), which is equivalent to that of

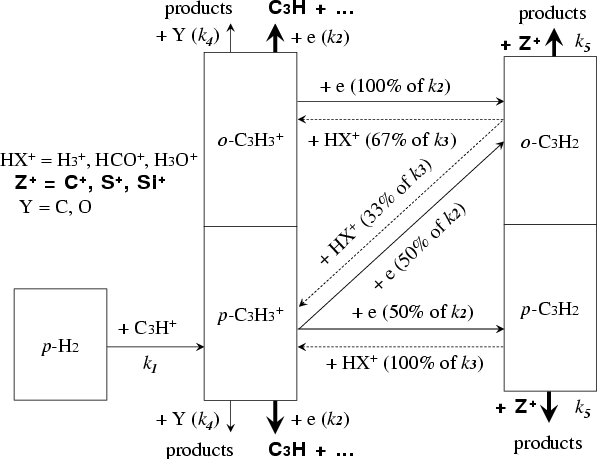

|Figure 1: Dominant reaction diagram for the standard models. Some processes not considered by MFK are indicated by boldface.|
|Open with DEXTER|
In our standard models, we do not consider direct (ion-catalyzed)
interconversion processes between the ortho and para forms of C3H2
because competitive reactions with abundant ions that might catalyze such a
conversion also occur. For example, the reaction of C3H2 with protons
is likely to produce exothermic products such as C3H+ + H2 rather
than undergo the exchange of protons needed to cause ortho/para change while the
reactions with protonating ions such as HCO+ and H3+ are likely to
undergo protonation. Nevertheless, we find, as will be shown in Sect. 3.2,
that in the absence of such interconversion/exchange reactions, the calculated
ortho-to-para ratio for C3H2 cannot be large enough to explain observed
values near 3.0.
So, in our alternative models we also consider interconversion of o- and
p-C3H2 by ion-catalyzed exchange processes with the four ions H+,
H3+, H3O+ and HCO+, the latter three occasionally being
designated by HX+. For these processes, the approach of Oka (2004)
leads to the detailed balance expression in the limit that
exceeds the ortho-para energy difference:
Table 3: Default initial conditions.
Table 4: Summary of variations of standard model parameters.In our calculations of the o/p abundance ratio of C3H2, we start with a default set of initial conditions, listed in Table 3, used with our standard model of reactions. The default model contains so-called low-metal abundances (depleted heavy elements with C/O = 0.41) with the additional assumption that the initial abundances are atomic except for hydrogen, which is molecular. In addition, the total hydrogen density is set at cm-3, the temperature at 10 K, the visual extinction at 10 mag, and the cosmic-ray ionization rate at s-1. Finally the unknown branching fraction for the dissociative recombination of C3H3+ is set so that the products C3H2 + H and C3H + ... are produced in equal amounts. The chemistry is followed with a single-point model under constant physical conditions.
In an attempt to determine how the computed o/p abundance ratio for C3H2 vs time depends upon an assortment of parameters, we have varied the C/O elemental ratio, the degree of metallicity, the cosmic ray ionization rate, and the gas density, as well as the neutral product branching ratio of the dissociative recombination reaction of the ion c-C3H3+. These parameters affect how long the C3H2 ortho-para system can stay in the loop shown in Fig. 1. Table 4 shows the range of the parameters considered in this work for our standard list of additional reactions. For each parameter, a number of different runs was attempted within the ranges listed in the table. The variation of parameters with our alternative model is more restrictive, as will be discussed in Sect. 3.2.
With our default model, we obtain the result that the o/p ratio is near unity at times relevant to Cores CP(D) and C, in reasonable if not excellent agreement with observed ratios, but never increases very much with time, reaching a steady-state value under 1.5, in some disagreement with the measured ratios of 3.0( +2.2-1.3) and 3.0( +1.7-1.1) for Cores A and B, where we have used our recalculated uncertainties (see footnote in Table 1). The calculated fractional abundance for o-C3H2 is shown in panel c) of Fig. 2, where it can be seen that the agreement with the lower age cores is fair, with the model result being somewhat high, is excellent for Core A, but is particularly poor for Core B. The calculated result is a typical one for pseudo-time-dependent models, in which most organic species have high abundance only at so-called "early time''. If the age of Core B were 106 yr, then the disagreement would be eliminated for the fractional abundance of o-C3H2 although the disagreement with the observed o/p ratio would remain. Using the abundance ratio of NH3 to CCS as the criterion of chemical age, MFK considered the age of core B to be comparable to Core A, but this analysis is unclear because the abundance ratio is indeed larger for Core B, although not by a huge factor.

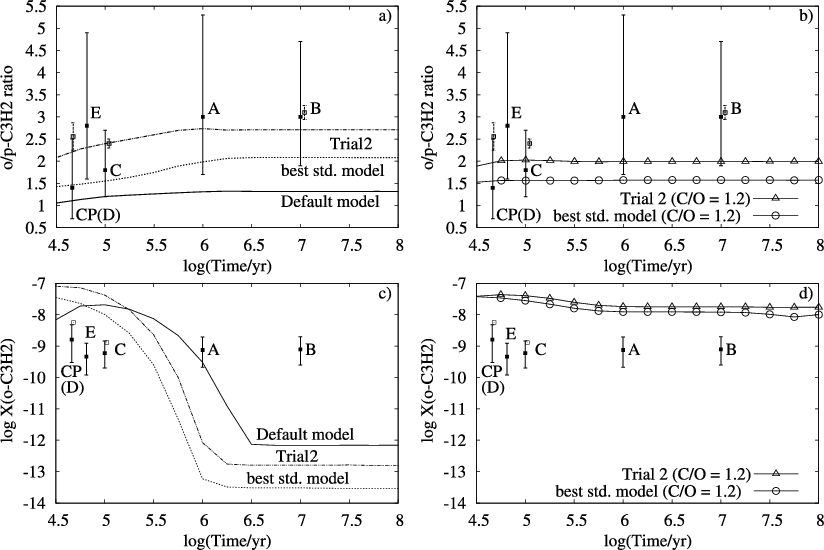

|Figure 2: Calculated values of the ortho-to-para C3H2 abundance ratio (panels a) and b)) and fractional abundance of o-C3H2 (panels c) and d)) with respect to H2 vs. time compared with observed values in the cores of TMC-1. Note that the superimposed solid (MFK) and dotted (Madden 1990; Cox et al. 1989) error bars are from different observations. See text for explanation of models used.|
|Open with DEXTER|
Given the probable disparity between the results of the default model and observations for the o/p ratio at long times, we varied the five parameters discussed in Sect. 2.3 over the ranges listed in Table 4 to obtain a variety of results with the standard sets of models 1-6. Note that the highest density used is similar to the densities derived by MFK; our default value is the more traditional one. The result was little change in the quantities of interest except when we varied the branching ratio for the products of the dissociative recombination branching fraction. When the branching fraction for the products C3H2 + H is increased to unity, the calculated o/p ratio for C3H2 increases to about 1.9 at steady state. An increase in the ratio to about 2.1 can be obtained with the following other parameters: C/O elemental ratio = 0.2, metal depletion a factor of two, no change in the value of , and a higher density of cm-3. The results of this model, labeled our "best'' standard model, for the o/p ratio and abundance of o-C3H2 are shown in panels a) and c) of Fig. 2. The results for the o/p ratio are now barely within the large observational error bars, although the results for o-C3H2 are still poor for the evolved core B, and would be poor even if the age of this core were reduced by an order of magnitude. As is well-known, the only way to increase the calculated abundance of carbon-chain type species at late times is to use a carbon-rich elemental abundance. With our best standard model changed only so that the elemental carbon-to-oxygen ratio C/O = 1.2, we get the results shown in panels b) and d) of Fig. 2, where it can be seen that the observed fractional abundance of o-C3H2 as a function of core age is reasonably reproduced albeit somewhat high at all times with respect to the most recent measurements (MFK), although the o/p ratio has lost all of its time dependence. Nevertheless, the model results for the o/p ratio lie (barely) within the observational errors except for Core B.

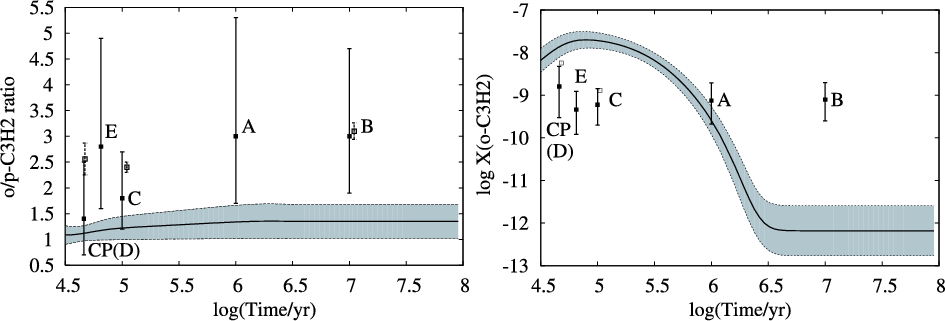

|Figure 3: Calculated uncertainties in the ortho-to-para C3H2 abundance ratio ( left panel) and fractional abundance of o-C3H2 ( right panel) for the default model case.|
|Open with DEXTER|
But there are two omissions in the theory leading to the simple steady-state formula for the o/p ratio: (i) destructive reactions involving C3H2 with a host of non-protonating ions such as C+ that make the system leave the loop; and (ii) dissociative recombination leading to products other than C3H2 + H, which again have the effect of forcing the system to leave the loop. The effect of including both of these processes in the high-metal case makes the simple steady-state for the o/p ratio a more complex one and reduces the calculated ratio to values close to those calculated in our more detailed approach. In other words, it is still difficult to produce large o/p abundance ratios in the absence of direct inter-conversion reactions.
Another important aspect that we considered in our study is the uncertainty in the rate coefficients. Using the method described in Wakelam et al. (2005), we computed errors both in the fractional abundance of o-C3H2 and in the o/p-C3H2 abundance ratio for the default model. Briefly, this method consists of randomly generating new sets of reactions of the OSU.2003 database within their uncertainty range using a Monte-Carlo procedure. We ran 2000 different runs which gave 2000 values of the o-C3H2 abundance and of the o/p-C3H2 ratio. The error in the abundance and ratio is defined at each time as the envelope containing 66% of the computed values (1). We chose a error because the observations are also given an observational error of . We utilized an uncertainty of a factor of two for the rate coefficients of the reactions listed in Table 2. For the reactions of this table that have more than one product channel, we kept the branching ratio constant, because they were derived from theory and, as a consequence, have no statistical error.
We found a maximum error of 0.4 for the o/p-C3H2 ratio at 104 yr. This error decreases to 0.2 at 105 yr before increasing again to 0.3 after 106 yr. As shown in Fig. 3, the computed uncertainty in the ratio is not large enough to significantly affect any of our conclusions. The computed error in the fractional abundance of o-C3H2 increases with time. Specifically, the error domain is [ /1.5, 1.5 ] at 104 yr and [ /4, 4 ] at 107 yr. In this case again (see Fig. 3), the computed uncertainty does not improve the agreement with observation significantly.
New observations by MFK of the ortho-to-para abundance ratio for the cyclic isomer of C3H2 in the six cores of TMC-1 indicate that this ratio is under 2.0 for two of three cores thought to be chemically young and is closer to the thermal value of 3.0 for those cores thought to be chemically more evolved. The parameter used to determine chemical age is the abundance ratio of NH3 to that of CCS. The o/p ratio is determined by a chemistry in which the cyclic ion C3H3+ is formed initially solely in its para state, but by a process of dissociative recombination and re-protonation, a significant ortho/para abundance ratio, near the thermal value of 3.0, can be built up given sufficient time for high-metal abundances if competitive reactions are not dominant. Although a simple model by MFK indicates agreement with their observations for five out of six cores if high-metal abundances are used, our more detailed calculations with an extended version of the OSU.2003 network of reactions do not give such a definitive result, mainly because of competitive processes. In fact, with standard parameters varied over rather wide ranges, we find it difficult to obtain o/p ratios exceeding 2.0 at any time.
We are able to calculate higher o/p ratios for C3H2 only if we assume that the and forms of this species can be converted into one another by exchange processes involving H+ and protonating ions HX+. This assumption is based on some experiments involving H3+ by Cordonnier et al. (2000) but here runs up against the problem that both H+ and HX+ will likely react with C3H2 and the competition between reaction and ortho/para conversion may well favor the former. Thus, there is still no definitive chemical proof that gas-phase processes can produce ratios for cyclic C3H2 near the thermal value of 3.0. If, then, the observational values in this range are sufficiently accurate to distinguish correctly between low and high ratios, either the exchange reactions we consider between o-C3H2 and p-C3H2 do occur and are actually favored over reaction, our branching fractions or other aspects of the gas-phase chemistry are in error, or one must consider gas-grain interactions. Future observations with a lower uncertainty will help to determine which if any of these choices is the correct one. Even if the o/p ratio is reproducible by pseudo-time-dependent models of the type considered here, we must realize that the fractional abundance of the cyclic species tells a different story.
We thank Prof. Momose's group (University of British Columbia) for providing the TMC-1 observational data and their manuscript prior to submission. E.H., I.-H. P., and V.W. acknowledge the support of the National Science Foundation (US) for support of our research program in astrochemistry. We thank the Ohio Supercomputer Center for computer time on their SV1 machine.
