A&A 449, 251-265 (2006)
DOI: 10.1051/0004-6361:20052931

VLT-ISAAC 3-5 $\mu$m spectroscopy of embedded young low-mass stars

III. Intermediate-mass sources in Vela^,

W.-F. Thi^1,2,3 - E. F. van Dishoeck² - E. Dartois⁴ - K. M. Pontoppidan^2,5 - W. A. Schutte² - P. Ehrenfreund² - L. d'Hendecourt⁴ - H. J. Fraser^2,6

1 - Sterrenkundig Instituut Anton Pannekoek, University of Amsterdam, Kruislaan 403, 1098 SJ Amsterdam, The Netherlands
2 - Leiden Observatory, PO Box 9513, 2300, Leiden, The Netherlands
3 - ESA Research Fellow, Research Support Science Department, ESTEC, Keplerlaan 1, PO 2201 AZ, Noordwijk, The Netherlands
4 - Astrochimie Expérimentale, Institut d'Astrophysique Spatiale, Université Paris-Sud, Bât. 121, 91405 Orsay Cedex, France
5 - Divisions of Geological and Planetary Sciences, California Institute of Technology, Passadena, CA 91125, USA
6 - Department of Physics, University of Strathclyde, John Anderson Building, 107 Rottenrow, Glasgow G4 ONG, UK

Received 24 February 2005 / Accepted 28 November 2005

Abstract
Aims. We study in this paper the ice composition in the envelope around intermediate-mass class I Young Stellar Objects (YSOs).
Methods. We performed a spectroscopic survey toward five intermediate-mass class I YSOs located in the Southern Vela molecular cloud in the L (2.85-4.0 $\mu$m) and M (4.55-4.8 $\mu$m) bands at resolving powers $\lambda/\Delta \lambda=600$-800 up to 10 000, using the Infrared Spectrometer and Array Camera mounted on the Very Large Telescope-ANTU. Lower mass companion objects were observed simultaneously in both bands.
Results. Solid H $_{{\rm 2}}$O at 3 $\mu$m is detected in all sources, including the companion objects. CO ice at 4.67 $\mu$m is detected in a few main targets and one companion object. One object (LLN 19) shows little CO ice but strong gas-phase CO ro-vibrational lines in absorption. The CO ice profiles are different from source to source. The amount of water ice and CO ice trapped in a water-rich mantle may correlate with the flux ratio at 12 and 25 $\mu$m. The abundance of H₂O-rich CO likely correlates with that of water ice. A weak feature at 3.54 $\mu$m attributed to solid CH$_{\rm 3}$OH and a broad feature near 4.62 $\mu$m are observed toward LLN 17, but not toward the other sources. The derived abundances of solid CH $_{\rm 3}$OH and OCN^- are $\sim$$10 \pm 2$% and $\sim$$1 \pm 0.2$% of the H $_{{\rm 2}}$O ice abundance respectively. The H $_{{\rm 2}}$O optical depths do not show an increase with envelope mass, nor do they show lower values for the companion objects compared with the main protostar. The line-of-sight CO ice abundance does not correlate with the source bolometric luminosity.
Conclusions. Comparison of the solid CO profile toward LLN 17, which shows an extremely broad CO ice feature, and that of its lower mass companion at a few thousand AU, which exhibits a narrow profile, together with the detection of OCN^- toward LLN 17 provide direct evidences for local thermal processing of the ice.

Key words: stars: circumstellar matter - astrochemistry - ISM: molecules

1 Introduction

Dust grains play an important role in the evolution of clouds from protostellar cores to circumstellar disks. Since dust grains are the main source of opacity, they control the thermal balance of clouds. The surfaces of cold grains act as heat sink for highly exothermic reactions to occur (e.g., formation of H₂) or provide sites for atoms and molecules to freeze on. The freeze-out of molecules like CO is found to be important for regulating the gas phase chemistry of other species (e.g., Bergin & Langer 1997; Bergin et al. 2001; Jørgensen et al. 2004). The frozen atoms and molecules accumulate on top of a refractory core (silicates, carbonaceous compounds) and form an icy mantle or react with other species to synthesize more complex molecules. The relative chemical composition of this ice mantle is well determined after three decades of studies using both ground-based and space-borne telescopes. The core-mantle grain model is supported by spectropolarimetry studies (e.g., Holloway et al. 2002). Solid H $_{{\rm 2}}$O, CO, and CO $_{{\rm 2}}$ abound in most lines of sight where ices are detected (de Graauw et al. 1996). Sometimes, minor species such as CH $_{{\rm 4}}$ ($\sim$2%), HCOOH ($\sim$2%), OCN^- ($\sim$0.2-1%) (e.g., van Broekhuizen et al. 2005), and H₂CO (3-6%) are found (e.g., Boogert et al. 1998; Keane et al. 2001; Boogert et al. 2004). By contrast, the presence of other minor constituents such as NH $_{\rm 3}$ is controversial; its abundance relative to water ice is likely less than $\sim$10% (e.g., Ehrenfreund & Charnley 2000; Dartois & d'Hendecourt 2001; Dartois et al. 2002; Lacy et al. 1998; Taban et al. 2003). It should be emphasized that most of these studies refer to high mass young stellar objects.

Solid methanol (CH $_{\rm 3}$OH) is a particular case. It epitomizes the importance of molecular solids in the understanding of the gas phase chemistry. The radiative association of CH₃⁺ and H₂O is an inefficient gas-phase process that yields methanol abundances of $\sim$10^-9 relative to H₂ while abundances of 10^-7-10^-6 have been found in hot cores (e.g., Blake et al. 1987; Sutton et al. 1995). The prevalent view is that the high abundance of gas phase methanol come from the release of large amounts of frozen methanol formed on grain surfaces (Charnley et al. 1995; van der Tak et al. 2000; Horn et al. 2004). Methanol ice abundance relative to water ice is found to vary from less than 3% w.r.t. water ice in quiescent regions up to 30% around massive protostars (Dartois et al. 1999). If all the methanol ice is released in the gas phase, the abundance of methanol in the gas phase with respect to H₂ will amount to $3 \times 10$^-7- $3 \times 10$^-6 assuming that the abundance of water ice with respect to H₂ is $\sim$10^-5 (e.g., Whittet 2003). A similar situation is found for low-mass objects. Chiar et al. (1996) set a stringent limit of 5% of methanol with respect to water ice for sources located in the Taurus molecular cloud, while Pontoppidan et al. (2003a) found abundant methanol ice (14-25% of water ice) in 4 out of $\simeq$40 envelopes around protostars observed with the VLT. Possible formation routes of solid methanol are also disputed. The formation rate of solid methanol by hydrogenation of CO ice in the absence of energy input (i.e. hot atoms, UV or particle irradiation) measured in laboratory experiments remains controversial (e.g., Hiraoka et al. 2002; Hiraoka et al. 2005; Watanabe et al. 2004).

The advent of 8m class telescopes equipped with large format arrays opens up the opportunity to study large samples of low and intermediate-mass sources. We present here the first observations of molecular ice features in the L (2.8-4.1 $\mu$m) and M (4.5-5.1 $\mu$m) bands toward class I intermediate-mass young stellar objects (YSOs) located in the Vela molecular cloud complex. The spectra were obtained in the context of a large programme using the Infrared Spectrometer And Array Camera (ISAAC) mounted at the Very Large Telescope ANTU (VLT-ANTU) of the European Southern Observatory (ESO). Two major absorption features are observable with ground-based telescopes, along with some weak features. The first strong feature is centered around 3.01 $\mu$m ($\sim$3300 cm^-1) and is usually attributed to the stretching mode of solid H$_{{\rm 2}}$O. The study of the solid-water profile has been used to better explore the ice structure in the water matrix (e.g., Smith et al. 1989; Smith et al. 1993; Maldoni et al. 1998). The feature shows a broad excess absorption beyond 3.2 $\mu$m whose origin is still unclear, although scattering by the larger grains (0.1-1 $\mu$m in radius) in the size distribution is the best candidate (Smith et al. 1989; Dartois & d'Hendecourt 2001).

The other important feature is the solid-CO band at 4.67 $\mu$m (2140 cm^-1), whose profile is sensitive to the shape and size of the grains as well as the ice composition and temperature and is therefore a diagnostic of the evolutionary state and thermal history of ices (Sandford et al. 1988). As soon as the grain is warmed to $\simeq$12-15 K by the luminosity of the object, CO molecules can diffuse into the ice and form new bonds, changing the morphology of the mixture and thus the profile at 4.67 $\mu$m, or they can sublime back to the gas phase (Al-Halabi et al. 2004; Collings et al. 2003; Givan et al. 1997). The mobility of CO and its high abundance in cold icy mantles also explain why it is a key species for surface reactions leading to polyatomic molecules such as CO$_{{\rm 2}}$ and CH$_{\rm 3}$OH (Rodgers & Charnley 2003; Chiar et al. 1998; Teixeira et al. 1998).

Table 1: Characteristics of the sources.

The VLT-ISAAC observations are used to constrain the physical and chemical conditions in the envelopes of a sample of intermediate-mass stars. The paper is organized as follows. We present the objects of our sample in Sect. 2 and the observations and data reduction procedures in Sect. 3. The results on the water ice band are described in Sect. 4.1. Evidence for solid CH$_{\rm 3}$OH is presented in Sect. 4.2. The CO-ice band is presented in Sect. 4.3. A possible correlation between the abundance of CO embedded into a water ice matrix and the IRAS 12 $\mu$m/25 $\mu$m color ratio is discussed in Sect. 5. Conclusions are provided in Sect. 6. These data complement the survey of CO and other species for a sample of $\sim$40 low mass YSO's by Pontoppidan et al. (2003b,a) obtained in the same programme.


2 Protostars in the Vela molecular clouds

We chose to observe 5 intermediate-mass protostars with bolometric luminosities ${L_{*}\sim}$ 100-1000 $L_{\odot}$, corresponding to masses of 2-10 $M_{\odot}$ (Palla & Stahler 1993). The characteristics of the objects are summarized in Table 1. These objects are the brightest sources in the L- and M-band taken from the sample of Class I YSO candidates in the Vela molecular cloud (Liseau et al. 1992), hereafter LLN. The location of the sources is shown in Fig. 1, together with that of other candidates not studied in this work. Four of these sources have been observed by Pontoppidan et al. (2003b). The Vela molecular cloud is located in the Galactic plane, and is reachable only from observatories in the Southern hemisphere. It lies in an RA range ($\sim$9h) which was not covered by the Infrared Space Observatory (ISO) satellite during the entire mission to avoid damage from the infrared radiation from the Earth.

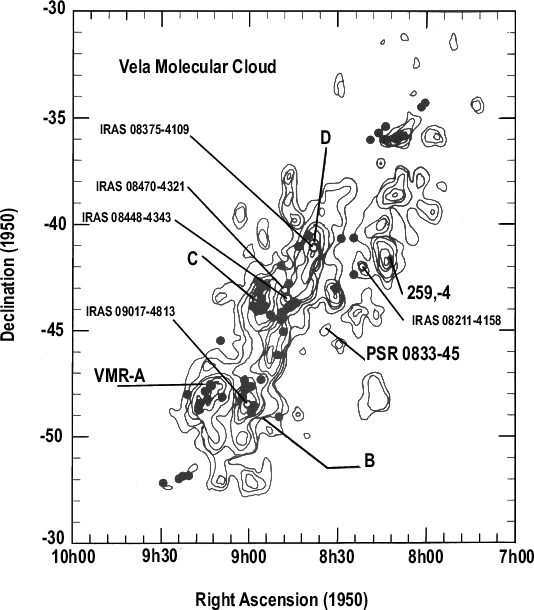

Figure 1: CO (1-0) contour map of the Vela Molecular Cloud complex (Murphy & May 1991). The complex is composed of 4 clouds named A, B, C and D in the map. The positions of the observed sources are indicated and the filled circles are the location of the 50 other embedded young stellar objects. Indicated as well are the locations of the Vela Pulsar and the H II region 259, -4. The map is an adaptation of Fig. 1 of Liseau et al. (1992).

Open with DEXTER

The complex hosts three supernova remnants (Vela SNR, Puppis A and G266.2 -1.2), the latter discovered by recent X-ray satellites (Aschenbach 1998). The spectral energy distributions (SEDs) of the objects, red IRAS colors and a near-infrared slope $s \equiv {\rm d}\!\log~(\lambda F_{\lambda})/{\rm d}\!\log~(\lambda) \geq 0$ as defined by Adams et al. (1987) are characteristic of YSOs. Near-infrared imaging has revealed that the chosen targets are the brightest members of their respective proto-stellar clusters (Massi et al. 1999). The companion stars observed serendipitously (see Sect. 3) are fainter class I objects. The entire complex was mapped in the CO  $J=\!1\!\rightarrow\!0$ transition by Murphy & May (1991). The complex is composed of at least four Giant Molecular Clouds (A, B, C and D), with individual masses exceeding 10⁵ $M_{\odot}$, where active star formation occurs. These dark clouds are relatively nearby ( $700 \pm 200$ pc), therefore giving the possibility to study the ices in a typical galactic environment. The location of the different objects and of their companions coincides with a maximum in the CO $J=\!1\!\rightarrow\!0$ integrated emission and with the highest visual extinction. Extinction studies toward background stars have shown little foreground absorption from diffuse clouds with a maximum of $A_{\rm V}=3.4$(Reed & Slawson 1990). Assuming that the threshold extinction for detection of the water ice feature in this cloud is $\sim$3.3, the amount of water ice that resides in the foreground is negligible. The exact threshold value is unknown for Vela, but it could be much higher than 3.3 (Whittet 2003).


3 Observations and data reduction

The observations were performed using ISAAC mounted on VLT-ANTU in Paranal, Chile, in the L (2.85-4.1 $\mu$m) and M (4.5-4.8 $\mu$m) band in January and November 2001 under mediocre conditions. ISAAC is a cryogenic mid-infrared (1-5 $\mu$m) imaging facility and grating spectrometer. The instrument uses a Santa Barbara $1024 \times 1024$ pixel InSb array. The entrance slit of the grating spectrometer was set to 0.6 $^{\prime \prime }$, which results in a resolving power of 600 in the L band and 800 in the M-band (low resolution mode). Since the average seeing at Paranal in the infrared was $\sim$0.6'', little flux from the object was lost. The slit was oriented such that the main target and a second nearby object, when present, could be observed simultaneously. An example of an acquisition image at L-band is shown in Fig. 2. The companion object is located between 5 and 10 $^{\prime \prime }$ from the main source. The large detector combined with the 0.6 $^{\prime \prime }$ slit allowed the entire L- and M- band to be obtained in one exposure each. The integration times of 30-40 min per object and by band were chosen such that the S/N ratio reaches 60 in the wavelength regions of good atmospheric transmission, allowing an analysis of the profile. Any other absorption features with an optical depth of 0.05 (3$\sigma$) can be detected as well. In complement, three sources LLN 13 (IRAS 08375-4109), LLN 17 (IRAS 08448-4343) and LLN 19 (IRAS 08470-4321) were observed at a resolving power of 10 000 (0.3 $^{\prime \prime }$ slit) in the M-band. A summary of the observations is presented in Table 2.

The objects were observed with a chopping along the slit with a throw of typically 15 $^{\prime \prime }$ together with nodding. This technique removes the majority of the sky and background noise. After or before each science target, the spectrum of a standard star was obtained with the same setting (BS 3185 of spectral type F6II and BS 3842 of spectral type G8II). The difference in airmass between the target and standard star is always kept less than 0.015. The stars used for atmospheric correction were chosen to be late-type photometric standards. The targets have accurate published photometric measurements (see Table 2) and those values were used to estimate the flux of the main and companion objects. The companions are 3.5 to 18 times fainter than the main sources, which are the brightest objects in their respective proto-clusters. The absolute flux calibration is uncertain by 10%. The standard star spectra were not modeled and therefore hydrogen absorption lines in the spectrum were not removed. In consequence, apparent emission features at 3.04 $\mu$m (H I Pf$\epsilon$ 5-10), 3.30 $\mu$m (H I Pf$\delta$ 5-9), and 3.74 $\mu$m (H I Pf$\gamma$ 5-8) in the data may be spurious features from the rationing by the standard star.

Figure 2: Acquisition image in the stellar field of LLN 17 (IRAS 08448-4343. The orientation of the image ( $1024 \times 1024$ pixels) is North-South and the pixel scale is 1 $^{\prime \prime }$/pixel and corresponds to the length of the arrow. The negative points are the result of the chopping. The main target is called the source IRS 17-57 in Massi et al. (1999) and the companion object is source IRS 17-40.

Open with DEXTER

The spectra were reduced using in-house software written in the Interactive Data Language (IDL). The data reduction procedure is standard for IR observations (bad pixel maps, flat-fielding, etc.). The distortions of the raw spectra were corrected. In the L-band, the wavelength calibration was obtained from arc lamp measurements. In the M-band, because of the scarcity of halogen lamp lines in this wavelength range, the spectra were calibrated by comparing the strong atmospheric absorption lines with high signal-to-noise ratio spectra of the atmosphere above Paranal measured by the ESO staff. The data points in the strongest telluric absorption features show the lowest signal-to-noise ratio and were therefore dropped. This is particularly the case for the telluric gaseous methane absorption band around 3.25 $\mu$m. Error bars are omitted in the flux plots for clarity for the L-band spectra.

Table 2: Summary of the observations and infrared fluxes taken from the literature (The companion objects are located within 30 $^{\prime \prime }$ from the main source).

Table 3: Ice column densities. The errors are at 3$\sigma$ level and are dominated by systematics.

4 Observational results


4.1 Water ice

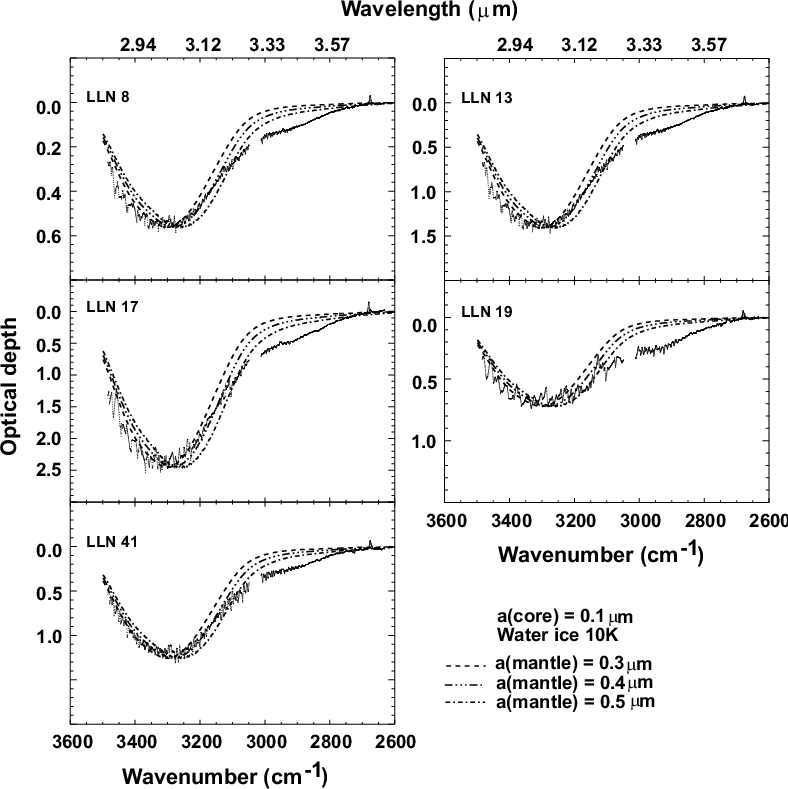

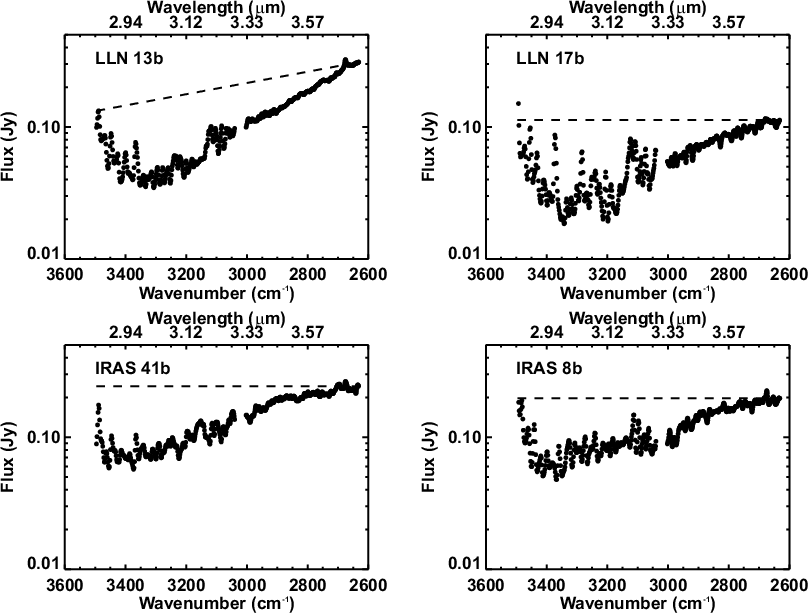

The spectra of the main objects, converted into optical depth scale, are presented in Fig. 3, while the L-band spectra of the companion objects are displayed in Fig. 4 in flux scale. A local blackbody that fits the photometric data at 2.5 $\mu$m and 3.8 $\mu$m, measured by Liseau et al. (1992) was subtracted from the L-band spectra to obtain the optical depth scale. The low signal-to-noise ratio in the spectra of the companion objects prevents detailed analysis of the profiles, although column densities can be derived.

A broad absorption feature extending from 3600 to 2600 cm^-1 (2.85 to 3.8 $\mu$m) is observed in all spectra including the companion objects. This feature, centered around 3.1 $\mu$m, is attributed to the O-H stretching mode of ${\rm H_2O}$ ice (e.g., Tielens et al. 1983). The detection of methanol-ice toward LLN 17 (IRAS 08448-4343) at 3.54 $\mu$m is discussed in Sect. 4.2. The band shape is comparable to that found in quiescent clouds, for example in the line of sight of Elias 16 (Smith et al. 1989), a field star located behind the Taurus cloud, which traces unprocessed ices. Table 3 shows the optical depths of the water band for the main and companion objects. The optical depths toward the companion objects are grouped around $1.1 \pm 0.3$, whereas a larger scatter is seen for the main objects. In the remainder of this section, we focus our analysis on the main objects.

An extended wing to the main feature is present in all our sources. The identification of the carrier which gives rise to this long wavelength wing is a long-standing problem (Smith et al. 1989; Dartois & d'Hendecourt 2001). To compare the strength of the wing relative to the main feature, the L-band spectra in optical depth scale were normalized to unity at 3.01 $\mu$m. It appears that the spectra can be divided into two groups. The first group is composed of objects where the long-wavelength wing centered at 3.25 $\mu$m is relatively weak compared to the main feature. Three objects fall into this group (LLN 13, LLN 17 and LLN 41). Objects in the second group show a stronger wing relative to the main feature. Two objects in our sample (LLN 8 and LLN 19) pertain to this group. The similarity in the band profile among objects within the same group is remarkable (Fig. 7). In both groups, the entire profile was fitted empirically with a linear combination of two Gaussians centered respectively at 3.01 ( ${\it FWHM}=0.14 ~\mu$m) and 3.25 $\mu$m ( ${\it FWHM}=0.44~\mu$m).

A few objects exhibit an additional broad and shallow absorption feature at 3.47 $\mu$m. The optical depth of this feature is reported in Table 3. The 3.47 $\mu$m feature is also found in higher mass protostars (Brooke et al. 1999,1996). The broad 3.47 $\mu$m feature is attributed to an hydrate (e.g. ammoniahydrate, Dartois et al. 2002), in which other contributors such as sp³ carbon can be present (Allamandola et al. 1992). The optical depth of the main feature at 3.01 $\mu$m is compared to that at 3.25 $\mu$m in Fig. 8. In addition, data of a selected number of other low- and high-mass protostars are included. A strong correlation can be found among objects in each group. The optical depth at 3.25 $\mu$m is found to be 0.27 and 0.45 times that at 3.01 $\mu$m for the two groups, respectively. The tight correlations suggest that the carrier(s) of the extended wing are strongly related to water-ice. However, the correlations may be fortuitous since the number of objects in the sample is limited.

It has long been realized that light scattering by large ice grains leads to additional extinction on the long wavelength wing of the water band (e.g., Smith et al. 1989). Several models of water ice have been developed in which part of the long-wavelength wing is attributed to scattering due to large grains (greater than 0.2 $\mu$m). Our model is similar to that previously used by Smith et al. (1989). The silicate core radius is fixed at a constant value of 0.1 $\mu$m. The grain core is coated with a water ice mantle whose thickness is allowed to vary to match the observed spectra. To simplify the problem, the ice is assumed to have a single temperature. The absorption and scattering cross sections are computed using a Mie scattering theory program for coated-spheres (Bohren & Huffman 1983). The optical constants provided by Hudgins et al. (1993) for water ice and by Draine (2003) for the silicate core were used. The computed spectra for total grain radii of 0.3, 0.4 and 0.5 $\mu$m are shown overlaid on the astronomical spectra in Fig. 3. The peak wavelength of the scattering cross section is red-shifted compared to that of the absorption cross-section and can therefore account for part of the long-wavelength wing. The shape of the long-wavelength wing strongly depends on the actual grain radius. The maximum radius derived from this model is 0.4-0.5 $\mu$m and the ice temperature is below 40 K.

The column densities were estimated by integrating numerically the laboratory spectra over the water band from 2.8 to 3.8 $\mu$m using the band strength for pure H₂O ice of $A = 2.0 \times 10$^-16 cm molec^-1 at 10 K measured by Hagen & Tielens (1981):

$$N_{\rm solid}({\rm H_2O})=\int \frac{\tau_{\nu}\ \rm d\nu}{A}$$ (1)

where $\tau_{\nu}$ is the optical depth at wavenumber $\nu$(cm^-1) and A (cm molec^-1) is the integrated absorption cross section per molecule (band strength). The temperature and column densities of the ice giving the best fits are summarized in Table 3. Uncertainties in experimental band strengths for water ice are much lower than that in the determination of the continuum around the water ice band. The inferred column densities varies from 0.8 to $3.6 \times 10$¹⁸ cm^-2.


4.2 Methanol ice

Only LLN 17 (IRAS 08448-4343) exhibits a strong methanol feature at 3.54 $\mu$m superimposed on the solid water absorption. The analysis of the methanol feature requires the subtraction of the extended red absorption of the water ice and of the 3.47 $\mu$m. An artificial subtraction of the water ice wing is needed because laboratory mixtures containing methanol ice do not take scattering effects into account. The red-wing continuum is composed of two Gaussians whose characteristics are given in Sect. 4.1. The 3.47 $\mu$m feature is modeled empirically by the sum of two Gaussians as well ( $\lambda_{\rm o} = 3.47$ $\mu$m, ${\it FWHM}=0.12 ~\mu$m and $\lambda_{\rm o}=3.44$ $\mu$m, ${\it FWHM}=0.48$ $\mu$m). The remaining feature is compared with mixed ices of H₂O and CH $_{\rm 3}$OH with different relative abundances. The peak position and the profile of the solid methanol bands are known to vary with the amount of water in the mixture. The presence of water shifts the peak to higher frequency and narrows the methanol band. The best fit is obtained with the mixture H₂O:CH $_{\rm 3}$OH = 10:1. The different components of the fit and the total are shown in the upper limit of Fig. 5. Possible improvement of the fit with a two phase ice is tested. A two phase ice mantle composed of pure methanol and a mixture H₂O:CH $_{\rm 3}$OH = 10:1 in the proportion 30% and 70% respectively improves marginally the fit (Fig. 6).

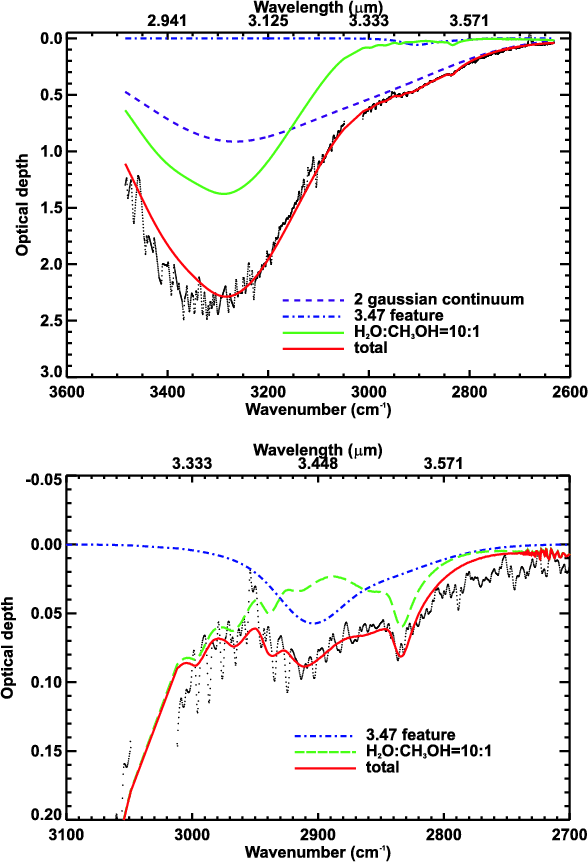

	Figure 5: The upper panel displays the water ice feature toward LLN 17. The adopted 2 Gaussian continuum, the 3.47 $\mu$m feature and the methanol ice:water ice = 1:10 mixture are overplotted. The lower panel shows a zoom around the methanol feature. In this plot, the 2 Gaussian continuum has been subtracted.
Open with DEXTER

Adopting the integrated absorption coefficient valid for pure methanol ( $A = 2.8 \times 10^{18}$ cm molec^-1, Kerkhof et al. 1999), the derived column density of methanol is ( $2.5 \pm 1.0$) $\times$ 10¹⁷ cm^-2 ($3\sigma$), corresponding to a relative abundance compared to water ice of $\simeq$$6.9 \pm 2$%. The search toward the other objects was unsuccessful with an upper limit of $\tau$(CH $_{\rm 3}$OH) < 0.02 ($3\sigma$), corresponding to limits on the CH $_{\rm 3}$OH ice abundances of $\simeq$ $1 \times 10^{17}$ cm^-2 or a limit on the abundance of <4.5-12.5%. The methanol ice abundances and upper limits are summarized in Table 4. The relatively high upper limits (4.5-12.5%) stem from the lower water ice abundance in the line of sight of most objects (N(H₂O) <  $2.3\times 10$¹⁸ cm^-2) compared to that of LLN 17 (N(H₂O) = 3.6 $\times$ 10¹⁸ cm^-2).

The detection of solid methanol toward the intermediate-mass protostar LLN 17 (IRAS 08448-4343) with a relative abundance with respect to the water ice of $\simeq$6.9% and the non-detection (<5-10%) toward the other objects can be compared with the variable abundances toward high-mass protostars (from <1% up to $\sim$30% in RAFGL 7009S and W33 A; Dartois et al. 1999; Brooke et al. 1999; Chiar et al. 1996; Allamandola et al. 1992) as well as low mass protostars (<5 up to 25%, Pontoppidan et al. 2003a). Some of the large variations in the methanol ice abundance occur between objects of similar mass located within the same cluster for low-mass star-forming regions such as Serpens. The upper limits are relatively high because of the low water ice column density found toward most objects. Deeper limits for the LLN sources are needed to determine whether similar CH₃OH ice abundance variations also hold for the Vela star-forming region.

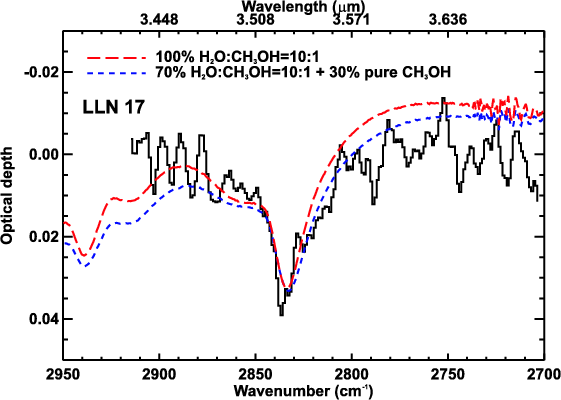

	Figure 6: The methanol feature toward LLN 17 is fitted by a single methanol mixture (CH3OH:H2O = 1:10) and by a 2 component mixture (70% CH3OH:H2O = 1:10 + 30% pure CH3OH). The improvement with the 2 component mixture is marginal.
Open with DEXTER

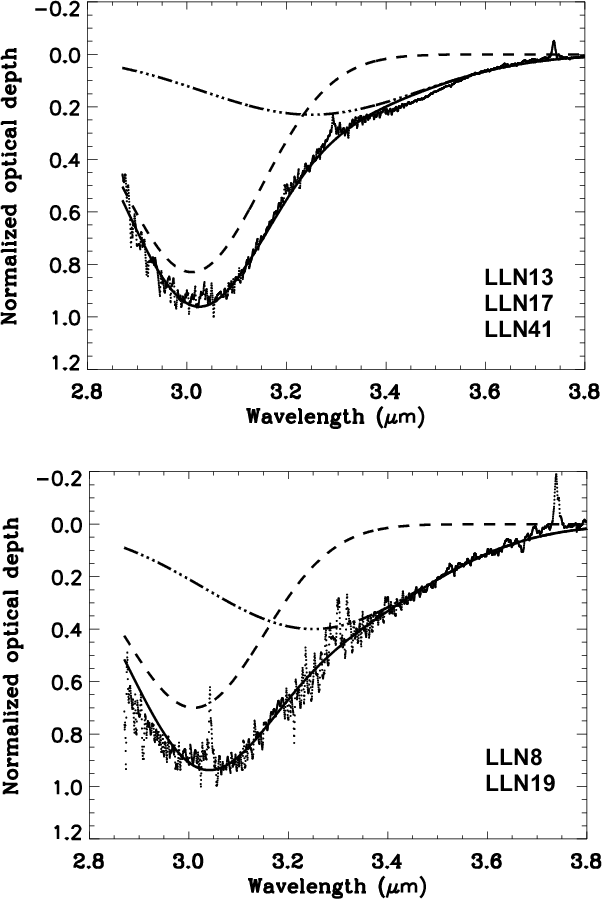

Figure 7: Normalized optical depths of the Vela sources fitted by a combination of 2 Gaussians, one centered at 3.01 $\mu$m, the other one at 3.25 $\mu$m. The upper panel shows the normalized optical depth for 3 Vela sources. The spectra are overplotted one on each other. The similarity between the 3 sources is so strong that it is difficult to separate the sources in the plot. The lower panel shows the spectrum of 2 other Vela sources. The spectra in both panels are fitted by a linear combination of two Gaussians.

Open with DEXTER

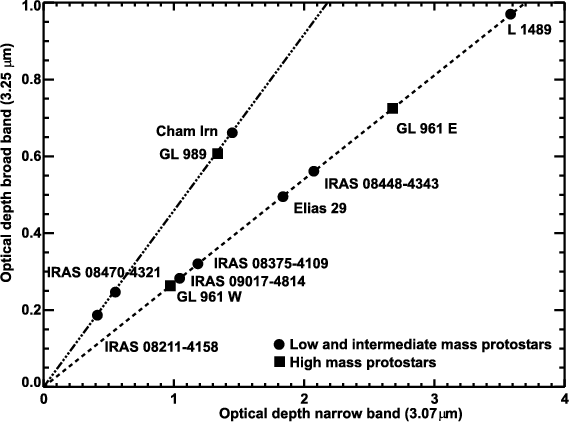

	Figure 8: Optical depth at 3.25 $\mu$m versus optical depth at 3.07 $\mu$m. The straight lines can be fitted to the data. The origin of both lines is (0, 0). The data for sources which are not located in the Vela cloud are taken from the ISO-archive.
Open with DEXTER


4.3 CO ice

In the M-band atmospheric window (4.5-4.8 $\mu$m), one can expect to detect the solid CO absorption feature and/or the ro-vibrational band of gaseous CO. A strong feature centered around 4.67 $\mu$m (2141 cm^-1) corresponding to CO-ice is detected in three out of the five sources, namely LLN 13 (IRAS 08375-4109), LLN 17 (IRAS 08448-4343) and LLN 41 (IRAS 09017-4716) and one of the companion objects LLN 17b (IRAS 08448-4343b). Their spectra are plotted in Fig. 9 (open circles). The gas-phase CO ro-vibrational lines can introduce error in the interpretation of the solid feature. In particular, the P(1) line of gas-phase CO lies at the center of the CO-ice band. Medium resolution spectra obtained toward three objects (LLN 13, LLN 17 and LLN19) are presented in Fig. 10. CO ice is detected in the medium , but not in the low resolution spectrum (Fig. 11) toward LLN 19. The cause of the discrepancy is the strong CO gas phase absorption lines, which render the detection of the weak CO ice feature problematic.

In contrast to the water-ice profile, the FWHM of the solid-CO feature differs from source to source (4.6-12.2 cm^-1). The peak positions lie in a narrow range (2139-2141 cm^-1). The FWHM seen toward LLN 13 (IRAS 08375-4109), LLN 41 (IRAS 09017-4716) and LLN 17b (IRAS 08448-4343b) are narrow (4.6-5.8 cm^-1). A narrow width is often observed toward field stars and young embedded low-mass young stellar objects (Pontoppidan et al. 2003b; Chiar et al. 1995). The source IRAS 08448-4343 (LLN 17) shows one of the broadest solid CO features ever observed ( $\Delta \nu=12.2$ cm^-1).

We fitted the spectra using the decomposition outlined in Pontoppidan et al. (2003b) who showed that every line-of-sight can be fitted by a linear combination of a narrow middle component (mc), a broad red component (rc) and a blue component (bc). The components are Lorentzian for the red component and Gaussian for the blue and middle components. The central wavenumber and FWHM of each component and their interpretation are given in Pontoppidan et al. (2003b). The phenomenological fits to the spectra allow an astrophysical classification of the sources while more classical fits with laboratory data help in understanding the grain mantle composition as well as the grain shape and size source by source. The best fits are found by a Simplex optimization method (e.g., Press et al. 1992). The measurement errors are set constant with wavenumber so that an uniform weight is given to all data points.

Table 4: Ice abundances relative to water ice.

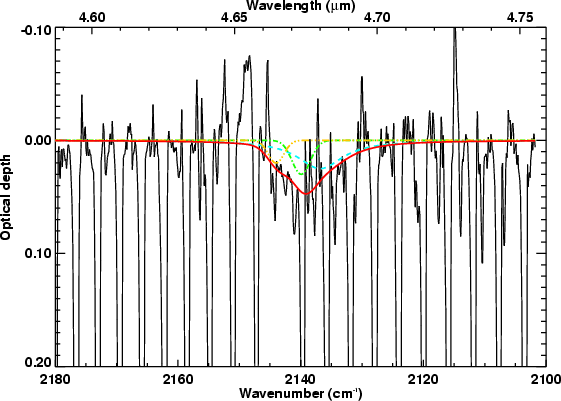

	Figure 11: Continuum subtracted VLT ISAAC M-band spectrum of LLN 19 around the CO ice feature at 2140 cm-1 (4.675 $\mu$m). The spectrum is in an optical depth scale. The thick (red) line is the sum of the three fitting components.
Open with DEXTER

Table 5: CO-ice band optical depth and column density derived from the phenomenological decomposition.

The optical depths and derived columns densities are summarized in Table 5, while the abundances relative to H₂O ice are given in Table 4. The solid CO column densities were obtained by integrating numerically the three components. The band strength for pure CO ice was measured to be $A = 1.1 \times 10^{-17}$ cm molec^-1 at 14 K (Jiang et al. 1975; Schmitt et al. 1989b; Gerakines et al. 1995). The uncertainties in the measured A value are not taken into account but are smaller than that introduced by the continuum subtraction. Although the band strength shows a 13% variation when CO is mixed with other molecules and a 17% variation with increasing temperature (Schmitt et al. 1989b; Gerakines et al. 1995), the same value for A is adopted to compute the column density for the three components. The errors of $\sim$20-30% reflect the noise in the observed spectra and the telluric features removal. Also presented in Table 5 are the CO-ice upper limits for LLN 8 (IRAS 08211-4158). Most of the CO is located in the gas for the latter object (see Fig. 10). The analysis of the gas phase CO lines is presented in a separate paper (Thi et al.  in preparation). The column densities of the middle and red component were estimated by integrating the each band individually. Again, a unique band strength of $1.1 \times 10^{17}$ cm molec^-1 is assumed.

The line-of-sight toward LLN 13 (IRAS 08375-4109) shows a high middle/red CO ratio typical of CO ice seen toward low-mass protostars and field stars. LLN 41 (IRAS 09017-4716) is also well matched by a high middle/red CO ratio mixture. In contrast, LLN 17 (IRAS 08448-4343) exhibits a stronger red component than a middle one. The CO-ice profile and optical depth is similar to that found toward the high-mass star GL961E (Chiar et al. 1998) although the FWHM of $\sim$12.2 cm^-1 is among the largest ever observed. The optical depths and column densities derived from the fits with the phenomenological components are shown in Table 5, together with complementary data obtained from Pontoppidan et al. (2003a). The total CO ice column densities using fits with laboratory data and phenomenological components are similar within the errors, although the individual components show larger variations.


4.4 The 4.62 $\mu$m "XCN'' feature

Other weaker bands can also provide constraints on the energetic processes in the vicinity of young protostars. In particular, the so-called XCN band near 4.62 $\mu$m, contained in the CO survey, has been cited as energetic processes tracer since its discovery toward the massive protostar W33A (Lacy et al. 1984). The feature is particularly strong toward LLN 17 (see Fig. 9), and is widely attributed to vibrational stretching modes of -CN groups in molecular coatings on dust grains. The best candidate is the OCN^- ion (e.g., Novozamsky et al. 2001), as first proposed by Grim & Greenberg (1987). Quantitatively, adopting an integrated band strength A= (4-10) $\times$ 10^-17 cm molecule^-1 for OCN^- (Demyk et al. 1998), the feature corresponds to a column density of 4.3- $11 \times 10$¹⁶ cm^-2. Recent laboratory work suggests however that A may be closer to $1.3 \times 10^{16}$ cm molecule^-1(van Broekhuizen et al. 2004). The concentration relative to H₂O using the latter value is $\sim$1%. The derived column density is similar to that found around other YSOs (e.g., Whittet et al. 2001; Demyk et al. 1998). Upper limits are difficult to estimate for the other objects because the wavelength range of the OCN^- feature is dominated by gas phase CO lines in emission or absorption. The upper limits are given in Table 3 and the relative abundances in Table 4. Noteworthy, OCN^- is detected in the object that shows the broadest CO feature, hence the most processed, but has one of the lowest CO/H₂O ratios in our sample. Further discussion on OCN^- in LLN 17 is postponed to Sect. 5.4.


5 Discussion


5.1 Companion objects

Water ice is detected toward four companion objects. The column densities are lower than those toward the primary object, except for LLN8b. The water ice may be located in the outer part of the extended envelope surrounding both the main object and the companion. CO ice has not been detected but the sample is too small and the upper limit too high to allow further discussion, except for LLN 17, which is further discussed in Sect. 5.4.


5.2 Effect of pores on the water ice spectrum

The ice layers on interstellar dust grains may be best simulated by background deposition in the laboratory that forms a porous ice (e.g., Stevenson et al. 1999). A porous structure has several advantages over the compact structure as a candidate for interstellar ices. A porous ice can retain a significant amount of molecules such as CO. Moreover, by increasing the temperature, the adsorbed molecules at the surface can migrate into the bulk where they are trapped, i.e., they remain in the mantle even if the grain temperature exceeds the evaporation temperature of the species. The annealing increases the diffusion of molecules into the pores. This point is further discussed in Sect. 5.3.

The effects on the optical constants of a water ice matrix due to isolated (i.e. not connected with each other) inclusions or pores can be simulated using an effective medium theory. One of the formulations is the Maxwell-Garnett approximation (e.g., Bohren & Huffman 1983, for a detailed description). The generalized Maxwell-Garnett formula with ellipsoidal pores is as follows (Niklasson & Granqvist 1984):

$$\epsilon_{\rm eff}=\frac{f \epsilon _{\rm ice}(1- \epsilon _{... ...ice}]}{L+(1-L) \epsilon _{\rm ice}-f(1- \epsilon _{\rm ice})L}$$ (2)

where $\epsilon_{\rm ice}$ is the complex dielectric function of the ice, f is the volume fraction of the inclusion (here the vacuum) and L is the depolarization factor. This factor is equal to 1/3 for spherical pores and lies between 1/3 and 1 for prolate spheroidal cavities (long axis along the normal to the layer and to the electric field). By setting L=1/3, the classical Maxwell-Garnett formula is recovered. The depolarization factor characterizes the effects of the shape of the pores but does not model the differences in the chemical bonding between a compact and a porous ice. The approximation was used to study the influence of various porosities and the depolarization factor on the simulated spectra. The role of the depolarization factor is studied by keeping all other parameters constant. The resulting spectra are displayed in Fig. 12. The simulations were performed with a porosity of 0.5 (i.e. 50% of the volume is vacuum). It is difficult to estimate the porosity of actual interstellar water ice mantle, but 0.5 is most likely the highest possible value. The generalized Maxwell-Garnett approximation is in theory valid for porosities lower than $\sim$0.3. Simulations with changing the porosity from 0.2 to 0.5 does not result, however, in large differences in the shape of the profile. On the other hand, a small variation in the depolarization factor (e.g. from 0.3 to 0.5) does. In Fig. 12, it can be seen that a higher depolarization moves the peak of the absorption to shorter wavelengths and increases the absorption at higher frequencies compared to that at lower frequencies. This effect may jeopardize the estimate of the ice temperature in Sect. 4.1. The possible ambiguity between a low-temperature and high-temperature ice with different depolarization factors is illustrated in Fig. 12. The simulated shapes are very similar in the blue. The simulations suggest that water ice between 10 and 40 K can fit the observed profiles. However, the 120 K optical constant of porous ice is not able to mimic amorphous cold ice. Porous ice at 120 K lacks absorption in the red but extra extinction can be provided by scattering by large grains. It should be noted that the water ice feature at 3 $\mu$m alone does not provide sufficient constraints on the porosity of the ice. Laboratory spectra of water ice at various porosity are warranted to test the validity of the modeling.

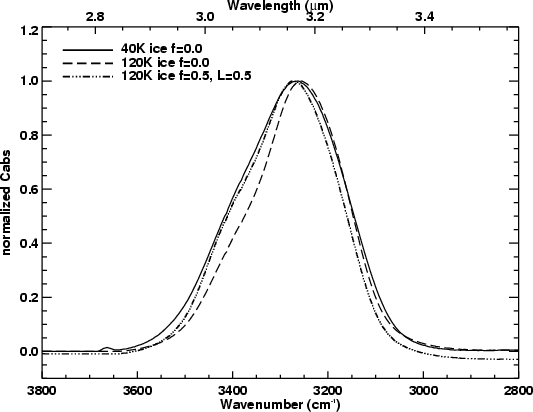

	Figure 12: The effects of the depolarization factor L on the water ice feature at 3300 cm-1 ($\sim$3.1 $\mu$m). The effect of porosity for water ice at 120 K is shown (f=0 means compact ice while f=0.5 means that 50% of the volumn fraction is vacuum. The porous 120 K water ice absorption coefficient is close to the compact 40 K ice.
Open with DEXTER

It is known that some warm water ice can be hidden in the broad profile (Dartois & d'Hendecourt 2001). Crystalline H₂O ice was observed in several lines of sight, mostly in the ejected envelope of evolved stars (Smith et al. 1988; Maldoni et al. 2003) and in the circumstellar environment of the massive YSO BN object (Smith et al. 1989). It is known that the ice mantle on grains around evolved stars is formed by condensation of water molecules synthesized in the gas phase (Dijkstra et al. 2003), whereas the water ice mantle of interstellar grains is likely created by grain-surface reactions (Nguyen et al. 2002). In conclusion, a significant amount of high-temperature ( $T_{{\rm ice}}=40$-60 K) ice can be hidden in highly porous ice because of this effect, making the estimate of the water ice temperature from the direct fit to the spectrum unreliable, although there is no direct evidence of highly porous water ice in the ISM. Further theoretical and laboratory investigations are needed to constrain the degree of porosity in ice mantles.


5.3 Evidence for thermal processing of water and CO ices

The sources chosen for this study were selected among the brightest class I young stellar objects found in the Vela molecular clouds by Liseau et al. (1992). The objects posses similar characteristics but exhibit a large variations in water and CO ice column densities. It is therefore interesting to find possible relations between the ice properties and the source characteristics. The source characteristics of interest are the extinction $A_{{\rm V}}$, the infrared luminosity $L_{{\rm IR}}$, and colors such as K-L, IRAS 12 $\mu$m/25 $\mu$m flux ratio R(12/25) and 25 $\mu$m/60 $\mu$m flux ratio R(25/60). The ratio R(12/25) is a good estimate of the warm dust temperature (100 < T < 250 K), while the ratio R(25/60) is sensitive to cooler dust (50 < T < 100 K). Finally, the K-Lcolor allows to probe hot dust (T> 250). The source characteristics were chosen because they are available for all the sources in our sample.


5.3.1 Water ice

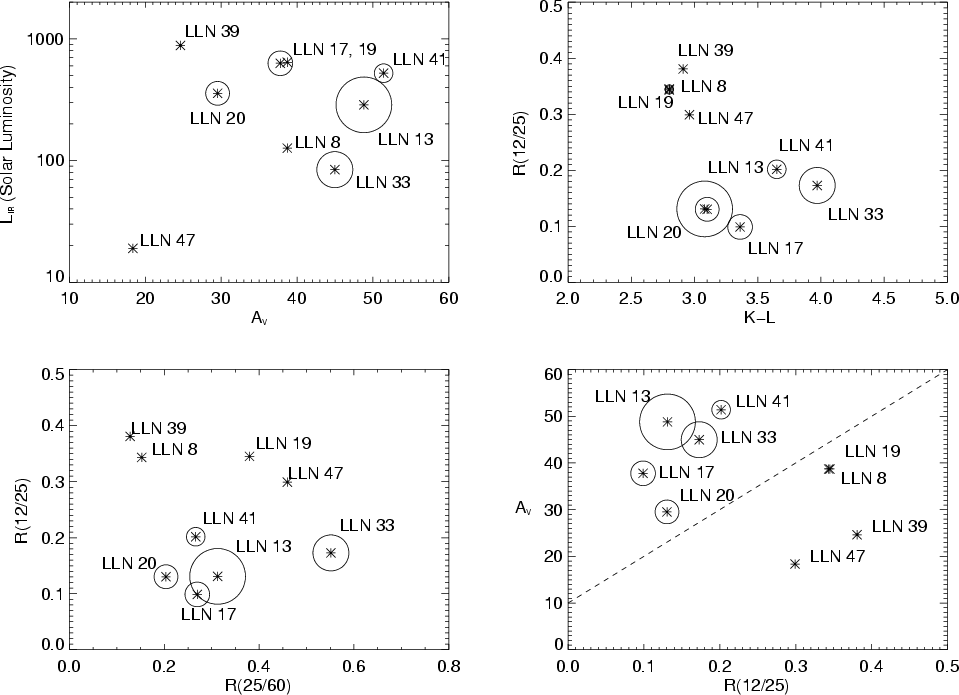

The water ice column densities are plotted against the infrared luminosity in the upper left panel of Fig. 13.

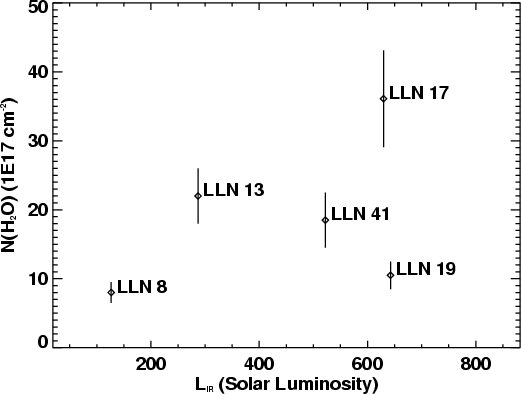

	Figure 13: Water ice column density N(H2O) versus the infrared luminosity $L_{{\rm IR}}$. The error bars are 2$\sigma$ level.
Open with DEXTER

They vary from 0.8 to 3.6 $\times$ 10¹⁸ cm^-2 and do not correlate with increasing infrared luminosity measured between 7 and 135 $\mu$m.

The extinction can be estimated from the observed E(H-K) with $A_{{\rm V}}$ = ( $15.3 \pm 0.6$) $\times$ E(H-K) (Rieke & Lebofsky 1985). The intrinsic H-K color of early B up to F stars is close to zero. Assuming that the K band flux is dominated by the extincted central source, $E(H-K) \simeq H-K$. The estimated extinction is an upper limit since the H-K color may be lower if emission from hot circumstellar dust at $\sim$1500 K dominates the near-infrared continuum. Alternatively, the optical depth at 9.7 $\mu$m ( $A_{{\rm V}}$ = ( $18.5 \pm 1.5$) $\times$  $\tau_{9.7}$, Roche & Aitken 1985), measured in the IRAS-LRS spectra, provides a lower limit on the extinction because of potential intrinsic silicate emission. Therefore, the combined use of the two methods brackets the actual extinction. The different estimates of the extinction $A_{{\rm V}}$ are provided in Table 6. Liseau et al. (1992) estimated lower limits of 20 mag for most sources in our sample. The discrepancy between the two methods is about a factor 3. In order to better estimate $A_{{\rm V}}$, the full Spectral Energy Distribution has been modelled together with the IRAS-LRS data between 9 and 25 $\mu$m of three objects (LLN 13, LLN 17 and LLN 19) using the one-dimensional public radiative transfer code DUSTY (Ivezic & Elitzur 1997) adopting a bare silicate grain model. The three objects were chosen because they have measured 1.3 mm fluxes. The best fits to the SEDs are shown in Fig. 15 and the estimated $A_{{\rm V}}$ are given in Table 6. DUSTY fails to fit the details of the silicate feature of (LLN 13, LLN 17), but provides reasonably good fit of the silicate feature for LLN 19. The absorption in 10-25 $\mu$m region of LLN 13 and LLN 17 can be caused by water and CO₂ ice in addition to silicate absorption. The near-infrared and the SED fitting method give relatively close values for $A_{{\rm V}}$. Thus, we will adopt the simpler near-infrared method in the rest of the discussion. The H- and K-band magnitudes are included in Table 1. The derived extinctions using E(H-K) are between 20 and 50, consistent with the values derived from the silicate feature.

Table 6: Estimation of the visual extinction by the 9.7 $\mu$m optical depth, the near-infrared excess and the SED fitting method.

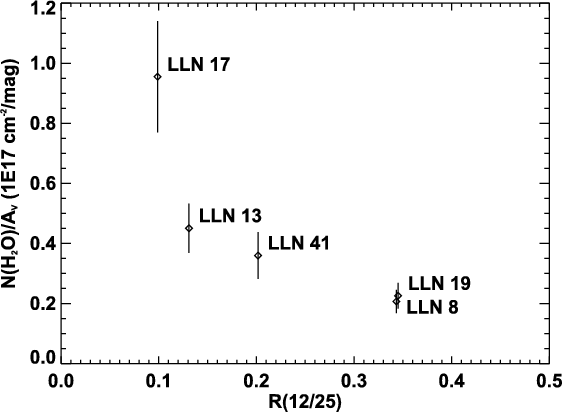

	Figure 14: Water ice column density N(H2O) normalized to the extinction $A_{{\rm V}}$ versus the ratio R(12/25). The error bars are 2$\sigma$ level. The errors on the ratios R(12/25) are $\sim$5-10%. A trend is seen between N(H2O)/ $A_{{\rm V}}$ and R(12/25).
Open with DEXTER

Adopting the relation $N_{{\rm H}} =(1.6 \times 10^{21}) \times A_{{\rm V}}$ cm^-2, the derived water ice abundance is (1.3-5.9) $\times$ 10^-5 and is lower than the mean value found in quiescent molecular clouds in Taurus ( $7 \times 10^{-5}$, Whittet 2003) and Serpens ( $9 \pm 1 \times 10^{-5}$, Pontoppidan et al. 2004). The lower water ice abundances found toward the YSO's in Vela may be ascribed to thermal processing of the dust grains by the central object, lower average gas density, or by external radiation from surrounding YSO's. Jørgensen et al. (2004) show that variations in the gas-phase abundances in the envelopes of YSOs can be explained by a variable size of the region over which the molecules are frozen out; a similar situation may apply here.

To further ascertain the effect of thermal heating, the water ice abundance N(H₂O)/ $A_{{\rm V}}$ is plotted against the IRAS 12 $\mu$m/25 $\mu$m flux ratio R(12/25) in Fig. 14. The IRAS 12 $\mu$m band filter is relatively narrow and therefore, the IRAS fluxes are not strongly affected by the silicate absorption band. The water ice abundance clearly decreases with increasing warm dust temperature. This is consistent with the work of Boogert et al. (2000), who were the first to show that the color temperature of the dust correlates with ice heating/crystallization through the CO₂ ice bands, which trace CO₂ ice mixed with H₂O ice. The heating of the water ice mantle at T>100 K should also results in the formation of a significant amount of heated water ice (narrower profile). However, the water ice observed in our sources is mostly in an amorphous state (see Sect. 4.1), although the narrow feature of warm water ice may be broadened in porous ices (see Sect. 5.2). Alternatively, the inspection of the IRAS-LRS spectra toward LLN 13 and LLN 17 shows that the 12 $\mu$m photometry can be biased by water ice absorption. Indeed, the presence of large amounts of water ice with respect to silicate will decrease the ratio R(12/25) and explain the trend seen in Fig. 14.

5.3.2 CO ice

In this subsection, we added four objects located in the Vela cloud studied by Pontoppidan et al. (2003b). A closer look at the source characteristics and their possible relationships with CO ice abundance are given in Fig. 16. In this figure, the abundance of CO ice for each object is represented by a circle whose radius is proportional to the CO ice column density. The upper left panel of Fig. 16 shows the line-of-sight extinction $A_{{\rm V}}$ and infrared luminosity $L_{{\rm IR}}$ of the nine sources.

The total column density of CO ice does not correlate with the infrared nor the bolometric luminosity of the sources. In particular two sources LLN 17 and LLN 19 show similar values for $A_{{\rm V}}$ and $L_{{\rm IR}}$ but CO ice has only been detected toward LLN 17.

It may be possible to constrain the dust temperature range to which the CO ice abundance is sensitive by finding relations between CO ice abundances and colors. The K-L, R(12/25), and R(25/60) colors encompass dust with temperature ranging from 50 to more than 250 K. This range of dust temperature is well above the CO ice sublimation temperature, thus we do not expect any correlation apart, from perhaps, a weak one with the coolest temperature R(25/60). From the two color-color diagrams plotted in Fig. 16 (the upper-right and lower-left panels), it appears that the CO ice abundances vary with the ratio R(12/25) but not with K-L, which is expected, nor with R(25/60), which is more surprising. Before discussing this finding, it is important to test whether the CO ice abundance is related to the extinction in the line-of-sight. Water ice column densities are known to vary linearly with the visual extinction after a certain threshold value (e.g., Whittet 2003). In other words, water ice abundances do not change with $A_{{\rm V}}$. For the CO ice in our sample, the abundances do not correlate with $A_{{\rm V}}$ as testified by the lower-right panel of Fig. 16.

Pure CO ice sublimes at $\sim$20 K, while CO trapped in water ice, often associated with the red component at 2136 cm^-1, evaporates with sudden phase changes of the water matrix at higher temperature (Collings et al. 2003; Schmitt et al. 1989a). The amount of CO ice trapped with water should therefore show a similarly decreasing trend as water ice with increasing value of R(12/25). The column density of the red component normalized to the estimated extinction $N_{{\rm rc}}$(CO)/ $A_{{\rm V}}$ is plotted in Fig. 17. $N_{{\rm rc}}$(CO)/ $A_{{\rm V}}$ decreases with increasing value of R(12/25). Both $N_{{\rm rc}}$(CO)/ $A_{{\rm V}}$ and N(H₂O)/ $A_{{\rm V}}$ show the same trend with R(12/25) and therefore correlate with each other (right panel of Fig. 18). This correlation is consistent with the simultaneous sublimation of water and CO molecules trapped in the water matrix. It is also clear that N(CO)/ $A_{{\rm V}}$ and N(H₂O)/ $A_{{\rm V}}$ do not correlate (left panel of Fig. 18). If R(12/25) is another way to express N(H₂O)/ $A_{{\rm V}}$, then Figs. 17 and 18 express the same relationship between the CO red ice component and water ice.

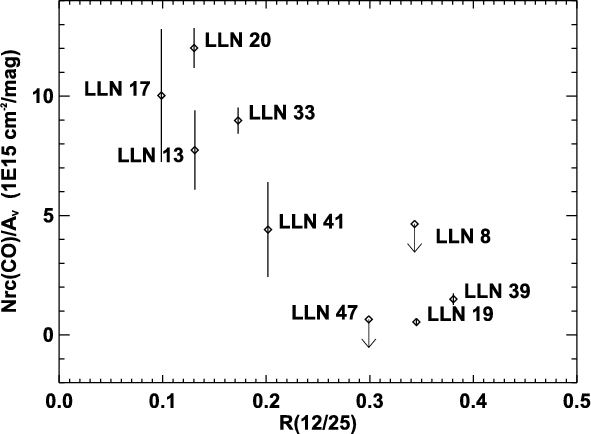

	Figure 17: Red component column density $N_{{\rm rc}}$ normalized to the extinction $A_{{\rm V}}$ versus the ratio R(12/25). The error bars are 2$\sigma$ level. The errors on the ratios R(12/25) are $\sim$5-10%. A clear trend is seen between $N_{{\rm rc}}$/ $A_{{\rm V}}$ and R(12/25).
Open with DEXTER

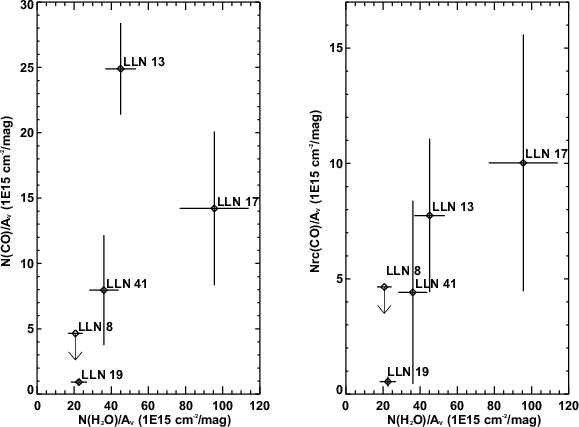

	Figure 18: Total CO column density N(CO) and red component column density $N_{{\rm rc}}$ normalized to the extinction $A_{{\rm V}}$ versus N(H2O)/ $A_{{\rm V}}$ in the left and right panel respectively. A clear trend is seen between N(CO) $_{{\rm rc}}$/ $A_{{\rm V}}$and N(H2O)/ $A_{{\rm V}}$.
Open with DEXTER

It is difficult to solely attribute the red component to trapped CO molecules because of the absence in space of the 2152 cm^-1feature, which is present in laboratory data of CO-H₂O mixtures. However, the 2152 cm^-1 absorption feature seen in laboratory spectra of CO-water mixtures disappears when the dust is heated above $\sim$80 K (Fraser et al. 2004). Other effects may contribute to the red component. One possibility is that part of the red component is due to scattering by the larger grains in the grain size distribution similar to the effect seen for the red wing in the water ice band (see Sect. 4.1 and Dartois 2005). In this scenario, the CO and water ice may located in two layers, which ensures that the 2136 cm^-1 feature does not appear even at low temperature. The CO ice trapped in a water matrix and the pure CO ice in large grains may be located in two separate populations in the line-of-sight. The CO red component appears to be a good temperature indicator. The possible relationship between $N_{{\rm rc}}$(CO)/ $A_{{\rm V}}$ and R(12/25) should be tested in other star-forming regions. Likewise, future observations of ¹³CO₂ ice will allow to test the possible relation between heated ¹³CO₂ ice and the fraction of hot over cold grains for intermediate-mass YSOs. Spitzer observations of CO₂ ice toward the low-mass protostar HH 46 have shown that most of the ices are located in the cold (T < 50 K) part of a circumstellar envelope, although the inner envelope should be warm enough to explain the presence of a double-peaked absorption feature for the CO₂ bending mode (Boogert et al. 2004). The best fit to the CO₂ bending mode feature is obtained with an ice mixture CH₃OH:H₂O:CO₂=0.3:1:1 at 155 K in the laboratory or $\sim$75 K in space. This indicates that the inner H₂O, CO₂ and CH₃OH ices are warm.


5.4 Is LLN 17 a peculiar intermediate mass YSO?

Among the intermediate-mass YSOs observed in the Vela Molecular Cloud, LLN 17 is the only object where large quantities of H₂O-rich CO ice, of methanol ice and of OCN^- are found; although it should be emphasized that the relative abundance of methanol ice toward LLN 17 is not extremely high ($\simeq$6.9% w.r.t. H₂O ice). The ice abundances seen toward LLN 17 may be attributed to its peculiar environment. LLN 17 is the most luminous YSO in our sample, it is located in the densest stellar cluster (see Table 1) and shows signs of molecular outflows (Lorenzetti et al. 2002; Giannini et al. 2005). In this section, we discuss whether these particularities can explain the ice abundances.

First we discuss the different ways to form solid-CH $_{\rm 3}$OH and their implications. The chemistry of solid-CH $_{\rm 3}$OH is still subject to considerable discussion. The exact moment of its formation and the amount of subsequent energetic processing are currently unknown. Originally it was suggested that methanol ice formed through hydrogenation of accreted CO (Tielens & Allamandola 1987), but recent laboratory experiments suggest that this mechanism has a very low yield (e.g. Hiraoka et al. 2002; Hiraoka et al. 2005), although the results are not conclusive (e.g., Watanabe et al. 2004; Watanabe & Kouchi 2002). Hydrogen addition to CO at low temperature most likely occurs by H-tunneling since this reaction has an energetic barrier (Woon 2002). The original scheme allows an efficient synthesis of methanol ice in cold pre-stellar cores where CO molecule is known to be highly depleted onto grains although the amount of atomic H, which reacts with CO to form CH₃OH, is also small (van der Tak et al. 2000). If methanol ice is formed at an earlier phase of star formation, probably at the pre-stellar core stage without significant energetic processing afterwards apart from the processing by UV photons generated by cosmic-rays interacting with H₂ and H, similar abundances should be found for members of the same cluster, which is not the case for objects in the Vela molecular cloud and in the Serpens cloud (Pontoppidan et al. 2003a). Likewise, methanol ice is not present in most lines of sight in the Taurus cloud (Chiar et al. 1996). Therefore, methanol ice is probably synthesized at a later stage of stellar collapse where energetic events (UV and/or warm-up in shocks created from the interaction of stellar wind/outflow with the surrounding envelope) from the central object can provide the necessary energy to overcome the reaction barrier. LLN 17 is the most massive YSO in our sample and, hence, the most UV luminous. It would be tempting to attribute the CH₃OH ice to grain surface reactions triggered by UV photons from the central object. However, if we take into account all YSOs where methanol ice has been found, it is also clear that the methanol ice abundance does not correlate solely with the UV flux from the central star and direct stellar UV processing is also not dominant (e.g., Dartois et al. 1999; Pontoppidan et al. 2003a). In addition to the UV from the central star, shocks can produce copious amount of UV photons and heat the gas and dust. Bergin et al. (1998) have shown that large amounts of water ice can form in post-shock regions. According to this scenario, the water ice mantle is formed by condensation of water molecules formed in the high temperature region of shocks, which subsequently condense rapidly onto the bare silicate grains in the cool post-shock region. In theory, the water ice formed by vapor deposition at T > 100 K should be in the crystalline form. As discussed previously, crystalline water ice is rarely seen toward YSOs. One possibility to circumvent the problem is that high water deposition rate can result in amorphous instead of crystalline ice (Kouchi et al. 1994). Another possibility is that crystalline ice is amorphized by cosmic-ray bombardment or Ly $\alpha$radiation (Leto & Baratta 2003). As realized by Bergin et al. (1999,1998), current gas phase chemical networks do not include all possible high temperature formation paths of methanol. As a consequence, the amount of methanol formed in shocks in standard models is too low to account for the abundance in the solid phase. Another possibility to form efficiently CH₃OH ice is that hot atomic hydrogens created by dissociation of H₂ in shocks impinge onto the grain surface to react with CO to form HCO, H₂CO and finally CH₃OH. Chemical models of shocks that include all formation paths of molecules at high temperature are warranted.

The methanol ice found in LLN 17 is most likely embedded into a water matrix (Sect. 4.2), indicating that water and methanol ice may have formed simultaneously or that methanol molecules have migrated. Interestingly, a collimated bipolar H₂ jet structure composed of bright knots of line emission has been detected toward LLN 17 while neither LLN 19 nor LLN 13 show sign of outflow (Lorenzetti et al. 2002). The morphology of the LLN 17 jet points to the presence of episodic phenomena of mass ejection typically observed in protostellar jets (Reipurth & Heathcote 1992). The molecular outflow has been mapped by Wouterloot & Brand (1999) in the ¹²CO 1-0 transition. Important unknowns in the outflow/shock scenario are the degree of mixing of the processed and unprocessed grains, the precession and the periodicity of the jet phenomenon. In summary, detailed models are needed to determine whether shock chemistry is a viable mechanism to synthesize large amounts of gas and solid phase CH₃OH. Likewise, correlation between outflow and high methanol ice content should be further investigated.

It is also interesting to relate the stellar and circumstellar characteristics of LLN 17 to the presence of OCN^- in its envelope. The OCN^- ion is believed to be formed in a solid state acid-base reaction between NH₃ and isocyanic acid (HNCO), efficiently mediated by thermal processing (van Broekhuizen et al. 2004; Demyk et al. 1998; Novozamsky et al. 2001; Park & Woon 2004). The main difficulty in this interpretation is that isocyanic acid ice has never been detected in space, although it has a relatively high gas-phase abundance in hot cores and in shocked regions (Comito et al. 2005). The high abundance in shocked regions is consistent with the proposed outflow/shock scenario.

Theoretically, HNCO ice abundance up to $\sim$3% with respect to water ice can also be attained by grain-surface reactions (Hasegawa & Herbst 1993). Alternatively, an abundance of $\sim$1% for OCN^- can be easily reached by UV-photolysis of the initial mixture H₂O/CH₃OH/NH₃=100:15:15 (van Broekhuizen et al. 2004). Although the required amount of UV-dose (fluence) exceeds the value estimated in dense clouds, the large amount of processed CO and CH₃OH ice found toward LLN 17 suggests that the UV field around LLN 17 may be enhanced compared to that provided by cosmic rays induced only. The abundance of NH₃ in the envelope around LLN 17 is difficult to estimate owing to the poor signal-to-noise ratio of the spectrum around the ammonia feature at 2.97 $\mu$m. However, sufficient amounts of NH₃ may have existed in the ice mantle since the 3.47 $\mu$m feature is relatively strong toward LLN 17, assuming that the 3.47 $\mu$m feature is caused by ammonia hydrate. Noteworthy, the detection of OCN^- is often concomittent with that of CH₃OH ice (see Table 5 of van Broekhuizen et al. 2004, and the references therein).

Another particularity of LLN 17 is that the water ice abundance with respect to H₂ is the highest (see Fig. 18) in our sample. Methanol ice and OCN^-are often detected in objects with high water ice abundance (van Broekhuizen et al. 2004; Dartois et al. 1999; Pontoppidan et al. 2003a).

Finally, the presence of water-rich CO ice in LLN 17 and its absence in the companion object LLN 17b as seen in Fig. 9 reinforces the idea that the processing occurs in the vicinity of the central object (i.e. with a few thousand AU). The M-band spectrum of LLN 17b is too low to give meaningful upper limit on the amount of OCN^-. The difference between LLN 17 and its companion suggests that external heating and/or UV processing by the other stars in the cluster play a minor role (see last column of Table 5).

Interestingly, the OCN^- and methanol abundances relative to water in LLN 17 are close to those found in the envelope around HH 46 (Boogert et al. 2004). Likewise, the water-rich CO abundance dominates over the water-poor CO and water ice is relatively abundant ( $5.7 \times 10$^-5).

In summary, the simultaneous presence of large amount of water-rich CO ice, CH₃OH ice, and OCN^- ice toward LLN 17 and the non-detection in other objects are consistent with the idea that these species are formed by a combination of UV and thermal processing in the inner regions of the circumstellar envelope. The UV radiation can be generated by the interaction between the outflows and envelope, by the central source, or by a combination of both mechanisms. Another possibility is that CH₃OH is first synthesized in the gas-phase, then condenses onto grains simultaneously with H₂O in post-shocked regions.


6 Conclusions

We have obtained L- and M-band spectra of a sample of intermediate-mass protostars in the Vela molecular cloud with the VLT-ISAAC. This is the first significant sample of intermediate mass protostars for which ice data are published.

A broad absorption feature at $\sim$3.01 $\mu$m is detected in all sources (main and companion objects). The features show an extended wing beyond 3.25 $\mu$m, which can be reproduced in part by scattering by grains at radius 0.4-0.5 $\mu$m. The water ice feature is dominated by absorption from cold amorphous ice although the spectroscopic signature of warm water ice can be masked if the ice is porous.

Methanol ice is only detected around the protostar LLN 17 (IRAS 08448-4343). The derived abundance is $10~ \pm~ 2$% relative to water ice. The upper limit on the methanol abundance toward the other sources is between 5 and 10% with respect to water ice.

Solid CO is detected in four main objects and one companion object. The profiles show a large variety of shapes. A strong variation of the total CO ice column density is found. We decompose the CO ice feature into three components. The column of CO becomes significant (i.e. larger than 10¹⁷ cm^-2) only at R(12/25) greater than $\sim$0.3. The color R(12/25) may trace the abundance of water ice with respect to silicate. There is no clear trend between the column density of pure CO ice, traced by the middle component, and other characteristics of the YSOs ( $L_{\rm bol}$, $A_{{\rm V}}$, IRAS bands flux ratios). On the other hand, we find a possible correlation between the ratio of the flux at 12 $\mu$m and 25 $\mu$m, R(12/25), which is a measure of the warm dust temperature ( 100< T < 250 K), and the amount of CO ice trapped in a water rich ice mantle, traced by the red component. Likewise, the amount of CO ice trapped in a water and that of water may correlate. This possible correlation is consistent with the idea that the water ice and the CO embedded in it sublime simultaneously.

These possible correlations should be tested in other star-forming regions. However, CO ice trapped in water-rich ice cannot solely account for the large amount of CO in the red component seen toward YSOs in Vela. Other factors such as scattering by the larger grains in the size distribution can probably contribute to the red component.

A strong absorption feature centered at 4.62 $\mu$m is detected toward LLN 17 (IRAS 08448-4343). The feature is likely caused by OCN^-. The derived abundance relative to water is $1 \pm 0.2$%. This feature is not detected in any other object in our sample. Together with the detection of methanol and the broad CO feature, the detection of OCN^- suggests that the ice has been thermally and/or UV processed in LLN 17. The processing generated by UV from the central object is not essential and perhaps shocks induced processing is at play. Further theoretical investigations on the possibility to form large amounts of methanol ice together with water ice in post-shocked regions are needed.

Observations of a larger sample of high signal-to-noise ratio spectra obtained with 8-10 m class telescopes (VLT, Gemini, Keck) and with Spitzer at longer wavelengths of protostars of varying luminosities combined with sophisticated laboratory experiments will improve our understanding of the nature of the ices and their role in the synthesis of complex molecules in the interstellar medium.

Acknowledgements

  This work was supported by The Netherlands Organization for Scientific Research (NWO) grants 614.041.003 and 614.041.005 and a Spinoza grant. W.F.T. was supported by a PPARC grant during his stay at UCL. W.F.T. acknowledges an ESA internal fellowship. We thank the ESO staff for their help before and during the observations, in particular, F. Comeron, C. Lidman and O. Marco. The analysis of the data has benefited from discussions with Annemieke Boonman, Doug Johnstone, Guillermo Muñoz-Caro, Xander Tielens and Chris Wright. Stimulating advice was provided by the late Prof. J. M. Greenberg. Finally, we thank the referee for her/his detailed comments which help to improve the paper.

References

• Adams, F. C., Lada, C. J., & Shu, F. H. 1987, ApJ, 312, 788 [NASA ADS] [CrossRef] (In the text)
• Al-Halabi, A., Fraser, H. J., Kroes, G. J., & van Dishoeck, E. F. 2004, A&A, 422, 777 [EDP Sciences] [NASA ADS] [CrossRef] (In the text)
• Allamandola, L. J., Sandford, S. A., Tielens, A. G. G. M., & Herbst, T. M. 1992, ApJ, 399, 134 [NASA ADS] [CrossRef] (In the text)
• Aschenbach, B. 1998, Nature, 396, 141 [NASA ADS] [CrossRef] (In the text)
• Bergin, E. A., & Langer, W. D. 1997, ApJ, 486, 316 [NASA ADS] [CrossRef] (In the text)
• Bergin, E. A., Neufeld, D. A., & Melnick, G. J. 1998, ApJ, 499, 777 [NASA ADS] [CrossRef] (In the text)
• Bergin, E. A., Neufeld, D. A., & Melnick, G. J. 1999, ApJ, 510, L145 [NASA ADS] [CrossRef]
• Bergin, E. A., Ciardi, D. R., Lada, C. J., Alves, J., & Lada, E. A. 2001, ApJ, 557, 209 [NASA ADS] [CrossRef] (In the text)
• Blake, G. A., Sutton, E. C., Masson, C. R., & Phillips, T. G. 1987, ApJ, 315, 621 [NASA ADS] [CrossRef] (In the text)
• Bohren, C. F., & Huffman, D. R. 1983, Absorption and scattering of light by small particles (New York: Wiley) (In the text)
• Boogert, A. C. A., Helmich, F. P., van Dishoeck, E. F., et al. 1998, A&A, 336, 352 [NASA ADS] (In the text)
• Boogert, A. C. A., Ehrenfreund, P., Gerakines, P. A., et al. 2000, A&A, 353, 349 [NASA ADS] (In the text)
• Boogert, A. C. A., Pontoppidan, K. M., Lahuis, F., et al. 2004, ApJS, 154, 359 [NASA ADS] [CrossRef] (In the text)
• Brooke, T. Y., Sellgren, K., & Smith, R. G. 1996, ApJ, 459, 209 [NASA ADS] [CrossRef]
• Brooke, T. Y., Sellgren, K., & Geballe, T. R. 1999, ApJ, 517, 883 [NASA ADS] [CrossRef]
• Charnley, S. B., Kress, M. E., Tielens, A. G. G. M., & Millar, T. J. 1995, ApJ, 448, 232 [NASA ADS] [CrossRef] (In the text)
• Chiar, J. E., Adamson, A. J., Kerr, T. H., & Whittet, D. C. B. 1995, ApJ, 455, 234 [NASA ADS] [CrossRef] (In the text)
• Chiar, J. E., Adamson, A. J., & Whittet, D. C. B. 1996, ApJ, 472, 665 [NASA ADS] [CrossRef] (In the text)
• Chiar, J. E., Gerakines, P. A., Whittet, D. C. B., et al. 1998, ApJ, 498, 716 [NASA ADS] [CrossRef] (In the text)
• Collings, M. P., Dever, J. W., Fraser, H. J., McCoustra, M. R. S., & Williams, D. A. 2003, ApJ, 583, 1058 [NASA ADS] [CrossRef] (In the text)
• Comito, C., Schilke, P., Phillips, T. G., et al. 2005, ApJS, 156, 127 [NASA ADS] [CrossRef] (In the text)
• Dartois, E. 2005, A&A, submitted (In the text)
• Dartois, E., & d'Hendecourt, L. 2001, A&A, 365, 144 [EDP Sciences] [NASA ADS] [CrossRef] (In the text)
• Dartois, E., Schutte, W., Geballe, T. R., et al. 1999, A&A, 342, L32 [NASA ADS] (In the text)
• Dartois, E., d'Hendecourt, L., Thi, W., Pontoppidan, K. M., & van Dishoeck, E. F. 2002, A&A, 394, 1057 [EDP Sciences] [NASA ADS] [CrossRef] (In the text)
• de Graauw, T., Whittet, D. C. B., Gerakines, P. A., et al. 1996, A&A, 315, L345 [NASA ADS] (In the text)
• Demyk, K., Dartois, E., D'Hendecourt, L., et al. 1998, A&A, 339, 553 [NASA ADS] (In the text)
• Dijkstra, C., Dominik, C., Hoogzaad, S. N., de Koter, A., & Min, M. 2003, A&A, 401, 599 [EDP Sciences] [NASA ADS] [CrossRef] (In the text)
• Draine, B. T. 2003, ARA&A, 41, 241 [NASA ADS] (In the text)
• Ehrenfreund, P., & Charnley, S. B. 2000, ARA&A, 38, 427 [NASA ADS] (In the text)
• Fraser, H. J., Collings, M. P., Dever, J. W., & McCoustra, M. R. S. 2004, MNRAS, 353, 59 [NASA ADS] [CrossRef] (In the text)
• Gerakines, P. A., Schutte, W. A., Greenberg, J. M., & van Dishoeck, E. F. 1995, A&A, 296, 810 [NASA ADS] (In the text)
• Giannini, T., Massi, F., Podio, L., et al. 2005, A&A, 433, 941 [EDP Sciences] [NASA ADS] [CrossRef]
• Givan, A., Loewenschuss, A., & Nielsen, C. J. 1997, J. Phys. Chem. B, 101, 8696 [CrossRef] (In the text)
• Grim, R. J. A., & Greenberg, J. M. 1987, ApJ, 321, L91 [NASA ADS] [CrossRef] (In the text)
• Hagen, W., & Tielens, A. G. G. M. 1981, J. Chem. Phys., 75, 4198 [NASA ADS] [CrossRef] (In the text)
• Hasegawa, T. I., & Herbst, E. 1993, MNRAS, 263, 589 [NASA ADS] (In the text)
• Hiraoka, K., Sato, T., Sato, S., et al. 2002, ApJ, 577, 265 [NASA ADS] [CrossRef] (In the text)
• Hiraoka, K., Wada, A., Kitagawa, H., et al. 2005, ApJ, 620, 542 [NASA ADS] [CrossRef] (In the text)
• Holloway, R. P., Chrysostomou, A., Aitken, D. K., Hough, J. H., & McCall, A. 2002, MNRAS, 336, 425 [NASA ADS] [CrossRef] (In the text)
• Horn, A., Møllendal, H., Sekiguchi, O., et al. 2004, ApJ, 611, 605 [NASA ADS] [CrossRef] (In the text)
• Hudgins, D. M., Sandford, S. A., Allamandola, L. J., & Tielens, A. G. G. M. 1993, ApJS, 86, 713 [NASA ADS] [CrossRef] (In the text)
• Ivezic, Z., & Elitzur, M. 1997, MNRAS, 287, 799 [NASA ADS] (In the text)
• Jiang, G. J., Person, W. B., & Brown, K. G. 1975, J. Chem. Phys., 62, 1201 [NASA ADS] [CrossRef] (In the text)
• Jørgensen, J. K., Schöier, F. L., & van Dishoeck, E. F. 2004, A&A, 416, 603 [EDP Sciences] [NASA ADS] [CrossRef] (In the text)
• Keane, J. V., Tielens, A. G. G. M., Boogert, A. C. A., Schutte, W. A., & Whittet, D. C. B. 2001, A&A, 376, 254 [EDP Sciences] [NASA ADS] [CrossRef] (In the text)
• Kerkhof, O., Schutte, W. A., & Ehrenfreund, P. 1999, A&A, 346, 990 [NASA ADS] (In the text)
• Kouchi, A., Yamamoto, T., Kozasa, T., Kuroda, T., & Greenberg, J. M. 1994, A&A, 290, 1009 [NASA ADS] (In the text)
• Lacy, J. H., Baas, F., Allamandola, L. J., et al. 1984, ApJ, 276, 533 [NASA ADS] [CrossRef] (In the text)
• Lacy, J. H., Faraji, H., Sandford, S. A., & Allamandola, L. J. 1998, ApJ, 501, L105 [NASA ADS] [CrossRef] (In the text)
• Leto, G., & Baratta, G. A. 2003, A&A, 397, 7 [EDP Sciences] [NASA ADS] [CrossRef] (In the text)
• Liseau, R., Lorenzetti, D., Nisini, B., Spinoglio, L., & Moneti, A. 1992, A&A, 265, 577 [NASA ADS] (In the text)
• Lorenzetti, D., Giannini, T., Vitali, F., Massi, F., & Nisini, B. 2002, ApJ, 564, 839 [NASA ADS] [CrossRef]
• Maldoni, M. M., Smith, R. G., Robinson, G., & Rookyard, V. L. 1998, MNRAS, 298, 251 [NASA ADS] [CrossRef] (In the text)
• Maldoni, M. M., Egan, M. P., Smith, R. G., Robinson, G., & Wright, C. M. 2003, MNRAS, 345, 912 [NASA ADS] [CrossRef]
• Massi, F., Giannini, T., Lorenzetti, D., et al. 1999, A&AS, 136, 471 [EDP Sciences] [NASA ADS] (In the text)
• Murphy, D. C., & May, J. 1991, A&A, 247, 202 [NASA ADS] (In the text)
• Nguyen, T. K., Ruffle, D. P., Herbst, E., & Williams, D. A. 2002, MNRAS, 329, 301 [NASA ADS] [CrossRef] (In the text)
• Niklasson, G. A., & Granqvist, C. G. 1984, J. Applied Phys., 55, 3382 [NASA ADS] (In the text)
• Novozamsky, J. H., Schutte, W. A., & Keane, J. V. 2001, A&A, 379, 588 [EDP Sciences] [NASA ADS] [CrossRef] (In the text)
• Palla, F., & Stahler, S. W. 1993, ApJ, 418, 414 [NASA ADS] [CrossRef] (In the text)
• Park, J., & Woon, D. E. 2004, ApJ, 601, L63 [NASA ADS] [CrossRef]
• Pontoppidan, K. M., Dartois, E., van Dishoeck, E. F., Thi, W.-F., & d'Hendecourt, L. 2003a, A&A, 404, L17 [EDP Sciences] [NASA ADS] [CrossRef] (In the text)
• Pontoppidan, K. M., Fraser, H. J., Dartois, E., et al. 2003b, A&A, 408, 981 [EDP Sciences] [NASA ADS] [CrossRef]
• Pontoppidan, K. M., van Dishoeck, & Dartois, E. 2004, A&A, 426, 925 [EDP Sciences] [NASA ADS] [CrossRef] (In the text)
• Press, W. H., Teukolsky, S. A., Vetterling, W. T., & Flannery, B. P. 1992, Numerical recipes in FORTRAN. The art of scientific computing (Cambridge: University Press), 2nd edn. (In the text)
• Reed, B. C., & Slawson, R. W. 1990, AJ, 100, 156 [NASA ADS] [CrossRef] (In the text)
• Reipurth, B., & Heathcote, S. 1992, A&A, 257, 693 [NASA ADS] (In the text)
• Rieke, G. H., & Lebofsky, M. J. 1985, ApJ, 288, 618 [NASA ADS] [CrossRef] (In the text)
• Roche, P. F., & Aitken, D. K. 1985, MNRAS, 215, 425 [NASA ADS] (In the text)
• Rodgers, S. D., & Charnley, S. B. 2003, ApJ, 585, 355 [NASA ADS] [CrossRef] (In the text)
• Sandford, S. A., Allamandola, L. J., Tielens, A. G. G. M., & Valero, G. J. 1988, ApJ, 329, 498 [NASA ADS] [CrossRef] (In the text)
• Schmitt, B., Espinasse, S., Grim, R. J. A., Greenberg, J. M., & Klinger, J. 1989a, Laboratory studies of cometary ice analogues, Tech. rep.
• Schmitt, B., Greenberg, J. M., & Grim, R. J. A. 1989b, ApJ, 340, L33 [NASA ADS] [CrossRef] (In the text)
• Smith, R. G., Sellgren, K., & Tokunaga, A. T. 1988, ApJ, 334, 209 [NASA ADS] [CrossRef]
• Smith, R. G., Sellgren, K., & Tokunaga, A. T. 1989, ApJ, 344, 413 [NASA ADS] [CrossRef] (In the text)
• Smith, R. G., Sellgren, K., & Brooke, T. Y. 1993, MNRAS, 263, 749 [NASA ADS] (In the text)
• Stevenson, K. P., Kimmel, G. A., Dohnalek, Z., Smith, R. S., & Kay, B. 1999, Science, 1505 (In the text)
• Sutton, E. C., Peng, R., Danchi, W. C., et al. 1995, ApJS, 97, 455 [NASA ADS] [CrossRef] (In the text)
• Taban, I. M., Schutte, W. A., Pontoppidan, K. M., & van Dishoeck, E. F. 2003, A&A, 399, 169 [EDP Sciences] [NASA ADS] [CrossRef] (In the text)
• Teixeira, T. C., Emerson, J. P., & Palumbo, M. E. 1998, A&A, 330, 711 [NASA ADS] (In the text)
• Tielens, A. G. G. M., & Allamandola, L. J. 1987, in Interstellar Processes, ASSL, 134, 397 (In the text)
• Tielens, A. G. G. M., Hagen, W., & Greenberg, J. M. 1983, J. Phys. Chem., 87, 4220 [NASA ADS] [CrossRef] (In the text)
• van Broekhuizen, F. A., Keane, J. V., & Schutte, W. A. 2004, A&A, 415, 425 [EDP Sciences] [NASA ADS] [CrossRef] (In the text)
• van Broekhuizen, F. A., Pontoppidan, K. M., Fraser, H. J., & van Dishoeck, E. F. 2005, A&A, 441, 249 [EDP Sciences] [NASA ADS] [CrossRef] (In the text)
• van der Tak, F. F. S., van Dishoeck, E. F., & Caselli, P. 2000, A&A, 361, 327 [NASA ADS] (In the text)
• Watanabe, N., & Kouchi, A. 2002, ApJ, 571, L173 [NASA ADS] [CrossRef] (In the text)
• Watanabe, N., Nagaoka, A., Shiraki, T., & Kouchi, A. 2004, ApJ, 616, 638 [NASA ADS] [CrossRef] (In the text)
• Whittet, D. C. B. 2003, Dust in the galactic environment 2nd Ed. ed. D. C. B. Whittet (Bristol: Institute of Physics, IOP, Publishing), Series in Astronomy and Astrophysics, ISBN 0750306246 (In the text)
• Whittet, D. C. B., Pendleton, Y. J., Gibb, E. L., et al. 2001, ApJ, 550, 793 [NASA ADS] [CrossRef] (In the text)
• Woon, D. E. 2002, ApJ, 569, 541 [NASA ADS] [CrossRef] (In the text)
• Wouterloot, J. G. A., & Brand, J. 1999, A&AS, 140, 177 [EDP Sciences] [NASA ADS] (In the text)




Online Material

	Figure 3: Optical depth profiles of the 3 $\mu$m ice feature for the 5 objects (dotted line) compared to ice coated grains at different radii using laboratory spectra taken from (Hudgins et al. 1993).
Open with DEXTER

	Figure 4: L-band spectra of the companion objects. The water ice absorption feature is seen in all spectra. The spectra are dominated by the spurious features due to a bad telluric transmission correction. The dashed lines indicate the adopted continuum used to estimate the water-ice optical depth.
Open with DEXTER

	Figure 9: Best fit to the observed spectra using the three components phenomenological decomposition. The observed data points are plotted as open circles. The thick line is the sum of the three components after convolution by the profile of the ISAAC spectrometer ( $R\simeq 800$).
Open with DEXTER

	Figure 10: Medium resolution spectra ( $R\simeq 10~000$) of three objects. The gas phase CO absorption lines are clearly visible and dominate the spectrum of LLN 19.
Open with DEXTER

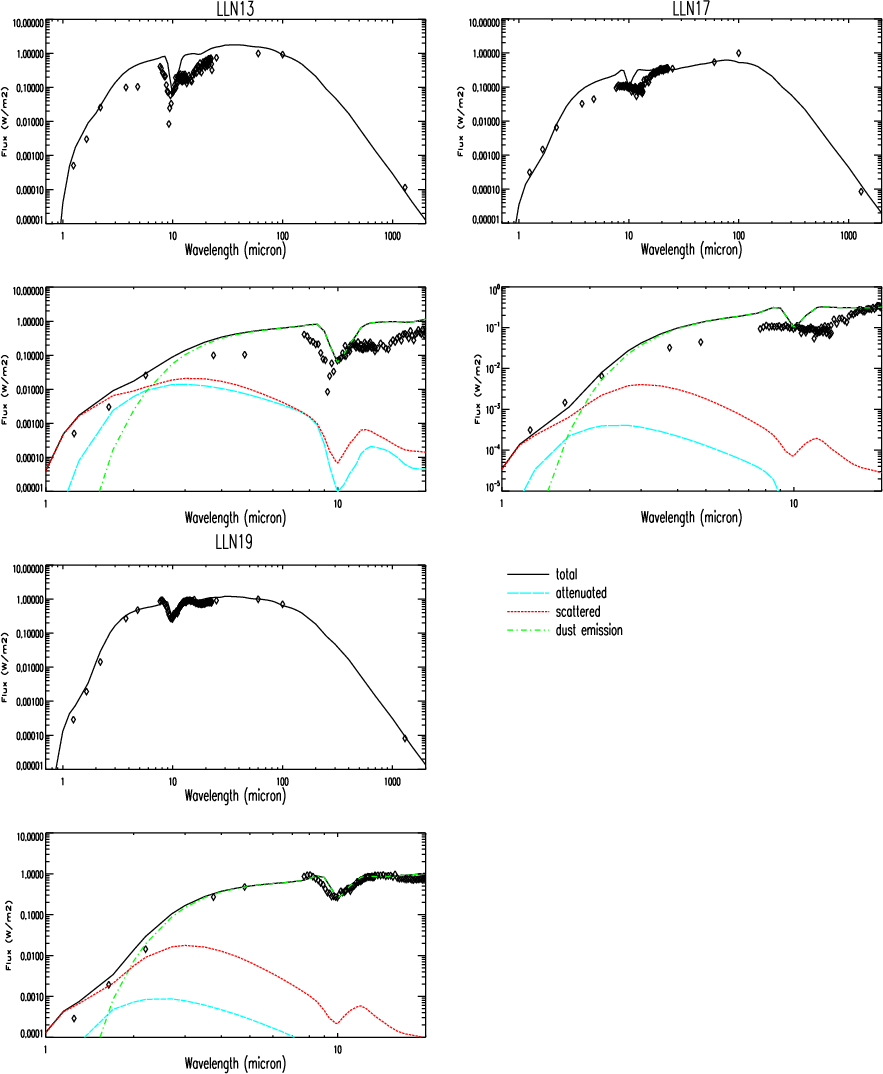

	Figure 15: Fit to the SED of LLN 13, LLN 17 and LLN 19. The upper panels show the fit to the entire SED while the upper panels focus on the near to mid-infrared range. Also shown are the contribution by the extincted central object, the dust scattered light and the dust thermal emission.
Open with DEXTER

Figure 16: The upper left panel shows the infrared luminosity of the sources computed using the IRAS 4 bands fluxes versus an estimate of the extinction toward the objects. The radius of the circles at the position of each object is proportional to the observed abundance of CO ice. The upper right and lower left panels are two color-color diagrams. The infrared ratios R(12/25) and R(25/60) are ratios between the fluxes F(Jy) at 12 and 25 $\mu$m and between fluxes at 25 and 60 $\mu$m respectively. The lower right panel is a extinction versus R(12/25) diagram. The dashed-line represents a possible diving line between presence and absence of CO ice.

Open with DEXTER
