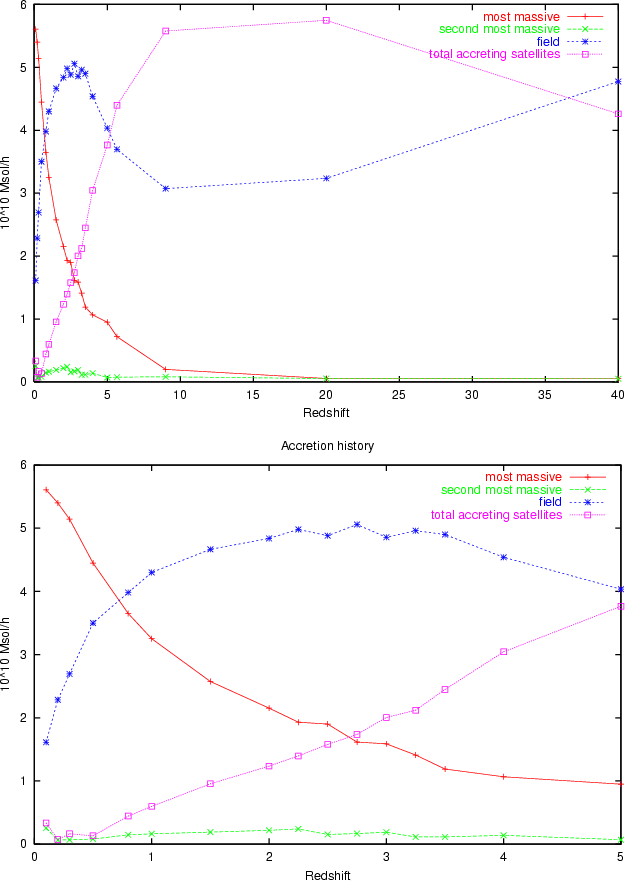

$\begin{figure} \par\includegraphics[angle=-90,width=8.8cm,clip]{3418f1a.eps}\par... ...ace*{3mm} \includegraphics[angle=-90,width=8.8cm,clip]{3418f1b.eps} \end{figure}$ Figure 1: Accretion history of our selected DM halo as a function of the redshift: top panel from redshift z=40 to z=0, bottom panel from z=5 to z=0; solid (red) line shows the mass of the most massive progenitor of the halo, long-dashed (green) line that of the second most massive progenitor, dotted (magenta) line the total mass of progenitors (the most massive excluded), and short-dashed (blue) line the total mass of field particles.
Open with DEXTER

In the text

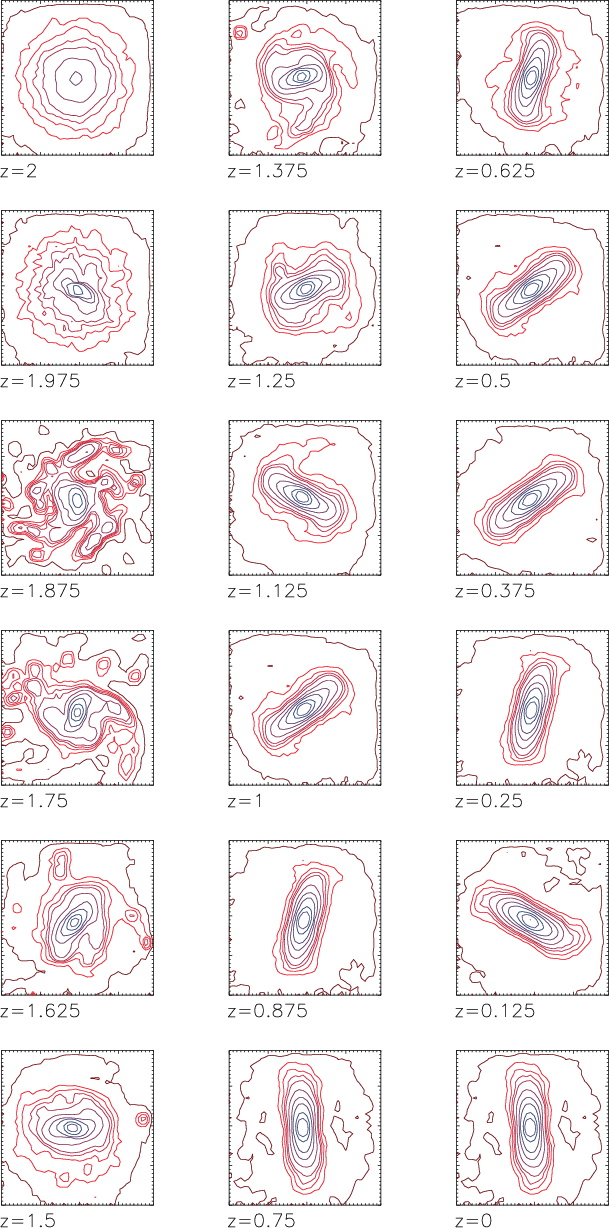

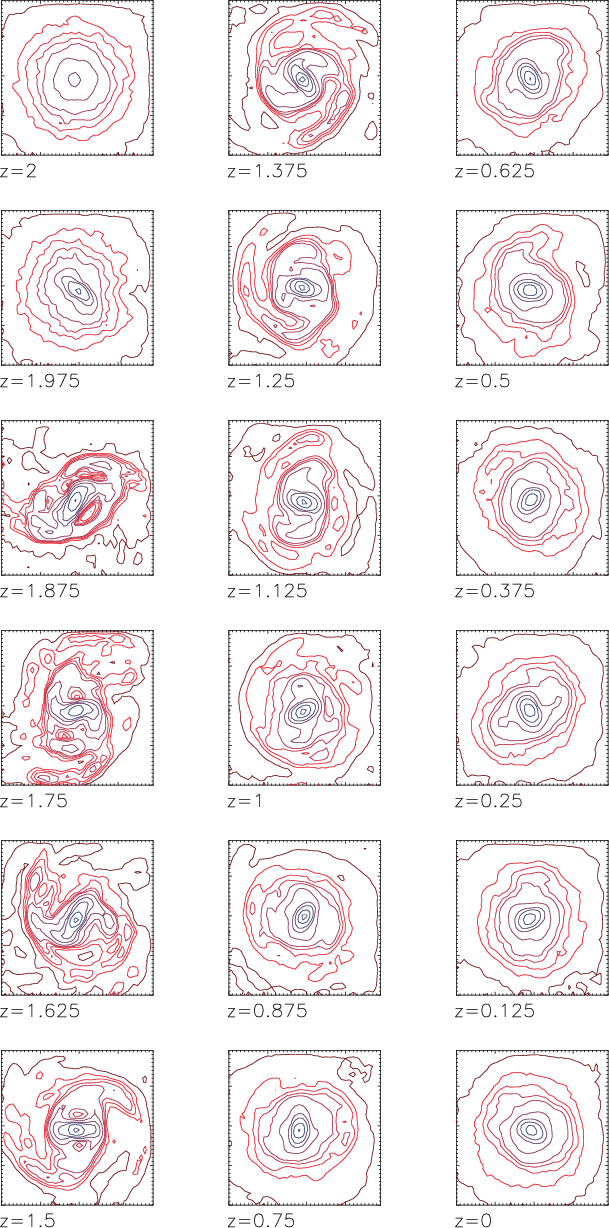

$\begin{figure} \par\includegraphics[width=8.4cm,clip]{3418f3.eps} \end{figure}$ Figure 2: Evolution of isodensity contours of simulation c1 at 11 fixed levels (see Sect. 5). The size of all the frames is 20 h^-1 physical kpc, here and in all the following figures in which isodensity contours are shown.
Open with DEXTER

In the text

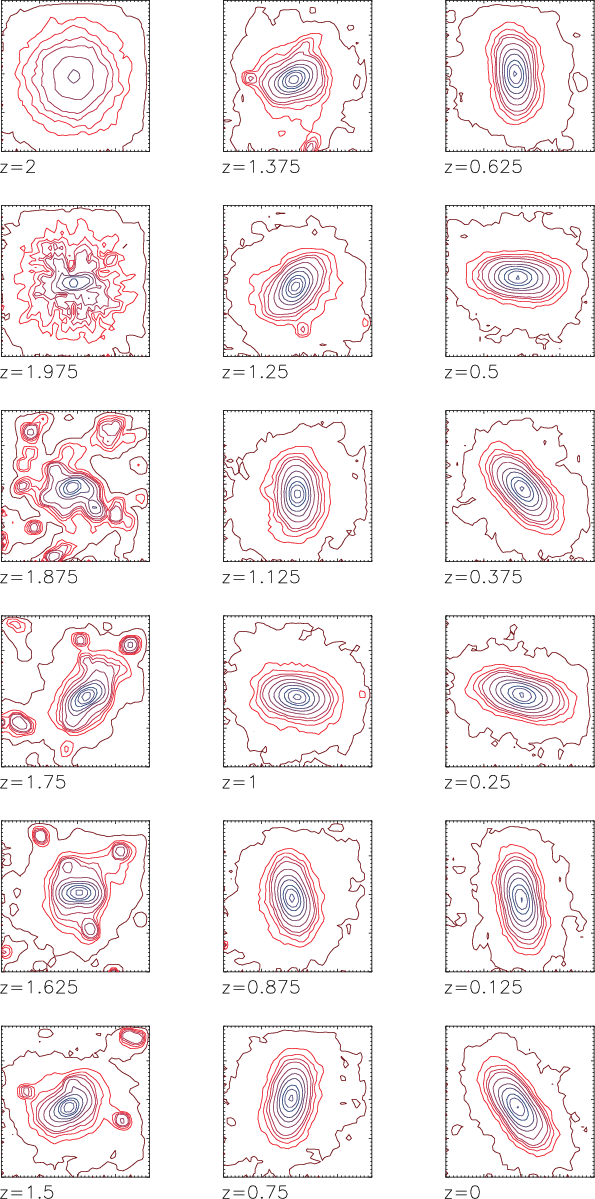

$\begin{figure} \par\includegraphics[width=8.6cm,clip]{3418f4.eps} \end{figure}$ Figure 3: Evolution of density contours of simulation c2 as described in Fig. 2.
Open with DEXTER

In the text

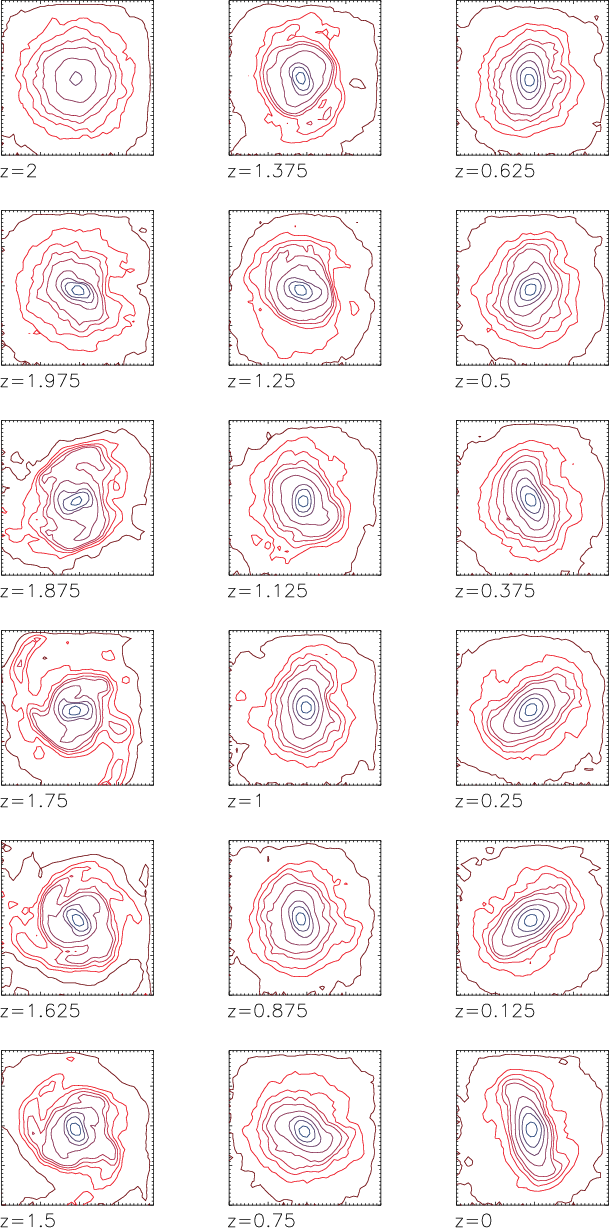

$\begin{figure} \par\includegraphics[width=8.6cm,clip]{3418f5.eps} \end{figure}$ Figure 4: Evolution of isodensity contours of simulation c3 as described in Fig. 2.
Open with DEXTER

In the text

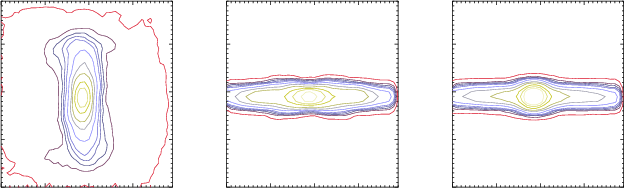

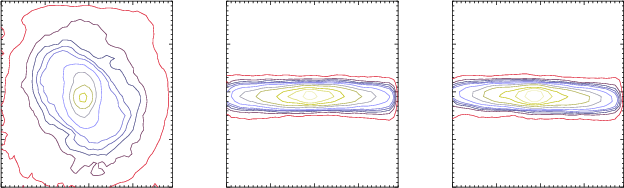

$\begin{figure} \par\includegraphics[width=8.8cm,clip]{3418f6.eps} \end{figure}$ Figure 5: Face-on, side-on and edge-on view of isodensity contours of simulation c1 at z=0.
Open with DEXTER

In the text

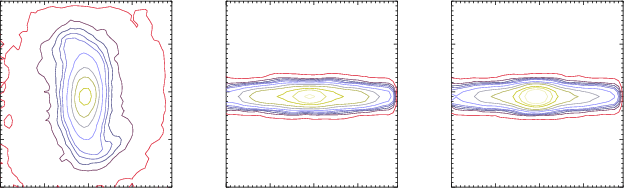

$\begin{figure} \includegraphics[width=8.8cm,clip]{3418f7.eps} \end{figure}$ Figure 6: Face-on, side-on and edge-on view of isodensity contours of simulation c2 at z=0.
Open with DEXTER

In the text

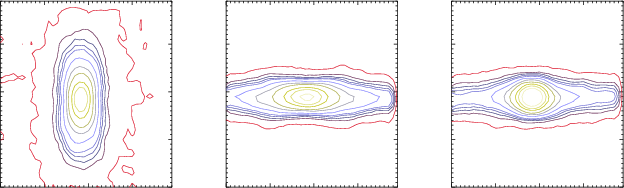

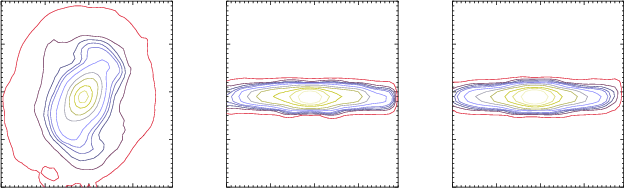

$\begin{figure} \par\includegraphics[width=8.8cm,clip]{3418f8.eps} \end{figure}$ Figure 7: Face-on, side-on and edge-on isodensity contours at z=0 of simulation c4 in Table 2.
Open with DEXTER

In the text

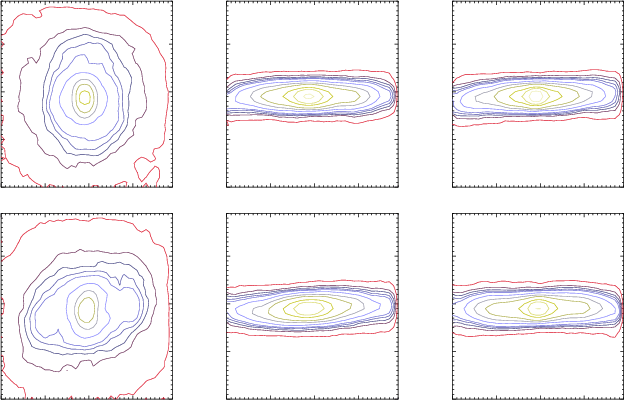

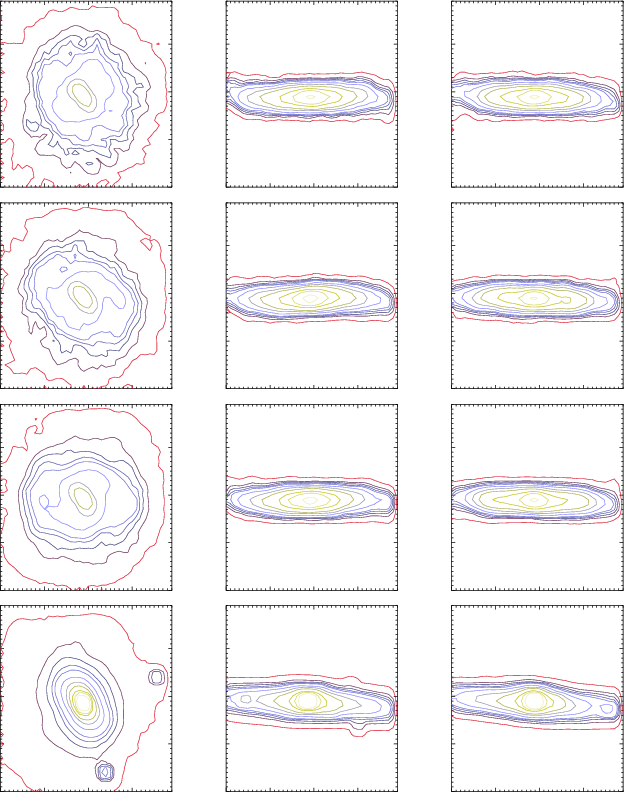

$\begin{figure} \par\includegraphics[width=8.8cm,clip]{3418f9a.eps}\par\vspace*{3mm} \includegraphics[width=8.8cm,clip]{3418f9b.eps} \end{figure}$ Figure 8: Face-on, side-on and edge-on isodensity contours at z=0 of simulation c3 ( top panels) and c5 ( bottom panels) in Table 2.
Open with DEXTER

In the text

$\begin{figure} \par\includegraphics[width=8.6cm,clip]{3418f10.eps} \end{figure}$ Figure 9: Evolution of isodensity contours of simulation c4 as described in Fig. 2.
Open with DEXTER

In the text

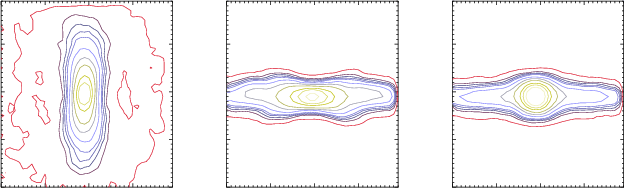

$\begin{figure} \par\includegraphics[width=8.8cm,clip]{3418f11.eps} \end{figure}$ Figure 10: Face on, side-on and edge-on isodensity contours of simulation c6 at z=0.
Open with DEXTER

In the text

$\begin{figure} \par\includegraphics[width=8.8cm,clip]{3418f12.eps} \end{figure}$ Figure 11: Isodensity contours, in particular face-on, side-on and edge-on views of the inner bar of simulation c7 at z=0.
Open with DEXTER

In the text

$\begin{figure} \par\includegraphics[width=8.8cm,clip]{3418f13.eps} \end{figure}$ Figure 12: Ellipticity as a function of the major axis, a (in physical kpc), of simulation c1 at different redshifts: z=0 continuous line, z=0.25 long-dashed line, z=0.5 long and short dashed line, z=0.75 dot-dashed line, z=1 short dashed line, z=1.25 dotted line.
Open with DEXTER

In the text

$\begin{figure} \par\includegraphics[width=8.8cm,clip]{3418f14.eps} \end{figure}$ Figure 13: Ellipticity as a function of major axis, a, of simulation c2 at different redshifts; symbols are as in Fig. 12.
Open with DEXTER

In the text

$\begin{figure} \par\includegraphics[width=8.8cm,clip]{3418f15.eps} \end{figure}$ Figure 14: Ellipticity as function of the major axis, a, for simulation c4 at different redshifts; symbols are as in Fig. 12.
Open with DEXTER

In the text

$\begin{figure} \par\includegraphics[width=8.8cm,clip]{3418f16.eps} \end{figure}$ Figure 15: Evolution of bar strength after z=1 evaluated using the gravitational torque (see text) for the simulations c2 (full line), c4 (dotted line), and c6 (dashed line).
Open with DEXTER

In the text

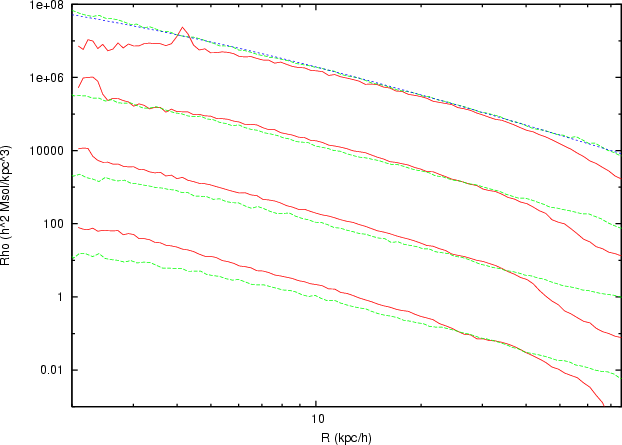

$\begin{figure} \par\includegraphics[width=8.8cm,clip]{3418f17.eps} \end{figure}$ Figure 16: Radial density profiles of the DM halo in simulations c5 (dashed lines) and i2 (solid lines) at redshifts z=0, 0.5, 1.0, 1.5 from top to bottom for simulation c5 and at the equivalent evolutionary times for simulation i2. The three couples of profiles below have been divided by 10², 10⁴, 10⁶ for clarity. We also show a NFW density profile having a concentration parameter $c \approx 23$ (dotted line), obtained as a two parameter best-fit of the density profile of simulation c5 at z=0. Length units are in physical kpc.
Open with DEXTER

In the text

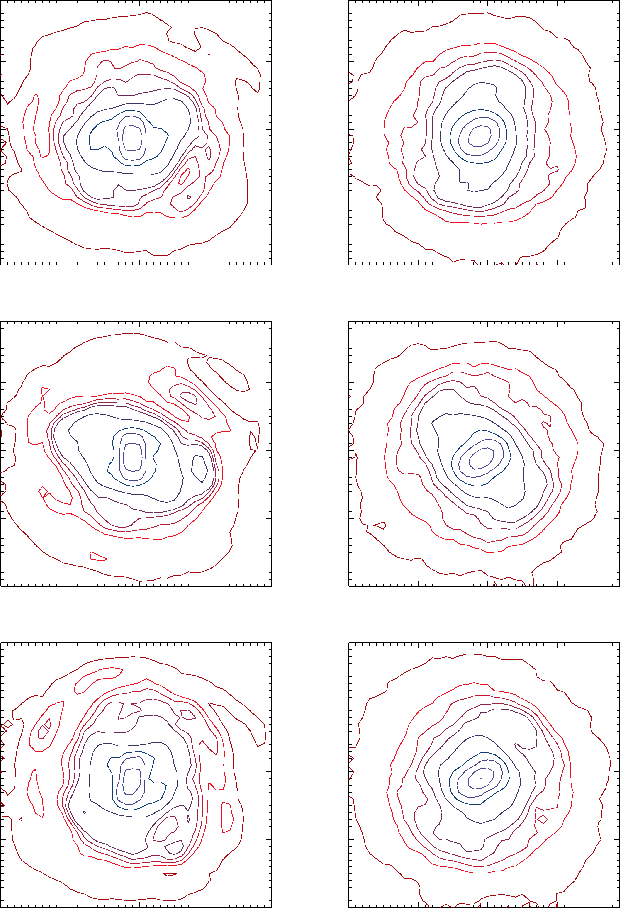

$\begin{figure} \par\includegraphics[width=8.8cm,clip]{3418f21c.eps}\par\vspace*{... ...}\par\vspace*{3mm} \includegraphics[width=8.8cm,clip]{3418f21a.eps} \end{figure}$ Figure 17: Evolution of isodensity contours of the simulation i5 at different evolutionary times: from top to bottom, t=5 Gyr, t=7.5 Gyr and t=10 Gyr; xy, yz and xz projections from left to right (see text (Sect. 7) for more details).
Open with DEXTER

In the text

$\begin{figure} \par\includegraphics[width=8.8cm,clip]{3418f18.eps} \end{figure}$ Figure A.1: Evolution of the ellipticity ( top panel) and of the bar length ( bottom panel) of simulations i1 (dashed line) and i3 (full line).

In the text

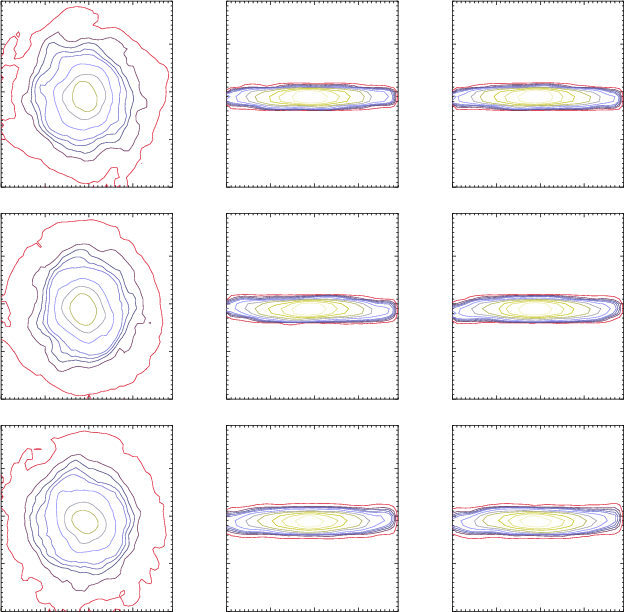

$\begin{figure} \par\includegraphics[width=8.8cm,clip]{3418f19a.eps}\par\vspace*{... ...vspace*{1.5mm} \includegraphics[width=8.8cm,clip]{3418f19d.eps}\par \end{figure}$ Figure A.2: Isodensity contours at $T=7.0~\rm Gyr$ of isolated simulations i2 with different number of star particles, 9400, 18 800, 56 000 and 560 000 from top to bottom; xy, yz and xz projections are from left to right.

In the text

$\begin{figure} \par\includegraphics[width=8.8cm,clip]{3418f20.eps} \end{figure}$ Figure A.3: xy, yz and xz projections from left to right after 7 Gyr for the high resolution cosmological run with disk-to-halo mass ratio 0.1. See text (Sect. 7) for more details.

In the text

$\begin{figure} \par\includegraphics[width=8.8cm,clip]{3418f22.eps} \end{figure}$ Figure A.4: Face-on views at T=7.71 Gyr and 10.24 Gyr, corresponding to z=1 ( left) and z=0 ( right) in the cosmological framework, of isolated simulations i2 with stellar softening length 0.36 h^-1 , 0.5 h^-1 and 0.65 h^-1 kpc respectively from top to bottom (see text for more details).

In the text
