Figure 1:

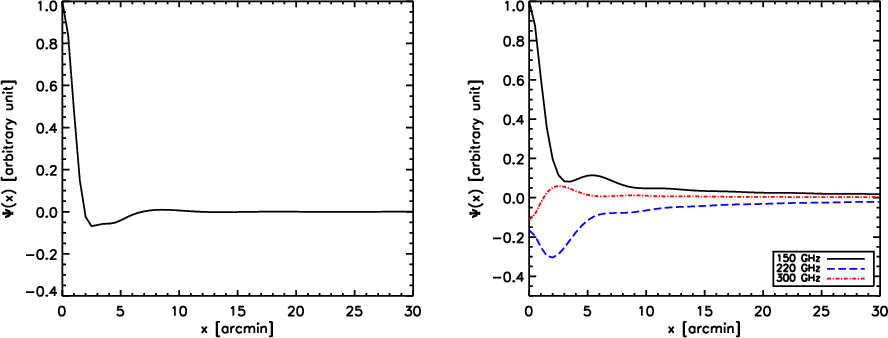

Radial profiles of single frequency and multiple frequency
matched filters for a cluster of ![]() |
Open with DEXTER |
![]() |
Figure 2:

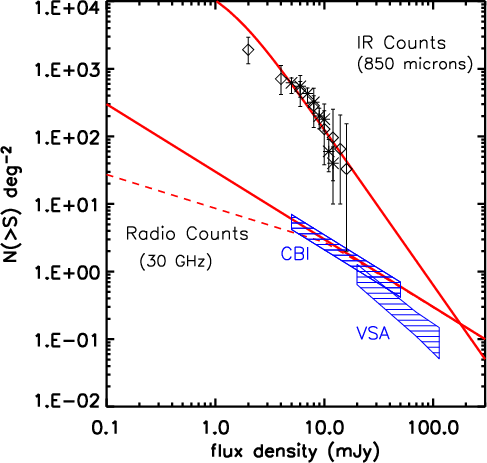

Integrated radio and IR source counts.
The lower solid red line results from the differential counts of
Eq. (6), while the dashed red line corresponds to
the model of Eq. (7). Measured counts at
30 GHz from CBI and the VSA are shown as the hashed blue boxes. The
upper solid red line gives the submillimeter source counts from
Eq. (8). The diamonds show the measured counts at
![]() |
Open with DEXTER |
![]() |
Figure 3:

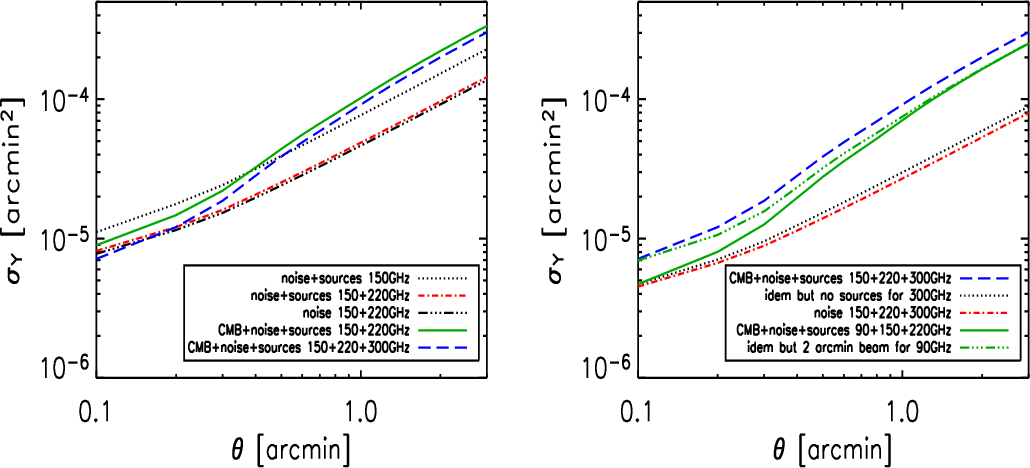

Noise (![]() ![]() ![]() ![]() |
Open with DEXTER |
![]() |
Figure 4:

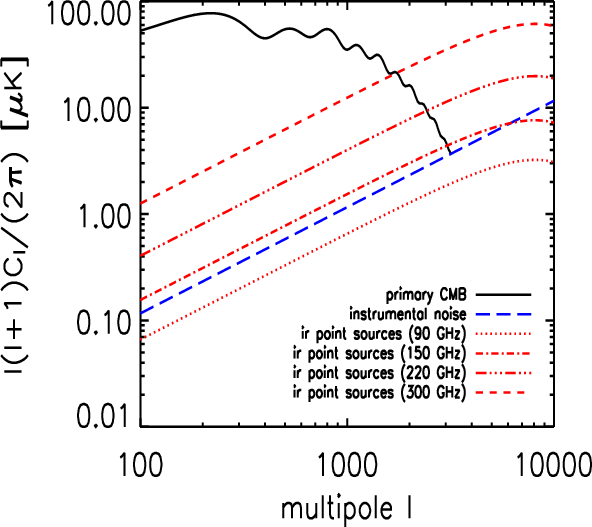

Power spectra of the primary CMB anisotropy (solid black line),
point source confusion in different bands (as labeled) and
instrumental noise; the latter corresponds to ![]() ![]() ![]() |
Open with DEXTER |
![]() |

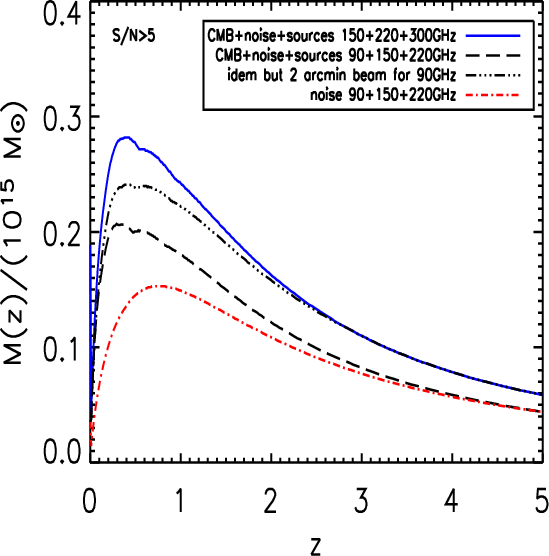

Figure 5: Minimum detectable mass as a function of redshift. The upper solid blue curve shows the result for the 3-band filter with a 300 GHz channel, while the middle dashed black curve gives the result when this channel is replaced by a 90 GHz band. For reference, the lower red dash-dotted curve gives the ideal detector-noise limited detection mass for the 3-band filter with 90 GHz. The 3-band filter with 90 GHz shows its higher sensitivity (see Fig. 3), but still suffers from residual foreground (CMB) contamination. These results follow for 1 arcmin FWHM beams in all bands. For comparison, the black 3-dot-dashed line gives the mass limit for the 3-band filter with a 90 GHz beam of 2 arcmin FWHM, which continues to perform better than the 3-band filter with 300 GHz despite the loss of angular resolution at the lower frequency. |
Open with DEXTER |
