A&A 446, 459-470 (2006)
DOI: 10.1051/0004-6361:20053893

X-ray spectral survey with XMM-Newton of a complete sample of nearby Seyfert galaxies

M. Cappi¹ - F. Panessa² - L. Bassani¹ - M. Dadina¹ - G. DiCocco¹ - A. Comastri³ - R. Della Ceca⁴ - A. V. Filippenko⁵ - F. Gianotti¹ - L. C. Ho⁶ - G. Malaguti¹ - J. S. Mulchaey⁶ - G. G. C. Palumbo⁷ - E. Piconcelli⁸ - W. L. W. Sargent⁹ - J. Stephen¹ - M. Trifoglio¹ - K. A. Weaver¹⁰

1 - INAF-IASF Sezione di Bologna, via Gobetti 101, 40129 Bologna, Italy
2 - Instituto de Fisica de Cantabria (CSIC-UC), Avda de los Castros, 39005 Santander, Spain
3 - INAF- Osservatorio Astronomico di Bologna, via Ranzani 1, 40127 Bologna, Italy
4 - INAF- Osservatorio Astronomico di Brera, via Brera 28, 20121 Milano, Italy
5 - Department of Astronomy, University of California, Berkeley, CA 94720-3411, USA
6 - Carnegie Observatories, 813 Santa Barbara Street, Pasadena, CA 91101, USA
7 - Dipartimento di Astronomia, Universita' degli Studi di Bologna, via Ranzani 1, 40127 Bologna, Italy
8 - XMM-Newton Science Operation Center/RSSD-ESA, Apartado 50727, 28080 Madrid, Spain
9 - Department of Astronomy, California Institute of Technology, Pasadena, CA 91125, USA
10 - Laboratory for High Energy Astrophysics, NASA's Goddard Space Flight Center, Greenbelt, MD 20771, USA

Received 23 July 2005 / Accepted 28 September 2005

Abstract
Results obtained from an X-ray spectral survey of nearby Seyfert galaxies using XMM-Newton are reported. The sample was optically selected, well defined, complete in B magnitude, and distance limited: it consists of the nearest ($D \la22$ Mpc) 27 Seyfert galaxies (9 of type 1, 18 of type 2) taken from the Ho et al. (1997a, ApJS, 112, 315) sample. This is one of the largest atlases of hard X-ray spectra of low-luminosity active galaxies ever assembled. All nuclear sources except two Seyfert 2s are detected between 2 and 10 keV, half for the first time ever, and average spectra are obtained for all of them. Nuclear luminosities reach values down to 10³⁸ erg s^-1. The shape of the distribution of X-ray parameters is affected by the presence of Compton-thick objects ($\ga$30% among type 2s). The latter have been identified either directly from their intense FeK line and flat X-ray spectra, or indirectly with flux diagnostic diagrams which use isotropic indicators. After taking into account these highly absorbed sources, we find that (i) the intrinsic X-ray spectral properties (i.e., spectral shapes and luminosities above 2 keV) are consistent between type 1 and type 2 Seyferts, as expected from "unified models''; (ii) Seyfert galaxies as a whole are distributed fairly continuously over the entire range of $N{_{\rm H}}$, between 10²⁰ and 10²⁵ cm^-2; and (iii) while Seyfert 1s tend to have lower $N{_{\rm H}}$ and Seyfert 2s tend to have the highest, we find 30% and 10% exceptions, respectively. Overall the sample is of sufficient quality to well represent the average intrinsic X-ray spectral properties of nearby active galactic nuclei, including a proper estimate of the distribution of their absorbing columns. Finally, we conclude that, with the exception of a few cases, the present study agrees with predictions of unified models of Seyfert galaxies, and extends their validity down to very low luminosities.

Key words: X-rays: galaxies - galaxies: Seyfert - glaxies: active

1 Introduction

X-ray studies are crucial in understanding active galactic nuclei (AGNs) because of the unambiguous association of high-energy emission with genuine nuclear activity and the important diagnostics provided in this band for studying accretion mechanisms.

Hard X-ray selected samples of nearby Seyfert galaxies available from studies with GINGA, ASCA, and BeppoSAX (Awaki et al. 1991; Smith & Done 1996; Turner et al. 1997a,b, 1998; Bassani et al. 1999) have been used to (successfully) verify the validity of unified models of AGNs. These models try to explain the observed differences between broad (Seyfert 1-like) and narrow (Seyfert 2-like) emission-line active galaxies by invoking obscuration (from an optically and geometrically thick torus) and viewing-angle effects rather than intrinsic physical differences (Antonucci 1993). The largest compilations of hard X-ray spectra available to date have, however, been severely biased toward the most X-ray luminous, and less absorbed, AGNs. Studies by Maiolino et al. (1998) and Risaliti et al. (1999) reduced these selection effects by applying a careful analysis for a sample of type 2 Seyferts limited in [O III] flux. They discovered the existence of a large fraction ($\ga$50-60%) of highly obscured AGNs at low redshifts, a result which confirms the bias against heavily obscured systems affecting previous surveys.

With the advent of new sensitive X-ray telescopes, there is now hope of probing the applicability of standard accretion-disk theories down to very low nuclear luminosities and, possibly, for AGNs with smaller black hole masses. Recent studies performed with the last generation X-ray observatories have extended the X-ray spectral analysis down to lower luminosities, sometimes also comparing Seyferts with LINERs (Heckman 1980) and/or H II-starburst galaxies (e.g., Terashima et al. 2002; Georgantopoulos et al. 2002). Snapshot surveys with Chandra have been able to detect for the first time point-like nuclear sources in increasingly larger samples of nearby galaxies at very low luminosities (down to less than 10³⁸ erg s^-1; Ho et al. 2001; Terashima & Wilson 2003). Such studies seem to suggest that the standard unified model may not hold down to such low luminosities because low luminosity sources have X-ray luminosities a factor of 10 below the $L_{\rm X}-L_{\rm H_\alpha}$ relation for more luminous AGNs.

Moreover, deep Chandra and XMM-Newton surveys indicate that the bulk of the X-ray background (XRB) originates at relatively low redshift ( $z \approx 1$) and is due to a combination of unobscured (type 1) and obscured (type 2) Seyfert galaxies (Hasinger et al. 2001; Mateos et al. 2005) as expected by synthesis models based on AGN unified schemes (Setti & Woltjer 1989; Comastri et al. 1995; Gilli et al. 2001). Given that a large fraction of the XRB is due to relativly low luminosity sources (lower than 10⁴⁴ erg s^-1) and that the $N{_{\rm H}}$ distribution is essentially a free parameter in AGN models, a precise knowledge of the true column density distribution of nearby Seyfert galaxies, especially in the low luminosity regime, is essential.

With the aim of sorting out some of the questions raised by the above arguments, we decided to perform an X-ray survey on a well defined, bias-free sample of Seyfert galaxies. The present sample contains the 27 nearest Seyfert galaxies (with D < 22 Mpc) of the sample presented by Ho et al. (1997, HFS97a). The X-ray survey reported here are the results obtained using the EPIC CCDs on-board XMM-Newton. This survey is part of a larger program (Panessa 2004) aimed at characterizing and understanding the multi-wavelength properties of all 60 sources with a Seyfert classification taken from HFS97a.

Compared to previous studies, the strength of using XMM-Newton rests on two main facts: its high throughput (especially at energy E > 2 keV) allows a search for spectral components with absorption columns up to $N_{\rm H} \approx 10^{22}$-10²⁴ cm^-2, and its spatial resolution (half-power radius $\sim$7'') minimizes any strong contamination from off-nuclear sources to the soft (E < 2 keV) and/or hard ($E \ga 2$ keV) energy band.

A description of the sample, observations, and data reduction can be found in Sect. 2. Section 3 summarizes the spatial and timing analysis. Spectra are shown in Sect. 4 together with a summary of the source spectral parameters in tabular form. Spectral properties are detailed in Sect. 5, and the results and conclusions are summarized in Sect. 6. A discussion of the spectral properties of each individual object is deferred to the Appendix.

2 The sample, observations, and data reduction

The sample studied in this paper is drawn from 52 nearby Seyfert galaxies given in HFS97a (see also Ho & Ulvestad 2001, HU01 hereinafter). Originally derived from the Palomar optical spectroscopic survey of nearby galaxies (Filippenko & Sargent 1985; Ho et al. 1995), this sample has the advantage of having uniform and high-quality data that allowed the Seyfert classifications to be determined with well-defined and objective criteria (HFS97a). It is among the most complete and least biased samples of Seyfert galaxies available to date (see Appendix in HU01).

For the purpose of this study, we choose the nearest AGNs in the HFS97a sample - the 30 Seyfert galaxies which are within a distance of 22 Mpc. Three of these have been excluded from the present analysis: the Seyfert 2 galaxy NGC 185 for having line intensity ratios probably produced by stellar processes rather than an AGN (HU01), the Seyfert 1.9 galaxy NGC 3982 for lack of available XMM-Newton data at the time of writing, and the Seyfert 1.9 galaxy NGC 4168 which no longer meets the distance criterion.

Two objects, NGC 4395 and NGC 4579, have been classified by Ho et al. (1997b) as S1.8 and S1.9/L1.9, respectively. However, here we reclassify these sources as type 1.5 objects. A broad component is indeed clearly present in a number of optical (Filippenko & Sargent 1989) and ultraviolet (Filippenko et al. 1993) emission lines of NGC 4395. In addition, the UV spectrum of NGC 4395 resembles those of Seyfert 1s (Schmitt & Kinney 1996). Extremely broad permitted lines have been detected in NGC 4579. The FWHM of C IV is over 6000 km s^-1 in this object, meeting the criteria of a standard broad-line region (BLR), although it is fainter than the BLR in bright Seyfert nuclei (Barth et al. 1996, 2001). In addition, two objects (NGC 4639, NGC 4051) have been reclassified as Seyfert 1.5 (from 1.0 and 1.2, respectively); they have prominent narrow-line regions (NLRs) along with their BLRs.

The final sample consists of 27 Seyfert galaxies which include 9 type 1s (specifically type 1.5) and 18 type 2 s. (Here, the "type 2'' category is defined to include type 1.9 as well, because the broad H$\alpha$ line is very hard to detect in spectra having low signal-to-noise ratios; moreover, such nuclei may be largely obscured, as are many of the "pure'' Seyfert 2s.) The sample properties are listed in Table 1.

Table 1: The complete, distance-limited sample of Seyfert galaxies.

Table 2: Observation summary.

Table 3: Best-fit parameters for the X-ray spectral analysis.

A log of all XMM-Newton observations is shown in Table 2. Seventeen objects were observed as part of the EPIC Guaranteed Time observation program with exposure time ranging between 5 and 50 ks, with typical values around 15 ks. Remaining objects were taken from the XMM-Newton Science Archive. All sources were observed with the EPIC CCDs (MOS and pn) as the prime instrument.

Observation dates, exposure times, and filters used during the observations are listed in Table 2. The raw observation data files (ODFs) were reduced and analyzed using the standard Science Analysis System (SAS) software package (version 5.3, released in June 2002; Saxton 2002) with associated latest calibration files. We used epproc and emproc tasks for the pipeline processing of the ODFs to generate the corresponding event files and remove dead and hot pixels. Time intervals with very high background rates were identified in light curves at energy >10 keV and removed. Only patterns $\leq$12 for "MOS'' and $\leq$4 for "pn'' were considered in the analysis and a standard selection filter of FLAG = 0 was applied.

3 Spatial and timing analysis

Images and light curves were analyzed in the 0.5-2 keV (soft) and 2-10 keV (hard) energy bands, for MOS and pn separately. Despite the short exposures (as low as $\sim$5 ks; see Table 2), all targets are detected with a minimum of 20 counts per detector in either the soft or the hard energy band. Flux limits reached are on the order of $F_{(0.5-2 ~\rm keV)} \approx 10^{-14}$ erg cm^-2 s^-1 and $F_{(2-10 ~\rm keV)} \approx 10^{-13}$ erg cm^-2 s^-1. These flux limits translate into minimum luminosities detectable of $\sim$10³⁸ erg s^-1 and $\sim$10³⁹ erg s^-1 for the nearest and farthest Seyferts, respectively.

We find that 25 out of 27 sources, and in particular all type 1 Seyferts, have a compact dominant nucleus coincident with the optical nuclear position reported in Table 1. The only sources that did not display a dominant nucleus were NGC 1058 and NGC 4472, for which upper limits are calculated.

In agreement with recent ${\it Chandra}$ studies (e.g., Ho et al. 2001; Terashima & Wilson 2003), a wide variety of morphologies is seen. In many cases a bright point-like nucleus is present; in other cases, the nuclear (arcmin size) regions are characterized by the presence of structures, off-nuclear sources, and/or diffuse emission. An atlas of XMM-Newton and Chandra images of the all sample is given by Panessa (2004). Adopting the classification scheme proposed by Ho et al. (2001), which separates the morphologies in four classes (according to the predominance of the nuclear emission with respect to the surrounding structures), we find that the most common morphology is that of a single compact nucleus centered on the position of the optical nucleus ($\sim$60% of the sources), followed by those having a nucleus comparable in brightness to off-nuclear sources in the galaxy ($\sim$25%), and a few percent have their nuclei embedded in diffuse soft emission or no core emission. There is also good agreement between the XMM-Newton and Chandra classifications, which guarantees that the XMM-Newton point-spread function (PSF) is effective enough to exclude contamination from off-nuclear sources.

Analysis of the soft and hard X-ray light curves indicates that most sources do not exhibit significant flux variations, except for the few brightest Seyfert 1 galaxies (i.e., NGC 3227, NGC 4051, NGC 4151, NGC 4395) for which the detailed timing analysis is deferred to specific papers presented in the litterature and cited in the Appendix. However, this is not inconsistent with the expectation that low luminosity sources should exhibit higher variability amplitude (Nandra et al. 1997) because, given the low statistics, flux variations up to a factor of a few cannot be excluded for most sources. We thus ignored here any potential spectral variations and considered only the source average X-ray spectra which are the subject of our study. This assumption should, however, be kept in mind.

4 Spectral analysis

Source spectra were extracted from circular regions with radii of 50'' and 25'' for sources brighter and fainter than $F_{(0.5-10 ~\rm keV)} \approx 10^{-13}$ erg cm^-2 s^-1, respectively, except where noted in Appendix B. These extraction regions correspond to energy encircled fractions of $\sim$90% and $\sim$80%, respectively. When available, we have looked at Chandra images in order to check for possible contamination due to off-nuclear sources or diffuse emission unresolved by XMM-Newton. Sources which may have been affected by this type of contamination are marked with "${\dagger}$'' (only soft) or " ${\ddagger}$'' (both soft plus hard) in Table 3, which lists the best-fit spectral parameters. The background was estimated using standard blank-sky files or, when unusually high (as in the case of NGC 5033), locally from source-free circular regions placed in offset positions close to the source.

Spectral channels were binned to a minimum of 20 counts per bin and spectra were fitted using data from the three CCD detectors (MOS1/2 and pn) simultaneously. The pn normalization is fixed to 1, while the MOS1/2 normalizations are left free to vary in the range 0.95-1.05 to account for the remaining calibration uncertainties in their cross-normalizations. Statistical errors are in any case typically much larger than current calibration uncertainties. Data were fitted in the range 0.3-10 keV for MOS1/2 and 0.5-10 keV for the pn.

Spectral analysis was performed to first identify the underlying continuum when possible, and then additional components and features were included to best reproduce the data. Hence, each spectrum was initially fitted with a single model consisting of a power law plus absorption fixed at the Galactic value as quoted in Col. (2) of Table 3, plus intrinsic absorption as quoted in Col. (3).

In many cases this simple parametrization is not sufficient to model the whole 0.3-10 keV spectrum. Residuals often show, for example, a soft excess on top of the (absorbed or non-absorbed) power law. The soft-excess component is clearly more complex than a single power law, often exhibiting emission or absorption structures, or both. The soft excess is fitted here using a simple, and approximate, description/parameterization in terms of a scattered power-law component (with index given in Col. (5)) plus a thermal plasma model (with temperature kT given in Col. (6), and metallicity fixed to the solar value). The possible presence of a narrow emission line centered at 6.4 keV originating from neutral iron has also been checked, and modeled with a single Gaussian line (with equivalent width, EW, given in Col. (7)). Best-fit spectral parameters are reported in Table 3. Errors given in the table are calculated at 90% confidence for two interesting parameters ( $\Delta \chi ^2 = 4.61$), and we applied a single-digit approximation.

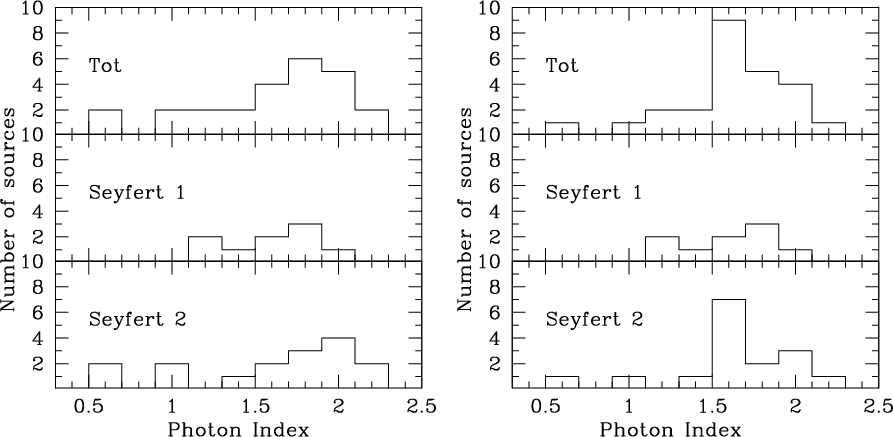

	Figure 1: Distribution of the photon index before ( left) and after ( right) correction for Compton-thick candidates (after Table 4) for which a value of $\Gamma =1.62$ is assumed (see text for details).
Open with DEXTER

It is stressed that some source spectra, in particular those with high-quality statistics, do clearly require more complex modeling of the continuum and additional narrow absorption and/or emission features than used above in our simplified procedure. For example, NGC 3227, NGC 4051, NGC 4151, NGC 4395, and NGC 5273 show additional continuum curvatures in the residuals which indicate either multiple or ionized absorption. The same is true for NGC 1068 and NGC 4051 for which a reflection continuum in the data is likely to be significant. Other sources such as NGC 1068, NGC 3031, NGC 3079, NGC 4051, NGC 4151, and NGC 5273 also show evidence for additional absorption and/or emission structures at soft and/or hard energies. Given the purpose of this work (to obtain a proper, uniform, average description of the spectra in terms of absorption, photon-index continuum, flux, and Fe K line intensity), we do not attempt to fit all these extra components in a systematic way. Rather, we address these issues case-by-case in Appendix B, where references from the literature are also quoted, and we take these caveats into account when interpreting the overall spectral results.

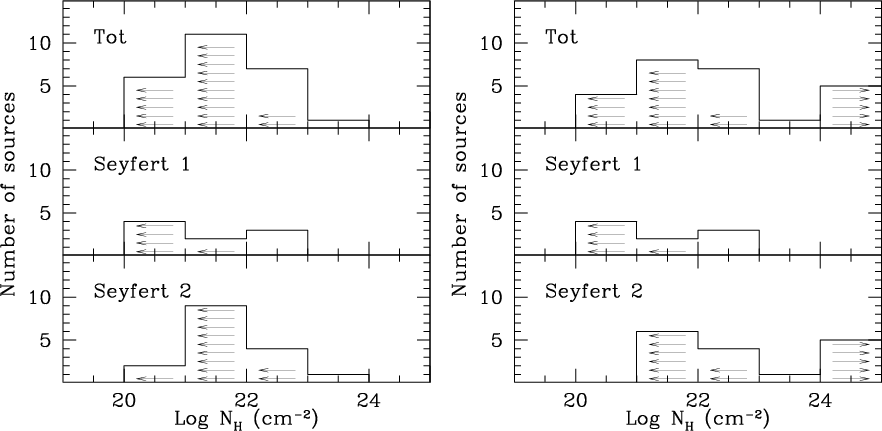

	Figure 2: Distribution of the absorption column densities before ( left) and after ( right) correction for Compton-thick candidates (after Table 4). Upper and lower limits are indicated with arrows.
Open with DEXTER

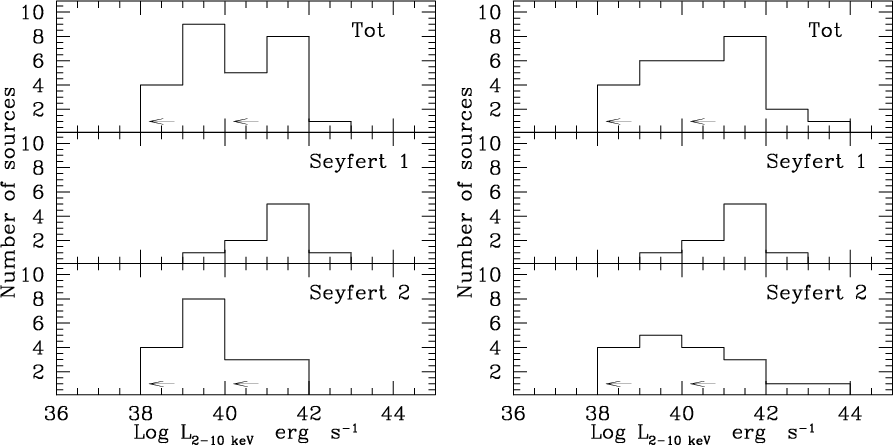

	Figure 3: Distribution of the 2-10 keV luminosities before ( left) and after ( right) correction for Compton-thick candidates (after Table 4). Upper limits have been indicated with arrows.
Open with DEXTER

5 X-ray properties

5.1 Observed values of $\Gamma$, $N{_{\rm H}}$, and $L{_{2-10\rm ~keV}}$

Figure 1 (upper panel) reports the distribution of best-fit photon indices. These vary from object to object over the range $0.5 < \Gamma < 2.3$ (the value $\Gamma = 2.7$ for NGC 4472 is excluded here because it is due to diffuse emission from the galaxy; see Appendix B). The weighted mean for the total sample is $\Gamma \approx 1.60 \pm 0.04$, with a dispersion $\sigma \approx 0.44$. The distribution for type 1 objects (middle panel of Fig. 1) has a mean value of $1.56 \pm 0.04$ and a dispersion $\sigma \approx 0.24$. The rather flat ( $\Gamma \la 1.5$) spectrum of 4 (out of 9) type 1 objects can be ascribed to either the presence of a warm absorber, a complex absorber, and/or a reflection component, all of which produce a flattening of the continuum. The distribution of $\Gamma$ for type 2 objects (lower panel of Fig. 1) is somewhat broader. The weighted mean for this class is $1.61 \pm 0.06$ with a dispersion of $\sim$0.5. A Kolmogorov-Smirnov (KS) test gives a probability of $\sim$0.43, consistent with the same parent population.

Figure 2 (left panel) shows the observed column density distribution obtained for the total sample (top panel), type 1 (middle panel), and type 2 (bottom panel) Seyfert galaxies. Arrows indicate upper limits. The observed total distribution varies over the range of Galactic absorptions ( $N_{\rm H} \approx 10^{20}$ cm^-2) to high column densities ( $N_{\rm H} \la10^{24}$ cm^-2), with most of the measurements being upper-limits of $N_{\rm H} \approx 10^{21-22}$ cm^-2. Type 1 objects are known to be less absorbed than type 2 s, but three of them show a column density higher than 10²² cm^-2. The nature of the absorbing material in these objects is likely associated with highly ionized gas (NGC 3516, Netzer et al. 2002) and/or to dense and variable absorbing columns (NGC 3227, Lamer et al. 2003; NGC 4151, Puccetti et al. 2003).

Past hard X-ray surveys of Seyfert 2 galaxies have revealed that the column density distribution of this class is significantly shifted toward large columns; most ($\sim$75%) of type 2 Seyferts are heavily obscured, with $N_{\rm H} > 10^{23}$ cm^-2 (Risaliti et al. 1999). The distribution observed here and shown in the lower (left side) panel of Fig. 2 apparently deviates from past results, containing mostly mildly absorbed objects. However, this distribution does not take into account the possible presence of heavily absorbed sources, not recognised as such because of the absence of a low energy cut-off.

Histograms of the observed hard X-ray luminosities are shown in Fig. 3 (left side). A wide range of luminosities is covered, from objects with $L_{2-10 \rm keV} \approx 10^{38}$ erg s^-1, comparable to those of bright binary systems or ultraluminous X-ray sources (ULXs), to those with luminosities $L_{2-10~\rm keV} \approx 10^{43}$ erg s^-1, typical of bright Seyferts. The upper limits on the hard luminosity for the two type 2 Seyferts (NGC 1058 and NGC 4472) are indicated with arrows. It has been shown in previous soft and hard X-ray surveys that Seyfert 2 galaxies are generally weaker than their type 1 counterparts. Our measurements confirm, at first glance, this evidence. A KS test to compare the two distributions yields a probability of 0.009 that they are drawn from the same parent population. The mean hard X-ray luminosity of type 1 objects is $L_{2-10~\rm keV} \approx 10^{41}$ erg s^-1 ( $\sigma \approx 0.8$), while for type 2 objects it is $L_{2-10~\rm keV} \approx 10^{39.8}$ erg s^-1 ( $\sigma \approx 0.9$).

A Gaussian iron K emission line has been detected in 8 out of 9 type 1s and in 6 out of 18 type 2s. Their mean equivalent widths are $\approx$$215\pm 80$ eV and $\approx$ $700 \pm 220$ eV, respectively, which are consistent with previous works (Nandra et al. 1997; Turner et al. 1997) when the large errors and dispersions are taken into account. The larger rate of detected lines in type 1s with respect to type 2s is at first surprising but is consistent with the fact that type 1s are typically brigther in the sample. As mentioned in Sect. 4, the present estimates are to be taken as only rough parameterizations because they do not take into account in detail of the multiple lines often present (i.e. in NGC 1068, NGC 3031, NGC 4579), nor the possibility of line broadening (NGC 3031, NGC 4051, NGC 4151, NGC 4395) or variability.

5.2 Identification of heavily absorbed sources

Several of the above differencies in terms of $\Gamma$, $N{_{\rm H}}$ and $L_{2-10~\rm keV}$, could well be due, in part or totally, to our inability to directly measure heavily absorbed sources. In the hard band, the effective area of the pn peaks at energies around 5-6 keV and has an exponential roll-over at higher energies. This implies that we are only weakly sensitive to measurements of absorption columns of $N_{\rm H} \ga 10^{23}$ cm^-2. In particular, in Compton-thick sources with $N_{\rm H} > 10^{24}$ cm^-2, the transmitted component is completely suppressed below 10 keV and the spectrum observed in the 2-10 keV band is dominated by flattened reprocessed components from a cold and/or warm scatterer (Matt et al. 2000). The galaxy may, thus, be erroneously classified as a source with a flat spectral shape, low absorption and, thus, low luminosity while actually being intrinsically steep, heavily obscured, and luminous (see, for example, the prototypical case of the Seyfert 2 galaxy NGC 1068; Matt et al. 1997; Iwasawa et al. 1997). To take these factors into account, we apply three independent tools to unveil the presence of heavy obscuration: (i) X-ray spectral diagnostics such as flat slope and large Fe K$\alpha$ EW; (ii) flux diagnostic diagrams; and (iii) the $N{_{\rm H}}$ vs. $F_{2-10~\rm keV}$/ $F_{\rm [O~III]}$ diagram.

In three type 2 objects (NGC 1068, NGC 3079, and NGC 5194), the EW of the detected iron K line is higher than $\sim$1 keV. Such a high value of the EW is expected in highly obscured objects since it is measured against a much-depressed continuum ( $N_{\rm H} \approx 10^{23}$-10²⁴ cm^-2; Leahy & Creighton 1993) or against a pure reflection component ( $N_{\rm H} > 10^{24-25}$ cm^-2; Makishima 1986; Bassani et al. 1999).

In 2 Seyfert 2 galaxies (NGC 2685 and NGC 3486), the photon index is rather flat ($\la$1) and may also be indicative of Compton-thick sources. However, the lack of any strong line makes this criterion alone not sufficient to classify the sources as Compton-thick candidates. In total, the spectral analysis is able to directly assess three candidate Compton-thick sources, namely NGC 1068, NGC 3079, and NGC 5194. This is consistent with studies which have been able to obtain hard (E > 10 keV) X-ray spectra of these sources with BeppoSAX (Matt et al. 1997, Iyomoto et al. 2001; Fukazawa et al. 2001).

Another way of evaluating the true amount of absorption is through flux diagnostic diagrams (e.g., Bassani et al. 1999; Panessa & Bassani 2002; Panessa 2004; Guainazzi et al. 2005). These make use of independent indicators of the intrinsic brightness of the source such as the [O III] $\lambda$5007 flux and the infrared emission, to be compared with the hard X-ray flux.

By studying a large sample of Seyfert 2 galaxies, Bassani et al. (1999) have found that the ratio $F_{\rm 2-10~keV}$/ $F_{\rm [O~III]}$ is effective in separating Compton-thin from Compton-thick sources, the latter having ratios lower than $\sim$1. This is because the [O III] flux is considered to be a good isotropic indicator; it is mostly produced far from the nucleus, in the NLR, by photoionizing photons from the AGN. Applying this criterion to our sample, and using the [O III] measurements reported in HFS97a, we identify 5 Compton-thick sources, i.e. with $F_{\rm 2-10~keV}$/ $F_{\rm [O~III]} < 1$: NGC 676, NGC 1068, NGC 3079, NGC 3185, and NGC 5194. Of note is the fact that the three candidates Compton-thick with a strong line are confirmed.

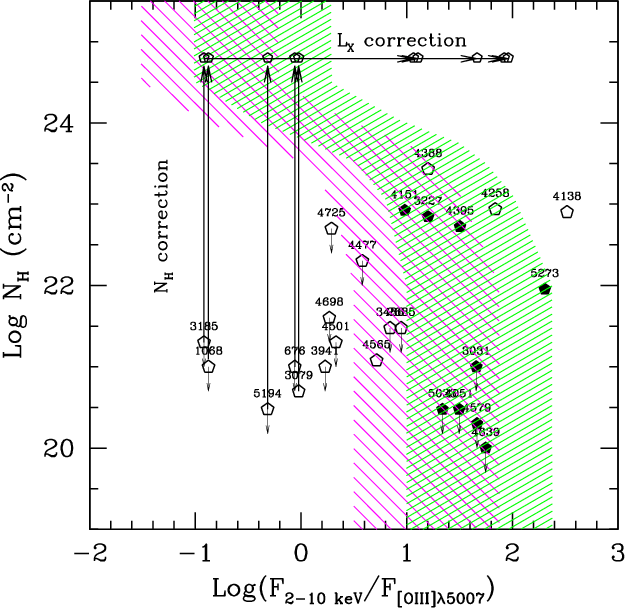

Figure 4: Diagram of the absorbing column density $N{_{\rm H}}$ versus the ratio between the observed 2-10 keV flux and the reddening-corrected [O III] flux taken from Panessa (2004). Filled polygons are type 1 Seyferts and open polygons are type 2 Seyferts. The shaded region (lower-left to upper-right diagonals) indicates the expected correlation under the assumption that $L_{2-10~\rm keV}$ is absorbed by the $N{_{\rm H}}$ reported on the ordinate, starting from the average $F_{\rm HX}$/ $F_{\rm [O~III]}$ ratio observed in type 1 Seyfert galaxies and by assuming a 1% reflected component. Also, the shaded region (upper-left to lower-right diagonals) obtained by Maiolino et al. (1998) is shown.

Open with DEXTER

The effectiveness of identifying Compton-thick vs. Compton-thin sources through the ratio $F_{\rm 2-10~keV}$/ $F_{\rm [O~III]}$is also exemplified by the third of our diagnostics: the $N{_{\rm H}}$ vs. $F_{2-10~\rm keV}$/ $F_{\rm [O~III]}$ diagram shown in Fig. 4. Assuming, as mentioned above, that the [O III] luminosity is an isotropic indicator of the intrinsic luminosity, one expects that the ratio of $F_{2-10~\rm keV}$/ $F_{\rm [O~III]}$ decreases as $N{_{\rm H}}$ increases, following a path as indicated by the dashed region in Fig. 4. The relation was obtained assuming that the observed $F_{2-10~\rm keV}$ changes according to the $N{_{\rm H}}$ value given on the ordinate, and starting from the average $F_{2-10~\rm keV}$/ $F_{\rm [O~III]}$ ratio observed in type 1 Seyferts and assuming a 1% scattered component. The width of the shaded area (from lower left to upper right) was drawn considering the lower and higher $F_{2-10~\rm keV}$/ $F_{\rm [O~III]}$ ratios obtained for the type 1 objects of the present sample. The shaded region (from upper left to lower right) obtained by Maiolino et al. (1998) is also shown for comparison and is consistent with the present results, though slightly shifted to lower flux ratios.

Compton-thick AGNs should occupy the observed low $N{_{\rm H}}$ and low $F_{2-10~\rm keV}$/ $F_{\rm [O~III]}$ part of the diagram, but after correction for their intrinsic high $N{_{\rm H}}$, they should occupy the high $N{_{\rm H}}$ and low $F_{2-10~\rm keV}$/ $F_{\rm [O~III]}$ region of the predicted distribution (as indicated by the arrows in Fig. 4). We find that this is indeed the case for the previously identified Compton-thick objects of our sample (NGC 676, NGC 1068, NGC 3079, NGC 3185, and NGC 5194). Other sources (NGC 3941, NGC 4698, and NGC 4501) are located in the same area of the plot, but we found no independent confirmation to classify them as secure Compton-thick candidates. Moreover, they have $F_{2-10~\rm keV}$/ $F_{\rm [O~III]}$ ratios exceeding 1, in the Compton-thin regime. Interestingly, two of these sources (NGC 4698 and NGC 4501) have been identified in the literature as "anomalous'' cases of Seyfert 2 galaxies with no intrinsic absorption (Georgantopoulos & Zezas 2003; Terashima et al. 2002).

Table 4: Compton-thick/thin Seyfert 2 candidates.

By combining the X-ray spectral properties and the diagnostic diagrams using isotropic indicators, we identify Compton-thin and Compton-thick objects as indicated in Table 4. In total, a subsample of 5 Compton-thick candidate objects have been confidently recognized (5 from diagnostic diagrams, 3 of which have direct spectral information as well).

5.3 $\Gamma$, $N{_{\rm H}}$ and $L_{2-10~\rm keV}$: after correction for heavily absorbed sources

As a consequence of the above considerations, we correct the above distributions by adopting, for all Compton-thick candidates, a value of $\Gamma =1.62$, $N_{\rm H} = 2 \times 10^{24}$ cm^-2 and increasing $L_{2-10~\rm keV}$ by a factor of 100. The first value is taken equal to the average value of $\Gamma$ in type 2s after removal of the 5 Compton-thick candidates. The second is taken as a lower-limit characteristic value of optically thick matter. The latter value/shift in luminosity is drawn from Fig. 4. This value corresponds, as a rough estimate, to the factor that is necessary to bring the average $F_{2-10~\rm keV}$/ $F_{\rm [O~III]}$ ratio measured for the 5 Compton thick sources ($\simeq$ 10^-0.44) equal to that of type 1 sources ($\simeq$10^1.54), as indicated from the arrows in Fig. 4. New histograms are shown in the right-hand panels of Figs. 1-3, where the Compton-thick candidates are marked with right-sided arrows. Although average values do not change significantly before and after this correction, the shapes of the distributions are quite different. The fraction of Compton-thick sources is at least a third of all type 2 Seyferts, and a fifth of all Seyferts. This is similar to what was found by Bassani et al. (1999) using data from the literature and is slightly lower than, but in substantial agreement with the survey by Risaliti et al. (1999) when errors on the percentages are considered. However, the present study adds to the significance of this result because for the first time it is derived using an unbiased (distance-limited) optical sample, applying a uniform optical and X-ray analysis to the data (with data from a single satellite), and excluding any severe contamination from nearby off-nuclear sources.

These findings are, also for the first time, extended down to very low luminosities. Finally, unlike previous studies, no more significant difference between the luminosity distributions of type 1 and type 2 Seyferts are found (Sect. 5.1). The probability of the two classes being drawn from the same parent population is now 0.16. The previous differences in luminosities (Sect. 5.1) are therefore consistent with being ascribed almost entirely to absorption effects.

We have checked that the above results are robust even with slightly different assumptions in correcting for Compton-thick candidates. Assuming a steeper value of $\Gamma=1.8$ or 1.9, more typical of the intrinsic (reflection-corrected) spectrum of unobscured AGNs (Nandra & Pounds 1994), or cancelling out all 5 Compton-thick candidates, similarity between the index distributions of type 1 and type 2s was always recovered. For the luminosity distributions, if we assumed conservatively a correction factor of about 30, i.e. corresponding to the lowest observed value of $F_{2-10~\rm keV}$/ $F_{\rm [O~III]}$ ratio in type 1s, the KS probability that type 1 and type 2 luminosity distributions are drawn from the same parent population becomes $3\times 10^{-2}$ (from a probability of about 10^-4 when luminosities were not corrected, see Sect. 5.1). This indicates that the above results are, of course, sensitive to the assumptions made to correct for the Compton-thick sources but that even our most conservative choice of correction brings the luminosities of type 2s consistent with that of type 1s.

6 General results and summary

The optical spectroscopic survey of Ho et al. (1995, 1997) has provided a new, comprehensive catalog of 52 Seyfert galaxies, the most complete and least biased available to date. We have performed an X-ray spectral survey of the 27 nearest ($D \la22$ Mpc) Seyfert galaxies in that survey using the EPIC CCDs on-board XMM-Newton. This paper presents the observational material, along with a compilation of X-ray spectral parameters to be used in subsequent analysis.

We have detected in the hard X-ray band all but two of the observed Seyfert nuclei. The sample extends to significantly lower X-ray luminosities than many previous surveys.

Nuclear X-ray spectra have been obtained forming one of the largest atlases of low-luminosity Seyfert galaxies ever assembled. Simple models have been applied in order to characterize the spectral shape, the presence of absorption in excess of the Galactic value and the presence of an Fe emission line. The distribution of spectral parameters, in particular for type 1 Seyferts, is found to be within the range of values observed in luminous AGNs. At a first glance, the observed column density distribution for type 2 Seyferts appears to be shifted toward low absorbing column densities ( $N_{\rm H} < 10^{22}$ cm^-2).

Moreover, the observed 2-10 keV luminosity distribution of type 2 Seyfert galaxies appears to be significantly shifted toward low luminosities with respect to type 1 objects. However, the presence of Compton-thick sources in our sample may affect the estimate of these parameters. Therefore, indirect arguments have been used to infer their presence, such as evidence of a flat power-law spectrum in the X-ray band, the presence of a strong Fe K$\alpha$ line at 6.4 keV, and flux diagnostic diagrams which employ isotropic indicators of the nuclear unobscured emission. Results obtained by combining spectral and flux diagnostic tools indicate that the fraction of heavily obscured objects is large, at least one third of all objects in the sample, in good agreement with previous estimates performed on a flux-limited sample (Risaliti et al. 1999). Interestingly, Seyfert galaxies as a whole possess the entire range of $N{_{\rm H}}$, from 10²⁰ cm^-2 to 10²⁴ cm^-2, fairly continuously. This is similar to what was found in the deepest X-ray surveys available to date (Mateos et al. 2005), and it is consistent with local absorption distributions adopted by, e.g., La Franca et al. (2005) to fit the hard X-ray luminosity functions of AGNs.

With the present work we are able to probe much lower luminosities and still find that the fraction of absorbed objects remains significantly high. In light of these findings, the column density and luminosity distributions have been revisited. In particular, it has been shown that the dichotomy observed in the luminosity of type 1 and type 2 Seyferts is mainly due to absorption effects.

We point out a note of caution, however, regarding our ability to identify the Compton-thick cases for the lowest-luminosity sources of the sample. It may be that the statistics are so low that one cannot firmly exclude the possibility that some of them are indeed Compton-thick objects. Correcting for this would of course increase the fraction of Compton-thick sources, and bring the present results to meet with Risaliti et al. (1999) estimates. On the other hand, observational criteria such as those above (flat spectra, 2-10 keV/[O III] ratios, etc.) that are "calibrated'' for higher-luminosity objects may not hold for the very low-luminosity AGNs. These may indeed have different spectral energy distributions (e.g., Ho 1999), and hence their X-ray/optical emission-line ratios may not be the same as those of traditional AGNs. Because of these effects, the fraction of Compton-thick sources may vary accordingly, i.e. it could be different in this sample with respect to other previous works because lower-luminosities are probed here. We note, nevertheless, that in these data, we find neither a significant relation between $N{_{\rm H}}$ and $L_{\rm 2-10~ keV}$, nor between $N{_{\rm H}}$ (or $L_{\rm 2-10~ keV}$) and the source sub-classification.

Another result of this survey is the realization (and statistical quantification) of a number of exceptions to the baseline standard model of Seyfert galaxies. First, at least two objects (M 81 and NGC 4579) show a complex of three distinct emission lines at $E \approx 6.4$, 6.7, and 6.9 keV. Detailed modeling is presented by Dewangan et al. (2004) and Page et al. (2004), but the origin of these lines is not clear. The narrow lines in both objects are like those of LINERs, suggesting possibly different, perhaps transient, emission processes in their nuclear regions (e.g., an advection-dominated accretion flow instead of a thick disk, with or without an outflow or jet; Pellegrini et al. 2000; Blandford & Begelman 1999).

The second exception rests on the fact that at least two, perhaps three, of the Seyfert 2 galaxies show no absorption at all, with stringent upper limits. This is clearly in contrast with a standard unified model, but agrees well with previous findings by Pappa et al. (2001), Panessa & Bassani (2002), Barcons et al. (2003), and Mateos et al. (2005).

The third exception is that our analysis has confirmed that three (out of 9) type 1 galaxies (NGC 4151, NGC 3227, and NGC 4395) show evidence for X-ray absorption, an apparent inconsistency between their optical classification and the X-ray one which has been extensively debated in the literature (Mateos et al. 2005, and refences therein). This is a ($30\pm17$)% fraction of absorbed type 1 Seyferts that is consistent with latest estimates based on wide field X-ray surveys (Piconcelli et al. 2003; Perola et al. 2004). All three sources are type 1.5 sources, so there might be an orientation effect where these objects are being viewed from just outside the ionization cone. Other plausible explanations in terms of either effects due to variability in the absorption column density, and/or geometry, and/or ionization state (Malizia et al. 1997; Piro 1999; Risaliti et al. 2002b; Matt et al. 2003), or unusual dust-to-gas ratios have been proposed to explain such differences (Maiolino et al. 2001a,b).

In conclusion, we have given an unbiased estimate of the average intrinsic X-ray properties and column density distribution of Seyfert galaxies at low redshifts. This is crucial to validate unified models of AGNs and for synthesis models of the X-ray background. The results obtained here are in agreement with the predictions of unified models, except for a few particular cases (10% of unabsorbed Seyfert 2s and 30% of absorbed Seyfert 1s, in agreement with previous works by Panessa & Bassani 2002; and Perola et al. 2004) which do not fit easily into the standard picture, but which we are able to quantify. Most significantly, these predictions are positively tested using a complete sample with datasets of unprecedented quality. The first-ever extension to low luminosities also suggests that the same physical processes are governing emission in low-luminosity AGNs as in more luminous sources, although a larger sample is required to verify this conclusion.

A description of the multi-waveband correlations (e.g., X-ray luminosities vs. H$_{\alpha}$ and radio luminosities, spectral energy distributions, etc.) and their astrophysical implications is deferred to forthcoming papers.

Acknowledgements

This paper is based on observations obtained with XMM-Newton, an ESA science mission with instruments and contributions directly funded by ESA Member States and the USA (NASA). The research has made use of data obtained through the High Energy Astrophysics Science Archive Research Center Online Service, provided by the NASA/Goddard Space Flight Center, and of the NASA/IPAC Extragalactic Database (NED), which is operated by the Jet Propulsion Laboratory, California Institute of Technology, under contract with the National Aeronautics and Space Administration. M.C. acknowledges financial support from the contract ASI-CNR/IASF:I/R/042/02. A.V.F. is supported by NSF grant AST-0307894; he is also grateful for a Miller Research Professorship at U.C. Berkeley, during which part of this work was completed.

References

• Antonucci, R. R. J. 1993, ARA&A, 31, 473 [NASA ADS] (In the text)
• Awaki, H., Koyama, K., Inoue, H., & Halpern, J. P. 1991, PASJ, 43, 195 [NASA ADS] (In the text)
• Barcons, X., Carrera, F. J., & Ceballos, M. T. 2003, MNRAS, 339, 757 [NASA ADS] [CrossRef] (In the text)
• Barth, A. J., Ho, L. C., Filippenko, A. V., Rix, H.-W., & Sargent, W. L. W. 2001, ApJ, 546, 205 [NASA ADS] [CrossRef] (In the text)
• Barth, A. J., Reichert, G. A., Filippenko, A. V., Ho, L. C., et al. 1996, AJ, 112, 1829 [NASA ADS] [CrossRef] (In the text)
• Bassani, L., Dadina, M., Maiolino, R., et al. 1999, ApJS, 121, 473 [NASA ADS] [CrossRef] (In the text)
• Blandford, R. D., & Begelman, M. C. 1999, MNRAS, 303, L1 [NASA ADS] [CrossRef] (In the text)
• Caldwell, N., Rose, J. A., & Concannon, K. D. 2003, AJ, 125, 2891 [NASA ADS] [CrossRef]
• Cecil, G., Bland-Hawthorn, J., & Veilleux, S. 2002, ApJ, 576, 745 [NASA ADS] [CrossRef] (In the text)
• Comastri, A., Setti, G., Zamorani, G., & Hasinger, G. 1995, A&A, 296, 1 [NASA ADS] (In the text)
• Dewangan, G. C., Griffiths, R. E., Di Matteo, T., & Schurch, N. J. 2004, ApJ, 607, 788 [NASA ADS] [CrossRef] (In the text)
• Eracleous, M., Shields, J. C., Chartas, G., & Moran, E. C. 2002, ApJ, 565, 108 [NASA ADS] [CrossRef] (In the text)
• Filippenko, A. V., & Sargent, W. L. W. 1985, ApJS, 57, 503 [NASA ADS] [CrossRef] (In the text)
• Filippenko, A. V., & Sargent, W. L. W. 1989, ApJ, 342, L11 [NASA ADS] [CrossRef] (In the text)
• Filippenko, A. V., Ho, L. C., & Sargent, W. L. W. 1993, ApJ, 410, L75 [NASA ADS] [CrossRef] (In the text)
• Foschini, L., Di Cocco, G., Ho, L. C., et al. 2002, A&A, 392, 817 [EDP Sciences] [NASA ADS] [CrossRef] (In the text)
• Fukazawa, Y., Iyomoto, N., Kubota, A., Matsumoto, Y., & Makishima, K. 2001, A&A, 374, 73 [EDP Sciences] [NASA ADS] [CrossRef] (In the text)
• Georgantopoulos, I., & Zezas, A. 2003, ApJ, 594, 704 [NASA ADS] [CrossRef] (In the text)
• Georgantopoulos, I., Panessa, F., Akylas, A., et al. 2002, A&A, 386, 60 [EDP Sciences] [NASA ADS] [CrossRef] (In the text)
• George, I. M., Mushotzky, R., Turner, T. J., et al. 1998, ApJ, 509, 146 [NASA ADS] [CrossRef] (In the text)
• Gilli, R., Salvati, M., & Hasinger, G. 2001, A&A, 366, 407 [EDP Sciences] [NASA ADS] [CrossRef] (In the text)
• Gondoin, P., Orr, A., Lumb, D., & Siddiqui, H. 2003, A&A, 397, 883 [EDP Sciences] [NASA ADS] [CrossRef] (In the text)
• Guainazzi, M., Fabian, A. C., Iwasawa, K., Matt, G., & Fiore, F. 2005, MNRAS, 356, 295 [NASA ADS] [CrossRef] (In the text)
• Hasinger, G., Altieri, B., Arnaud, M., et al. 2001, A&A, 365, L45 [EDP Sciences] [NASA ADS] [CrossRef] (In the text)
• Heckman, T. M. 1980, A&A, 87, 152 [NASA ADS] (In the text)
• Ho, L. C. 1999, ApJ, 516, 672 [NASA ADS] [CrossRef] (In the text)
• Ho, L. C., Filippenko, A. V., & Sargent, W. L. 1995, ApJS, 98, 477 [NASA ADS] [CrossRef] (In the text)
• Ho, L. C., Filippenko, A. V., & Sargent, W. L. W. 1997a, ApJS, 112, 315 [NASA ADS] [CrossRef] (HFS97a) (In the text)
• Ho, L. C., Filippenko, A. V., Sargent, W. L. W., & Peng, C. Y. 1997b, ApJS, 112, 391 [NASA ADS] [CrossRef]
• Ho, L. C., Ptak, A., Terashima, Y., et al. 1999, ApJ, 525, 168 [NASA ADS] [CrossRef]
• Ho, L. C., & Ulvestad, J. S. 2001, ApJS, 133, 77 [NASA ADS] [CrossRef] (HU01)
• Ho, L. C., Feigelson, E. D., Townsley, L. K., et al. 2001, ApJ, 549, L51 [NASA ADS] [CrossRef] (In the text)
• Iwasawa, K., Fabian, A. C., & Matt, G. 1997, MNRAS, 289, 443 [NASA ADS] (In the text)
• Iwasawa, K., Fabian, A. C., Almaini, O., et al. 2000, MNRAS, 318, 879 [NASA ADS] [CrossRef] (In the text)
• Iwasawa, K., Wilson, A. S., Fabian, A. C., & Young, A. J. 2003, MNRAS, 345, 369 [NASA ADS] [CrossRef] (In the text)
• Iwasawa, K., et al. 2005, in preparation (In the text)
• Iyomoto, N., Fukazawa, Y., Nakai, N., & Ishihara, Y. 2001, ApJ, 561, L69 [NASA ADS] [CrossRef] (In the text)
• Kinkhabwala, A., Sako, M., Behar, E., et al. 2002, ApJ, 575, 732 [NASA ADS] [CrossRef] (In the text)
• La Franca, F., et al. 2005, ApJ, in press [arXiv:astro-ph/0509081] (In the text)
• Lamer, G., Uttley, P., & McHardy, I. M. 2003, MNRAS, 342, L41 [NASA ADS] [CrossRef] (In the text)
• Lamer, G., McHardy, I. M., Uttley, P., & Jahoda, K. 2003, MNRAS, 338, 323 [NASA ADS] [CrossRef]
• Leahy, D. A., & Creighton, J. 1993, MNRAS, 263, 314 [NASA ADS] (In the text)
• Loewenstein, M., Mushotzky, R. F., Angelini, L., Arnaud, K. A., & Quataert, E. 2001, ApJ, 555, L21 [NASA ADS] [CrossRef] (In the text)
• Maiolino, R., Salvati, M., Bassani, L., et al. 1998, A&A, 338, 781 [NASA ADS] (In the text)
• Maiolino, R., Marconi, A., Salvati, M., et al. 2001a, A&A, 365, 28 [EDP Sciences] [NASA ADS] [CrossRef] (In the text)
• Maiolino, R., Marconi, A., & Olivia, E. 2001b, A&A, 365, 37 [EDP Sciences] [NASA ADS] [CrossRef]
• Makishima, K. 1986, The Physics of Accretion onto Compact Objects, LNP, 266, 249 (In the text)
• Malizia, A., Bassani, L., Stephen, J. B., Malaguti, G., & Palumbo, G. G. C. 1997, ApJS, 113, 311 [NASA ADS] [CrossRef] (In the text)
• Mateos, S., Barcons, X., Carrera, F. J., et al. 2005, ArXiv Astrophysics e-prints [arXiv:astro-ph/0506718] (In the text)
• Matt, G., Guainazzi, M., Frontera, F., et al. 1997, A&A, 325, L13 [NASA ADS] (In the text)
• Matt, G., Fabian, A. C., Guainazzi, M., et al. 2000, MNRAS, 318, 173 [NASA ADS] [CrossRef] (In the text)
• Matt, G., Guainazzi, M., & Maiolino, R. 2003, MNRAS, 342, 422 [NASA ADS] [CrossRef] (In the text)
• Mizuno, T., Ohnishi, T., Kubota, A., Makishima, K., & Tashiro, M. 1999, PASJ, 51, 663 [NASA ADS] (In the text)
• Moran, E. C., Eracleous, M., Leighly, K. M., et al. 2005, AJ, 129, 2108 [NASA ADS] [CrossRef] (In the text)
• Nandra, K., & Pounds, K. A. 1994, MNRAS, 268, 405 [NASA ADS] (In the text)
• Nandra, K., George, I. M., Mushotzky, R. F., Turner, T. J., & Yaqoob, T. 1997, ApJ, 476, 70 [NASA ADS] [CrossRef] (In the text)
• Netzer, H., Chelouche, D., George, I. M., et al. 2002, ApJ, 571, 256 [NASA ADS] [CrossRef] (In the text)
• Ogle, P. M., Marshall, H. L., Lee, J. C., & Canizares, C. R. 2000, ApJ, 545, L81O [NASA ADS] (In the text)
• Osterbrock, D. E. 1981, ApJ, 249, 462 [NASA ADS] [CrossRef]
• Page, M. J., Soria, R., Zane, S., Wu, K., & Starling, R. L. C. 2004, A&A, 422, 77 [EDP Sciences] [NASA ADS] [CrossRef] (In the text)
• Panessa, F., & Bassani, L. 2002, A&A, 394, 435 [EDP Sciences] [NASA ADS] [CrossRef] (In the text)
• Panessa, F. 2004, Ph.D. Thesis, University of Bologna, http://venus.ifca.unican.es/panessa/ (In the text)
• Pappa, A., Georgantopoulos, I., Stewart, G. C., & Zezas, A. L. 2001, MNRAS, 326, 995 [NASA ADS] [CrossRef] (In the text)
• Paturel, G., Teerikorpi, P., Theureau, G., et al. 2002, A&A, 389, 19 [EDP Sciences] [NASA ADS] [CrossRef]
• Pellegrini, S., Cappi, M., Bassani, L., et al. 2000, A&A, 353, 447 [NASA ADS] (In the text)
• Perola, G. C., Puccetti, S., Fiore, F., et al. 2004, A&A, 421, 491 [EDP Sciences] [NASA ADS] [CrossRef] (In the text)
• Piconcelli, E., Cappi, M., Bassani, L., Di Cocco, G., & Dadina, M. 2003, A&A, 412, 689 [EDP Sciences] [NASA ADS] [CrossRef] (In the text)
• Pietsch, W., & Read, A. M. 2002, A&A, 384, 793 [EDP Sciences] [NASA ADS] [CrossRef] (In the text)
• Piro, L. 1999, Astron. Nachr., 320, 236 [NASA ADS] [CrossRef] (In the text)
• Pounds, K. A., Reeves, J. N., King, A. R., & Page, K. L. 2004, MNRAS, 350, 10 [NASA ADS] [CrossRef] (In the text)
• Puccetti, S., Risaliti, G., Fiore, F., et al. 2003, Proc. of the BeppoSAX Symposium: The Restless High-Energy Universe, ed. E. P. J. van den Heuvel, J. J. M. in't Zand, & R. A. M. J. Wijers, in press [arXiv:astro-ph/0311446] (In the text)
• Risaliti, G. 2002, A&A, 386, 379 [EDP Sciences] [NASA ADS] [CrossRef]
• Risaliti, G., Elvis, M., & Gilli, R. 2002a, ApJ, 566, L67 [NASA ADS] [CrossRef] (In the text)
• Risaliti, G., Elvis, M., & Nicastro, F. 2002b, ApJ, 571, 234 [NASA ADS] [CrossRef]
• Risaliti, G., Maiolino, R., & Salvati, M. 1999, ApJ, 522, 157 [NASA ADS] [CrossRef] (In the text)
• Sandage, A., Tammann, G. A., & Yahil, A. 1979, ApJ, 232, 352 [NASA ADS] [CrossRef]
• Schmitt, H. R., & Kinney, A. L. 1996, ApJ, 463, 498 [NASA ADS] [CrossRef] (In the text)
• Schurch, N. J., Warwick, R. S., Griffiths, R. E., & Sembay, S. 2003, MNRAS, 345, 423 [NASA ADS] [CrossRef]
• Setti, G., & Woltjer, L. 1989, A&A, 224, L21 [NASA ADS] (In the text)
• Shih, D. C., Iwasawa, K., & Fabian, A. C. 2003, MNRAS, 341, 973 [NASA ADS] [CrossRef] (In the text)
• Smith, D. A., & Done, C. 1996, MNRAS, 280, 355 [NASA ADS] (In the text)
• Soldatenkov, D. A., Vikhlinin, A. A., & Pavlinsky, M. N. 2003, Astron. Lett., 29, 298 [NASA ADS] [CrossRef] (In the text)
• Terashima, Y., Kunieda, H., & Misaki, K. 1999, PASJ, 51, 277 [NASA ADS] (In the text)
• Terashima, Y., Iyomoto, N., Ho, L. C., & Ptak, A. F. 2002, ApJS, 139, 1 [NASA ADS] [CrossRef] (In the text)
• Terashima, Y., & Wilson, A. S. 2001, ApJ, 560, 139 [NASA ADS] [CrossRef] (In the text)
• Terashima, Y., & Wilson, A. S. 2003, ApJ, 583, 145 [NASA ADS] [CrossRef] (In the text)
• Thim, F., Hoessel, J. G., Saha, A., et al. 2004, AJ, 127, 2322 [NASA ADS] [CrossRef]
• Tonry, J. L., Dressler, A., Blakeslee, J. P., et al. 2001, ApJ, 546, 681 [NASA ADS] [CrossRef]
• Tully, R. B. 1988, Nearby Galaxies Catalog (Cambridge: Cambridge University Press)
• Turner, T. J., George, I. M., Nandra, K., & Mushotzky, R. F. 1997, ApJS, 113, 23 [NASA ADS] [CrossRef] (In the text)
• Turner, T. J., George, I. M., Nandra, K., & Mushotzky, R. F. 1998, ApJ, 493, 91 [NASA ADS] [CrossRef] (In the text)
• Uttley, P., Fruscione, A., McHardy, I., & Lamer, G. 2003, ApJ, 595, 656 [NASA ADS] [CrossRef] (In the text)
• Vaughan, S., Iwasawa, K., Fabian, A. C., & Hayashida, K. 2005, MNRAS, 356, 524 [NASA ADS] [CrossRef] (In the text)
• Wu, H., Xue, S. J., Xia, X. Y., Deng, Z. G., & Mao, S. 2002, ApJ, 576, 738 [NASA ADS] [CrossRef] (In the text)
• Yang, Y., Wilson, A. S., & Ferruit, P. 2001, ApJ, 563, 124 [NASA ADS] [CrossRef] (In the text)
• Young, A. J., & Wilson, A. S. 2004, ApJ, 601, 133 [NASA ADS] [CrossRef] (In the text)
• Young, A. J., Wilson, A. S., & Shopbell, P. L. 2001, ApJ, 556, 6 [NASA ADS] [CrossRef]




Online Material

Appendix A: Atlas of X-ray spectra

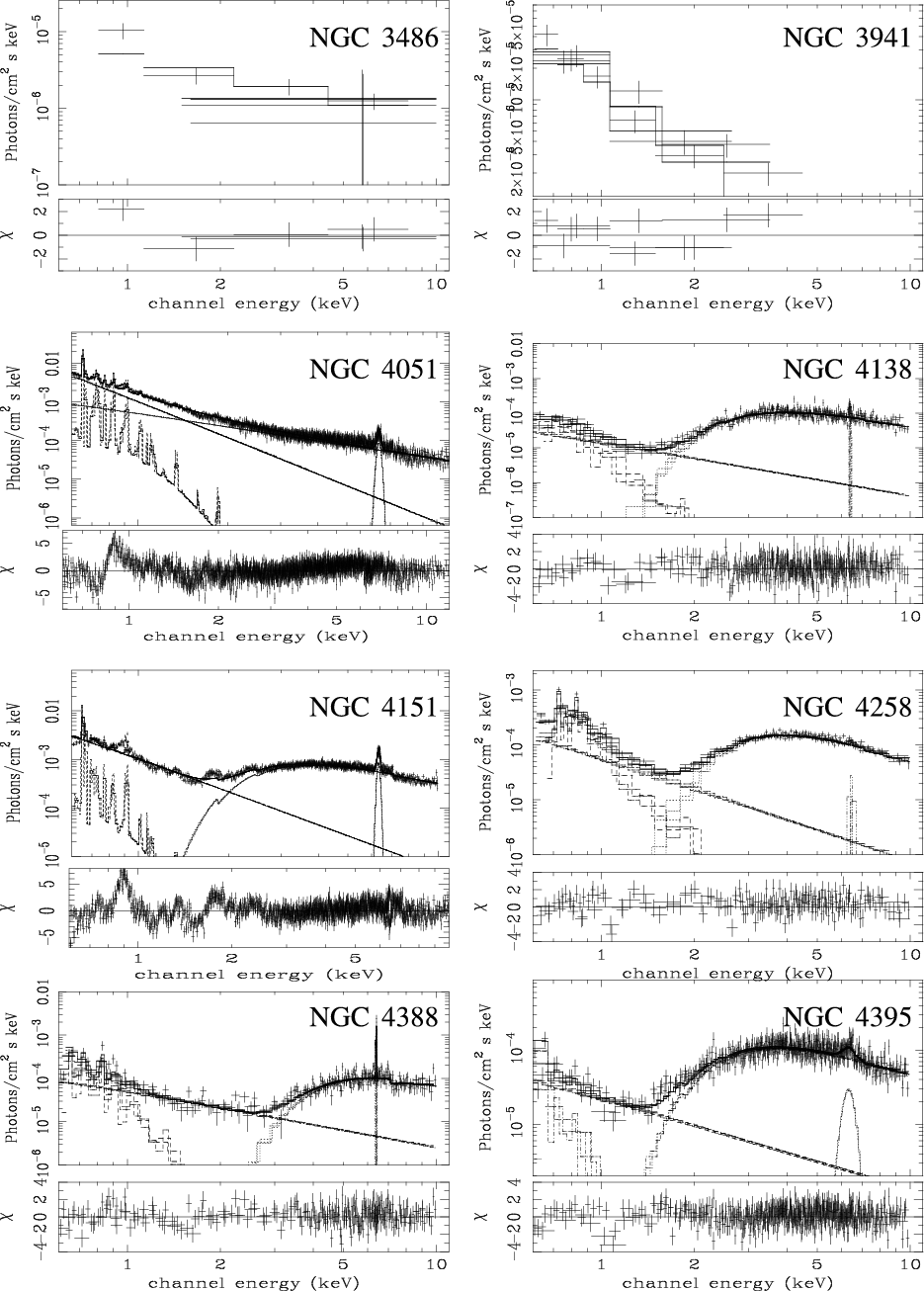

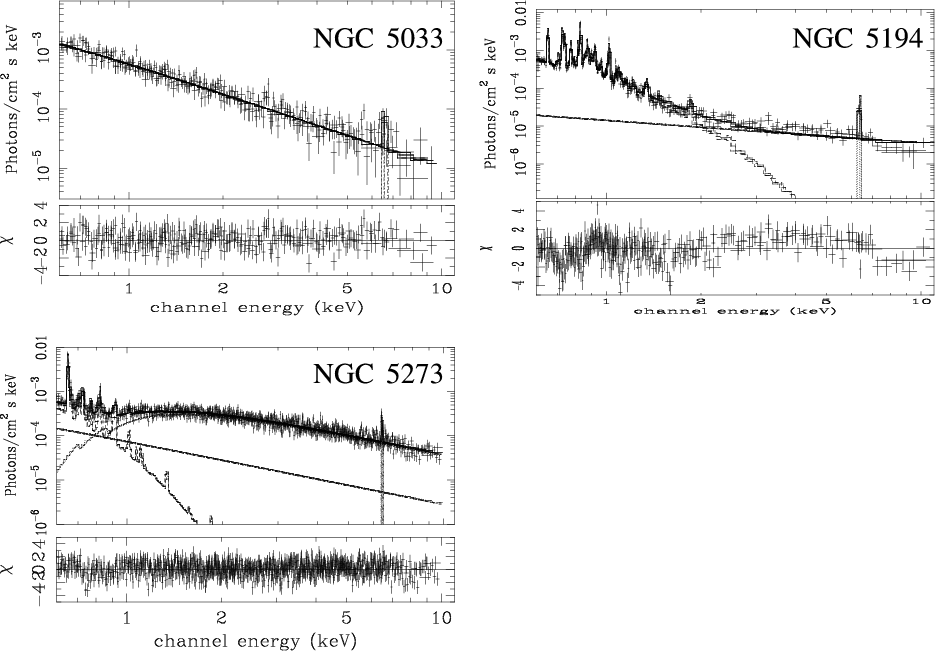

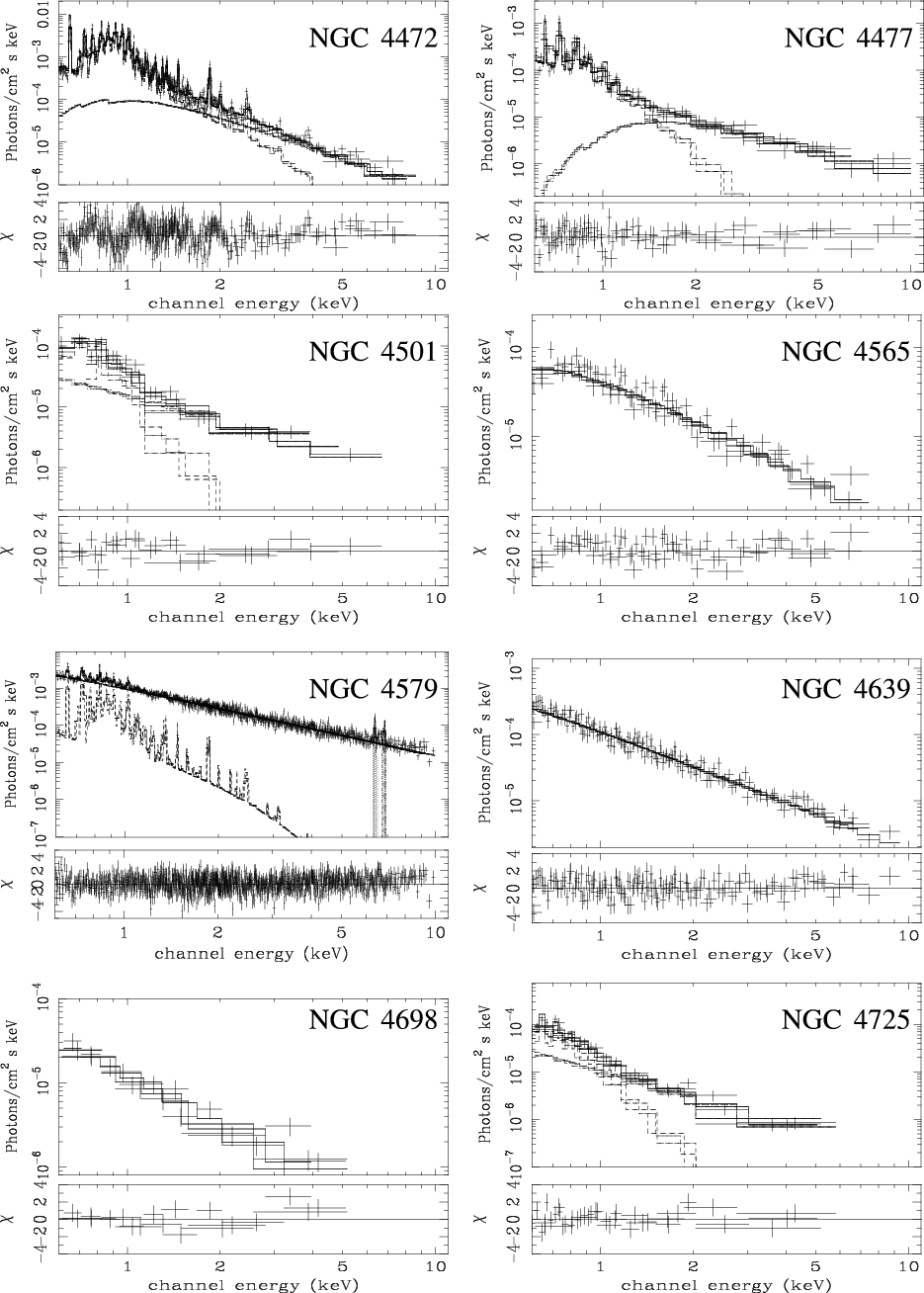

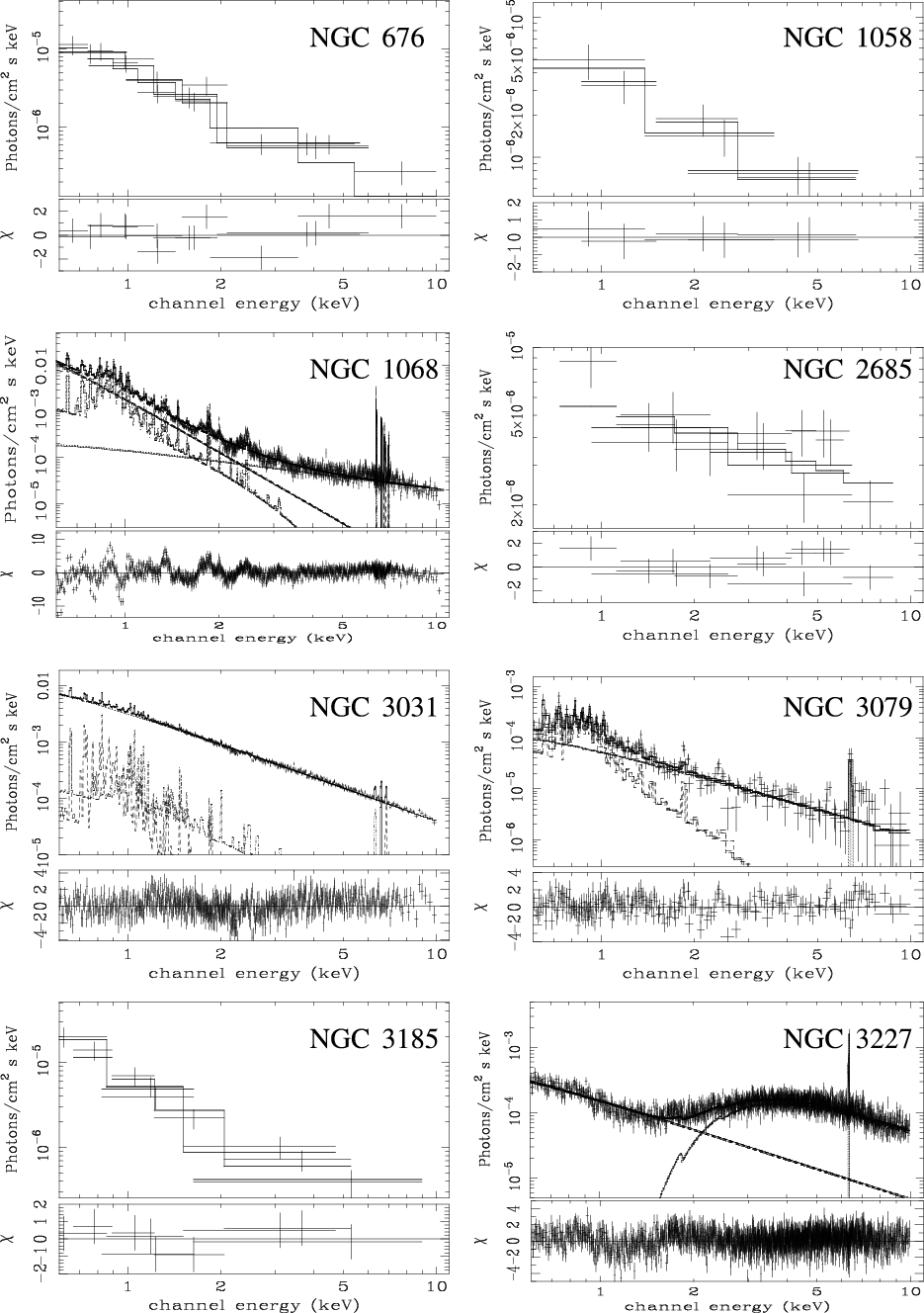

Spectra in order of increasing NGC number are shown. For each object, the upper panel shows the unfolded spectrum and the baseline parameterization, together with the contributions to the model of the various additive components. Residuals are shown in the lower panel in units of $\sigma$. Spectral analysis was performed following general "recipes'' described in Sect. 4, and as described in the notes on individual sources given in Appendix B.

Appendix B: Notes on individual objects

In this section we give notes on individual galaxies. In particular, we include a description of (i) the nuclear X-ray morphologies, (ii) the XMM-Newton spectral results, and (iii) results from the literature. Spectral best-fit results are discussed only for spectra with more than 100 counts. Bright objects have been observed several times with different X-ray telescopes, but here only the most pertinent literature references are reported. In some cases, Chandra images are also used for comparison with the XMM-Newton ones and for their superior spatial resolution. An atlas of both Chandra and XMM-Newton images is given in Panessa (2004).

NGC 676 (S2:): this is the first X-ray detection of NGC 676. The XMM-Newton image shows the presence of emission associated with the nuclear optical position and unresolved surrounding emission which might be associated with the nearby off-nuclear sources. The spectrum has poor statistics, but it is described by a power law ( $\Gamma = 1.9 \pm 0.1$) with no absorption in excess of the Galactic value. This source has not been detected at radio wavelengths (HU01).

NGC 1058 (S2): there is no strong nuclear core in this object, in agreement with the absence of a radio core detection (HU01). Comparison of the XMM-Newton image with the Chandra one shows that the 0.5-10 keV flux obtained from the XMM-Newton data likely suffers from contamination from an off-nuclear source and thus must be considered as an upper limit.

NGC 1068 (S1.9): XMM-Newton images of this source reveal complex nuclear structure: a compact hard nucleus, coincident with the radio core position, embedded in diffuse soft emission. The X-ray spectrum has been thoroughly studied; in particular, the use of the BeppoSAX/PDS instrument has confirmed that this is a Compton-thick source (Matt et al. 1997, and references therein). The XMM-Newton observation of this source was published by Kinkhabwala et al. (2002), who focused their analysis on the RGS study, and by Matt et al. (2004), who focused their analysis on the E > 4 keV data. Here we give only a very rough, approximate description of the 0.5-10 keV spectrum in terms of a soft thermal component, plus a scattered power-law component and a flat power law for the hard X-ray continuum, plus a strong ( ${\it EW} \approx 1$-2 keV) Fe complex between 6 and 7 keV (which includes the Fe K$\alpha$ line at 6.4 keV, plus recombination/resonant emission lines from He-like (6.7 keV) and H-like (6.96 keV) iron, consistent with Matt et al. 2004). Both the flat hard X-ray continuum and the strong Fe line are clear spectral signatures of the Compton-thick nature of this active nucleus.

NGC 2685 (S2/T2:): only weak nuclear emission is revealed in the XMM-Newton image, with some faint extended emission associated with the galaxy. The spectrum has poor statistics, yielding a flat power law with low absorption and large uncertainties. The core has not been detected in the radio (HU01).

NGC 3031 (S1.5/L1.5): this is an X-ray bright galactic nucleus extensively studied by most X-ray satellites (Pellegrini et al. 2000; Terashima et al. 2002). A single power law with Galactic absorption plus soft thermal emission gives a good parameterization of the XMM-Newton  data. Further absorption and/or emission structures are found in the soft energy band, indicating the presence of a complex photoionized and/or thermal plasma. Three Fe lines at different energies ($\sim$6.4, 6.7, and 6.9 keV) are detected with equivalent widths on the order of 40-50 eV each. Detailed analysis and interpretation of the complex lines in the XMM-Newton dataset are given in two different studies by Dewangan et al. (2004) and Page et al. (2004). A bright and variable radio core is detected (HU01).

NGC 3079 (S2): the XMM-Newton images of this source show a complex and unresolved structure which extends for $\sim$30'' around the nuclear position. The hard spectrum is described by a power law ( $\Gamma \approx 1.7 \pm 0.1$) modified by little absorption and a strong Fe K line with an EW of almost 2 keV. The 10''-radius region around the nucleus is resolved in the Chandra image: the strong nuclear source is embedded in a bubble of diffuse emission. However, the diffuse emission contributes less than 10% of the nuclear emission at $E \ga 2$ keV. A Chandra and HST study of the superbubble by Cecil et al. (2002) shows that the optical and X-ray emissions match. The radio core position is coincident with the 2-10 keV peak. We also extracted the Chandra spectrum from a circular region of 2'' radius. The spectral parameters are not well constrained due to the poor photon statistics, but the results are in good agreement with those from XMM-Newton. The strong Fe K line at 6.4 keV (detected at much greater than 99% significance with XMM-Newton) suggests that this source is heavily absorbed and confirms the BeppoSAX results which indicate that it is Compton thick (Iyomoto et al. 2001).

NGC 3185 (S2:): the XMM-Newton observation of this object shows weak nuclear emission. An extraction radius of 20'' was chosen in order to separate the nuclear emission from a nearby ULX (Foschini et al. 2002). The spectrum is described by a power law ( $\Gamma = 2.1 \pm 0.1$) with absorption lower than $2 \times 10 ^{21}$ cm^-2. Radio emission is detected only marginally (HU01).

NGC 3227 (S1.5): this type 1.5 Seyfert is known to show significant spectral variability in the X-ray band (George et al. 1998) and a warm absorber (Gondoin et al. 2003). The XMM-Newton  0.5-10 keV spectrum is parameterized here with a single power law plus a scattered component, with the soft and hard X-ray power laws having identical slopes ( $\Gamma = 1.5 \pm 0.02$, $N_{\rm H} = 6.8 \pm 0.3 \times10^{22}$ cm^-2). Addition of a warm absorber would modify only slightly these continuum parameters. The Fe K line is detected at 6.4 keV with EW =  $190 \pm 40$ eV. Spectral parameters are in agreement with the best-fit results from Gondoin et al. (2003) and Lamer et al. (2003).

NGC 3486 (S2): emission from the nuclear region has been detected in the XMM-Newton observation, surrounded by extended emission. An extraction radius of 20'' was used in order to separate the nucleus from a nearby ULX (Foschini et al. 2002). The very poor statistics of the spectrum yield a best fit with a power law ( $\Gamma = 0.9 \pm 0.2$) and Galactic absorption. The XMM-Newton 2-10 keV flux was measured assuming the above best-fit model, and it turns out to be consistent with the Chandra limit (Ho et al. 2001).

NGC 3941 (S2:): the XMM-Newton observation of this object shows a bright off-nuclear source 40'' from the nuclear position. The spectrum has very poor statistics and is best fitted with an unabsorbed power law with $\Gamma = 2.1 \pm 0.3$. The source is marginally detected in the radio band (HU01).

NGC 4051 (S1.5): detailed analyses of this observation have been presented by Uttley et al. (2003) and Pounds et al. (2004), and have been compared to the earlier observation performed in 2001 (Lamer et al. 2003). Major spectral variations between the high-flux and low-flux states have been interpreted either in terms of variations in the ionization state of the absorption column density (Pounds et al. 2004) or in terms of large changes in the power-law slope (Uttley et al. 2003). Here, we fitted the 0.5-10 keV integrated spectrum of the low-flux state with a soft thermal component plus a steep scattered power law, and a very flat hard power law ( $\Gamma = 1.2 \pm 0.1$). The flat power-law shape, together with the strong Fe K emission line at 6.4 keV with ${\it EW} \approx 250$ eV and the two absorption edges marginally detected at 7.2 and 7.9 keV, suggest the presence of both a strong reflection component and a heavy warm absorber, in agreement with Pounds et al. (2004). Further detailed temporal analysis is beyond the scope of the present work. NGC 4051 shows complex radio structure (HU01).

NGC 4138 (S1.9): the XMM-Newton image of this object shows a bright nuclear source with marginal evidence of a surrounding diffuse component. Detailed imaging and spectral fitting of the same dataset is reported by Foschini et al. (2002). The best-fit model is obtained with an intrinsic absorbed power-law component ( $\Gamma = 1.5 \pm 0.1$, $N_{\rm H} = (8 \pm 1) \times 10^{22}$ cm^-2) plus an Fe line at 6.4 keV ( ${\it EW} = 83 \pm 30$ eV). We add a scattered component plus a thermal component to fit the data below 1.5 keV ( $kT = 0.3 \pm 0.05$ keV, $\Gamma_{\rm SX} \equiv \Gamma_{\rm HX}$). A weak, compact radio core is seen at the position of the optical nucleus (HU01).

NGC 4151 (S1.5): EPIC images show a bright, point-like nuclear source. The spectrum below 1.5 keV is complex and can be described in terms of a warm absorber, scattered radiation, and additional spectral components (see, e.g., Yang et al. 2001; Ogle et al. 2000). We concentrate here on the 2-10 keV spectrum and obtain a good description with an absorbed power law ( $\Gamma = 1.6 \pm 0.1$, $N_{\rm H} =8.4 \pm 4 \times 10^{22}$ cm^-2) plus a soft scattered component with $\Gamma = 1.8 \pm 0.5$. A strong Fe K line is detected with ${\it EW} \approx 300 \pm 30$ eV and $41 \pm 15$ eV for the K$\alpha$ and K$\beta$ components. More detailed analysis of the same dataset is given by Schurch et al. (2004). A complex radio structure is present in this source (HU01).

NGC 4258 (S1.9): the XMM-Newton image of this source shows a bright, hard, point-like nucleus and unresolved diffuse emission. The XMM-Newton spectral results are in good agreement with those shown by Pietsch & Read (2002). The XMM-Newton hard spectrum is modeled by a power law ( $\Gamma = 1.7 \pm 0.1$) with high absorption ($N{_{\rm H}}$ = $8.7 \pm 0.3 \times 10^{22}$ cm^-2). A narrow Fe K$\alpha$emission line is marginally detected ( ${\it EW} = 27 \pm 20$ eV). The XMM-Newton  hard luminosity is a factor of 2 lower than the Chandra  luminosity (Young & Wilson 2004). This difference is probably due to intrinsic variability, already found between previous ASCA and BeppoSAX observations (Terashima et al. 2002; Risaliti 2002). The same is true for the Fe K$\alpha$ line which had been detected in previous ASCA and BeppoSAX observations but which is not significantly detected here.

NGC 4388 (S1.9): the 2-10 keV XMM-Newton data show a bright nucleus embedded in diffuse emission extending to a radius of $\sim$20'' in the full-band image. An unusually high background level precludes detailed analysis of the extended component. The spectrum from the nuclear region, with the background determined locally, is well fitted by a complex (thermal plus scattered) soft component plus a hard ( $\Gamma = 1.2 \pm 0.2$), heavily absorbed ( $N_{\rm H} =2.7 \times 10^{23}$ cm^-2), power-law component. A strong Fe K$\alpha$ line at 6.4 keV is detected ( ${\it EW} \approx 450 \pm 70$ eV). Our spectral results are in good agreement with those reported by Iwasawa et al. (2003).

NGC 4395 (S1.5): this source is well known for showing large amplitude, complex flux and spectral variations (see, e.g., Iwasawa et al. 2000; Shih et al. 2003; Moran et al. 2005). Detailed analysis of the XMM-Newton observations is given by Vaughan et al. (2005) and Iwasawa et al. (2005). For a simpler comparison with other sources, we consider here only its time-averaged properties and parameterize its spectrum with a hard power-law model ( $\Gamma = 1.2$) absorbed by a column density of $N_{\rm H} \approx (5.3 \pm 0.3) \times 10^{22}$ cm^-2, plus a soft complex component which includes thermal emission and a scattered power law. An iron line is detected at 6.4 keV ( ${\it EW} \approx 100 \pm 25$ eV). A second line is found at $\sim$6.2 keV, with ${\it EW} = 45 \pm 30$ eV.

NGC 4472 (S2::): this is a giant elliptical galaxy. The XMM-Newton  image reveals strong, soft, diffuse emission. A Chandra 2-10 keV image (Loewenstein et al. 2001; Soldatenkov et al. 2003) shows complex structure (including diffuse and off-nuclear point sources) without any evidence for a dominant core emission. For this reason, the hard X-ray flux and luminosity are treated here as upper limits. The XMM-Newton  spectrum is mostly thermal and poorly parameterized here by a single thermal component plus a hard power-law tail. The spectrum is shown in Appendix A, but it is not used in our analysis. This source is marginally detected in the radio band (HU01).

NGC 4477 (S2): the X-ray spectrum obtained from XMM-Newton  is the first for this object. The EPIC images show that the nucleus seems to be dominated by diffuse soft emission. The 2-10 keV image for this source is not unambiguously compact and is very weak. The spectrum was extracted from a region of radius 25'' to separate the nuclear emission from a possible off-nuclear source at a distance of $\sim$40'' from the nucleus. The 0.5-10 keV spectrum appears to be dominated by the soft component ( $kT = 0.4 \pm 0.1$ keV). Above 2 keV the statistics are very poor and the data can be fitted with an absorbed power law ( $\Gamma = 1.9 \pm 0.3$, $N_{\rm H} \leq 2 \times 10^{22}$ cm^-2). This source is marginally detected in the radio band (HU01).

NGC 4501 (S2): the 2-10 keV MOS1 and MOS2 images reveal the presence of a weak nuclear core. The spectrum was extracted from a region of 20'' radius in order to exclude the emission of an off-nuclear source (Foschini et al. 2002). The 0.5-10 keV spectrum is described by a soft thermal component ( $kT = 0.4 \pm 0.1$ keV) plus a power law with $\Gamma = 1.5 \pm 0.3$. Absorption in excess of the Galactic value is not required by the fit, yielding an upper limit for the column density ( $N_{\rm H} \leq 2 \times 10^{21}$ cm^-2). This is consistent with previous ASCA results reported by Terashima et al. (2002). An unresolved radio core is also detected (HU01).

NGC 4565 (1.9): Mizuno et al. (1999) revealed the presence of two bright point-like sources in the ASCA observation of this galaxy. A Chandra study of NGC 4565 by Wu et al. (2002) leads to a clear identification of the nuclear source which is separated from the off-nuclear source by $\sim$50''. The parameters describing the Chandra 0.5-10 keV spectrum, with poor statistics, are in good agreement with those found by Terashima & Wilson (2003) using the same data set. Also, in the XMM-Newton images the two sources are clearly separated (Foschini et al. 2002). We extracted the spectrum from a region of radius 25''. We find that a power law with a low amount of absorption gives a good fit for the spectrum ( $\Gamma = 1.8 \pm 0.2$, $N_{\rm H} \leq 1.2 \times 10^{21}$ cm^-2). The XMM-Newton and Chandra fluxes are in good agreement. The radio nucleus has been detected and it is possibly variable (HU01).

NGC 4579 (S1.5/L1.5): this object has been observed by Chandra for $\sim$35 ks (Eracleous et al. 2002) and $\sim$3 ks (Ho et al. 2001; Terashima & Wilson 2003). Chandra images show a hard compact nucleus surrounded by soft diffuse emission which extends for $\sim$40''in radius. The XMM-Newton spectrum is best fitted with a soft thermal component ( $kT \approx 0.6$ keV), a power law with $\Gamma \approx 1.8$, plus two iron Gaussian lines, one at $\sim$6.4 keV with ${\it EW} \approx 170 \pm 50$ eV and one at $\sim$6.85 keV with ${\it EW} \approx 140 \pm 60$ eV. We find no absorption in excess of the Galactic value. The XMM-Newton fluxes and luminosities are in good agreement with the Eracleous et al. (2002) and Ho et al. (2001) results. A radio core is detected (HU01).

NGC 4639 (S1.5): the XMM-Newton image shows a bright nucleus surrounded by weak diffuse emission which is less prominent in the 2-10 keV image. This is similar to what was obtained with the Chandra images (Ho et al. 2001), thus excluding contamination from unresolved sources. The XMM-Newton spectrum is well fitted by a simple power law with $\Gamma \approx 1.8$ and no absorption in excess of the Galactic value. The XMM-Newton observation yields a hard X-ray flux ( $F_{2-10~\rm keV} \approx 2.3 \times 10^{-12}$ erg s^-1 cm^-2) about two times higher than the ASCA flux (Ho et al. 1999; Terashima et al. 2002). The source is marginally detected in the radio band (HU01).

NGC 4698 (S2): the X-ray nuclear region of this object has been studied in detail using Chandra data which reveal a few possible ULXs within NGC 4698. Two of these are as close as $\sim$30''from the optical-radio nuclear position (Georgantopoulos & Zesas 2003). The XMM-Newton images show a weak nucleus. Its spectrum was extracted from a region of radius 25'' to exclude any possible contamination from the nearest two ULXs, which are marginally detected. The XMM-Newton flux is in good agreement with the Chandra one. A power-law fit with $\Gamma = 2.0 \pm 0.2$ gives a good fit to the XMM-Newton data. We measured very low intrinsic absorption ( $N_{\rm H} \leq 4 \times 10^{21}$ cm^-2). NGC 4698 is marginally detected in the radio band (HU01).

NGC 4725 (S2:): this source has not been detected in the radio band (HU01), so we use the optical position to determine the nuclear position. The XMM-Newton image reveals the presence of a nuclear core and of several nearby off-nuclear sources positioned at $\ga$30'' from the nucleus. The spectrum was extracted with a radius of 20'' to avoid contamination from these off-nuclear sources. Despite the poor statistics, the spectrum is best fitted with two distinct components: a soft thermal component with $kT = 0.3 \pm 0.1$ keV, and a hard power-law component with $\Gamma = 1.9 \pm 0.3$ with absorption $\leq$ $4 \times 10^{22}$ cm^-2. The XMM-Newton hard flux is a factor of $\sim$2 times lower than the Chandra flux (Ho et al. 2001), indicating possible intrinsic variability of this object.

NGC 5033 (S1.5): despite the presence of very high background flares during the XMM-Newton observation, the source is clearly detected. We use an extraction radius of 20'' and a local background subtraction for the analysis. The spectrum is best modeled with a power law ( $\Gamma = 1.7 \pm 0.1$), with no absorption in excess of the Galactic value. We detect an iron line at 6.4 keV (with ${\it EW} = 470 \pm 215$ eV). These results agree well with those from ASCA (Terashima et al. 1999, 2002). A radio core is detected (HU01).

NGC 5194 (S2): in the XMM-Newton images, this galaxy (also called M51) shows a complex nuclear region characterized by extended features and off-nuclear sources in the soft band, but the nucleus is compact in the hard band. This is similar to, and consistent with, what is found in the Chandra images by Terashima & Wilson (2001). The bright nucleus is seen in the optical position coincident with the radio core position (HU01). The soft emission has been modeled with a thermal plasma with $kT = 0.5 \pm 0.1$ keV, and the hard component with a very flat power law with photon index $\Gamma \approx 0.6$. The iron line detected at $\sim$6.4 keV is very strong, with ${\it EW} \approx 1$ keV, which is a clear indication of the Compton-thick nature of this source. This has also been confirmed by a BeppoSAX observation of M 51 which has shown that the nucleus is absorbed by a column density of $5.6 \times 10^{24}$ cm^-2 (Fukazawa et al. 2001).

NGC 5273 (S1.5): the XMM-Newton observation shows a bright compact nucleus in both the soft and hard energy bands. Higher angular resolution Chandra images reveal the presence of a compact core coincident with the radio position (HU01) and the presence of a comparatively weak off-nuclear source 20'' from the nucleus. The XMM-Newton spectrum is properly fit by a power-law model with $\Gamma \approx 1.5$ and an absorption column of $0.9 \times 10^{22}$ cm^-2, plus a soft thermal component with $kT \approx 0.2$ keV, and an Fe K line at 6.4 keV with ${\it EW} = 226 \pm 75$ eV. There is also a marginal detection of an absorption edge at $\sim$7.8 keV, indicating the possible presence of an ionized absorber.
