A&A 445, L43-L46 (2006)
DOI: 10.1051/0004-6361:200500221

A new radial system of dark globules in Monoceros

C. Carrasco-González¹ - R. López² - A. Gyulbudaghian³ - G. Anglada¹ - C. W. Lee⁴

1 - Instituto de Astrofísica de Andalucía, CSIC, Camino Bajo de Huétor 50, 18008 Granada, Spain
2 - Departament d'Astronomia i Meteorologia, Universitat de Barcelona, Av. Diagonal 647, 08028 Barcelona, Spain
3 - Byurakan Astrophysical Observatory, Aragatsotn prov. 378433, Armenia
4 - Korea Astronomy & Space Science Institute, 61-1 Hwaam-dong, Yusung-gu, Taejeon 305-348, Korea

Received 5 October 2005 / Accepted 23 November 2005

Abstract
Aims. We analyze the LBN 978 HII region in order to study the HII/molecular cloud interaction.
Methods. We used the IAC-80 telescope to image the region with narrow-band filters and the Very Large Array to obtain a radio continuum map at 3.6 cm. We also used the DSS2 red images and the NRAO VLA Sky Survey at 20 cm.
Results. We have discovered a new radial system of dark globules associated with the LBN 978 HII region, containing a group of at least eight cometary bright-rimmed globules with the same morphological type. The brightest source is also detected in the radio continuum. Analysis of optical and radio emission suggest that this object is photoionized by HD 47432, the central star of the LBN 978 HII region.

Key words: stars: formation - ISM: HII regions, Herbig-Haro objects - radio continuum: ISM

1 Introduction

Several HII regions, driven by O and/or early B type stars, are associated with radial systems of dark globules. These molecular globules appear in groups that are spread along the HII region surrounding the ionizing star, and with their axes of symmetry oriented towards the central star. Detailed studies of radial systems have been performed in the Rosette Nebula (Herbig 1974) and in the Gum Nebula (Reipurth 1983). In a paper by Gyulbudaghian et al. (1994) a list of 23 of such systems was reported.

These dark globules are dense, cold and neutral molecular clouds. Some of them are also named bright-rimmed clouds (BRCs) because they present bright rims that trace the interphase between the ionized and the neutral fractions of the cloud. Systems of BRCs globules around early type stars were mentioned already by Pottasch (1956). Sugitani et al. (1991) and De Vries et al. (2002) enumerate three different morphological types of BRCs and suggest that they may actually represent a time evolution sequence. Globules with a type-C morphology, according this classification, are also named cometary globules. They present curved bright rims and bright tails, with the apex oriented towards the central photoionizing source of the HII region.

The investigation of radial systems of dark globules is important for evolution problems of molecular clouds and the effects of the UV radiation from central stars. BRCs offer a good opportunity for studying the various phenomenon that occur in HII region-molecular cloud interactions and to investigate the phenomenon of triggered star formation in such globules due to the compression by ionization front shocks. Evidence for star formation in some globules has been revealed by studies of IRAS point-source association, from observations of outflows in the globules and by the detection of H₂O maser emission (see Patel et al. 1995; Valdettaro et al. 2005, and references therein).

In this Letter, we present an analysis of DSS2 red images and radio continuum data from the NRAO VLA Sky Survey (NVSS; Condon et al. 1998) of the HII region LBN 978, revealing a system of bright rims facing to the photoionizing star, suggesting the presence of a new radial system of dark globules associated with this HII region. We report narrow-band filter optical observations of a $\sim$ $7'\times7'$ area around the compact nebula CN3 (Gyulbudaghian et al. 1990) as well as 3.6 cm VLA observations, that allow us to identify a group of bright rimmed cometary globules, confirming the existence of the proposed radial system of dark globules in the LBN 978 HII region. Finally, we discuss on the nature of CN3.

2 Observations

Deep CCD narrow-band optical images of the CN3 field were obtained with the 0.82 m IAC-80 telescope of the Observatorio del Teide (Tenerife, Spain) in several observing runs, from November 2004 to April 2005 using the Service Time mode facility. Observing conditions were not photometric (typical values of the seeing were 1 $\hbox{$.\!\!^{\prime\prime}$ }$8). The images were obtained with the IAC-80 CCD camera (image scale, 0 $\hbox{$.\!\!^{\prime\prime}$ }$4325 pixel^-1; sampled field, $7\hbox{$.\mkern-4mu^\prime$ }$$3\times7$ $\hbox{$.\mkern-4mu^\prime$ }$3) trough five narrow-band filters (three line-emission filters and two more filters centered on the continua nearby the lines, being the "continuum'' filters useful to discriminate between scattered starlight and pure-line emission (Table 1). Astrometric calibration of the images was performed using $\alpha$, $\delta$ (J2000) coordinates of thirteen field stars obtained from the USNO-B1.0 Catalogue). The accuracy of the calibration gives a rms $\leq$0 $\hbox{$.\!\!^{\prime\prime}$ }$3 in both coordinates.

Table 1: Optical observations.

The radio continuum observations were carried out on 2004 March 27 at 3.6 cm using the Very Large Array (VLA) of the National Radio Astronomy Observatory (NRAO) in the C configuration. A tapering of 30 k$\lambda$ was used in order to emphasize the extended emission. The resulting synthesized beam size was 6 $\hbox{$.\!\!^{\prime\prime}$ }$$4\times5$ $\hbox{$.\!\!^{\prime\prime}$ }$6 with PA = -28 $\hbox{$^\circ$ }$, and we achieved a rms noise of 15 $\mu$Jy beam^-1.

3 Results

3.1 New radial system

In Fig. 1 we show the DSS2 red image of the LBN 978 HII region overlaid with the NVSS radio continuum contours at 20 cm. In the DSS2 image, the LBN 978 HII region appears as a curved nebula surrounding the star HD 47432 (SAO 114191), which has been proposed as its ionizing source (Sharpless 1959; Felli & Harten 1981). Several bright rims facing to the star can be identified in this image. The NVSS at 20 cm reveals knotty emission covering an extended region of $\sim$30' that appears to follow the brightest rims of the optical emission of LBN 978 (see Fig. 1). The spatial distribution of the rims, surrounding the star HD 47432 at a fairly uniform projected distance, led us to propose that they contain a new radial system of dark globules.

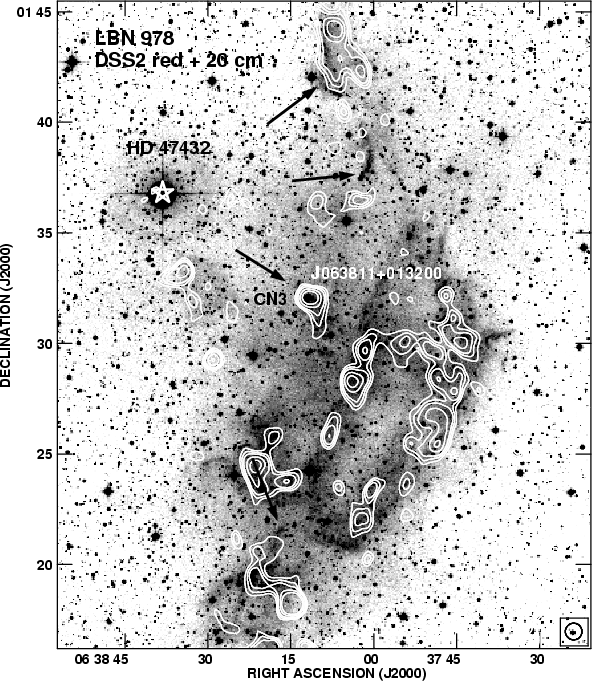

	Figure 1: DSS2 red image of the HII region LBN 978 overlaid with NVSS contours at 20 cm. Contour levels are -3, 3, 4, 5, 7 and 9 times the rms of the map, 300 $\mu$Jy beam-1. The star symbol marks the position of HD 47432 (SAO 114191), the ionizing source of LBN 978. Some of the bright rims are indicated by arrows. The source NVSS J063811+013200 coincides with the bright nebulosity CN3.
Open with DEXTER

From the V magnitude, the (B-V) color given by Johnson et al. (1966), and spectral type O9.5II (Kharchenko 2001) of the star HD 47432, and adopting the usual value R_V=3.2, we derive a distance of $\sim$1250 pc (which is similar to the estimates given by Felli & Harten 1981; and Blitz et al. 1982). The star HD 47432 is located near the OB-association Mon OB 2, which is at a distance of 1550 pc (Ruprecht et al. 1970), so it is probable that HD 47432 is a member of the Mon OB 2 association.

As can be seen in Fig. 1, the source NVSS J063811+013200 appears to coincide with CN3, a bright optical compact nebula reported by Gyulbudaghian et al. (1990). As observed by the NVSS (with an angular resolution of $\sim$40'') the 20 cm flux density of this source is $4.6\pm0.6$ mJy and the source appears elongated with a size of $\sim$1'.

3.2 New group of cometary bright-rimmed globules

In Fig. 2 we show a $\sim$ $4'\times 4'$ field of our H$\alpha$ image, corresponding to the region immediately surrounding CN3, located about $\sim$8' SW of the star HD 47432 (the ionizing star of the HII region). The image reveals a group of features presenting a similar morphological structure, with an arc-shaped bright rim facing the star HD 47432 and a long body of dark globule at $\rm PA\simeq 60\hbox{$^\circ$ }$, oriented towards the central star. We identify at least eight of such cometary globules in this area, and in Table 2 we list the central positions of their rims.

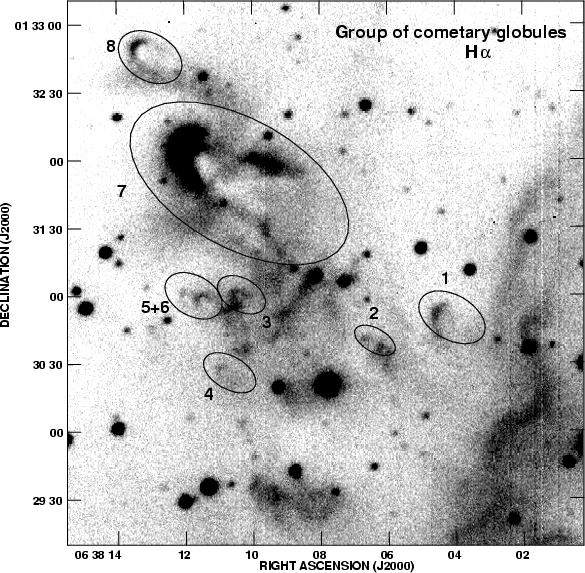

	Figure 2: H$\alpha$ image ( $t_{\rm exp}=2700$ s) of the new group of bright-rimmed cometary globules. The brightest rim corresponds to CN3.
Open with DEXTER

Table 2: Cometary bright-rimmed globules^a.

The [SII] and [NII] emissions are weaker than the H$\alpha$ emission for all of the globules detected. We believe that all these features are not reflection nebulae of embedded stars associated with the globules, because we have not detected appreciable emission at the positions of these nebulae in our "continuum'' images.

Therefore we propose that these features constitute a group of cometary BRCs, where the emission from a photionization front and shock-excited HH-like objects may coexist (see, e.g., Ogura et al. 2002).

3.3 The CN3 cometary globule

The brightest source in the field is CN3, the bright rim of globule 7 (see Fig. 2 and Table 2). This object shows a well defined arc-shaped rim, and a dark globule with a size of $\sim$30'', corresponding to $\sim$38 000 AU.

CN3 is the only source in the field detected in our 3.6 cm VLA observations, with a flux density of $0.78\pm0.02$ mJy. The other features are expected to be weaker than CN3 in the radio continuum, since they are also weaker in H$\alpha$. The 3.6 cm source is resolved by the $\sim$5'' beam of the VLA, and the shape of the emission follows the optical rim, but the position of the peak ($\alpha$(J2000) = 06$^{\rm h}$38$^{\rm m}$12 $\hbox{$.\!\!^{\rm s}$ }$15, $\delta$(J2000) = 01 $\hbox{$^\circ$ }$32 $\hbox{$^\prime$ }$04 $\hbox{$.\!\!^{\prime\prime}$ }$1 $\pm$ 0 $\hbox{$.\!\!^{\prime\prime}$ }$2), as obtained from a Gaussian fit, is displaced $\sim$5'' SW from the apex of the optical rim (Table 2). We note that there is a compact emission peak in the H$\alpha$ image (see Fig. 3) that we tentatively identify with the HH-like object GGD 19 (Gyulbudaghian et al. 1978); this object is equivalent to GM 2-37 of Gyulbudaghian & Maghakian 1977. The deconvolved size of the 3.6 cm source is $\theta\simeq8$ $\hbox{$^{\prime\prime}$ }\times4$ $\hbox{$^{\prime\prime}$ }$ with $\rm PA=150\hbox{$^\circ$ }$. Since the source is extended, and given the large difference in the 20 cm and 3.6 cm beam sizes, we cannot derive a reliable spectral index.

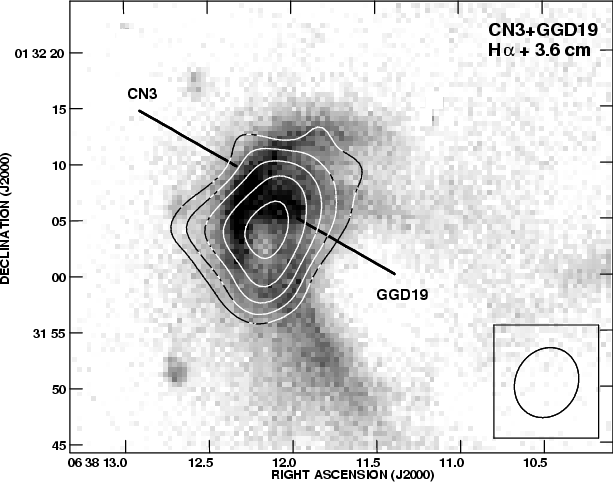

	Figure 3: H$\alpha$ image ( $t_{\rm exp}=900$ s) of CN3 overlaid with the 3.6 cm continuum contour map. Contour levels are -3, 3, 5, 8, 12 and 17 times the rms of the map, 15 $\mu$Jy beam-1.
Open with DEXTER

The [NII]/H$\alpha$ and [SII]/H$\alpha$ line ratios in CN3 are indicative of the excitation of the object spectrum. Unfortunately, because all the optical runs were made under non-photometric conditions, images were not flux-calibrated. Thus, we cannot perform an accurate enough evaluation of the [NII]/H$\alpha$ and [SII]/H$\alpha$ line ratios in CN3. However, we can use our three narrow-band line images (after appropriate scaling using field stars close to the object, and substraction of the [NII] from the H$\alpha$+[NII] emissions) to perform a rough estimate of the relative strength of the H$\alpha$, [NII] and [SII] emissions in CN3. Low values of the [SII]/H$\alpha$ line ratio (0.2-0.5) are typically found in photoionized regions (e.g., Cantó 1981; McCall et al. 1985). We found [NII]/H $\alpha\simeq 0.2$ and [SII]/H $\alpha\simeq 0.4$ (with an estimated error of $\la$30%) around the peak emission of CN3. Low values of the [SII]/H$\alpha$ and [NII]/H$\alpha$ ratios are also found in the other globules in the field. Although these ratios only give us a rough indication of the relative strength of the line emissions and they must be taken with caution, we note that the derived values are fully in agreement with those obtained in photoionized regions.

Free-free emission at centimeter wavelengths has been detected in several other BRCs (e.g. Baars & Wendker 1976; Matthews 1979; Schwartz 1985) and can be used to estimate the ionizing photon rate required to account for the observed free-free emission, providing a way to test the photionization vs. shock-excited hypotheses. Assuming that the emission from the 3.6 cm source associated with CN3 is optically thin, the ionizing photon flux required to maintain the ionization in this source can be estimated from Eq. (6) in Lefloch et al. (1997),

$$\Phi=1.24\times 10^{10} \left[ \frac{S_\nu}{\rm mJy} \right] ... ...1\times\theta_2}{\rm arcsec^2} \right]^{-1}\rm cm^{-2}~s^{-1}.$$

From the flux density ( $S_\nu=0.78$ mJy) and the size ( $\theta_1\times\theta_2=8''\times4''$) of the 3.6 cm source, and assuming an electron temperature $T_{\rm e}=10^4$ K, we estimate that an ionizing photon flux of $\Phi\simeq9\times10^9$ cm^-2 s^-1, at the source position, is required. The spectral type of HD 47432 implies an ionizing photon flux of $\Phi_*=4.6\times10^{23}$ cm^-2 s^-1 at the stellar radius R_*= 14.7 $R_{\odot}$ (Vacca et al. 1996). Given that the separation between the star and CN3 is $\sim$8', we estimate that the stellar ionizing photon flux of HD 47432 at the position of CN3 is $\Phi=~6\times10^{9}$ cm^-2 s^-1, which is similar to the value required to produce the observed radio continuum flux.

Therefore, the orientation of the apex of CN3 to the star, and the agreement in the required flux of ionizing photons from the star suggest that CN3 is most likely a BRC with a cometary morphology. Sensitive higher angular resolution radio continuum observations could show the details of the ionized structure of this source, and reveal the presence of HH-like objects and/or embedded young stellar objects in this globule, as well as help to detect the remaining weaker globules.

4 Conclusions

Using the DSS2 red images and NVSS radio maps, we have identified a new radial system of dark globules in the LBN 978 HII region, surrounding the star HD 47432.

Our narrow-band filter images have revealed a system of at least eight cometary globules with bright rims, of which CN3 appears as the brightest one. All of this globules are elongated, with symmetry axes oriented towards the star HD 47432, and present arc-shaped rims facing this star. The [NII]/H$\alpha$ and [SII]/H$\alpha$ line ratios and the lack of nearby continuum counterparts are fully in agreement with those expected for photoionized regions. We have detected 3.6 cm continuum emission associated with CN3, with a flux density consistent with photoionization by the star HD 47432.

It is interesting to note that all these BRCs are located approximately at the same distance from the ionizing star, suggesting a simultaneous formation of all of them. This fact, together with the fact that all of these BRCs show the same morphological type, give support to the time-evolution sequence of the morphological type of the BRCs proposed by Sugitani et al. (1991).

This system is an interesting target for future, more sensitive, optical/IR/radio studies. Higher angular resolution observations would help to understand the detailed structure of the ionization, and optical spectroscopy of higher excitation lines with larger telescopes would be helpful to search for radiative shock emission (HH objects and jets) similar to what it has been found in other bright rimmed clouds associated with HII regions.

Acknowledgements

We acknowledge the Support Astronomer Team of the IAC for obtaining the optical images. We thank an anonymous referee for useful comments. G.A. acknowledges partial support from grant AYA 2002-00376 (Spain), and from Junta de Andalucía (Spain). R.L. acknowledges support from grant AYA 2002-00205. C.W.L. acknowledges supports from the Basic Research Program (KOSEF R01-2003-000-10513-0) of the Korea Science and Engineering Foundation.

References

• Baars, J. W. M., & Wendker, H. J. 1976, A&A, 49, 473 [NASA ADS] (In the text)
• Blitz, L., Fich, M., & Stark, A. A. 1982, ApJS, 49, 183 [NASA ADS] [CrossRef] (In the text)
• Cantó, J. 1981, in Investigating the Universe, ed. F. Kahn (Reidel: Dordrecht), 95 (In the text)
• Condon, J. J., Cotton, W. D., Greisen, E. W., et al. 1998, AJ, 115, 1693 [NASA ADS] [CrossRef] (In the text)
• De Vries, C. H., Narayanan, G., & Snell, R. L. 2002, ApJ, 577, 798 [NASA ADS] [CrossRef] (In the text)
• Felli, M., & Harten, R. H. 1981, A&A, 100, 28 [NASA ADS] (In the text)
• Gyulbudaghian, A. L., & Maghakian 1977, Akademiia Nauk Armianskoi SSR, Doklady, 64, 104 (In the text)
• Gyulbudaghian, A. L., Glushkov, Yu. I., & Denisyuk, E. K. 1978, ApJ, 224, 137 [NASA ADS] [CrossRef] (In the text)
• Gyulbudaghian, A. L., Schwartz, R. D., & Nazaretyan, F. S. 1990, Soobschch. Byurakanskoy Obs., 63, 3 (In the text)
• Gyulbudaghian, A. L., Ohanian, G. B., & Hakhverdian, L. G. 1994, Astrofizika, 37, 578 (In the text)
• Herbig, G. H. 1974, PASP, 86, 604 [NASA ADS] [CrossRef] (In the text)
• Johnson, H. L., Iriarte, B., Mitchell, R. I., & Wisniewskj, W. Z. 1966, CoLPL, 4, 99 [NASA ADS] (In the text)
• Kharchenko, N. V. 2001, KFNT, 17, 409 [NASA ADS] (In the text)
• Lefloch, B., Lazareff, B., & Castets, A. 1997, A&A, 324, 249 [NASA ADS] (In the text)
• Matthews, H. I. 1979, A&A, 75, 345 [NASA ADS] (In the text)
• McCall, M. L., Rybski, P. M., & Shields, G. A. 1985, ApJS, 57, 1 [NASA ADS] [CrossRef] (In the text)
• Ogura, K., Sugitani, K., & Pickles, A. 2002, AJ, 123, 2597 [NASA ADS] [CrossRef] (In the text)
• Patel, N., Goldsmith, P. F., Snell, R. L., Hezel, T., & Xie, T. 1995, ApJ, 447, 721 [NASA ADS] [CrossRef] (In the text)
• Pottasch, S. R. 1956, BAN, 13, 77 [NASA ADS] (In the text)
• Reipurth, B. 1983, A&A, 117, 183 [NASA ADS] (In the text)
• Ruprecht, I., Balazs, B., & White, R. E. 1970, Catalogue of star clusters and associations, Suppl. 1, Budapest (In the text)
• Schwartz, P. R. 1985, ApJ, 298, 292 [NASA ADS] [CrossRef] (In the text)
• Sharpless, S. 1959, ApJS, 4, 257 [NASA ADS] [CrossRef] (In the text)
• Sugitani, K., Fukui, Y., & Ogura, K. 1991, ApJS, 77, 59 [NASA ADS] [CrossRef] (In the text)
• Vacca, W. D., Garmany, C. D., & Shull, J. M. 1996, ApJ, 460, 914 [NASA ADS] [CrossRef] (In the text)
• Valdettaro, R., Palla, F., Brand, J., & Cesaroni, R. 2005, 443, 535 (In the text)
