All Figures

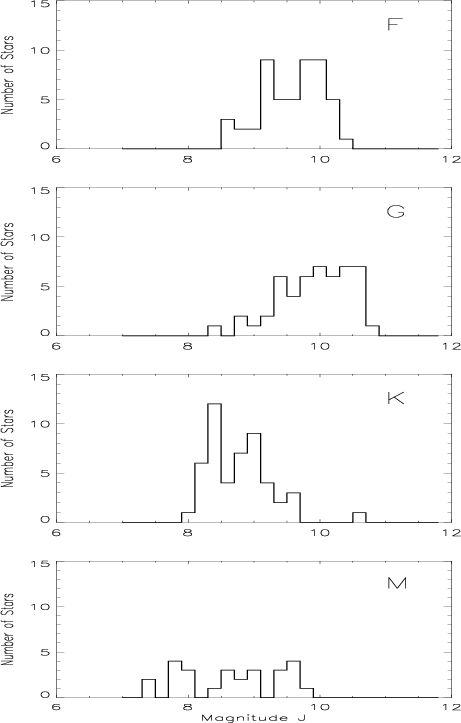

$\begin{figure} \par\includegraphics[height=2.3cm,width=6.5cm,clip]{3620fg1a.ps}\... ...*{3mm} \includegraphics[height=2.3cm,width=6.5cm,clip]{3620fg1d.ps} \end{figure}$ Figure 1: From top to bottom: the histogram of the analysed stars for each spectral type as a function of their J magnitude.
Open with DEXTER

In the text

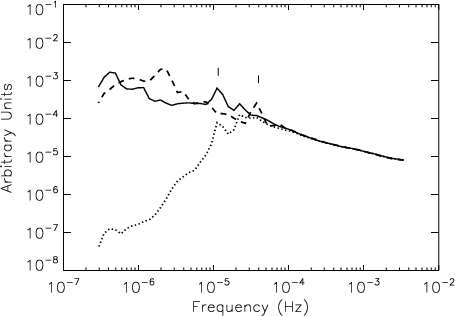

$\begin{figure} \par\includegraphics[width=7cm,clip]{3620fig2.ps} \end{figure}$ Figure 2: Weighted average Power Wavelet Transform (PWT) in logarithmic scale of the 50 F-stars analysed. The variance $\sigma ^{2}$ of each entire series is used to weight the average. Continuous line: average PWT of the full time series of data, where a peak at 24 h appears as a consequence of the 22.4% duty cycle of the data. Dashed line: average PWT of the series but removing the zeros from it; the peak at 7 h corresponds to the length of each night of data. Dotted line: average PWT of the series where the mean value of each night's photometry has been substracted from the data. (See text for details.)
Open with DEXTER

In the text

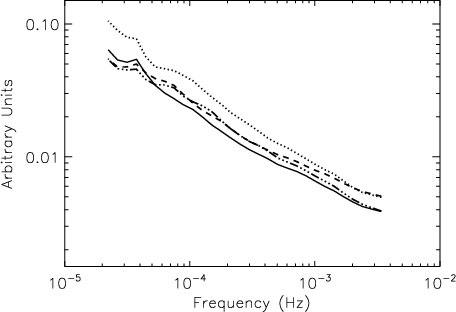

$\begin{figure} \par\includegraphics[width=7cm,clip]{3620fig3.ps} \par\end{figure}$ Figure 3: Mean-weighted average PWTs in logarithmic scale for the F (continuous line), G (dashed line), K (dashed-dotted line), and M (dotted line) analysed stars, above 4.0 $\times 10^{-5}$ Hz , where the data are not filtered.
Open with DEXTER

In the text

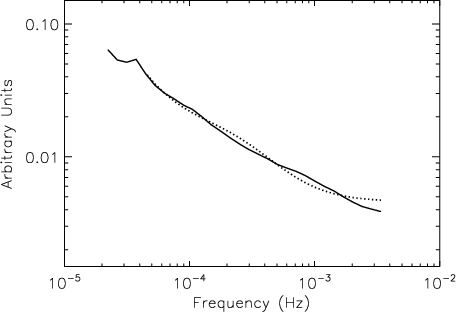

$\begin{figure} \par\includegraphics[width=7cm,clip]{3620fig4.ps} \end{figure}$ Figure 4: Mean weighted average PWTs in logarithmic scale for the analysed F stars (continuous line) and for the generated power spectrum (dotted line) above $4.0 \times 10^{-5}$ Hz, where the data are not filtered.
Open with DEXTER

In the text

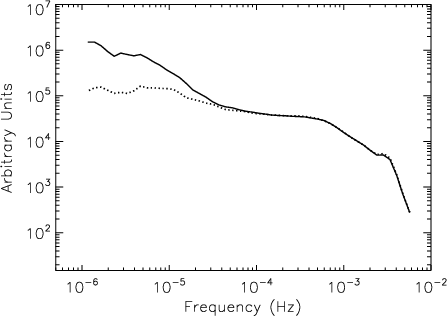

$\begin{figure} \par\includegraphics[width=7cm,clip]{3620fig5.ps} \end{figure}$ Figure 5: PWTs in logarithmic scale for 480 days of solar VIRGO data in the blue channel, at the maximum of the solar activity (continuous line) and at the minimum (dotted line).
Open with DEXTER

In the text

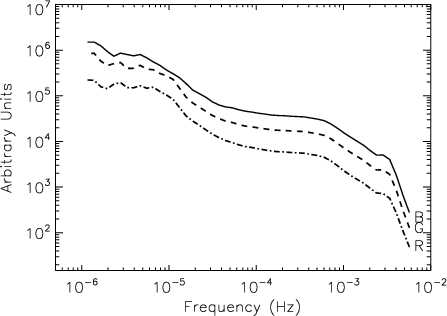

$\begin{figure} \par\includegraphics[width=7cm,clip]{3620fig6.ps} \end{figure}$ Figure 6: PWTs in logarithmic scale for 480 days of solar VIRGO data in the three channels (B, G, R) at the maximum of the solar activity.
Open with DEXTER

In the text

$\begin{figure} \par\includegraphics[height=2.3cm,width=6.5cm,clip]{3620fg1a.ps}\... ...*{3mm} \includegraphics[height=2.3cm,width=6.5cm,clip]{3620fg1d.ps} \end{figure}$	Figure 1: From top to bottom: the histogram of the analysed stars for each spectral type as a function of their J magnitude.
Open with DEXTER

$\begin{figure} \par\includegraphics[width=7cm,clip]{3620fig3.ps} \par\end{figure}$	Figure 3: Mean-weighted average PWTs in logarithmic scale for the F (continuous line), G (dashed line), K (dashed-dotted line), and M (dotted line) analysed stars, above 4.0 $\times 10^{-5}$ Hz , where the data are not filtered.
Open with DEXTER

$\begin{figure} \par\includegraphics[width=7cm,clip]{3620fig4.ps} \end{figure}$	Figure 4: Mean weighted average PWTs in logarithmic scale for the analysed F stars (continuous line) and for the generated power spectrum (dotted line) above $4.0 \times 10^{-5}$ Hz, where the data are not filtered.
Open with DEXTER

$\begin{figure} \par\includegraphics[width=7cm,clip]{3620fig5.ps} \end{figure}$	Figure 5: PWTs in logarithmic scale for 480 days of solar VIRGO data in the blue channel, at the maximum of the solar activity (continuous line) and at the minimum (dotted line).
Open with DEXTER

$\begin{figure} \par\includegraphics[width=7cm,clip]{3620fig6.ps} \end{figure}$	Figure 6: PWTs in logarithmic scale for 480 days of solar VIRGO data in the three channels (B, G, R) at the maximum of the solar activity.
Open with DEXTER
