A&A 442, 879-894 (2005)
DOI: 10.1051/0004-6361:20053127
W. Pietsch1 -
J. Fliri2, -
M. J. Freyberg1 -
J. Greiner1 -
F. Haberl1 -
A. Riffeser1,2,
-
G. Sala1,3
1 - Max-Planck-Institut für extraterrestrische Physik, Giessenbachstraße,
85741 Garching, Germany
2 -
Universitätssternwarte München, Scheinerstraße, 81679
München, Germany
3 -
Institut d'Estudis Espacials de Catalunya (ICE-CSIC), Campus UAB, Facultat de
Ciencies, 08193 Bellaterra, Spain
Received 24 March 2005 / Accepted 19 June 2005
Abstract
We searched for X-ray counterparts of optical novae detected in M 31 and M 33.
We combined an optical nova catalogue from the WeCAPP survey with optical novae
reported in the literature and correlated them with the most recent X-ray catalogues
from ROSAT, XMM-Newton, and Chandra, and - in addition - searched for nova correlations
in archival data. We report 21 X-ray counterparts for novae in M 31 - mostly identified as
supersoft sources (SSS) by their hardness ratios - and
two in M 33. Our sample more than triples the number of known optical
novae with a supersoft
X-ray phase.
Most of the counterparts are covered in several observations allowing
us to constrain their X-ray light curves. Selected brighter sources were
classified by their XMM-Newton EPIC spectra. We use the well-determined
start time of the SSS state in two novae
to estimate the hydrogen mass ejected in the outburst to
and
,
respectively.
The supersoft X-ray phase of at least 15% of the novae starts within a year.
At least one of the novae shows a SSS state lasting 6.1 years after
the optical outburst. Six of the SSSs turned on between 3 and 9 years
after the optical discovery of the outburst and may be interpreted as
recurrent novae. If
confirmed, the detection of a delayed SSS phase turn-on may be used as a new method
to classify novae as recurrent. At the moment, the new method yields a
ratio of recurrent novae to classical novae of 0.3, which is in agreement (within the
errors) with previous works.
Key words: galaxies: individual: M 31 - galaxies: individual: M 33 - stars: novae, cataclysmic variables - X-rays: galaxies - X-rays: binaries
Although only X-ray observations can provide direct insight into the hot
post-outburst white dwarf, ultraviolet emission lines arising from the
ionization of the ejecta by the central X-ray source reflect the presence
of on-going hydrogen burning on the white dwarf surface. Several works
have used this indirect indicator to determine the turn-off of classical
novae from IUE observations
(Gonzalez-Riestra et al. 1998; Shore et al. 1996; Vanlandingham et al. 2001),
showing in all cases turn-off times
shorter than expected.
The short duration of the H-burning phase derived from observations could
be explained by a small post-outburst envelope mass, suggesting the
presence of some extra mass loss mechanism acting after the nova outburst,
i.e., a thick wind (Kato & Hachisu 1994)
or a common envelope (MacDonald et al. 1985).
In fact, post-nova white dwarf envelopes with steady
H-burning are stable only for masses smaller than about
(Tuchman & Truran 1998; Sala & Hernanz 2005a),
which also suggests that
instabilities in envelopes with larger masses could contribute to getting rid
of the mass excess.
With the low
Galactic novae rate there was no substantial improvement
in our understanding of these processes during the last 5 yr
with Chandra and XMM-Newton observations.
However, observing the nova population in M 31 has the advantage that this, as well as several additional questions, can be attacked much more easily as compared to the local sources (including those in the Magellanic Clouds): (i) what is the spatial distribution over the galaxy, and are there possible correlations with different environment? (ii) What is the size of the population, including the fraction of sources detected during their supersoft X-ray emission phase? (iii) What is the variability pattern? (iv) Are there correlations between the optical and X-ray properties?
There have been many surveys for optical novae in M 31 starting with the early
work of Hubble (1929), who used the novae to establish the
distance of M 31, already estimated a yearly nova rate of 30, and found that
novae are most frequent in the nuclear area. Novae were detected by comparing
plates taken at different times.
However, many were missed due to the sparse sampling and the
shortness of the nova outbursts. When it was noticed that novae stayed bright in H
for a longer time, this band was used for M 31 nova searches
(see e.g. Ciardullo et al. 1990). With this method many nova candidates
were detected with only rough knowledge of the date of outburst, as well as
duration. With the start
of the pixellensing surveys of the center area of M 31, many novae were detected
as a by-product with good sampling of the outbursts which led to well-defined
outburst dates and decay time scales of many novae simultaneously. In Sect. 2 we
report nova detections from one of these programs. For the search of X-rays from
novae in M 31, we combine this nova list with novae reported in the literature.
This nova list contains about 10-20 novae per year prior to the XMM-Newton and
Chandra observations and may be 30% to 60% complete, while in the years
before 1990 (novae to shine up during the ROSAT observations), typically less
than 5 novae were reported.
M 31 (distance 780 kpc, Stanek & Garnavich 1998; Holland 1998),
with its moderate Galactic foreground absorption ( = 6.66
1020 cm-2,
Stark et al. 1992), is an ideal target to search for X-ray emission from
optical novae.
ROSAT has observed the full disk of the M 31 galaxy (about 6.5 deg2) twice.
A ROSAT PSPC mosaic of 6 contiguous pointings with an exposure time of 25 ks each was performed in July 1991
(first M 31 survey; Supper et al. 1997, hereafter SHP97).
A second survey
was made in July/August 1992 and January and July 1993
(Supper et al. 2001, hereafter SHL2001).
Only one recent nova (which erupted in 1990) in M 31 was reported
to coincide with a
catalogued ROSAT source (Nedialkov et al. 2002).
The population of SSS in M 31 has been studied by
Greiner et al. (1996,2004), in particular their variability.
One of the surprising results was that more fading than
rising sources have been found. Coincidentally, one of
these faders was the above-mentioned nova
(RX J0044.0+4118; Nedialkov et al. 2002).
This led to speculation that the
difference in the numbers of faders and risers is due to a fraction
of classical novae for which the X-ray rising phase could be
much shorter than the fading phase.
Based on the, until then, known durations of the supersoft
X-ray phases, this explanation was considered unlikely.
Also, the global (bulge+disk) nova rate of
37 nova per year in M 31 (Shafter & Irby 2001),
combined with the short duration of the ROSAT survey,
did not suggest more than two novae among the two dozen ROSAT
SSSs in M 31 when taking into account
the wide spread locations of the SSSs over the M 31 disk.
Similarly, recurrent novae were not expected to contribute
to the observed SSS sample, since
the outburst rate of recurrent novae in M 31 has been estimated to be only 10% of the rate of classical novae (Della Valle & Livio 1996).
The XMM-Newton survey of M 31 has identified 856 X-ray sources (Pietsch et al. 2005, hereafter PFH2005)
analyzing all observations in the XMM-Newton archive which
overlap at least in part with the optical D25 extent of the galaxy.
Among them are 18 SSSs defined by HR1 < 0 and
HR2 - EHR2 < -0.4.
Based on count rates in energy bands 1 to 3 (0.2-0.5 keV, 0.5-1.0 keV, 1.0-2.0 keV),
HRi and EHRi are defined as
In addition, there are X-ray source catalogues from two deep observations of the M 31 center area with Chandra ACIS S (Di Stefano et al. 2004, hereafter DKG2004) and HRC I (Kaaret 2002, hereafter K2002) sensitive to SSS emission. Several Chandra ACIS I observations (see e.g. Kong et al. 2002) are not sensitive to the detection of SSS. However, some short observations (Chandra ACIS S and HRC I) in the archive can also be searched for optical novae.
In X-rays novae may be visible as bright SSS for several years; therefore many missed novae may show up as SSS. Also recurrent novae, optically known as novae from previous or later outbursts, may show up in X-rays. For this reason and due to the uncertain outburst dates as discussed above, derived times since outburst have to be taken with care. For all M 31 novae, the distance is about the same. However, extinction within M 31 may hamper the interpretation of the supersoft emission.
With the much larger emphasis on the bulge of M 31 with its high concentration of sources it was interesting to reconsider the detection rate of novae which will be presented in Sect. 3 together with a discussion of the individual objects in subsections. Finally, we discuss the results and demonstrate the wealth of information that can be expected from a continuing optical and X-ray nova survey in the center area of M 31.
The optical novae used for cross-correlation with the X-ray data
result in part from two years of observations (June 23, 2000
to February 28, 2002)
of the central part of M 31 by the continuing Wendelstein Calar Alto Pixellensing
Project (WeCAPP, Riffeser et al. 2001).
WeCAPP monitors a
field
centered on the nucleus with the 0.8 m telescope at Wendelstein
Observatory (Germany) and the 1.23 m telescope at Calar Alto
Observatory (Spain) continuously since 1997. The observations are
carried out in R and I filters close to the Kron-Cousins system.
The data are collected with a rather dense time coverage
(up to 335 and 310 epochs in the R- and I-bands, respectively).
Data were reduced using the WeCAPP reduction pipeline mupipe,
which implements an image subtraction technique
(Alard & Lupton 1998) to overcome the crowding effects and allow proper
photometry of variable sources in the central bulge of M 31 (Riffeser et al. 2003).
The pipeline combines the standard CCD reduction (including de-biasing,
flat-fielding, and filtering of cosmic ray events), position alignment,
photometric calibration, and restoration of damaged pixels
with full error propagation for each pixel of the CCD frame (Gössl & Riffeser 2002).
After the point spread-functions (PSF) of a high S/N reference frame and
the stacked frames are matched, the reference image is subtracted from
all other frames, generating difference images for each observation night.
PSF photometry of each pixel in the difference frames finally results
in
pixel light curves with appropriate error bars,
each of them represents the temporal variability of the flux inside
the PSF centered on the particular pixel.
In the full WeCAPP data set, 23 770 variable sources were detected,
most of them being Long Period Variables (Fliri et al. 2005).
The 1
error radius of the astrometric solution is 0
16.
Novae are amongst the brightest variable sources in the data set. They
therefore could be detected by a simple but effective algorithm.
As first cut, two consecutive data points in the light curve were
required that exceed a difference flux level
of
above the baseline
(corresponding to a detection limit of
with
being the flux of Vega in the
R-band).
The light curves fulfilling this criterion are then
inspected visually to extract the nova candidates. A catalogue of all 40 novae
detected in the survey will be published separately. The outburst of about half
the sample occured after the X-ray observations. As an example for a nova
which correlates with a time variable SSS detected by XMM-Newton and Chandra,
we show the optical light curve of WeCAPP-N2000-03 (Fig. 1).
We combined the WeCAPP nova list with novae from other microlensing
surveys of M 31: the AGAPE survey (Ansari et al. 2004),
the POINT-AGAPE PACN survey (An et al. 2004; Darnley et al. 2004),
the Nainital Microlensing Survey (Joshi et al. 2004) and
the survey by Tomaney & Crotts (1996, hereafter TC96).
We added novae from IAU circulars
and astronomical telegrams (ATEL). We included
novae from the H searches of Shafter & Irby (2001, hereafter SI2001),
Rector et al. (1999, hereafter RJC99, nova and nova candidate lists
#,
Ciardullo et al. (1990), and Ciardullo et al. (1987, hereafter CFN87).
We added the lists by Sharov and colleagues (Sharov 1994,1993; Sharov et al. 2000; Sharov & Alksnis 1996,1995,1997,1992b,1994,1991; Sharov et al. 1998; Sharov & Alksnis 1992a,1998).
For two
recurrent novae we use the naming convention provided in the General Catalogue of Variable Stars (Samus et al. 2004).
We refrained from using positions of earlier nova catalogues for the cross-correlation as
nova positions in the earlier catalogues are only determined to 0.1 arcmin or worse. This might
lead to many spurious correlations specifically in the central region of M 31, which is crowded
with novae and X-ray sources.
![]() |

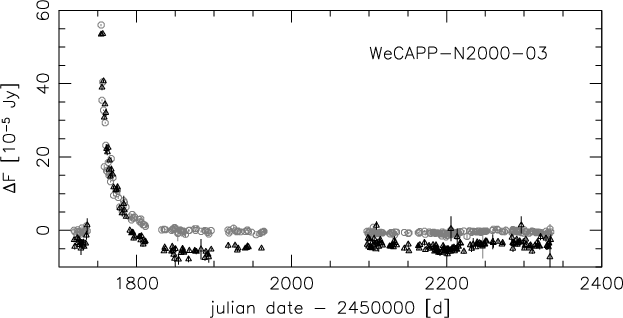

Figure 1: Optical light curve of WeCAPP-N2000-03 in R (grey circles) and I (black triangles). The I band data show a negative bias as the reference image contained nova epochs. |
Open with DEXTER |
For XMM-Newton
(Jansen et al. 2001), we reanalyzed the same archival EPIC
(Strüder et al. 2001; Turner et al. 2001) observations that were used by
PFH2005
for the creation of the M 31 source catalogue, i.e. pointings c1 to c4 (June 2000
to January 2002) to the
galaxy center, n1 to n3 (January 2002 and June 2002) to the northern disk, s1 and s2 (January 2002) to the southern disk, and h4 (January 2002) to the northwest halo
(see Table 1 of PFH2005 for details). The observations
were performed in the full frame mode using medium or thin filter with low background
exposure times of about 10 to 50 ks. We correlated the optical nova catalogue with
the sources from the PFH2005 catalogue and determined luminosities or upper limits
for nova candidates for each observation. We give luminosities for the sources that
are detected with at least 2 significance in the (0.2-1.0) keV band combining
all EPIC instruments. Upper limits are 3
determined from the more sensitive
EPIC pn camera when possible. For bright sources we analyzed the X-ray spectra.
For Chandra we correlated the optical nova catalogue with sources in
the M 31 center area presented by DKG2004 and K2002 based on
a 37.7 ks ACIS S (ObsID 1575) and a 46.8 ks HRC I observation (ObsID 1912),
respectively. These
observations were performed in October 2001, between the third (c3) and forth (c4)
XMM-Newton observation of the M 31 center. For novae not reported in these Chandra
catalogues but detected by XMM-Newton, we determined luminosities (if detected with a
significance greater 2,
else we calculated 3
upper limits). In addition, we
searched in further short archival HRC I and ACIS S observations for nova detections
and report nova correlations if more than 4 counts are detected.
In only one of the many
1.2 ks HRC I observations, a new nova candidate brighter than
this limit was detected (Nova WeCAPP-N2002-01, see below). Unfortunately,
upper limits also determined from these short observations do not constrain nova
light curves and we therefore mostly restrain from reporting these limits.
A search in the ACIS I
catalogue by Kong et al. (2002) and the HRC I snap shot catalogue by
Williams et al. (2004) yielded no additional nova candidates.
Table 1:
Count rate conversion factors to unabsorbed fluxes (ECF) into the 0.2-1 keV band
for black body models with temperatures of 40 eV and 50 eV
for different instruments and filters, including
a Galactic foreground absorption of 6.66 1020 cm-2.
For ROSAT we correlated the optical nova catalogue with the source catalogues from the first and second PSPC M 31 survey (SHP97 and SHL2001) and with the HRI catalogue of Primini et al. (1993, hereafter PFJ93). In addition we searched in archival ROSAT PSPC and HRI observations for further nova correlations. From HRI information alone we cannot decide if the proposed counterpart is an SSS.
![]() |
Figure 2: Part of the Chandra HRC I image of observation 1912 used for the source catalogue of K2002. Circles with 5'' radius indicate nova positions. The cross indicates the M 31 center, the aim point of the observation. |
Open with DEXTER |
In the XMM-Newton and Chandra data, correlations with 17 optical novae in M 31 were detected. We rejected three correlations where the X-ray counterpart was classified as hard by PFH2005: the sources [PFH2005] 299, 412, and 601 which correlate with [SI2001] 1997-06, [CFN87] 26 and Nova 21 (Sharov et al. 1998), respectively. While the first two may be chance coincidences in the densely populated central area of M 31, Nova 21 - which also correlates with the hard ROSAT source [SHL2001] 306 - has been classified unique from its light curve by Sharov et al. (1998) and may not be a nova at all. Five optical novae correlate with the Chandra ACIS S catalogue of DKG2004, six with the Chandra HRC I catalogue of K2002. Figure 2 demonstrates the detection of five novae near the M 31 center in HRC I observation 1912. Nova WeCAPP-N2002-01 is detected with 6 counts in the 1 ks archival HRC I observation 2906 and [SI2001] 1997-06 with 11 counts in the 5.2 ks HRC I observation 268. Eight novae are contained in the XMM-Newton source catalogue of PFH2005 and are detected in at least one of the contributing observations. All but one (the probable symbiotic [PFH2005] 395) XMM-Newton and Chandra HRC I nova candidates have been classified as SSS by DKG2004 and PFH2005. There are only three novae ([SI2001] 1997-06, WeCAPP-N2001-08, and WeCAPP-N2002-01) that are identified just by positional coincidence in Chandra HRC I observations and not also by their supersoft spectrum.
An et al. (2004) give correlation results of the POINT-AGAPE survey list
of variable stars in M 31 with 13 known novae. For four of them they propose X-ray
counterparts. Novae EQ J004244+411757 and CXOM31 J004318.5+410950 are confirmed as
X-ray emitting novae (novae WeCAPP-N2000-03 and WeCAPP-N2001-08).
WeCAPP-N2001-12 is detected in X-rays as described below. However, the hard X-ray
transient [OBT2001] 3 (Osborne et al. 2001) is not the counterpart.
The fourth X-ray candidate
(CXOM31 J004222.3+411333) is more than 10
from the position of
EQ J004242+411323 (given in Johnson et al. 1999) and about
8
from the position given in Osborne et al. (2001) and
most probably only a chance coincidence in this crowded source region.
The X-ray source is reported in the XMM-Newton catalogue as [PFH2005] 255,
as a hard source that was also detected in the EINSTEIN and ROSAT HRI and
PSPC surveys.
In the ROSAT PSPC and HRI data, correlations with five, respectively two, optical
novae in M 31 were detected.
Three sources
correlate with sources of the first M 31 ROSAT catalogue (SHP97) and another two with
sources from the second (SHL2001). The ROSAT PSPC sources have a component in the soft
band indicative for SSS.
The second ROSAT survey contains observations collected
in three epochs. For the ROSAT nova candidates we determined luminosities for each of the
epochs (SII-E1 to E3) and assume average Julian Dates (JD) of 2448840.5,
2448990.5, and 2449190.5, respectively.
For this purpose we only merged observations of the different
epochs where the source position was less than 15
off-axis.
For ROSAT sources from the first survey that were not detected
in the second survey and vice versa, we derived upper limits when possible.
The ROSAT detection and upper limits of the M 31 nova of Nedialkov et al. (2002)
are also indicated. One nova correlates with a source from PFJ93, another one with
two HRI observations in July 1994. Both sources are not detected in ROSAT PSPC
and are only identified by positional coincidence in ROSAT HRI observations
and not also by their supersoft spectrum.
Table 2: XMM-Newton, Chandra, and ROSAT measurements of M 31 and M 33 optical novae.
Inspired by the many nova correlations in M 31, we also checked the XMM-Newton and ROSAT catalogues from Pietsch et al. (2004, hereafter PMH2004) and Haberl & Pietsch (2001, hereafter HP2001) as well as the archival Chandra data of the Local Group Sc spiral M 33 (distance 795 kpc, van den Bergh 1991) for possible nova correlations. M 33 hosts less SSS and the number of known optical novae is much less. We did not find a correlation with an optical nova within the 408 XMM-Newton sources of PMH2004. However, the ROSAT HRI source [HP2001] 93 clearly correlates with a nova. An additional M 33 nova correlation with a SSS was detected in the Chandra ACIS S observation 786.
As mentioned above, we detected three optical novae which correlate with hard sources in the PFH2005 catalogue. We consider two of them as chance coincidences. The number of hard sources in the catalog exceeds the number of SSS sources by a factor of 30. Therefore the number of chance coincidences for SSS should be smaller by the same factor. This, together with the detection of the expected X-ray spectrum and - in some cases - the expected time variability, confirms the identification of the X-ray source as optical nova counterpart. The number of sources detected only by the ROSAT HRI or Chandra HRC is much smaller than that in the PFH2005 catalogue, position errors are similar or smaller, and therefore the number of chance coincidences is even less. In addition, the time variability argument also holds for most of these sources, making all of them convincing optical nova counterparts.
We calculated intrinsic luminosities or upper limits in the 0.2-1.0 keV band
starting from the 0.2-1 keV count rates or upper limits in EPIC
and the full count rates or upper limits in the other instruments and
assuming a black body spectrum
and Galactic foreground absorption. Table 1 gives energy conversion factors
for the different instruments for a 40 eV and a 50 eV black body temperature.
As one can see,
the ECFs strongly change with the softness of the spectrum. Additional absorption within
M 31 would heavily change the observed count rate. An extrapolation to the bolometric
luminosity of a nova at a given time is very uncertain; this is even more so as the
temperatures of novae may vary with time after outburst and from nova to nova, and may
well correspond to a spectrum even softer than 30 eV. See also the discussion of
the luminosities derived from spectral modeling of a few individual optical nova
candidates (Sects. 3.1, 3.9, and 3.15).
In Table 2, the results of the 23 optical nova correlations are summarized. We give nova name (or month of outburst) with optical references in Col. 1, optical position (J2000.0, Col. 2), Julian date JD of "outburst maximum'' (3). We indicate if the optical maximum is well defined (to better than 5 days), or if the maximum is most likely before or after the given epoch or not well defined. As X-ray information we give the name of the source (4), distance D between X-ray and optical position (5), observation number (6), JD of observation (7), days since optical nova outburst (8), X-ray luminosity in the 0.2-1.0 keV band as described above (9), and comments like reference for detection, nova type, and SSS classification (10).
![]() |

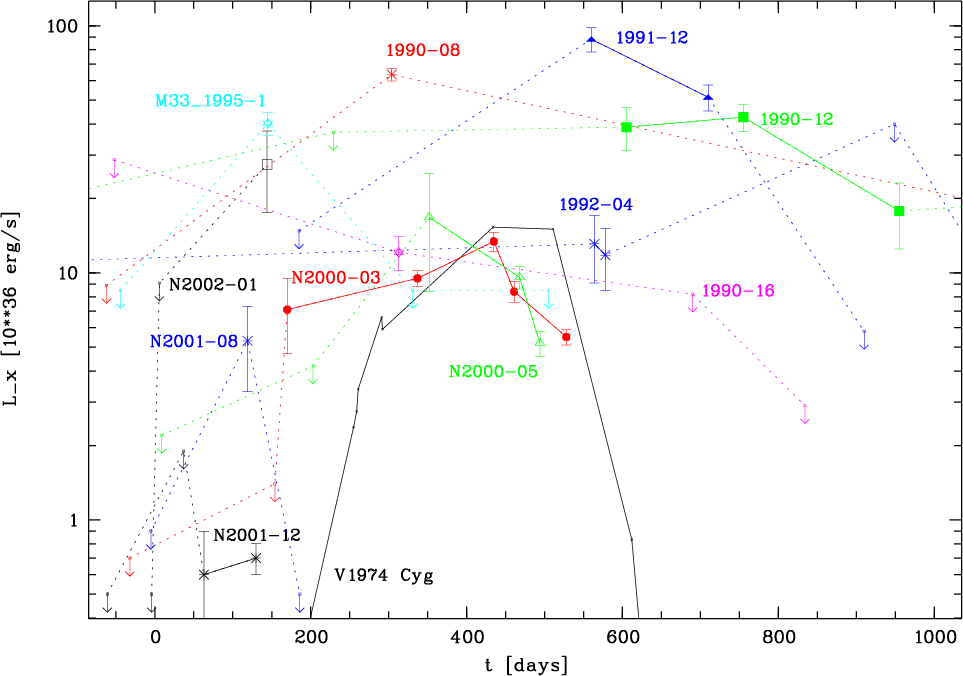

Figure 3:
Light curves for M 31 and M 33 novae that were detected within 1000 d after outburst.
Detections of individual novae are connected by solid lines,
and connections to upper
limits are marked by dashed lines.
The light curve from nova V1974 Cyg is adapted from
Krautter et al. (1996) assuming
1 cts s
![]() |
Open with DEXTER |
Some novae have been covered in several X-ray observations. Light curves are plotted in Fig. 3. The time variability for some of them is as expected from the ROSAT observation of V1974 Cyg. However, some others seem to brighten significantly after more than 1000 days, which we consequently interpret as recurrent novae. The individual correlations are discussed in the following subsections starting with the sources from Table 2.
The data analysis was performed using tools in the XMM-Newton Science Analysis System (SAS) v6.1.0, EXSAS/MIDAS 03OCT_EXP/03SEPpl1.2, and FTOOLS v5.2 software packages, the imaging application DS9 v3.0b6 together with the funtools package, the mission count rate simulator WebPIMMS v3.6a and the spectral analysis software XSPEC v11.3.1.
This nova was reported by SI2001 from two H images 35 d apart.
The positions are estimated by the authors to be accurate to
1
.
The speed class is unknown.
The proposed X-ray counterpart [PFH2005] 191 is classified as SSS.
The 3
X-ray positional error
is 1
9, including systematics. If we take the optical position uncertainty
as 1
,
the SSS nature and the positional coincidence point at a correct
identification.
The X-ray source was first detected 3300 d after the nova outburst
during XMM-Newton observation c4.
During this observation it was not in the field of view (FOV) of the EPIC pn instrument. Six days later, during observation s1 to the south of
the M 31 center, the source was in the FOV of all EPIC cameras, and about 240, 60, and 40 photons were collected by pn, MOS1, and MOS2, respectively.
The EPIC data can best be modeled with an absorbed
black body model (
= (
19+5-3)
1020 cm-2,
eV, see
Fig. 4) with an unabsorbed luminosity of 6.1
1037 erg s-1 in the
(0.2-1.0) keV band. The correction factor of
50 from absorbed to
unabsorbed luminosity strongly depends on the assumed absorption column.
The spectral fits show that the luminosities given in
Table 2 for this source are underestimated by about a factor of five.
This is caused by the higher
determined in the spectral fit
of
20
1020 cm-2, while for the table only Galactic foreground absorption
(6.66
1020 cm-2) was assumed.
The nova was not detected during the three XMM-Newton observations
at 2743 d to 3112 d after outburst, and it was not in the ACIS S field of Chandra
observation 1575. It is covered by the Chandra HRC I observation 1912
(
13
off-axis), but not reported in the catalogue by K2002.
We determined a 3
upper limit indicating that the source was
not active 67 d before observation c4.
The rise of the X-ray flux of the nova rather late after the optical outburst could indicate that nova [SI2001] 1992-01 is a recurrent nova that had a new outburst after about 8 years which was not optically detected and that is responsible for the observed X-rays. Of course, we also cannot exclude that a physically different nova or even a classical SSS could be the counterpart.
The time of outburst maximum of the nova WeCAPP-N2002-01 (also reported
in IAU Circular by Fiaschi et al. 2002)
can only be determined to an accuracy of 8 days, as there is an observation gap
in the WeCAPP data. It is a moderately fast nova.
Its outburst occurred after the XMM-Newton and Chandra observations analyzed in
K2002, DKG2004, and PFH2005 where it was not detected.
However, in the 1.2 ks archival Chandra HRC I
observation 2906 - 144 d after the nova outburst - we find
6 photons consistent with the Chandra HRMA/HRC I point spread
function at the position of the nova. The HRC I provides no spectral information.
Therefore it will be important to determine from XMM-Newton EPIC or Chandra ACIS-S
observations if the spectrum of the source is supersoft.
An et al. (2004) propose the hard X-ray
transient [OBT2001] 3 (Osborne et al. 2001) as counterpart,
which is source 287 in the PFH2005 catalogue. However,
several points speak against this identification: (I) the
position of this bright X-ray source is significantly offset from the nova position by 4.4
,
(II) the X-ray source was found active 430 d before the nova outburst
and was off in the XMM-Newton observations 244 d and 60 d before the nova outburst,
(III) the X-ray source showed a hard spectrum with a luminosity of 1.1
1037 erg s-1 in the 0.3-10 keV band. Therefore, a neutron star or black hole X-ray transient is
the more likely identification for [OBT2001] 3.
During observation c4 - 130 d after the nova outburst -
we detect a faint SSS close to the position of [PFH2005] 287,
which nicely coincides within the 3 positional error of 3.6
with the nova position. The source was not present in observation c3 half
a year earlier. Also for the Chandra ACIS S observation 1575 37 d after
outburst,
we can only determine an upper limit, which, however, is not very constraining.
During the HRC I observation 1912 63 d after the outburst, we detected
a source at the nova position with (
) counts. It will be interesting
to see if the X-ray brightness of this well-sampled fast
nova further increases.
![]() |

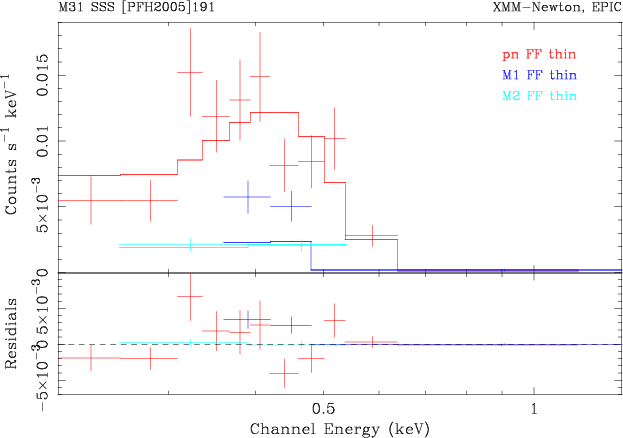

Figure 4: XMM-Newton EPIC spectrum of source [PFH2005] 191 (Nova in M 31 [SI2001] 1992-01) for observation s1. The absorbed black body fit to the data (see Sect. 3.1) is shown in the upper panel. |
Open with DEXTER |
The source was first detected in X-rays in the Chandra HRC I observation 1912 (K2002) more than 7 yr after outburst (only upper limit 124 d earlier
in XMM-Newton observation c3). In the XMM-Newton observation 67 days later, the source
can be classified as SSS. The novae position is well within
the 3
X-ray error radii. The nova is not in the FOV of the
ACIS S observation 1575.
Also in this case, the rise of the X-ray flux of the nova rather late after the optical outburst could indicate that nova AGPV 1576 is a recurrent nova that had an new outburst after about 7 years, which was not optically detected and which is responsible for the observed X-rays.
![]() |

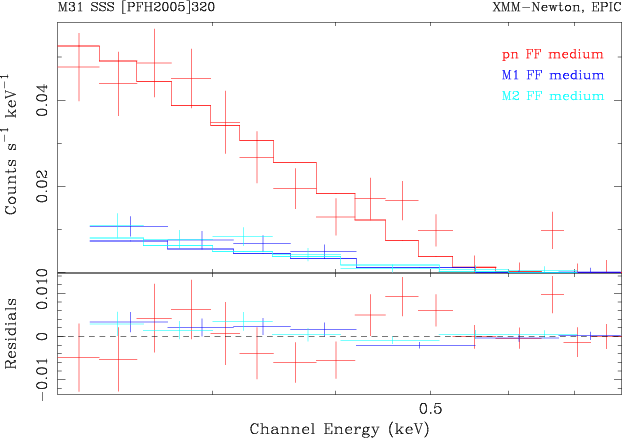

Figure 5: XMM-Newton EPIC spectrum of source [PFH2005] 320 (nova in M 31 WeCAPP-N2000-03) for observation c3. The absorbed black body fit to the data (see Sect. 3.9) is shown in the upper panel. |
Open with DEXTER |
Nova WeCAPP-N2000-03 was detected in outburst after a 18 d observing gap and can be classified as a fast nova. The POINT-AGAPE coverage (nova PACN-00-01, Darnley et al. 2004) of the nova outburst starts a few days after the WeCAPP light curve (see Fig. 1). Brightness estimates from Papenkova et al. (2000) found the outburst maximum about 1.5 d before the start of the dense WeCAPP monitoring.
In X-rays, the source ([PFH2005] 320) was first detected in the Chandra ACIS S
observation 1854 170 d after outburst. In XMM-Newton observation c2 16 days earlier,
it was not detected (at least a factor of 5 fainter). It is classified as an SSS
by PFH2005 and DKG2004. The source
stayed bright during the following Chandra HRC I and ACIS S
and the last XMM-Newton observation until at least 528 days after outburst.
EPIC spectra were extracted for this SSS
and simultaneously fit with a black body
model with
fixed to the foreground value. The best fit
resulted in a black body temperature of (
) eV for observation c3.
The spectra, together with the
best fit, are shown in Fig. 5.
During observation c4 the temperature was derived to (
) eV, consistent within
the errors to observation c3. The inferred unabsorbed luminosities
(0.2-1.0 keV) during both observations are 3.1
1037 erg s-1 and 2.2
1037 erg s-1,
respectively. The spectral fits show that the luminosities given in
Table 2 for this source are underestimated by about a factor of 3.5.
This is caused by the lower temperature
of
30 eV, while for the table kT = 50 eV was assumed. After
XMM-Newton observation c4, in each of the 1 ks Chandra HRC I observations 2 to 3 counts are detected
from the nova position indicating that the SSS was still active 675 d after outburst.
It will be interesting to follow the X-ray light curve of this
nova with an accurately defined outburst epoch that has also been well sampled in X-rays
from the start of the outburst.
Nova WeCAPP-N2000-05 was detected in outburst at the beginning of the WeCAPP
monitoring and showed a second maximum after about 42 days.
It is probably a dwarf nova with fast decline.
Chandra observations of K2002 and DKG2004 report an X-ray source at the
nova position well within the positional errors which can be classified as SSS
using ACIS S. Due to the bright source [PFH2005] 341 within 18
the nova is not resolvable by XMM-Newton EPIC. While the source is already active
during Chandra observation 1570 352 d after outburst, no significant emission
was detected during the ACIS S observation 1854 203 d after outburst.
This nova was reported by RJC99 from H images in June 1998 to July 1999. It
was brightest on an H
image exposed on July 25, 1998.
In X-rays, the source was first detected in XMM-Newton observation c3 about
three years
after outburst and brightened to the following Chandra HRC I and ACIS S
and the XMM-Newton observation c4. In a 1.1 ks HRC I observation 10 d after observation c4
it was brighter by another factor of 4. In a 1.2 ks HRC I observation 150 d after
observation c4, the source was not detected and the upper limit indicates a
significant decrease in brightness.
The nova was not detected in XMM-Newton observation c1 and c2, 369 d and 183 d before
observation c3, respectively.
PFH2005 classified the source as a candidate for an X-ray binary due
to its transient behavior and its hard spectrum.
EPIC MOS and pn spectra extracted for observation c4
extend to energies above 2.5 keV and confirm that [PFH2005] 395 during this observation is not an SSS.
Simultaneous fits - with free normalization for pn as the source in this
instrument is partly
located on a CCD gap - yield
an unacceptable reduced
of 3.3 for 65 degrees of freedom for an
absorbed black body model with a strong low-energy excess. A bremsstrahlung model
with a temperature (
1.34+0.29-0.23) keV (
fixed at Galactic
foreground) represents the spectra best (
,
65 d.o.f.) among
simple one-component models. The spectra, together with the best fit, are
shown in Fig. 6. The unabsorbed luminosities inferred from the MOS
spectra in
the (0.2-1.0) keV and (0.2-2.0) keV bands are 5.3
1036 erg s-1 and 7.8
1036 erg s-1,
respectively. The spectral fits show that the luminosities given in
Table 2 for this source are overestimated by about a factor of four
due to assuming the wrong spectral model. If the X-ray spectrum stayed the same,
the flux for Chandra HRC I observation 2905 is overestimated by a factor of
about nine.
![]() |

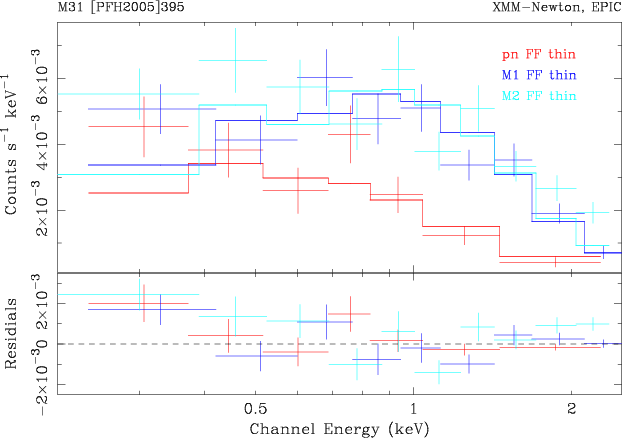

Figure 6: XMM-Newton EPIC spectrum of source [PFH2005] 395 (nova in M 31 Jul-98) for observation c4. The absorbed bremsstrahlung fit to the data (see Sect. 3.15) is shown in the upper panel. The reduced flux in the pn spectrum is due to the location of the source on a CCD gap. |
Open with DEXTER |
During XMM-Newton observation c3, when the source was still faint, hardness ratios
are typical for an SSS.
Also DKG2004 classify the source as SSS based on Chandra ACIS S
observation 1575 about 100 d later.
Using HST images DKG2004 detected a star within the 1
error circle of the Chandra
position with brightness and colors compatible with a symbiotic. This tentative
identification was based on the fact that several of the SSSs in the Galaxy and the
Magellanic Clouds are symbiotics. However, only a few symbiotics show the very soft X-ray
spectrum of a SSS with emission mainly below 0.5 keV. Another group of symbiotics exhibits
X-ray spectra with the emission peaking around 0.8 keV and might be explained
by emission
from optically thin plasma with temperatures in the range of a few 106 K to a few 107 K
caused by colliding winds (Mürset et al. 1997) in the binary system.
The EPIC spectra of [PFH2005] 395 are compatible with such a model which supports the
identification as symbiotic.
The distinct spectral change, however, from very soft (0.5 keV) to a few keV
spectrum on a timescale of a year has not been seen in symbiotics before,
so this interpretation might not hold. An alternative might be
a behaviour seen in the source 1E1339.8+2837 in M 3 (Dotani et al. 1999),
which was found to switch between
supersoft and hard states on timescales of 6 months. The main difference,
however, are the luminosities: this source had only 1035 erg s-1in the soft state, and about 1033 erg s-1 in the hard state.
Yet another alternative are black hole transients, which also usually
make soft to hard transitions, but also with luminosity changes. In the
latter cases the source would not be an optical nova. The soft/hard spectral
transition with correlated luminosity changes makes the source unique in our
sample and may indicate that the
H
outburst of the source was incorrectly classified as an optical nova.
This nova was reported by SI2001 from two H images 45 d apart.
The proposed X-ray counterpart [SHL2001] 230 has a strong soft component, and
the novae position is well within the 3
X-ray error radius.
The X-ray source was bright during SII-E1 and SII-E2 605 d and 755 d after
outburst. In SII-E3 (955 d) the luminosity
decreased by a factor of two. During the first
survey (229 d), the source was not detected. However, the upper limit is rather high
as the source was always observed at rather large off-axis angles (>10
).
The source was not detected in ROSAT HRI observations before and after the
PSPC observations. Especially the upper limits of the HRI observations after the
PSPC detections are only mildly restraining the outburst duration.
Nova WeCAPP-N2001-08 was detected in outburst after a 30 d observing gap and can be classified as fast nova. In X-rays, a source compatible with the nova position was reported by K2002 from Chandra observation 2906 119 d after outburst. XMM-Newton observations 124 d before and 67 d after the Chandra observation do not detect the source. The nova position is outside the FOV of ACIS S observation 1575. As only the HRC I detected the source, we have no information of the shape of the X-ray spectrum.
This nova was reported by RJC99 from H images in June 1998 to July 1999. It
was brightest on an H
image exposed on June 6, 1998.
It coincides in position with [H29] N86 (Hubble 1929) and
is therefore classified as recurrent nova (
yr or shorter).
In X-rays, a source compatible with the position of the nova was
detected as faint SSS in the XMM-Newton observations c3 and c4 ([PFH2005] 456),
1119 d and 1310 d after outburst.
In the XMM-Newton observations c1 and c2 936 d and 750 d after the nova outburst,
respectively, the source was not detected. With its distance of
8.3
from the center of M 31, the nova was not detected in the Chandra HRC I
observation 1912 (3
upper limit well above the EPIC detection). The
nova was not in the FOV in Chandra ACIS S observation 1575.
This nova was reported by SI2001 from one H image.
The proposed X-ray counterpart [SHL2001] 246 has a strong soft component and
the novae position is well within the 3
X-ray error radius.
The X-ray source was bright during SII-E1 560 d after
outburst and fainter in SII-E2 (710 d). During SII-E3 (910 d) and the first
survey (185 d), the source was not detected. The source was also not detected in
ROSAT HRI observations before and after the outburst. We do not give HRI upper
limits for this source in Table 2 as the PSPC upper limits are more
constraining both in terms of luminosity and outburst duration.
The XMM-Newton catalogue of M 33 lists five SSS (PMH2004). None of them coincides with a known optical nova. However, this is not surprising and may be caused just by low number statistics, and most of these SSS may still represent nova in the supersoft X-ray phase after outburst. WS2004 estimate a global nova rate for M 33 of 2.5 yr-1. However, a higher nova rate of 4.6 novae per year as derived by Della Valle et al. (1994) from a relatively frequent B monitoring of the galaxy may be more realistic (Neill & Shara 2004). If we assume that novae from more than the past six years may show up in X-rays as indicated in our correlations in Table 2, and we take into account that the XMM-Newton M 33 survey was accumulated over 2 years, 20-40 novae with outburst dates from 1995 to end of 2002 could have been contributing. On the other hand, during this time scale only six novae are reported in the literature (see WS2004), three with outburst in 1995, one each in 1996, 1997, and 2001. In the years before the XMM-Newton observations, just one nova was reported. Therefore most if not all of the novae radiating in X-rays may have been missed in the catalogues. The detection of the two novae in M 33 with the ROSAT HRI and Chandra may reflect the denser sampling in 1995. Therefore, if one wants to detect and identify optical novae as SSS in M 33 in the future, an efficient search program for optical novae will first be necessary.
Assuming that the material ejected by
the nova explosion forms a spherical, homogeneous shell expanding at
constant velocity v, the hydrogen mass density of the shell will evolve in
time t like
where
is the ejected hydrogen mass (Krautter et al. 1996). Assuming a constant
density, the column density of hydrogen will evolve with time like
,
where
is the mass of the hydrogen atom. Assuming typical values for the
expansion velocity (1000 km s-1) and the ejected hydrogen mass
(10-5
), the absorption column should reduce to
1021 cm-2 and thus be transparent to soft X-rays in less than one
year. Indeed, for the known classical novae with soft X-ray emission, the
turn on always occurred within the first year after the outburst
(see for instance Orio 2004).
We can use the well sampled X-ray light curves of novae WeCAPP-N2001-12
(turn on of SSS state between days 37 and 63 after outburst) and WeCAPP-N2000-03
(days 154 to 170) to estimate - under the assumptions above
- an ejected hydrogen mass of
and
in the corresponding nova outbursts, respectively.
We can compare these results with the ejected mass derived from the
relationship between the hydrogen ejected mass and the rate of decline
found by Della Valle et al. (2002),
.
For Nova WeCAPP-N2000-03,
the outburst is almost fully covered in the optical (see discussion in
Sect. 3.9), and its t2 was
7.3 days in R and
9.7 days in I, which with the above relation, indicates an hydrogen
ejected mass in the range (taking the error bars into account)
,
larger than the mass derived from the
X-ray light-curve. For Nova WeCAPP-N2001-12, we have only an upper limit
for t2 of 11 days, leading to an upper limit for the ejected mass of
.
In any case, the ejected masses derived both
from the X-ray and the optical light-curves are hydrogen masses, and
therefore lower limits to the total ejected mass.
![]() |

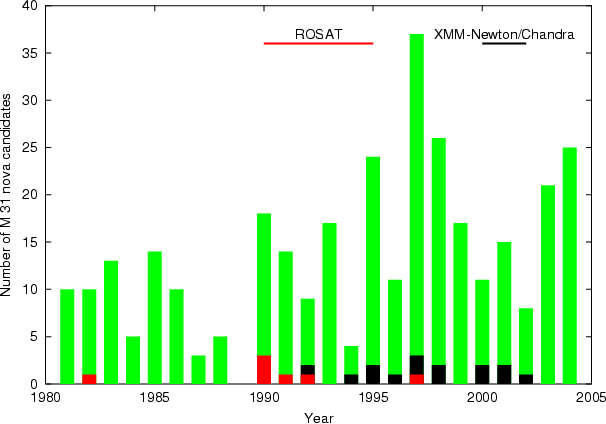

Figure 7: Histogram of the number of optical novae per year in M 31 contained in the nova catalogue used for X-ray cross-correlation (see Sect. 2). The number of optical novae showing X-ray emission is indicated coded for ROSAT and XMM-Newton/ Chandra. The time span of X-ray observations is indicated. |
Open with DEXTER |
Figure 7 shows the number of optical novae per year in the optical nova catalogue of M 31 used for cross-correlation with the X-ray data. X-ray detected novae are indicated separating ROSAT and XMM-Newton/Chandra detections. The time span of the M 31 observations of these satellites is also indicated. There are only few optical novae detected in the years before the ROSAT observations, which may explain the lack of nova detections before the ROSAT observations. With XMM-Newton and Chandra many novae were detected which had their outburst years before the X-ray outburst. As described for the individual novae and discussed in more detail below, this may be caused due to long supersoft states of these novae or indicate that some of these novae are recurrent and had a new outburst short before the X-ray observations. Four of the 25 optical novae in 2000 and 2001 (16%) are detected to turn on within a year. This percentage is only a lower limit as some novae with short supersoft states (shorter than 6 month) may have been missed in the sparse and inhomogeneous sampling of the light curves and novae in the crowded center area of M 31 are missed in XMM-Newton observations. Only prolonged sampling will allow us to decide how many additional novae will show a late turn-on as an X-ray source.
In seven of the sources the soft X-ray emission is observed to turn on during the first year after the outburst, while in three the emission is already detected in the first X-ray observation. Eleven of the detected novae have been observed to turn off, and in five cases the SSS is still bright 5 yr after outburst (Novae in M 31 [SI2001] 1992-01, 1995-05, AGPV 1576, RJC99 Sep.-95 and GCVS-M31-V0962). Both the large fraction of SSS detected among optical novae candidates and the long duration of the soft X-ray emission support the expected presence of a post-outburst hydrogen burning envelope left on the white dwarf.
A change in the accretion rate after the nova outburst up to the level of
powering a SSS with steady hydrogen burning also seems unlikely.
Kovetz et al. (1988) have
shown that the irradiation of the secondary star after the
nova outburst could cause the red dwarf to expand and induce a mass
transfer rate enhanced by two orders of magnitude. They assumed that the
luminosity of the irradiation source (the hydrogen burning envelope on the
white dwarf) was constant and on the order of the Eddington luminosity for
a certain time and that, after the irradiating source turned off, the
white dwarf started to cool down. The maximum radii of the secondary star
was achieved shortly (0.1 yr) after the end of the constant
luminosity phase, and then started to slowly contract, thus decreasing the
accretion rate. If this process had occurred in the delayed SSS detected
in M31, the irradiating white dwarf with a luminosity close to the
Eddington limit would have been visible in X-rays as soon as the ejected
shell became optically thin to X-rays (as mentioned above, within the
first year after the outburst). But for these five cases, no SSS was
detected in the first observations, performed between
700 and
3000 days after the outburst, depending on the source.
Finally, it is possible that these five nova candidates with delayed X-ray emission are recurrent novae, and that the optical outburst responsible for the X-ray emission was not detected. The same would be true for the nova candidate which showed X-ray emission 6 yr before the nova outburst (ShAl 57). Two of the five delayed SSS are in fact classified as recurrent novae. If all these nova candidates are indeed recurrent novae, 29% of the novae detected as SSSs would be recurrent novae, a rate compatible with the upper limit estimated by Della Valle & Livio (1996) for M 31. Detection of delayed SSS states in X-rays may in the future be used as a new method to classify recurrent novae in M 31 and to derive the ratio of recurrent novae to classical novae.
We estimated the fraction of novae turning on as SSS within a year. The X-ray observations can be used to constrain the parameters of the white dwarf and determine the mass of the material ejected in the outburst.
More information can be expected from the analysis of already performed additional XMM-Newton and Chandra observations to the M 31 center that are not yet public. However, these observations are not homogeneously sampling the expected soft X-ray nova light curves and a dedicated observation campaign for M 31 novae would be desirable. Such a campaign should cover several years in optical and X-rays and also allow to constrain the X-ray light curve of novae that are only X-ray visible for a few months.
Ongoing optical and X-ray monitoring of the central region of M 31, where most of the novae are detected, should allow us to determine the length of the plateau phase of several novae and, together with nova temperature development, give a handle on the masses of the white dwarf involved. Due to the simultaneous X-ray coverage of several novae at a time and the known distance of the novae, such a program promises insights into the nova phenomenon, which is much more difficult to obtain from observation of novae in the Milky Way alone.
Acknowledgements
We thank the referee, Massimo Della Valle, for his comments, which helped to improve the manuscript considerably. Part of this work was supported by the Sonderforschungsbereich, SFB 375 of the Deutsche Forschungsgemeinschaft, DFG. The XMM-Newton project is supported by the Bundesministerium für Bildung und Forschung / Deutsches Zentrum für Luft- und Raumfahrt (BMBF/DLR), the Max-Planck Society and the Heidenhain-Stiftung.
