A&A 440, 163-169 (2005)
DOI: 10.1051/0004-6361:20042276
F. Comerón1 - A. Pasquali2 - J. Torra3
1 - European Southern Observatory, Karl-Schwarzschild-Strasse 2,
85748 Garching, Germany
2 -
Institute of Astronomy, ETH Hoenggerberg, 8093 Zurich,
Switzerland
3 -
Departament d'Astronomia i Meteorologia, Universitat de
Barcelona, 08028 Barcelona, Spain
Received 28 October 2004 / Accepted 4 May 2005
Abstract
We present visible and near-infrared observations of the
G84.0+0.8 HII region, a bright compact knot projected within the
boundaries of the W80 complex dominated by the North America and
Pelican nebulae. The spectrum of the nebula indicates a
temperature of the ionizing stellar spectrum
K (corresponding to a O7-O5 star) and a density of the HII region
cm-3, with a foreground extinction of
mag. A comparison of narrow-band near-infrared
images through the Br
and the H2
filters shows that G84.0+0.8 consists of a fan-shaped cavity in
a molecular cloud at least partly bounded by a photodissociation
region, filled with Br
-emitting ionized gas, and with a
compact cluster at the tip of the fan. The brightest star at the
position of the cluster is found to be a late G-type interloper.
While membership of G84.0+0.8 in the local arm is well established
from existing radial velocity measurements of the ionized gas, we
find that the ionizing flux estimated from the size and density of
the nebula on the one hand, and the radio continuum properties of
the nebula on the other hand, are well below the expected ionizing
flux of a mid, or even late, O-type star. We consider the
possibility that G84.0+0.8 might be externally ionized by a nearby
mid-O star. Currently available observations do not definitely
confirm or reject the membership of G84.0+0.8 in the W80 complex,
although a larger distance seems favored by the available data.
Nevertheless, we can firmly rule out the possibility that it
represents a massive star forming site in that complex, as its
appearance as a compact HII region containing an embedded cluster
may lead one to think.
Key words: HII regions - ISM: individual objects: G84.0+0.8 - ISM: individual objects: W80
W80 (Westerhout 1958) is one of
the nearest extended complexes of ionized gas, encompassing the
well-known North America and Pelican nebulae (NGC 7000
and IC 5070 respectively). Despite being at a distance
not much larger than the Orion Nebula (600 pc vs. 450 pc; Laugalys
& Straizys 2002), the differences between both
complexes are striking. W80 is much more diffuse, it extends over
a diameter of
(
32 pc), and it does not
possess any analog of the intense massive star forming activity of
the Trapezium cluster. The main responsible for the ionization of
the W80 complex is most likely an isolated O5V star,
J205551.3+435225, recently identified by Comerón &
Pasquali (2005). Signs of recent and ongoing star
formation at low and intermediate masses have been identified in
several areas of W80, particularly in the dark cloud L935
that separates the North America and the Pelican nebulae
(Herbig 1958) and in the interface between L935 and the
Pelican nebula (Bally & Reipurth 2003).
![]() |
Figure 1:
The region of the Pelican nebula (IC 5070), including
the compact HII region G84.0+0.8 discussed in this paper. The
image covers a field of 107'8 ![]() |
Open with DEXTER |
Visible images of the region (Fig. 1) show the
compact, bright knot G84.0+0.8 to the West of the Pelican
nebula at
,
.
The knot is identified by Wendker et al. (1991) as the thermal radio source ECX6-38. Comerón & Torra (2001) reported
the existence of a compact cluster clearly visible in
near-infrared images, also noted by Dutra & Bica (2001)
in 2MASS images. Its location in the sky close to W80, and the
possibility that it may be one of the few locations where massive
star formation in that complex has taken place in the most recent
past, seem to deserve some detailed consideration. In this paper
we present additional observations that provide further insight
into the nature of G84.0+0.8, its possible relationship to the W80 complex and, more generally, to the much more extended Cygnus X region in which both W80 and G84.0+0.8 lie.
The dataset presented here is composed of near-infrared
narrow-band imaging and spectroscopy in the visible obtained with
the 2.2 m telescope at the Calar Alto Observatory. The
near-infrared images were obtained on the night of 13/14 June 2001
using MAGIC, a NICMOS3-based infrared camera and spectrograph. The
0''64 pix-1 scale at that telescope provides a field of
view of 2'7
2'7 on the 256
256 array. We
obtained images through the Brackett
(2.166
m) and
H2S(1)
(2.122
m) filters. Each
narrow-band image has a total exposure time of 9 min split in 9 dithered 1-min pointings. Due to the size of the dither pattern the field of view covered in each frame is 3'05
3'05.
Visible spectroscopy was obtained in two separate runs, the
first one on the nights of 28/29 and 29/30 October 2001 in Service
Mode, using Director's Discretionary Time, and the second one on
the night of 2/3 August 2004. We used CAFOS, the facility's
visible imager and spectrograph, with the B200 grating that
provided a resolution
at
Å with the 1''5 slit used and covered the
entire visible range. The slit was placed on each of the four brightest stars of the cluster identified in the visible, and thus provided cuts across the entire HII region in the North-South
direction along which the slit was oriented. Each star was
observed at least twice, with exposure times between 10 and 15 min per observation. Wavelength calibration was achieved by taking short exposures of three lamps of HgCd, He, and Rb.
Relative flux calibration was performed only on the observations
obtained in August 2004 by observing the spectrophotometric standard G191-B2B.
The reduction of all observations was carried out using standard
tasks and dedicated scripts under IRAF.
In large-scale molecular line maps of the Cygnus X complex the
location of G84.0+0.8 coincides with a peak in the column density
of molecular gas (Leung & Thaddeus 1992). 12CO velocity-channel maps in the
range show that this peak lies on the rim of a large
elliptical structure having approximate dimensions of
,
containing also W80. Molecular emission inside the ellipse is detected at less negative and small positive
velocities, particularly in the
interval, which might lead to the interpretation of the entire region as an expanding hemispherical shell with the
near hemisphere missing. The radial velocity of G84.0+0.8, measured from the H
hydrogen radio recombination line, is v = -6.6 km s-1 (Piepenbrink &
Wendker 1988), close to the velocity of the peak 12CO emission. This definitely places G84.0+0.8 as a member of the local arm rather than of the Perseus arm, characterized by
negative velocities of -30/-40 km s-1 in that direction, but the fact that the local arm is seen approximately end-on, and the low sensitivity of radial velocities to the distance in the
direction of Cygnus within a few kiloparsecs from the Sun, leaves
room for a large uncertainty as to the location of G84.0+0.8 along
the line of sight, as well as for most members of the local arm in
the same direction (Odenwald & Schwartz 1993).
Mid-infrared images obtained by the IRAS and MSX satellites show
G84.0+0.8 as a small, isolated and moderately elongated source.
The IRAS fluxes at 12, 25, 60 and 100 m are respectively
(147
15), (390
15), (3000
150), and (3290
750) Jy. A comparison of these fluxes to the catalog of compact HII regions of Chini et al. (1987) indicates a luminosity
.
The comparison is based on the sources with the bluest IRAS colors
in that catalog, whose spectral energy distributions are the ones
most closely resembling that of G84.0+0.8. However, the
mid-infrared spectral energy distribution of G84.0+0.8 is bluer
than that of any of the sources in Chini et al.'s (1987)
catalog, as will be discussed in Sect. 5.
![]() |
Figure 2:
Narrow-band infrared images of G84.0+0.8 showing the
distribution of ionized hydrogen ( top) and excited molecular
hydrogen ( bottom), outlining the overall structure of a cavity in
the molecular cloud filled with ionized gas. The embedded cluster
is clearly seen in both images. North is at the top and East to
the left. The size of both images is 3'05 ![]() |
Open with DEXTER |
The two narrow-band infrared images presented in Fig. 2 show the distribution of the ionized gas (2.166 m image) and of the photodissociation region
(2.122
m image) produced by ultraviolet but non-ionizing
radiation penetrating the surrounding molecular gas. The
associated cluster is clearly seen as well. Additional broad-band
images of G84.0+0.8 can be found in Comerón & Torra (2001). The 2.122
m image shows that the contours of the cavity filled by the Br
-emitting gas are
surrounded by a photodissociation region, but that most of the
H2 emission actually arises from the North-Northeastern half of
the region, on which part of the cluster is projected.
![]() |

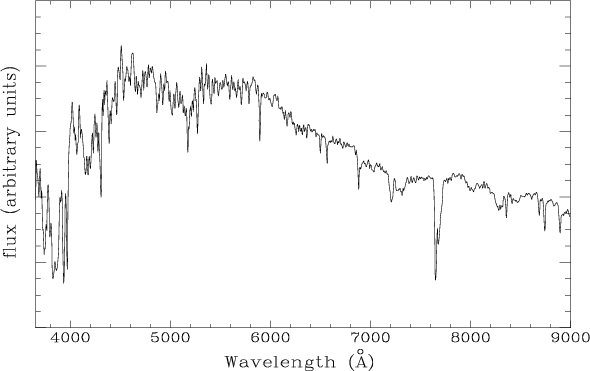

Figure 3: Spectrum of the brightest star that appears projected on the embedded cluster, which we classify as a late-type giant and is thus unrelated to the cluster. |
Open with DEXTER |
Based on the information available at the time of their study, Comerón & Torra (2001) proposed that G84.0+0.8 is a compact HII region belonging to the North America/Pelican complex, ionized by a relatively late (B2V) star having a modest output of ionizing radiation. They tentatively identified the brightest star that appears projected on the cluster as the possible ionizing source.
The new spectroscopy suggests a fairly different picture. The star proposed by Comerón & Torra (2001) as the ionizing candidate is clearly discarded as such by its spectrum (Fig. 3), which we classify as a late G-type giant by comparison to the atlas of low-resolution stellar spectra of Jacoby et al. (1984). The moderate extinction indicated by the colors provided by Comerón & Torra (2001) is not as high as the one in the nebula as derived from its Balmer lines, suggesting that the G star is in the foreground relative to G84.0+0.8 but is already partly obscured by dust, probably associated with the W80 complex.
The spectrum of the nebula, presented in Fig. 4,
clearly shows HeI emission lines at 5876 Å and 6678 Å and a
large [OIII]/H intensity ratio, indicating that the
ionizing star must be of O type. We examined spectra obtained at
several positions of the nebula sampled by the different slit
positions, and did not find any significant changes among the line
ratios that would indicate substantial variations in the physical
conditions across the nebula. The density-sensitive
[SII](6717 Å)/[SII](6731 Å) ratio remains remarkably constant
across the entire area of the nebula at a value indicative of a
density in the
400-500 cm-3 range (see below). It does
not show any noticeable change near the center, where the line of
sight should probe denser gas if the nebula had an
outward-decreasing density distribution. In such case, the
intrinsically lower [SII](6717 Å)/[SII](6731 Å) ratio
contributed by the denser regions to the integrated emission along
the line of sight should cause a decrease in the
[SII](6717 Å)/[SII](6731 Å) ratio that is not observed.
Moreover, the brightness distribution in the Br
(Fig. 2) shows only moderate fluctuations across
the area occupied by the ionized gas, excluding the presence of
much denser clumps not sampled by our slit settings. We are thus
confident that the physical conditions derived from the spectrum
presented in Fig. 4 can be considered as
representative of the entire ionized nebula.
We have measured the integrated fluxes of the identified H, He, O
and S lines with the purpose of computing the chemical composition
of the nebula. From the H/H
ratio in case B
recombination theory (Osterbrock 1989), we derive
an overall reddening
of 2.21. The extinction towards
the nebula can also be calculated from the comparison between the
observed H
/H
ratio and the intrinsic value expected
from Case B, adopting an extinction ratio
derived from the extinction law of
Cardelli et al. (1989), from which we obtain
.
All line fluxes were corrected for reddening using the above
= 2.21. Since neither the [NII]
5755 line nor
the [OIII]
4363 emission are detected in the nebular
spectrum, we have assumed an electronic temperature
of 8000 K, which is the average value among Galactic HII regions (cf. Shaver et al. 1983). The
[SII](6717 Å)/[SII](6731 Å) flux ratio of G84.0+0.8
indicates an electron density
100 cm-3, where
the main contribution to the uncertainty is due to variations in
the line ratios across the parts of the nebula sampled by the
spectrograph slit. We have then computed the ionic abundance of
each element from the line dereddened fluxes using the IRAF
NEBULAR package and imposing
K and
cm-3. The ionic abundances of the same ion from
different emission lines were subsequently weighted by the flux of
the corresponding line and averaged together. The results, which
are summarized in Table 1, are in good agreement with the
abundances derived for Galactic HII regions (Shaver et al. 1983).
![]() |

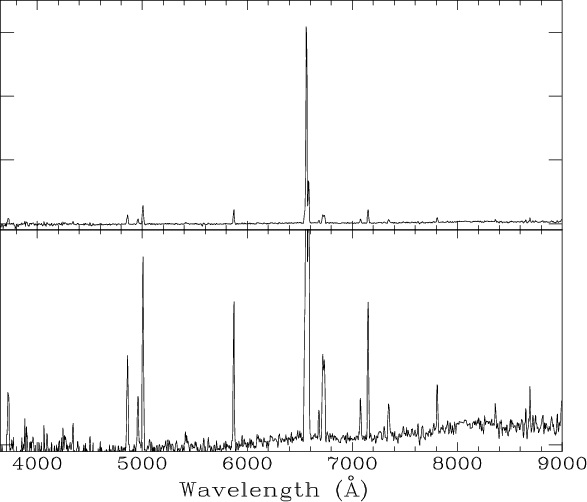

Figure 4:
Spectrum of the HII region, with the vertical scale
increased in the bottom plot to enhance visibility of the faintest
features. The prominence of the [OIII] lines near
![]() ![]() ![]() ![]() ![]() ![]() |
Open with DEXTER |
Table 1: Ionic abundances in G84.0+0.8.
Together with the density derived above, the [OIII]/H
flux ratio and the strength of the HeI lines are both consistent
in firmly constraining the temperature of the ionizing star to a
value above 40 000 K. A comparison to the calculated spectrum of
model nebulae ionized by a single star (Stasinska &
Schaerer 1997) indicate a temperature in the range
between 40 000 K and 45 000 K (the upper limit being less strongly
constrained), corresponding to a spectral type between O7 and O5
(Schaerer & de Koter 1997). An ionizing spectral
type later than O7 can thus be confidently ruled out by the
spectrum of the nebula.
Assuming that G84.0+0.8 is roughly spherical and ionization-bounded,
and neglecting absorption of ultraviolet radiation by dust inside
the HII region, the input rate of ionizing photons Q0 required
to keep the nebula ionized should be
![]() |
(1) |
![]() |
(2) |
A comparison with computed Q0 values for model O stars
(Schaerer & de Koter 1997) shows that the values
calculated from Eqs. (1) and (2) if G84.0+0.8 were at the distance
of W80 (D = 600 pc, implying
pc) are
respectively 3.4
1045 s-1 and 1.8
1046 s-1, between three and four orders of magnitude below the ionizing flux provided by a main-sequence star with the
lowest temperature consistent with the spectrum of the HII region,
T* = 40 000 K (spectral type O7V), which is Q0 = 1.1
1049 s-1. The result is not significantly changed if other sets of models are used (e.g. Vacca et al. 1996,
and the discussion in Schaerer & de Koter 1997). Absorption by dust of most of the ionizing radiation is an unviable explanation, given the required fraction of only one
ultraviolet photon available for hydrogen ionization for each
1000-10 000 photons absorbed by dust, which is at least two orders of magnitude below the most extreme estimates made in ultracompact HII regions (Wood & Churchwell 1989).
Moreover, both the moderate extinction and the modest IRAS fluxes argue against a significant amount of reprocessing of star light by dust: at a distance of 600 pc, the integrated infrared
luminosity
is about two orders of magnitude below the bolometric luminosity of a O7V star. We also consider it unlikely that the HII region is largely
density-bounded, given the direct evidence that the 2.122
m image provides for a large reservoir of molecular gas around most of the nebula, which must cover a sizeable solid angle of the sky as seen from any star in the cluster.
![]() |
Figure 5: The ionizing flux of G84.0+0.8 as inferred from its radio continuum flux (Eq. (2), solid line); and from its angular size and density using respectively n = 460 cm-3 (Eq. (1); dashed line) and n = 1000 cm-3 (dotted line). The ionizing fluxes produced by O7V and O9V stars, whose temperatures are respectively T* = 41 000 K and T* = 35 900 K (Schaerer & de Koter 1997) are given for reference. As noted in the text, both T* = 35 900 K and n = 1000 cm-3 are excluded by the spectroscopy of the nebula, and are plotted here for reference only. |
Open with DEXTER |
The discrepancy is reduced if G84.0+0.8 is actually farther than W80, a reasonable possibility given the wide range of distances estimated for individual regions in the direction of Cygnus X (e.g. Odenwald & Schwartz 1993; Behre et al. 2004). Figure 5 summarizes the magnitude of the disagreement between the ionizing flux yielded by the coolest star consistent with the nebular spectrum, and the ionizing flux inferred from the properties of the nebula as a function of the assumed distance. The latter is limited to 4 kpc, since higher values are excluded by the radial velocity. We have indicated in Fig. 5 the ionizing flux yielded by a O9V star ( T* = 35 900 K; Schaerer & de Koter 1997), even though its temperature is insufficient to produce the [OIII] and HeI line intensities observed in the nebula. Likewise, we have also plotted the values yielded by Eq. (1) assuming a density n = 1000 cm-3, twice as high as that inferred from the [SII] line ratio. Such density would result in a [SII](6717 Å)/[SII](6731 Å) ratio around 0.8, whereas the observed value in our spectra is always above 1.0. The O9V and n=1000 cm-3 cases can thus be regarded as illustrating the degree of the departures with respect to the observations that would have to be introduced in order to achieve a marginal agreement between inferred ionizing fluxes, rather than as limiting cases allowed by the observations.
The ionizing fluxes as derived from Eqs. (1) and (2) are
coincident if the distance is 3.5 kpc, near the upper limit
allowed by the radial velocity. The simplifying assumptions of a
spherical nebula with uniform density entering Eq. (1), and the
uncertainties in the measured radio continuum fluxes entering Eq. (2), prevent us from considering this as an accurate distance determination. However, the combination of Eqs. (1) and (2) does
hint at a distance significantly greater than that of the W80 complex, although a significant discrepancy by a factor 15 remains between the derived ionizing fluxes and that of a O7V star when a distance of 3.5 kpc is adopted. The optically thin spectral
energy distribution in the radio continuum even at 408 MHz also
argues for a shorter distance by implying a small optical depth,
given that
requires an emission
measure
105 cm-6 pc (Mezger &
Henderson 1967). Since the electron density is well
constrained by the spectrum of the nebula, a size along the line
of sight not exceeding a few tenths of a parsec is needed to keep
EM small.
Figure 6 shows the 2MASS color-magnitude diagram of the
stars appearing within 20'' of the center of the cluster. The
positions expected for O7V and B2V stars at 600 pc reddened by
different amounts are plotted with dashed lines, as well as the
unreddened main sequence at that distance between O5V and F0V
(using data compiled by Drilling & Landolt 2000; and Tokunaga 2000). We also plot the position of an O7V star at 3.5 kpc (see Sect. 4) reddened by varying
amounts. The brightest object is the unrelated G-type star whose spectrum is presented in Fig. 3. The red star on the B2V locus at 600 pc with
has a comparatively blue
(J-H) = 1.39, probably indicating substantial reprocessing
by circumstellar material, and thus a significant non-photospheric
contribution to the
flux.
Judging from their positions in the color-magnitude diagram
the spectral types of the brightest stars would not be consistent
with an O7V or earlier type unless G84.0+0.8 were at least 3.5 kpc from the Sun, or unless such an O7V star were obscured by
mag. The colors of the brightest members suggest
visible extinctions in the
range, in agreement with
the value derived from the Balmer lines of the HII region (Sect. 3.2). No photospheric features can be discerned in our visible spectra of these stars, preventing a
spectroscopic determination of the distance of the region.
![]() |

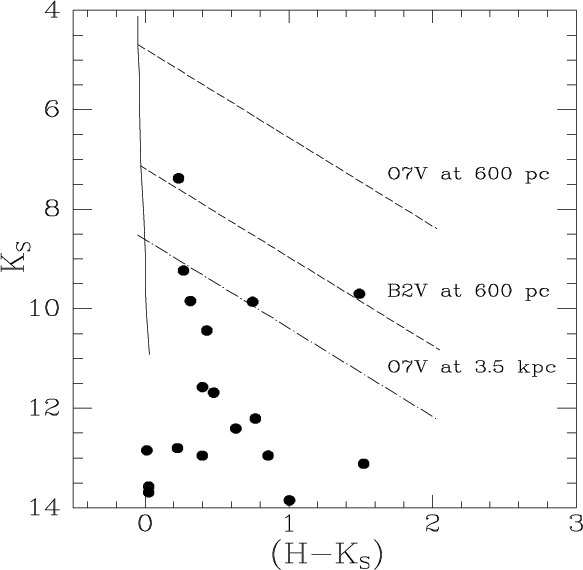

Figure 6:
2MASS color-magnitude diagram containing the
members of the cluster within a radius of 20'' of
![]() ![]() |
Open with DEXTER |
The 9 stars (excluding the G-type interloper) that lie on or
above a reddening vector having its origin at the end of the
solid, nearly vertical line in Fig. 6 allow us to
obtain a rough estimate of the mass of the cluster if all these
stars are actual members. Assuming a distance of 600 pc, a mass of
1.6
for F0V stars (Drilling & Landolt 2000), and a Miller-Scalo log-normal initial mass function (Miller & Scalo 1979), we obtain a
cluster mass of
.
This is a very rough determination, probably affected by inaccurate photometry given the compactness of the cluster, close binarity, circumstellar
emission, and small-numbers statistics in the sampling of the initial mass function. However, it suffices to characterize the cluster as a modest aggregate with no massive stars earlier than
mid-B type if it were a member of the W80 complex.
This picture changes dramatically if we assume a distance of
3.5 kpc. In that case there are two possible O7V stars in the
cluster, and the limiting vector used above marks instead the
locus of B2V stars with masses of 9.4
(Drilling &
Landolt 2000). Using the same method described above,
we now estimate a cluster mass of
,
making it
a tight massive cluster with a mass about 6 times that of the
Trapezium occupying a similar volume (Herbig & Terndrup 1986). The luminosity, dominated by the O-type members, is then
.
The luminosity
reprocessed by dust and emitted at longer wavelengths,
9.4
,
is rather low as compared with that of other compact HII regions harboring O-type stars (Chini et al. 1987). Such compact HII regions display very similar spectral energy distributions in the IRAS bands, with a standard deviations from the average of only 25%. However, the spectral
energy distribution of G84.0+0.8 HII region is distinctly bluer than any of the objects in the catalog of Chini et al. (1987). As those authors note, the infrared spectral
energy distributions shortwards of 12
m tend to be steeper for
earlier types of the embedded stars, which is attributed to the
action of their winds or their radiation pressure in clearing hot
dust from their vicinity. The need for such dust-free cavities is
a well established feature of models of compact and ultracompact
HII regions, both theoretical and observationally (e.g. Faison et al. 1998; Inoue 2002, and references therein). The decreased efficiency of such dust removal mechanisms
in cooler stars may explain the existence of larger amounts of hot
dust in their immediate surroundings, whose higher temperatures increase the contribution to the fluxes at the shortest wavelengths. In this framework, the unusually blue mid-infrared
spectral energy distribution of G84.0+0.8 may be taken as an
indication of a lack of O-type stars, and would thus argue in
favor of a distance significantly shorter than 3.5 kpc.
In the previous sections we have stressed the problems encountered when trying to explain G84.0+0.8 as a simple, compact HII region ionized by its embedded cluster due to the large mismatch between the ionizing flux provided by a star of the temperature required by the spectrum of the HII region and the ionizing flux inferred from the visible/near infrared and the radio continuum properties of the nebula.
An intriguing possibility is that G84.0+0.8 might be ionized by
stars external to the nebula, with G84.0+0.8 intercepting
only a small fraction of their ultraviolet fluxes. In this
picture, the energy output of the young stars of the embedded
cluster would have blown a low-density cavity in their parental
molecular cloud, exposing it to an ambient radiation field
characterized by the spectral energy distribution of a mid O-type
star, and by a photon flux high enough to ionize a relative large
volume of the
cm-3 gas. Two known O-type
members of W80 could in principle produce the nebular spectrum of G84.0+0.8. The first one is J205551.3+435225, the O5V star recently identified by Comerón &
Pasquali (2005) as the main star responsible for the ionization of the complex. Another suitable candidate is the O6V star HD 199579, which is projected on the North America
nebula. These stars lie respectively 113' and 124' from G84.0+0.8, corresponding to projected distances of 19.7 pc and 21.6 pc on the plane of the sky. An upper limit to the intercepted
ionizing flux Q'0 from these stars at the position of G84.0+0.8 can be estimated:
![]() |
(3) |
It is nevertheless doubtful that J205551.3+435225 and
HD 199579 represent the whole census of O-type stars in that
region of the sky, as warned by the fact that a highly obscured
O5V star such as J205551.3+435225 itself was only very recently
identified. This is even more so if G84.0+0.8 is farther than W80,
as the characteristics of the nebula hint (Sect. 3.2).
Combining Eqs. (1) and (3) (the latter for a single-star case) to
estimate the distance r at which the ionizing star should be
found, and again neglecting the photons absorbed between the star
and the nebula, one obtains
![]() |
(4) |
G84.0+0.8 is a moderate-density (
cm-3) compact
HII region in the Cygnus arm ionized by mid O-type stars and
containing a lightly embedded cluster. Trying to fit the
emission-line spectrum, the radio-continuum flux and the
characteristics of its embedded stars in the standard picture of a
cluster with massive stars exciting a compact HII region leads us
to conclude that there is a significant mismatch between the
ionizing flux supplied by a mid O-type star and that inferred from
the optical and radio properties of the nebula, regardless of its
distance to the Sun. When a large distance is assumed the
brightest stars in the color-magnitude diagram occupy the
positions of the required mid O-type stars and the ionizing flux
mismatch becomes smaller, although still exceeding one order of
magnitude. Moreover, the mid-to-far infrared luminosity of G84.0+0.8 is distinctly less steep than those of compact HII regions containing O-type stars, which might mean that the cluster
embedded in G84.0+0.8 lacks the hot stars required to clear their
vicinity from hot dust. We consider as an alternative
interpretation that G84.0+0.8 may be a cavity of low density gas
carved by a low-mass cluster in its parental molecular cloud and
exposed to the ambient ionizing radiation field. Although no
O-type star that may externally ionize G84.0+0.8 is identified,
this should not be used at this stage to reject this possibility,
given the likely incomplete census of O-type stars in the region.
Although the combination of existing observations with the new ones presented here does not definitively establish or rule out the membership of G84.0+0.8 of the North America and Pelican nebulae complex, they do provide a conclusive negative answer to the question posed by the title of this paper. It may be indeed tempting to regard a compact HII region containing a compact embedded cluster dominated by a relatively bright star as a likely massive star forming site in W80. However, the available observations indicate that the brightest star at its position is a late G-type projected by chance on the cluster boundaries, that the required ionizing flux is much below that supplied by a star of the inferred spectral type, and that the cluster does not contain stars of sufficiently early spectral type if G84.0+0.8 is as nearby as the North America or the Pelican nebulae. Still, G84.0+0.8 stands out as an interesting object of study whose relatively simple geometry may lend itself to relatively easy modeling.
Acknowledgements
We are very pleased to thank the staff of the Calar Alto observatory, and especially Mr. Santos Pedraz, Mr. Alberto Aguirre, Ms. Ana Guijarro, and Mr. Jesús Aceituno, forthe excellent support during our observing runs in Calar Alto. We also thank Dr. Roland Gredel, Director of the Calar Alto observatory, for the allocation of Director's Discretionary Time (DDT) to this project, and to Mr. Manuel Alises for the execution of the DDT observations in Service Mode. A.P. acknowledges support from the OPTICON Network. J.T. acknowledges support by the Spanish Ministry of Science and Technology under contract AYA2003-07736. This research has made use of the SIMBAD database operated at CDS, Strasbourg, France. It also makes use of data products from the Two Micron All Sky Survey, which is a joint project of the University of Massachusetts and the Infrared Processing and Analysis Center/California Institute of Technology, funded by the National Aeronautics and Space Administration and the National Science Foundation.
