A&A 439, 465-477 (2005)
DOI: 10.1051/0004-6361:20053015

Tracing the X-ray emitting intra-cluster medium of clusters of galaxies beyond r200

D. M. Neumann

AIM - Unité Mixte de Recherche CEA - CNRS - Université Paris VII - UMR N$^\circ$ 7158 CEA/Saclay; DSM/DAPNIA/Service d'Astrophysique, CEA/Saclay, L'Orme des Merisiers, Bât. 709, 91191 Gif-sur-Yvette, France

Received 8 March 2005 / Accepted 2 May 2005

Abstract
We present in this paper a study of a sample of 14 nearby clusters of galaxies ( 0.06<z<0.1) observed with the ROSAT/PSPC. We only select clusters with low galactic absorption ($nH\leq 6$ $\times$ 1020 cm-2) in order to trace the hot X-ray emitting intra-cluster medium (ICM) out to large radii. We convert the X-ray surface brightness profiles of the clusters into emission measure profiles scaled to the classical scaling relations based on the spherical collapse model. We sort the clusters into different temperature bins and stack the scaled emission measure (ScEM) profiles of clusters belonging to the same bin together. This method enhances the statistics of the profiles - especially in outer regions. The stacked profiles allow us to observe a signal out to radii r>r200.

In the center ( r<0.4 r200) we find that the ScEM profiles deviate from predicted scaling laws. Hotter clusters have systematically a higher ScEM than cooler clusters. This result is in very good agreement with current studies on the $L_{\rm X}-T$ relation and the entropy-temperature relation ( $S \propto T^{0.65}$) found recently. At radii r>0.4 r200 we find that the ScEM profiles agree well within the error bars, suggesting self-similarity. Fitting beta-models to the overall ScEM profiles, we find for the different subsamples $r_{\rm c}=0.15{-}0.18 r_{200}$ and $\beta=0.8$, which is higher than the canonical value of $\beta=2/3$ often found. The beta-model is generally a better representation for hotter than for cooler clusters. We see indications for continuous steepening of the profiles with increasing radius: at radii r>0.8 r200 the profiles are systematically below the beta-model curve with $\beta=0.8$.

We discuss our results with respect to the observed X-ray luminosity $L_{\rm X}-T$ relation, the gas mass $M_{{\rm gas}}-T$ relation and the total mass M-T relation. We also address implications on the origin of the observed S-T relation. Furthermore, we discuss the observed steepness of the X-ray profiles, which falls off more rapidly than predicted from the NFW-profile for cold dark matter halos.

Key words: galaxies: clusters: general - cosmology: observations - dark matter - large-scale structure of Universe - X-rays: galaxies: clusters

1 Introduction

In the hierarchical scenario of structure formation, clusters of galaxies are the largest and youngest objects in the universe which have virialized. This makes them ideal targets for cosmological studies. In order to use clusters as probes for cosmology one has to be sure that internal processes did not have time to erase the primordial information from which they have formed and that gravity was the only driving force responsible for the formation of the cluster.

Table 1: General cluster properties. For the references: I: Ikebe et al. (2002); G: Gomez et al. (1997); D: De Grandi & Molendi (2002); H: Horner et al. (1999).

X-ray observations of clusters of galaxies allow us to study cluster physics using the hot intra-cluster medium (ICM), which is spread out all over the cluster (see Sarazin 1986 for an introduction). In the past years studies have shown that the central parts of clusters show the presence of non-gravitational physical processes such as cooling flows or cores (e.g. Fabian 1994, 2003), interactions with AGN's (e.g. Boehringer et al. 1993; Belsole et al. 2001; McNamara et al. 2005) or sources, which change the ICM temperature from the virial temperature in the central parts (see Voit 2004, for an overview). Therefore, in order to study cosmology with clusters, it is wiser to concentrate more in the outer parts of clusters, where internal cluster processes are yet largely inactive due to much lower densities, which require longer timescales. Unfortunately, lower density goes together with lower emission: the ICM emits energy mainly via thermal bremsstrahlung, which is proportional to the density squared. Therefore external cluster regions show less X-ray emission with respect to the center, where the density is much higher. This lower emission translates in lower statistics for available X-ray observations. There are several ways to overcome the problem of low statistics in outer regions. One possibility which is often used is to fit the central parts of clusters with models, typically the beta-model or one of its more sophisticated derivatives, and to extrapolate into outer and undetected regions. The disadvantage of such a method is clear: the extrapolation depends on the validity of the model in external cluster regions. In order to overcome this problem we choose here to go a different way. In order to enhance statistics we employ a stacking method, in which we add different cluster profiles together. Before we add the profiles together we have to make sure that they are similar. For this we apply general cluster scaling laws which have in the past shown to work for observed X-ray cluster profiles (e.g. Mohr et al. 1999; Vikhlinin et al. 1999; Neumann & Arnaud 1999, 2001; Arnaud et al. 2002) and translate the X-ray profiles into emission measure profiles, which represent the gas density squared integrated along the line-of-sight.

Since we want to trace clusters out to large radii we need X-ray observations with large field-of-view and low background. Therefore we choose to look at ROSAT/PSPC (Trümper 1992) observations of a sample of nearby clusters.

The paper is organized as follows. After the introduction we describe briefly the sample selection in Sect. 2. In Sect. 3 we review the scaling relations which we use for the cluster profiles and the stacking. Section 4 describes the data treatment. In Sect. 5 we present our results, which we discuss in Sect. 6. We finish with the conclusion in Sect. 7.

We use the following cosmological parameters through out the paper: $\Omega_{{\rm m}0}=0.3, \Omega_\Lambda=0.7, H_0=70$ km s-1 Mpc-1. All error bars are 1$\sigma$.

2 The sample

2.1 General selection criteria

In order to trace the cluster profiles up to large radii we choose to use ROSAT/PSPC data which offer a large field-of-view of 2 degrees. These data have further the advantage of showing low background contamination. In order to assure that the cluster emission is well traced out to the virial radius with a large observed region only having background emission, which is important for background subtraction, we restrict ourselves to the redshift interval 0.06<z<0.1. Furthermore, to avoid high absorption of X-ray emission, which is especially critical in low surface brightness regions, such as the outskirts of clusters, we choose clusters with a hydrogen column density of nH<6 $\times$ 1020 cm-2. We only consider clusters with a fitted temperature estimate (preferentially obtained with ASCA or Beppo-SAX). Table 1 shows the clusters in our sample with some of their physical properties. In total we selected 14 clusters for our analysis in the temperature range 1.7< kT < 8.5 keV.

2.2 Notes on cluster temperature selection

When there exist several kT measurements for one cluster we take the latest published measurement. In most of the cases the references come from Ikebe et al. (2002). Comparing the results obtained by these authors with others, specifically with Markevitch et al. (1998) we find generally good agreement within the error bars.

There exist several kT measurements of A 2670, which range from 3.7 (Novicki et al. 2002; White et al. 1997) up to 5.6 keV (Sanderson et al. 2003). There are several intermediate measurements which agree within the error bars at around 4.5 keV (Horner et al. 1999; Finoguenov et al. 2000), so that we decided finally to include this cluster in our sample at this temperature. There were two clusters, which in principle fulfill our criteria, but which we discarded for further analysis: the first cluster is Abell 2734. Ikebe et al. (2002) fitted kT = 5 $\pm$ 0.4 keV for this cluster but Reiprich & Böhringer (2002) estimated kT = 3.9 $\pm$ 0.6. These different results are incompatible and we therefore exclude this cluster for our study. The second cluster, which we skipped is RX J2344. The reason: Ikebe et al. (2002) give large uncertainties of $\Delta kT$ = 4 keV, which we consider too high for our analysis.

3 Scaling relations


3.1 Virial radius R and r200

Assuming spherical symmetry the mass of the virialized part of a cluster is related to its virial radius by

\begin{displaymath}% M/R^3=\rho_{{\rm vir}}. \end{displaymath} (1)

(e.g. Kaiser 1986). Defining $\Delta_{\rm c}$ as the density contrast with $\Delta_{\rm c} = \rho_{{\rm vir}}/\rho_{{\rm crit}}$, - $\rho_{{\rm crit}}=3H_0^2/(8 \pi G)$ is the critical density of the universe and $E^2(z)=\rho_{{\rm crit}}(z)/\rho_{{\rm crit}}(z=0)$ we can write:

 \begin{displaymath}% M/R^3=\Delta_{\rm c} \rho_{{\rm crit}}(z) \propto \Delta_{\... ...\rm crit}}(z)}{\rho_{{\rm crit}}(z=0)}= \Delta_{\rm c} E^2(z). \end{displaymath} (2)

Applying the virial theorem to the ICM gives $M \propto RT$, where T is the ICM temperature. This yields together with Eq. (2) the mass temperature relation

\begin{displaymath}% M \propto \frac{T^{3/2}}{\sqrt{\Delta_{\rm c}}E(z)} \end{displaymath} (3)

and the radius temperature relation

 \begin{displaymath}% R \propto \frac{T^{1/2}}{\sqrt{\Delta_{\rm c}}E(z)} \end{displaymath} (4)

with

\begin{displaymath}% E^2(z)=\Omega_0(1+z)^3+\Omega_\Lambda \end{displaymath} (5)

in our choice of cosmological parameters and

\begin{displaymath}% \Delta_{\rm c}= 18 \pi^2 +82 (\Omega(z)-1) - 39 (\Omega(z)-1) ^2 \end{displaymath} (6)

with

\begin{displaymath}% \Omega(z)= \frac{\Omega_0 (1+z)^3}{E^2(z)} \end{displaymath} (7)

using the usual spherical top hat model (Eke et al. 1996; Bryan & Norman 1998). In the case of a critical density universe, $\Delta_{\rm c}$ is constant with $18 \pi^2$.

For the normalization of the x-axis of the surface brightness profiles we use r200, the radius in which the mean over-density of the cluster is 200 times the critical density of the universe. Numerical simulations have shown that within this density contrast clusters can be assumed to be in equilibrium (see Cole & Lacey 1996). At larger radii in-fall becomes important and the assumption of virialization is not anymore valid. To calculate r200 we use its definition:

 \begin{displaymath}% M_{200} = \frac{4 \pi}{3} 200 \rho_{{\rm crit}} r_{200}^3. \end{displaymath} (8)

We are interested in the r200-T relationship at the mean redshift of our sample, z = 0.08. With the choice of our cosmological parameters we find $\rho_{{\rm crit}}$ = 146 $M_\odot$/kpc3. To calculate r200 we need a relationship between M and r.To establish this relationship we can use the hydrostatic equation using the X-ray emitting intra-cluster medium (ICM):

 \begin{displaymath}% \frac{1}{\rho_{\rm g}}\frac{\mbox{d}P}{\mbox{d}r} = -\frac{\mbox{d}\Phi}{\mbox{d}r} = -\frac{GM(r)}{r^2} \end{displaymath} (9)

$\rho_{\rm g}$ is the gas density and P is the pressure. We can use the equation of state of a perfect gas for the ICM: P=nkT. Assuming that the ICM is isothermal we only need the gas density distribution of the gas to calculate the total mass at a given radius r. Referring to the beta-model, which we will introduce in Sect. 5.3 and more specifically in Eq. (22) we can rewrite Eq. (9) as:

\begin{displaymath}% M(r) = \frac{3 k \beta}{G \mu m_{\rm p}} \frac{T r^3}{r^2 + r_{\rm c}^2} \end{displaymath} (10)

$\mu=0.59$ is the mean molecular weight. We find for ${\beta }$ values of 0.80 (see Sect. 5.3). Since we are interested in the outer parts of clusters, where $r \gg r_{\rm c}$, we can neglect $r_{\rm c}$ for getting r200.

Therefore we can approximate at large radii:

 \begin{displaymath}% M(r) = \frac{3 k 0.8 T r}{G \mu m_{\rm p}}\cdot \end{displaymath} (11)

Inserting Eqs. (11) into (8) gives:

 \begin{displaymath}% r_{200} = 0.86 \sqrt{\frac{kT}{{\rm keV}}}~{\rm Mpc} \end{displaymath} (12)

at z=0.08, which is our r200-T relation at this redshift. We will discuss this and the resulting M-T relation in detail in the discussion.

Now, practically, to scale the profiles to r200 we do the following: we calculate for each cluster the angular diameter distance and translate the surface brightness profile into a profile with Mpc scale using our adopted cosmological parameters. We then apply the relationship shown in Eq. (4) for each cluster to place each cluster at z = 0.08.- We multiply the radius in Mpc scale by $(\sqrt{\Delta_{\rm c}(z=0.08)}E(z=0.08))/(\sqrt{\Delta_{\rm c}(z)}E(z))$. Please note: the redshift interval is very small so that this correction is not very important. Now, that we "virtually red-shifted'' the cluster to z = 0.08 we can apply Eq. (12) to calculate its r200 and divide the Mpc scale of the surface brightness profile by this value. The surface brightness profile is now in units of r200. In Table 1 we display the physical parameters which are necessary to calculate r200 for each cluster.

3.2 Emission measure profiles and self-similarity

The emission measure is defined to be the gas density squared integrated along the line-of-sight:

\begin{displaymath}% EM(r) = \int n_{\rm g}^2(l) {\rm d}l = \int_r^R \frac{n_{\rm g}^2(x)x{\rm d}x}{\sqrt{x^2-r^2}}\cdot \end{displaymath} (13)

Assuming self-similarity, the mass-temperature and radius-temperature relation and supposing that $M_{{\rm gas}} \propto M$ we find:

 \begin{displaymath}% EM(r) \propto \frac{M^2}{R^5} \propto \sqrt{T} \left(\sqrt{\Delta_{\rm c}}E(z)\right)^3 \end{displaymath} (14)

however, EM(r) is not measured directly. What can be observed is the X-ray surface brightness of ICM (see below), which is

\begin{displaymath}% S(r)=\Lambda(T,z) \frac{EM(r)}{4\pi (1+z)^4} \end{displaymath} (15)

$\Lambda(T,z)$ is in our case the emissivity in the chosen ROSAT band (0.5-2.0 keV) taking into account interstellar absorption and the PSPC spectral response. $\Lambda(T,z)$ can be calculated by simulating a red-shifted cluster spectrum with a given plasma temperature and folding it through the spectral response of the ROSAT/PSPC. In our case we use XSPEC for the spectral simulations. One can thus translate the observed surface brightness profile into the emission measure EM(r) profile. Self-similarity of clusters implies that the scaled emission measure profiles should be identical for all clusters:

 \begin{displaymath}% {\it ScEM}(r/r_{200}) = \frac{4 \pi (1+z)^4 S(r/r_{200})}{\Lambda(T,z)\sqrt{T} \left(\sqrt{\Delta_{\rm c}} E(z)\right)^3} \end{displaymath} (16)

${\it ScEM}(r/r_{200})$ can be calculated directly from the observed surface brightness distribution. We apply Eq. (16) for all the cluster profiles using the best fit temperature displayed in Table 1.

4 Data treatment

4.1 Surface brightness profile

For each cluster we create an image in the 0.5-2.0 keV range and calculate the corresponding exposure maps taking into account wobbling of the satellite and the geometry of the support structure of the PSPC. We create from these images radial surface brightness profiles with a bin size of each annulus of 15 arcsec. Obvious point sources or clearly identified substructures are cut out. All profiles have 220 bins (or 55 arcmin) with the exception of A 1775: this cluster was observed off-axis and we have to restrict ourselves to 190 bins in this case.

We use the software package EXSAS for these tasks.

4.2 Background subtraction

Since we are interested in the profiles of the outskirts of the clusters where source emission is low, background subtraction is a crucial point in our analysis.

To determine the background for each cluster, we calculate the mean emission B1 in the radial range 1.5<r/r200<2.5. In this region we are confident to not anymore detect cluster emission. In order to check whether the background is flat we also calculate the background in the region 1.5<r/r200<2 (B2). If $\vert B_1 - 2\times \sigma/\sqrt{no.}\vert< B_2$, where $\sigma$ is the standard deviation of B2 and no. is the number of radial bins which fulfill the criterion 1.5<r/r200<2, we consider the background emission as flat. There are some clusters (A 644, A 2029, and A 1795) for which our profile does not go up to 2 $\times$ r200. In this case we consider for B1 the region in which  r/r200>1. and for B2 1.0<r/r200<1.5. All clusters fulfill the criterion of $\vert B_1 - 2\times \sigma/\sqrt{no.}\vert< B_2$ with the exception of A 3112 and A 2670. In these particular cases we determine the background B1 in the interval 1.0<r/r200<1.5. For all clusters we use B1 as background estimate in the following, which we subtract from the original extracted surface brightness profile. The error of the background estimates is typically 10% of the statistical error in the surface brightness bins close to r200. Adding this background uncertainty quadratically to the statisical error would enhance the error by roughly 1%, which is negligible. In the following we therefore do not take into account the error of the background.

We applied several methods to determine the background level and checked the robustness of our results with different background subtractions. All background subtractions we performed yielded the same results.

4.3 From the surface brightness profiles to the scaled and stacked emission measure (ScEM) profiles

To obtain the ScEM profile for each cluster we use the background subtracted surface brightness profiles and apply Eq. (16) to the y-axis. The scaling to r200 is explained in Sect. 3.1.

4.4 Stacking and subsample selection

We are interested in the outer parts of clusters, where statistics is generally sparse. In order to improve the statistics we opt for a stacking method, in which we add different emission measure profiles together. We also want to study the temperature dependence of the scaled emission measure profile. Therefore we divide our sample up in subsamples which represent different cluster temperatures. Figure 2 shows the temperature distribution in our sample and the selection of the 6 subsamples in different temperature intervals. The subsample composition is also shown in Table 2.


  \begin{figure} \par\includegraphics[width=8.15cm,clip]{3015fig1.ps}\end{figure} Figure 1: The scaled emission measure profiles of all clusters before stacking. The error bars here are based on pure photon statistics.
Open with DEXTER


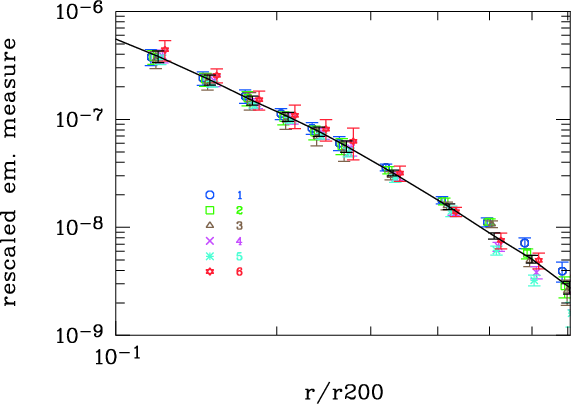

  \begin{figure} \par\includegraphics[width=7.8cm,clip]{3015fig2.ps}\end{figure} Figure 2: The temperature distribution of the clusters (see also Table 1) in our sample and the selection in temperature of subsample 1 to 6.
Open with DEXTER

Table 2: The membership list of clusters of the different subsamples. The first column shows the subsample number, the second column the temperature interval for each subsample and the third column shows the average temperature of each subsample.

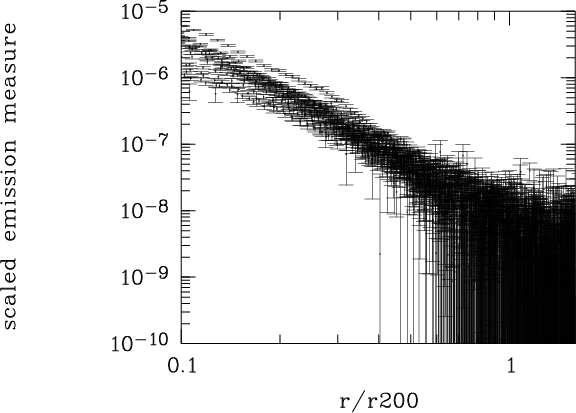

Figure 1 shows the scaled emission measure profiles for all clusters before stacking.

In order to stack the scaled profiles together all the points of the different ScEM profiles must be located at the same relative position with respect to r200, the radius to which we scale the profiles. For this we interpolate all scaled emission measure profiles linearly with a step-width of 0.03 $\times$ r200. This gives for each profile 33 points up to the virial radius. This is about half of the points we have for each original emission measure profile. With the reduction of the data points we make sure that each original data point is only used once for the linear interpolation and that the resulting data points are thus uncorrelated. We calculate the mean scaled emission measure for each subsample:

\begin{displaymath}% \overline{{\it ScEM}_k}(r/r_{200}) = \frac{\sum_{i=j}^{n} {\it ScEM}(i,r_{200})}{n-j+1} \cdot \end{displaymath} (17)

k is the index for the subsample and ranges from 1 to 6 (see also Table 2). j and n is the number of the first and of the last cluster in the subsample. The number of the cluster raises with temperature, so the coldest cluster, A 578 has number 1 and the hottest cluster, A 2142 has number 14 (see also Table 2). We also calculate $\overline{{\it ScEM}}(r)$ for all 14 clusters together.


4.4.1 The uncertainty of the scaled emission measure profiles

There are different possibilities to calculate the uncertainty of the scaled and stacked emission measure profiles. As a first attempt one can add quadratically the different statistical errors of the individual profiles based on photon numbers

\begin{displaymath}% \Delta_{{\rm stat}} \overline{{\it ScEM}_k}(r/r_{200}) = \f... ... ScEM}\left(i,\frac{r}{r_{200}}\right)\right)^2}}{n-j+1} \cdot \end{displaymath} (18)

$\Delta_{{\rm stat}} \overline{{\it ScEM}}(r/r_{200})$ is the mean error of the stacked profile taking into account the internal error of each profile. However, in this error calculation differences linked to effects such as morphology (substructure, ellipticity), redshift or temperature uncertainties are not taken into account. Another approach is to calculate the dispersion for the stacked profiles at a given radius and to determine the mean error from this. The mean error per point for the stacked profiles is in this case:

 \begin{displaymath}% \Delta \overline{{\it ScEM}}(r/r_{200}) = \frac{\sigma(r/r_{200})}{\sqrt{n-j+1}} \end{displaymath} (19)

where $\sigma(r/r_{200})$ is the rms at r/r200 averaged over all profiles in the subsample.

If only uncertainties due to photon statistics were important $\Delta_{{\rm stat}} \overline{{\it ScEM}}(i)$ and $\Delta \overline{{\it ScEM}}(i)$ should be of the same order. Else, $\Delta \overline{{\it ScEM}}(i)$ has higher values than $\Delta_{{\rm stat}} \overline{{\it ScEM}}(i)$. Therefore, to be conservative we choose in the following $\Delta \overline{{\it ScEM}}(i)$ for the error bars. As we will see, in the central parts there is a systematic trend of higher ScEM with higher temperature. This increases the dispersion of the scaled emission measure profiles for each subsample and is also, of course, dependent on the temperature interval of the subsample. The smaller the temperature interval, the smaller should be the apparent dispersion. This effect is not of statistical origin but is systematics. This results in a likely overestimate of the calculated error bars in the central parts.

5 Results

5.1 The different stacked emission measure profiles

Figure 3 shows the scaled emission measure profile averaged over all clusters as well as the mean profile of subsamples 1 and 4 (see also Table 2), which represent each one half of all the clusters. Up to about  0.4 r200 we see a systematic trend of higher ScEM for higher kT clusters, which signifies a deviation from self-similarity and implies that, apart from the spherical collapse based on gravity, additional clusters physics plays a role in these regions. At larger radii the different ScEM profiles agree well within the error bars. In Fig. 4 we show the stacked emission measure profiles of the smaller subsamples. Also here, in the central parts, the same trend is visible. The higher the average cluster temperature the higher the central values for the ScEM profile. The profiles start to agree within the error bars at different radii. This effect might be at least partially caused by the low number of clusters in the subsamples. Subsample 6 does not allow a proper assessment of the statistical uncertainties since it only contains 2 clusters. Additionally, one of the clusters in this subsample is Abell 2142, which is known to contain an important amount of substructure (Markevitch et al. 2000).


  \begin{figure} \par\includegraphics[width=8.1cm,clip]{3015fig3.ps}\end{figure} Figure 3: The stacked scaled emission measure profile of subsample 1 and 4 and for all clusters together.
Open with DEXTER

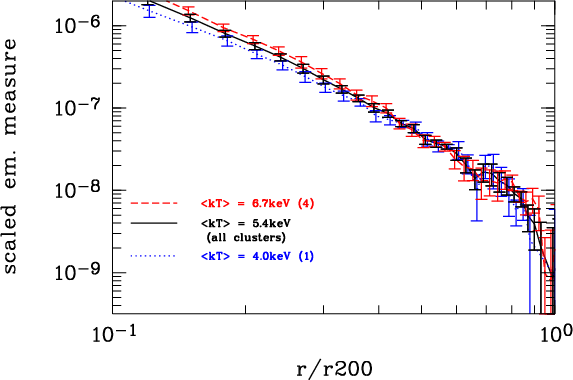

  \begin{figure} \par\includegraphics[width=7.8cm,clip]{3015fig4.ps} % \end{figure} Figure 4: The mean scaled emission measure profile and the mean profiles for subsample 1, 2 and 3 ( top panel) and subsample 4, 5, and 6 ( bottom panel). Please note: subsample 6 comprises only 2 clusters and the shown error based on the dispersion of the profiles has to be interpreted very cautiously.
Open with DEXTER

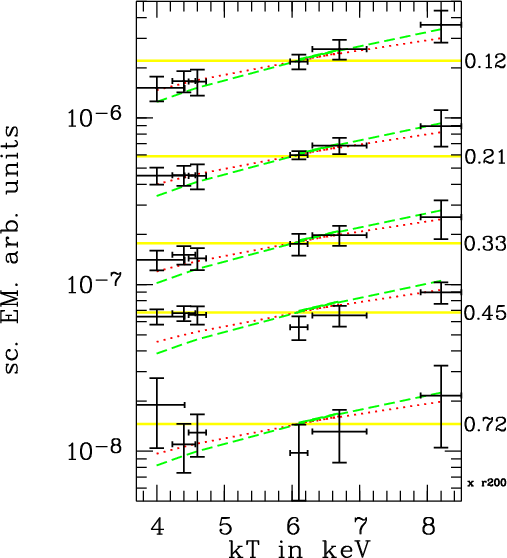

We show in Fig. 5 the scaled emission measure at different radii as a function of average subsample temperature (see Table 2). Displayed is at the same time the rms of the best fit cluster temperatures divided by the square root of the number of clusters in each subsample (error bars in x-direction). In Fig. 5 we see again up to about  0.4r200 a systematic trend of higher ScEM for hotter clusters, which disappears, when approaching  0.4 r200. We will discuss the differences of the ScEM profiles in the central parts in Sect. 6.


  \begin{figure} \par\includegraphics[width=7.2cm,clip]{3015fig5.ps} % \end{figure} Figure 5: The scaled emission measure as a function of temperature for different radii. The corresponding radii are shown in units of r200 right to the figure. The error bars in the x-direction show the statistical uncertainty of the cluster temperature in each subsample (see text). The horizontal lines show the mean  ScEM averaged over all the subsamples at the selected radii. The dotted line shows the relationship ${\it ScEM}\propto T$ and the dashed line ${\it ScEM} \propto T^{1.4}$. Please note: subsample 6 comprises only 2 clusters and the shown error based on the dispersion of the profiles has to be interpreted cautiously.
Open with DEXTER

5.2 Quantification of differences

In order to quantify the differences between the different profiles we apply a $\chi ^2$-test in different radial intervals with $r_1 \leq r \leq r_2$, in which $\chi ^2$ is defined in the following way:

\begin{displaymath}% \chi^2 = \sum_{r_1}^{r_2}\frac{\left(\overline{{\it ScEM}_1... ...ScEM}_1(r_i)}^2 + \Delta \overline{{\it ScEM}_4(r_i)}^2} \cdot \end{displaymath} (20)

$\Delta \overline{{\it ScEM}_i}$ is defined in Eq. (19). We only concentrate here on subsample 1 and 4 since they are the only ones in which we have enough clusters to achieve sufficiently good statistics for this test. The corresponding results are shown in Table 3. The $\chi ^2$ results vary from 8.5 for the central parts down to 1.2 in the external parts of the clusters. The lower the value of $\chi ^2$, the higher is the probability that the 2 profiles have the same shape and normalization. The lower values for the external regions are explained by the larger error bars and the apparent missing trend that hotter profiles show a higher scaled emission measure. It is a reconfirmation that the profiles do not coincide in the central parts.

Table 3: $\chi ^2$ test results between subsample 1 and 4 in different radial regimes. The first two columns give the inner and the outer boundary of the radial interval taken for the test.


5.3 Beta-model fits

The beta-model is defined the following way see (Cavaliere & Fusco-Femiano 1976):

\begin{displaymath}% S(r) = S_0 \left(1+\frac{r^2}{r_c^2}\right)^{-3\beta+0.5} . \end{displaymath} (21)

S(r) is the surface brightness. S0 is the central surface brightness, $r_{\rm c}$ the core radius and ${\beta }$ a slope parameter. The beta-model is such a successful model as it allows us to deproject easily the surface brightness of the ICM which emits via thermal bremsstrahlung into a gas density profile:

 \begin{displaymath}% n(r) = n_0 \left(1+\frac{r^2}{r_{\rm c}^2}\right)^{-3\beta/2}. \end{displaymath} (22)

Emission measure profiles have the same shape as surface brightness profiles. Therefore we can use the beta-model also for our stacked emission measure profiles. To further quantify the differences of the various scaled emission measure profiles we fit beta-models in different radial intervals. Again, for statistical reasons we only concentrate here on subsample 1 and 4. Table 4 resumes our results. We fit in 4 different radial intervals. We do not look at regions <0.1 $\times$ r200 since central parts of clusters are often affected by so-called cold cores, which raise the central surface brightness of some clusters and which subsequently enhance the dispersion of the profiles in these regions.

As can be seen in Table 4 for the fit in the different regions the parameters ${\beta }$ and $r_{\rm c}$ change less for subsample 4 (the hotter clusters) than for subsample 1 (the cooler clusters). This indicates that the beta-model is a better description for hotter than for cooler clusters. In Fig. 6 we show the ScEM profiles with logarithmic binning and the best fit beta-model profiles for 0.1<r/r200<1.2. We see that the beta-model is too shallow for sample 1 in the center and at radii r>0.8r200. For sample 4 we see that the beta-model is a good description in the center, however, also in this sample we see indications that the profile falls off more rapidly in the outskirts than predicted with our best fit overall beta-model. In Fig. 7 we zoom into the external parts of the ScEM profile and show the results of the different subsamples with logarithmic binning. There is an obvious trend that the data points lie below the beta-model curves at radii  r>0.8 r200.

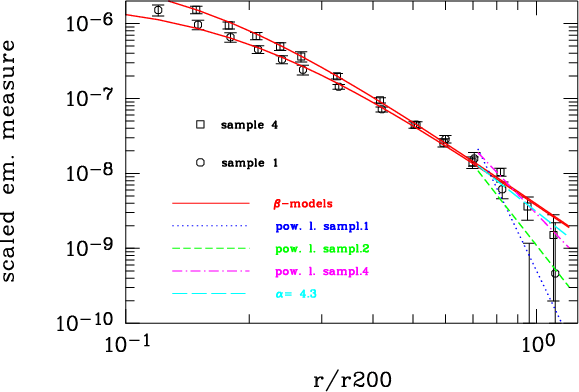

In Fig. 6 we see that the fitted beta-models for subsample 1 and 4 are identical at radii  r>0.6 r200. This can be easily explained by the fact that we fit identical ${\beta }$'s for the 2 samples. The differences found for the core radii do not play anymore an important role in the outskirts of clusters.

Table 4: Results of the beta-model fitting. Error bars are $1\sigma $-level. The first column shows the subsample number. The second shows the interval in units of r200 in which the beta-model is fitted. $r_{\rm c}$ is also in units of r200.


  \begin{figure} \par\includegraphics[width=8.2cm,clip]{3015fig6.ps}\end{figure} Figure 6: The profiles of subsample 1 and 4 with logarithmic binning with different models superposed. The curve corresponding to $\alpha =4.3$ is our lower limit for the slope in the cluster outskirts (see text). This slope matches at the same time a density profile which follows the NFW-profile at these radii (see text). We normalize this $\alpha =4.3$ profile to match the data points at r=0.7 r200.
Open with DEXTER

The found $\chi^2_{{\rm red}}$ values are systematically lower for subsample 4 than for subsample 1. This again indicates that the beta-model is a better description for hotter than for cooler clusters.

For the two samples we find a mean ${\beta }$ of about $\overline{\beta} = 0.8$ and $\overline{r_{\rm c}} = 0.15 r_{200}$ for subsample 4 and $\overline{r_{\rm c}} = 0.19r_{200}$ for subsample 1. The mean value for ${\beta }$ which we find is with around 0.8 higher than the canonical value of 2/3 as often found by fitting individual clusters without any stacking.

If we perform beta-model fits with $\beta=2/3$ fixed, we obtain values of $r_{\rm c}$ of  0.09 r200 for subsample 1 (the cooler clusters) and  0.039 r200 for the hotter ones. The corresponding reduced $\chi ^2$ values are 1.9 (subsample 1) and 1.6 (subsample 4). These values are significantly higher than the reduced $\chi ^2$ values for our best fits leaving ${\beta }$ as a free parameter.


  \begin{figure} \par\includegraphics[width=8.2cm,clip]{3015fig7.eps} % \end{figure} Figure 7: Zoom into the outskirts of the ScEM-profiles. The curve showing a power law with slope $\alpha =7.22$ is based on the fit in the outer parts of all ScEM profiles stacked together (see also Table 5). The symbols and error bars of the different subsamples are shifted with respect to each other only for visibility. The points of the different profiles have all the same location in x-direction.
Open with DEXTER

5.4 Power law fits

Beside the beta-model fits we also perform power law fits in different radial intervals for subsample 1 and 4. The power law we fit has the following form:

 \begin{displaymath}% S(r)= N_{200} r^{-\alpha} . \end{displaymath} (23)

N200 is the normalization of the power law at r200 and $\alpha$ is the power law index. Our fit results are displayed in Table 5. We fit power laws with increasing $\alpha$ as we go to larger and larger radii, which shows a continuous steepening of the profiles. In the outskirts of the cluster a beta-model with $\beta=0.8$, as found in the previous section gives $\alpha=3.8$. The power law fits we find for radii  >0.7 r200 are systematically higher than this. This indicates again that the ScEM profiles show a steeper slope in the external parts of the cluster than predicted by a beta-model with $\beta=0.8$. $\alpha=3.8$ is not compatible with any of our fit results in the external parts of the cluster.

The power law fits in the regions 0.7<r/r200<1.2 suffer from the fact that we a) have relatively large error bars per bin and b) do not have a large number of bins. This explains our low $\chi^2_{{\rm red.}}$ values and the large error bars for the fit parameters. Since subsample 1 has such a high value for $\alpha$ we also show the fit result for subsample 2, which contains all clusters of subsample 1 with the exception of A 578, the coolest one. We see a dramatic difference of the fitted $\alpha$ in subsample 1 and 2. There is a good agreement between the fit results of subsample 2 and subsample 4 within the error bars. However, subsample 1 and 4 give, as subsample 1 and 2 results not compatible within the error bars. We also show the power law profiles fitted in the outer parts of the clusters in Figs. 6 and 7. All power law profiles show a steeper slope than the beta-model.

The error bars on the ScEM profiles are very large in the external parts and it is therefore impossible to give an exact value for $\alpha$ and to estimate with certainty whether the different profiles have the same shape, e.g. whether clusters are 100% self-similar in the external parts or not. We see very steep profiles in the outskirts. Because of the steepness of the profiles, slightly wrong temperature measurements, which shift the profiles along the x-axis can have dramatic effects on the power law fit results. Currently, we are only able to give a lower limit on $\alpha$ at radii r>0.7 r200 which is $\alpha \le 4.3$. This lower limit is based on the fact that it is the lowest value, which is compatible with the fit results (based on the fit of subsample 2).

Table 5: Results of the power law fitting. Error bars are $1\sigma $-level. The first column shows the subsample number. The second column shows the interval in units of r200 in which the power law is fitted.


6 Discussion

6.1 The beta-model parameter ${\beta }$ as function of temperature

We fit systematically higher ${\beta }$-values to the overall cluster profiles than previous studies, which find generally $\beta=2/3$. Additionally, previous work has shown an increase of ${\beta }$ with temperature (e.g. Castillo-Morales & Schindler 2003; Sanderson et al. 2003)[*].

Previous studies extracted and fitted individual X-ray profiles. The disadvantage of looking at profiles without averaging them before fitting is the limited statistics at the cluster outskirts. However, this part is essential to measure the right slope of the profiles. In Table 4 we show our results of beta-model fitting in different regions of the clusters. We can see that the fitted ${\beta }$'s are systematically smaller in the central parts in comparison to fits going out to $r \ge r_{200}$. This is especially true for subsample 1, which comprises the coolest clusters in our sample. (This trend is in agreement with the results of Bartelmann & Steinmetz 1996; and Borgani et al. 2004, who fit beta-models to the ICM of simulated clusters). We therefore suggest that the apparent $\beta-T$ correlation is linked to the fact that the beta-model is not a good overall description of the clusters, especially for cold and small systems and that fitting only central parts of clusters gives systematically lower values for ${\beta }$ than overall beta-model fits. Since cooler clusters offer generally less statistics than hotter systems, due to lower luminosity and emission measure ( $EM \propto \sqrt{T}$), they are generally detected out to smaller radii with respect to r200 than their hotter counterparts. It is therefore not surprising that studies based on fitting individual clusters find a trend of increasing ${\beta }$ with cluster temperature. We can resume for clusters at the same redshift and with the same exposure time: the hotter the cluster, the larger the radius of detected cluster emission with respect to r200, and the higher the corresponding fitted ${\beta }$-value.

6.2 The Lx - T relation

The central part of clusters is the region where most energy is radiated. Therefore, the central parts of clusters are responsible for the majority of the X-ray luminosity $L_{\rm X}$ of clusters. Using a beta-model with $r_{\rm c}=0.15 r_{200}$ and $\beta=0.8$, based on our best fit results, we calculate that 90% of $L_{\rm X}$ comes from the region $r\le 0.4 r_{200}$. We see deviations from the predicted self-similarity in regions smaller than  0.4 r200. At larger radii the ScEM profiles of subsample 1 and 4 agree well within the error bars, which suggests self-similarity in the outer cluster parts.

Previous work (Edge & Stewart 1991; Arnaud & Evrard 1999; Markevitch 1998; Allen & Fabian 1998) has shown that the observed $L_{\rm X}-T$ relation deviates from predictions based on simple self-similarity. Instead of

 \begin{displaymath}% L_{\rm X} \propto T^2 \left({\propto} M_{{\rm gas}}^2 \Lambda(T)/R^3\right), \end{displaymath} (24)


\begin{displaymath}% L_{\rm X} \propto T^3 \end{displaymath} (25)

with a certain error was found. It is logically to assume that the deviations from self-similarity in the central regions of clusters and the observed $L_{\rm X}-T$ relation are linked together. If we assume that clusters are self-similar for $r\ge 0.4 r_{200}$ (which implies $L_{\rm X} \propto T^2$ in these parts), we can calculate the needed relationship $L_{\rm X} \propto T^x$ for $r\le 0.4 r_{200}$ to obtain the observed overall $L_{\rm X} \propto T^3$ relation:

0.9Tx + 0.1 T2 = T3 (26)

this gives $x\sim 3.1{-}3.5$ for temperatures which vary, as in our sample between 2 and 8 keV. If our hypothesis is correct, we should observe a  $L_{\rm X}-T$ relation within a projected radius $r\le 0.4 r_{200}$ which scales as $L_{\rm X} \propto T^{3.1...3.5}$. Assuming that $R\propto T^{1/2}$, and that the differences originate entirely from the $M_{{\rm gas}}-T$ relation at $r\le 0.4 r_{200}$ with

\begin{displaymath}% M_{{\rm gas}}(r \le 0.4 r_{200}) \propto T^y \end{displaymath} (27)

we find using Eq. (24) y = 2-2.2 instead of y=3/2, which is predicted from self-similarity.

Our sample ranges from roughly 2 keV up to 8 keV clusters. y=2-2.2 implies that a 8 keV cluster has 2-2.6$\times$ more gas mass than predicted from self-similarity with respect to a 2 keV cluster ( (8/2)2-3/2=2, (8/2)2.2-3/2=2.6). However, this is only valid for $r\le 0.4 r_{200}$. The fraction of gas mass in this region is about 6-7% of the total gas mass calculated up to r200. The increase of  $M_{{\rm gas}}$ is therefore very modest for the entire cluster.

We can check whether this predicted $M_{{\rm gas}}-T$ relation in the central region matches our data. ScEM should be independent on the temperature in the self-similar case and ${\it ScEM} \propto T^{1....1.4}$ to explain the observed $L_{\rm X}-T$ relation. Figure 5 shows ${\it ScEM}\propto T$ and ${\it ScEM} \propto T^{1.4}$ for different radii normalized to 6 keV. We see indeed, that the curves match quite well the data points in the cluster center, which reinforces the idea, that it is the observed deviation from self-similarity in the central parts of clusters, which explains the $L_{\rm X}-T$ relation. In another representation we show in Fig. 8 the ScEM divided by the mean temperature for each subsample. The different profiles should therefore coincide if they scale with T and the resulting gas mass with $M_{{\rm gas}} \propto T^2$ instead of $M \propto T^{3/2}$, which is predicted from simple scaling laws. As one can see at r<0.4r200 the profiles coincide rather nicely, however, at larger radii the profiles diverge.

The idea that the deviation of the gas mass from self-similarity expectations is responsible for the observed $L_{\rm X}-T$ relation is not new, we presented this idea already in another paper (Neumann & Arnaud 2001). However, we see for the first time, that this break of self-similarity is only present in the central parts.

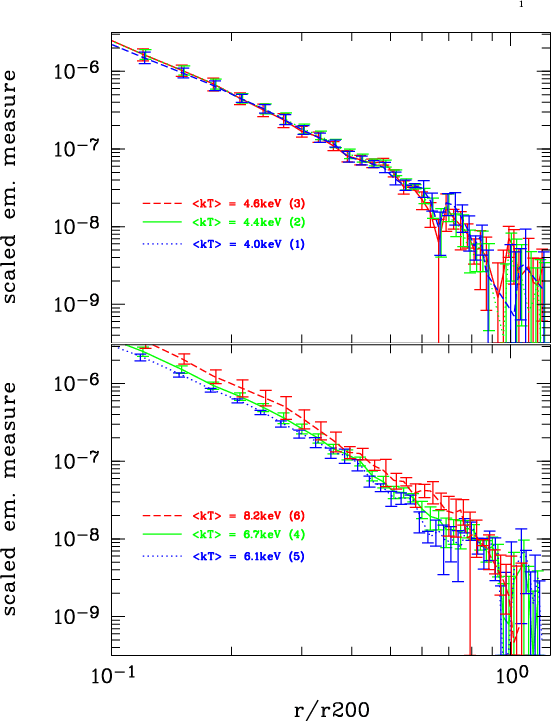

  \begin{figure} \par\includegraphics[width=8.15cm,clip]{3015fig8.eps} % \end{figure} Figure 8: The different ScEM profiles divided by the mean cluster temperature for each subsample. This corresponds to $M_{{\rm gas}} \propto T^2$ instead of $M \propto T^{3/2}$ predicted from simple scaling laws.
Open with DEXTER

6.3 Entropy in the cluster centers

It is now common to write the entropy of the ICM in terms of $S\propto T/n_{\rm e}^{3/2}$. If clusters were perfectly self-similar the ICM density should be independent of temperature and thus $S \propto T$ should be observed. However, $S \propto T^{0.65}$ is found (Ponman et al. 2003; Pratt & Arnaud 2003; Piffaretti et al. 2005; Pratt & Arnaud 2005). We observe in the central parts of the clusters in our sample that ${\it ScEM}\propto T$ instead of a ScEM independent of temperature. The deviation of S from self-similarity and the observed ScEM-T relation represent the same fact: $n \propto \sqrt{T}$. This result is in agreement with our previous work (Neumann & Arnaud 2001), where we studied a sample of clusters in the z interval 0.04<z<0.06. The deviation of the entropy from the self-similar prediction is commonly an argument for the existence of non-gravitational heating in clusters even though recently radiative cooling to explain the feature became an issue (e.g. Muanwong et al. 2002).

We can synthesize the results: the observed $L_{\rm X}-T$ relation of $L_{\rm X} \propto T^3$, $S \propto T^{0.65}$ and ${\it ScEM}\propto T$ are caused by the fact that $n \propto \sqrt{T}$ instead of a density which is independent on the temperature in the central parts of clusters at  r<0.4 r200.

Despite this good agreement of the work by different authors, there exist some important discrepancies: Ponman et al. (2003) observe the entropy scaling of $S \propto T^{0.65}$ up to very large radii, which is in clear contradiction with our results, which suggest self-similarity in the outer parts ( r>0.4 r200) and thus $S \propto T$. Ponman et al. (2003) fit beta-models to the surface brightness profiles to individual clusters in their sample and then add together profiles of clusters in different temperature intervals[*]. This is, at first sight, similar to our procedure here, however the main difference is that we add the profiles together before we fit the beta-model and not after fitting. Adding the profiles together before fitting has the advantage of enhancing the statistics of the profiles themselves, especially in our case in the outer cluster parts. These regions generally provide very low statistical quality with respect to the center. Only in adding up different profiles we have sufficient statistics to trace the X-ray profiles out to r200 and beyond.

The differences of the S-T relation in the center and in the outer cluster parts is an important piece of information for the physical modeling of the ICM. A lot of effort has been already put into explaining the observed deviation of the S-T relation from self-similarity. Cavaliere et al. (1999) developed a model in which hierarchical clustering and thus in-fall from substructures was taken into account. Tozzi & Norman (2001) and Dos Santos & Doré (2002) looked at the effects of an initial background entropy level and shock heating. More recent models based on simulations integrate galaxy feedback and radiative cooling (Kay et al. 2004; Kay 2004; Muanwong et al. 2002). Voit & Ponman (2003) propose smooth accretion models to explain the observed entropy scaling. For a comprehensive summary on entropy profiles and their impact on clusters as well as general cluster properties see Voit (2004). There is also the possibility that AGN heat the ICM and modify the entropy levels; this was discussed by Nath & Roychowdhury (2002), Roychowdhury et al. (2004) and by Lapi et al. (2005), yielding good agreement with observations. Another, maybe more exotic, effect to explain the observations was recently proposed by Zioutas et al. (2004): the X-ray observations might be affected by hard X-ray emission from decaying dark matter particles.

The fact that we only find departures from self-similarity in the inner cluster parts suggests that the source(s) responsible for the relation $S \propto T^{0.65}$ act(s) only or mainly in the center of clusters. One can see that the ScEM profiles are parallel in the centers (see Figs. 3 and 8) (see also Neumann & Arnaud 1999; Pratt & Arnaud 2005). This implies that $S \propto T^{0.65}$ and $n \propto \sqrt{kT}$ not only at r=0.1 r200 as suggested by Ponman et al. (2003) but all the way up to r=0.4 r200. The offset of the parallel curves with respect to each other defines the deviation of the S-T relation from the expected simple scaling laws. The fact that the ScEM profiles are parallel suggests that at each radius the deviation of the S-T relation is strongly correlated to the gas density n. It is therefore logical to assume that it is a process which depends on n which is responsible for the observed S-T relation. A natural process in this respect would be radiative cooling. Radiative cooling could also explain why we only see the departures from self-similarity in the center. In the outer parts the density is not high enough to make this mechanism sufficiently efficient to be observed. However, we cannot rule out other mechanisms, such as AGN heating, for explaining our results. More modelling of physical effects is needed (see Borgani 2005).


6.4 The M200-T relation

Making use of the beta-model and taking Eqs. (11) and (8) together, we can calculate the r200-T and M200-T relation at any given redshift:

\begin{displaymath}% r_{200}(z) = \frac{0.89}{E(z)} {\sqrt{{kT}\over{{\rm keV}}}}~{\rm Mpc} \end{displaymath} (28)

and

\begin{displaymath}% M_{200}(z) = \frac{8.0 \times 10^{13}}{E(z)} \left({{kT}\over{{\rm keV}}}\right)^{3/2}~M_\odot. \end{displaymath} (29)

Please keep in mind that these are the relations assuming that the ICM is isothermal.

Bryan & Norman (1998) calculated a M-T relation of clusters based on Eulerian hydrodynamic simulations. Using our choice of cosmological parameters they found for an over-density $\Delta_c E^2(z)=101$ at z=0:

\begin{displaymath}% M = 12.4 \times 10^{13} \left(\frac{kT}{{\rm keV}}\right)^{3/2}~M_\odot. \end{displaymath} (30)

We can calculate our M-T relation for the same over-density (multiplying the M200-T relation based on the beta-model with  $\sqrt{200/101}$), which gives:

\begin{displaymath}% M = 11.2 \times 10^{13} \left(\frac{kT}{{\rm keV}}\right)^{3/2}~M_\odot. \end{displaymath} (31)

We see a difference of 10% with respect to the results of Bryan & Norman (1998). The corresponding observed R-T relation has a 3% lower normalization than the relation based on simulations. This difference is quite small and is less than found in other studies based on X-ray data, which give normalisations much lower than the results of Bryan & Norman (1998) (e.g. Horner et al. 1999; Mohr et al. 1999; Finoguenov et al. 2001; Nevalainen et al. 2000; Allen et al. 2001; Arnaud et al. 2005)[*]. The difference between our results and previous studies is the fact that we see a steeper slope for the profile in outer parts, which translates in a higher value for ${\beta }$. Using the hydrostatic equation, the assumption of isothermality of the ICM and the beta-model to calculate the M-T relation one finds that the normalization of this relation is directly proportional to ${\beta }$. Our results of a steepening of the ScEM profiles is in agreement with a study of Vikhlinin et al. (1999). These authors fitted beta-models in the outer parts of clusters and found systematically higher ${\beta }$'s with respect to fits performed taking the cluster centers into account.

We have seen that the slope of the ScEM profile in the outer parts is quite likely steeper than the beta-model with $\beta=0.80$. We can calculate the ICM density profile and subsequently the M200-T relation taking the power law model (Eq. (23)) used to fit the surface brightness profile:

 \begin{displaymath}% n(r) \propto r^{-(\alpha+1)/2} \end{displaymath} (32)


 \begin{displaymath}% M_{200} = 7.4 \times 10^{12} \times (\alpha+1)^{3/2} \left(\frac{kT}{{\rm keV}}\right)^{3/2}~M_\odot. \end{displaymath} (33)

As one can easily see, a higher value for $\alpha$ translates in a higher normalization of the M-T relation.

We observe that the ScEM profile drops more rapidly than the beta-model with $\beta=0.8$ at radii larger than  0.8 r200. Power law fits in the outer parts give a power law index $\alpha \ge 4.3$. Taking $\alpha =4.3$ we find a normalization of the M-T relation of 12.6 (see Eq. (33)), which is in very good agreement with the value of 12.4 found by Bryan & Norman (1998). We will come back on the issue of the slope in the next section.

6.5 Indications for instabilities at large radii

Recently, analyzing a sample of nearby clusters observed with XMM-Newton, Pointecouteau et al. (2005) (see also Pointecouteau et al. 2004) have found that the matter profiles in clusters fit very well the NFW-profile (Navarro et al. 1996, 1997), which has the density distribution

\begin{displaymath}% \rho(r) = \frac{\rho_0}{(r/r_{\rm s})(1+r/r_{\rm s})^2}\cdot \end{displaymath} (34)

The results found by Pointecouteau match results based on Chandra data (Arabadjis et al. 2002, 2004; Buote & Lewis 2004; Lewis et al. 2003).

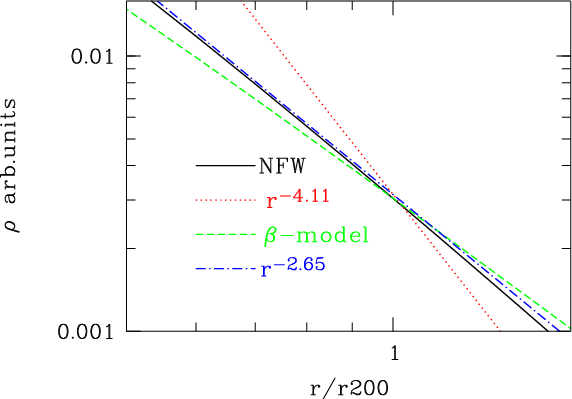

  \begin{figure} \par\includegraphics[width=8.1cm,clip]{3015fig9.ps}\end{figure} Figure 9: Different density profiles in arbitrary units normalized to the same value at r=r200. Since the NFW profile and the profile representing r-2.65 have such an identical shape we choose a small offset between the two curves at r200 to enhance the visibility of the plot. The line r-2.65 represents the shallowest density profile, which is in agreement with our power law fits on the ScEM profiles in the external cluster parts. The curve with r-4.11 represents the density distribution which originates from the best power law fit to the ScEM profile averaged over all clusters in the outer regions with ${\it ScEM}(r) \propto r^{-7.22}$ (see also Table 5).
Open with DEXTER

There is general agreement between observations and simulations (Dolag et al. 2004) that the concentration parameter $c = r_{200}/r_{\rm s}$ is approximately 6, which implies that $r_{\rm s}=0.16{-}0.17 r_{200}$. We show in Fig. 9 the density distribution of the NFW-profile, assuming $r_{\rm s}=0.16$ and compare it with a beta-model slope with $\beta=0.8$, and a slope with r-4.11, which corresponds to the density profile inferred from the best fit power law in the outskirts averaged over all ScEM profiles (see Table 5). We also show in Fig. 9 r-2.65, which corresponds to the density fall-off of the ICM if $S=r^{-\alpha}$, with $\alpha =4.3$, which is our lower limit at r200 (see also Sect. 6.4). As one can see in this figure, the slope of r-2.65 is parallel to the NFW density profile around r200. Therefore it is not unlikely that the X-ray emitting ICM density falls off more rapidly close to r200 than predicted from the NFW profile for cold dark matter. How can we interpret this result?

At some radius in the outskirts of clusters a strong temperature gradient must occur, since we know from COBE results (Smoot et al. 1991) that the material surrounding a cluster has a temperature of roughly 3 K. The ICM drops from a few 107-108 K down to a few K within a short radial range. This large temperature gradient makes the ICM convectively unstable and as a result the cold material from the outskirts and the hot ICM mix. This mixing is enhanced by accretion of cold material from the cluster outskirts. This very likely causes that the ICM at large radii is not anymore in hydrostatic equilibrium. It is very likely that our result reflects this scenario. We only see the hot ICM emitting in X-rays, but we do not see cooler material or in general gas, which is below a temperature of about 107 K. It is therefore likely that the total baryon fraction in the outskirts is similar to the one observed closer to the cluster center. However, at larger and larger radii the hot phase becomes less and less important and cooler components not emitting in X-rays contribute more and more to the total baryon budget. It is currently not clear how the different phases mix in detail and how effective heat conduction is in this respect. More detailed studies on cluster outskirts similar to the study presented here are necessary to give quantitative numbers. For this it is important to have the temperature information of the ICM at radii  $\gg r_{500}$. Unfortunately, this is currently very difficult to obtain. One would need a very high throughput X-ray observatory with good energy resolution, low instrumental background and large field-of-view (FOV) to do this kind of study. XMM-Newton and Chandra unfortunately do not have sufficiently low internal background at high energies and provide only a limited FOV to fulfill these requirements. Maybe more distant clusters which fit in the FOV of XMM-Newton and Chandra can be used for a stacking method to constrain the temperature distribution of the ICM at large radii.

7 Summary and conclusion

In the study presented here we looked at a sample of 14 nearby clusters of galaxies in the redshift range 0.06<z<0.1 with low galactic absorption for which good temperature measurements are available in the literature. For each cluster we calculate the emission measure profile scaled to r200 and apply the spherical collapse model (Eke et al. 1996; and Bryan & Norman 1998). We divide the clusters in subsamples which represent different temperature intervals. In order to enhance the statistics, especially in the cluster outskirts, we stack the profiles of clusters belonging to the same subsample together. Comparing the different scaled and stacked emission measure (ScEM) profiles we find the following results:

1.
The scaled emission measure profiles are not self-similar in the center, however, in a logarithmic representation the different profiles are parallel in the range 0.1 r200<r<0.4 r200. The difference of the profiles can be approximated with ${\it ScEM}\propto T$ which implies a gas density $n \propto \sqrt{T}$. This is in agreement with entropy studies, which find generally $S \propto T^{0.65}$ (Ponman et al. 2003; Pratt & Arnaud 2003, 2005). The fact that the different ScEM profiles are parallel up to r<0.4 r200 suggests that the difference of the S-T relation, which defines the offset of the profiles with respect to each other is strongly coupled to the ICM density itself. The only currently recognized mechanism which links the ICM density to the observed S-T relation is radiative cooling.

2.
We find that about 90% of the X-ray emission of clusters comes from the region encompassing r<0.4 r200. Therefore this central region is primarily responsible for the observed X-ray luminosity. The deviation of the ScEM profiles from self-similarity in the centre which is responsible for the observed S-T relation explains also the observed $L_{\rm X}-T$ relation $L_{\rm X} \propto T^3$ (Edge & Stewart 1991; Allen & Fabian 1998; Markevitch 1998; Arnaud & Evrard 1999), which deviates from simple expectations based on structure formation and gravity.

3.
At radii r>0.4 r200 the different cluster profiles agree well within the error bars, which suggests self-similarity. This implies that global cluster properties defined at large radii, such as the M-T or R-T relation follow the theoretical scaling of $M \propto T^{3/2}$ and $R\propto \sqrt{T}$.

4.
Fitting beta-models to the overall stacked profiles we find generally $\beta=0.8$, which is higher than the canonical value of $\beta=2/3$, which is often observed. The found higher value of ${\beta }$ translates into the need of a higher normalization of the M-T relation with respect to previous studies. Assuming isothermality up to large radii we find a normalization of the M-T which is only 10% lower than the relation based on numerical simulations found by Bryan & Norman (1998).

The beta-model is generally a better representation of the hotter than of the cooler clusters. We find relatively poor agreement between the beta-model and the ScEM profiles in the central parts ( $r \le 0.15 r_{200}$) of cool clusters. Simple scaling laws predict that the emission measure scales with $EM \propto \sqrt{T}$. This effect causes that cooler clusters have systematically smaller detection radii with respect to r200 than hotter clusters. The bad representation of the X-ray profiles of the central parts of cool clusters and $EM \propto \sqrt{T}$ are quite likely the reasons why previous studies looking at individual cluster profiles found a correlation of increasing ${\beta }$ with increasing temperature.

5.
The ScEM profiles are systematically below the best-fit beta-model at radii r>0.8 r200, which implies a steepening of the X-ray profiles with radius. Fitting power laws to the external parts of the ScEM profiles, we find steeper profiles than predicted from the NFW-profile, which fits observed cluster density profiles well up to r500. We argue that this steepening of the observed profiles is caused by the fact that at radii close to r200 the ICM is not anymore in hydrostatic equilibrium, as predicted from numerical simulations. At these large radii the X-ray emitting ICM is mixed very likely with cooler material accreted from larger radii. This multiphase gas causes that part of the baryons are not anymore detected in X-rays.
Our cluster sample spans over the temperature range 1.7 keV <kT<8.5 keV, however only one cluster has a temperature below 2 keV and only one cluster is above 8 keV. Therefore our dynamic range in temperature is limited. We can therefore currently not exclude that small groups with temperatures below 1 keV or rich clusters above 9 keV show a different behaviour.

Acknowledgements
The author would like to thank to the anonymous referee for constructive comments and fast replies.
The author wishes is greatful to M. Arnaud, R. Teyssier, F. Motte and E. Pointecouteau for useful discussions and is thankful to Y. and I. Maazi, W. Neumann and M. S. Schweinderle for their patience and support. The author would also like to thank M.-P. Genebrias for stimulating advice.
This research has made use of the NASA/IPAC Extragalactic Database (NED) which is operated by the Jet Propulsion Laboratory, California Institute of Technology, under contract with the National Aeronautics and Space Administration. This research has made also use of the X-Rays Clusters Database (BAX) which is operated by the Laboratoire d'Astrophysique de Tarbes-Toulouse (LATT), under contract with the Centre National d'Études Spatiales (CNES). Also: this research has made use of NASA's Astrophysics Data System.

References


Copyright ESO 2005
