A&A 438, 341-348 (2005)
A. A. Kuznetsov
Institute of Solar-Terrestrial Physics, Irkutsk, Russia
Received 17 January 2005 / Accepted 16 March 2005
The processes of generation and nonlinear interaction of Bernstein modes are investigated. The physical conditions considered correspond here to the sources of microwave bursts with a zebra pattern. It is shown that the simultaneous generation of plasma waves corresponding to several cyclotron harmonics is possible under these conditions. Nonlinear coupling of plasma waves results in formation of a zebra pattern with a frequency separation between the adjacent stripes close to the electron cyclotron frequency. The emission is confined in the narrow angle interval near the transversal (relative to the magnetic field) propagation direction. Polarization of emission in this process corresponds to the extraordinary wave, and the polarization degree reaches 100%.
Key words: radiation mechanisms: non-thermal - Sun: flares - Sun: radio radiation
Using the Siberian Solar Radiotelescope (SSRT) and the spectropolarimeters of the National Astronomical Observatories of China (NAOC), we at the first time managed to detect a zebra pattern in the microwave range (near 5.6 GHz) with high spatial resolution (down to 10''). This event is described in detail in the article by Altyntsev et al. (2005). Figure 1 shows the dynamic spectrum and the emission temporal profiles of the burst with zebra pattern. This zebra pattern was observed both by the SSRT and by the NAOC spectropolarimeters in the emission with right circular polarization only, which suggests high (up to 100%) circular polarization degree.
A comparison with the magnetogram shows that the emission source is situated above the region with the northern polarity magnetic field; thus the polarization sign corresponds to the extraordinary wave (X-mode) emission. This is quite an unexpected conclusion, so we investigated the possibility of polarization reversal. The observed polarization sign can differ from the polarization in the source if the emission crosses regions of quasi-transversal magnetic field or neutral current sheets during propagation from the source to the Earth (Zheleznyakov 1997). But reconstruction of the magnetic field structure from the magnetogram (Rudenko 2001) shows that in this event the observed zebra pattern emission does not cross the regions where polarization reversal can take place; therefore the high polarization degree, corresponding to the X-mode, is formed in the emission source.
Direct measurements with the SSRT show that the emission source size is less than 10'' and the sources of different zebra stripes spatially coincide. But the dynamic spectrum properties suggest even an stricter limitation on the source size. Indeed, the different zebra stripes have a very similar temporal evolution (including the simultaneous sudden onset of the frequency drift seen in Fig. 1), which requires a simultaneous change of source parameters, such as plasma density and magnetic field, in all parts of the source. The observed time delay of the frequency drift onset of different zebra stripes is not more than 50 ms; multiplying this value by the Alfven velocity, that is, the velocity of the fastest disturbances affecting the magnetic field and plasma density in the magnetized plasma, results in a source size not more than one thousand km even for the upper estimations of the Alfven velocity.
Among the mechanisms that were proposed for interpreting zebra patterns, the compact source and mainly extraordinary wave can be explained by the process of nonlinear coupling of Bernstein modes harmonics (Zheleznyakov & Zlotnik 1975b; Mollwo & Sauer 1977). The most complete investigation of this process has been done in the works of Willes & Robinson (1996) and Willes (1999), but with application to relatively low cyclotron harmonics. At the same time, in the microwave zebra pattern (Fig. 1) the ratio of frequency interval between the adjacent zebra stripes to the emission frequency is , which corresponds to the coalescence of Bernstein mode harmonics with numbers around 17-18.
The purpose of this work is to investigate the processes of generation and nonlinear interaction of Bernstein modes with application to conditions typical of the source of the microwave zebra pattern (Altyntsev et al. 2005).

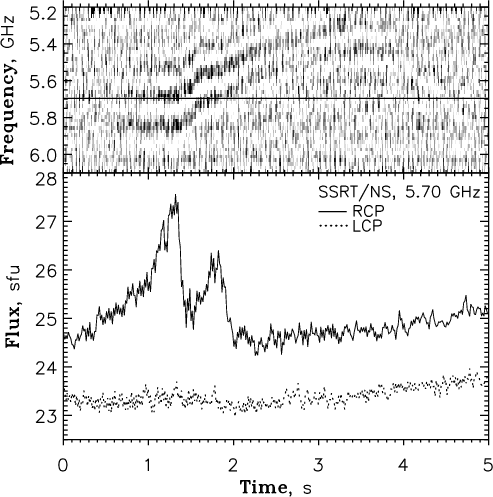

|Figure 1: Top: NAOC dynamic spectrum with zebra pattern, recorded on January 5, 2003. Bottom: the corresponding temporal profiles of emission with right (RCP) and left (LCP) circular polarization at 5.70 GHz, recorded by the SSRT.|
|Open with DEXTER|
The dispersion equation for the longitudinal plasma waves propagating
perpendicular (or almost perpendicular) to the ambient magnetic
field has the form (Zheleznyakov & Zlotnik 1975a; Zheleznyakov

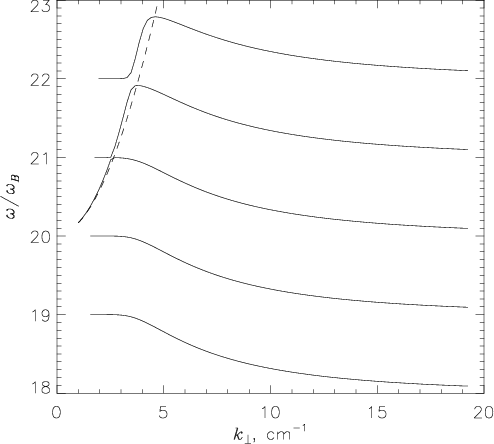

|Figure 2: Dispersion curves of longitudinal plasma waves. The parameters of plasma and magnetic field are given in Table 1. The dashed line shows the dispersion curve of upper-hybrid waves - the oscillation branch with normal dispersion law .|
|Open with DEXTER|
Equation (1) was obtained under the nonrelativistic
approximation that is not valid within narrow frequency intervals
below harmonics of cyclotron frequency
It will be shown below that
under these conditions the frequency of generated Bernstein modes
differs sufficiently from the integer harmonics of cyclotron frequency,
so the dispersion Eq. (1) is valid. In addition, the
Table 1: The parameters of plasma, magnetic field, and accelerated particles used in the work.
For the positive growth rate of plasma waves the presence of a region with
positive slope on the distribution function (
is necessary. Let the distribution
function be in the form

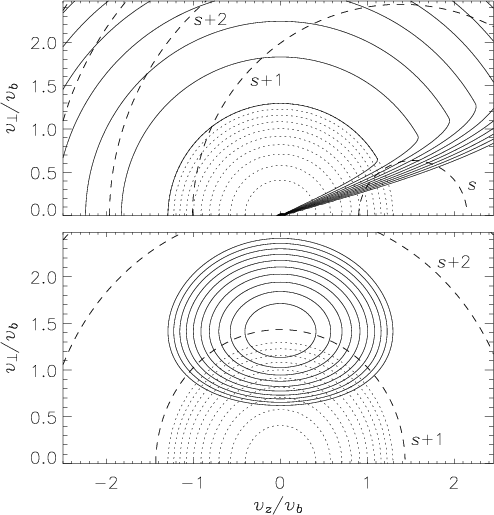

|Figure 3: Model distribution functions of accelerated electrons with loss-cone type ( top) and ring beam type ( bottom). The dashed lines show the resonance curves corresponding to the maximal growth rate for the Bernstein mode with frequency at different values of cyclotron harmonic number l. The dotted contours show the distribution of background plasma electrons.|
|Open with DEXTER|
Calculations show that the generation of high harmonics of Bernstein modes by the electron distribution of loss-cone type is ineffective. In this case the resonance curve passes through the region of positive slope on the distribution function (see Fig. 3) only for the waves that have essentially a nonzero longitudinal component of wave vector . For these waves condition (2) is not satisfied and Landau damping becomes important; in other words, other resonance curves make too strong a negative contribution to the sum over harmonics of cyclotron frequency.
The more effective source of Bernstein modes is the so-called ring beam
with maximum at
This distribution can be simulated by the formula (Dory et al.

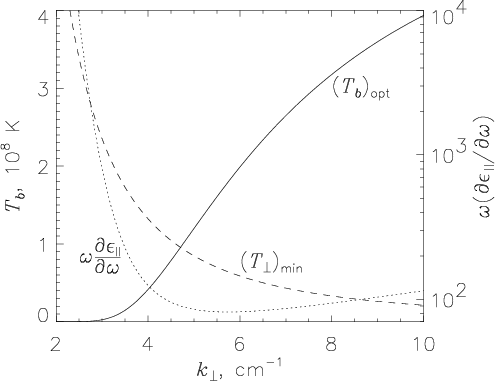

|Figure 4: Necessary conditions of Bernstein modes generation. The curve marked shows the required typical temperature of accelerated electrons, obtained from the Eq. (8); the dashed curve shows the required minimal value of the transversal component of electron temperature, derived from Eq. (9). The dependence of these values on the wave vector are calculated for the harmonic s=19, and the parameters of plasma and magnetic field given in Table 1. The dotted line shows the corresponding values of the parameter .|
|Open with DEXTER|
Another condition arises from the properties of the Bessel function that is
contained in expression (4). The parameter
(the argument of Bessel function) in
the resonance region must coincide with a maximum for function
otherwise corresponding regions will not make a significant contribution to
the growth rate. For sufficiently high harmonics (
this requirement is reduced to

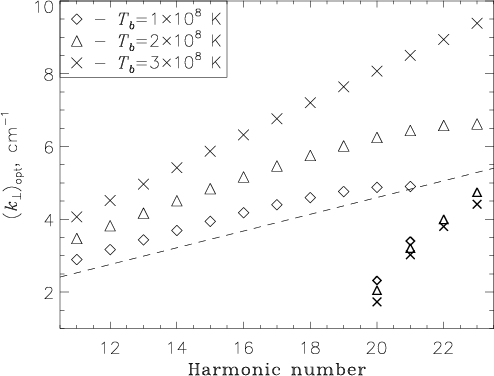

|Figure 5: Necessary conditions of Bernstein modes generation: the dependence of the typical wave vector on the harmonic number for the different values of the accelerated electrons temperature. The parameters of plasma and magnetic field are given in Table 1. The dashed line, corresponding to the minimal possible value of the wave vector (9), is drawn for K. In the right bottom corner of the figure the points are shown, corresponding to the branch of oscillations with normal dispersion law.|
|Open with DEXTER|
Figure 5 shows the typical values of wave vectors of the Bernstein modes that are generated by electrons with different energy. When analysing the generation of zebra pattern, the question is important: which modes of plasma waves will be predominantly generated under the given conditions? It is seen from Fig. 2 that for the formation of zebra pattern the generation of several harmonics of waves with anomalous dispersion law is necessary. At the same time, the upper-hybrid waves (the waves with normal dispersion law) have a much higher growth rate (Zheleznyakov & Zlotnik 1975a). It then follows from Fig. 5 that at electron energy about 108 K and background plasma temperature T0=107 K the condition of generation (9) is not satisfied for the upper-hybrid waves. Therefore the energy of the unstable electron distribution will be distributed among the harmonics of plasma waves with an anomalous dispersion law.
In Fig. 6 the maximal growth rates of plasma waves for different harmonics s are shown. With an increase of harmonic number, the growth rate decreases; nevertheless the growth rates of different harmonics are comparable. The frequency interval between the waves of adjacent harmonics is close to the electron cyclotron frequency . Note in addition that the frequencies of plasma waves can significantly differ from the integer harmonics of cyclotron frequency ; the difference is about , where is the typical velocity of electrons generating those waves.

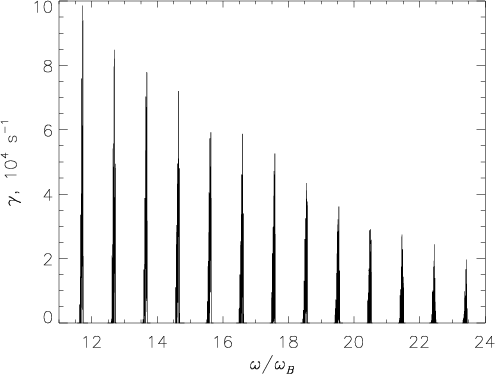

|Figure 6: Dependence of the growth rate of Bernstein modes on frequency for the transversal propagation. The parameters of plasma and magnetic field are given in Table 1.|
|Open with DEXTER|
In Fig. 7 the dependence of the growth rate on the wave parameters is shown in detail; here is the angle between the wave vector and the magnetic field. The complicated shape of the dependence arises from the oscillating behaviour of function in the resonance region. Note in addition that the plasma waves are confined in the narrow angular interval, less than , which agrees with condition (2). This peculiarity causes the narrow angular spectrum of the generated radioemission.
|Figure 7: The dependence of the growth rate of Bernstein modes on the wave vector and the propagation direction for the harmonic s=19.|
|Open with DEXTER|
Second, for the longitudinal (parallel to the magnetic field)
components of the wave vectors of the interacting waves the relation
is satisfied, where
are the longitudinal components of wave vectors of Bernstein
modes which correspond to the largest possible deviation from the
transversal propagation. This results in the limitation of the angular
spectrum width of the generated radio emission:
The spectral intensity of the radioemission, observed at the Earth,
under the optically thin source approximation is
We consider the case of weakly anisotropic plasma, and also it is assumed that the emission frequency significantly exceeds the extraordinary wave cutoff point. Under these conditions the dispersion properties of ordinary and extraordinary electromagnetic waves are similar, and the appearance of the high polarization degree is hard to expect. An exception is the case of quasi-transversal propagation, when the polarization of electromagnetic waves becomes linear; in the ordinary wave the electric field vector is parallel to the ambient magnetic field, and in the extraordinary wave the electric field vector is perpendicular to the ambient magnetic field.
Let us consider the situation when all of the interacting waves, including both the Bernstein modes and the electromagnetic wave, propagate exactly across the magnetic field. Bernstein modes are almost longitudinal waves; therefore in the coordinate system with axis z parallel to the ambient magnetic field (Fig. B.1), the components a'z and a''z of the polarization vectors of the interacting plasma waves equal zero. The polarization vector of the ordinary electromagnetic wave propagating perpendicular to the magnetic field has the form , |az|=1; for the extraordinary wave one obtains , |ax|2+|ay|2=1. In the considered coordinate system the components of the plasma nonlinear conductivity tensor , as the perpendicular to the magnetic field components of the electric field do not affect the electron motion in the direction parallel to the magnetic field. It is easy to see that under these conditions the convolution S (15) and, consequently, the three-wave process probability for the ordinary wave equal zero; on the contrary, for the extraordinary wave the three-wave process probability has nonzero values. Thus for the quasi-transversal propagation the generation conditions for the extraordinary wave are much more favorable than for the ordinary one, and the degree of polarization can reach 100%.
In the weakly anisotropic plasma the quasi-transversal approximation for the electromagnetic waves propagation is valid only within a very narrow angle interval (Zheleznyakov 1997). Therefore for the plasma waves with a relatively broad angular distribution the effect above described can be neglected (Stepanov et al. 1999). On the contrary, it has been shown above that for the interaction of Bernstein modes the kinematic conditions of coupling (10) are satisfied only for the angular interval of emission propagation where the quasi-transversal approximation is valid.
For more accurate estimation of the radio emission parameters we use expression (C.1) for the plasma nonlinear conductivity tensor (Trakhtengerts 1970). This expression was obtained under the quasi-hydrodynamic approximation, and it is applicable for the weakly-damped oscillations of various types in the anisotropic medium.
The energy density distribution of Bernstein modes in the space of wave
vectors is described by the following model:
The numerical simulation results for the process of Bernstein modes nonlinear
interaction are shown in Figs. 8-11. In Fig. 8 the maximal transformation coefficient of plasma waves energy
into electromagnetic waves
the different harmonics is shown. The energy transformation efficiency
increases with an increase of the harmonic number. Note in addition that
the efficiency of emission generation due to coalescence of the adjacent
harmonics of Bernstein modes (
s''=s'+1) is comparable with the efficiency
of emission generation in the case of coalescence of waves with the same
harmonic number (s''=s'). Thus the frequency interval between the adjacent
stripes in the zebra pattern will be close to the electron cyclotron
frequency. The simulations show that the efficiency of emission generation
decreases sharply for the case

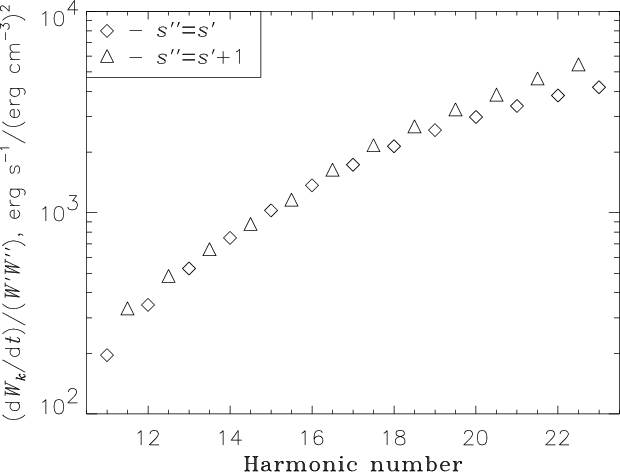

|Figure 8: The transformation coefficient of the energy of Bernstein modes into the electromagnetic waves, for the different numbers of merging harmonics. The maximal transformation coefficient is shown, which corresponds to the transversal propagation of emission and extraordinary wave. The case s''=s' corresponds to the coalescence of waves of the same type; s''=s'+1 corresponds to the coalescence of waves of adjacent harmonics.|
|Open with DEXTER|

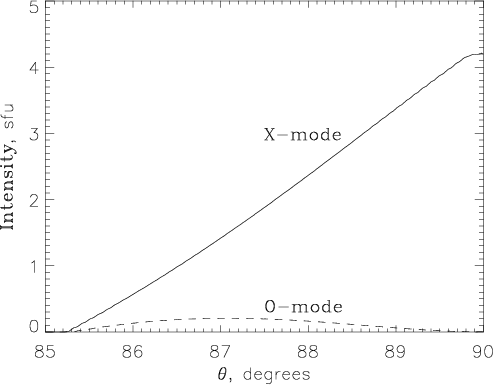

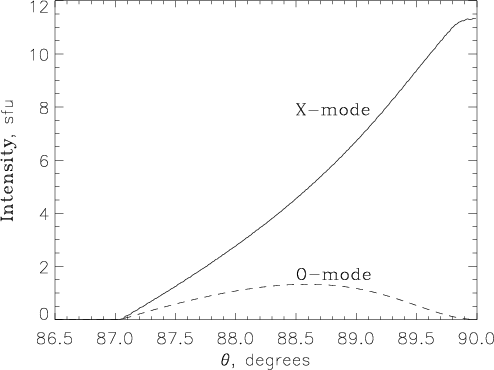

|Figure 9: The angular dependence of the spectral intensity of different modes of emission (at the distance of the Earth orbit radius), that is generated due to coalescence of Bernstein modes with the harmonic numbers s'=s''=11. Plasma waves energy density W'=0.01 , emission source size .|
|Open with DEXTER|
Examples of calculation of the intensity observed at the Earth of radio emission of different modes, where the possible damping and scattering during propagation are not taken into account, are shown in Figs. 9 and 10. Based on observations, the size of emission source is assumed to be about one thousand km; the required energy density of Bernstein modes in this case is 10-3-10-2 . These values are rather small in comparison to the energy density of the background plasma or of the accelerated electrons: ; .
It has been already noted that emission in the generation region is confined within the narrow angle interval, and the intensity maximum corresponds to the transversal to the magnetic field propagation direction. It is seen from the figures that the coalescence of Bernstein modes results in generation of a mainly extraordinary wave, and the polarization degree equals 100% for the transversal propagation direction. With deviation from the transversal propagation the polarization degree decreases somewhat; nevertheless it remains high for most of the angular interval of generation.
The frequency spectrum of emission (Fig. 11) that is generated due to coalescence of Bernstein modes is rather narrowband: at the level of the maximal intensity. The observed spectral width of the microwave zebra pattern stripes is somewhat larger, possibly caused by inhomogeneities of the magnetic field and plasma in the emission source.

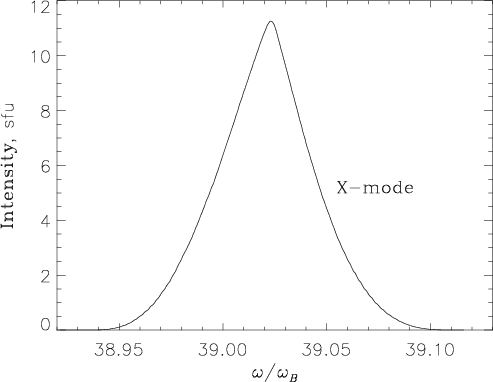

|Figure 11: Frequency dependence of the radio emission intensity for the same parameters as in Fig. 10. The maximal intensity is shown, which corresponds to the transversal emission propagation and extraordinary wave.|
|Open with DEXTER|
The transformation coefficient of the energy of Bernstein modes into electromagnetic waves increases with an increase in harmonic number (Fig. 8). This effect can limit the frequency of the observed stripes of zebra pattern from below; besides, the conditions of escape of the emission from plasma set the limitation . On the other hand, the generation efficiency of Bernstein modes decreases with an increase in harmonic number (Fig. 6). This effect limits the frequency of zebra pattern stripes from above. The estimations show that even for the saturated generation regime, when the plasma wave energy density is proportional to the growth rate, the influence of the last effect is more essential; so one can expect generation of emission at the intermediate frequencies: slightly above the plasma frequency , but considerably below the double plasma frequency . In the event of January 5, 2003 the interval favorable for generation contains 2-3 harmonics of Bernstein modes which correspond to 3-4 stripes of the zebra pattern. Note in addition that the bursts with zebra pattern in the meter and decimeter ranges sometimes contain up to several tens of stripes; interpretation of these events using the mechanism considered is difficult and, probably, they have a different origin (Aurass et al. 2003; Zlotnik et al. 2003).
Under reasonable assumptions about the source size the energy density of individual harmonics of Bernstein modes, which is required for generation of a microwave zebra pattern with the observed intensity, is about 10-3-10-2 . By assuming that the fraction of energy that corresponds to each harmonic is proportional to the growth rate, the so-called saturated generation regime, we found that the total energy density of all harmonics under these conditions does not exceed 2-3% of the energy density of accelerated particles. This estimation includes the harmonics with number , which are not involved in generation of the observed emission and for which the growth rate reaches . In the non-saturated regime of plasma waves generation, the formation of zebra pattern requires additional mechanisms that limit the amplification of harmonics with numbers .
The emission generated due to interaction of Bernstein modes has high
directivity that decreases the probability of its observation on Earth.
However, one can expect that scattering on the small-scale plasma
inhomogeneities (with scale about radio emission wave length) during
propagation of emission from the source will result both in broadening of the
beam angular width and in averaging of the polarization degree.
In this case the polarization degree of the observed emission
can be estimated as
This work was supported by the RFBR (grant numbers 02-02-39030, 04-02-39003 and 03-02-16229) and by the Russian Department of Education (grant number E02-3.2-489).
is determined by (Melrose & Sy 1972;
Willes & Robinson 1996)

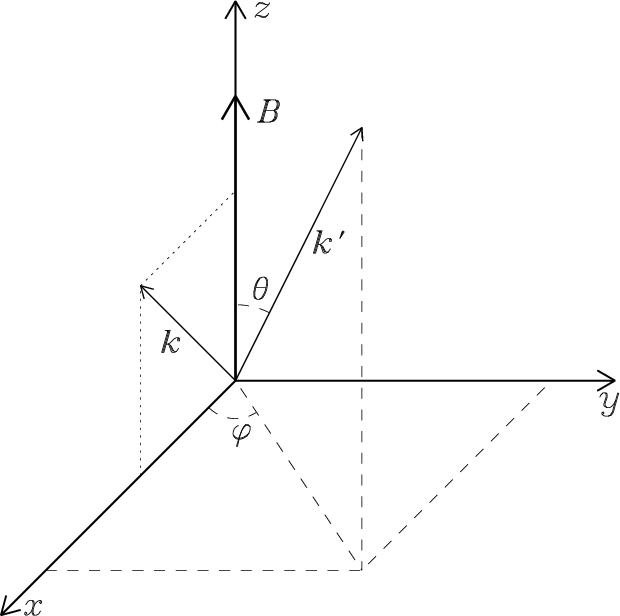

We consider the coordinate system (Fig. B.1) where (i) z axis is
directed along the magnetic field; (ii) x axis is perpendicular to the
magnetic field and lies in the same plane with the magnetic field vector
and the wave vector of the electromagnetic wave ;
and (iii) y axis is perpendicular to the vectors
In this system the wave vector of the electromagnetic wave takes the form
and the polarization vector of
the electromagnetic wave equals
If the azimuthal angle
is nonzero, then the above-mentioned
wave vector and polarization vector should be multiplied by the rotation
The tensor of plasma nonlinear conductivity used in this paper has the
following form (Trakhtengerts 1970):
By using the relations (B.1), the convolution S (15) can be
transformed to the form:
By using the properties of delta-function the integral (13) can be
reduced to the integral over the direction angles of the wave vector :
